  1. Figure 14.17b

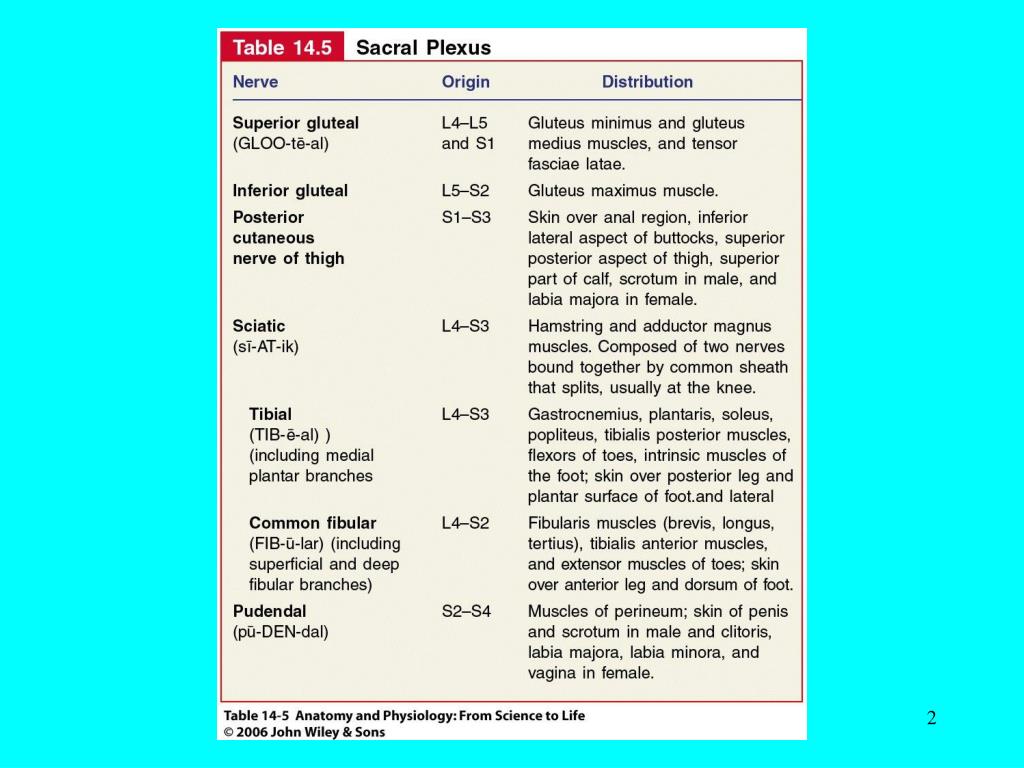

  2. Table 14.5

  3. Figure 14.18

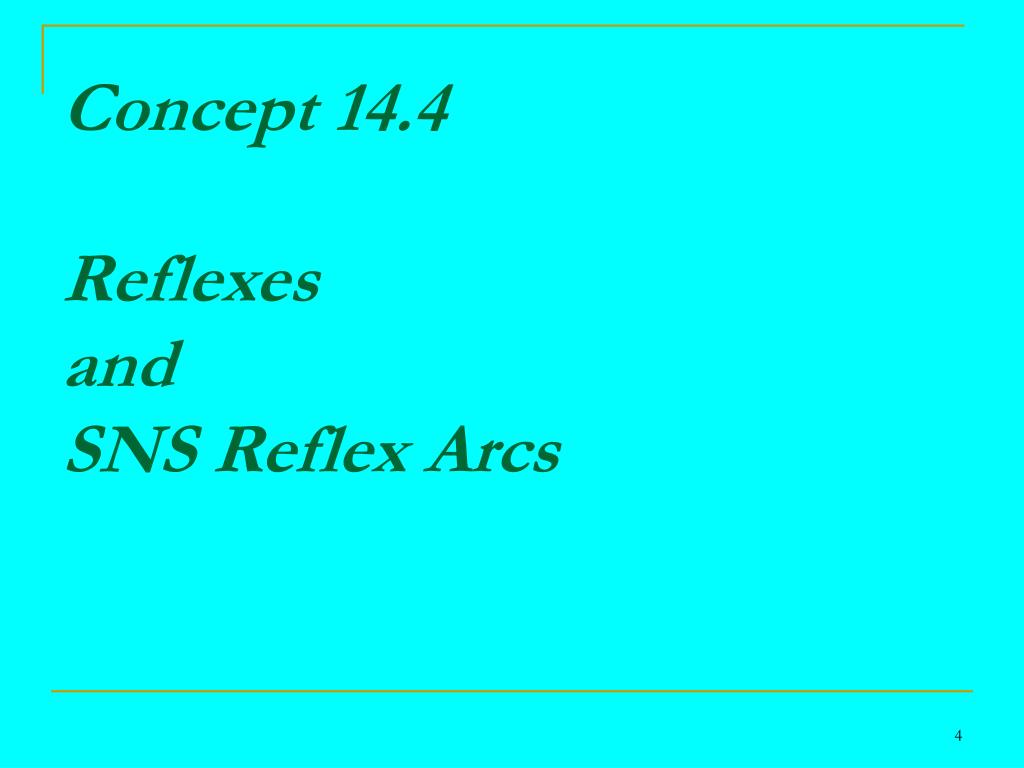

  4. Concept 14.4Reflexesand SNS Reflex Arcs

  5. Reflexes • somatic reflexes involve contraction of skeletal muscles • autonomic reflexes • not consciously perceived • responses of smooth muscle, cardiac muscle, and glands • reflex arc • pathway followed by nerve impulses that produce reflex • may be monosynaptic or polysynaptic

  6. Reflexes • fast involuntary, unplanned sequence of actions that occurs in response to a particular stimulus • some present from birth • some are learned or acquired • cranial reflex • integration occurs in brain • spinal reflex • integration occurs in spinal cord • SNS reflexes are always excitatory

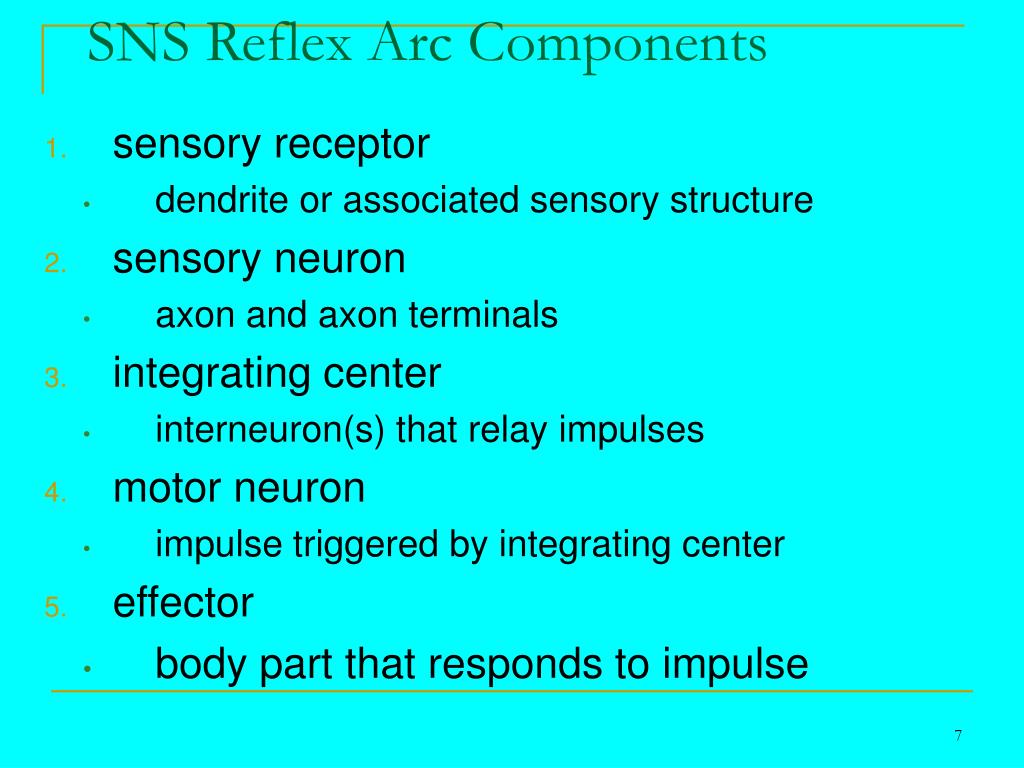

  7. SNS Reflex Arc Components • sensory receptor • dendrite or associated sensory structure • sensory neuron • axon and axon terminals • integrating center • interneuron(s) that relay impulses • motor neuron • impulse triggered by integrating center • effector • body part that responds to impulse

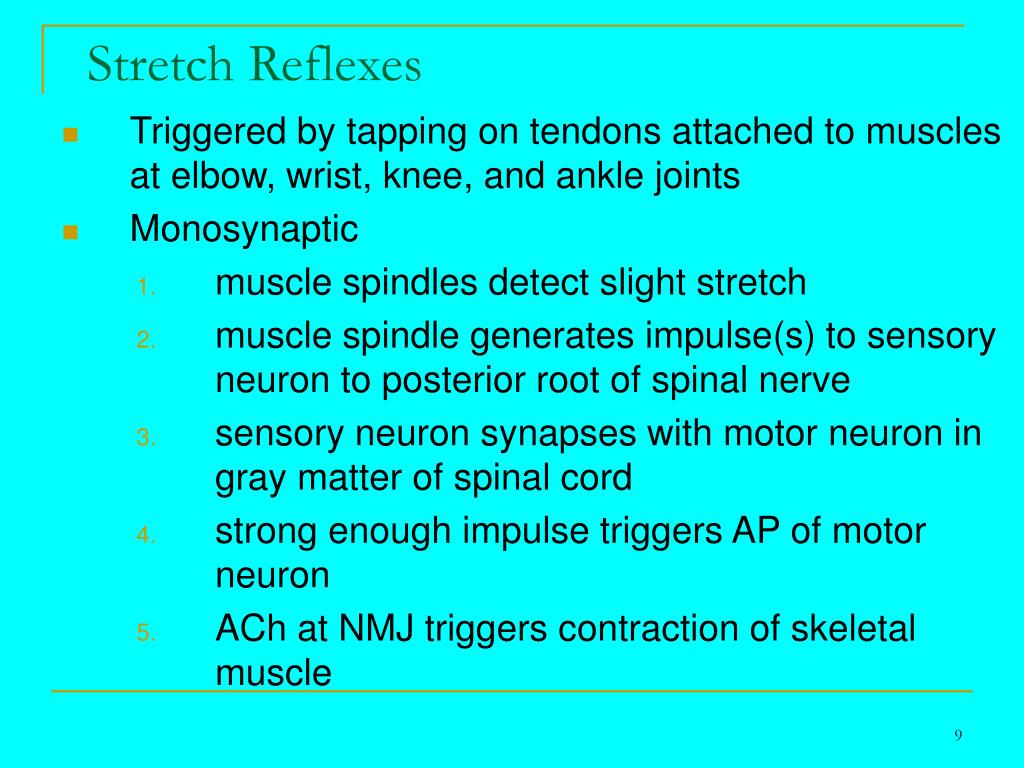

  8. Stretch Reflexes • Triggered by tapping on tendons attached to muscles at elbow, wrist, knee, and ankle joints • Monosynaptic • muscle spindles detect slight stretch • muscle spindle generates impulse(s) to sensory neuron to posterior root of spinal nerve • sensory neuron synapses with motor neuron in gray matter of spinal cord • strong enough impulse triggers AP of motor neuron • ACh at NMJ triggers contraction of skeletal muscle

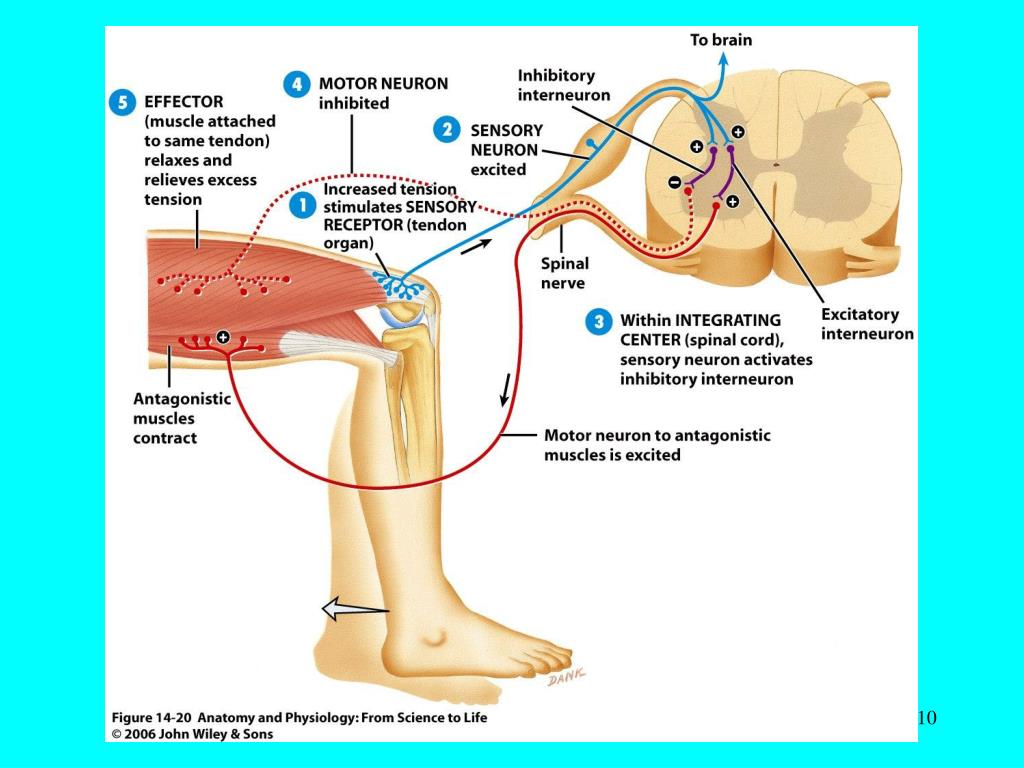

  9. Figure 14.20

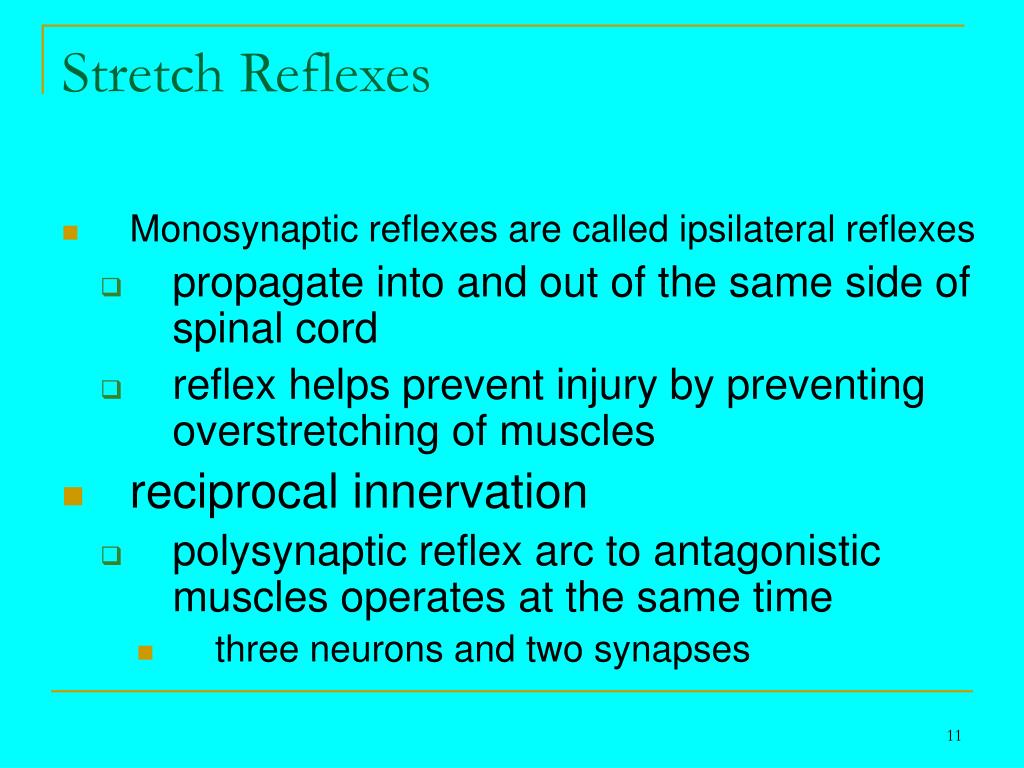

  10. Stretch Reflexes • Monosynaptic reflexes are called ipsilateral reflexes • propagate into and out of the same side of spinal cord • reflex helps prevent injury by preventing overstretching of muscles • reciprocal innervation • polysynaptic reflex arc to antagonistic muscles operates at the same time • three neurons and two synapses

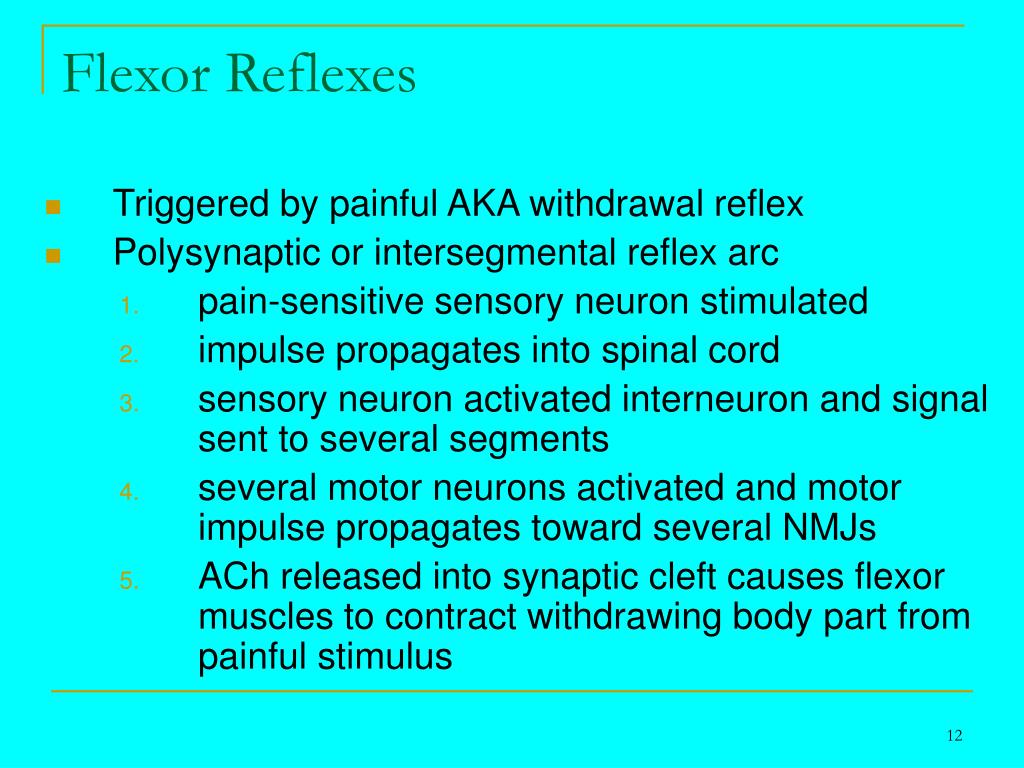

  11. Flexor Reflexes • Triggered by painful AKA withdrawal reflex • Polysynaptic or intersegmental reflex arc • pain-sensitive sensory neuron stimulated • impulse propagates into spinal cord • sensory neuron activated interneuron and signal sent to several segments • several motor neurons activated and motor impulse propagates toward several NMJs • ACh released into synaptic cleft causes flexor muscles to contract withdrawing body part from painful stimulus

  12. Figure 14.21

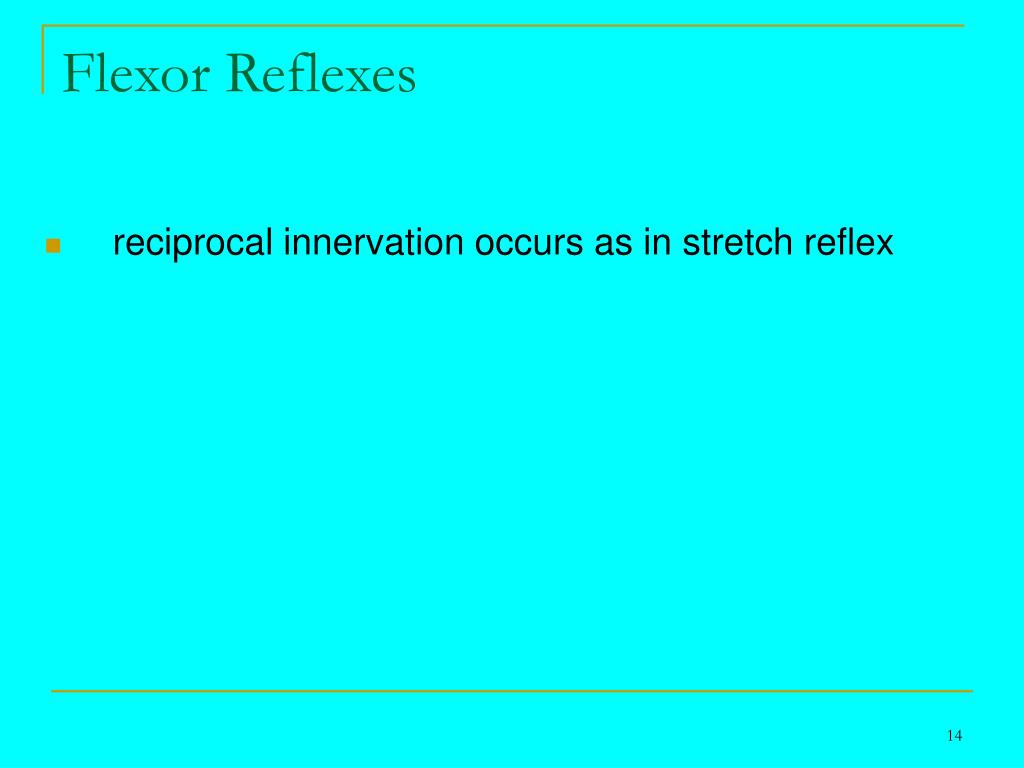

  13. Flexor Reflexes • reciprocal innervation occurs as in stretch reflex

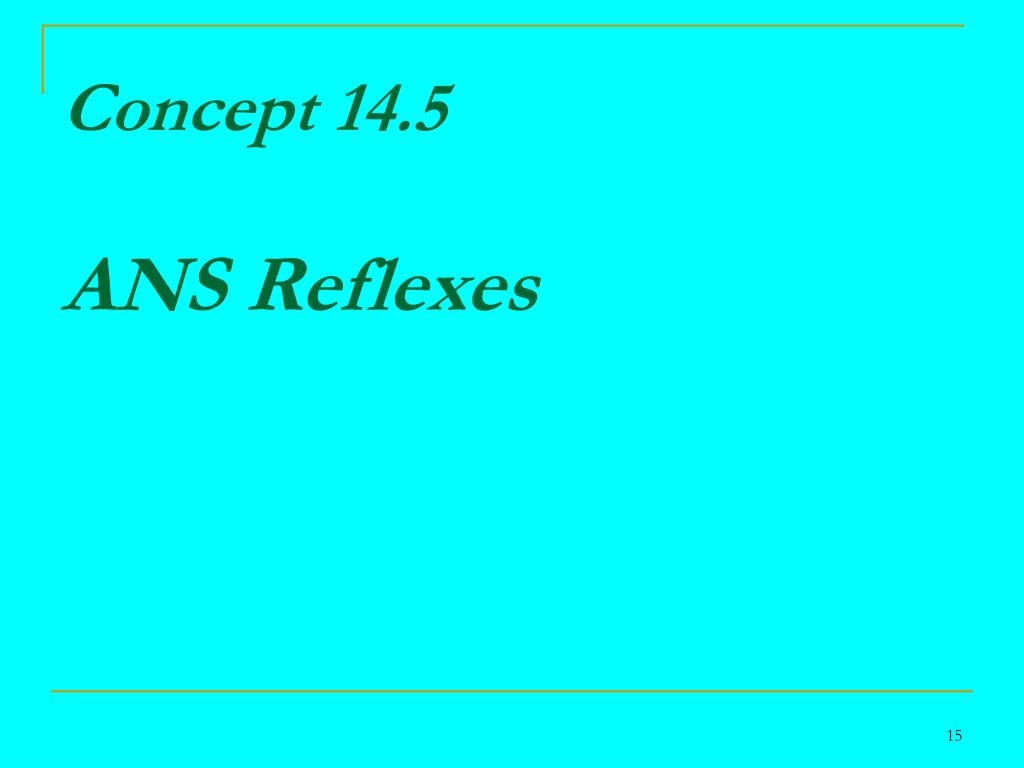

  14. Concept 14.5ANS Reflexes

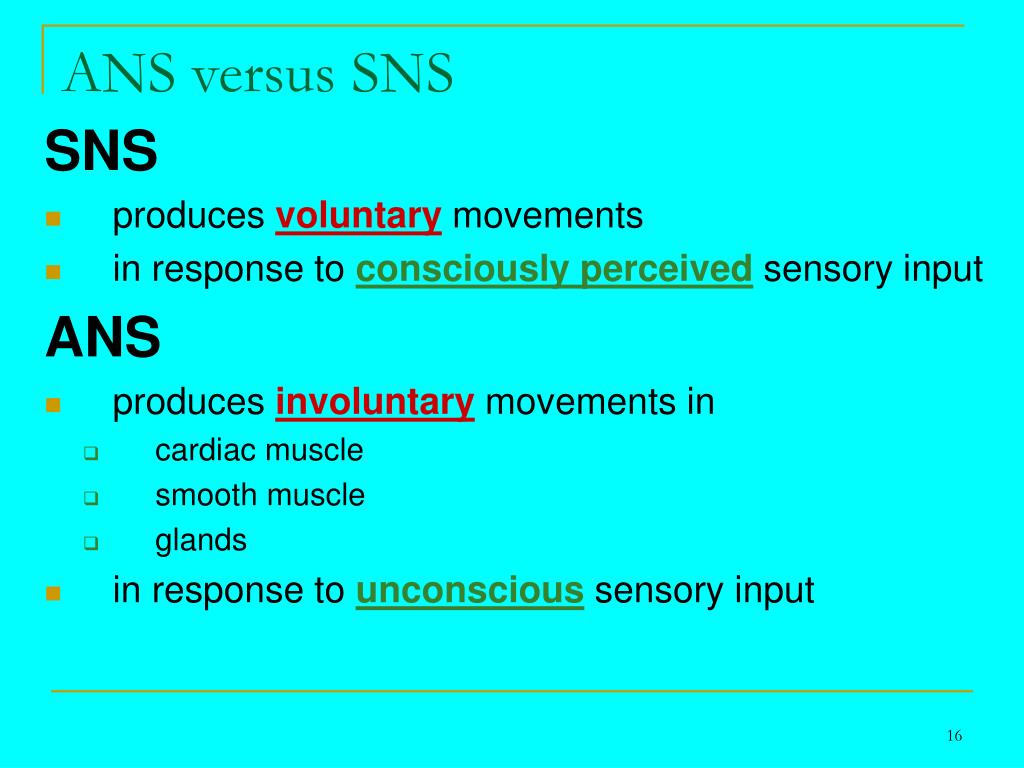

  15. ANS versus SNS SNS • produces voluntary movements • in response to consciouslyperceived sensory input ANS • produces involuntary movements in • cardiac muscle • smooth muscle • glands • in response to unconscious sensory input

  16. ANS Reflex Arcs • regulates activity of smooth, cardiac muscle, and many glands • continual flow of nerve impulses from autonomic sensory neurons in visceral organs and blood vessels propagates into integrating centers of CNS • impulses in autonomic motor neurons propagate to various effector tissues • can excite or inhibit activities of effector tissues • ANS activity is regulated by hypothalamus and brain stem of CNS

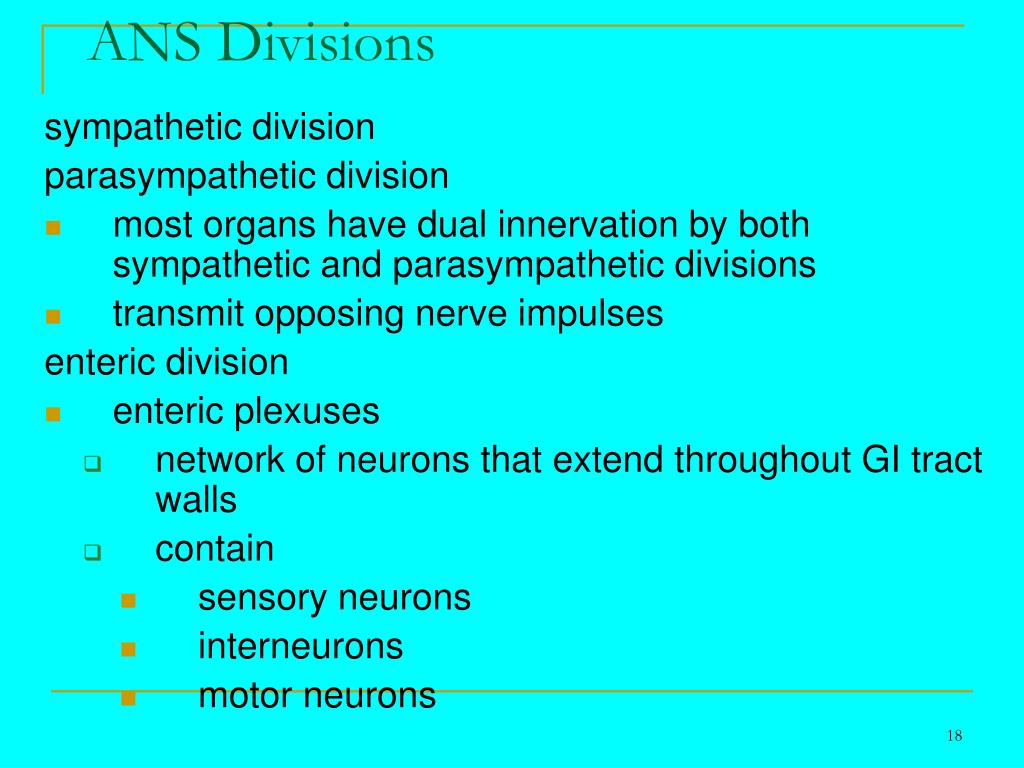

  17. ANS Divisions sympathetic division parasympathetic division • most organs have dual innervation by both sympathetic and parasympathetic divisions • transmit opposing nerve impulses enteric division • enteric plexuses • network of neurons that extend throughout GI tract walls • contain • sensory neurons • interneurons • motor neurons

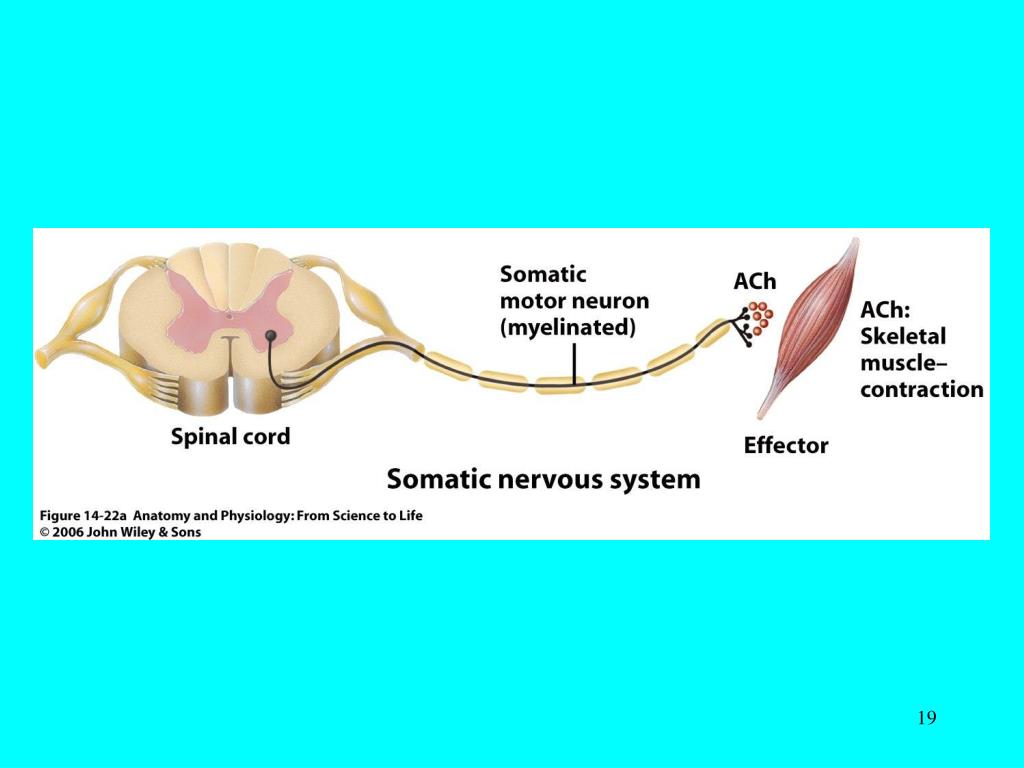

  18. Figure 14.22a

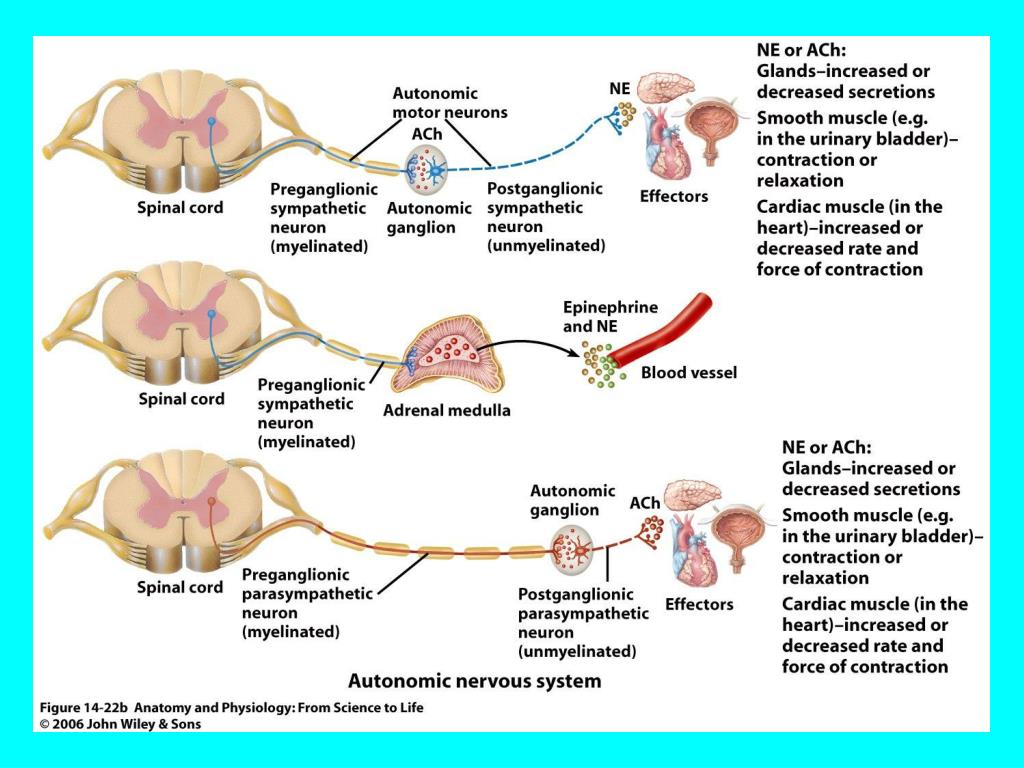

  19. Figure 14.22b

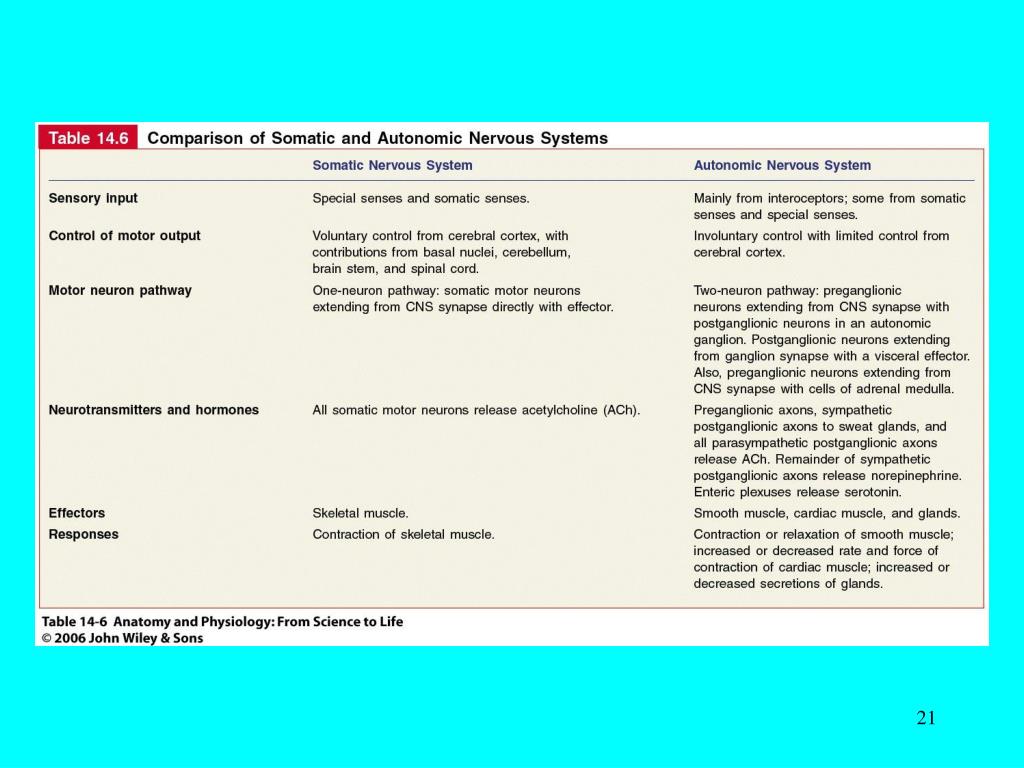

  20. Table 14.6

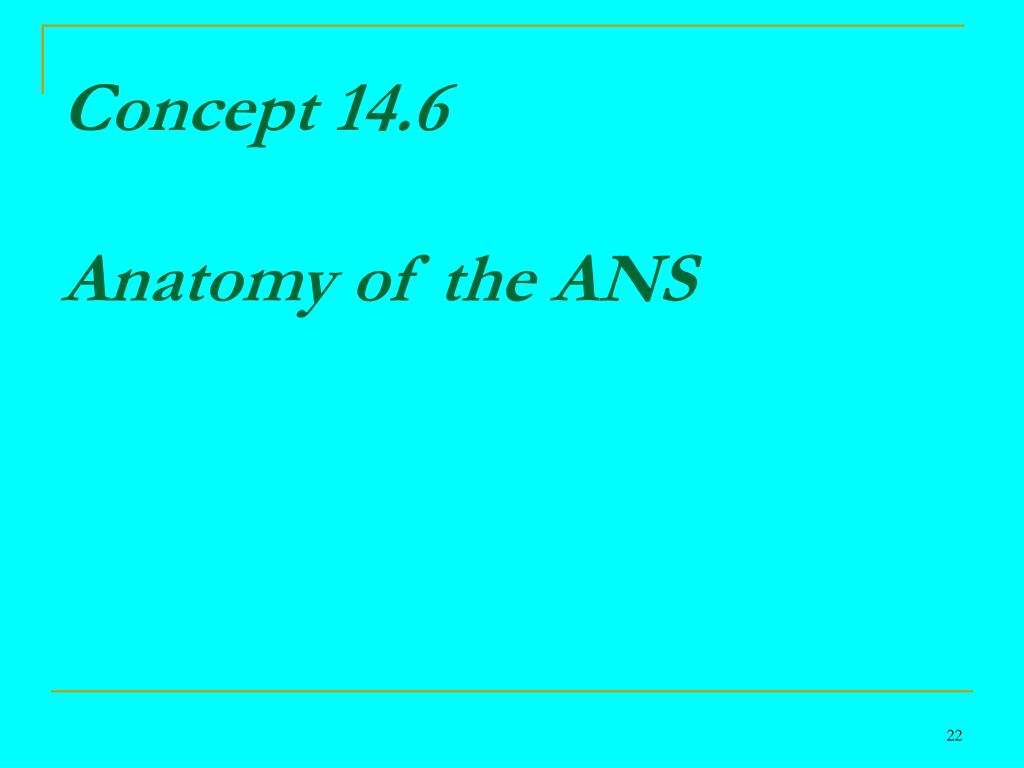

  21. Concept 14.6Anatomy of the ANS

  22. Components of ANS • Preganglionic Neurons • Autonomic Ganglia • Postganglionic Neurons • Effectors

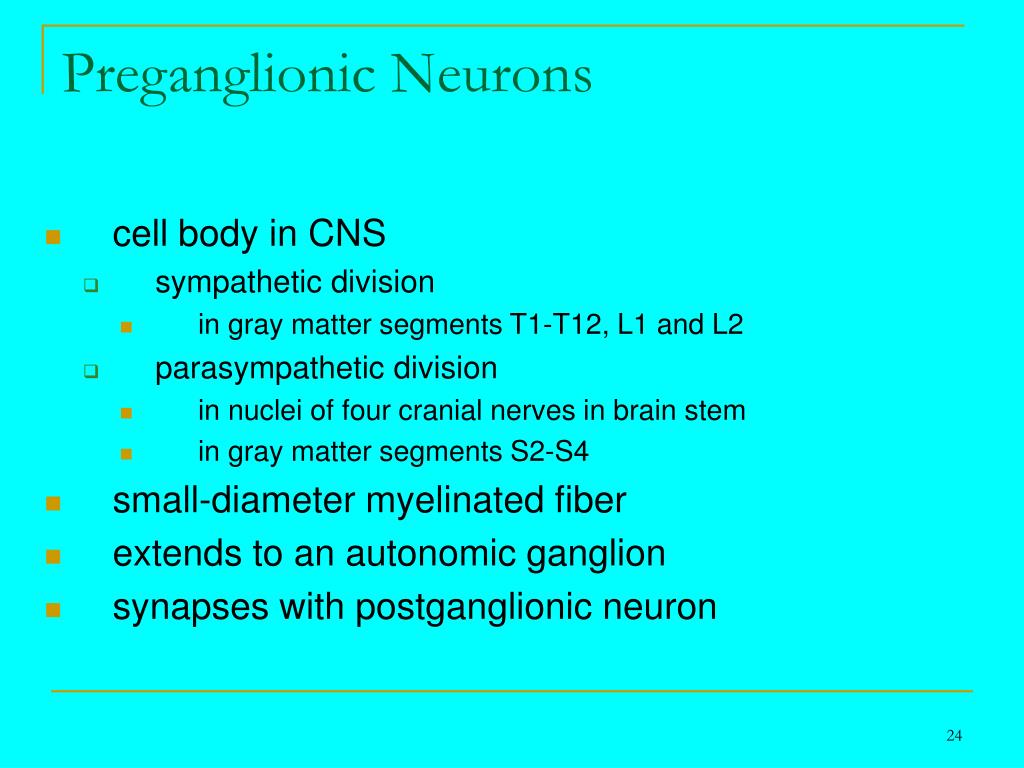

  23. Preganglionic Neurons • cell body in CNS • sympathetic division • in gray matter segments T1-T12, L1 and L2 • parasympathetic division • in nuclei of four cranial nerves in brain stem • in gray matter segments S2-S4 • small-diameter myelinated fiber • extends to an autonomic ganglion • synapses with postganglionic neuron

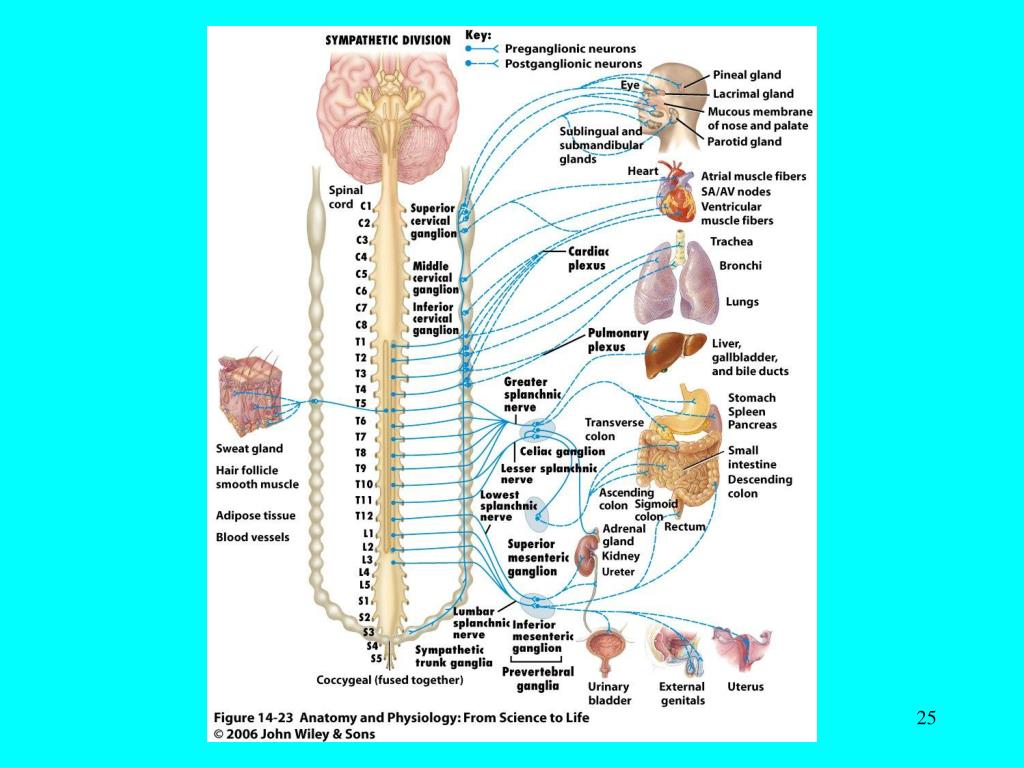

  24. Figure 14.23

  25. Figure 14.24

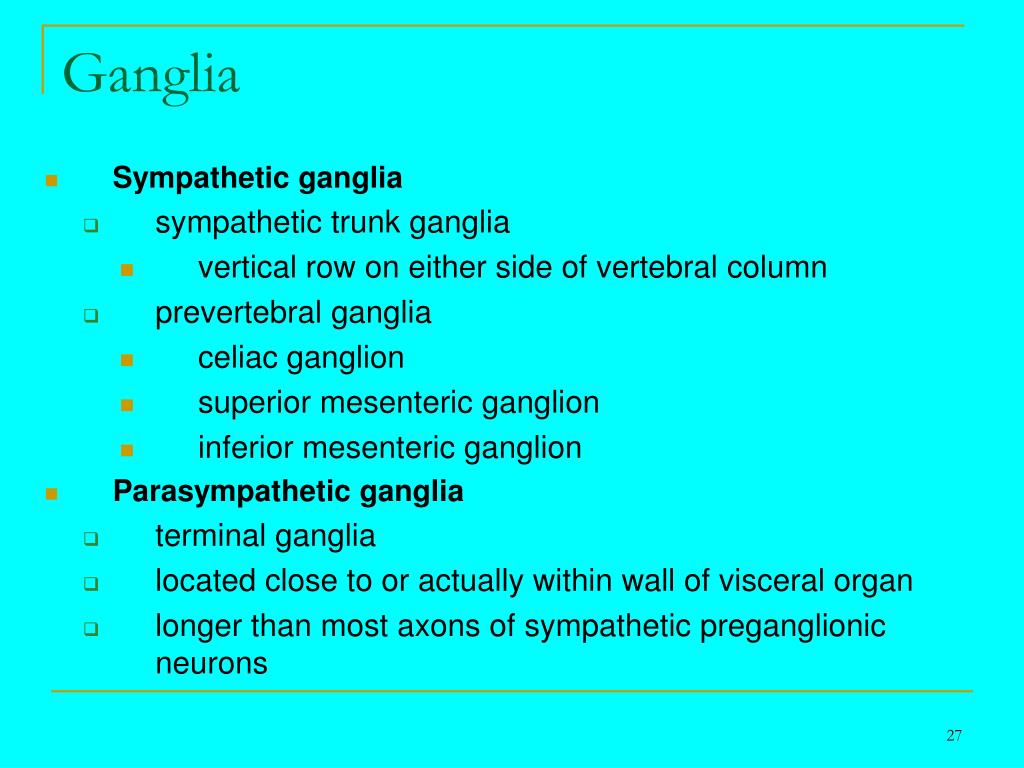

  26. Ganglia • Sympathetic ganglia • sympathetic trunk ganglia • vertical row on either side of vertebral column • prevertebral ganglia • celiac ganglion • superior mesenteric ganglion • inferior mesenteric ganglion • Parasympathetic ganglia • terminal ganglia • located close to or actually within wall of visceral organ • longer than most axons of sympathetic preganglionic neurons

  27. Figure 14.25

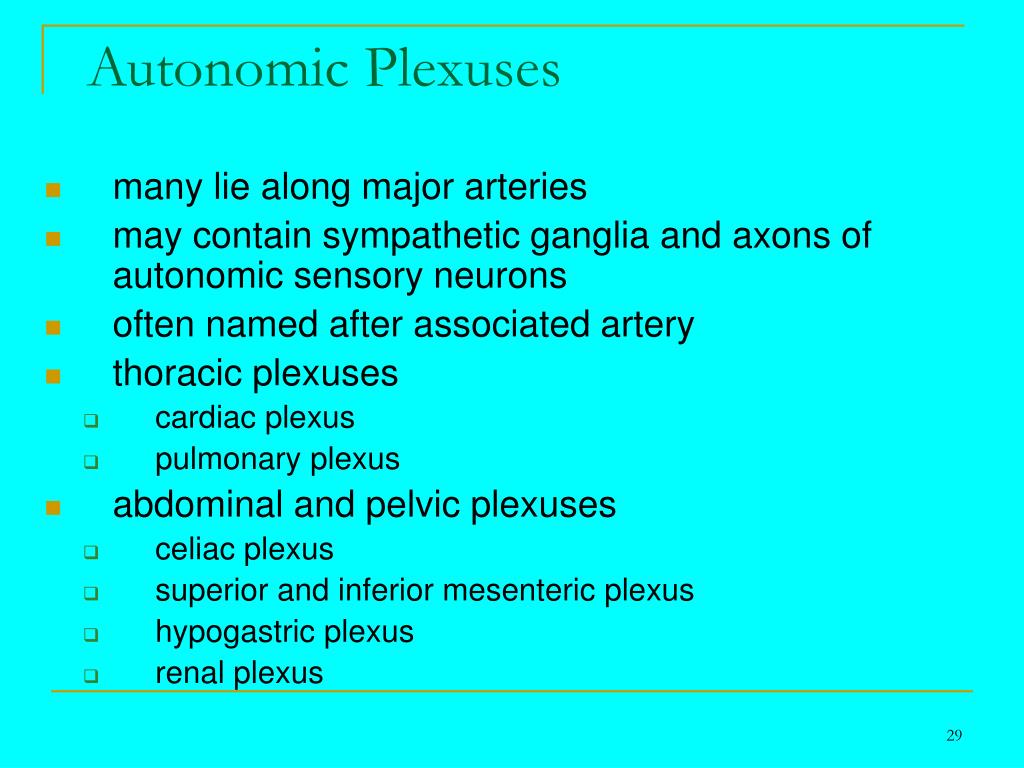

  28. Autonomic Plexuses • many lie along major arteries • may contain sympathetic ganglia and axons of autonomic sensory neurons • often named after associated artery • thoracic plexuses • cardiac plexus • pulmonary plexus • abdominal and pelvic plexuses • celiac plexus • superior and inferior mesenteric plexus • hypogastric plexus • renal plexus

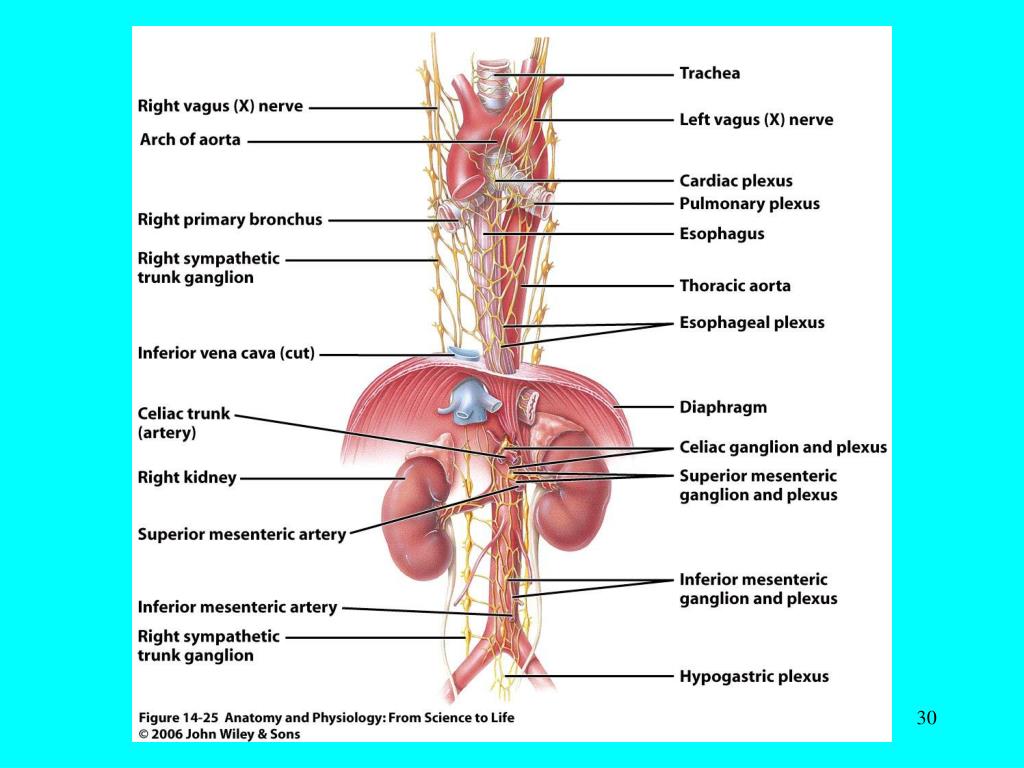

  29. Figure 14.25

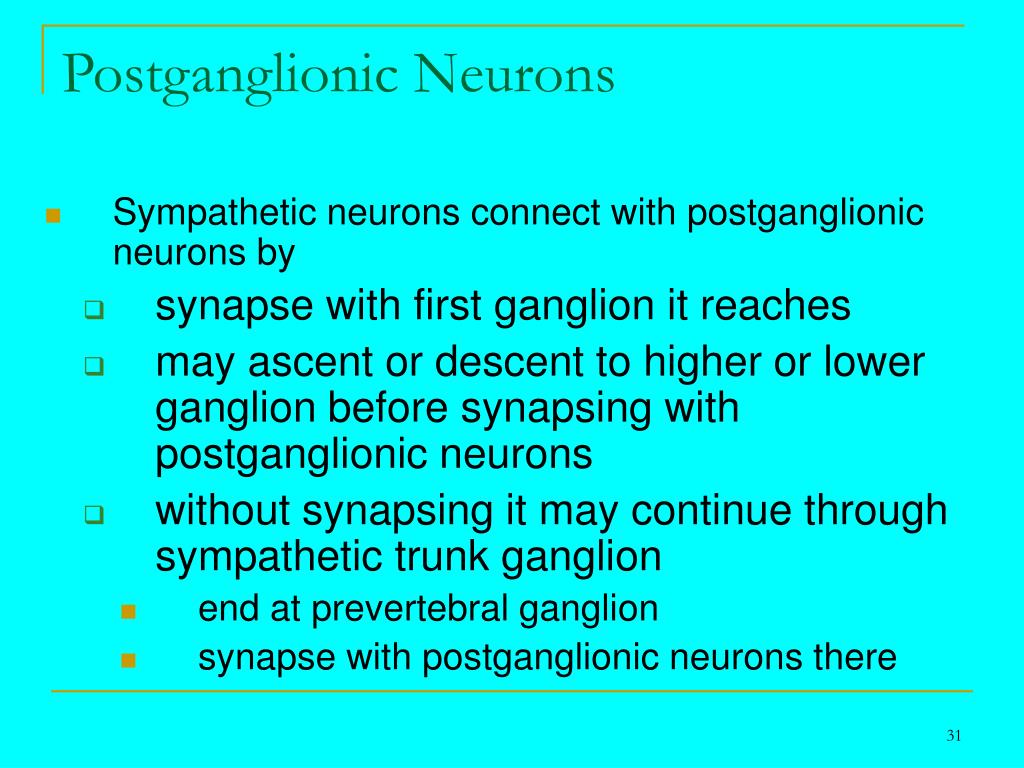

  30. Postganglionic Neurons • Sympathetic neurons connect with postganglionic neurons by • synapse with first ganglion it reaches • may ascent or descent to higher or lower ganglion before synapsing with postganglionic neurons • without synapsing it may continue through sympathetic trunk ganglion • end at prevertebral ganglion • synapse with postganglionic neurons there

  31. Figure 14.26

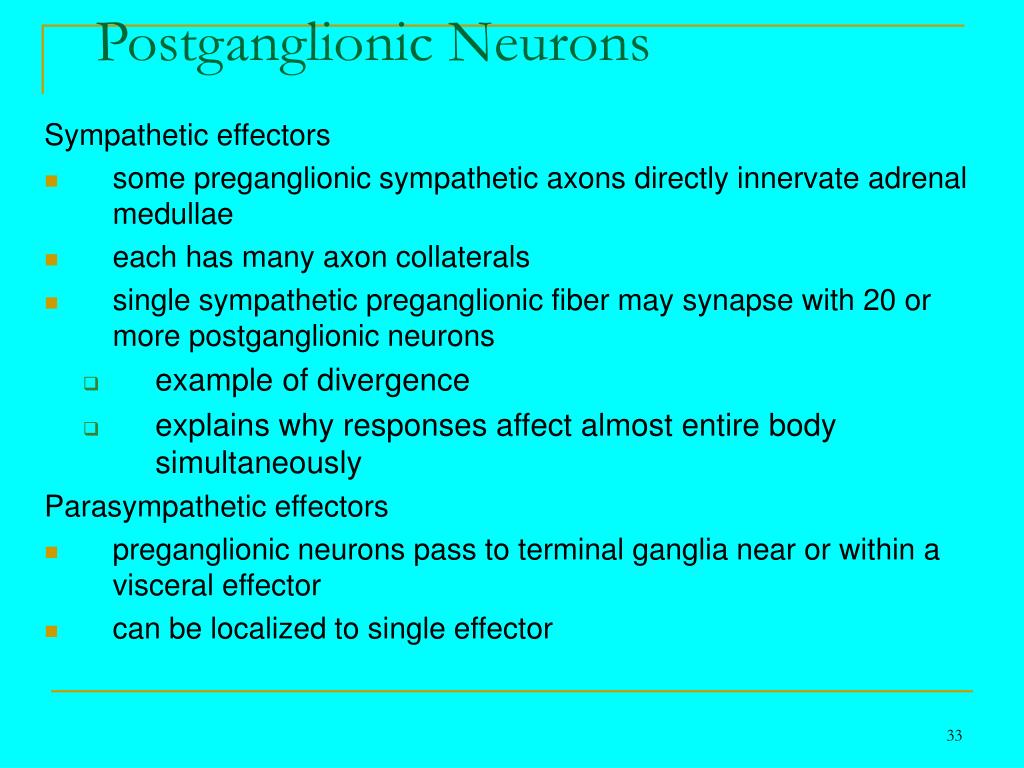

  32. Postganglionic Neurons Sympathetic effectors • some preganglionic sympathetic axons directly innervate adrenal medullae • each has many axon collaterals • single sympathetic preganglionic fiber may synapse with 20 or more postganglionic neurons • example of divergence • explains why responses affect almost entire body simultaneously Parasympathetic effectors • preganglionic neurons pass to terminal ganglia near or within a visceral effector • can be localized to single effector

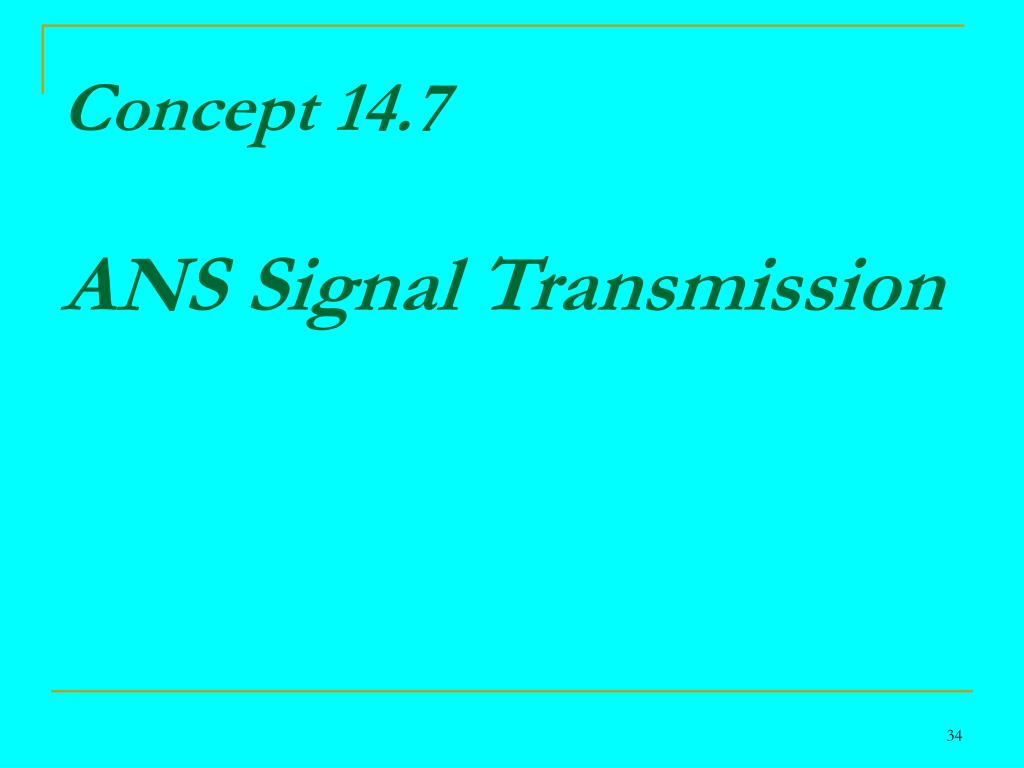

  33. Concept 14.7ANS Signal Transmission

  34. ANS Signal Transmission Classification based on neurotransmitter released • Cholinergenic neurons • release acetylcholine • Adrenergenic neurons • release norepinephrine

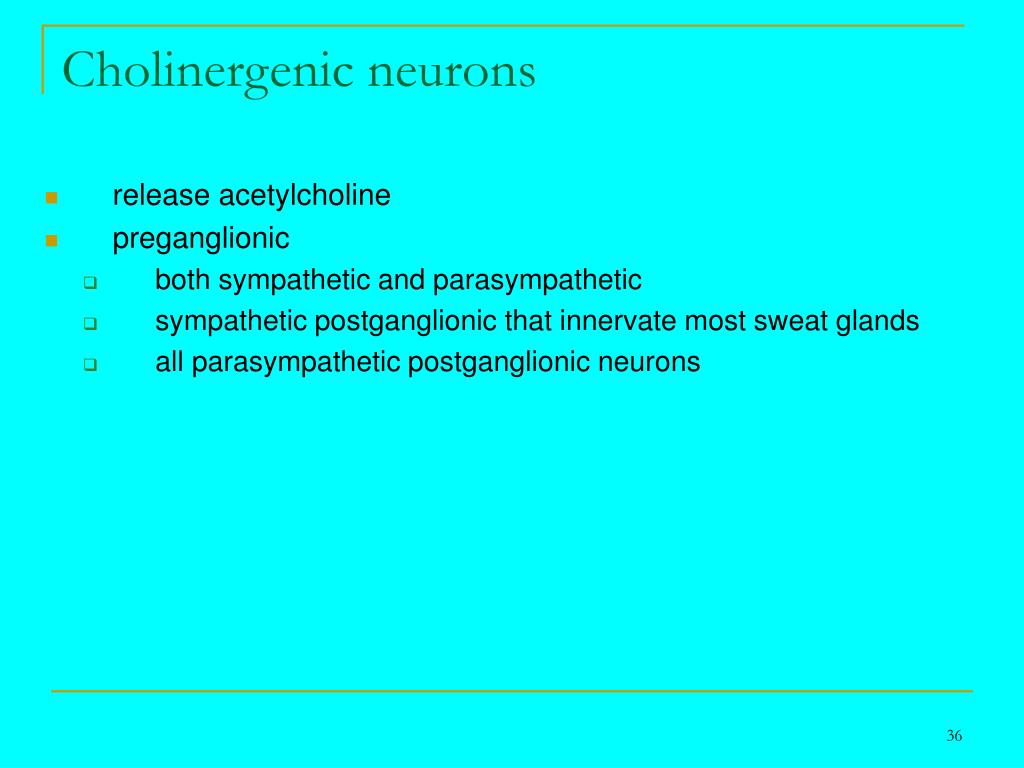

  35. Cholinergenic neurons • release acetylcholine • preganglionic • both sympathetic and parasympathetic • sympathetic postganglionic that innervate most sweat glands • all parasympathetic postganglionic neurons

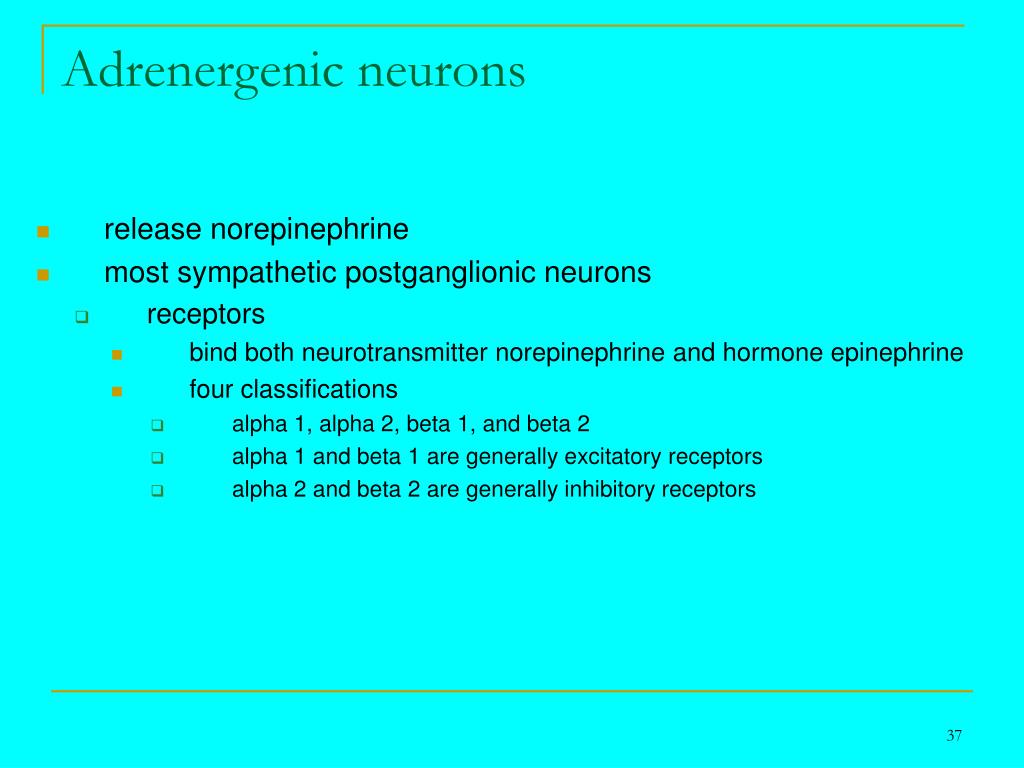

  36. Adrenergenic neurons • release norepinephrine • most sympathetic postganglionic neurons • receptors • bind both neurotransmitter norepinephrine and hormone epinephrine • four classifications • alpha 1, alpha 2, beta 1, and beta 2 • alpha 1 and beta 1 are generally excitatory receptors • alpha 2 and beta 2 are generally inhibitory receptors

  37. Figure 14.27a

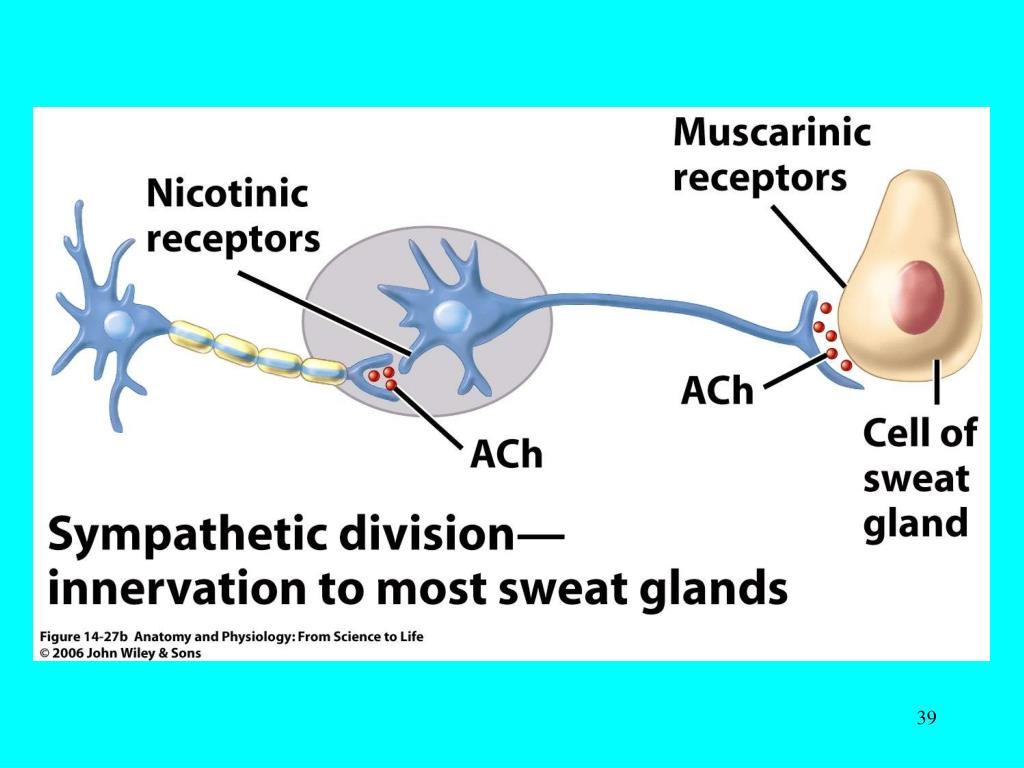

  38. Figure 14.27b

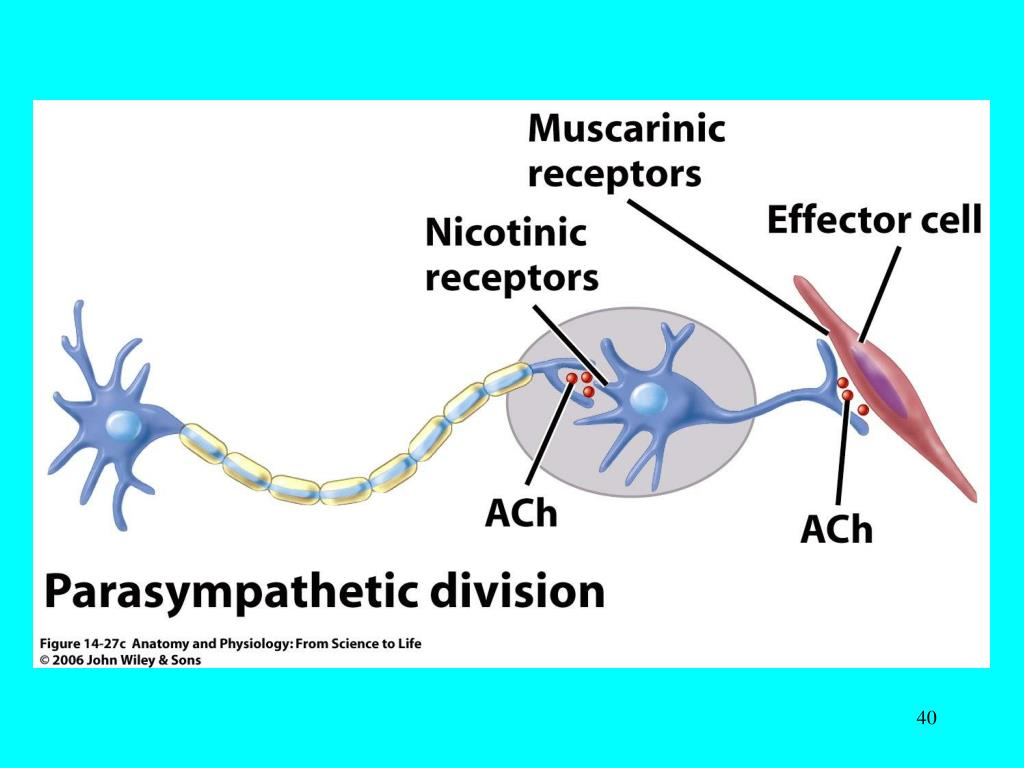

  39. Figure 14.27c

  40. Table 14.7

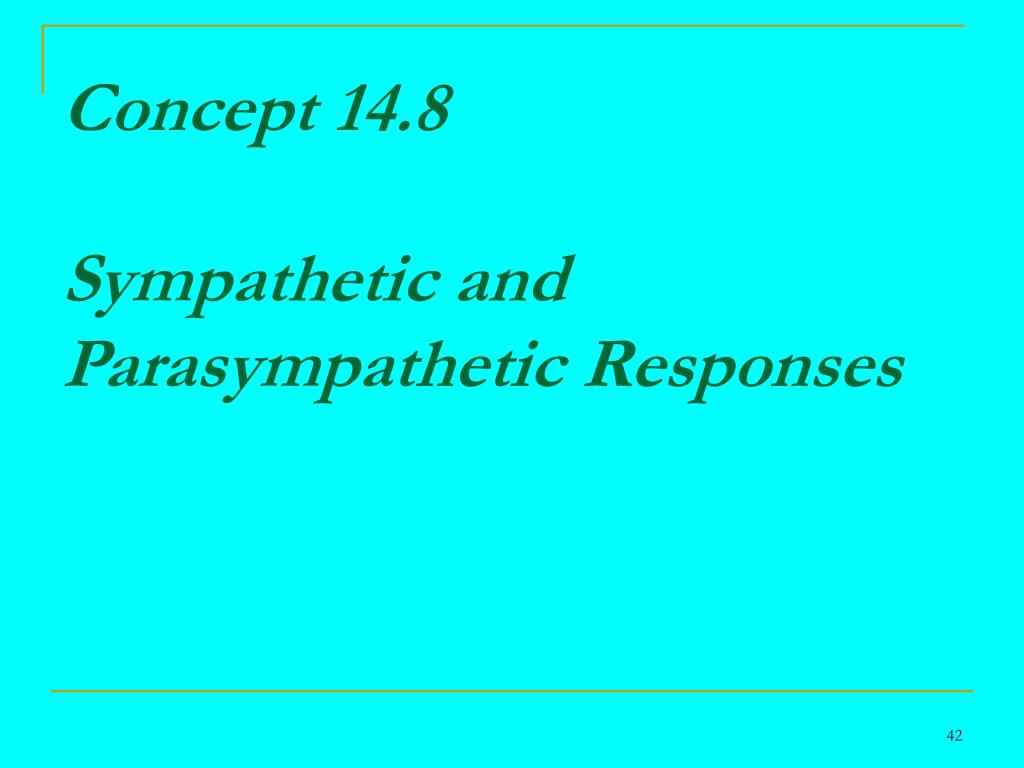

  41. Concept 14.8Sympathetic and Parasympathetic Responses

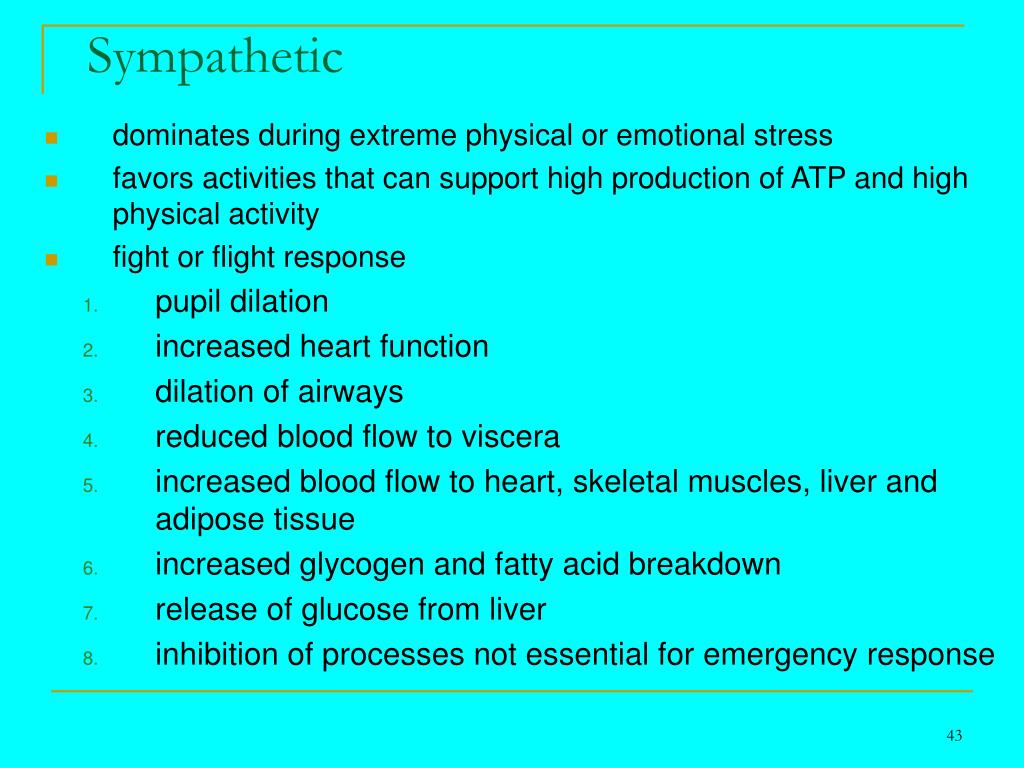

  42. Sympathetic • dominates during extreme physical or emotional stress • favors activities that can support high production of ATP and high physical activity • fight or flight response • pupil dilation • increased heart function • dilation of airways • reduced blood flow to viscera • increased blood flow to heart, skeletal muscles, liver and adipose tissue • increased glycogen and fatty acid breakdown • release of glucose from liver • inhibition of processes not essential for emergency response

  43. Parasympathetic • enhances rest and digest activities • favors activities that can support body functions that conserve and restore energy during times of rest and recovery • SLUDD • salivation • lacrimation • urination • digestion • defecation • three decreases • heart rate • diameter of airways • diameter of pupils

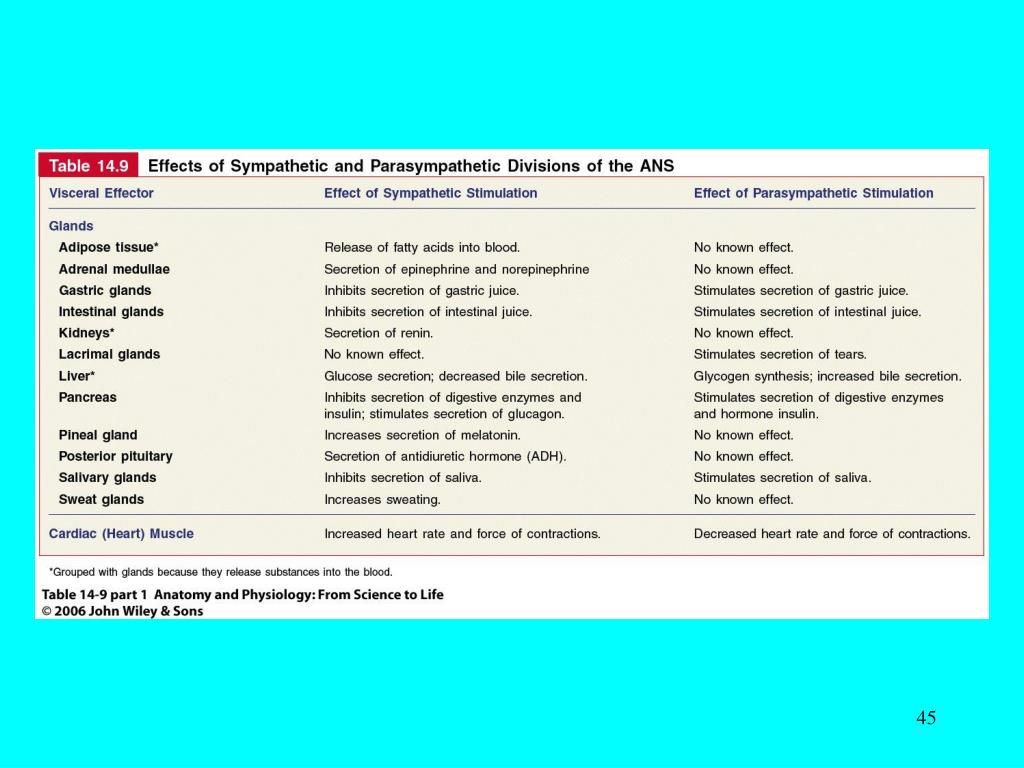

  44. Table 14.9 pt 1

  45. Table 14.9 pt 2

  46. Table 14.8

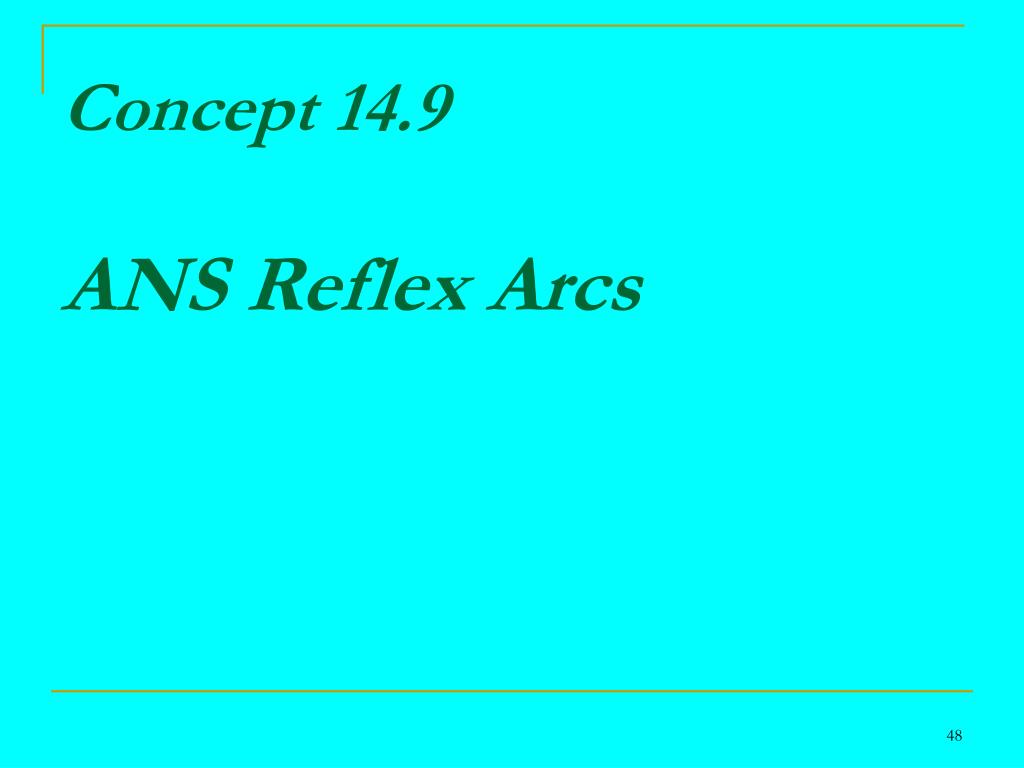

  47. Concept 14.9ANS Reflex Arcs

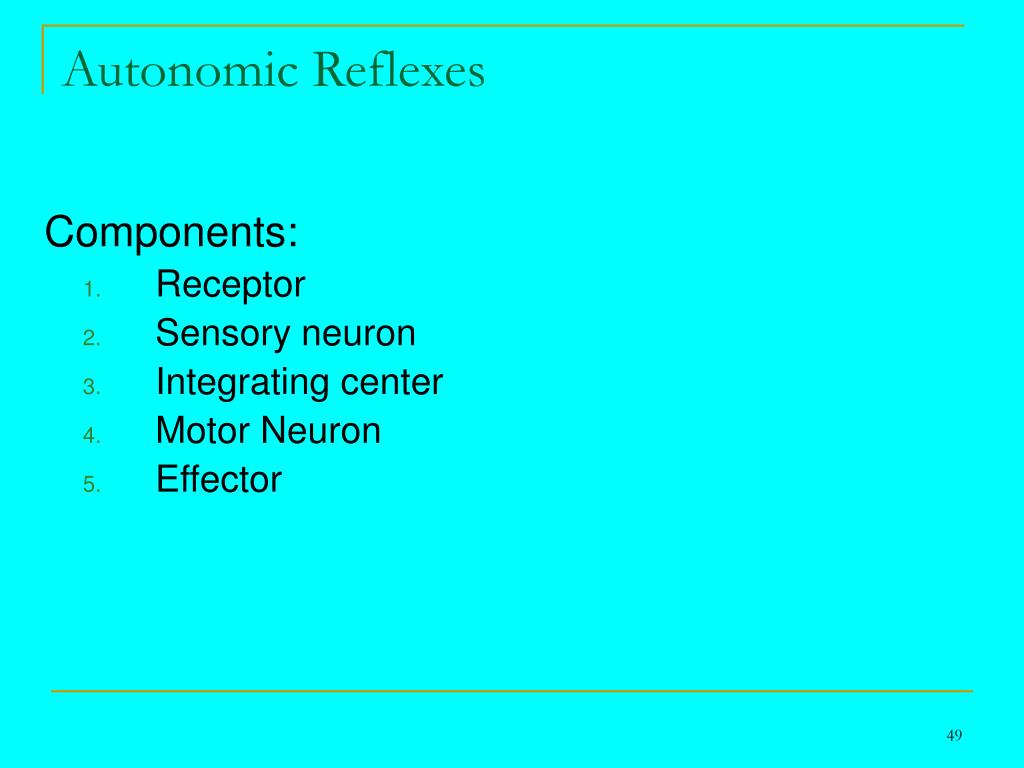

  48. Autonomic Reflexes Components: • Receptor • Sensory neuron • Integrating center • Motor Neuron • Effector

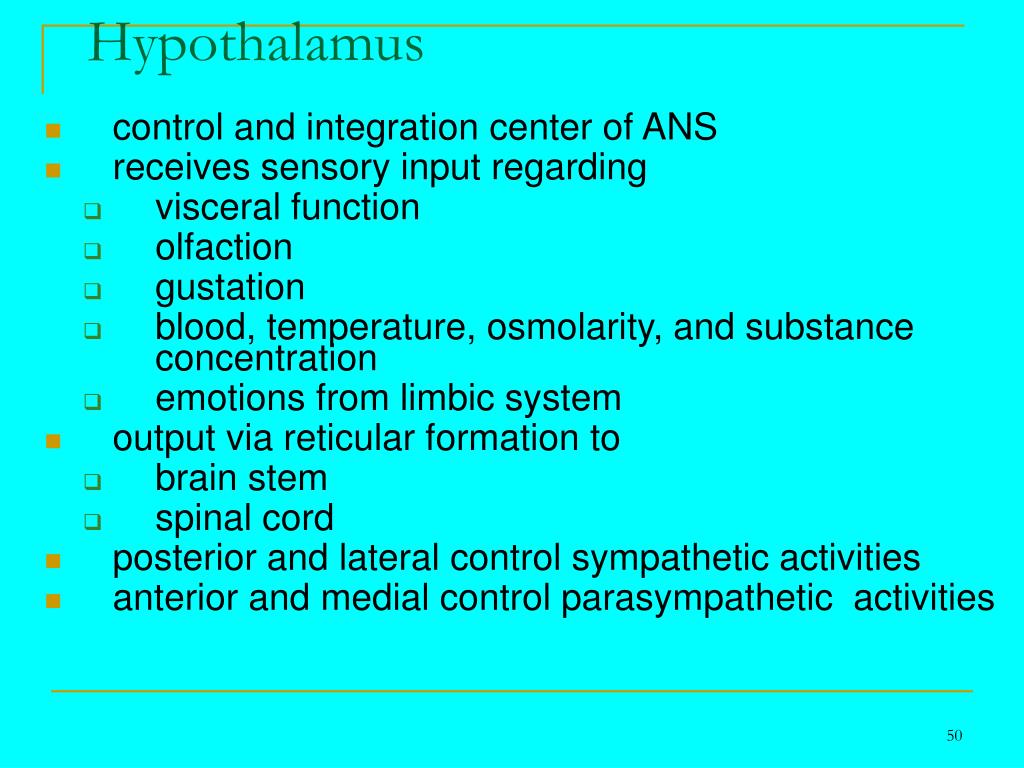

  49. Hypothalamus • control and integration center of ANS • receives sensory input regarding • visceral function • olfaction • gustation • blood, temperature, osmolarity, and substance concentration • emotions from limbic system • output via reticular formation to • brain stem • spinal cord • posterior and lateral control sympathetic activities • anterior and medial control parasympathetic activities
