  1. UK Testbed Status Andrew McNab High Energy Physics University of Manchester Testbed / HTTPS, GridPP6, 30 Jan 2003

  2. Overview • “Testbed 0” • GridPP Testbed • EU DataGrid Testbed • EDG Version • TB support for GridPP • Future TB support • TB Summary Testbed / HTTPS, GridPP6, 30 Jan 2003

  3. “Testbed 0” • All HEP experiment sites are part of Gavin’s “green dot” map. • At least a Globus gatekeeper was running at some point. • In almost all cases this is actually an EDG gatekeeper - ie with extra functionality. Testbed / HTTPS, GridPP6, 30 Jan 2003

  4. GridPP Testbed • Uses Resource Broker at IC, MDS at RAL and VO at Manchester. Yesterday’s snapshot: Birmingham 2 cpus Bristol 3 Cambridge 16 IC 16 (+ 80 BaBar) Liverpool 2 Manchester 8 (+ 60 DZero/Atlas) Oxford 1 RAL 6 UCL 2 Testbed / HTTPS, GridPP6, 30 Jan 2003

  5. EDG Testbed • Yesterday’s snapshot via CERN RB/II: CERN 59 + 20 nl: Nikhef 140 fr: CC Lyon 22? + 74? + 409? fr: Polytechnique/LLR 6 it: CNAF Bologna 48 it: Padova 11 it: Legnaro 48 uk: IC 16 + 80 uk: Liverpool 2 uk: Manchester 8 + 60 uk: Oxford 1 uk: RAL 6 (so we’re doing ok internationally) Testbed / HTTPS, GridPP6, 30 Jan 2003

  6. EDG Version • Current EDG production release is 1.4.3 • Last time I gave this talk was at 1.2.2 • This now finally includes fixes for the “showstopper” problems, largely with Globus • spent most of September - December including new patches from Globus to fix problems with Information system, Job submission and File transfer. • Current release works pretty-much as advertised, although some aspects of the user-interface and installation are “obscure” Testbed / HTTPS, GridPP6, 30 Jan 2003

  7. Testbed Support for GridPP • Centered on http://www.gridpp.ac.uk/tb-support/ • including our own LCFG installation recipes that fill in the gaps • Peer-to-peer support for site admins on tb-support@jiscmail.ac.uk • (Roughly) fortnightly phone meetings ~30-60 mins: go through EDG, GridPP and site status • aim is to flag problems and questions to deal with offline • sitting-in on this quickly gives a status overview • Seems to work for the current Testbed size. Testbed / HTTPS, GridPP6, 30 Jan 2003

  8. Future Testbed Support • Ticket-based helpdesk system • experimented with Bugzilla - but would be good to use same system as Tier1A centre. • ideally put site admins into the system too, since can refer problems up or down then. • Need to include site admins in all aspects of support • keep them up to date; provide help they need; help them help their users. • Can we use regional Tier2 structures as a devolved support network, using local experts? Testbed / HTTPS, GridPP6, 30 Jan 2003

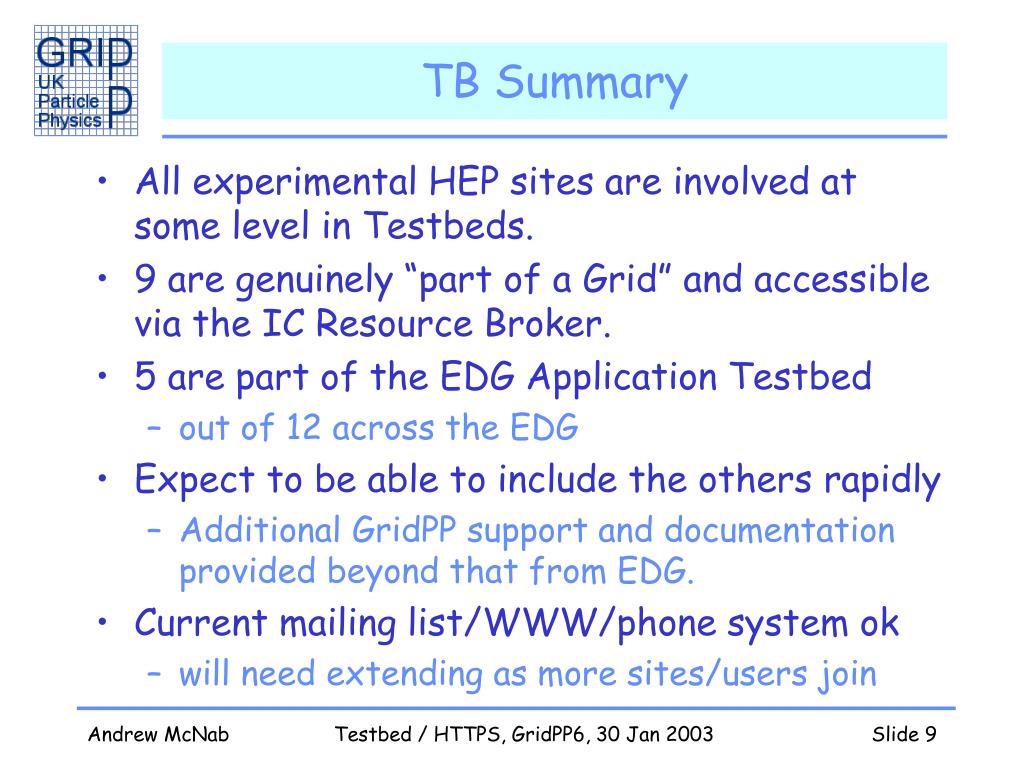

  9. TB Summary • All experimental HEP sites are involved at some level in Testbeds. • 9 are genuinely “part of a Grid” and accessible via the IC Resource Broker. • 5 are part of the EDG Application Testbed • out of 12 across the EDG • Expect to be able to include the others rapidly • Additional GridPP support and documentation provided beyond that from EDG. • Current mailing list/WWW/phone system ok • will need extending as more sites/users join Testbed / HTTPS, GridPP6, 30 Jan 2003

  10. Grid HTTPS Extensions • HTTPS is an interesting and important protocol for several reasons: • it is by far the most widely deployed secure protocolhas a large amount of high quality software that we could leverage • has excellent interaction with Firewalls, Network Address Translation and Application Proxies • has the potential to solve some of the problems sites have with private IP farms • HTTPS security done using X509 certificates (including GSI) • “the piece of the Grid we already had” • HTTP/1.1 (rfc2616) and extensions like WebDAV (rfc2518) have a rich set of methods (GET, PUT, DELETE, COPY etc) headers (“Expires:” etc) and Errors (“413 Request Entity Too Large”) • HTTP redirection allows you to change from HTTPS negotiation to HTTP unencrypted data transfer • Can HTTP/HTTPS be fast compared to other protocols though? Testbed / HTTPS, GridPP6, 30 Jan 2003

  11. HTTP as a data protocol • Same advantages as HTTPS: large amount of existing high quality software, and good operation with Firewalls, NAT etc. • Kernel-based “zero-copy” HTTP servers like tux are very efficient • need to do something like that to fully use a machine’s gigabit interface • Multistream HTTP and standard webservers as fast as GridFTP for ~300 MB transfers • At ~1 MB, multistream HTTP is much faster Testbed / HTTPS, GridPP6, 30 Jan 2003

  12. Delegation over HTTPS • HTTPS would be even more useful if could delegate GSI credentials over HTTPS • for example, to do third party transfers between two remote sites • Proposal exists to do this (“G-HTTPS”) by adding extra methods to HTTPS • this is designed to leverage and interoperate with existing browsers, servers, www libraries • stress backwards and pass-through compatibility • Basic implemention of this now added to file version of GridSite. Testbed / HTTPS, GridPP6, 30 Jan 2003

  13. Secure, Trusted Caches • Existing HTTPS isn’t cache-able: • end-to-end client-server needed for SSL to work • best you get is opaque proxying/tunneling of SSL • one of the long standing shortcomings of HTTPS • With delegation, can improve this: • identify a local cache you trust (in your VO maybe?) • delegate a credential to it • makes a proxy request via HTTPS: GET https://a.b.c/def • cache fetches this for you, using delegated credential • if can get an ACL for this file, may also be able to return file from cache in subsequent requests by you or other users in ACL Testbed / HTTPS, GridPP6, 30 Jan 2003

  14. Delegation and Portals • Some form of delegation also needed for Grid portals • G-HTTPS would provide a standard way of inserting GSI proxies into portals • However, a portal could also use G-HTTPS approach to pull proxies from server like MyProxy • Possible to use MD5 digest passwords for this stage • MD5 hash of password generated in the user’s browser • passed to portal webserver without it seeing the password • portal provides MD5 hash to proxy server and gets proxy or other credential in return • So some very useful mechanisms possible with a few extensions to existing HTTP software. Testbed / HTTPS, GridPP6, 30 Jan 2003

  15. Summary • HTTP has the potential to be a competitive data transport protocol. • HTTPS is already a “Grid protocol” • Delegation would add many possibilities • third party transfers with HTTP/HTTPS • secured, trusted caches would address caching shortcomings of HTTPS • Delegation provides useful mechanisms for Portals • inserting proxies into portals • using MD5 passwords to authenticate with proxy server • G-HTTPS proposal hopes to standardise some of this Testbed / HTTPS, GridPP6, 30 Jan 2003
