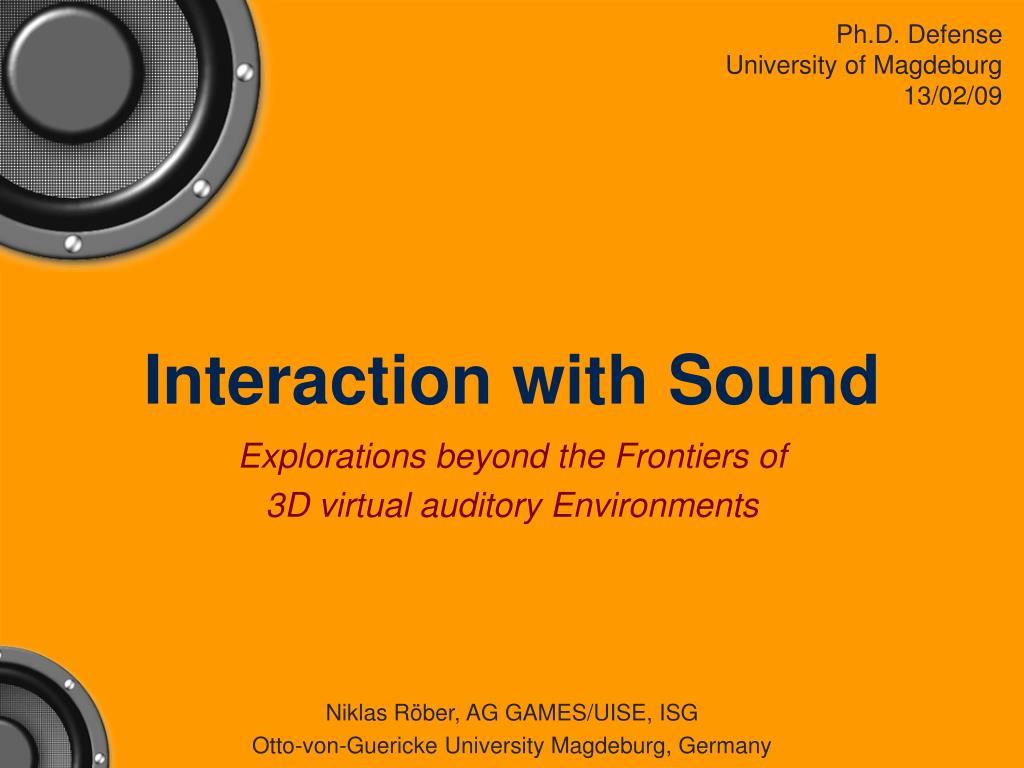

1. Interaction with Sound Explorations beyond the Frontiers of 3D virtual auditory Environments Niklas Röber, AG GAMES/UISE, ISG Otto-von-Guericke University Magdeburg, Germany

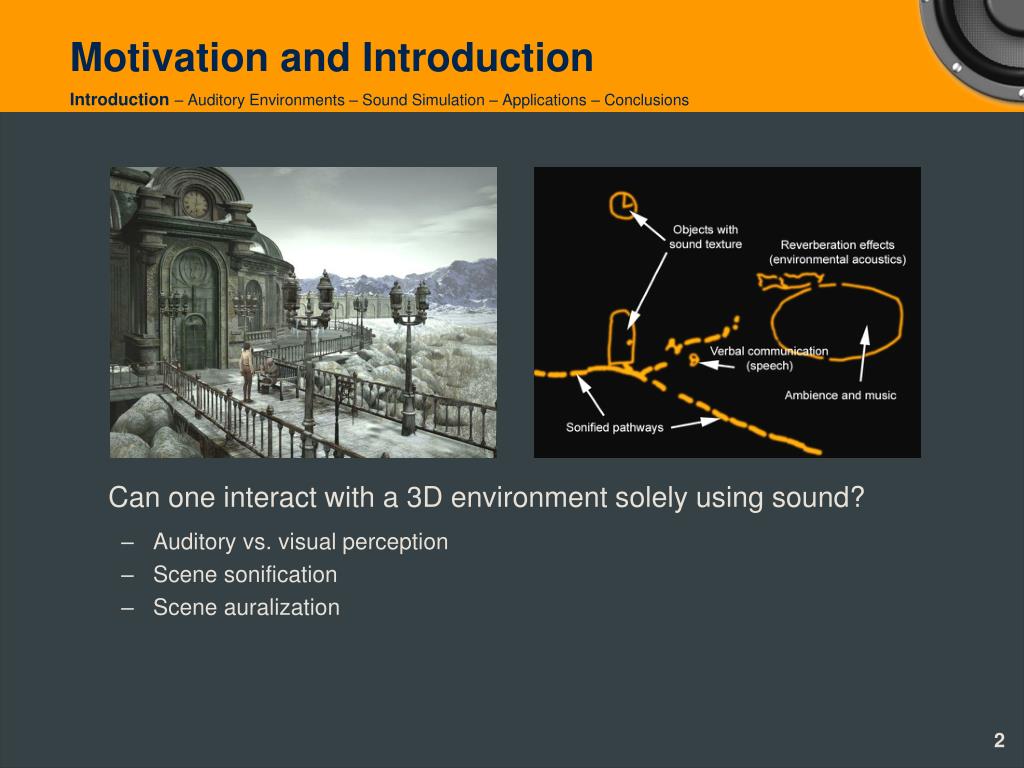

2. Motivation and Introduction Introduction– Auditory Environments – Sound Simulation – Applications – Conclusions Can one interact with a 3D environment solely using sound? • Auditory vs. visual perception • Scene sonification • Scene auralization

3. Research Goals Introduction– Auditory Environments – Sound Simulation – Applications – Conclusions • Definition, analysis and classification of 3D virtual (augmented) auditory environments • Development of … • Methods for scene and object sonification • Interaction and scene exploration techniques • A 3D audio framework • Stability of sound rendering • Quality of 3D sound spatialization • Achievable degree of realism

4. Auditory Perception Introduction– Auditory Environments – Sound Simulation – Applications – Conclusions • Environmental perception • Location and distance • 3D sound perception • Individual per person • Based on head-related transfer function (HRTF / HRIR) • Auditory perception • Auditory Gestalt [Mach86, Ehrenfels90] • Auditory scene analysis [Bregman90] • Selective listening[Williams92] 3D Sound Perception [Wikimedia]

5. Research Overview Introduction– Auditory Environments – Sound Simulation – Applications – Conclusions • 3D scene and object sonification • User input and spatial interaction techniques • Efficient sound rendering • Example applications

6. 3D virtual auditory Environments

7. Auditory Displays Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions • Lack of absolute values • Lack of orthogonality • Limited spatial precision • Convey abstract information using auditory means + No screens necessary + High-temporal resolution + Rapid detection, alerting • Display classification: analogic – symbolic continuum [Kramer 94] • Auditory icons [Gaver89, Mynatt92] • Earcons, hearcons[Blattner89, Bölke95]

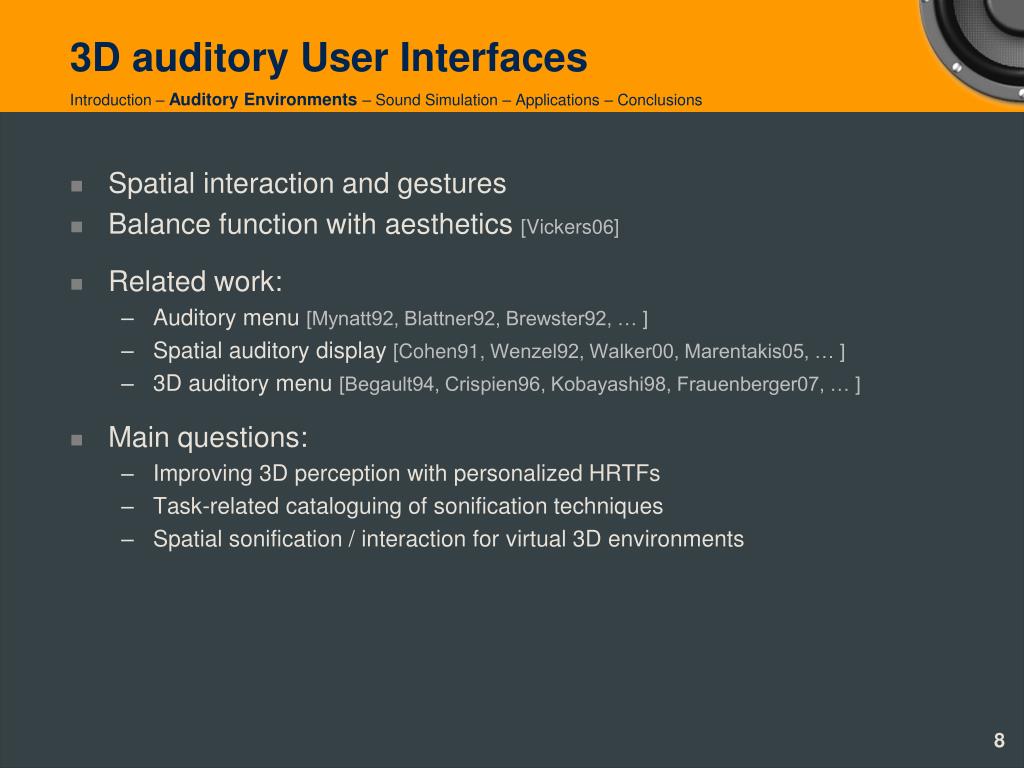

8. 3D auditory User Interfaces Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions • Spatial interaction and gestures • Balance function with aesthetics [Vickers06] • Related work: • Auditory menu [Mynatt92, Blattner92, Brewster92, … ] • Spatial auditory display [Cohen91, Wenzel92, Walker00, Marentakis05, … ] • 3D auditory menu [Begault94, Crispien96, Kobayashi98, Frauenberger07, … ] • Main questions: • Improving 3D perception with personalized HRTFs • Task-related cataloguing of sonification techniques • Spatial sonification / interaction for virtual 3D environments

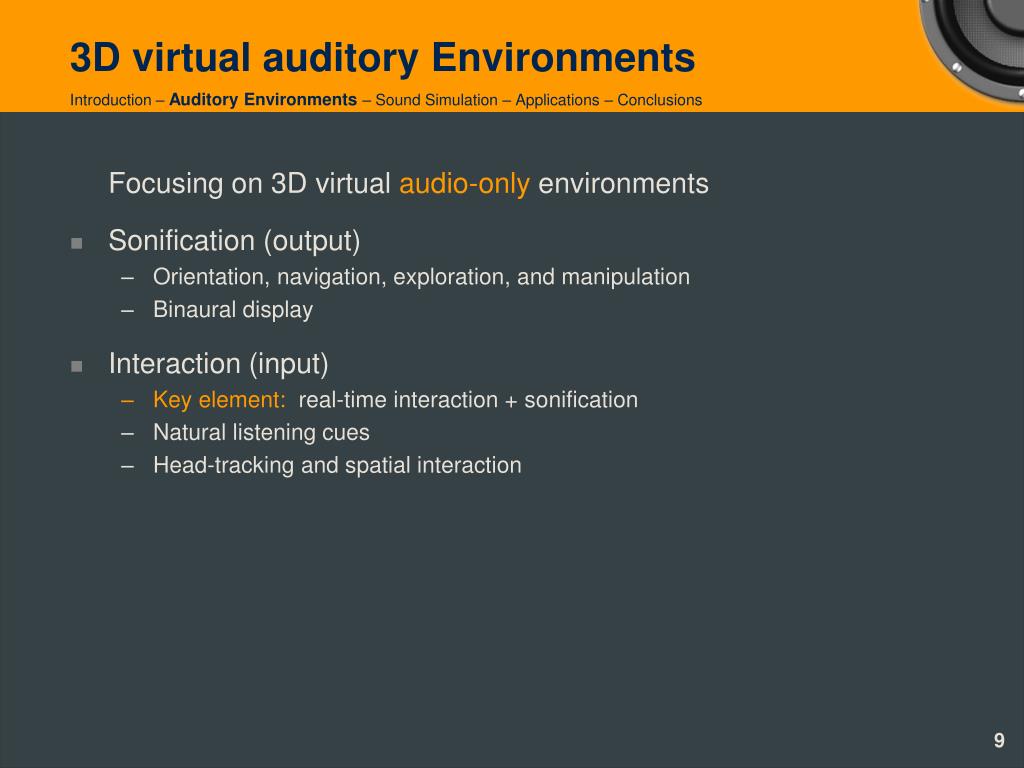

9. 3D virtual auditory Environments Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions Focusing on 3D virtual audio-onlyenvironments • Sonification (output) • Orientation, navigation, exploration, and manipulation • Binaural display • Interaction (input) • Key element: real-time interaction + sonification • Natural listening cues • Head-tracking and spatial interaction

10. Scene Auralization Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions (ICAD 2004, CGAIDE 2004) • 3D scene auralization • Sounds, speech, music • Room acoustics Not sufficient! • Non-realistic auditory scene representation • Non-physically based auralization • Additional non-object sounds • Exaggerated / suppressed parameters • Situation-based display styles (aud. landmarks, aud. texture, path sonification, menu)

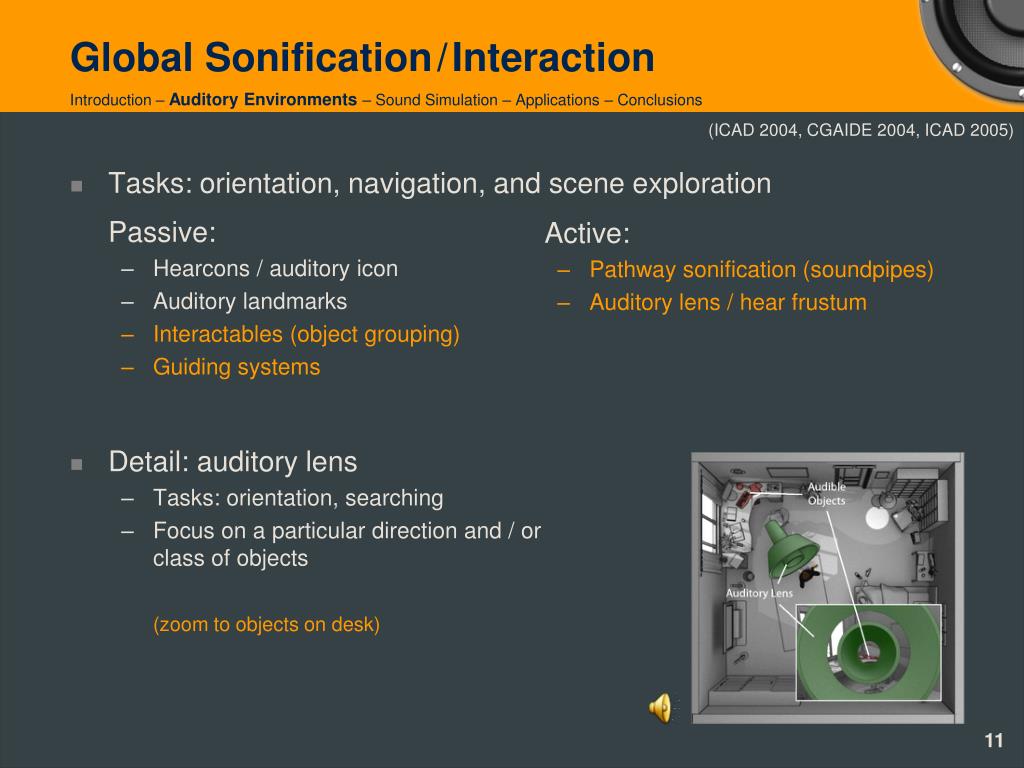

11. Global Sonification/Interaction Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions (ICAD 2004, CGAIDE 2004, ICAD 2005) • Tasks: orientation, navigation, and scene exploration Passive: • Hearcons / auditory icon • Auditory landmarks • Interactables (object grouping) • Guiding systems • Detail: auditory lens • Tasks: orientation, searching • Focus on a particular direction and / or class of objects (zoom to objects on desk) • Active: • Pathway sonification (soundpipes) • Auditory lens / hear frustum

12. Local Sonification/Interaction Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions (ICAD 2004, CGAIDE 2004, ICAD 2005) • Tasks: orientation, object selection and manipulation Passive: • Hearcons / auditory icon • Detail: auditory textures • Ext. of Mynatt’s parameter nesting [Mynatt92] • Describes an object and its function using different auditory representations • Interaction dependencies (door locked, door opening, door open) • Active: • Radar / sonar • 3D pointing / selection (cane) • Auditory textures • Dependency modeling

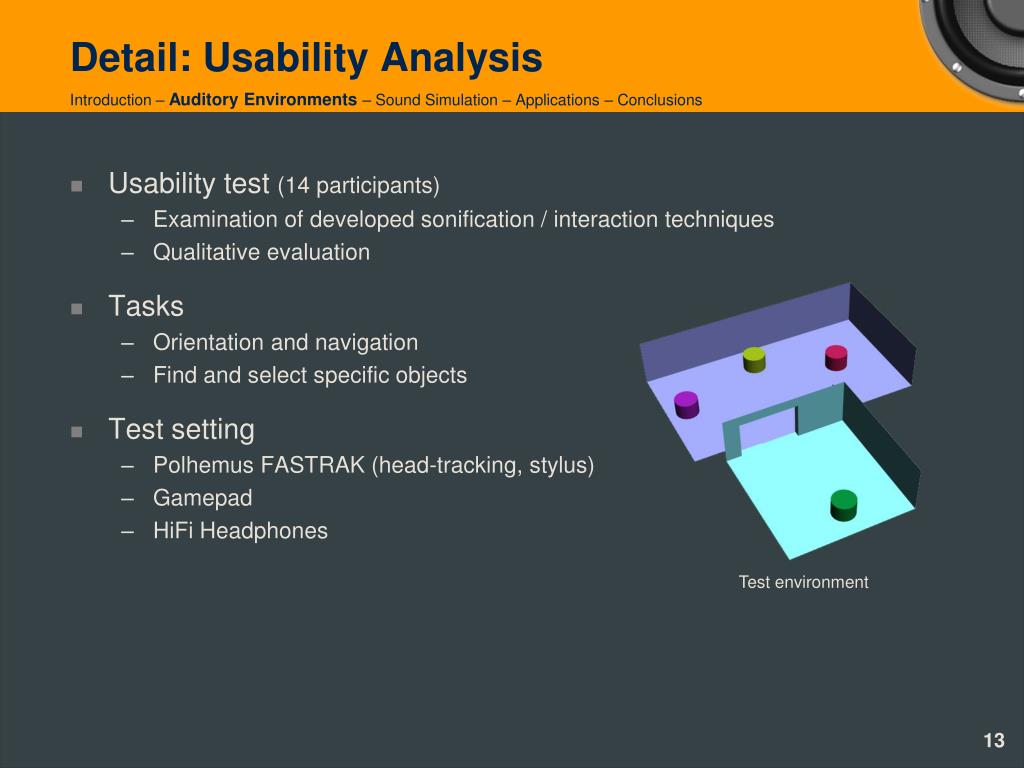

13. Detail: Usability Analysis Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions Test environment • Usability test (14 participants) • Examination of developed sonification / interaction techniques • Qualitative evaluation • Tasks • Orientation and navigation • Find and select specific objects • Test setting • Polhemus FASTRAK (head-tracking, stylus) • Gamepad • HiFi Headphones

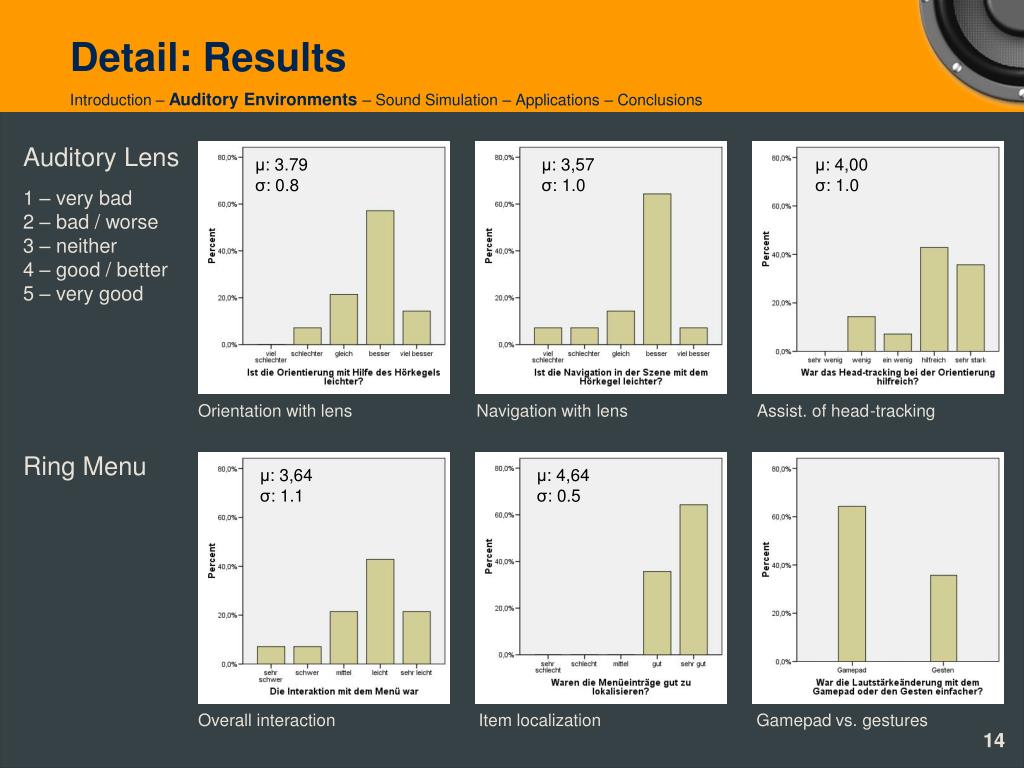

14. Detail: Results Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions Auditory Lens 1 – very bad 2 – bad / worse 3 – neither 4 – good / better 5 – very good Ring Menu μ: 3.79 μ: 3,57 μ: 4,00 σ: 0.8 σ: 1.0σ: 1.0 μ: 3,64 μ: 4,64 σ: 1.1 σ: 0.5 Orientation with lens Navigation with lens Assist. of head-tracking Overall interaction Item localization Gamepad vs. gestures

15. Discussion Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions • 3D audio framework • Non-realistic auditory scene representation • 3D scene / object sonification • Sound rendering implemented using OpenAL Problem! OpenAL has several severe restrictions • Generalized HRTFs • Basic environmental modeling

16. Efficient Sound Rendering and Simulation

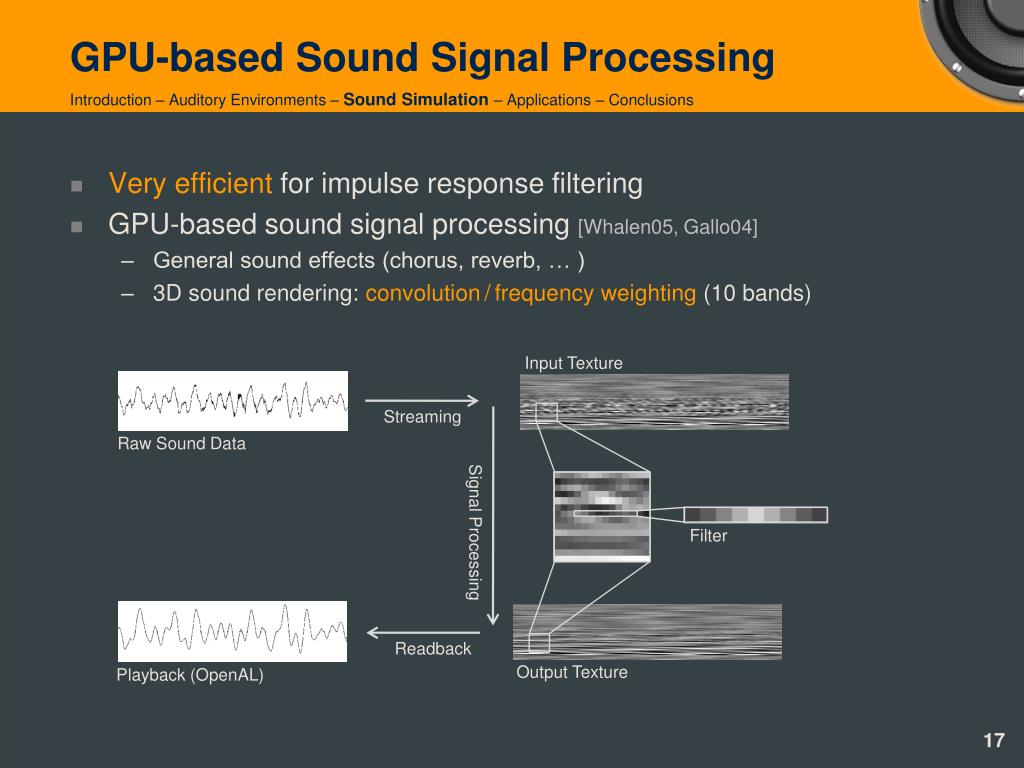

17. GPU-based Sound Signal Processing Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions Input Texture Streaming Raw Sound Data Signal Processing Filter Readback Output Texture Playback (OpenAL) • Very efficient for impulse response filtering • GPU-based sound signal processing [Whalen05, Gallo04] • General sound effects (chorus, reverb, … ) • 3D sound rendering: convolution/frequency weighting (10 bands)

18. GPU-based Room Acoustic Simulation Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions (ICMC 2006, DAFx 2007) [Smith92, VanDuyne93, Bilbao04, Campos05] • Wave propagation using time-domain difference model • Computationally very complex • Applicable to lower frequencies Wave-based Simulation • Ray/Energy-based Simulation[Funkhauser02, Tsingos04, Jedrzejewski04] • Approximates sound waves using directional rays • Applicable tomiddle and higher frequency ranges

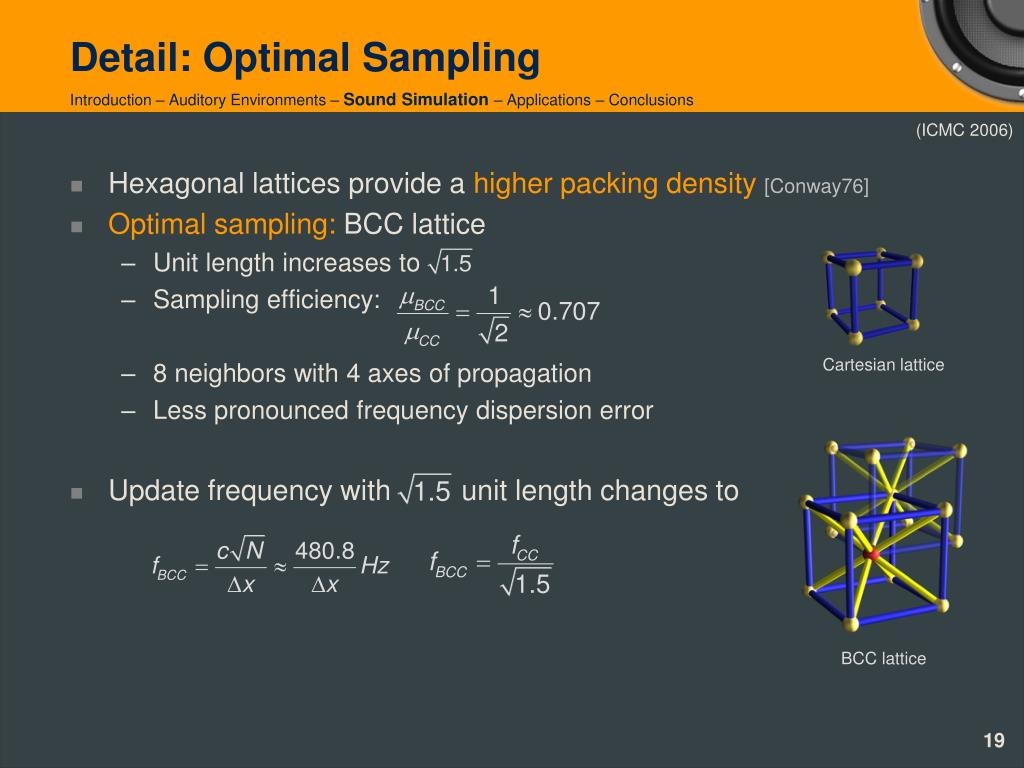

19. Detail: Optimal Sampling Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions (ICMC 2006) • Hexagonal lattices provide a higher packing density[Conway76] • Optimal sampling: BCC lattice • Unit length increases to • Sampling efficiency: • 8 neighbors with 4 axes of propagation • Less pronounced frequency dispersion error • Update frequency with unit length changes to Cartesian lattice BCC lattice

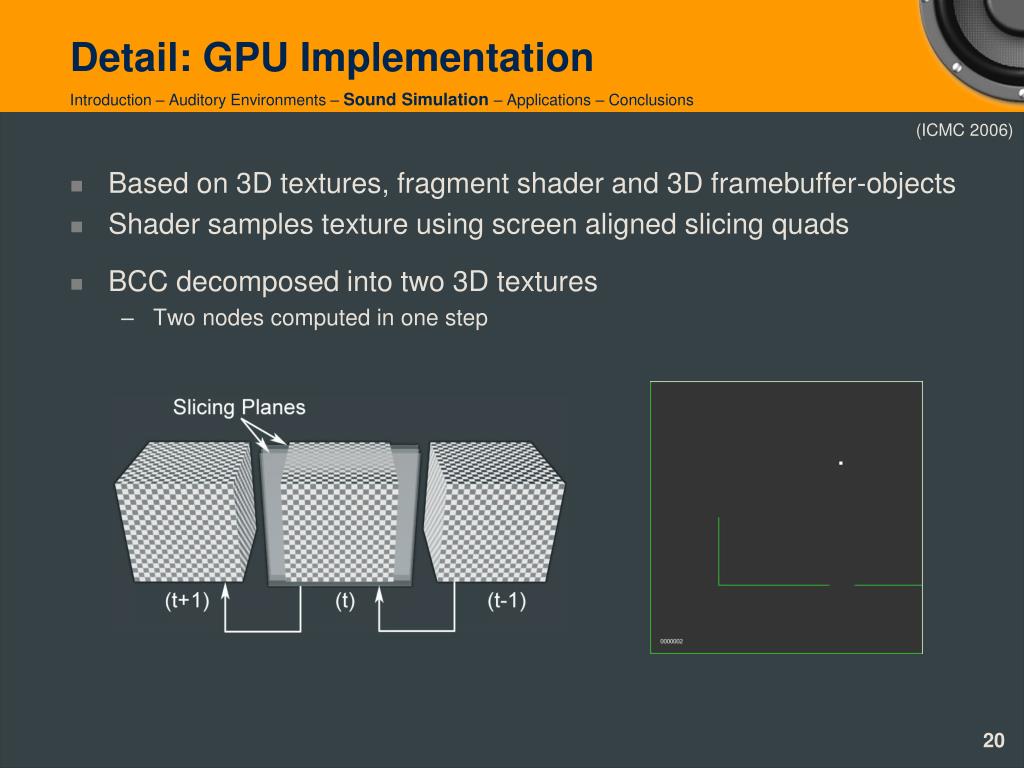

20. Detail: GPU Implementation Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions (ICMC 2006) • Based on 3D textures, fragment shader and 3D framebuffer-objects • Shader samples texture using screen aligned slicing quads • BCC decomposed into two 3D textures • Two nodes computed in one step

21. Discussion Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions • 3D waveguide meshes • Improved efficiency (20x – 60x) • Improved simulation results for BCC lattice • Ray acoustic simulation • Real-time simulation up to 30k models (incl. auralization) • Integration of wave-based effects (diffraction) • Frequency-based material modeling • Promising virtual HRIR simulations • Simulations exhibit all important features • On the way to personalized HRTFs Time (ms) Angle HRIR horizontal plane

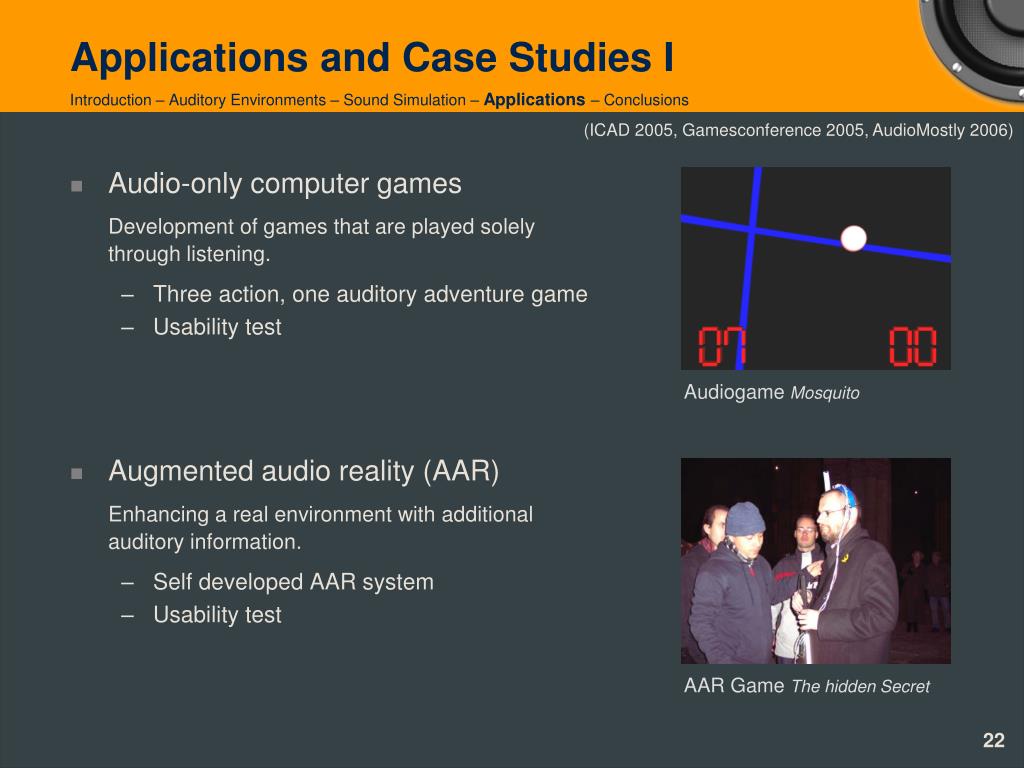

22. Applications and Case Studies I Introduction – Auditory Environments – Sound Simulation – Applications– Conclusions (ICAD 2005, Gamesconference 2005, AudioMostly2006) • Audio-only computer games Development of games that are played solely through listening. • Three action, one auditory adventure game • Usability test • Augmented audio reality (AAR) Enhancing a real environment with additional auditory information. • Self developed AAR system • Usability test Audiogame Mosquito AAR Game The hidden Secret

23. Applications and Case Studies II Introduction – Auditory Environments – Sound Simulation – Applications– Conclusions (CGAIDE 2004, TIDSE 2006, AudioMostly 2007) • Interactive audiobooks Combining audiobooks with interactive elements from computer games. • Non-linear story graph with variable degree of interaction • Usability tests • Scene authoring environment • Extension of audio framework • Authoring of 3D sound sources, acoustics, auditory textures and ring menu systems Storytree The Pit and the Pendulum Authoring Environment

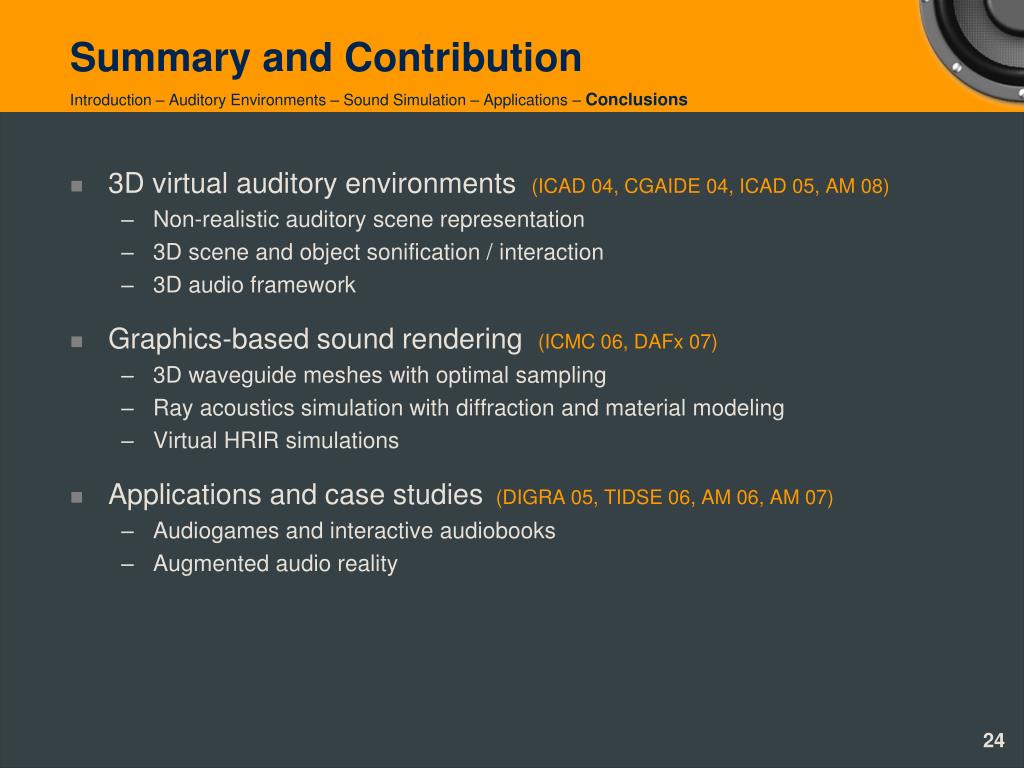

24. Summary and Contribution Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions • 3D virtual auditory environments (ICAD 04, CGAIDE 04, ICAD 05, AM 08) • Non-realistic auditory scene representation • 3D scene and object sonification / interaction • 3D audio framework • Graphics-based sound rendering (ICMC 06, DAFx 07) • 3D waveguide meshes with optimal sampling • Ray acoustics simulation with diffraction and material modeling • Virtual HRIR simulations • Applications and case studies(DIGRA 05, TIDSE 06, AM 06, AM 07) • Audiogames and interactive audiobooks • Augmented audio reality

25. Conclusions Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions • 3D auditory environments are as effective as visual environments • Spatial sonification / interaction • High-quality sound rendering • Audio-centered design • Domains • Audiogames and interactive audiobooks • Augmented audio reality • Aiding the visually impaired

26. Future Work Introduction – Auditory Environments – Sound Simulation – Applications – Conclusions • User interface design • Multi-user presentation and interaction • Advanced gestures • Perceptual presentation • Acoustic rendering • Comparison with real-world measurements (Bell Labs Box) • Experimentation with virtual HRIR measurements • Augmented audio reality • Improvement of positioning accuracy / system latency

27. Thank you! Questions? http://x3t.net/thesis.html A Thank You to everyone who helped and participated in this research, especially to all my students!
