slide1

Towing Vessel

Bridging Program

Mr. Mike White

Towing Vessel Branch

Coast Guard District Eight

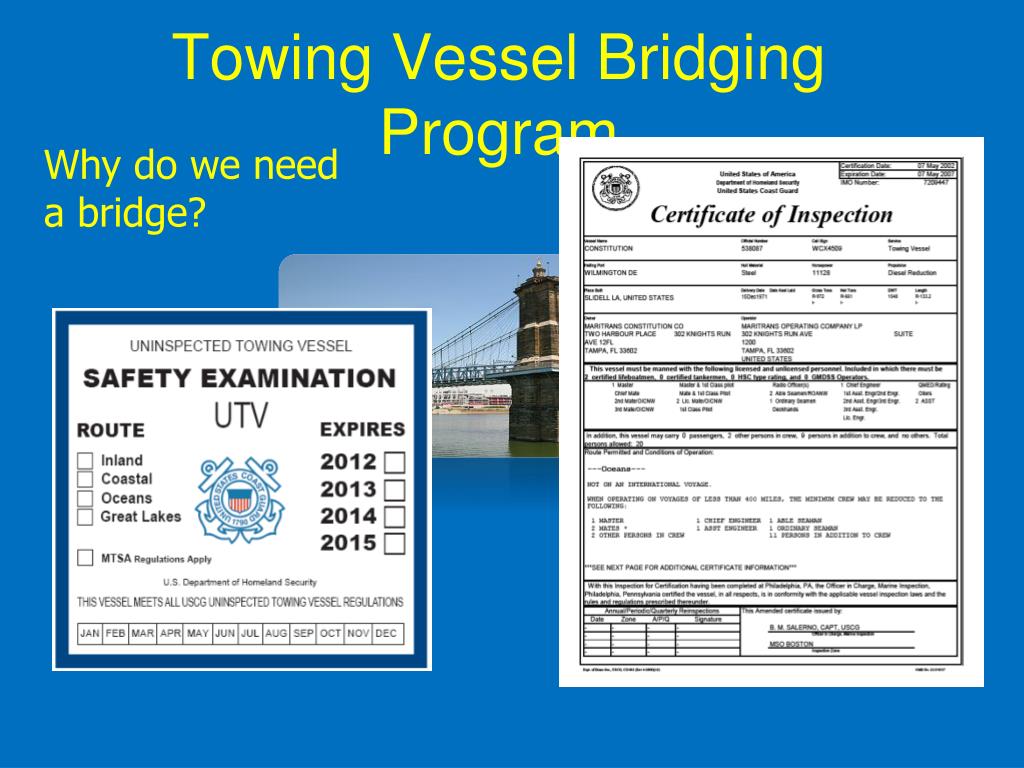

towing vessel bridging program
Towing Vessel Bridging Program

Why do we need a bridge?

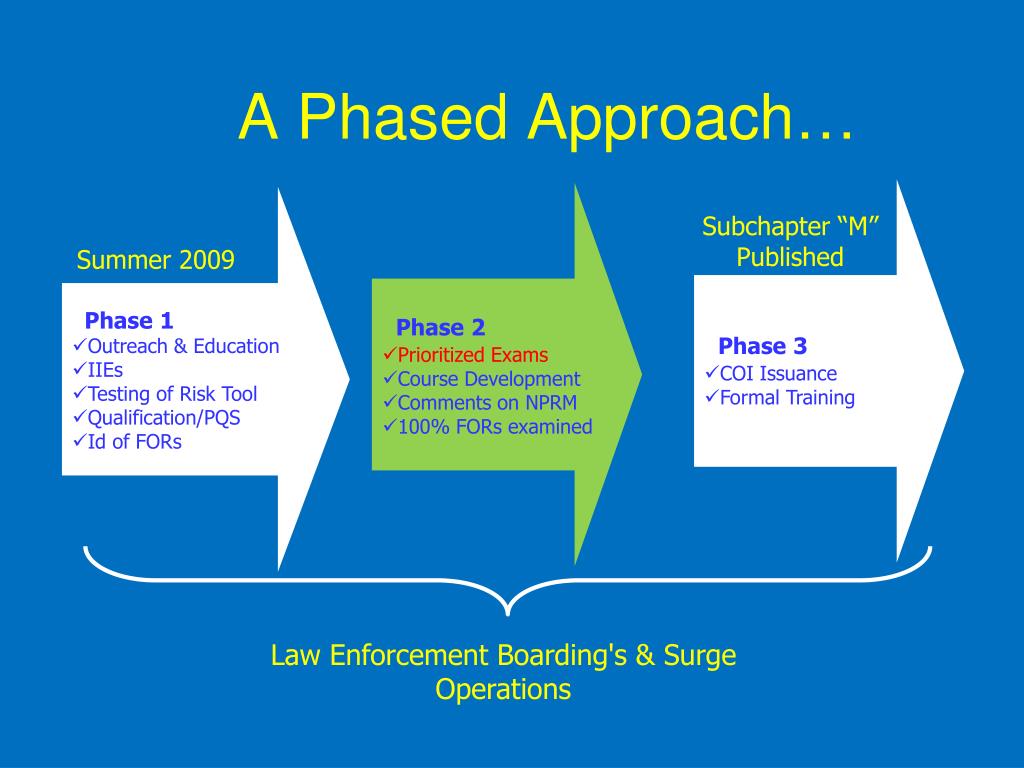

a phased approach
A Phased Approach…
  • Phase 3
  • COI Issuance
  • Formal Training
  • Phase 2
  • Prioritized Exams
  • Course Development
  • Comments on NPRM
  • 100% FORsexamined
  • Phase 1
  • Outreach & Education
  • IIEs
  • Testing of Risk Tool
  • Qualification/PQS
  • Id of FORs

Subchapter “M”

Published

Summer 2009

Law Enforcement Boarding's & Surge Operations

phase i results

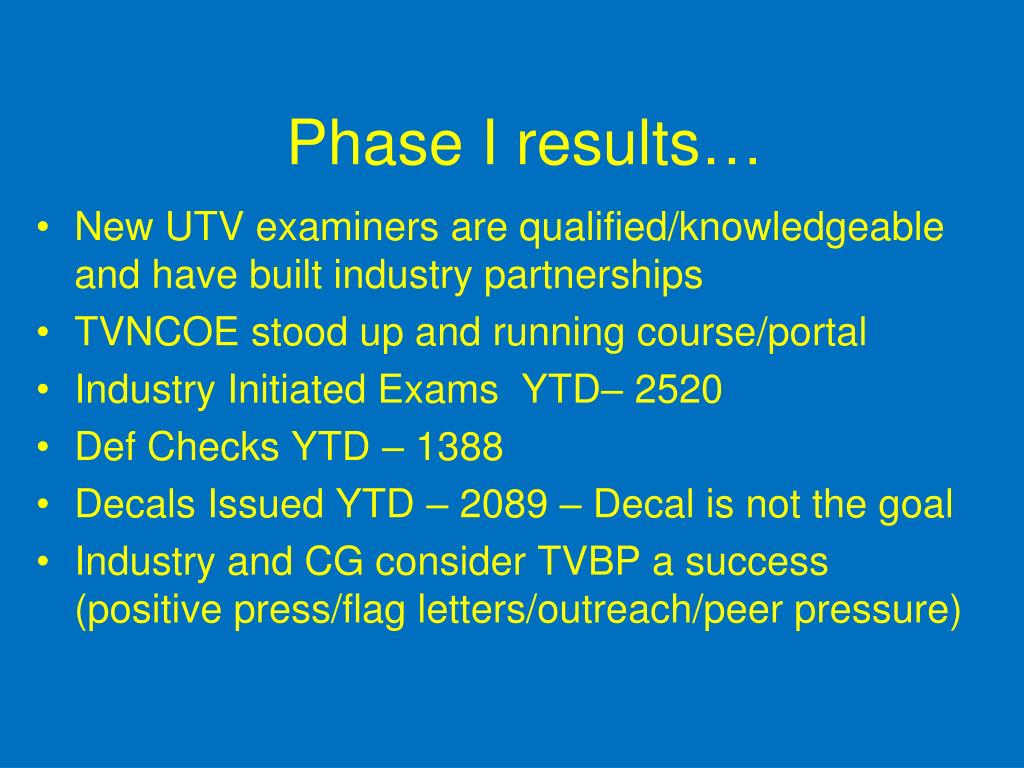

Phase I results…
  • New UTV examiners are qualified/knowledgeable and have built industry partnerships
  • TVNCOE stood up and running course/portal
  • Industry Initiated Exams YTD– 2520
  • Def Checks YTD – 1388
  • Decals Issued YTD – 2089 – Decal is not the goal
  • Industry and CG consider TVBP a success (positive press/flag letters/outreach/peer pressure)
d8 efforts thus far

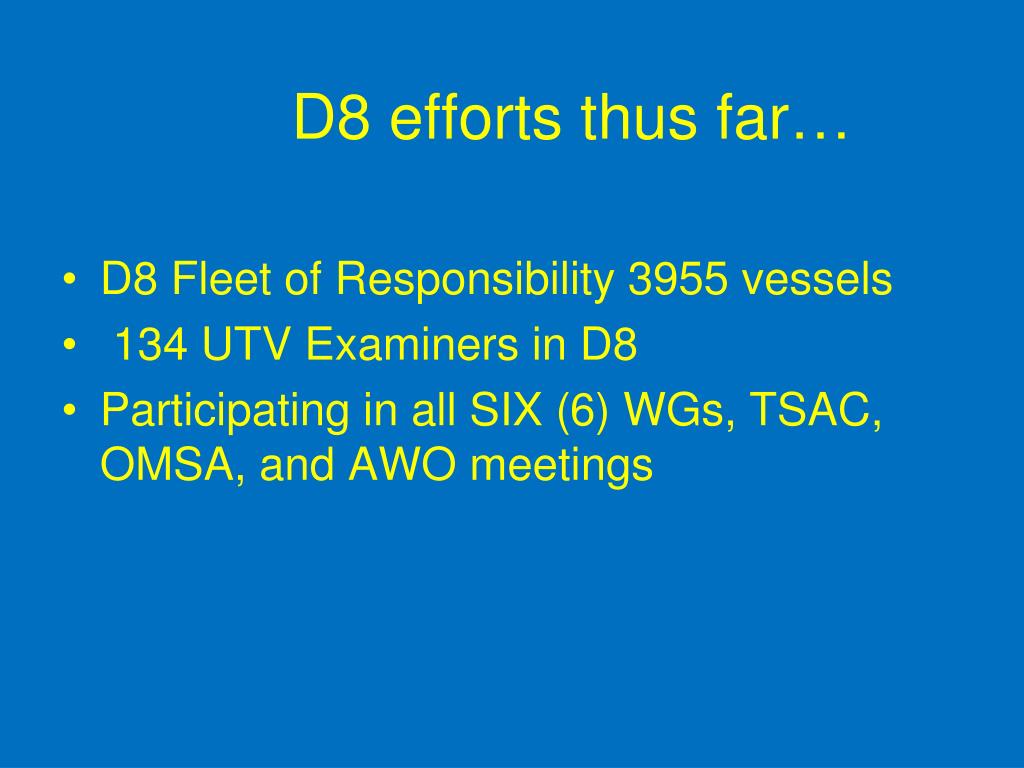

D8 efforts thus far…
  • D8 Fleet of Responsibility 3955 vessels
  • 134 UTV Examiners in D8
  • Participating in all SIX (6) WGs, TSAC, OMSA, and AWO meetings

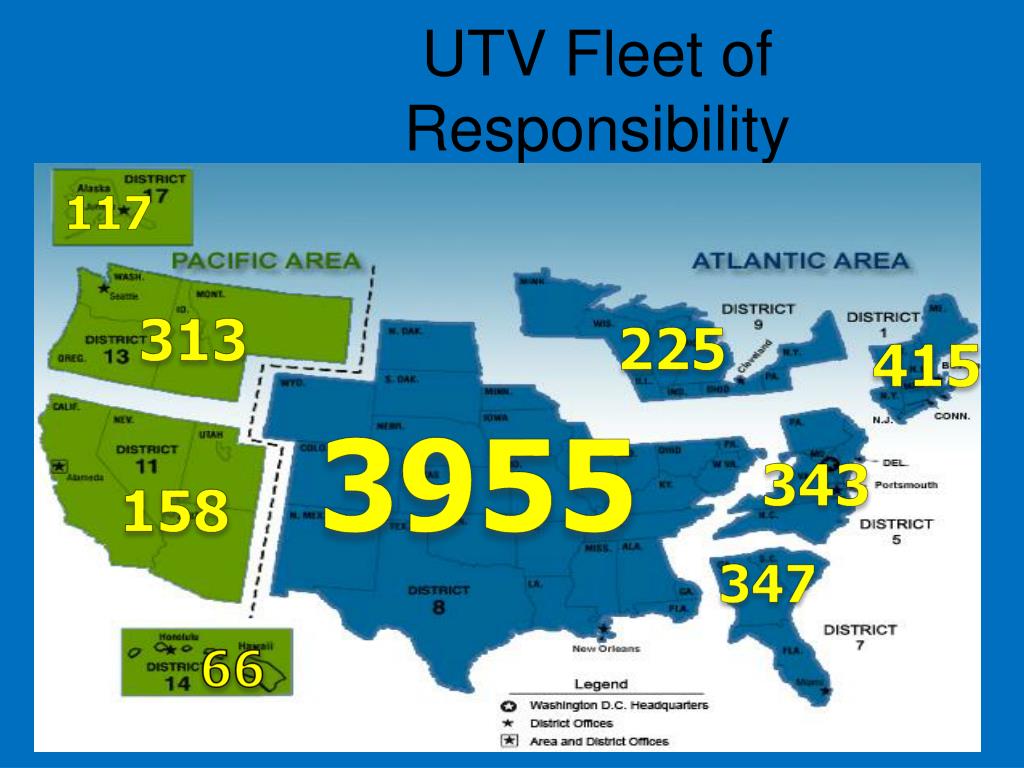

utv fleet of responsibility
UTV Fleet of Responsibility

117

313

225

415

3955

343

158

347

66

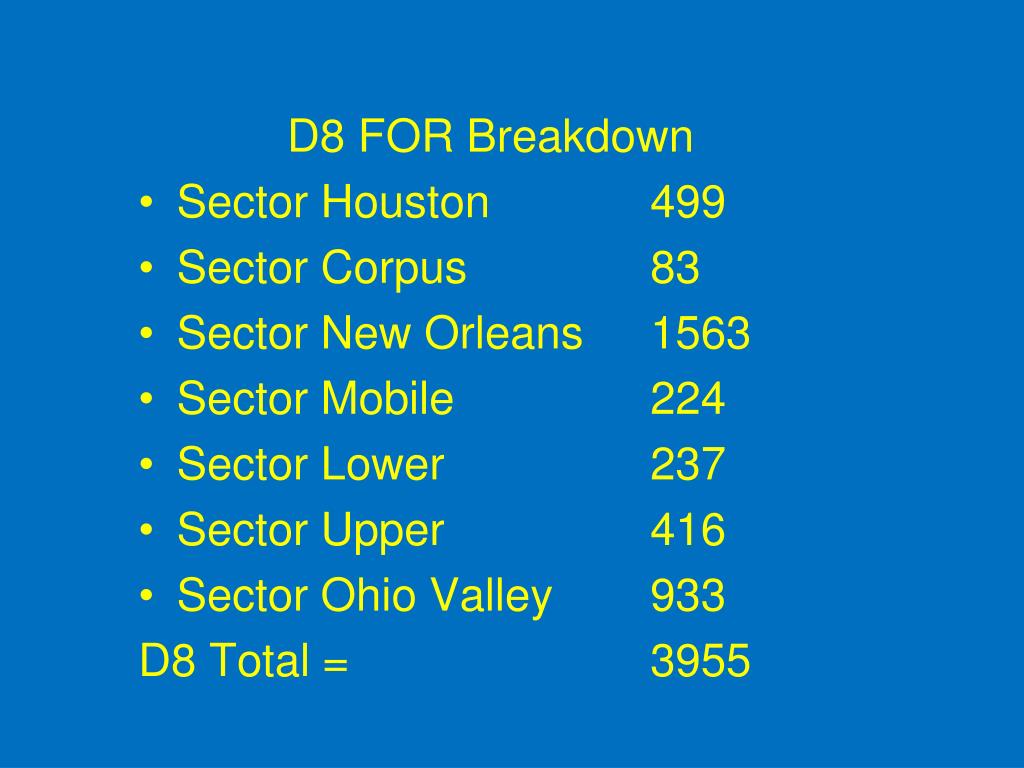

slide8

D8 FOR Breakdown

  • Sector Houston 499
  • Sector Corpus 83
  • Sector New Orleans 1563
  • Sector Mobile 224
  • Sector Lower 237
  • Sector Upper 416
  • Sector Ohio Valley 933

D8 Total = 3955

common deficiencies

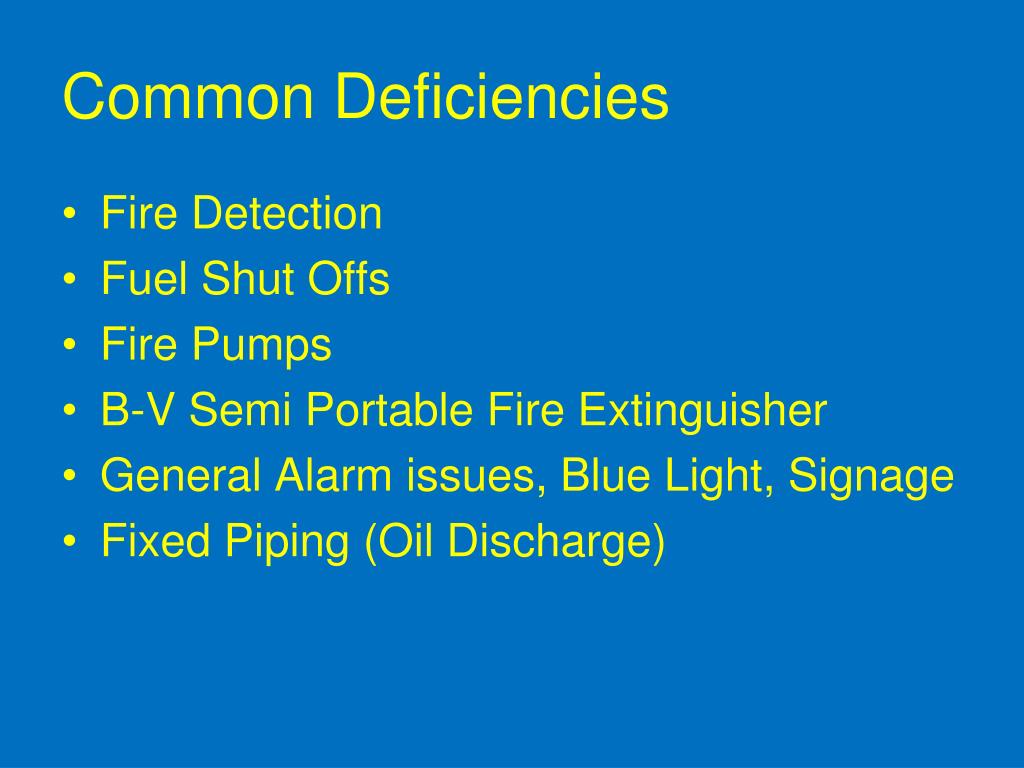

Common Deficiencies
  • Fire Detection
  • Fuel Shut Offs
  • Fire Pumps
  • B-V Semi Portable Fire Extinguisher
  • General Alarm issues, Blue Light, Signage
  • Fixed Piping (Oil Discharge)
slide10

U.S. Coast GuardNotice of Proposed Rulemaking

Inspection of Towing Vessels

Articulated tug-bargeAug 11, 2011

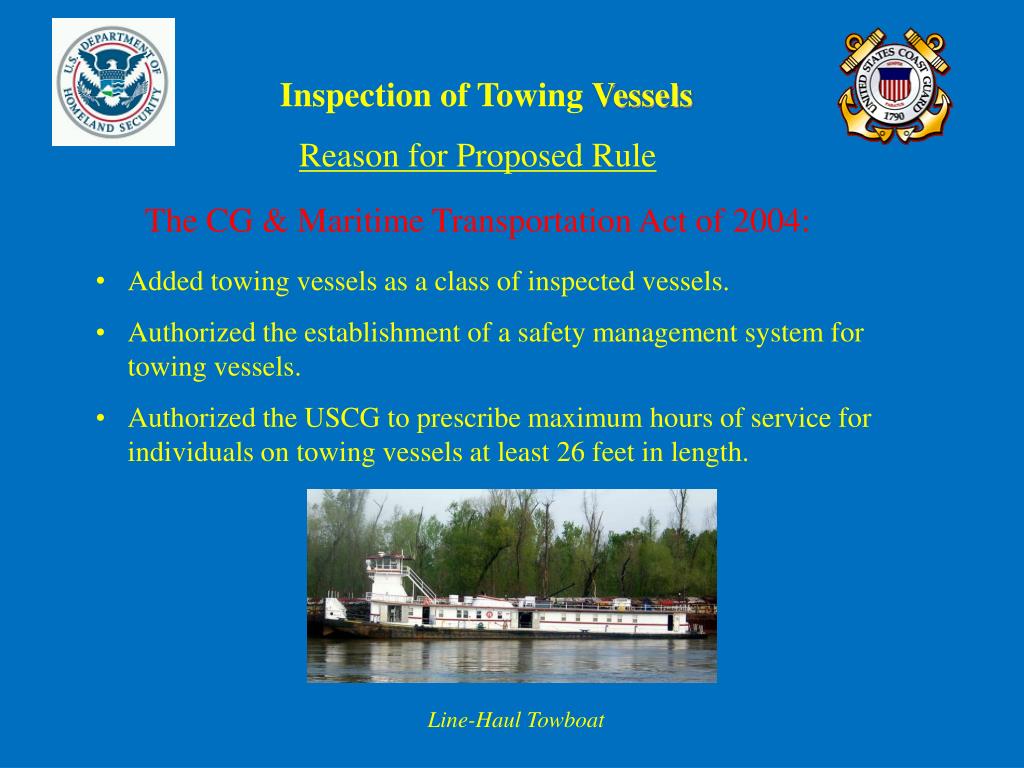

slide11

Inspection of Towing Vessels

  • Reason for Proposed Rule
  • The CG & Maritime Transportation Act of 2004:
    • Added towing vessels as a class of inspected vessels.
    • Authorized the establishment of a safety management system for towing vessels.
    • Authorized the USCG to prescribe maximum hours of service for individuals on towing vessels at least 26 feet in length.

Line-Haul Towboat

slide12

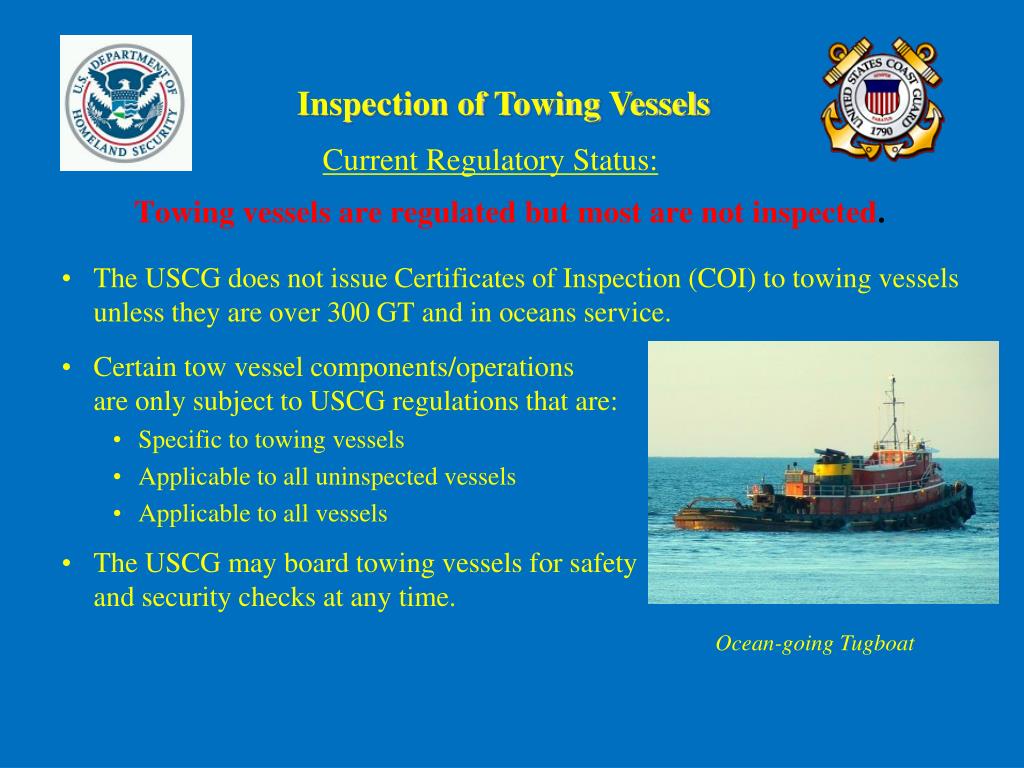

Inspection of Towing Vessels

Current Regulatory Status:

Towing vessels are regulated but most are not inspected.

  • The USCG does not issue Certificates of Inspection (COI) to towing vessels unless they are over 300 GT and in oceans service.
  • Certain tow vessel components/operationsare only subject to USCG regulations that are:
    • Specific to towing vessels
    • Applicable to all uninspected vessels
    • Applicable to all vessels
  • The USCG may board towing vessels for safetyand security checks at any time.

Ocean-going Tugboat

slide13

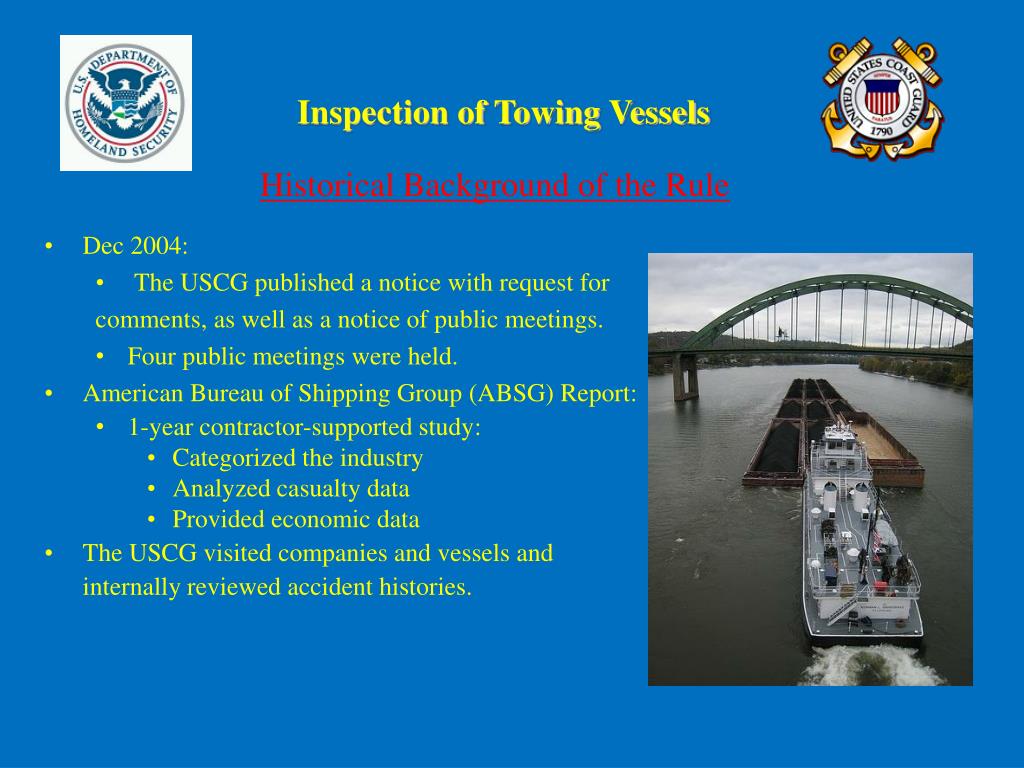

Inspection of Towing Vessels

  • Historical Background of the Rule
  • Dec 2004:
    • The USCG published a notice with request for
    • comments, as well as a notice of public meetings.
    • Four public meetings were held.
  • American Bureau of Shipping Group (ABSG) Report:
    • 1-year contractor-supported study:
      • Categorized the industry
      • Analyzed casualty data
      • Provided economic data
  • The USCG visited companies and vessels and
  • internally reviewed accident histories.

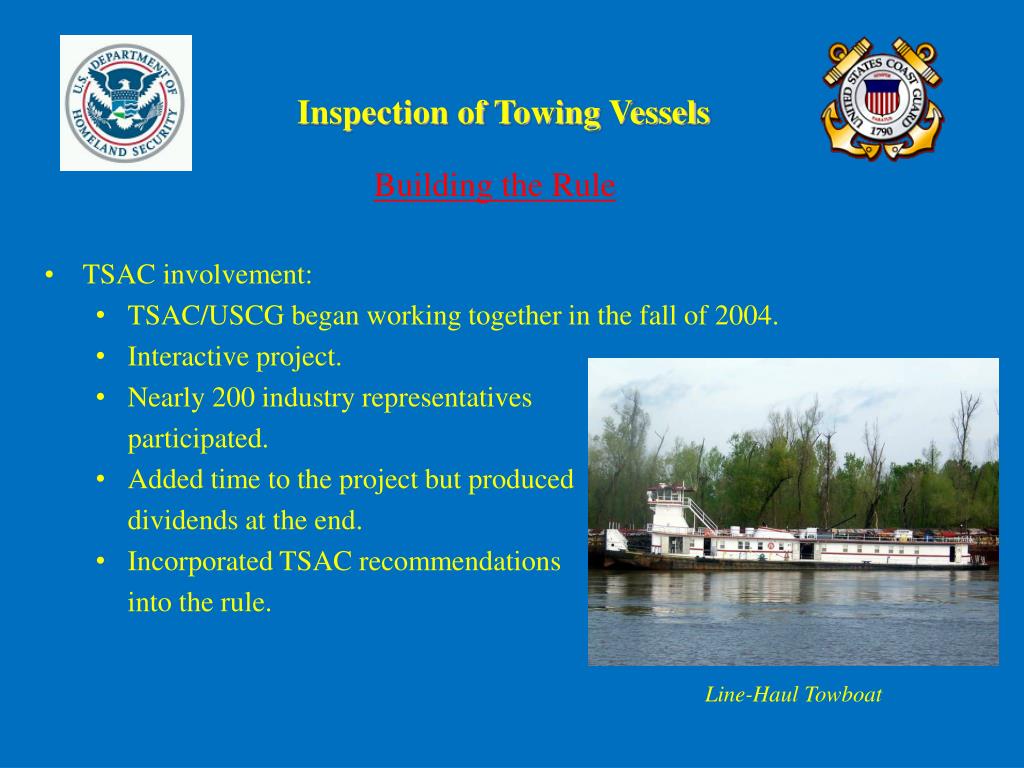

slide14

Inspection of Towing Vessels

  • Building the Rule
  • TSAC involvement:
    • TSAC/USCG began working together in the fall of 2004.
    • Interactive project.
    • Nearly 200 industry representatives
    • participated.
    • Added time to the project but produced
    • dividends at the end.
    • Incorporated TSAC recommendations
    • into the rule.

Line-Haul Towboat

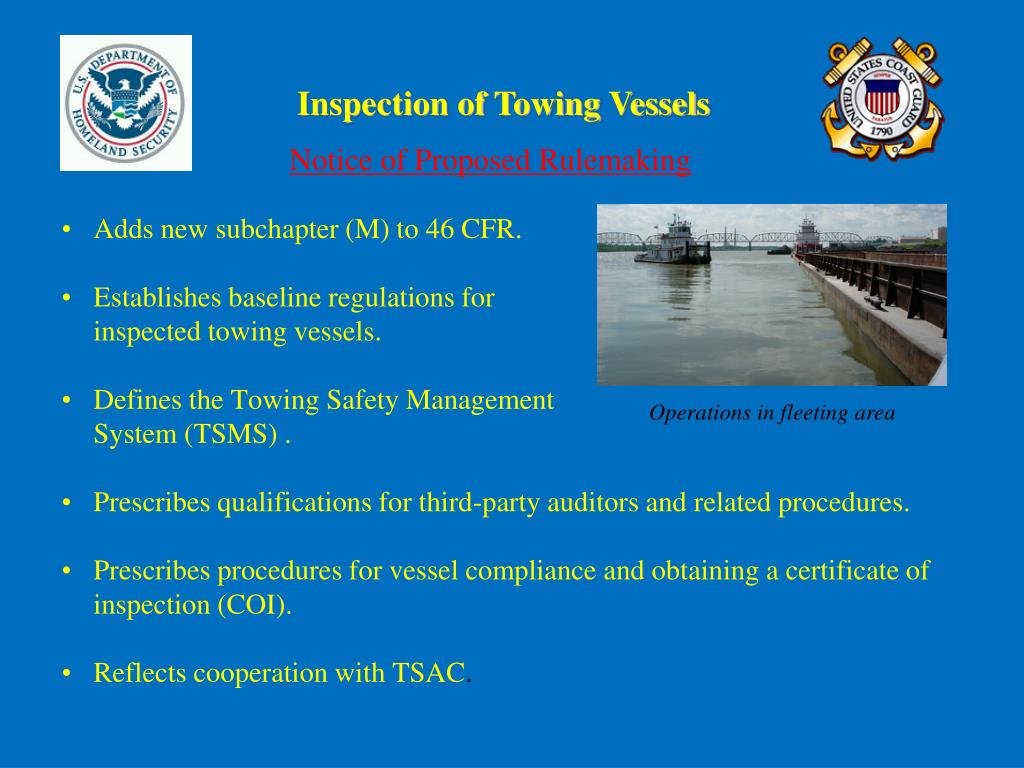

slide15

Inspection of Towing Vessels

Notice of Proposed Rulemaking

  • Adds new subchapter (M) to 46 CFR.
  • Establishes baseline regulations forinspected towing vessels.
  • Defines the Towing Safety ManagementSystem (TSMS) .
  • Prescribes qualifications for third-party auditors and related procedures.
  • Prescribes procedures for vessel compliance and obtaining a certificate of inspection (COI).
  • Reflects cooperation with TSAC.

Operations in fleeting area

slide16

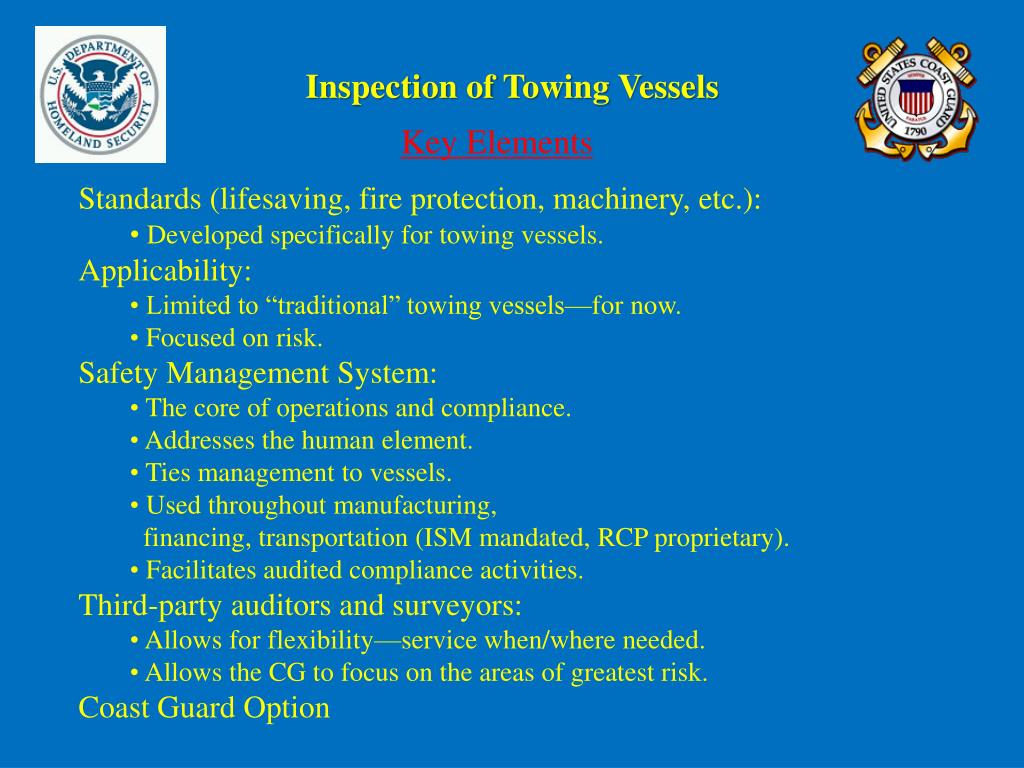

Inspection of Towing Vessels

Key Elements

  • Standards (lifesaving, fire protection, machinery, etc.):
    • Developed specifically for towing vessels.
  • Applicability:
    • Limited to “traditional” towing vessels—for now.
    • Focused on risk.
  • Safety Management System:
    • The core of operations and compliance.
    • Addresses the human element.
    • Ties management to vessels.
    • Used throughout manufacturing, financing, transportation (ISM mandated, RCP proprietary).
    • Facilitates audited compliance activities.
  • Third-party auditors and surveyors:
    • Allows for flexibility—service when/where needed.
    • Allows the CG to focus on the areas of greatest risk.
  • Coast Guard Option

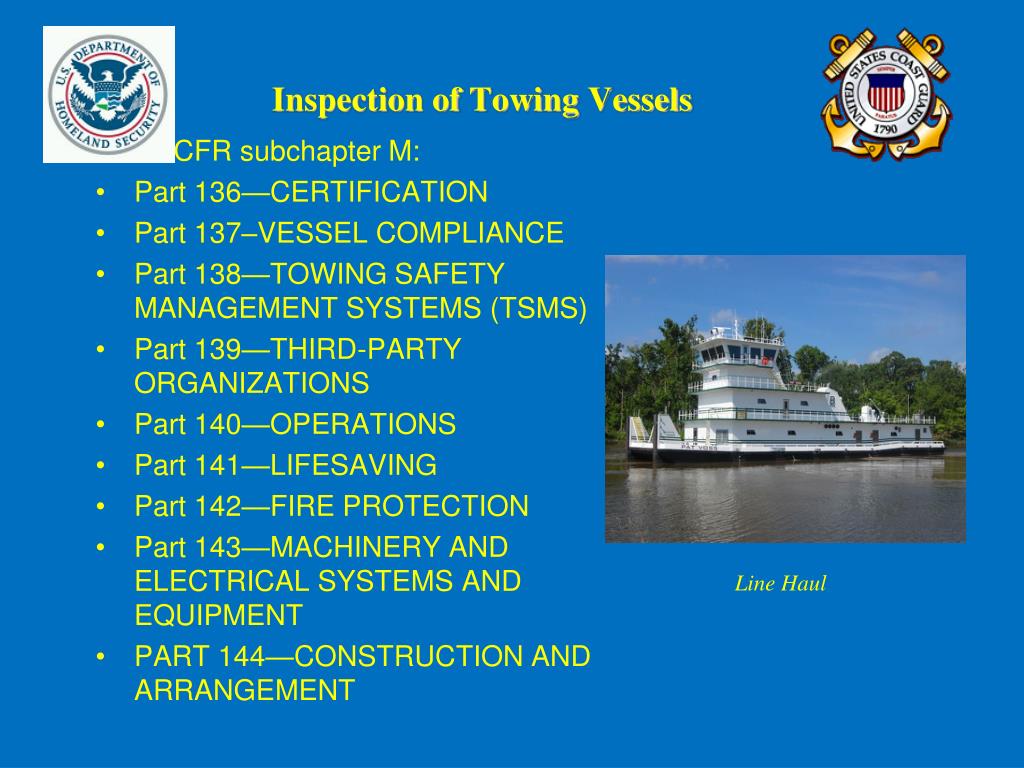

inspection of towing vessels
Inspection of Towing Vessels
  • 46 CFR subchapter M:
  • Part 136—CERTIFICATION
  • Part 137–VESSEL COMPLIANCE
  • Part 138—TOWING SAFETY MANAGEMENT SYSTEMS (TSMS)
  • Part 139—THIRD-PARTY ORGANIZATIONS
  • Part 140—OPERATIONS
  • Part 141—LIFESAVING
  • Part 142—FIRE PROTECTION
  • Part 143—MACHINERY AND ELECTRICAL SYSTEMS AND EQUIPMENT
  • PART 144—CONSTRUCTION AND ARRANGEMENT

Line Haul

inspection of towing vessels1
Inspection of Towing Vessels

Applicability

  • In general, this regulation would apply to

towing vessels ≥ 26 ft., as well as any towing vessels pushing, pulling, or hauling a barge carrying dangerous or hazardous materials.

Towboat pushing two covered hoppers, likely carrying grain, and one tank barge.

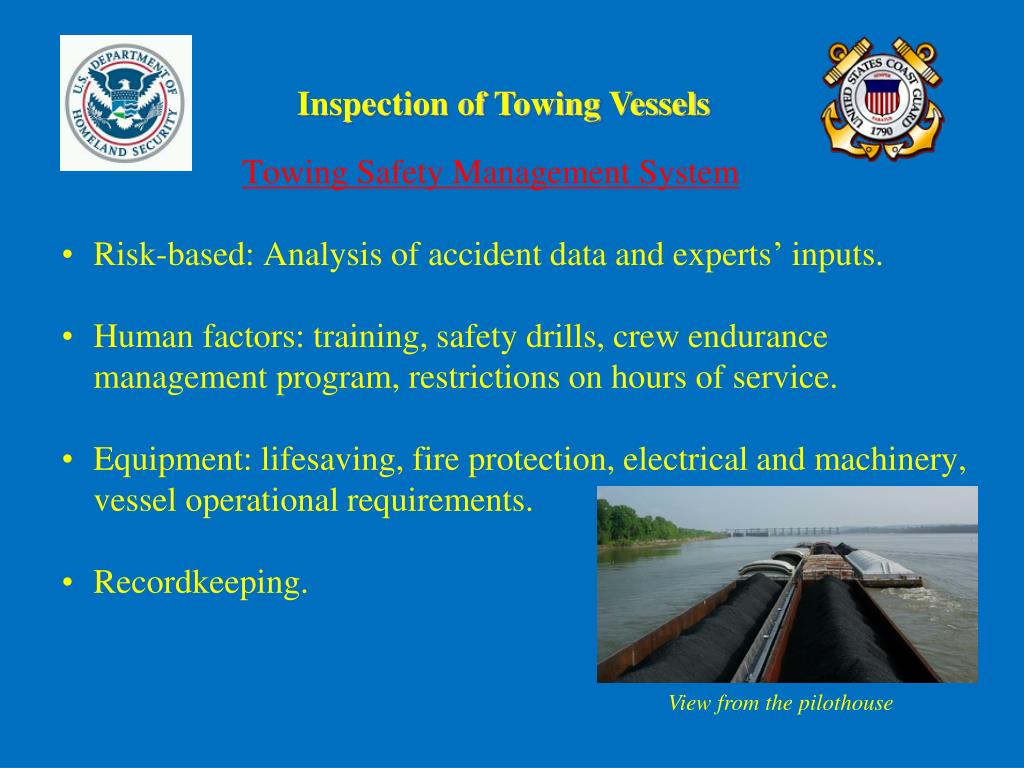

slide19

Inspection of Towing Vessels

Towing Safety Management System

  • Risk-based: Analysis of accident data and experts’ inputs.
  • Human factors: training, safety drills, crew endurance management program, restrictions on hours of service.
  • Equipment: lifesaving, fire protection, electrical and machinery,vessel operational requirements.
  • Recordkeeping.

View from the pilothouse

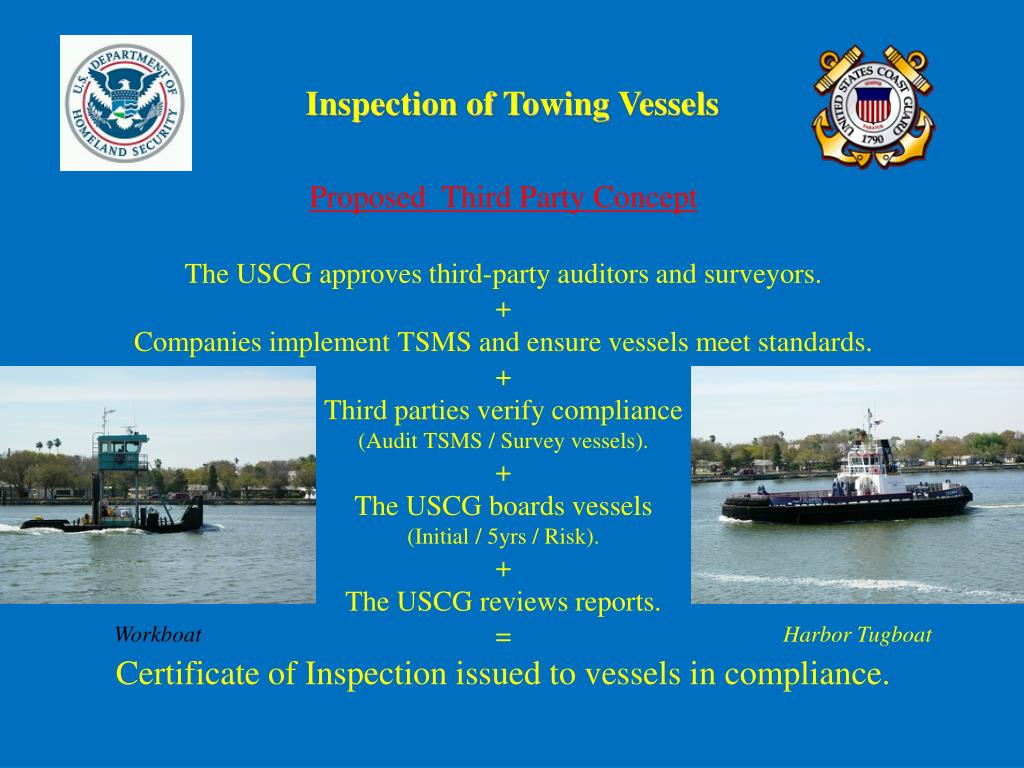

slide20

Inspection of Towing Vessels

Proposed Third Party Concept

The USCG approves third-party auditors and surveyors.

+

Companies implement TSMS and ensure vessels meet standards.

+

Third parties verify compliance

(Audit TSMS / Survey vessels).

+

The USCG boards vessels

(Initial / 5yrs / Risk).

+

The USCG reviews reports.

=

Certificate of Inspection issued to vessels in compliance.

Workboat

Harbor Tugboat

inspection of towing vessels2
Inspection of Towing Vessels
  • Towing Company Responsibilities
  • Develop and implement TSMS on vessels and shore side operations.
  • Operate under TSMS.
  • Maintain vessels in compliance
  • with regulations and TSMS.

Tugboat backing bow around

inspection of towing vessels3

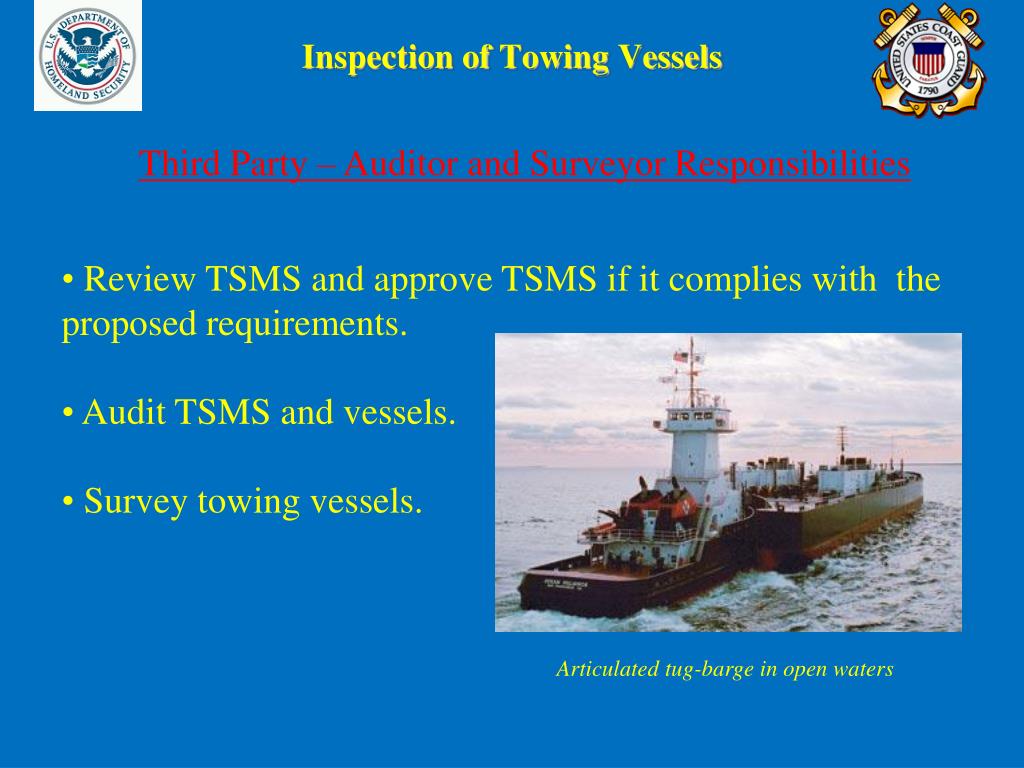

Inspection of Towing Vessels
  • Third Party – Auditor and Surveyor Responsibilities
  • Review TSMS and approve TSMS if it complies with the proposed requirements.
  • Audit TSMS and vessels.
  • Survey towing vessels.

Articulated tug-barge in open waters

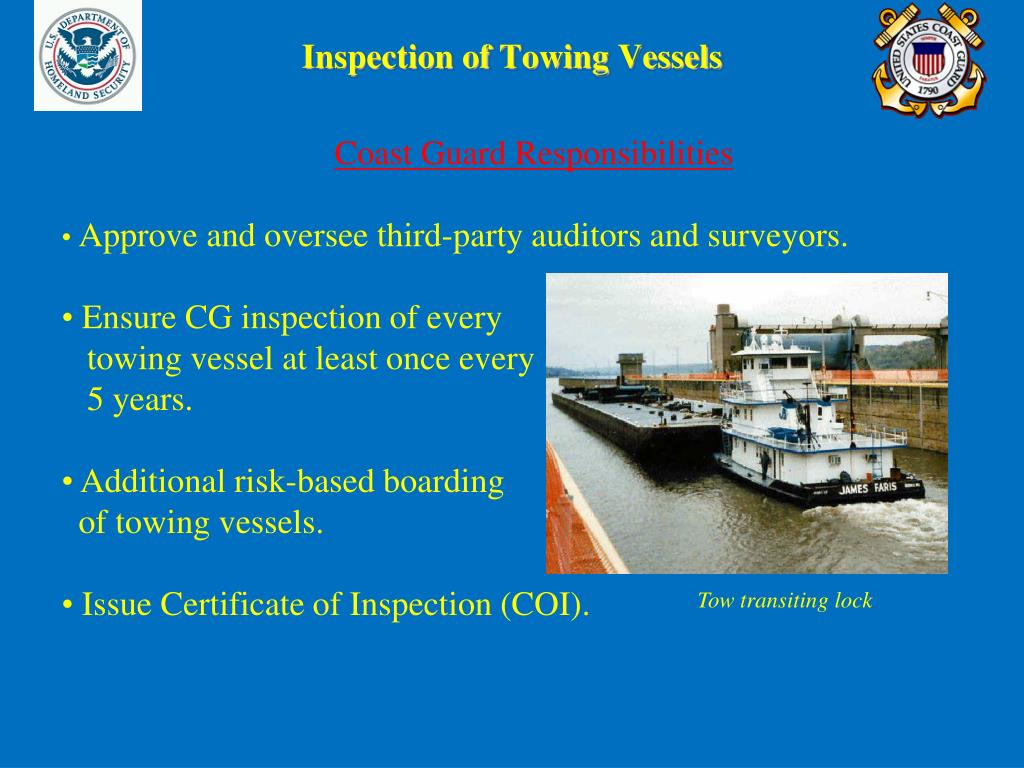

inspection of towing vessels4
Inspection of Towing Vessels
  • Coast Guard Responsibilities
  • Approve and oversee third-party auditors and surveyors.
  • Ensure CG inspection of every
  • towing vessel at least once every
  • 5 years.
  • Additional risk-based boarding of towing vessels.
  • Issue Certificate of Inspection (COI).

Tow transiting lock

inspection of towing vessels5

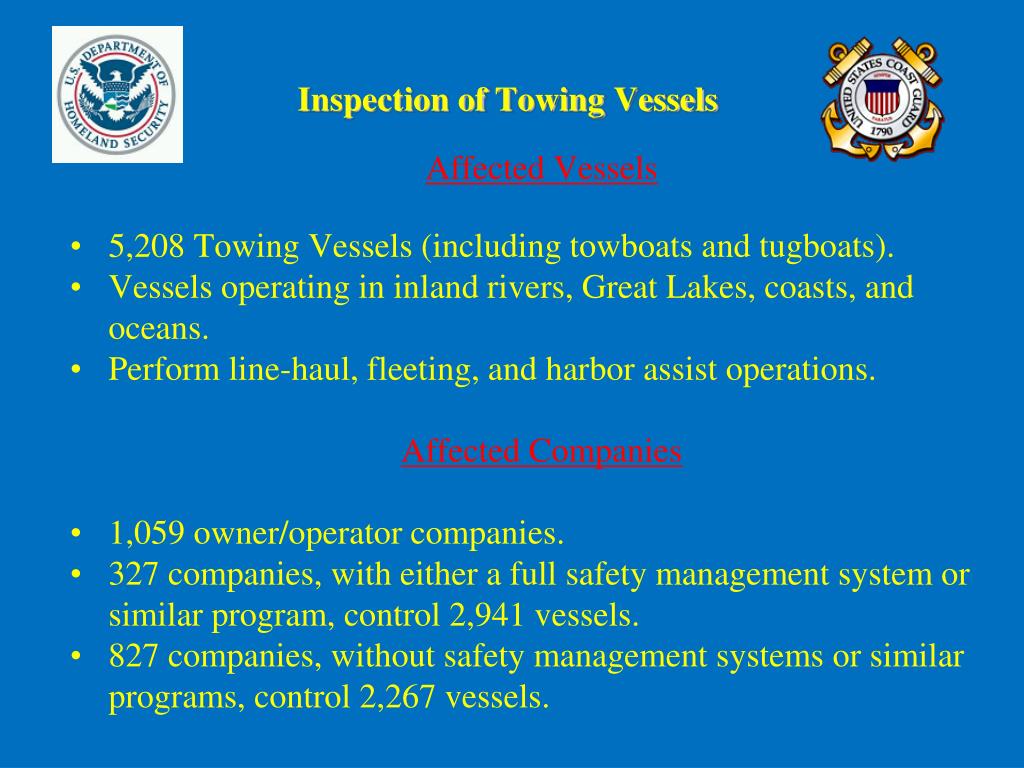

Inspection of Towing Vessels

Affected Vessels

  • 5,208 Towing Vessels (including towboats and tugboats).
  • Vessels operating in inland rivers, Great Lakes, coasts, and oceans.
  • Perform line-haul, fleeting, and harbor assist operations.

Affected Companies

  • 1,059 owner/operator companies.
  • 327 companies, with either a full safety management system or similar program, control 2,941 vessels.
  • 827 companies, without safety management systems or similar programs, control 2,267 vessels.
slide25

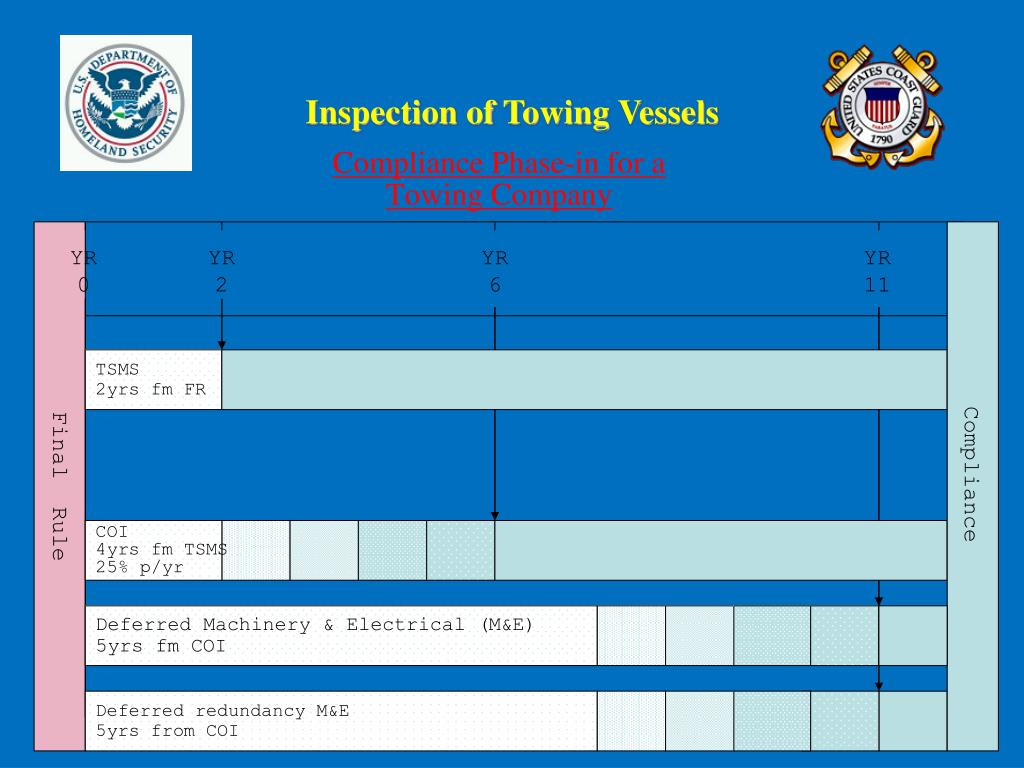

Inspection of Towing Vessels

Compliance Phase-in for a

Towing Company

Final Rule

YR

0

YR

2

YR

6

YR

11

TSMS

2yrs fm FR

Compliance

COI

4yrs fm TSMS

25% p/yr

Deferred Machinery & Electrical (M&E)

5yrs fm COI

Deferred redundancy M&E

5yrs from COI
