  1. BALL VALVES AND THEIR INDUSTRIAL USES BASED ON THEIR TYPES

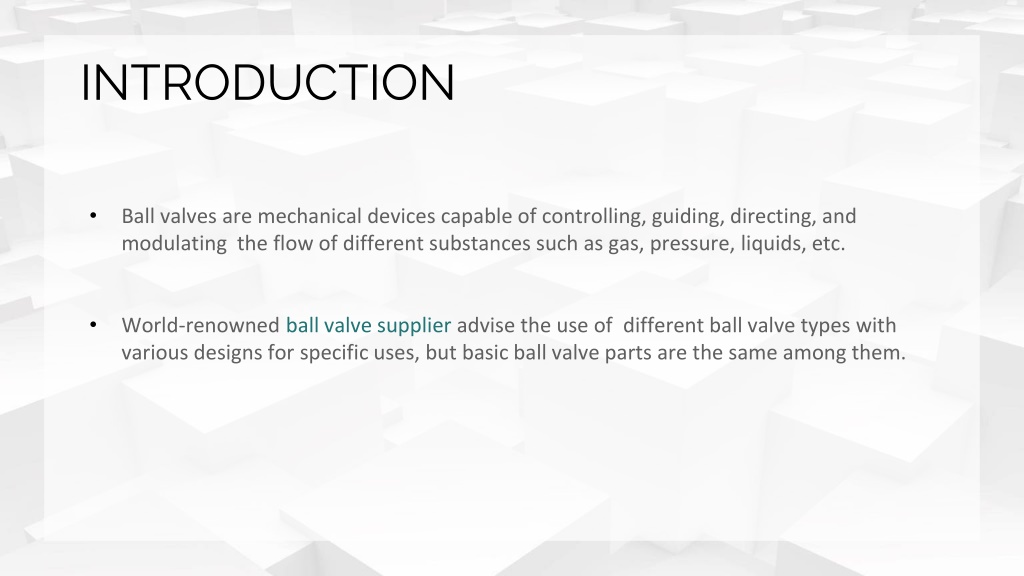

  2. INTRODUCTION • Ball valves are mechanical devices capable of controlling, guiding, directing, and modulating the flow of different substances such as gas, pressure, liquids, etc. • World-renowned ball valve supplier advise the use of different ball valve types with various designs for specific uses, but basic ball valve parts are the same among them.

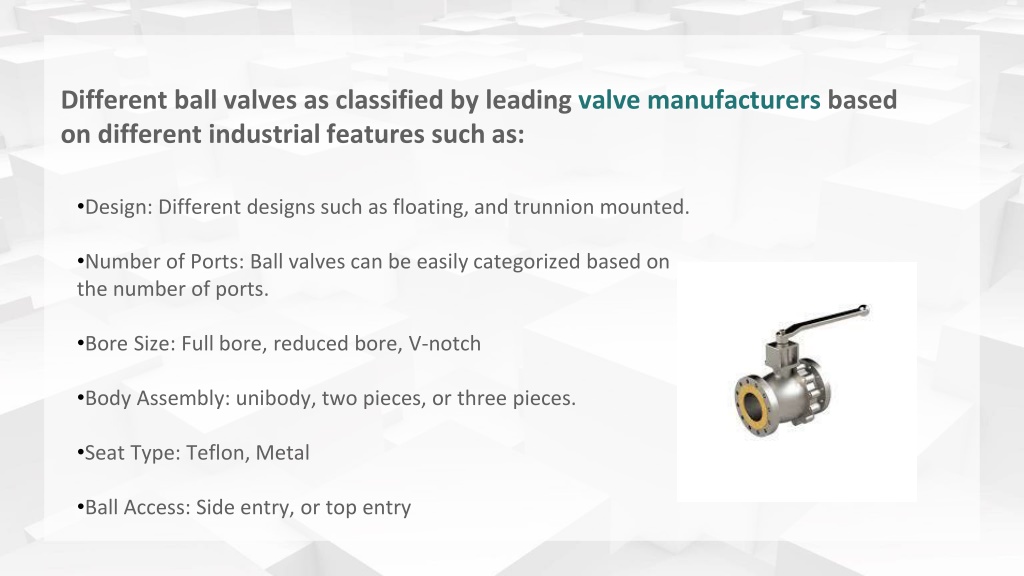

  3. Different ball valves as classified by leading valve manufacturers based on different industrial features such as: • Design: Different designs such as floating, and trunnion mounted. • Number of Ports: Ball valves can be easily categorized based on the number of ports. • Bore Size: Full bore, reduced bore, V-notch • Body Assembly: unibody, two pieces, or three pieces. • Seat Type: Teflon, Metal • Ball Access: Side entry, or top entry

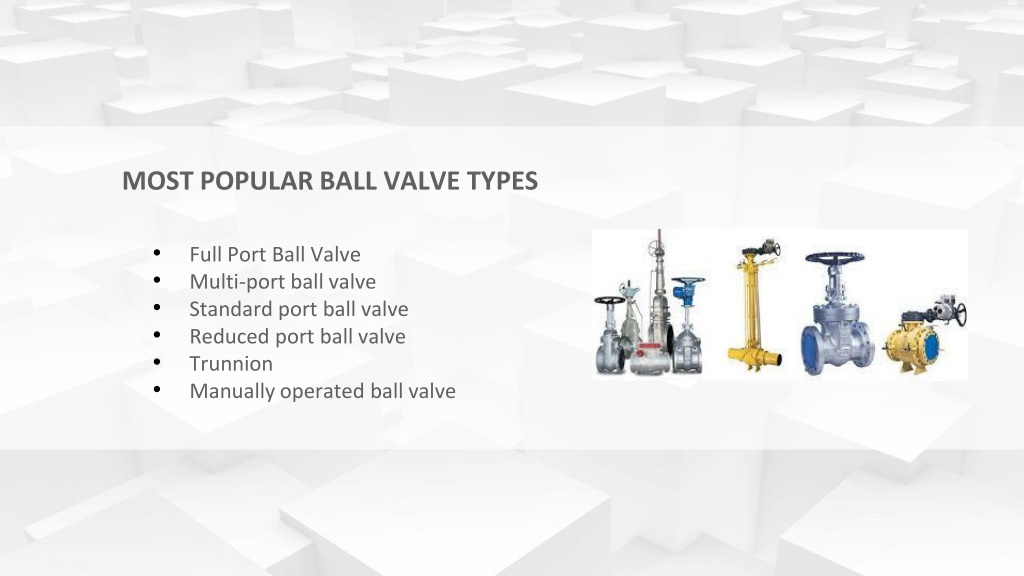

  4. MOST POPULAR BALL VALVE TYPES Full Port Ball Valve Multi-port ball valve Standard port ball valve Reduced port ball valve Trunnion Manually operated ball valve

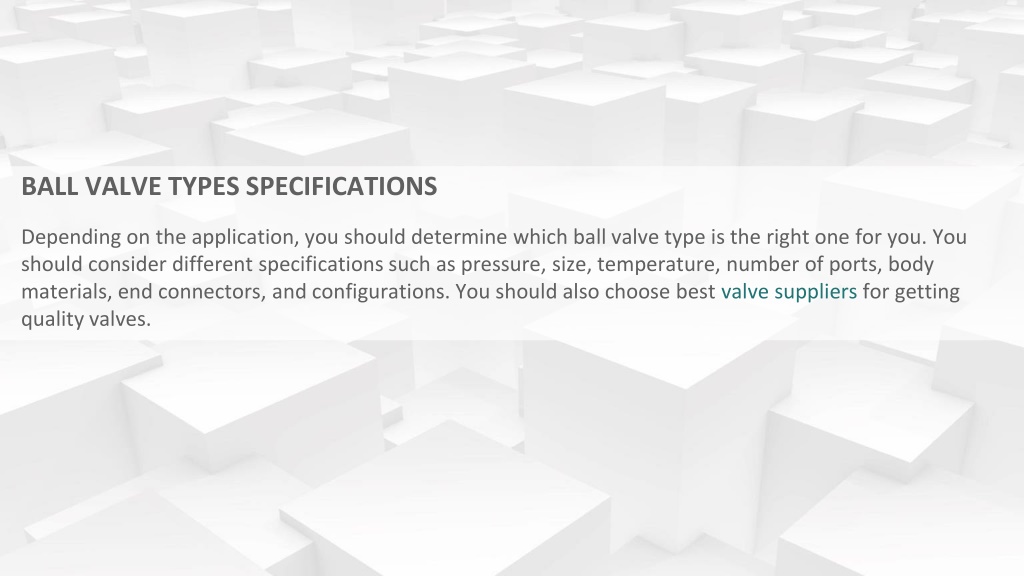

  5. BALL VALVE TYPES SPECIFICATIONS Depending on the application, you should determine which ball valve type is the right one for you. You should consider different specifications such as pressure, size, temperature, number of ports, body materials, end connectors, and configurations. You should also choose best valve suppliers for getting quality valves.

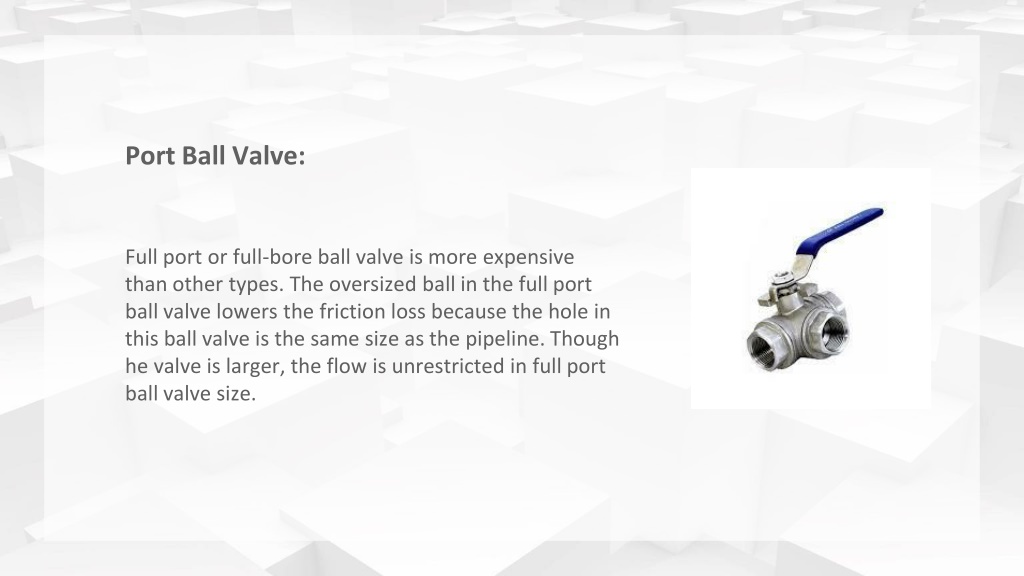

  6. Port Ball Valve: Full port or full-bore ball valve is more expensive than other types. The oversized ball in the full port ball valve lowers the friction loss because the hole in this ball valve is the same size as the pipeline. Though he valve is larger, the flow is unrestricted in full port ball valve size.

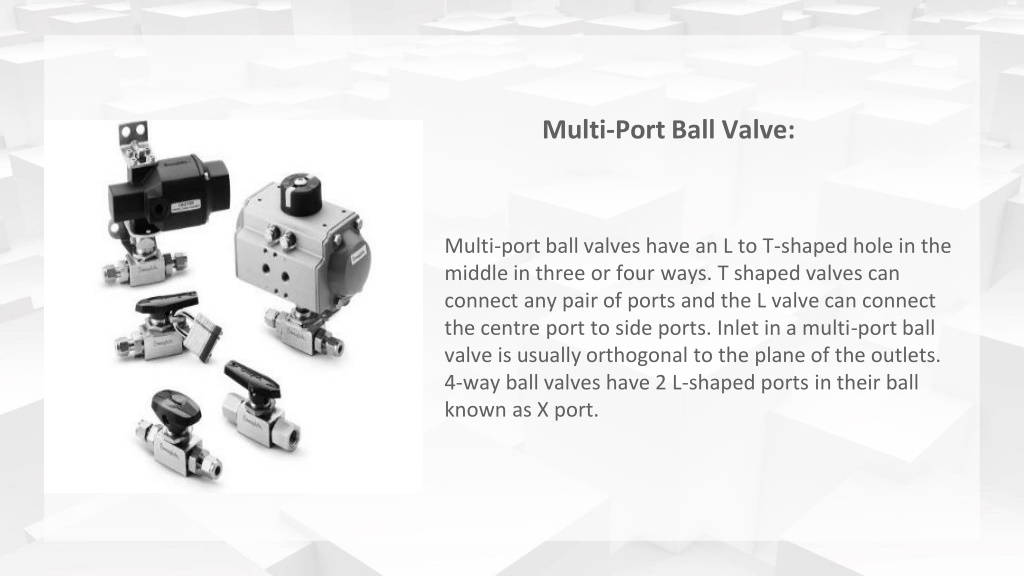

  7. Multi-Port Ball Valve: Multi-port ball valves have an L to T-shaped hole in the middle in three or four ways. T shaped valves can connect any pair of ports and the L valve can connect the centre port to side ports. Inlet in a multi-port ball valve is usually orthogonal to the plane of the outlets. 4-way ball valves have 2 L-shaped ports in their ball known as X port.

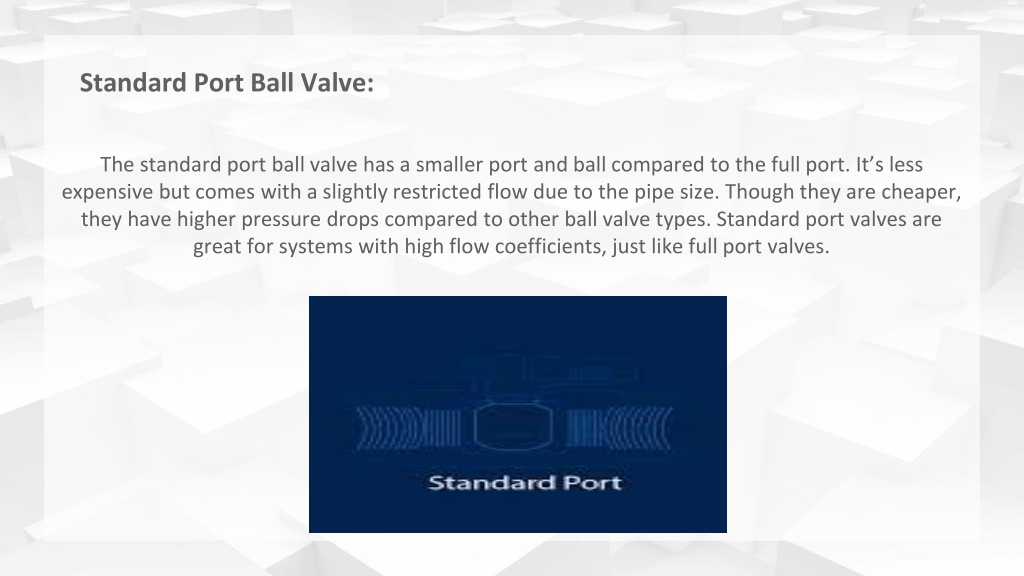

  8. Standard Port Ball Valve:  The standard port ball valve has a smaller port and ball compared to the full port. It’s less expensive but comes with a slightly restricted flow due to the pipe size. Though they are cheaper, they have higher pressure drops compared to other ball valve types. Standard port valves are great for systems with high flow coefficients, just like full port valves.

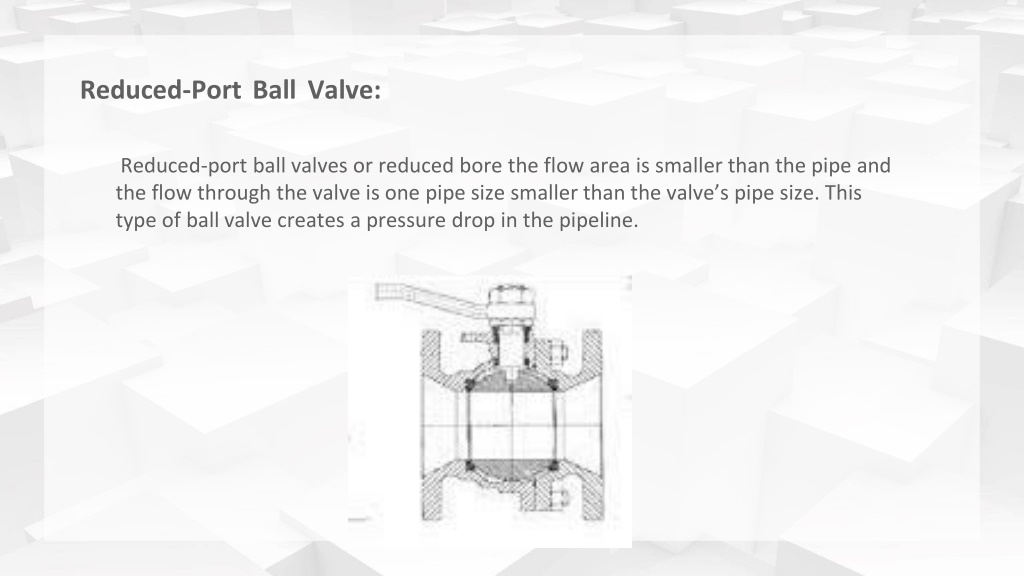

  9. Reduced-PortBallValve:  Reduced-port ball valves or reduced bore the flow area is smaller than the pipe and the flow through the valve is one pipe size smaller than the valve’s pipe size. This type of ball valve creates a pressure drop in the pipeline.

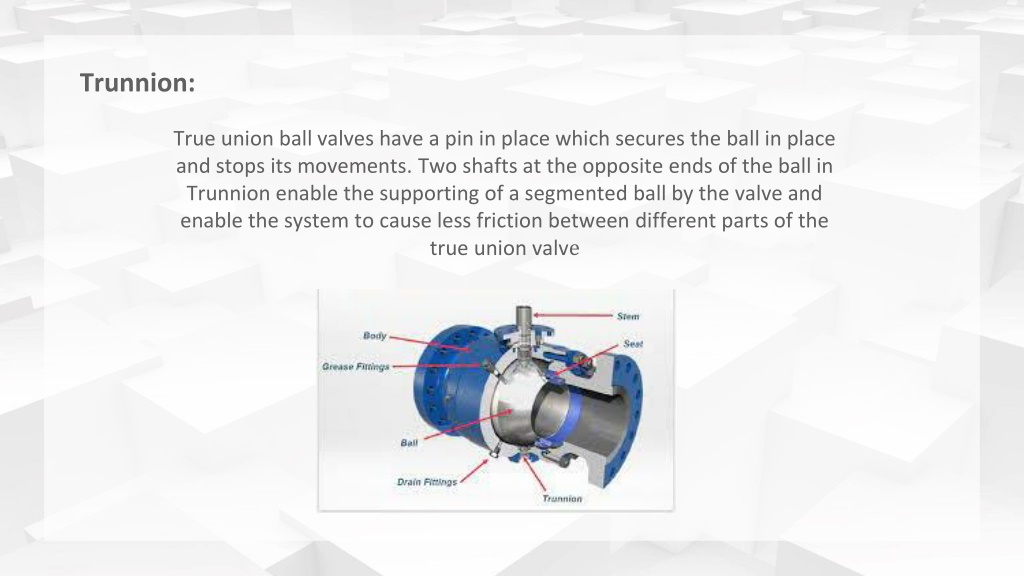

  10. Trunnion:  True union ball valves have a pin in place which secures the ball in place and stops its movements. Two shafts at the opposite ends of the ball in Trunnion enable the supporting of a segmented ball by the valve and enable the system to cause less friction between different parts of the true union valve

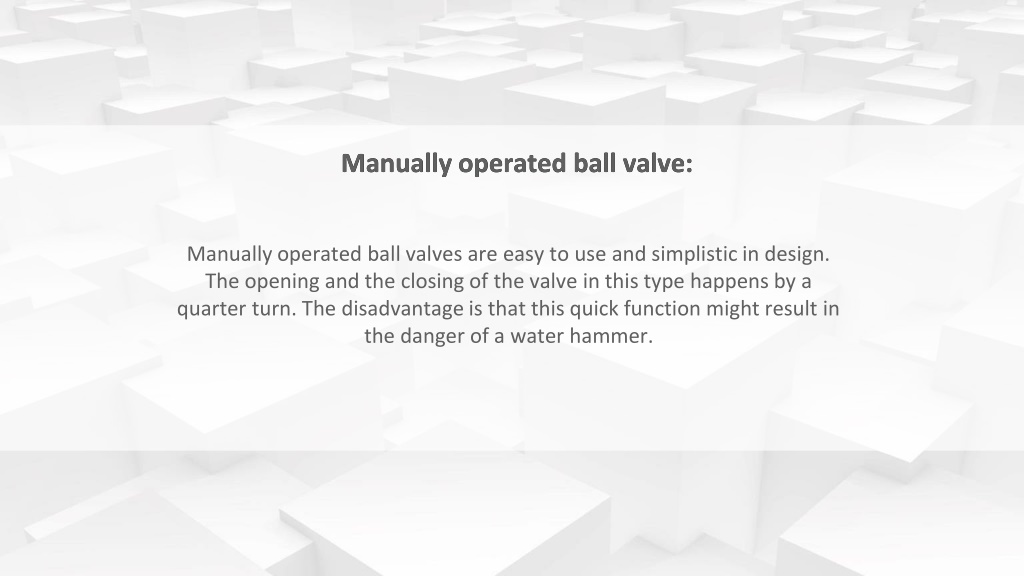

  11. Manually operated ball valves are easy to use and simplistic in design. The opening and the closing of the valve in this type happens by a quarter turn. The disadvantage is that this quick function might result in the danger of a water hammer. Manually operated ball valve:

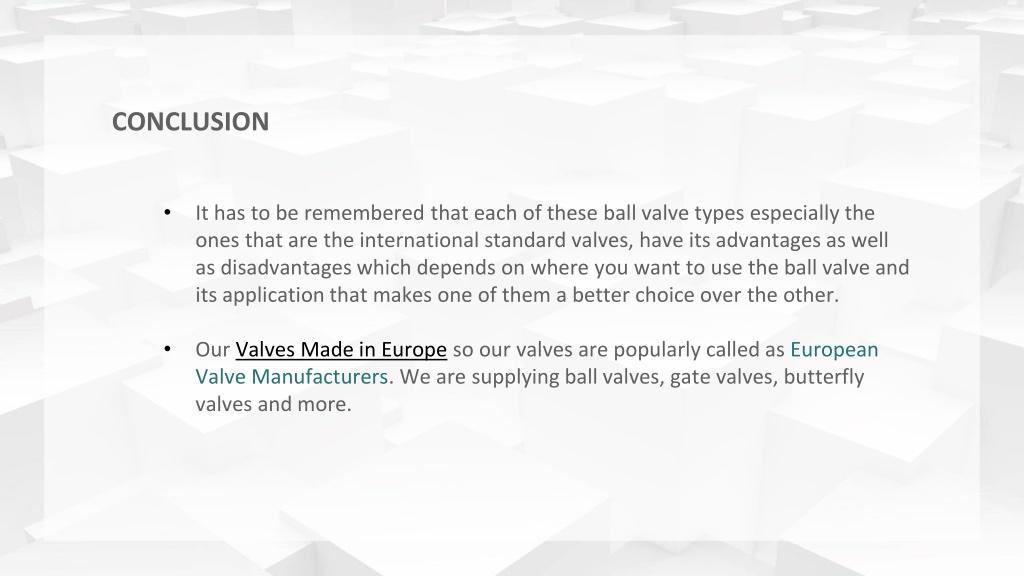

  12. CONCLUSION • It has to be remembered that each of these ball valve types especially the ones that are the international standard valves, have its advantages as well as disadvantages which depends on where you want to use the ball valve and its application that makes one of them a better choice over the other. • Our Valves Made in Europe so our valves are popularly called as European Valve Manufacturers. We are supplying ball valves, gate valves, butterfly valves and more.

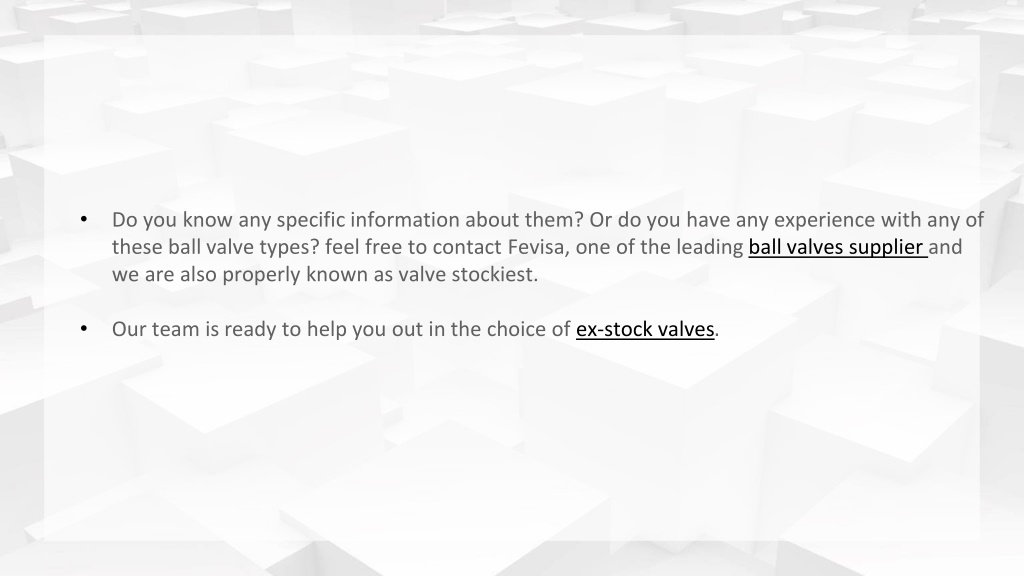

  13. Do you know any specific information about them? Or do you have any experience with any of these ball valve types? feel free to contact Fevisa, one of the leading ball valves supplier and we are also properly known as valve stockiest. • Our team is ready to help you out in the choice of ex-stock valves.
