1. Cardiovascular System ANALYSIS Dr.Mohammed Sharique Ahmed Quadri Asst. Professor Physiology Almaarefa College ELECTROCARDIOGRAM (ECG) بسم الله الرحمن الرحيم

3. Views of the Heart Left Lateral portion of the heart( I , Avl, v5,v6) Some leads get a good view of the: Anterior portion of the heart (V1,V2,- setum V3,V4-)- anterior Inferior portion of the heart II, III, aVF

4. Basic components

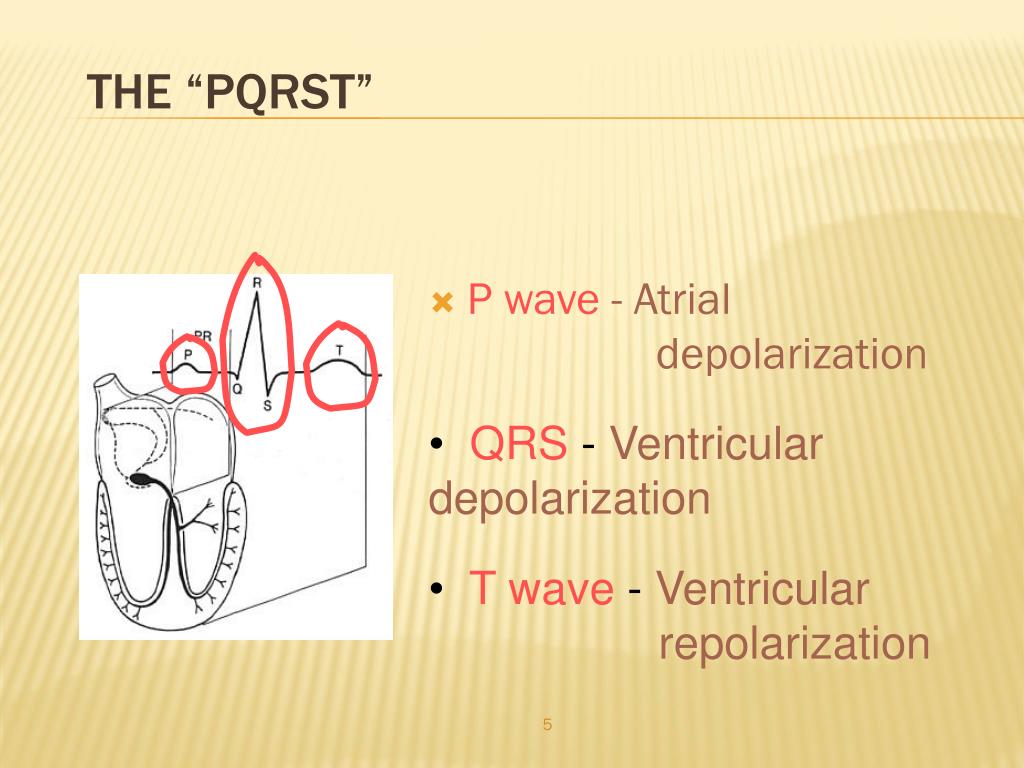

5. The “PQRST” • P wave - Atrial depolarization • QRS - Ventricular depolarization • T wave - Ventricular repolarization

6. The PR Interval Atrial depolarization + delay in AV junction (AV node/Bundle of His) (delay allows time for the atria to contract before the ventricles contract)

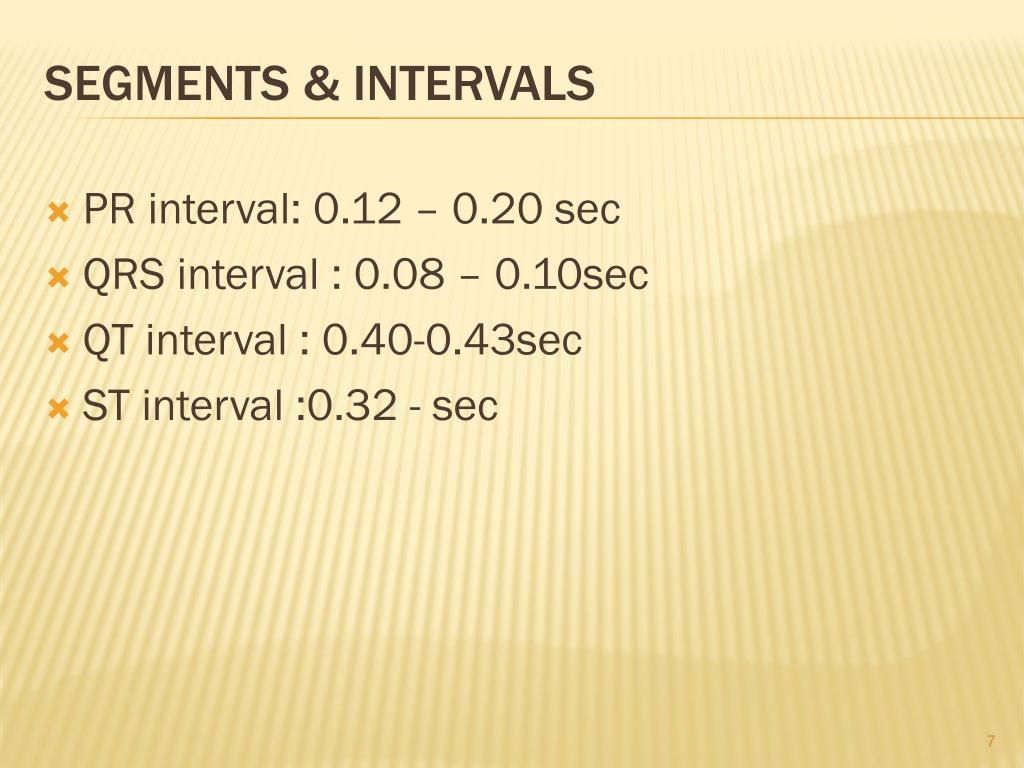

7. PR interval: 0.12 – 0.20 sec QRS interval : 0.08 – 0.10sec QT interval : 0.40-0.43sec ST interval :0.32 - sec Segments & intervals

8. Rhythm analysis • Analyzing individual wave & segments • Determine the mean electrical axis How to read the ecg

9. Rhythm Analysis • Step 1: Determine regularity. • Step 2: Calculate rate. • Step 3: Assess the P waves. • Step 4: Determine PR interval. • Step 5: Determine QRS duration.

10. 1-Determine regularity R R • Look at the R-R distances (using a caliper or markings with a pen on paper). • Regular (are they equidistant apart)? Occasionally irregular? Regularly irregular? Irregularly irregular? Interpretation? Regular

11. H.R = 1500 NO OF SMALL SQURES BETWEEN R-R WAVES OR H.R = 300 NO OF BIG SQURES BETWEEN R-R WAVES 2-Calculating heart rate

12. Calculate Rate • Option 2 • Find a R wave that lands on a bold line. • Count the # of large boxes to the next R wave. If the second R wave is 1 large box away the rate is 300, 2 boxes - 150, 3 boxes - 100, 4 boxes - 75, etc. (cont) R wave

13. 3-Assess the P waves • Are there P waves? • Do the P waves all look alike? • Do the P waves occur at a regular rate? • Is there one P wave before each QRS? Interpretation? Normal P waves with 1 P wave for every QRS

14. 4-Determine PR interval • Normal: 0.12 - 0.20 seconds. (3 - 5 boxes) Interpretation? 0.12 seconds

15. 5-QRS duration • Normal: 0.04 - 0.12 seconds. (1 - 3 boxes) Interpretation? 0.08 seconds

16. Rhythm Summary • Regularity regular • Rate 90-95 bpm • P waves normal • PR interval 0.12 s • QRS duration 0.08 s Interpretation? Normal Sinus Rhythm

17. Calculate Heart Rate. What is Axis ? Normal ECG

18. Variations in Sinus Rhythm • Rate? 35 bpm • Regularity? regular • P waves? normal • PR interval? 0.12 s • QRS duration? 0.10 s Interpretation? Sinus Bradycardia

19. Variations in Sinus Rhythm • Rate? 130 bpm • Regularity? regular • P waves? normal • PR interval? 0.16 s • QRS duration? 0.08 s Interpretation? Sinus Tachycardia

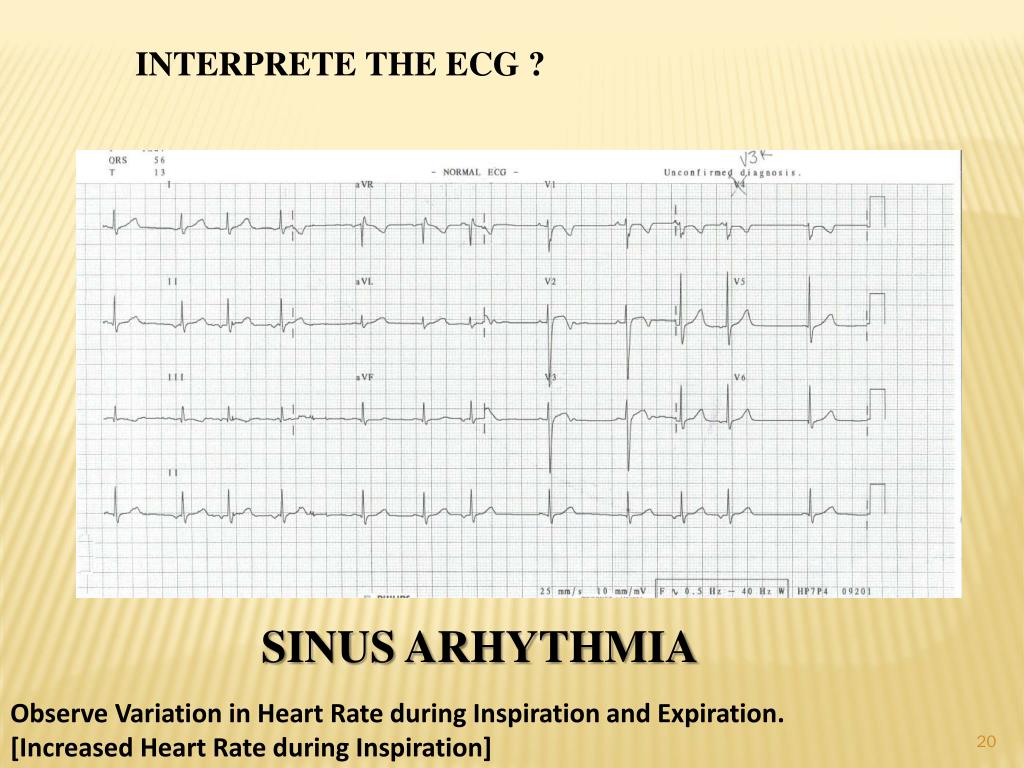

20. INTERPRETE THE ECG ? SINUS ARHYTHMIA Observe Variation in Heart Rate during Inspiration and Expiration. [Increased Heart Rate during Inspiration]

21. Atrial Fibrillation • Deviation from NSR • No organized atrial depolarization, so no normal P waves (impulses are not originating from the sinus node). • The atrial rate is usually above 350 beats per minute • Atrial activity is chaotic (resulting in an irregularly irregular rate). • Common, affects 2-4%, up to 5-10% if > 80 years old

22. Atrial Flutter • Rate? 70 bpm • Regularity? regular • P waves? flutter waves • PR interval? none • QRS duration? 0.06 s Interpretation? Atrial Flutter

23. AV Nodal Blocks • 1st Degree AV Block • 2nd Degree AV Block, MobitzType I • 2nd Degree AV Block,MobitzType II • 3rd Degree AV Block

24. Take a look at this ECG. What do you notice • Rate? 60 bpm • Regularity? regular • P waves? normal • PR interval? 0.36 s • QRS duration? 0.08 s Interpretation? 1st Degree AV Block • PR Interval > 0.20 s • Etiology:Prolonged conduction delay in the AV node or Bundle of His.

25. Take a look at this ECG. What do you notice • Rate? 50 bpm • Regularity? regularly irregular • P waves? normal, but 4th no QRS • PR interval? lengthens • QRS duration? 0.08 s Interpretation? 2nd Degree AV Block, Type I • PR interval progressively lengthens, then the impulse is completely blocked (P wave not followed by QRS). • Etiology: Each successive atrial impulse encounters a longer and longer delay in the AV node until one impulse (usually the 3rd or 4th) fails to make it through the AV node.

26. Take a look at this ECG. What do you notice • Rate? 40 bpm • Regularity? regular • P waves? normal, 2 & 3 no QRS • PR interval? 0.14 s • QRS duration? 0.08 s Interpretation? 2nd Degree AV Block, Type II • Occasional P waves are completely blocked (P wave not followed by QRS). • Etiology:Conduction is all or nothing (no prolongation of PR interval); typically block occurs in the Bundle of His.

27. Take a look at this ECG. What do you notice • Rate? 40 bpm • Regularity? regular • P waves? no relation to QRS • PR interval? none • QRS duration? wide (> 0.12 s) Interpretation? 3rd Degree AV Block • Etiology: There is complete block of conduction in the AV junction, so the atria and ventricles form impulses independently of each other. Without impulses from the atria, the ventricles own intrinsic pacemaker kicks in at around 30 - 45 beats/minute.

28. Remember • When an impulse originates in a ventricle, conduction through the ventricles will be inefficient and the QRS will be wide and bizarre.

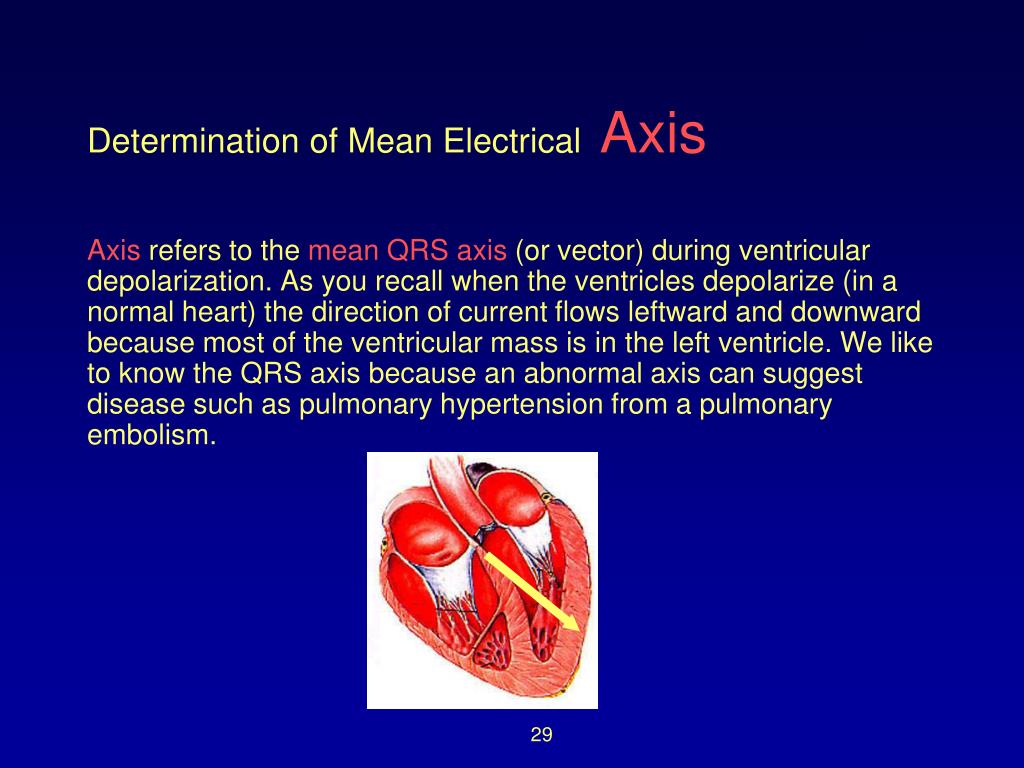

29. Determination of Mean Electrical Axis Axis refers to the mean QRS axis (or vector) during ventricular depolarization. As you recall when the ventricles depolarize (in a normal heart) the direction of current flows leftward and downward because most of the ventricular mass is in the left ventricle. We like to know the QRS axis because an abnormal axis can suggest disease such as pulmonary hypertension from a pulmonary embolism.

30. When a vector is exactly horizontal and directed toward the person’s left side,the vector is said to extend in the direction of 0 degrees • From this zero reference point, the scale of vectors rotates clockwise:

31. I III II FORMATION OF HEXAAXIAL SYSTEM

32. aVR aVL aVF FORMATION OF HEXAAXIAL SYSTEM

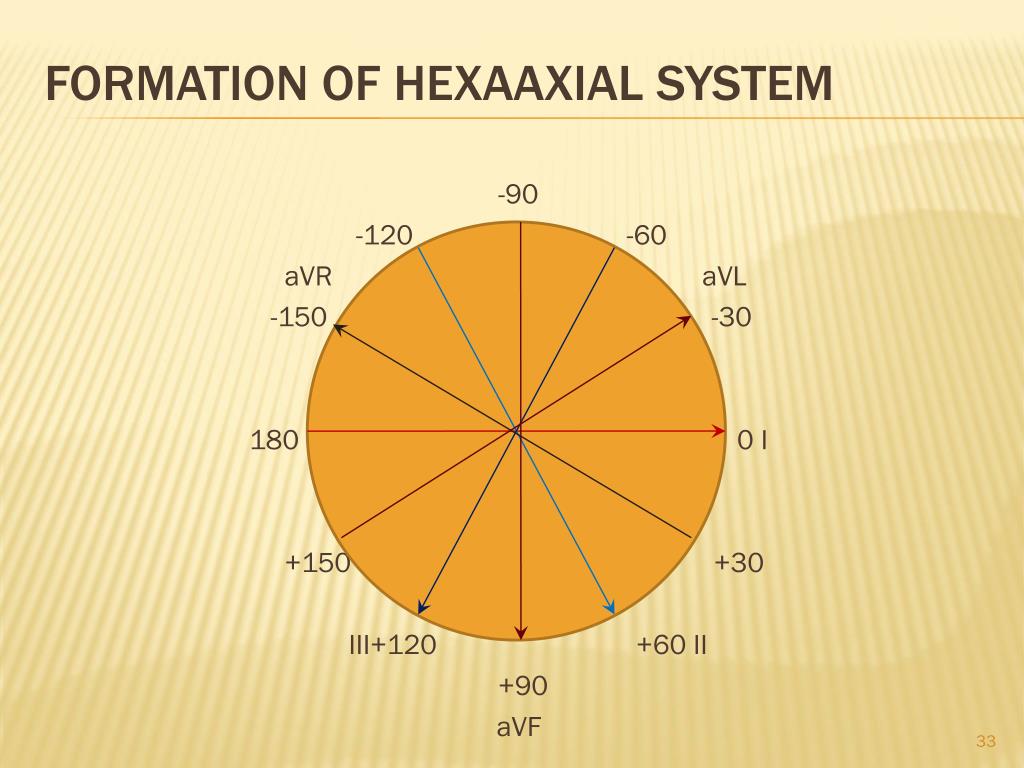

33. -90 -120 -60 aVR aVL -150 -30 180 0 I +150 +30 III+120 +60 II +90 aVF FORMATION OF HEXAAXIAL SYSTEM

34. -90o -60o -120o -150o -30o 180o 0o 30o 150o 60o 120o 90o Determination of Mean Electrical Axis The QRS axis is determined by overlying a circle, in the frontal plane. By convention, the degrees of the circle are as shown. The normal QRS axis lies between -30oand +110o. A QRS axis that fallsbetween -30oand-90o is abnormal and called left axis deviation. A QRS axis that falls between+110oand+180o is abnormal and called right axis deviation. A QRS axis that falls between+180oand-90ois abnormal and called Indeterminant (extende rt axis ) .

35. How to calculate the qrs axis • Leads & there isoelectric partners

36. How to calculate the QRS axis … if the QRS is negative in lead I and negative in lead II what is the QRS axis? (normal, left, right or right superior axis deviation) QRS Complexes I aVF Axis + + normal + - left axis deviation right axis deviation - + - - right superior axis deviation/ indeterminant
