Organelle genomes Organelle gene expression processes Organelle-to-nucleus signaling

1. PCB6528 Plant Cell and Developmental Biology Spring 2013 Organelle genomes, gene expression and signalingChristine Chase – 2215 Fifield Hall – 352-273-4862 cdchase@ufl.edu Organelle genomes Organelle gene expression processes Organelle-to-nucleus signaling (retrograde regulation)

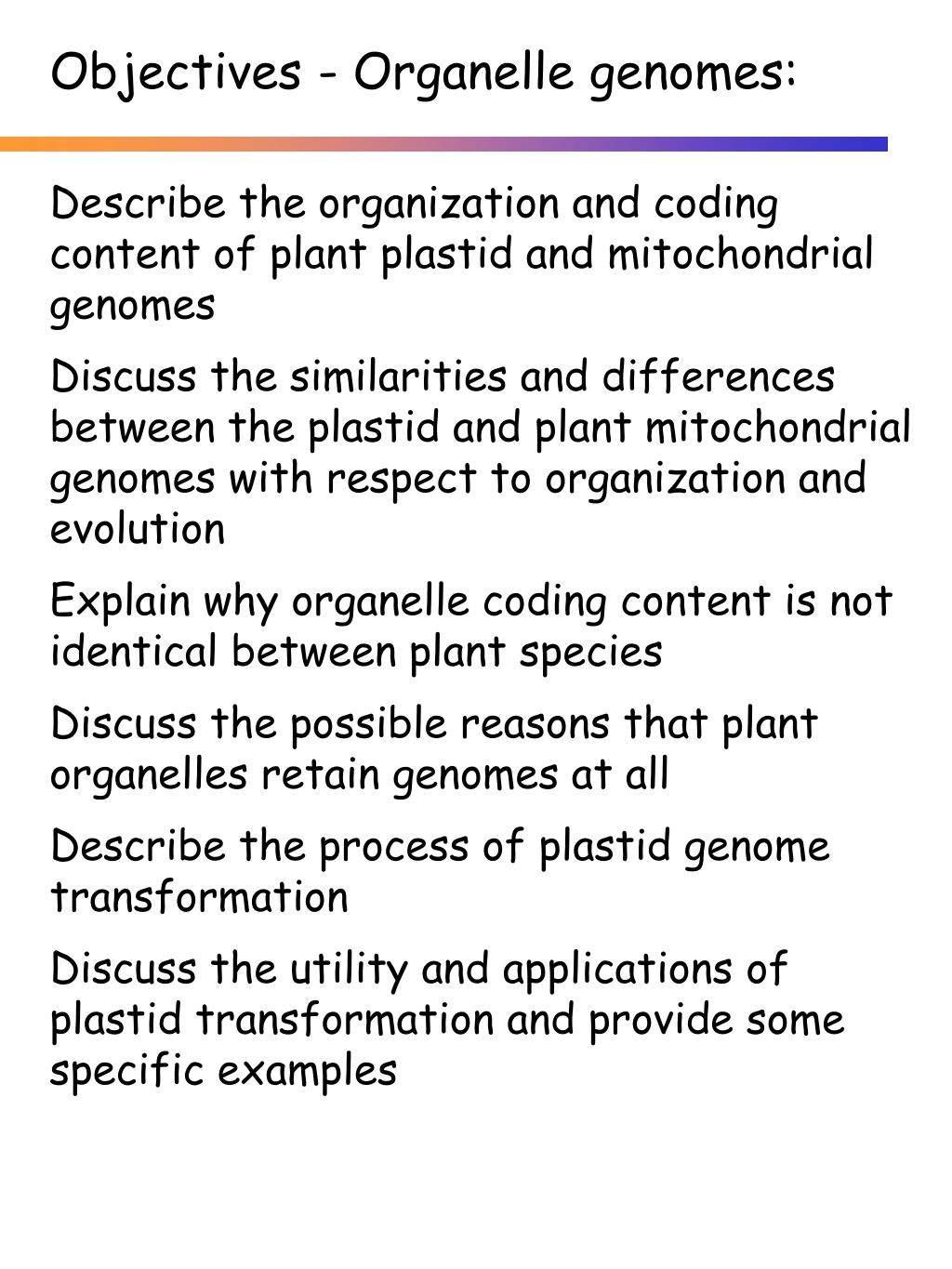

2. Objectives - Organelle genomes: Describe the organization and coding content of plant plastid and mitochondrial genomes Discuss the similarities and differences between the plastid and plant mitochondrial genomes with respect to organization and evolution Explain why organelle coding content is not identical between plant species Discuss the possible reasons that plant organelles retain genomes at all Describe the process of plastid genome transformation Discuss the utility and applications of plastid transformation and provide some specific examples

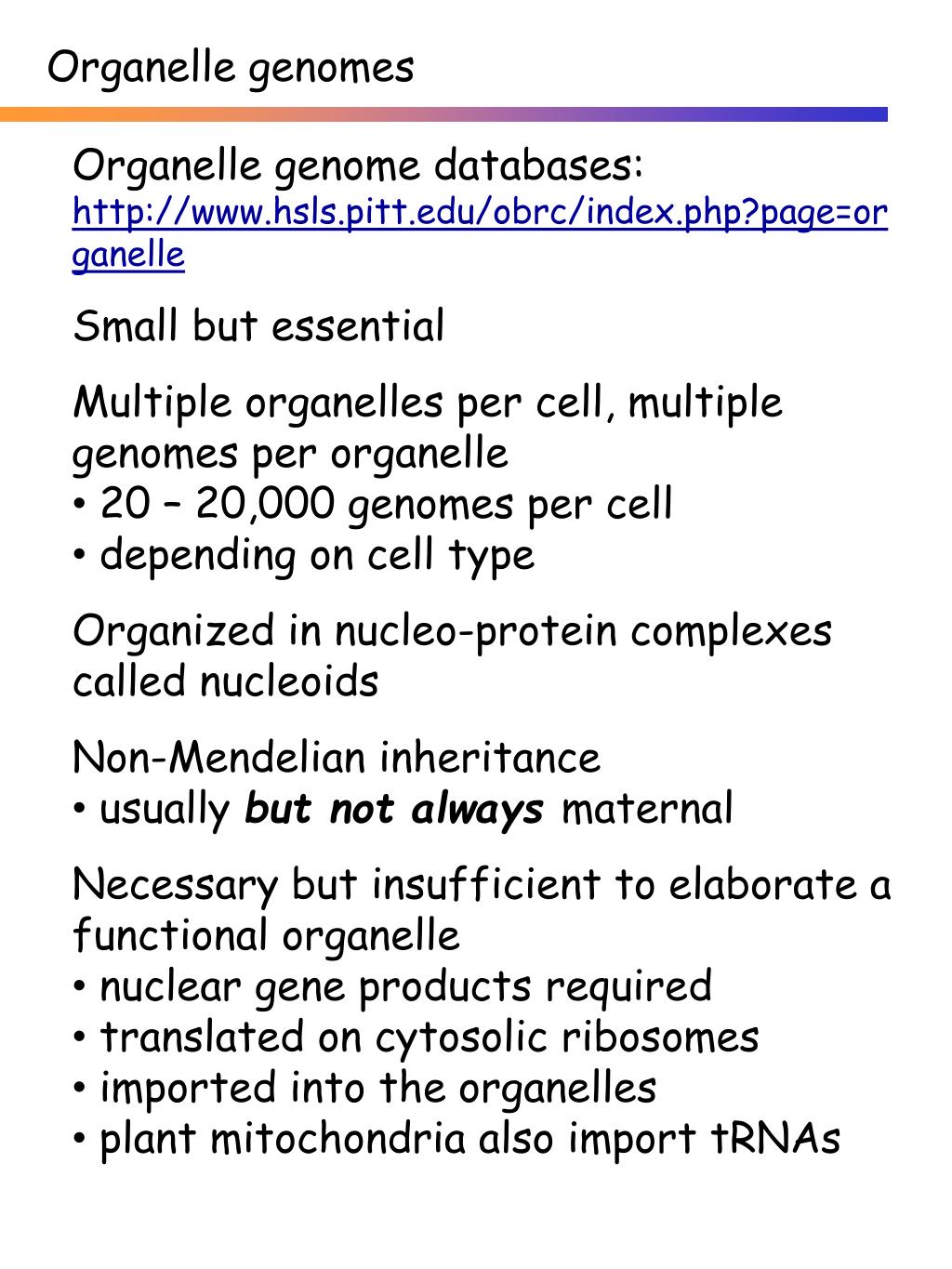

3. Organelle genomes • Organelle genome databases: • http://www.hsls.pitt.edu/obrc/index.php?page=organelle • Small but essential • Multiple organelles per cell, multiple genomes per organelle • 20 – 20,000 genomes per cell • depending on cell type • Organized in nucleo-protein complexes called nucleoids • Non-Mendelian inheritance • usually but not always maternal • Necessary but insufficient to elaborate a functional organelle • nuclear gene products required • translated on cytosolicribosomes • imported into the organelles • plant mitochondria also import tRNAs

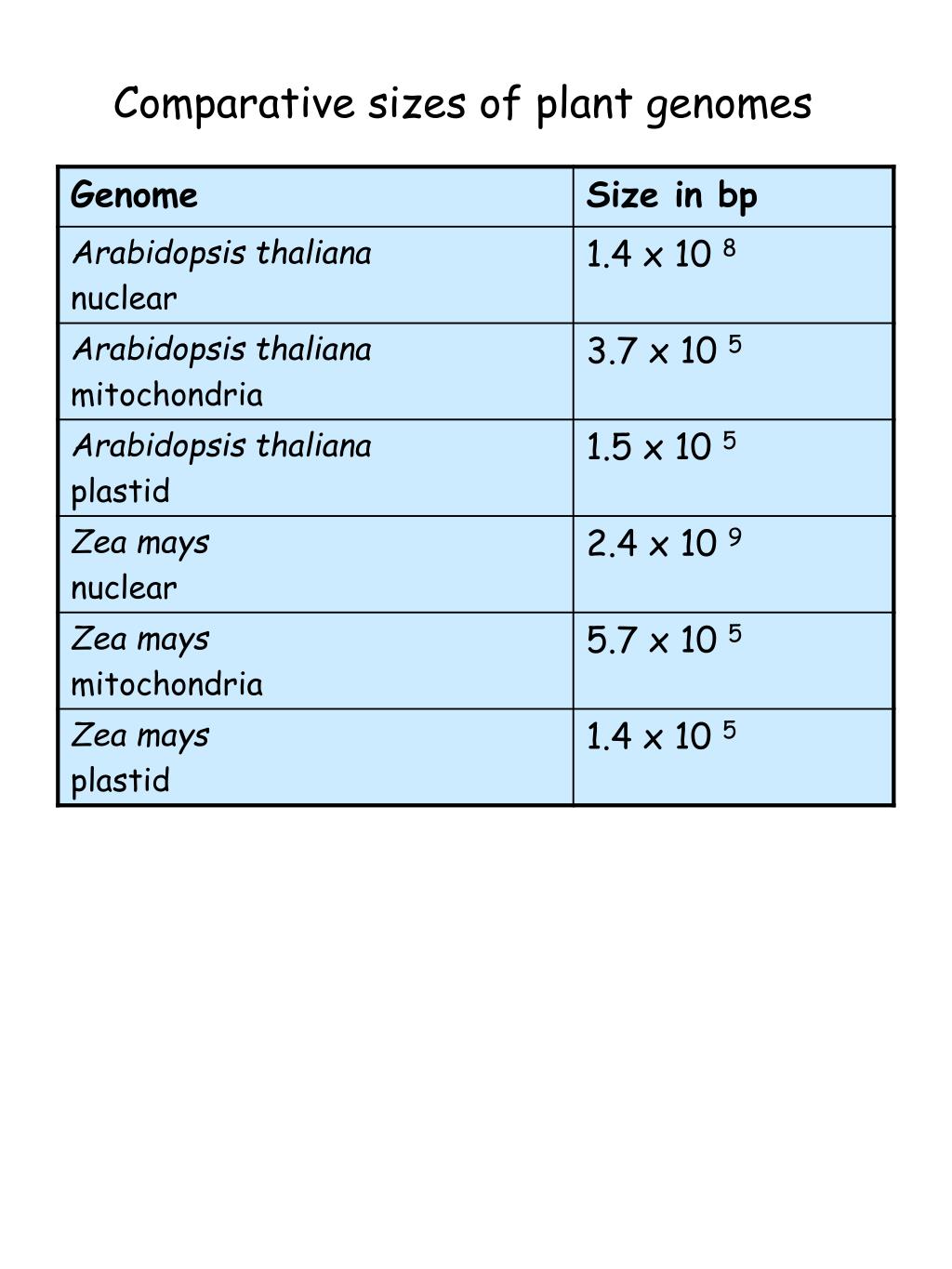

4. Comparative sizes of plant genomes

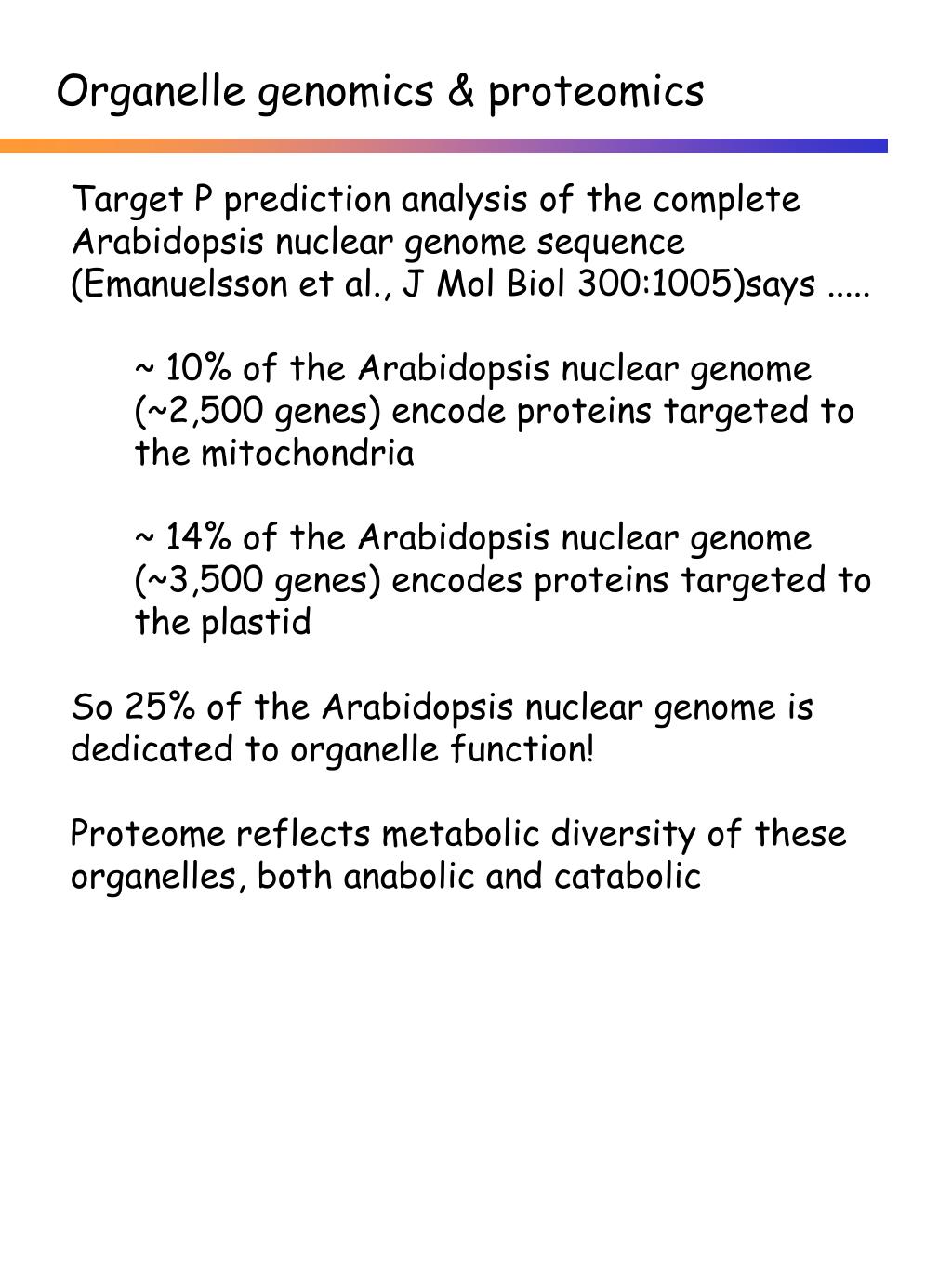

5. Organelle genomics & proteomics • Target P prediction analysis of the complete Arabidopsis nuclear genome sequence (Emanuelsson et al., J Mol Biol 300:1005)says ..... • ~ 10% of the Arabidopsis nuclear genome (~2,500 genes) encode proteins targeted to the mitochondria • ~ 14% of the Arabidopsis nuclear genome (~3,500 genes) encodes proteins targeted to the plastid • So 25% of the Arabidopsis nuclear genome is dedicated to organelle function! • Proteome reflects metabolic diversity of these organelles, both anabolic and catabolic

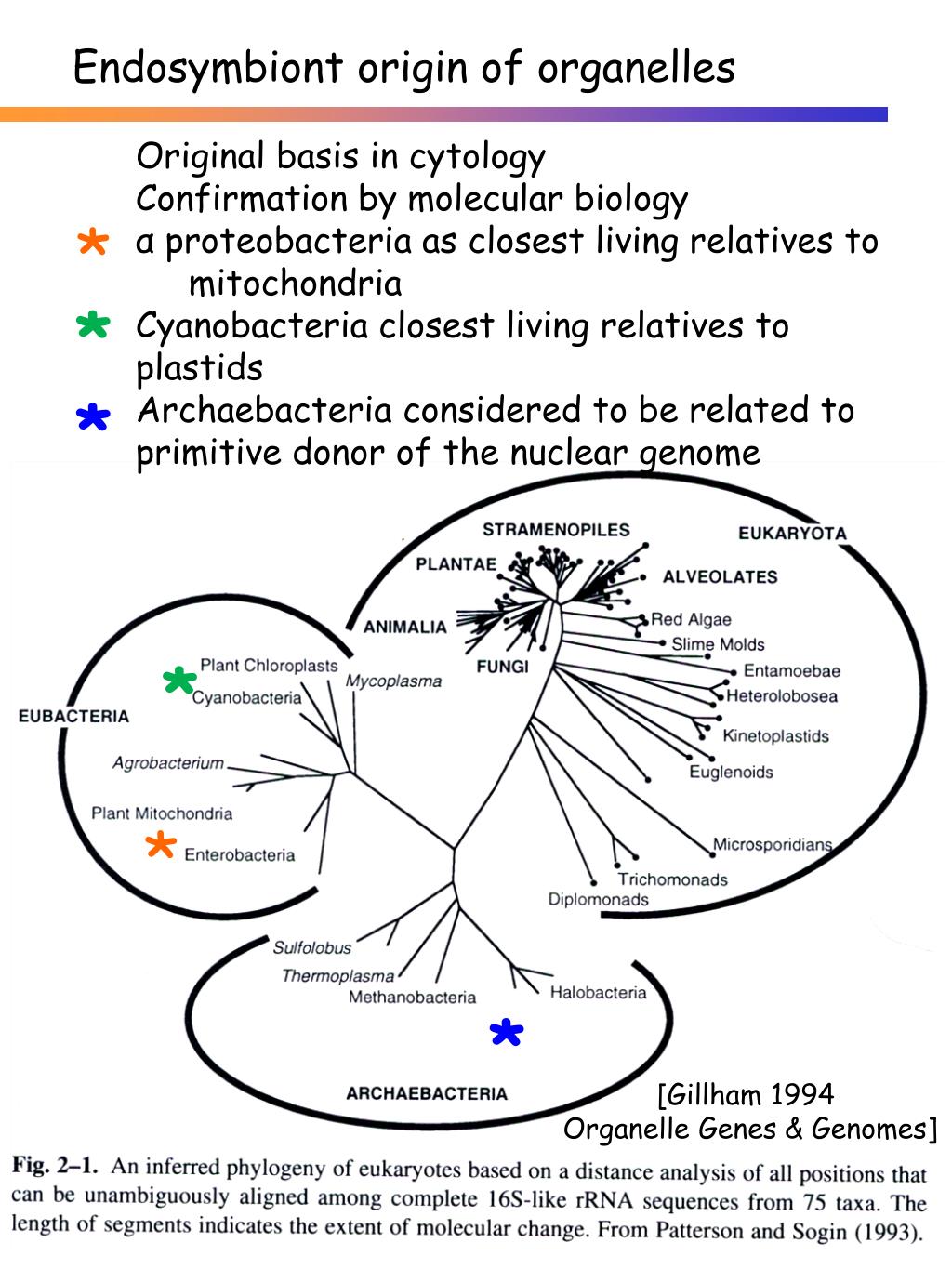

6. Endosymbiont origin of organelles • Original basis in cytology • Confirmation by molecular biology • αproteobacteria as closest living relatives to • mitochondria • Cyanobacteria closest living relatives to plastids • Archaebacteria considered to be related to primitive donor of the nuclear genome * * * * * * [Gillham 1994 Organelle Genes & Genomes]

7. Chimeric origin of eukaryotic nuclear genomes Genes per category among 383 eubacterial- & 111 archeaebacterial- related genes in the yeast nuclear genome Esser et al. 2004 Mol Biol & Evol 21:1643

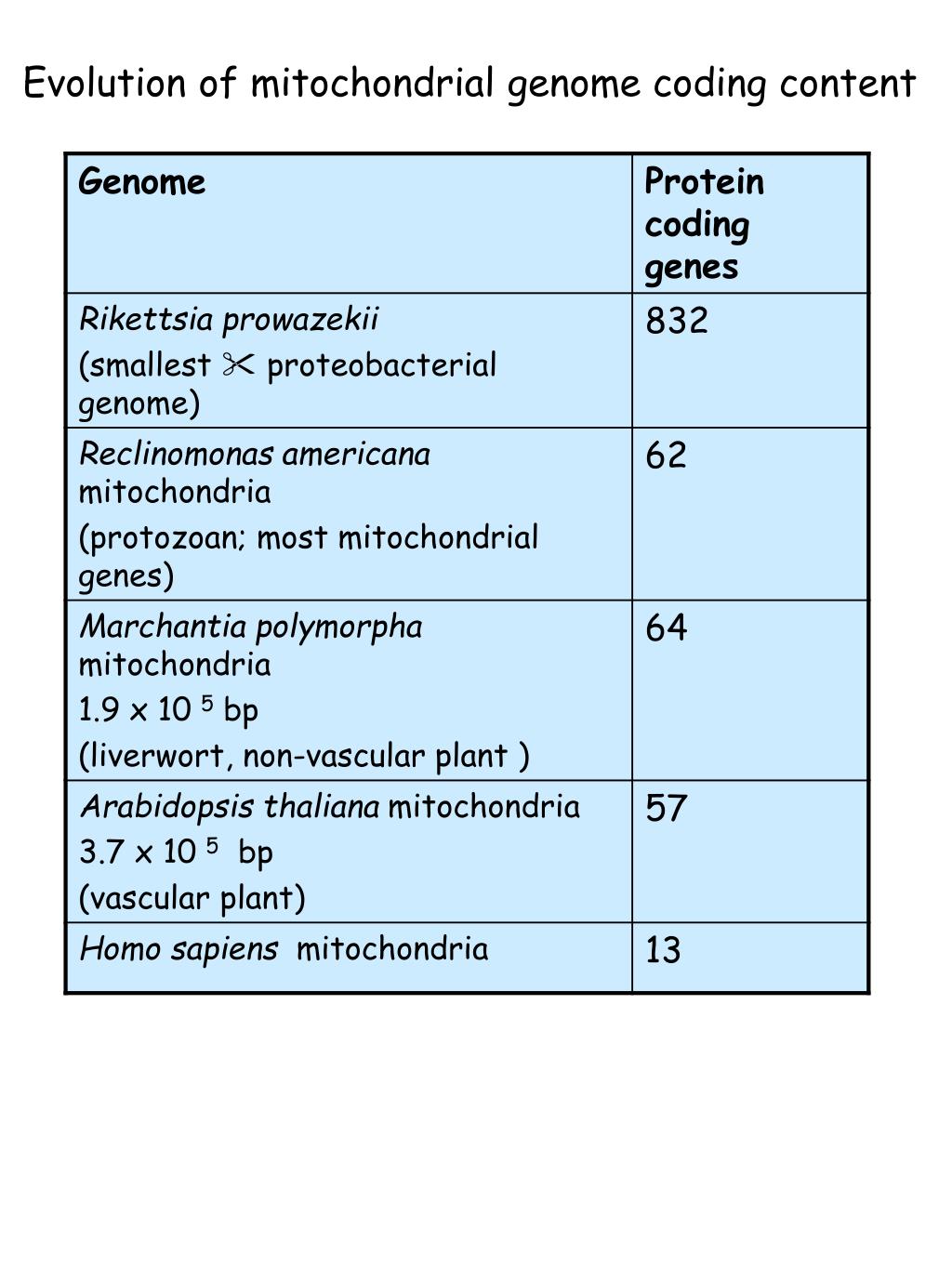

8. Evolution of mitochondrial genome coding content

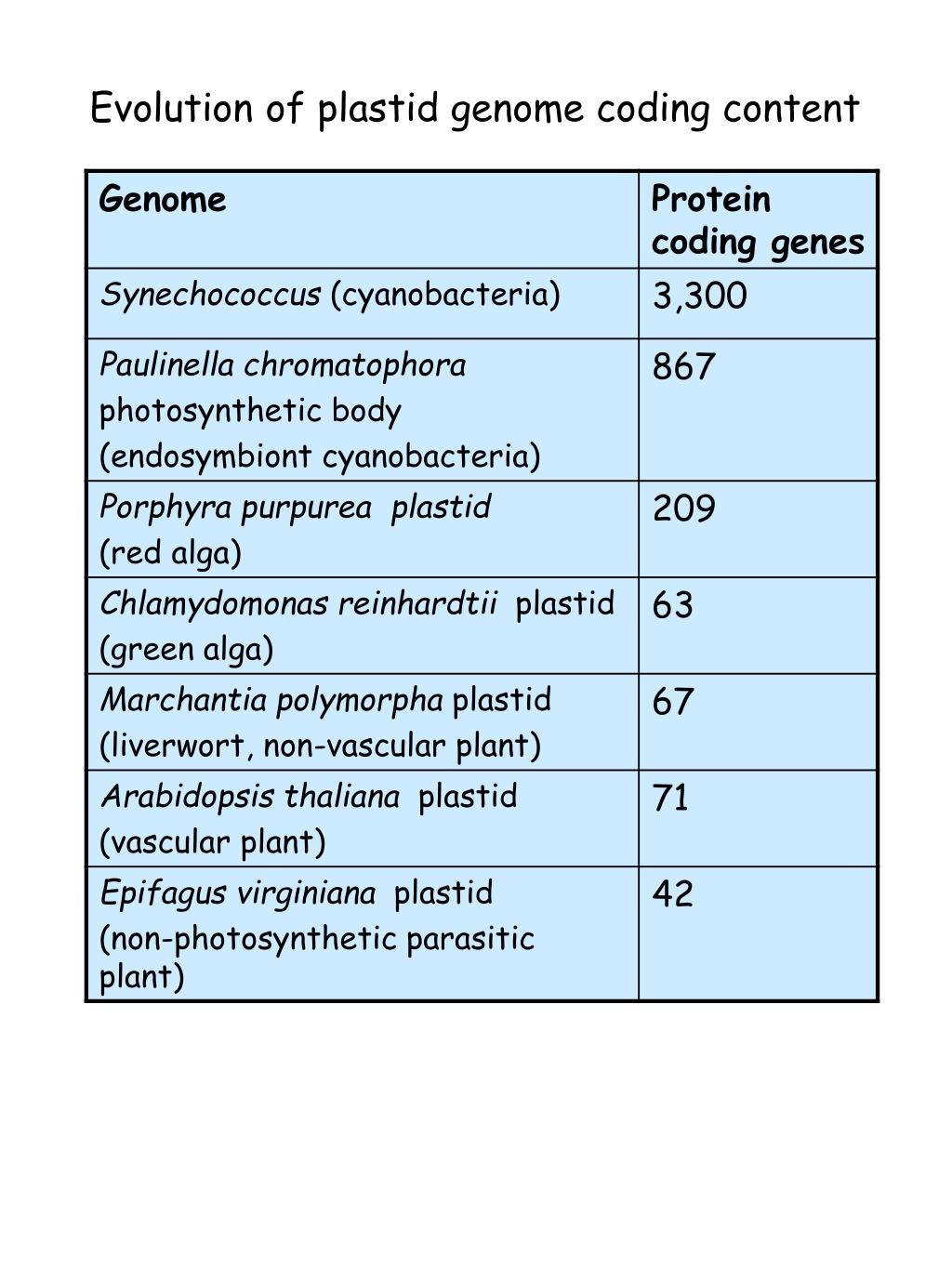

9. Evolution of plastid genome coding content

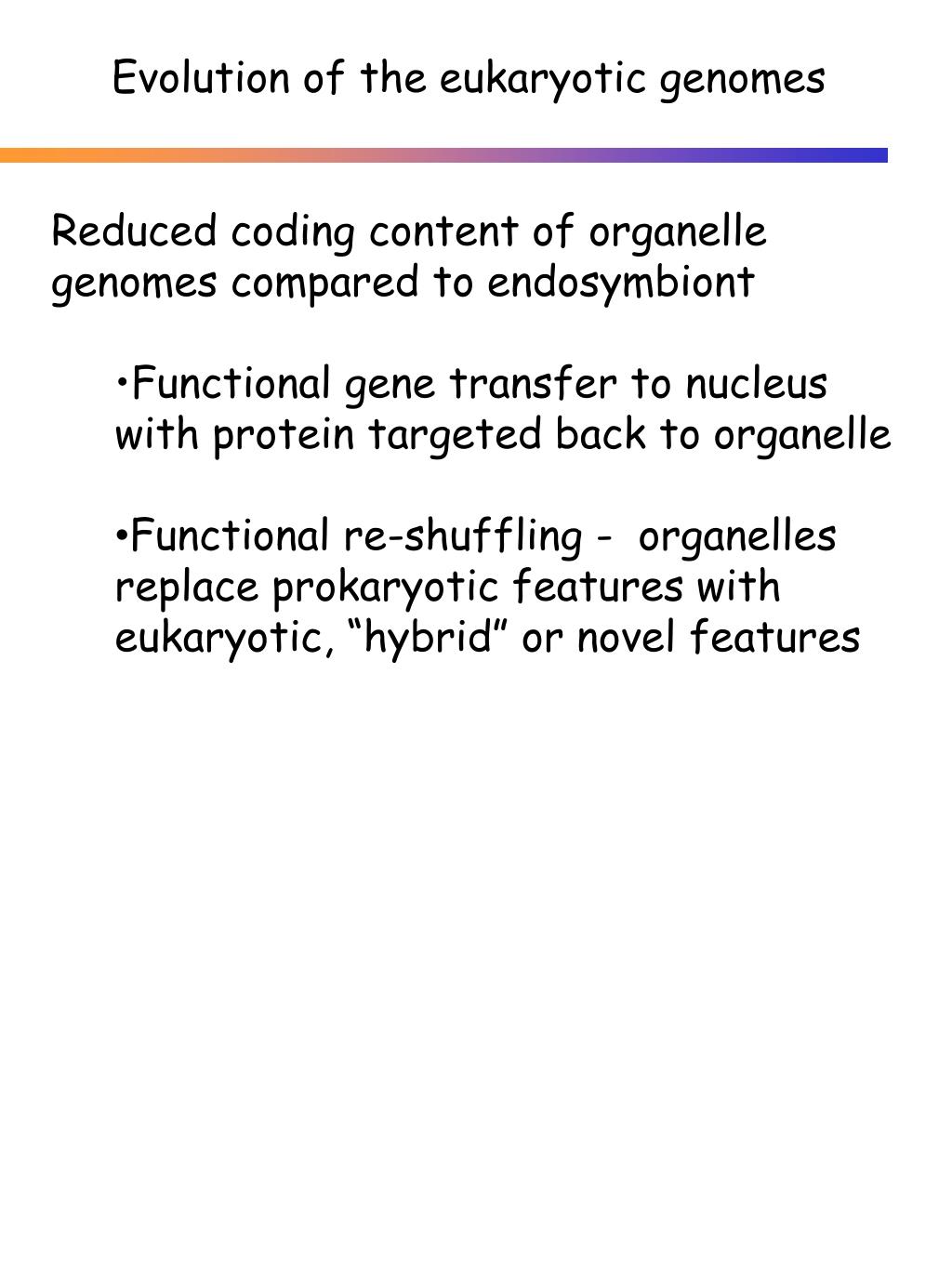

10. Evolution of the eukaryotic genomes • Reduced coding content of organelle genomes compared to endosymbiont • Functional gene transfer to nucleus with protein targeted back to organelle • Functional re-shuffling - organelles replace prokaryotic features with eukaryotic, “hybrid” or novel features

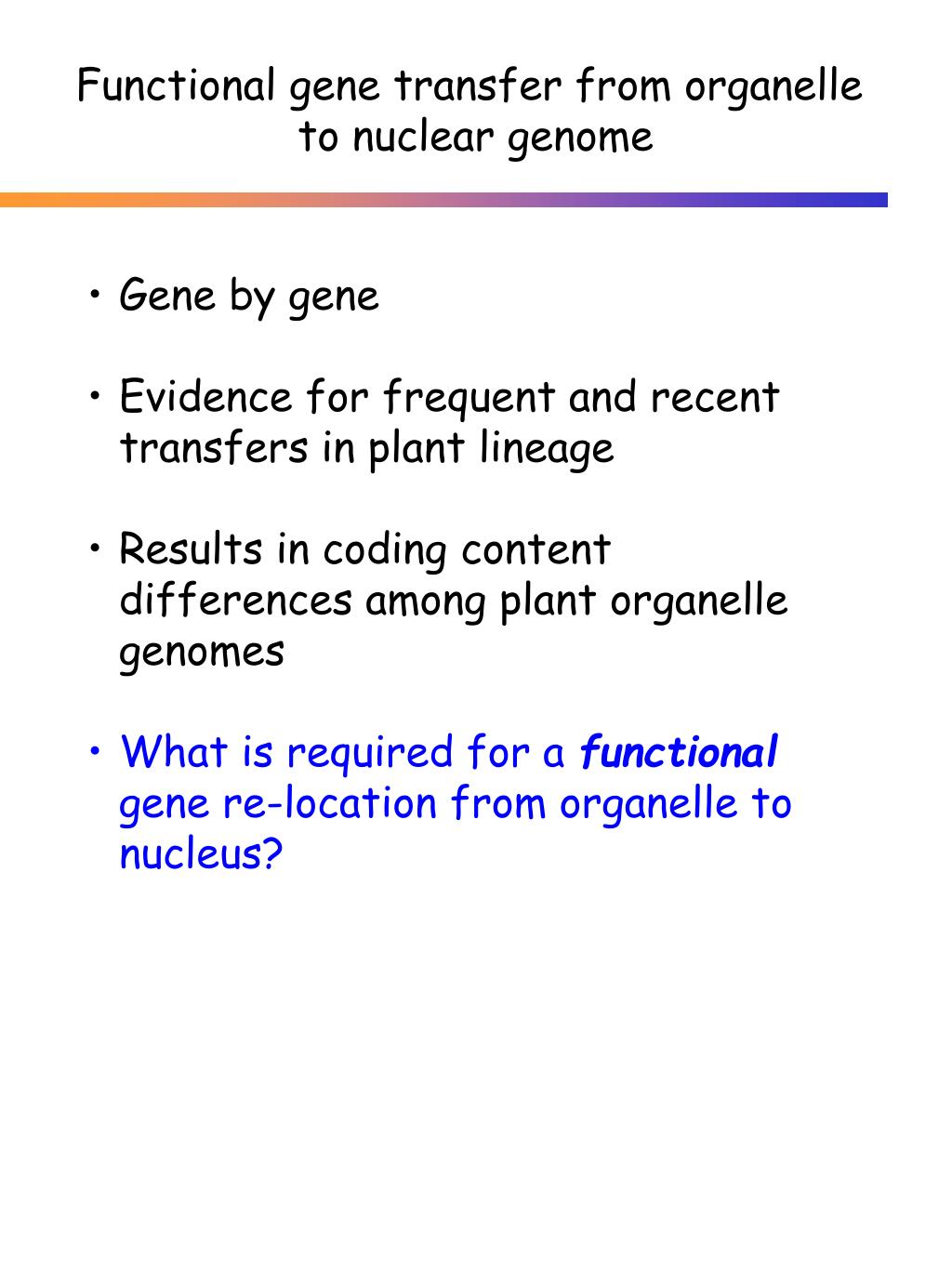

11. Functional gene transfer from organelle to nuclear genome • Gene by gene • Evidence for frequent and recent transfers in plant lineage • Results in coding content differences among plant organelle genomes • What is required for a functional gene re-location from organelle to nucleus?

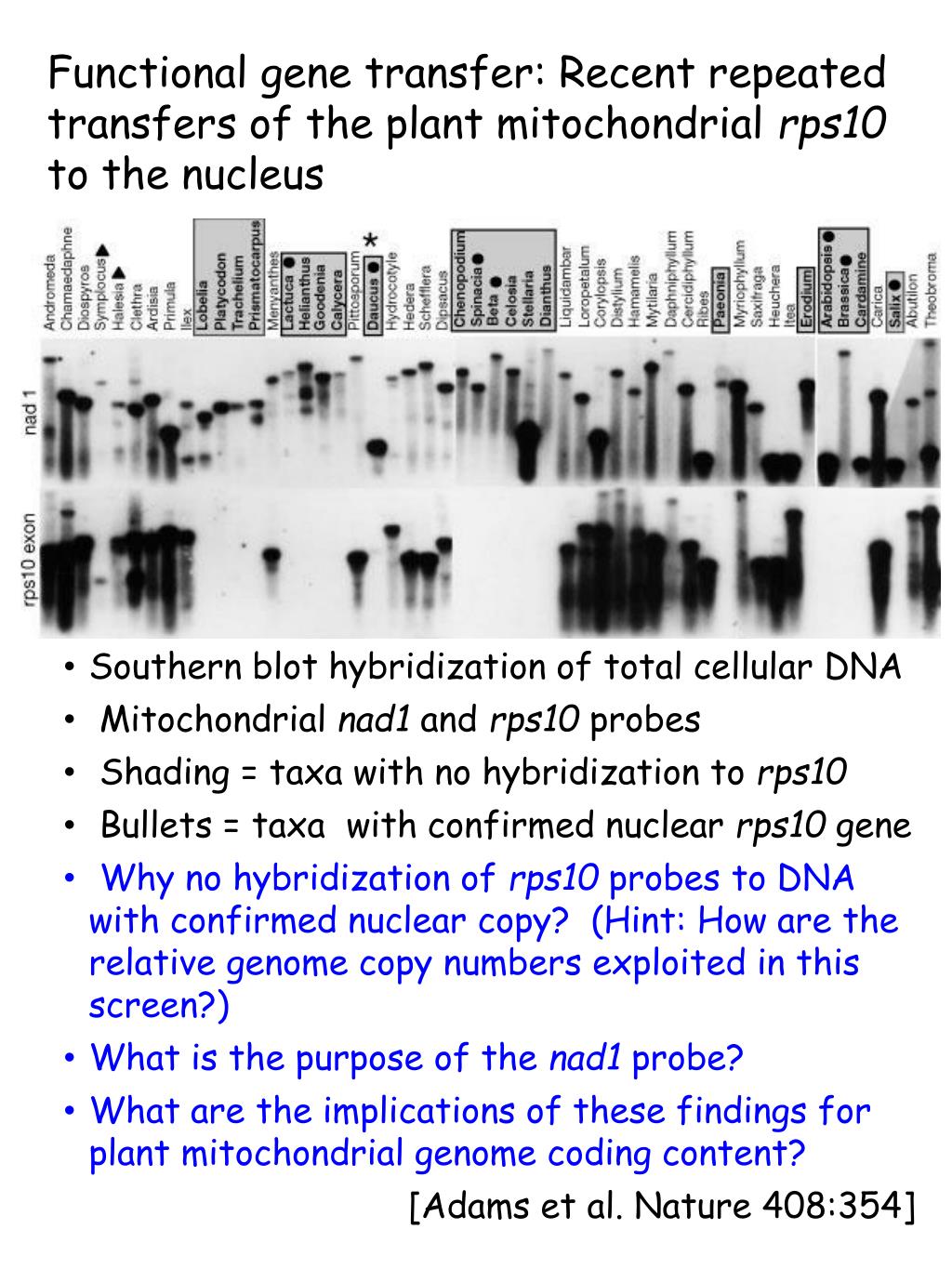

12. Functional gene transfer: Recent repeated transfers of the plant mitochondrial rps10 to the nucleus • Southern blot hybridization of total cellular DNA • Mitochondrial nad1 and rps10 probes • Shading = taxa with no hybridization to rps10 • Bullets = taxa with confirmed nuclear rps10 gene • Why no hybridization of rps10 probes to DNA with confirmed nuclear copy? (Hint: How are the relative genome copy numbers exploited in this screen?) • What is the purpose of the nad1 probe? • What are the implications of these findings for plant mitochondrial genome coding content? • [Adams et al. Nature 408:354]

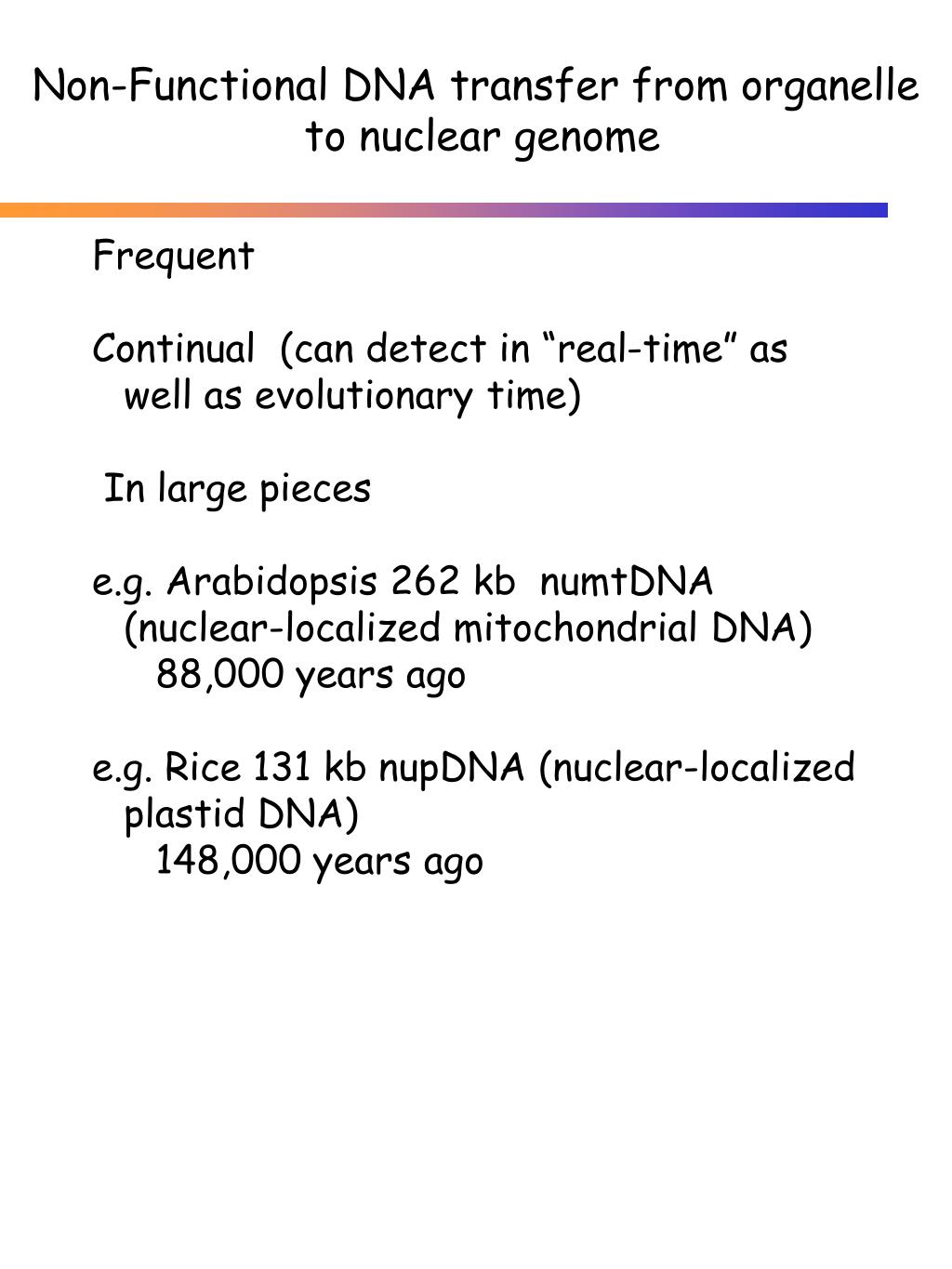

13. Non-Functional DNA transfer from organelle to nuclear genome • Frequent • Continual (can detect in “real-time” as well as evolutionary time) • In large pieces • e.g. Arabidopsis 262 kb numtDNA (nuclear-localized mitochondrial DNA) • 88,000 years ago • e.g. Rice 131 kb nupDNA (nuclear-localized plastid DNA) • 148,000 years ago

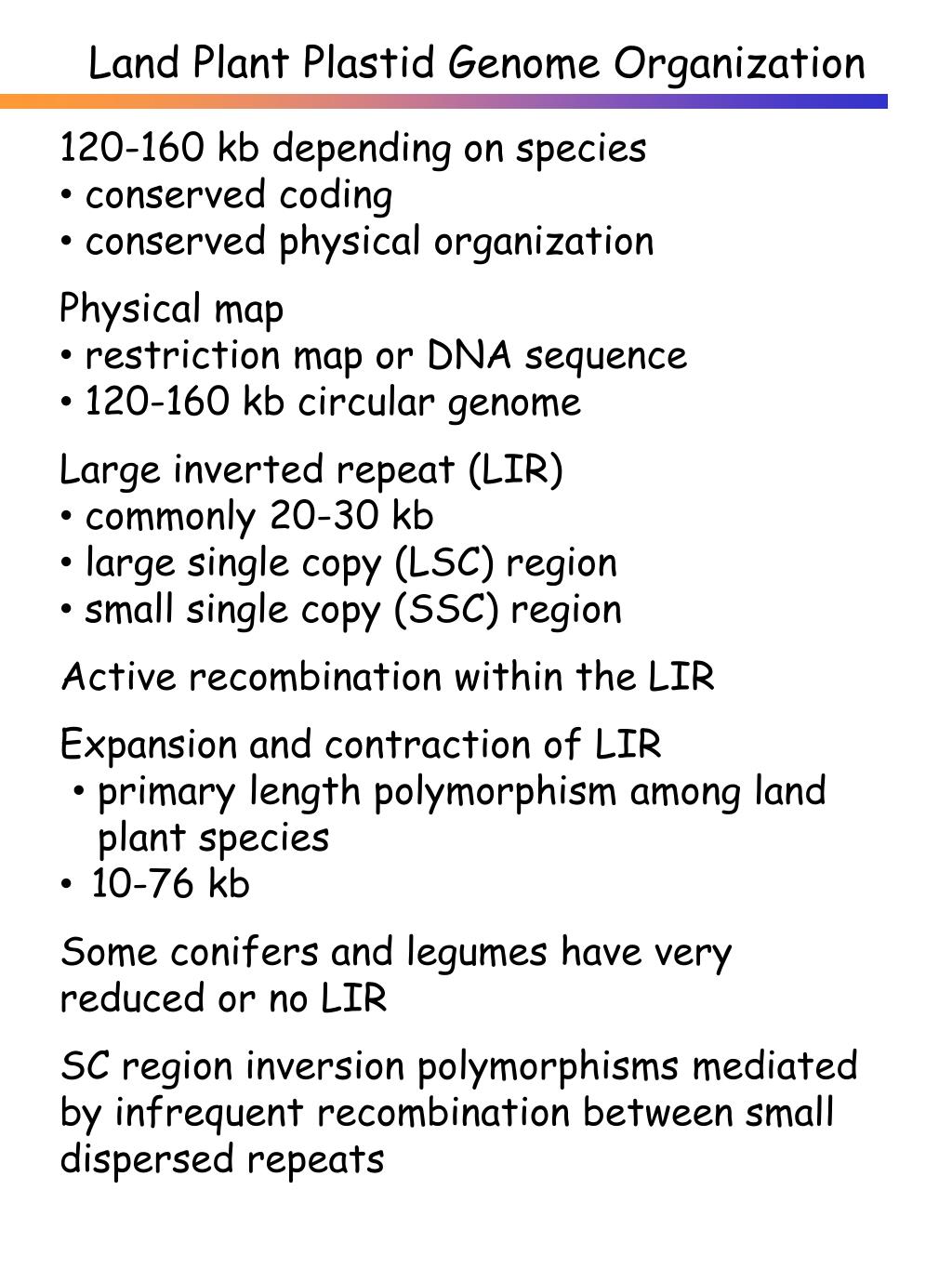

14. Land Plant Plastid Genome Organization • 120-160 kb depending on species • conserved coding • conserved physical organization • Physical map • restriction map or DNA sequence • 120-160 kb circular genome • Large inverted repeat (LIR) • commonly 20-30 kb • large single copy (LSC) region • small single copy (SSC) region • Active recombination within the LIR • Expansion and contraction of LIR • primary length polymorphism among land plant species • 10-76 kb • Some conifers and legumes have very reduced or no LIR • SC region inversion polymorphisms mediated by infrequent recombination between small dispersed repeats

15. Plastid genome organization (Maier et al. J Mol Biol 251:614)

16. Plastid ATP synthase genes in operons (from Palmer [1991] in Cell Culture and Somatic Cell Genetics of Plants, V 7A. L Bogorad and IK Vasil eds. Academic Press, NY, pp 5-142)

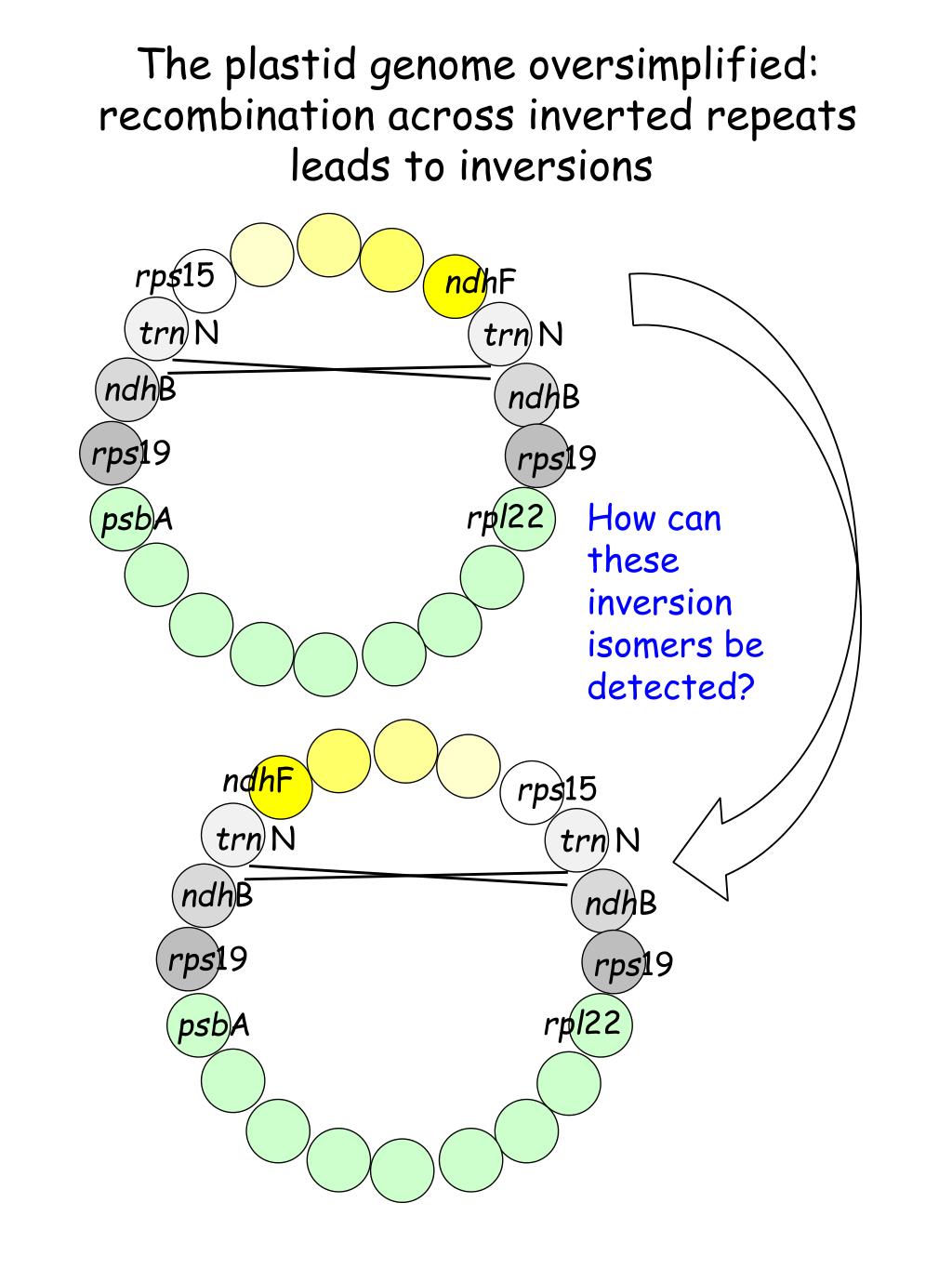

17. The plastid genome oversimplified: recombination across inverted repeats leads to inversions ndhF rps15 ndhF rps15 trn N trn N trn N trn N ndhB ndhB ndhB ndhB rps19 rps19 rps19 rps19 rpl22 rpl22 psbA psbA How can these inversion isomers be detected?

18. Fiber FISH of tobacco plastid DNA SSC+IR probe IR probe SC gene probes [Lilly et al. Plant Cell. 13:245]

19. Structural complexity of plastid DNA from tobacco, arabidopsis, and pea IR probe IR probe SSC+IR probe [Lilly et al. Plant Cell. 13:245]

20. Structural complexity of plastid DNA from tobacco, arabidopsis, and pea [Lilly et al. Plant Cell. 13:245]

21. Land plant mitochondrial genome organization • 208-2400 kb depending on species • Relatively constant coding but highly variable organization among and even within a species • Physical mapping with overlapping cosmid clones • Entire complexity maps as a single “master circle” • All angiosperms except Brassicahirta have one or more recombination repeats • Repeats not conserved among species • Direct and/or inverted orientations on the “master” • Recombination generated inversions (inverted repeats) • Recombination generated subgenomic molecules (deletions) (direct repeats), some present at very low copy number (sublimons) • Leads to complex multipartite structures

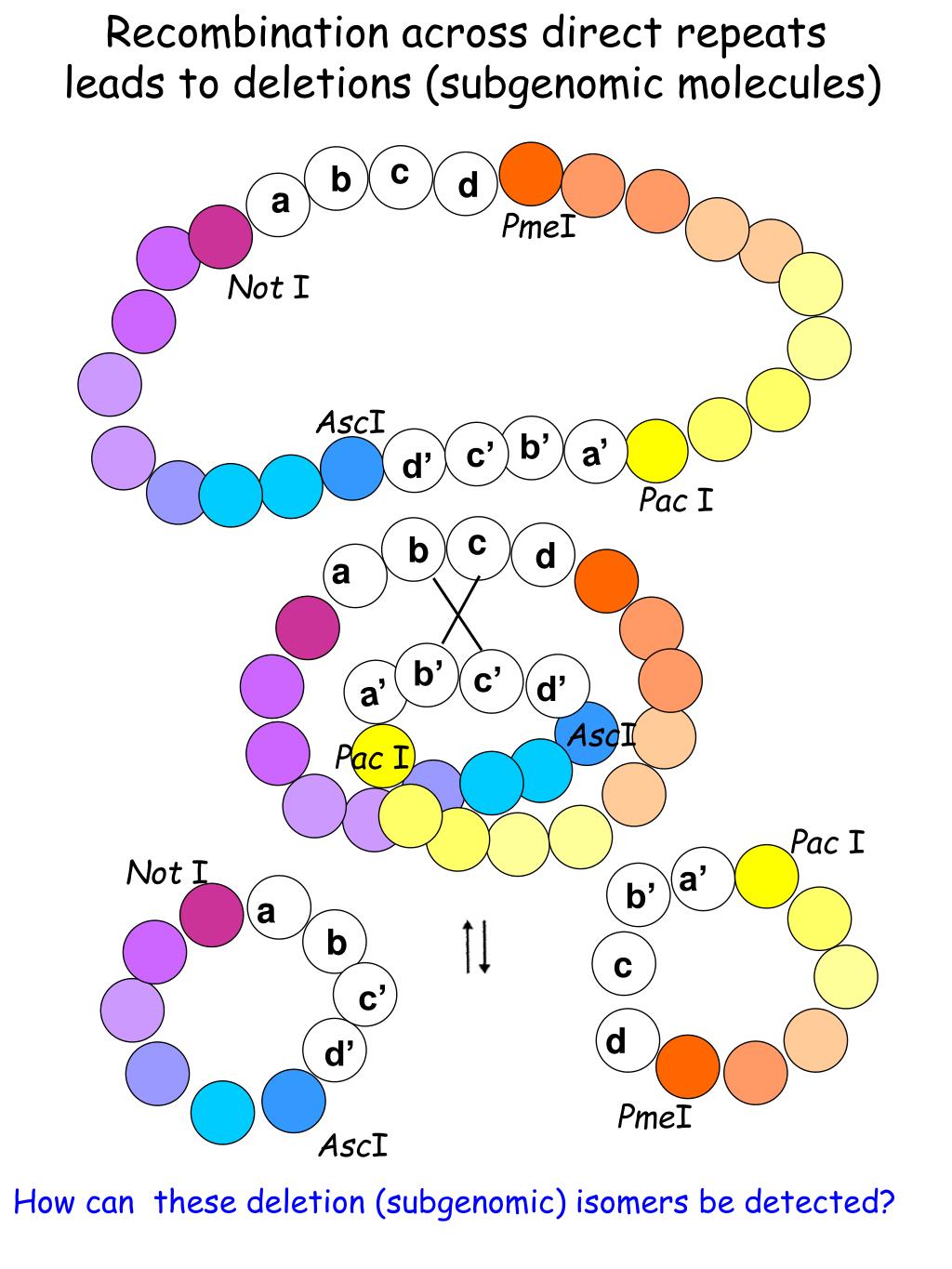

22. Recombination across direct repeats leads to deletions (subgenomic molecules) a’ b’ a c b c’ d d’ c b d a PmeI Not I c b d a AscI b’ c’ d’ b’ a’ b’ a’ a’ c’ c’ d’ d’ AscI Pac I Pac I Pac I Not I PmeI AscI How can these deletion (subgenomic) isomers be detected?

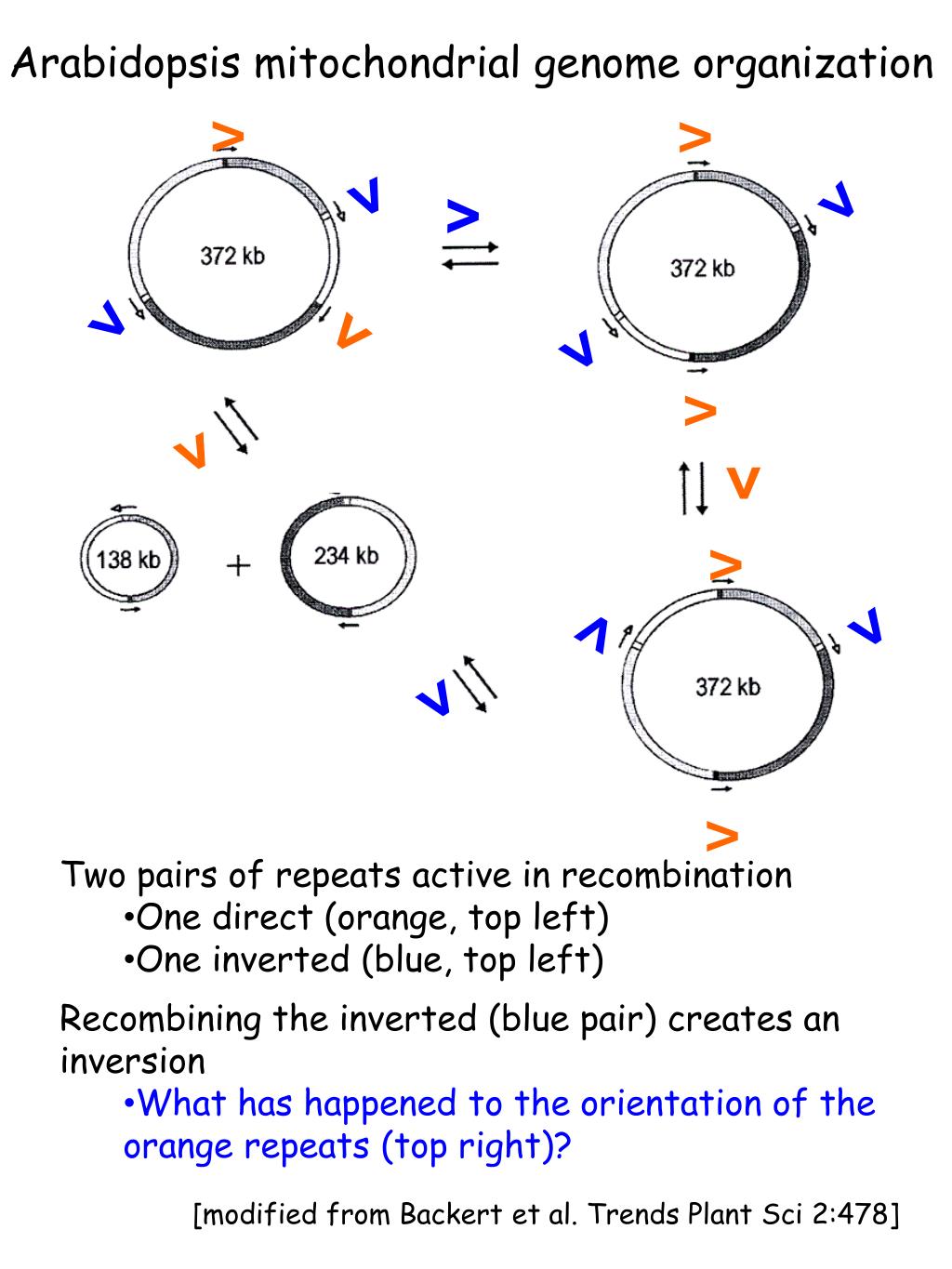

23. > > > > > > > > > > > > > > > > Arabidopsis mitochondrial genome organization • Two pairs of repeats active in recombination • One direct (orange, top left) • One inverted (blue, top left) • Recombining the inverted (blue pair) creates an inversion • What has happened to the orientation of the orange repeats (top right)? [modified from Backert et al. Trends Plant Sci 2:478]

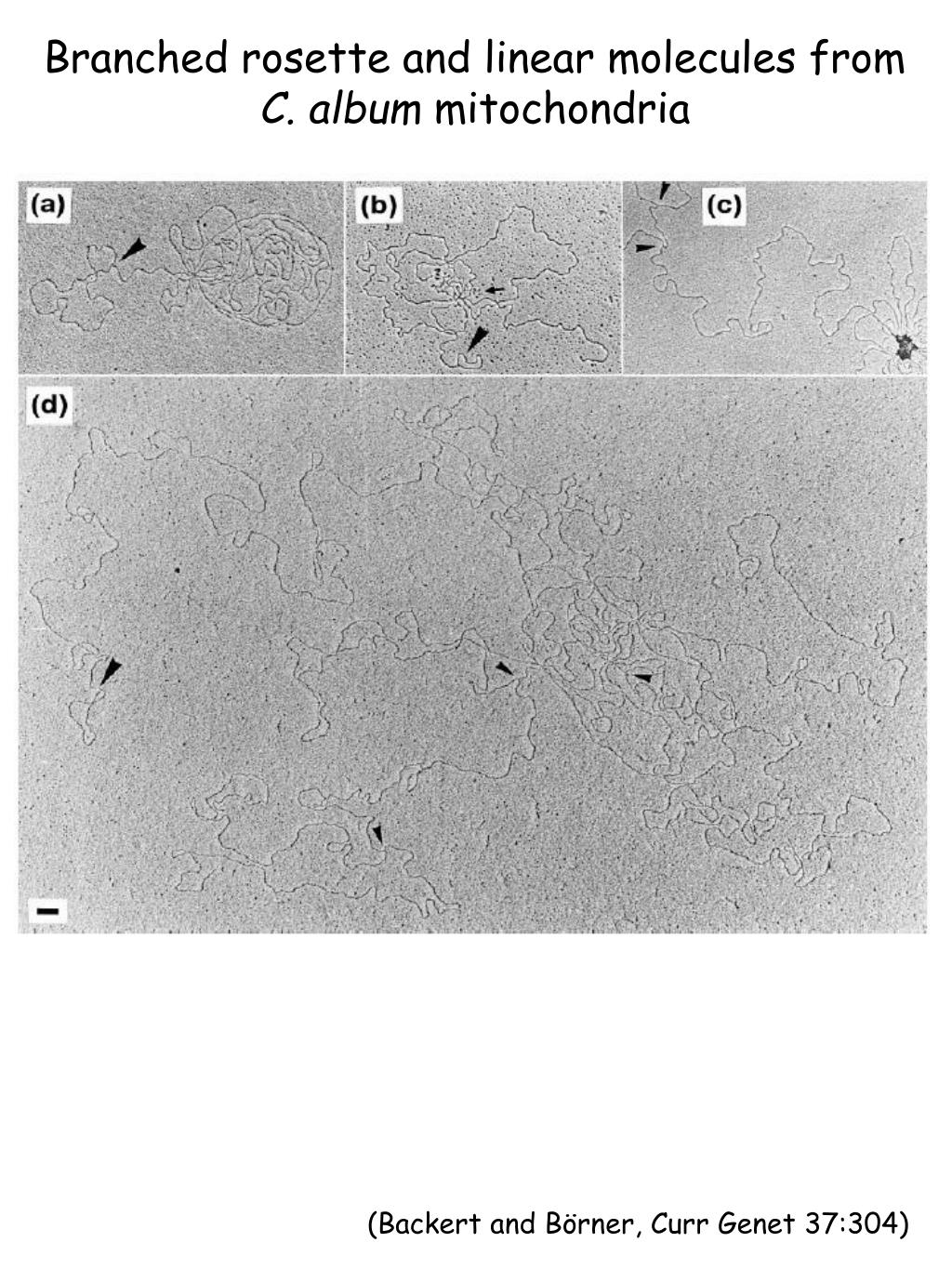

24. Branched rosette and linear molecules from C. album mitochondria (Backert and Börner, Curr Genet 37:304)

25. Structural complexity of plant mitochondrial DNA [Backert et al. Trends Plant Sci 2:478]

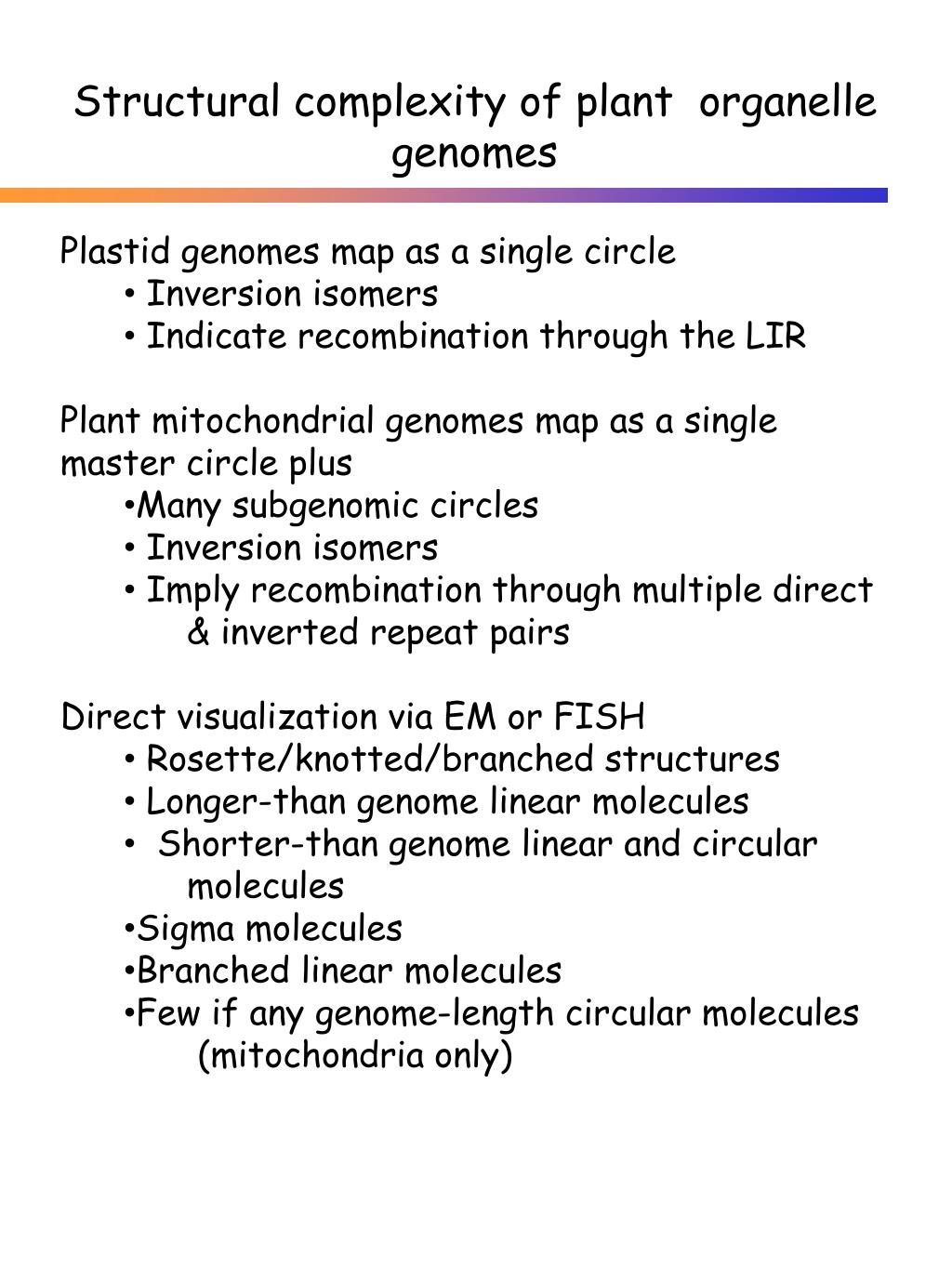

26. Structural complexity of plant organelle genomes • Plastid genomes map as a single circle • Inversion isomers • Indicate recombination through the LIR • Plant mitochondrial genomes map as a single master circle plus • Many subgenomic circles • Inversion isomers • Imply recombination through multiple direct • & inverted repeat pairs • Direct visualization via EM or FISH • Rosette/knotted/branched structures • Longer-than genome linear molecules • Shorter-than genome linear and circular molecules • Sigma molecules • Branched linear molecules • Few if any genome-length circular molecules • (mitochondria only)

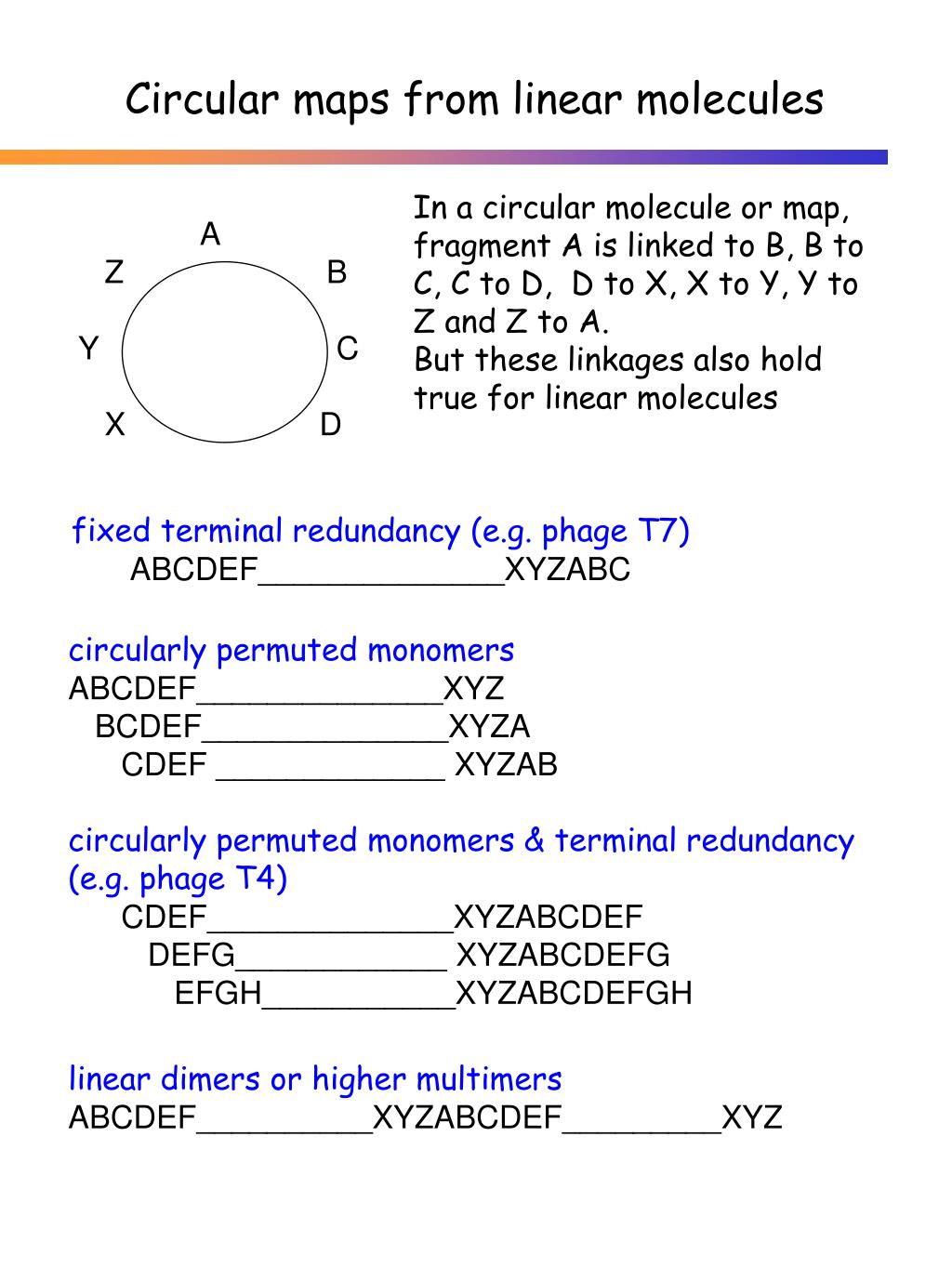

27. A Z B Y C X D Circular maps from linear molecules In a circular molecule or map, fragment A is linked to B, B to C, C to D, D to X, X to Y, Y to Z and Z to A. But these linkages also hold true for linear molecules fixed terminal redundancy (e.g. phage T7) ABCDEF______________XYZABC circularly permuted monomers ABCDEF______________XYZ BCDEF______________XYZA CDEF _____________ XYZAB circularly permuted monomers & terminal redundancy (e.g. phage T4) CDEF______________XYZABCDEF DEFG____________ XYZABCDEFG EFGH___________XYZABCDEFGH linear dimers or higher multimers ABCDEF__________XYZABCDEF_________XYZ

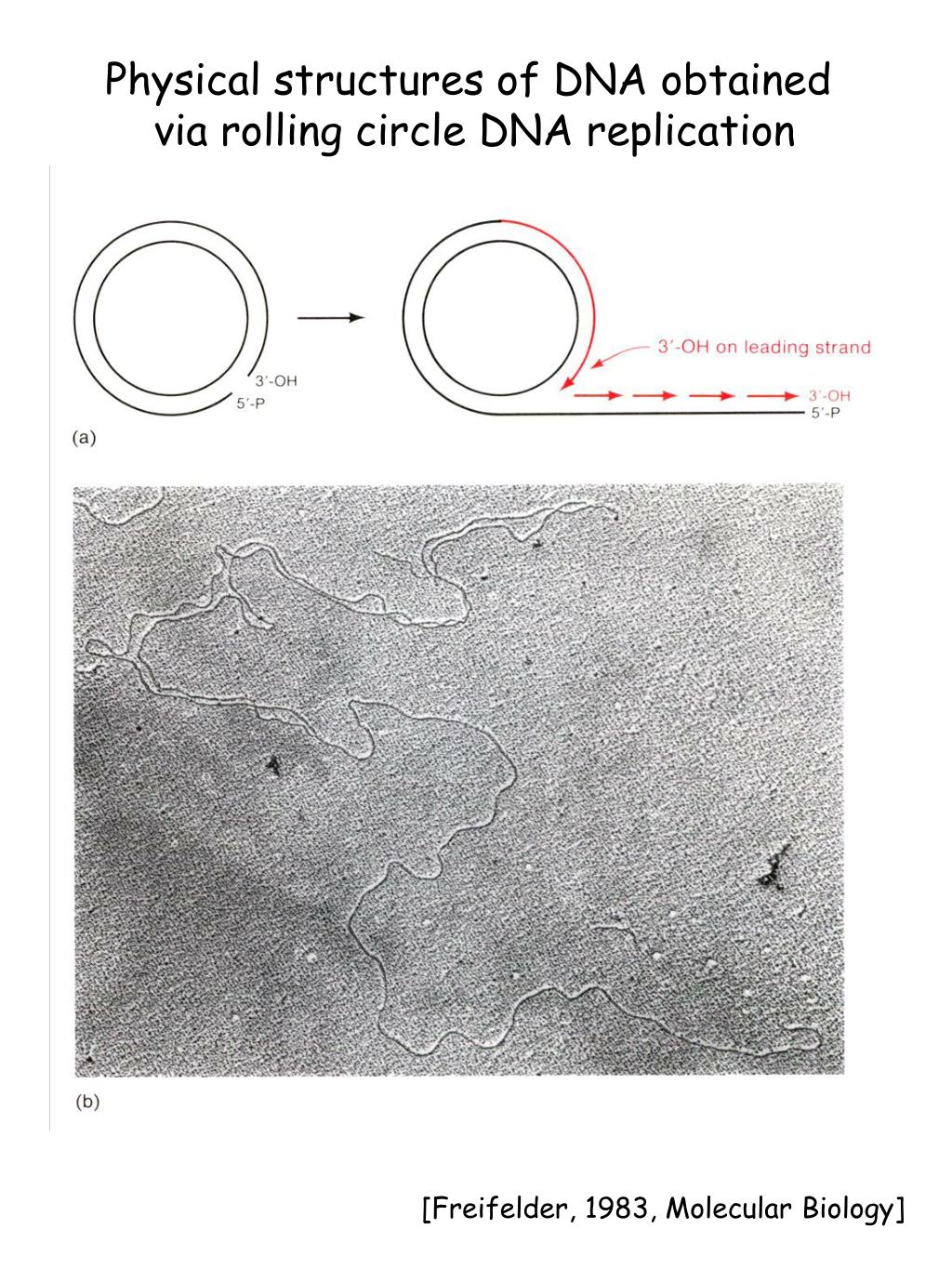

28. Physical structures of DNA obtained via rolling circle DNA replication [Freifelder, 1983, Molecular Biology]

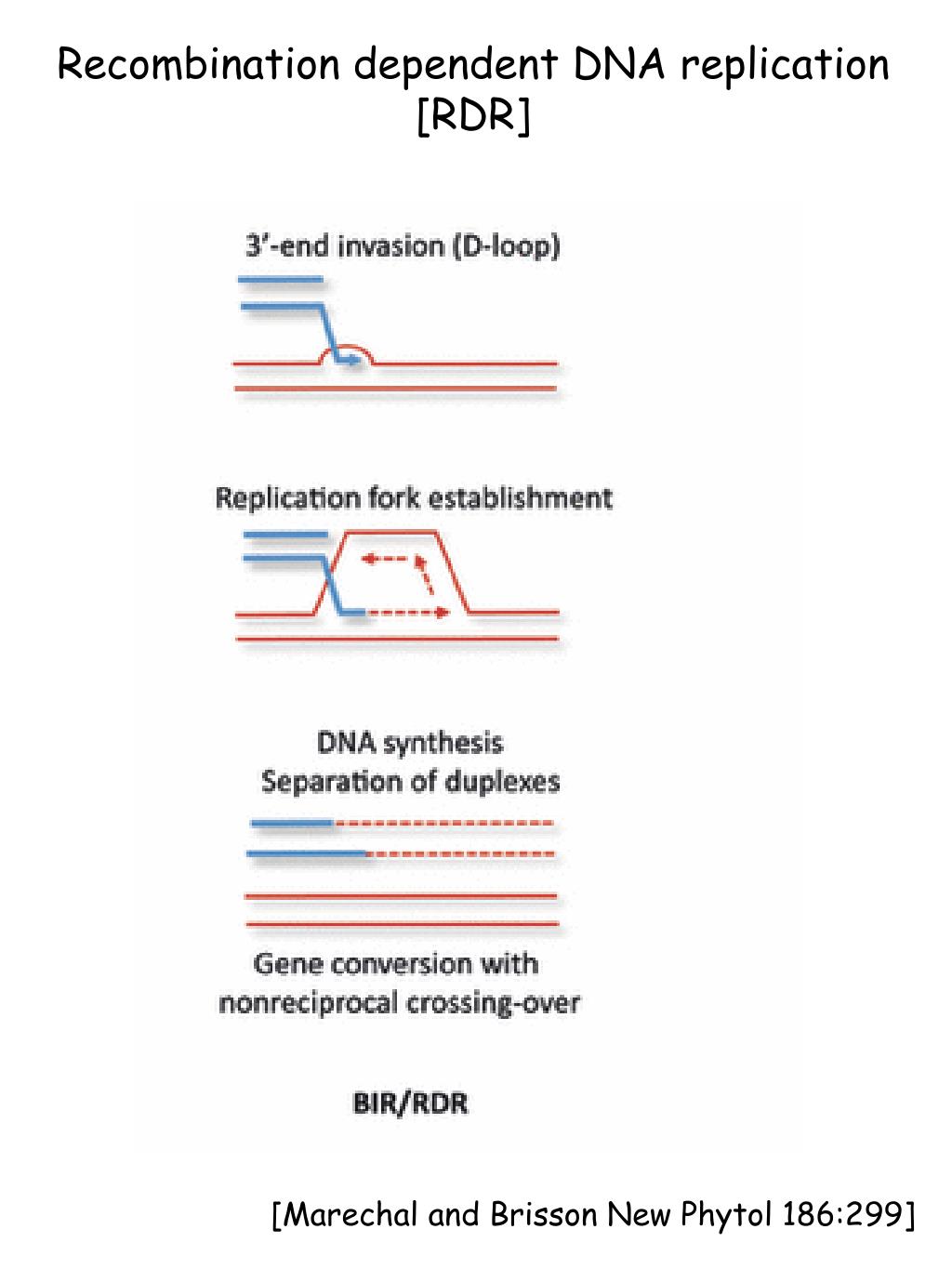

29. Recombination dependent DNA replication [RDR] [Marechal and Brisson New Phytol 186:299]

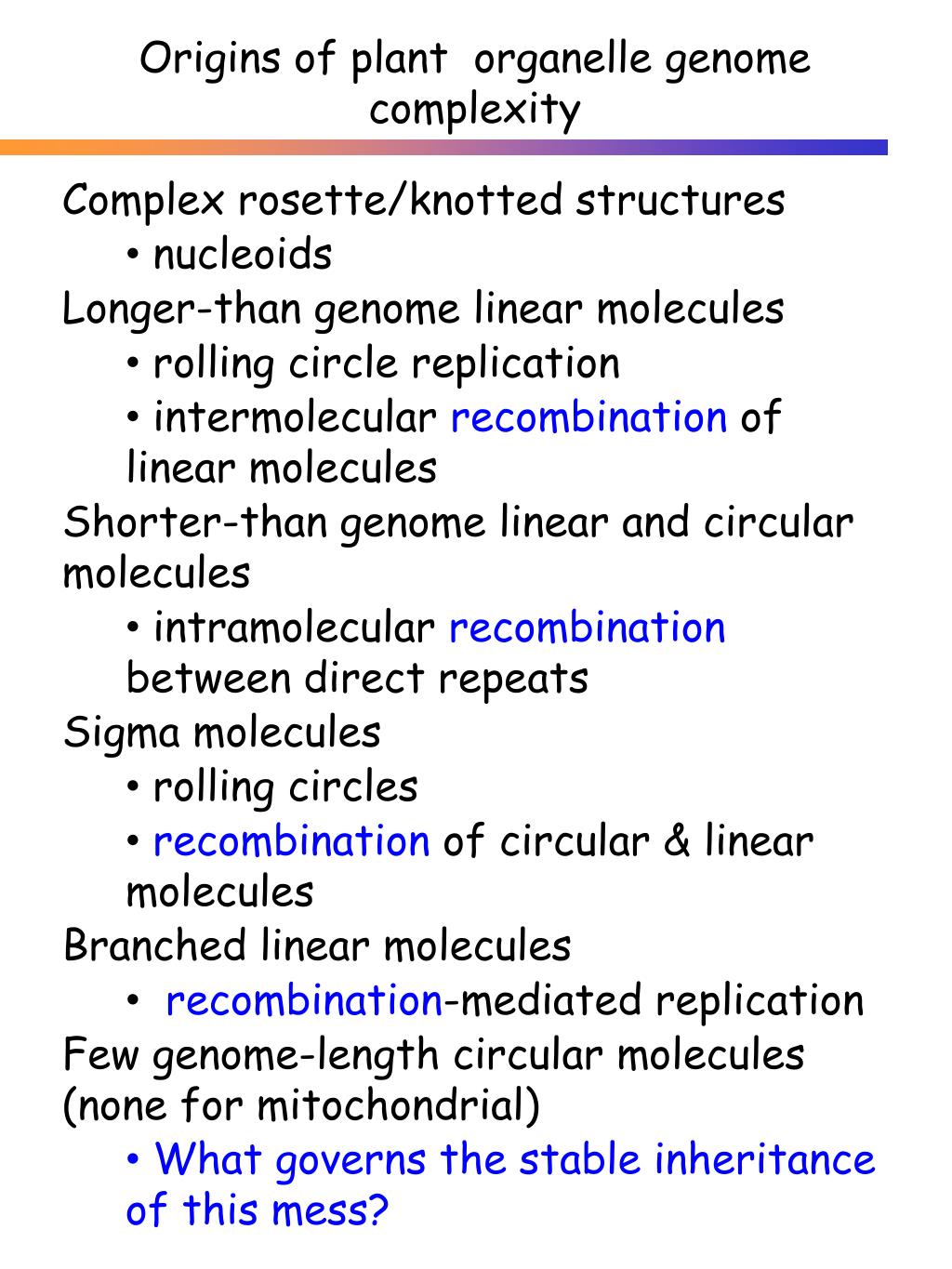

30. Origins of plant organelle genome complexity • Complex rosette/knotted structures • nucleoids • Longer-than genome linear molecules • rolling circle replication • intermolecular recombination of linear molecules • Shorter-than genome linear and circular molecules • intramolecularrecombination between direct repeats • Sigma molecules • rolling circles • recombination of circular & linear molecules • Branched linear molecules • recombination-mediated replication • Few genome-length circular molecules (none for mitochondrial) • What governs the stable inheritance of this mess?

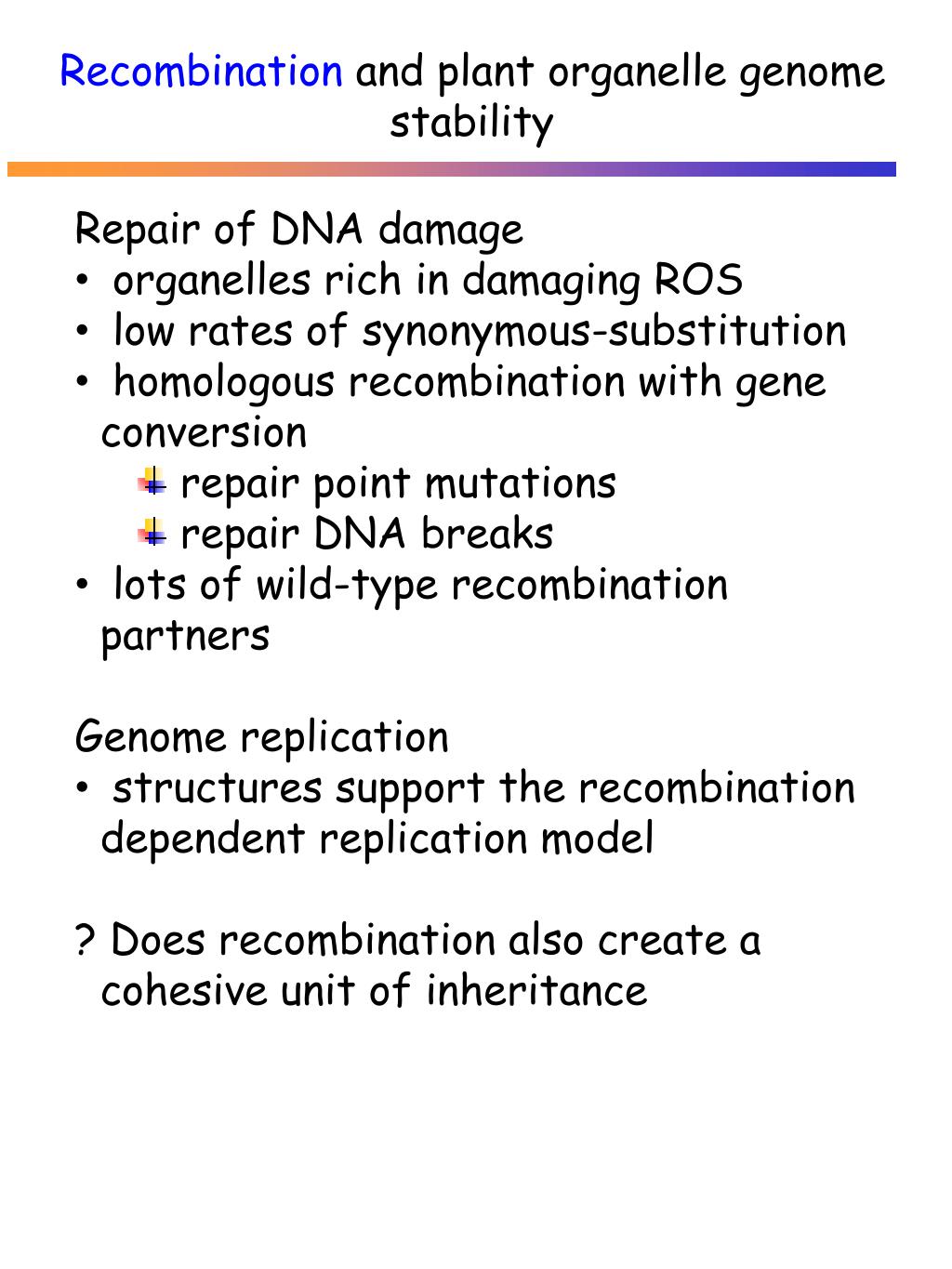

31. Recombination and plant organelle genome stability • Repair of DNA damage • organelles rich in damaging ROS • low rates of synonymous-substitution • homologous recombination with gene conversion • repair point mutations • repair DNA breaks • lots of wild-type recombination partners • Genome replication • structures support the recombination dependent replication model • ? Does recombination also create a cohesive unit of inheritance

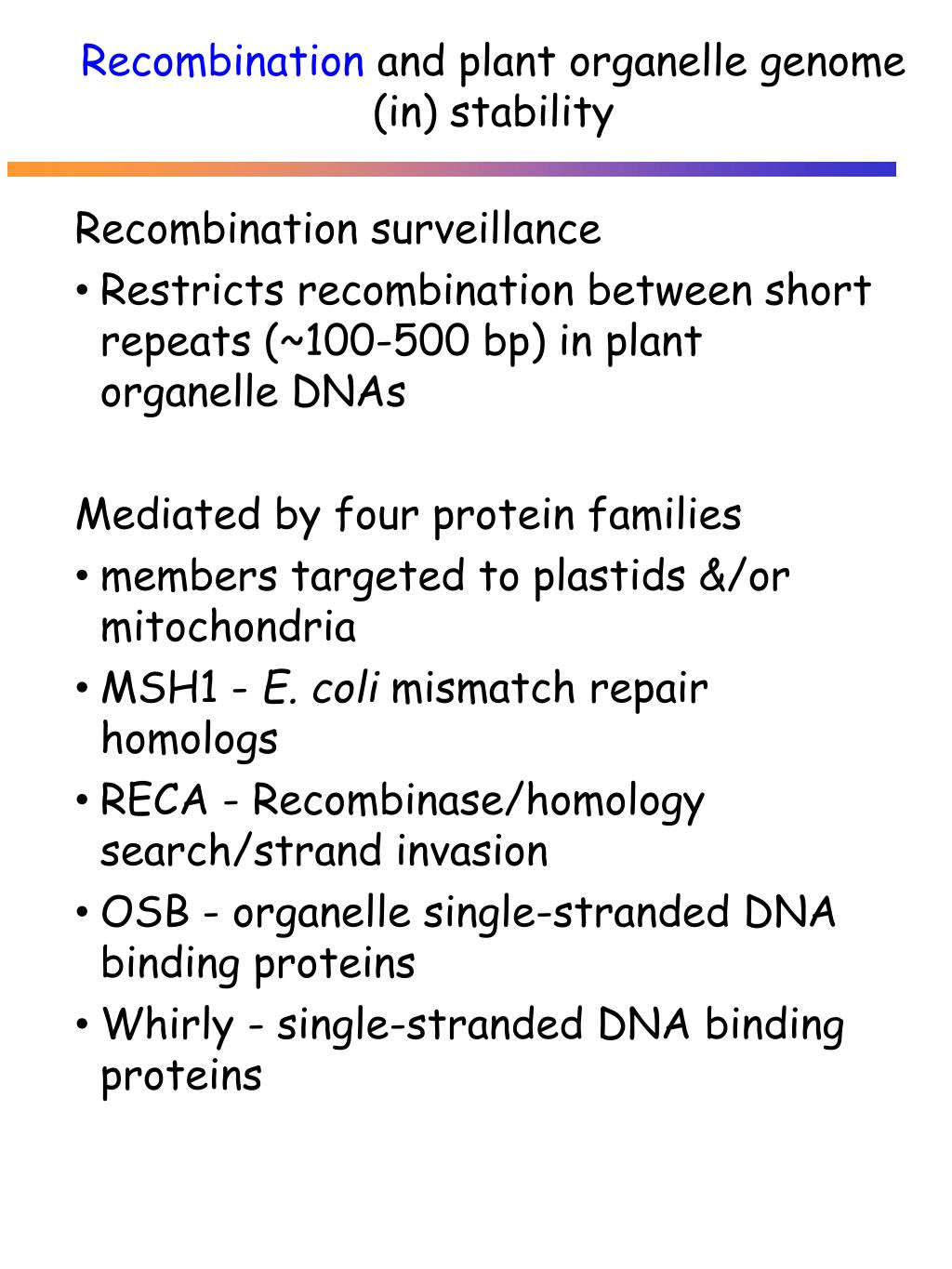

32. Recombination and plant organelle genome (in) stability • Recombination surveillance • Restricts recombination between short repeats (~100-500 bp) in plant organelle DNAs • Mediated by four protein families • members targeted to plastids &/or mitochondria • MSH1 - E. coli mismatch repair homologs • RECA - Recombinase/homology search/strand invasion • OSB - organelle single-stranded DNA binding proteins • Whirly - single-stranded DNA binding proteins

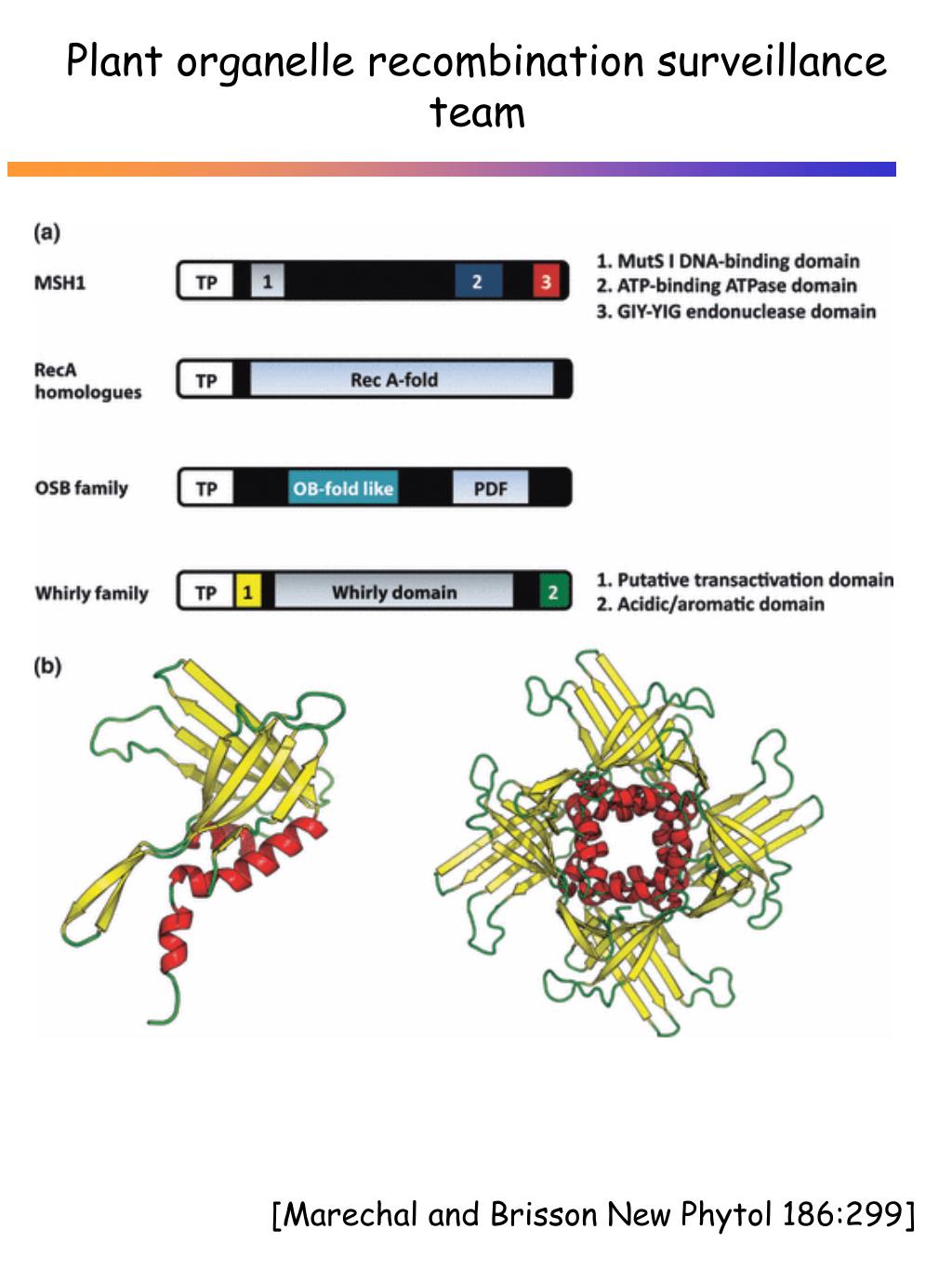

33. Plant organelle recombination surveillance team [Marechal and Brisson New Phytol 186:299]

34. Down-regulation of MSH1 alters organelle function and genome organization Mitochondrial genome reorganization left, co-segregating with and leaf variegation, right Organelle recombination is regulated De-regulation destabilizes organelle genome organization with phenotypic consequences Some recombination is good; too much is bad! [Sandhu et al. Proc NatlAcadSci USA 104:1766

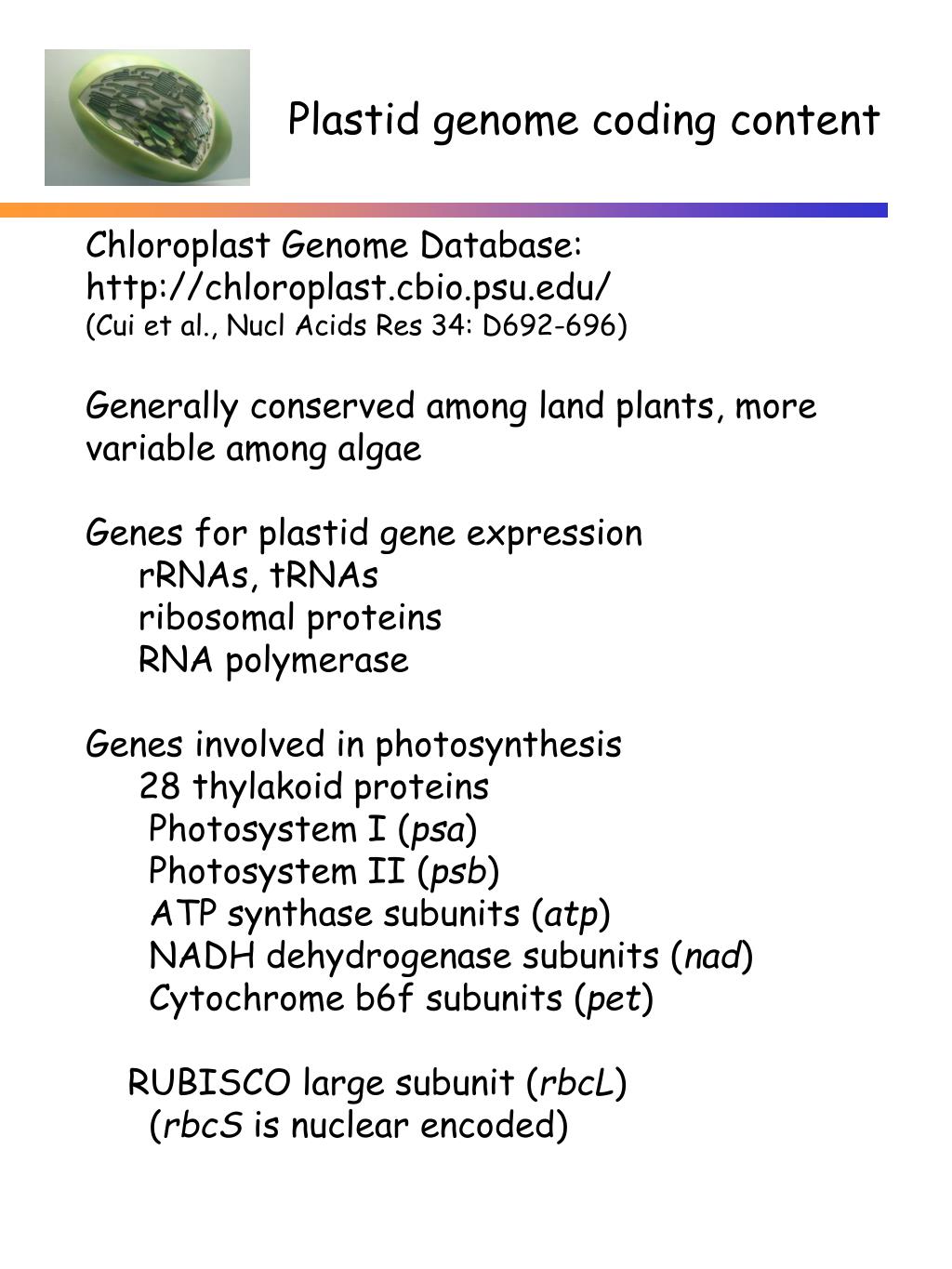

35. Plastid genome coding content • Chloroplast Genome Database: • http://chloroplast.cbio.psu.edu/ • (Cui et al., Nucl Acids Res 34: D692-696) • Generally conserved among land plants, more variable among algae • Genes for plastid gene expression • rRNAs, tRNAs • ribosomal proteins • RNA polymerase • Genes involved in photosynthesis • 28 thylakoid proteins • Photosystem I (psa) • Photosystem II (psb) • ATP synthase subunits (atp) • NADH dehydrogenase subunits (nad) • Cytochrome b6f subunits (pet) • RUBISCO large subunit (rbcL) • (rbcS is nuclear encoded)

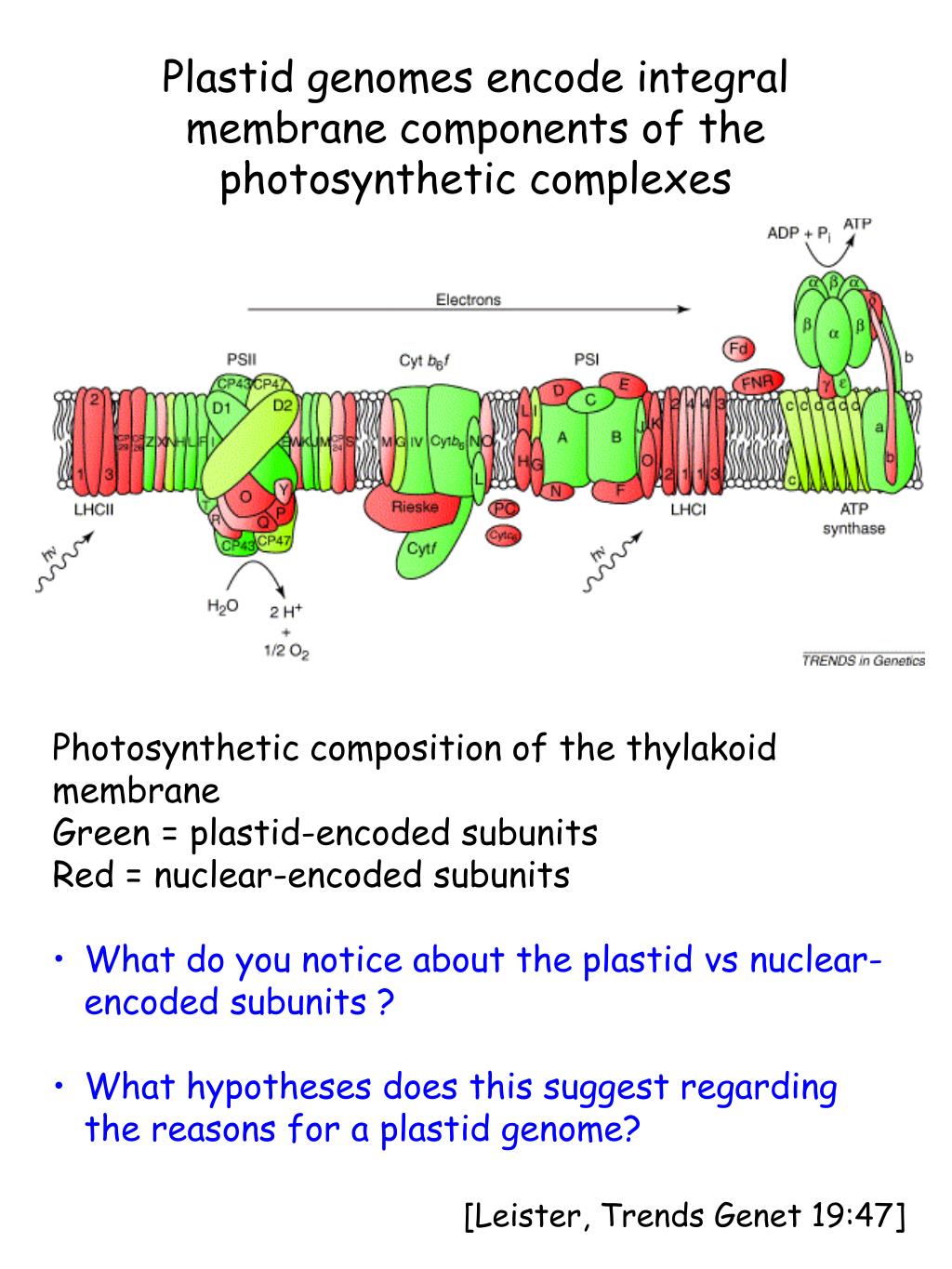

36. Plastid genomes encode integral membrane components of the photosynthetic complexes • Photosynthetic composition of the thylakoid membrane • Green = plastid-encoded subunits • Red = nuclear-encoded subunits • What do you notice about the plastid vs nuclear-encoded subunits ? • What hypotheses does this suggest regarding the reasons for a plastid genome? [Leister, Trends Genet 19:47]

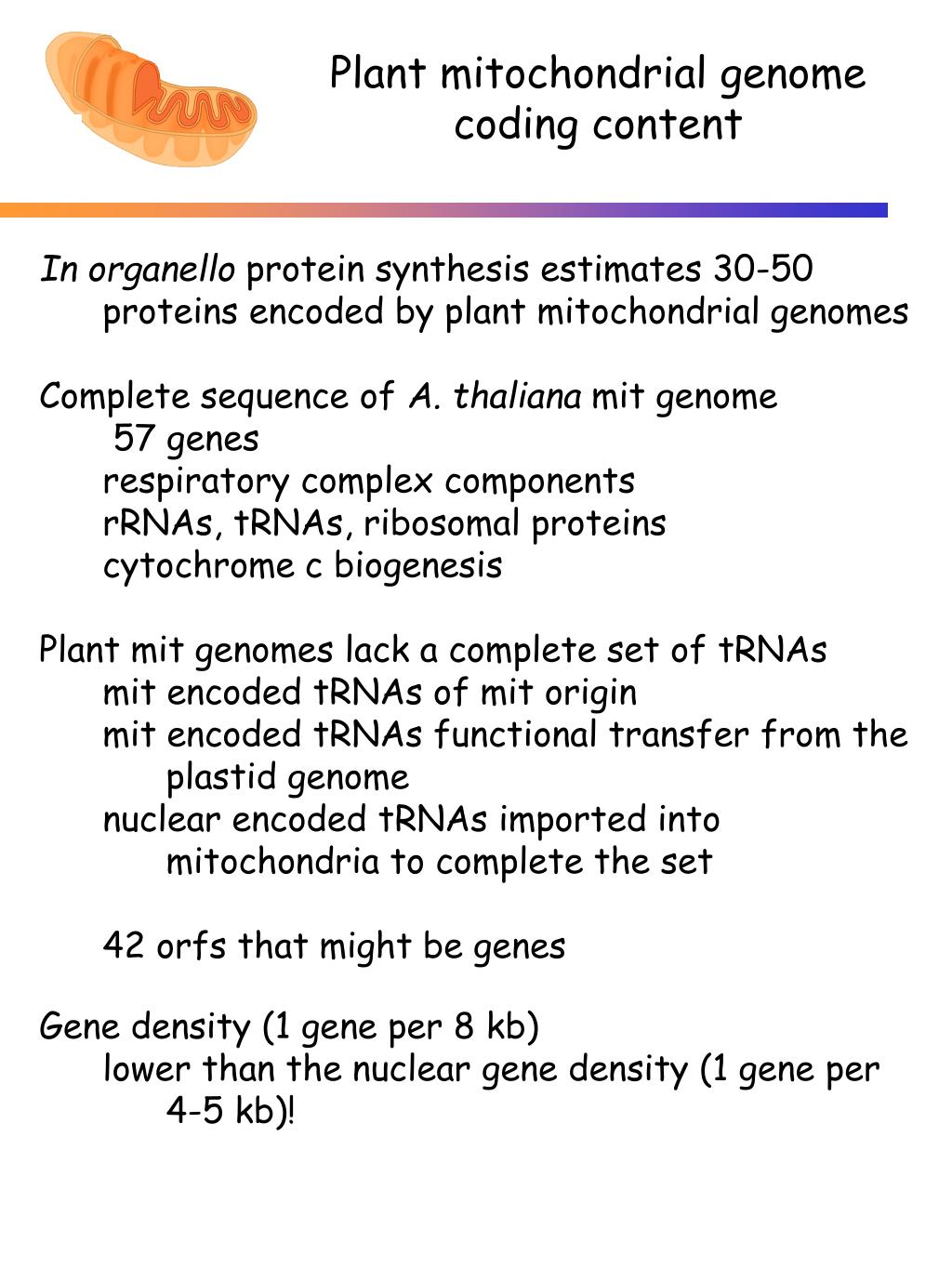

37. Plant mitochondrial genome coding content • In organello protein synthesis estimates 30-50 proteins encoded by plant mitochondrial genomes • Complete sequence of A. thalianamit genome • 57 genes • respiratory complex components • rRNAs, tRNAs, ribosomal proteins • cytochrome c biogenesis • Plant mit genomes lack a complete set of tRNAs • mit encoded tRNAs of mit origin • mit encoded tRNAs functional transfer from the plastid genome • nuclear encoded tRNAs imported into mitochondria to complete the set • 42 orfs that might be genes • Gene density (1 gene per 8 kb) • lower than the nuclear gene density (1 gene per 4-5 kb)!

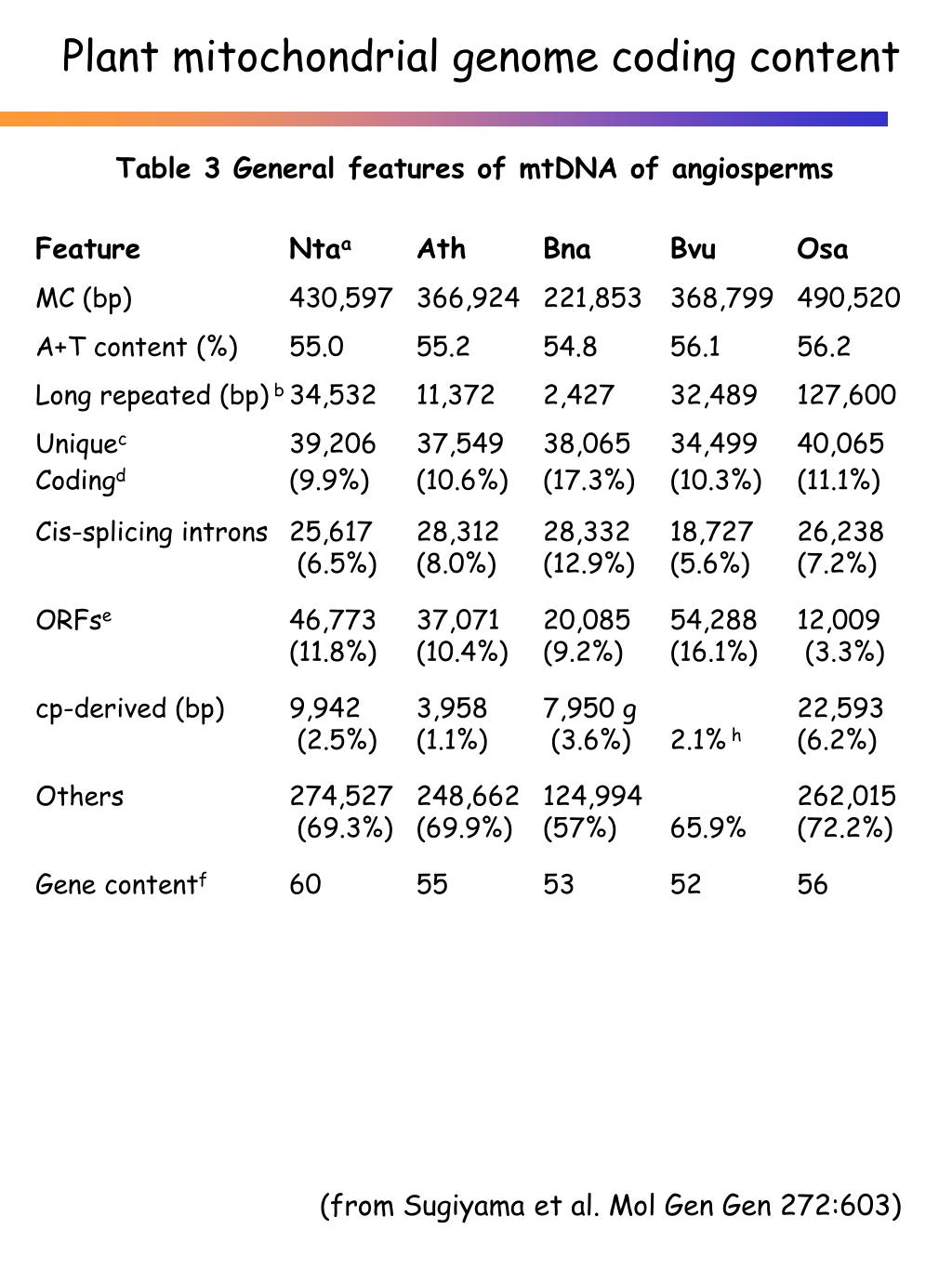

38. Plant mitochondrial genome coding content Table 3 General features of mtDNA of angiosperms FeatureNtaaAthBnaBvuOsa MC (bp) 430,597 366,924 221,853 368,799 490,520 A+T content (%) 55.0 55.2 54.8 56.1 56.2 Long repeated (bp) b 34,532 11,372 2,427 32,489 127,600 Uniquec 39,206 37,549 38,065 34,499 40,065 Codingd (9.9%) (10.6%) (17.3%) (10.3%) (11.1%) Cis-splicing introns 25,617 28,312 28,332 18,727 26,238 (6.5%) (8.0%) (12.9%) (5.6%) (7.2%) ORFse 46,773 37,071 20,085 54,288 12,009 (11.8%) (10.4%) (9.2%) (16.1%) (3.3%) cp-derived (bp) 9,942 3,958 7,950 g 22,593 (2.5%) (1.1%) (3.6%) 2.1% h (6.2%) Others 274,527 248,662 124,994 262,015 (69.3%) (69.9%) (57%) 65.9% (72.2%) Gene contentf 60 55 53 52 56 (from Sugiyama et al. Mol Gen Gen 272:603)

39. NAD(P)H DH external intermembrane space H+ H+ inner membrane H+ IV CYC UQH2 2H2O UQ ATP Synthase III O2 I II NAD(P)H DH internal matrix 2H2O AOX O2 H+ ATP ADP II NAD+ TCA cycle NADH Mitochondrial genomes encode integral membrane components of the respiratory complexes **** **** *** * *** * * * = one mitochondria-encoded subunit There is some species-to-species variation with respect to the presence or absence of genes encoding respiratory chain subunits. What is the likely explanation for this observation? (Modified from Rasmusson et al. Annu Rev Plant Biol 55:23)

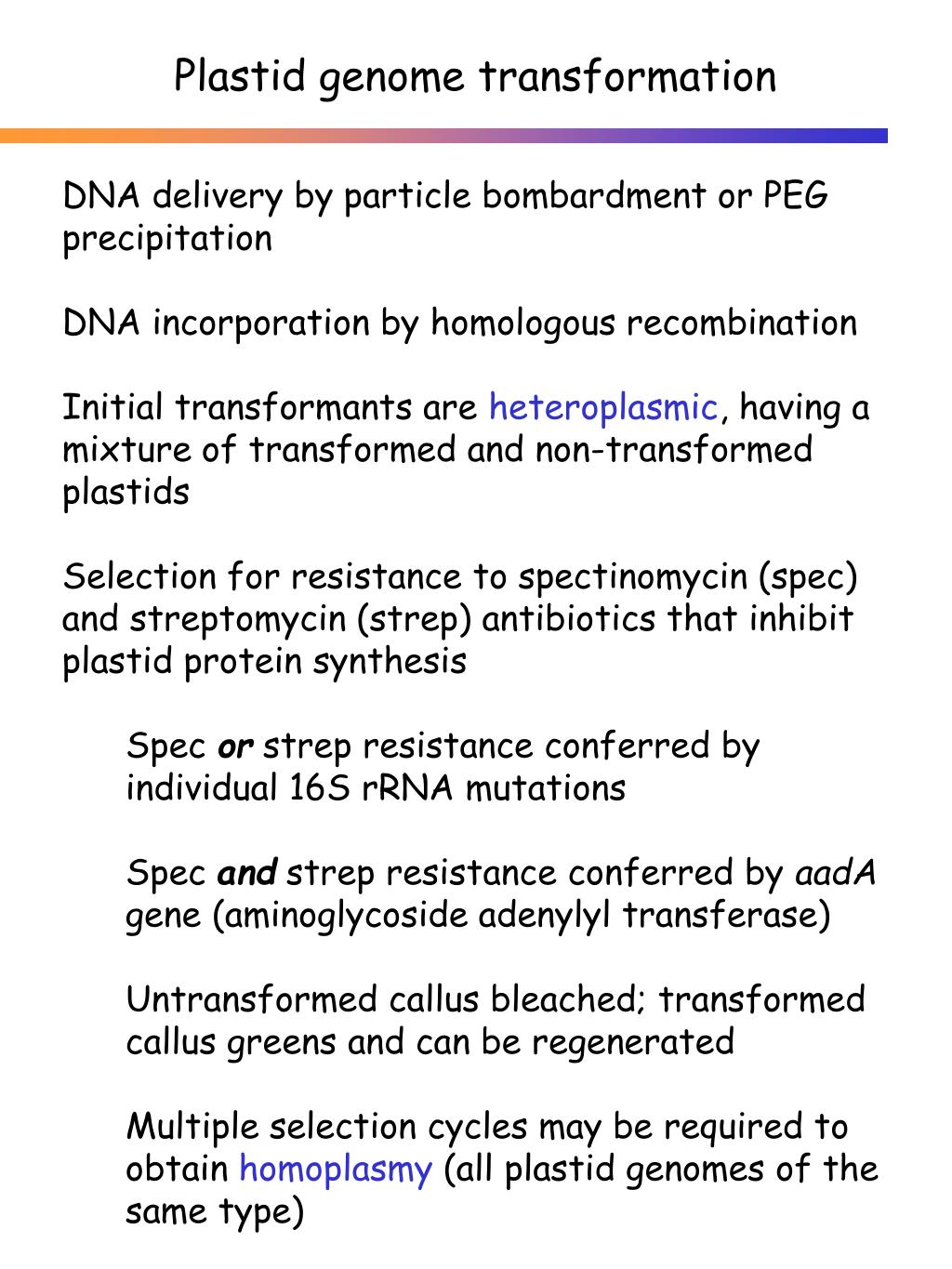

40. Plastid genome transformation • DNA delivery by particle bombardment or PEG precipitation • DNA incorporation by homologous recombination • Initial transformants are heteroplasmic, having a mixture of transformed and non-transformed plastids • Selection for resistance to spectinomycin (spec) and streptomycin (strep) antibiotics that inhibit plastid protein synthesis • Spec or strep resistance conferred by individual 16S rRNA mutations • Spec and strep resistance conferred by aadA gene (aminoglycosideadenylyltransferase) • Untransformed callus bleached; transformed callus greens and can be regenerated • Multiple selection cycles may be required to obtain homoplasmy (all plastid genomes of the same type)

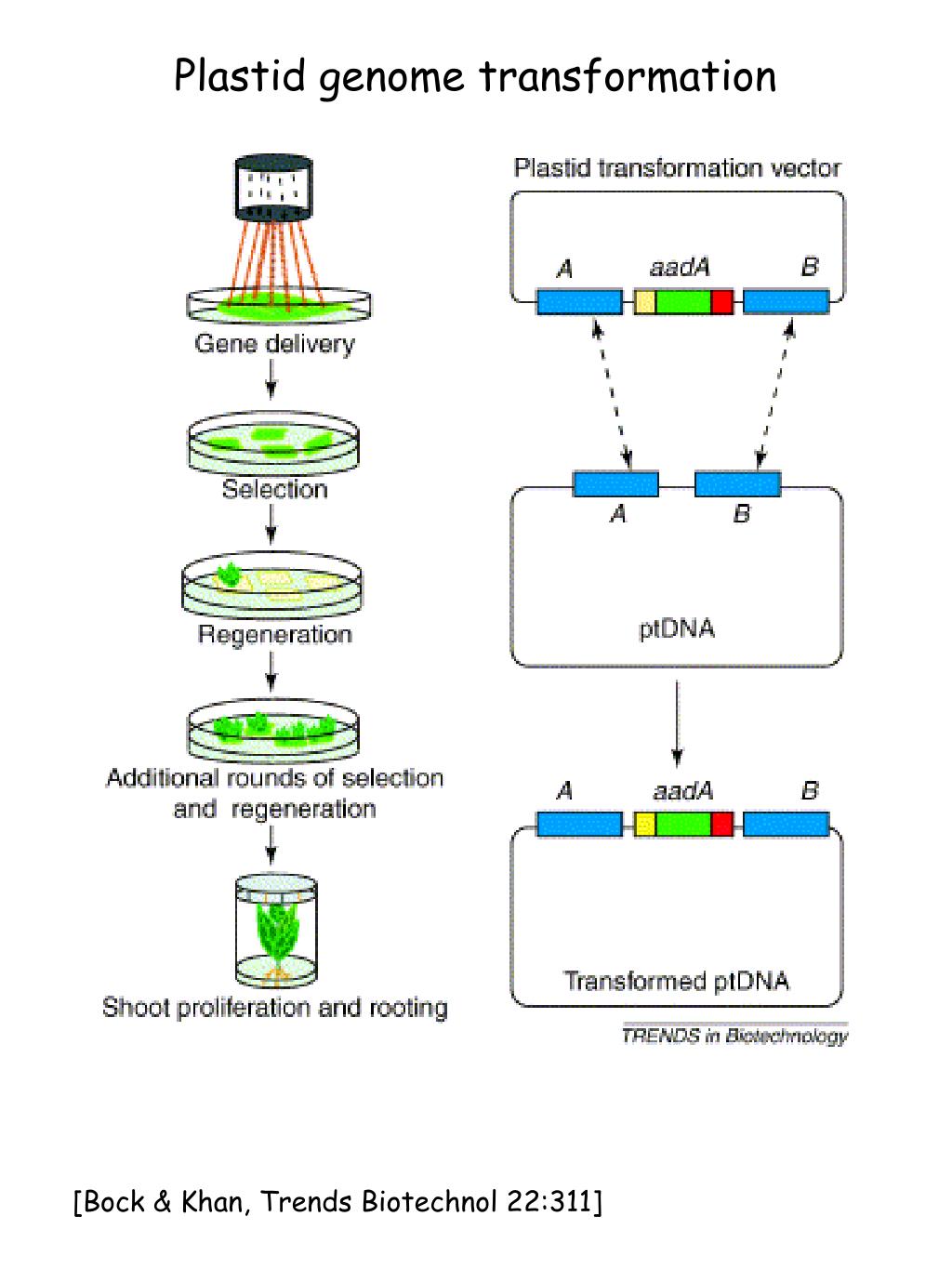

41. Plastid genome transformation [Bock & Khan, Trends Biotechnol 22:311]

42. Selection for plastid transformants A) leaf segments post bombardment with the aadA gene B) leaf segments after selection on spectinomycinC) transfer of transformants to spectinomycin + streptomycin D) recovery of homoplasmic spec + strep resistant transformants [Bock , J Mol Biol 312:425]

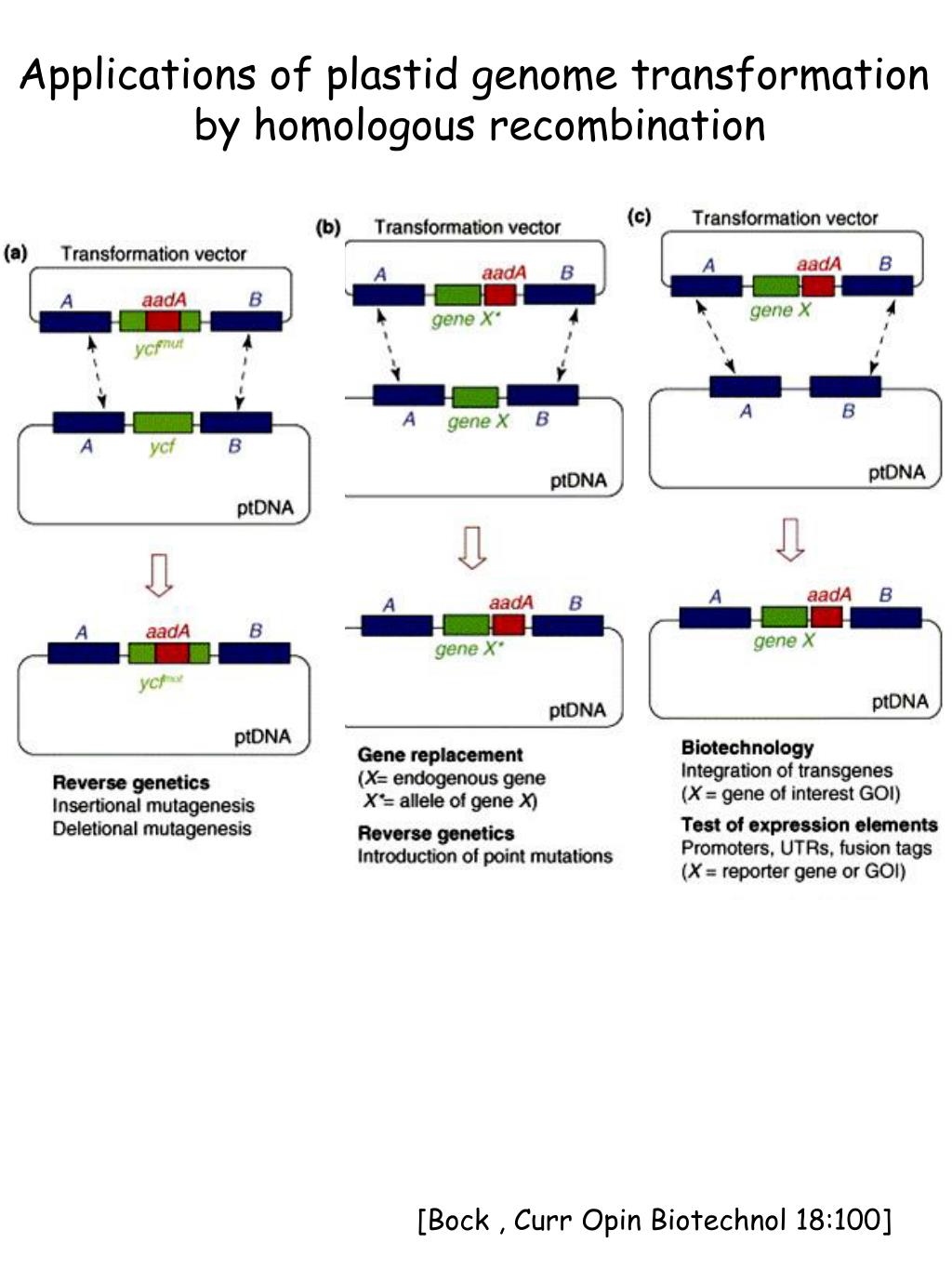

43. Applications of plastid genome transformation by homologous recombination [Bock , CurrOpinBiotechnol18:100]

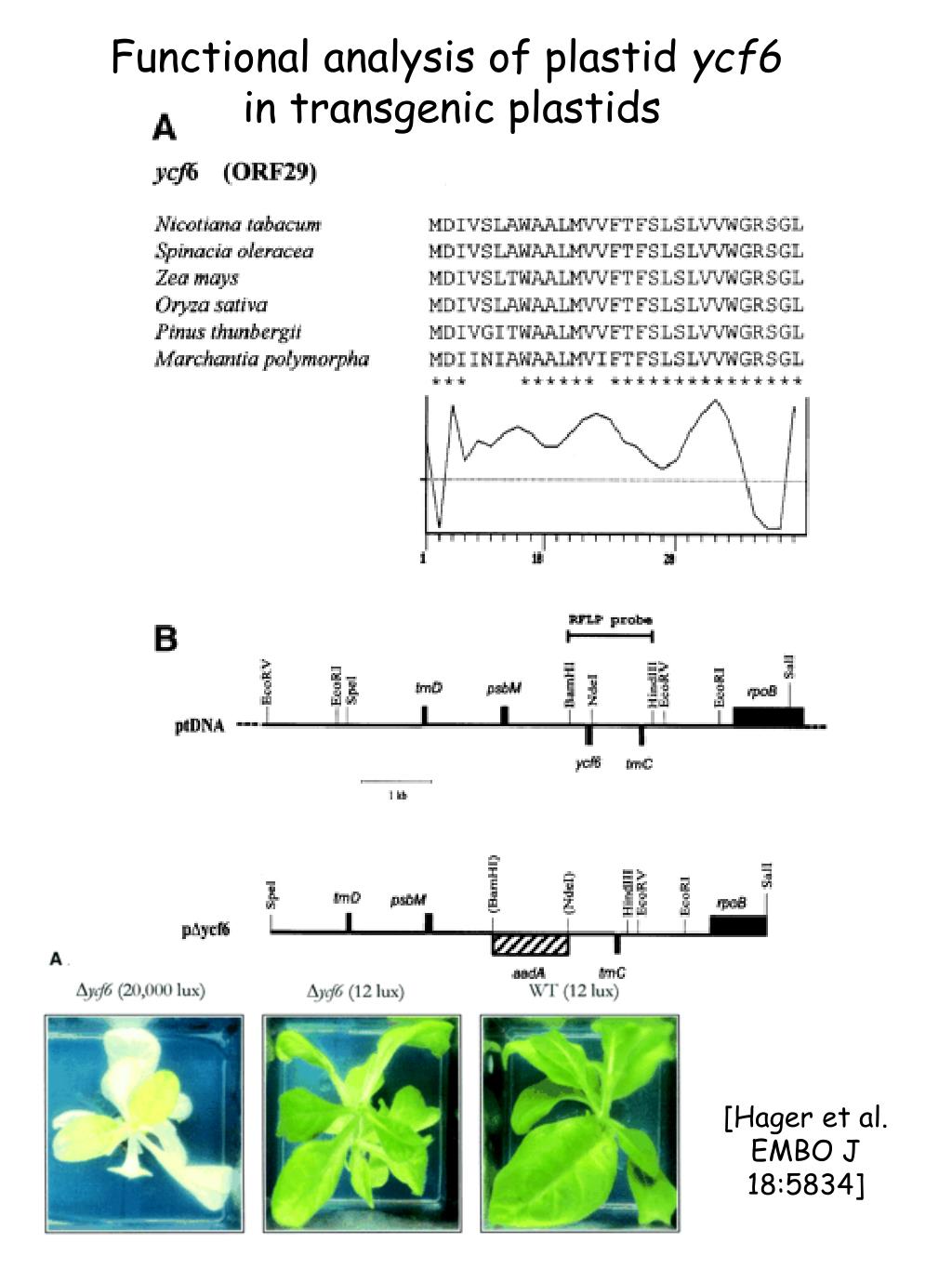

44. Functional analysis of plastid ycf6 in transgenic plastids [Hager et al. EMBO J 18:5834]

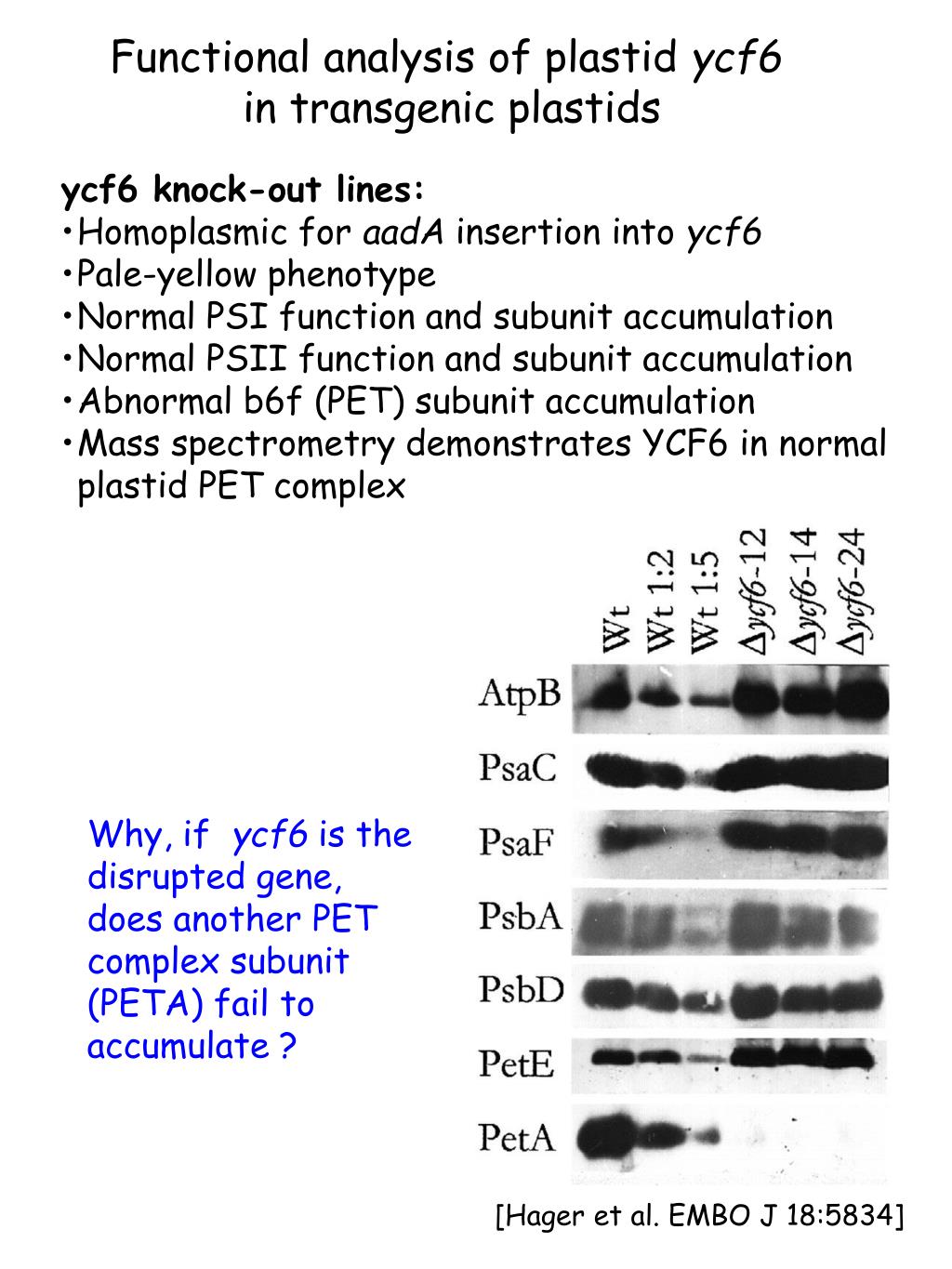

45. Functional analysis of plastid ycf6 in transgenic plastids • ycf6 knock-out lines: • Homoplasmic for aadA insertion into ycf6 • Pale-yellow phenotype • Normal PSI function and subunit accumulation • Normal PSII function and subunit accumulation • Abnormal b6f (PET) subunit accumulation • Mass spectrometry demonstrates YCF6 in normal plastid PET complex Why, if ycf6 is the disrupted gene, does another PET complex subunit (PETA) fail to accumulate ? [Hager et al. EMBO J 18:5834]

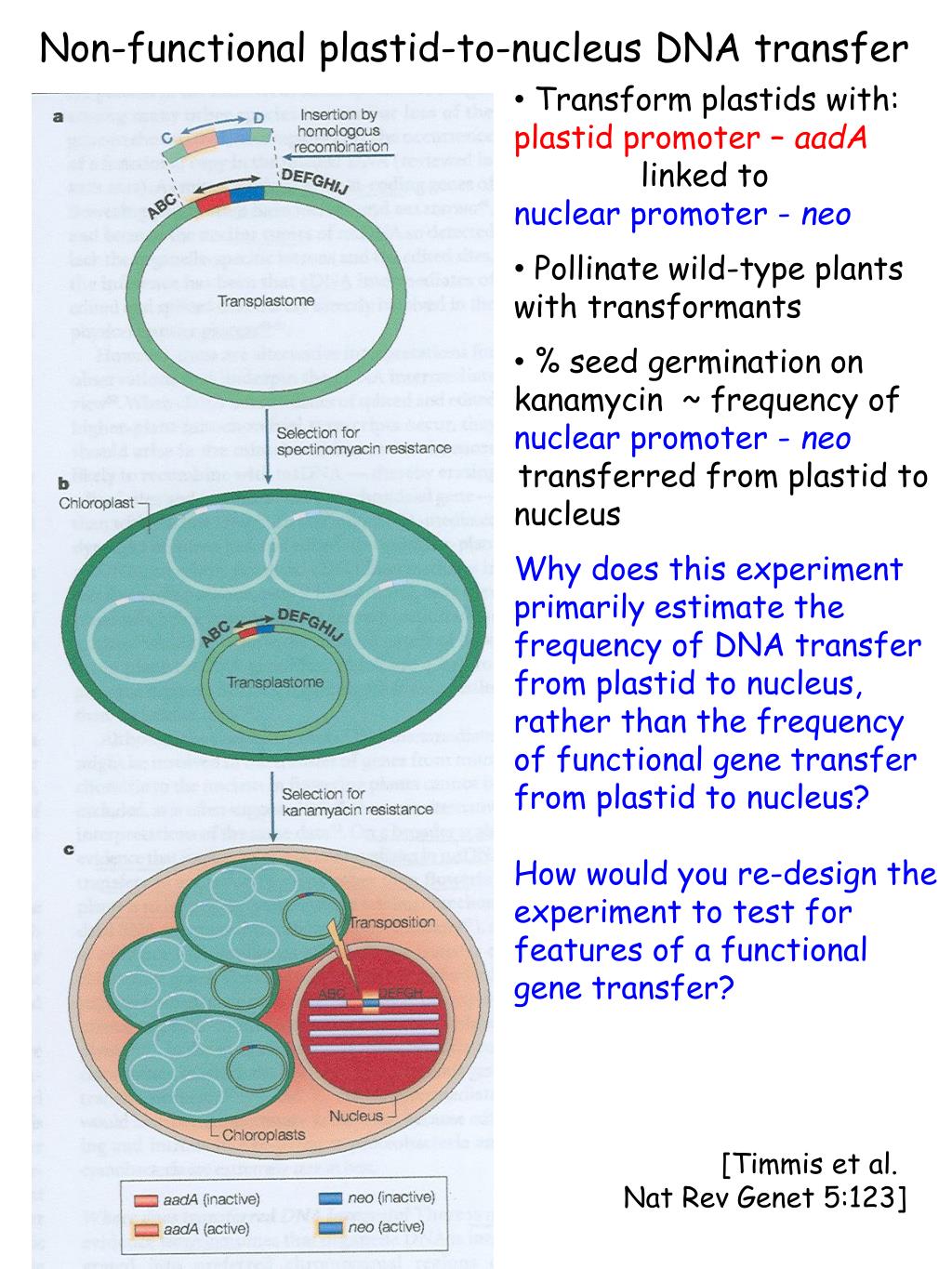

46. Non-functional plastid-to-nucleus DNA transfer • Transform plastids with: • plastid promoter –aadAlinked to • nuclear promoter - neo • Pollinate wild-type plants with transformants • % seed germination on kanamycin ~ frequency of nuclear promoter - neo • transferred from plastid to nucleus • Why does this experiment primarily estimate the frequency of DNA transfer from plastid to nucleus, rather than the frequency of functional gene transfer from plastid to nucleus? • How would you re-design the experiment to test for features of a functional gene transfer? [Timmis et al. Nat Rev Genet 5:123]
