Methane avoidance projects: Composting

MUNICIPAL SOLID WASTE MANAGEMENT AND CARBON FINANCE Carbon Finance Unit Training Session Charles Peterson and Ahmed Mostafa March 29, 2007. Methane avoidance projects: Composting. Maximum amount of credits per ton of waste (100% compared to max. 50% for landfills)

rahim-pennington
Download Presentation

Methane avoidance projects: Composting

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. MUNICIPAL SOLID WASTE MANAGEMENT AND CARBON FINANCE Carbon Finance Unit Training SessionCharles Peterson and Ahmed MostafaMarch 29, 2007

  2. Methane avoidance projects: Composting • Maximum amount of credits per ton of waste (100% compared to max. 50% for landfills) • No additional investment needed

  3. Composting process • Composting is decomposition of waste under aerobic conditions (waste stabilized/digested in 2-3 months, compared to several yrs in sanitary landfills - anaerobic) • The baseline is waste that would have been left to decay in the landfill and release methane to the atmosphere • Composting is prevention of methane generation and not methane recovery • Methane avoidance in composting process is nearly 100% compared to 30-50% in capturing and flaring • By-product is CO2, moisture, high temperature and valuable soil conditioner (compost) that can be used for horticulture / agriculture.

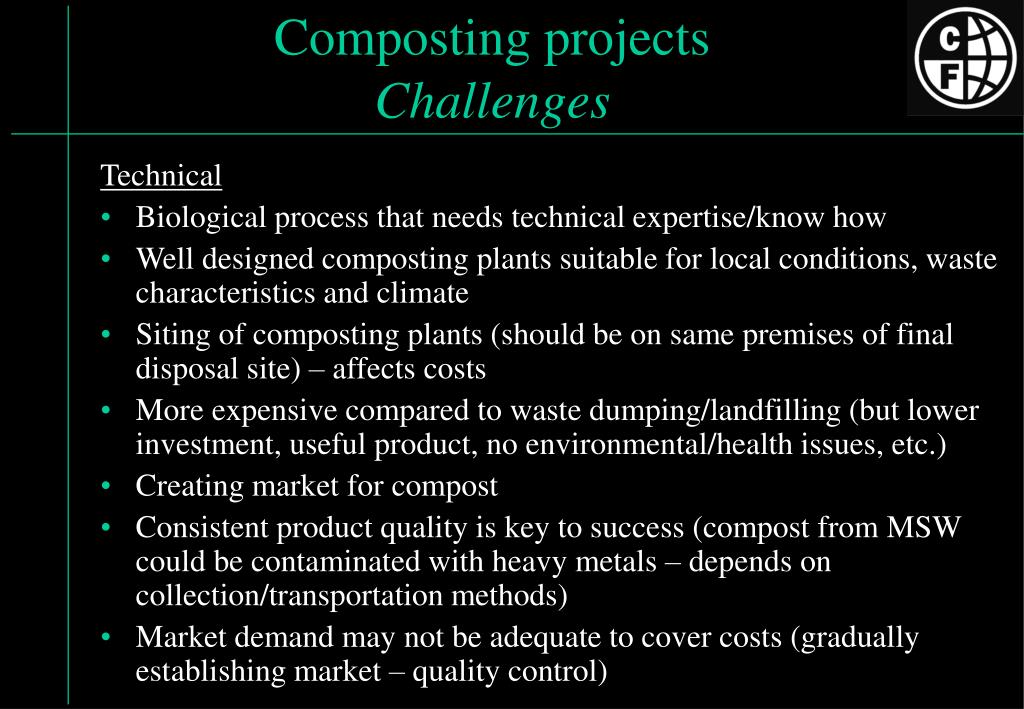

  4. Composting projectsChallenges Technical • Biological process that needs technical expertise/know how • Well designed composting plants suitable for local conditions, waste characteristics and climate • Siting of composting plants (should be on same premises of final disposal site) – affects costs • More expensive compared to waste dumping/landfilling (but lower investment, useful product, no environmental/health issues, etc.) • Creating market for compost • Consistent product quality is key to success (compost from MSW could be contaminated with heavy metals – depends on collection/transportation methods) • Market demand may not be adequate to cover costs (gradually establishing market – quality control)

  5. Composting projectsChallenges (Cont.) Financial • Compost market & price (recent EC standards restricts use of compost from MSW for edible plants) • Tipping fees • Sale of recyclables & market / price

  6. Composting projectsChallenges (cont.) Institutional • Ownership of facility (operator, municipality?) BOO, DBO, etc types of contracts or construction by Municipalities, and operated by private sector through concession contracts with following: - PS paid tipping fees with minimum tons/day, - Specifying minimum treatment percentage (as high as 60%) in contract, thus increasing lifetime of final disposal facilities (instead of 15-20 yrs, could be doubled and minimal precautions for leachate, LFG, resources pollution, i.e. significantly lower investment costs)

  7. Eligibility of Composting operations Technical: a- Municipal solid waste: • Require upstream sorting facility (represents at least 70% of capital and O&M costs) • At least 60% organic content in mixed MSW • Type of technology / process (windrow, aerated static pile, In-vessel) • Process (capital and O&M cost) vs land requirement • Windrow technology most cost effective, but requires space, high monitoring/quality control. b- Sludge / Market / Food waste: • No sorting process required (low capital and O&M costs) • Windrow technology among the best (space area, operator skills, etc) • Beware of chemical contaminants (source of sludge – industrial pollution) Financial • Selected Technology • Existence of compost market • Tipping fees paid for treatment • Recyclables (in case of MSW)

  8. Technology I: windrow

  9. Technology II: Aerated Static Pile

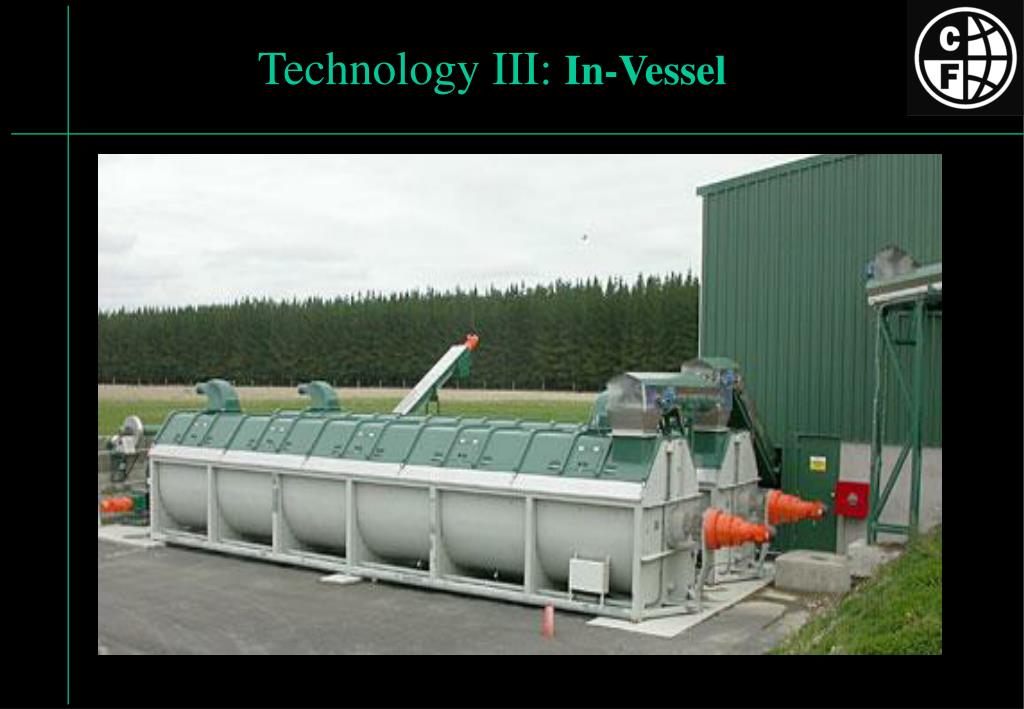

  10. Technology III: In-Vessel

  11. MSW: sorting process is essential

  12. Sorting line

  13. Composting process for MSW

  14. Monitoring

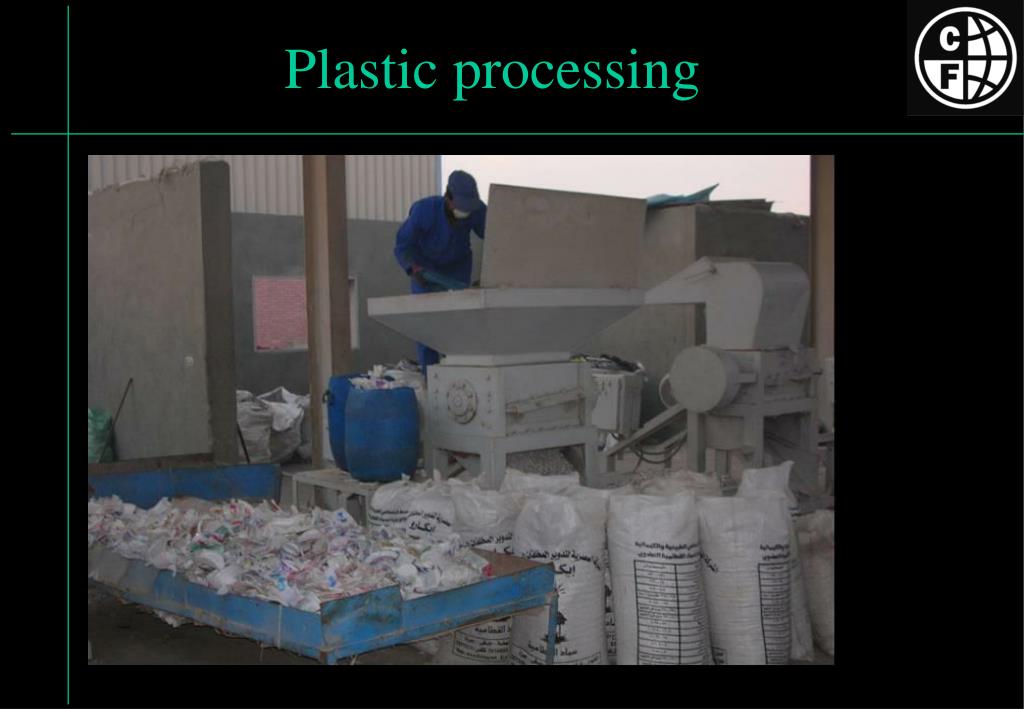

  15. Plastic processing

  16. Cans compactor

  17. Important issues to be discussed with project developer Technical • Type of technology / process (affects capital, O&M costs) • Type of waste (MSW, sludge, manure, agri / organic residuals) • Capacity (depends primarily on type of waste - no less than 500 t/d MSW, 400 t/d market/food waste for acceptable ER levels) • Process monitoring (ensuring aerobic conditions) • Quality control measures on final product (need to ensure consistent quality for final product) Financial • Existence of compost market (if not, what's the sponsor’s strategy?) – MSW compost ranges ($5 – $35), agri / organic compost ($50 upwards) • Tipping fees paid for treatment or not? • Recyclables (in case of MSW)

  18. Landfilling verses Composting of different types of wastes (500 t/d) a: 65% organic content (requires sorting, composting and screening processes) b: 100% organic content (market / food waste)

  19. Successful Case Studies • Option 1: DBO, BOOT, etc types of contracts • PS designs, constructs and operates for 10-15 yrs treatment/disposal facilities • PS paid tipping fees (per tonnage) with minimum tonnage per day on monthly basis + compost revenues + portion of CF revenues • Municipality responsible for monitoring and supervision of PS operation • Facilities handed to municipality after concession period • Option 2: Design and construction by Municipality • Concession contract to PS for operation (10-15 yrs) • Same cost recovery as above • Municipality responsible for monitoring and supervision of PS operation

  20. Overview of CFU Portfolio Composting projects • Santiago, Chile • Kabul, Afghanistan • Porto Novo, Benin • Karnataka, India • Tashkent, Samarkand, Bukhara, Uzbekistan • Kampala, Uganda • Cairo, Egypt • Jeddah, Saudi Arabia • Kota Kinabalu, Malaysia

  21. THANK YOU VERY MUCH FOR MORE INFORMATION CONTACT Charles Peterson cpeterson@worldbank.org Ahmed Mostafa, amostafa1@worldbank.org
