  1. And Efficiency Physics Chapter 10d Simple Machines

  2. Machine • Makes doing work easier by changing direction of applied force or amount of applied force • Simple machines have no or few moving parts and no engine • Simple machines can be combined to form complex machines • Some terms: • Wo=output work. • Wo is always less than Wi • Wi=input work • Wi is always more than Wo

  3. Simple Machines • There are six basic simple machines: • Lever family: • Lever: a long pole or rod that moves around a fixed point (fulcrum) • Pulley: grooved wheel with a rope or chain attached to the load • Wheel and axle: wheel and axle attached • Inclined plane family: • Inclined plane: ramp • Wedge: 2 inclined planes forming a wedge • Screw: inclined plane wound around a cylinder

  4. InventorsToolbox: The Elements of Machines

  5. Types of Simple Machines • http://www.edheads.org/activities/simple-machines/

  6. Mechanical Advantage • Ratio of the force needed to do the work to the force the machine uses on the load • Some terms: • Effort force= Fe: The force exerted by the person using the machine • Resistance force=Fr: The force exerted by the machine on the load • Mechanical advantage (MA) MA= Fr/Fe

  7. Ideal Mechanical Advantage • Uses the definition of Work to describe mechanical advantage • Ideal mechanical advantage is equal to the displacement of the effort force divided by the displacement of the load • IMA = de/dr

  8. Efficiency • Compares input work to output work • Eff = Wo/Wi x 100 (given as a percent)‏ • All real machines have efficiency less than 100% • Because Wo/Wi = Frdr/Fede • And Fr/Fe=MA and de/dr=IMA • So Eff = MA x 100 IMA

  9. Sample Problem • You examine the rear wheel of a bicycle. It has a radius of 35.6 cm and has a gear with a radius of 4 cm. When the chain is pulled with a force of 155 N, the wheel rim moves 14 cm.The efficiency of this part of the bicycle is 95%. • What is the IMA of the wheel and gear? • What is the MA of the wheel and gear? • What is the reistance force? • How far was the chain pulled to move the rim 14 cm?

  10. What is the IMA of the wheel and gear? • What you know: • de (for a wheel, this is radius) = 4 cm • dr = 35.6 cm • What equation will you use? • IMA=de/dr • Substitute • IMA=4 cm/35.6 cm • Solve and check for units • 0.112 (no units for MA or IMA)‏

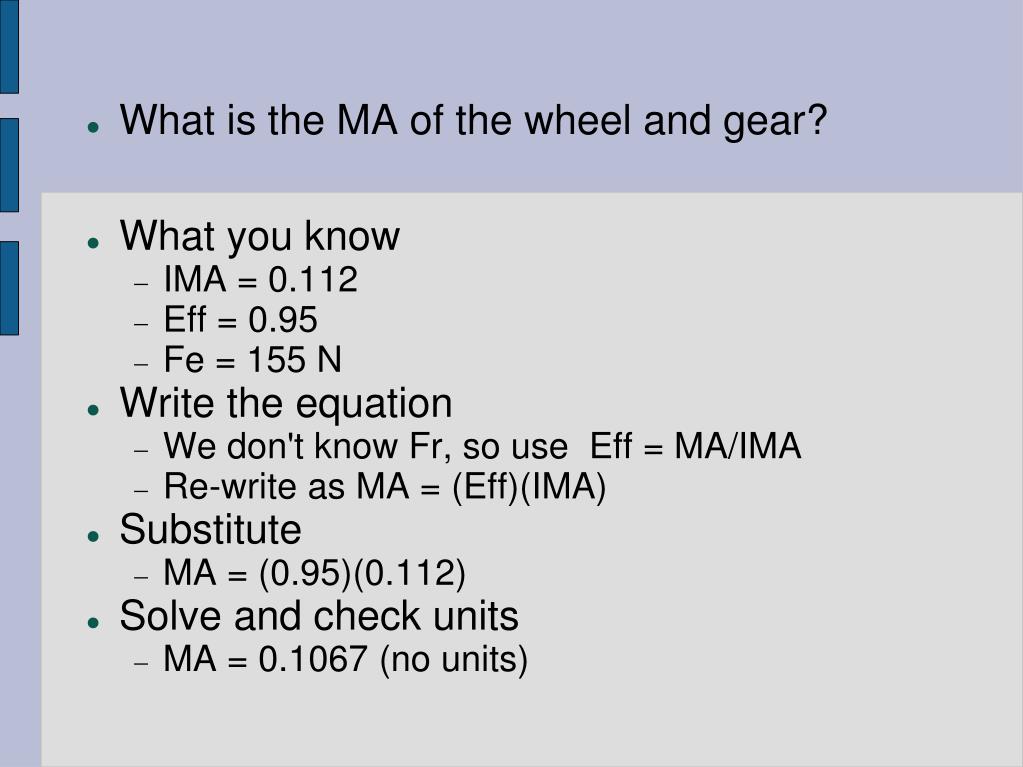

  11. What is the MA of the wheel and gear? • What you know • IMA = 0.112 • Eff = 0.95 • Fe = 155 N • Write the equation • We don't know Fr, so use Eff = MA/IMA • Re-write as MA = (Eff)(IMA)‏ • Substitute • MA = (0.95)(0.112)‏ • Solve and check units • MA = 0.1067 (no units)‏

  12. What is the reistance force? • What you know • MA = 0.1067 • Fe = 155 N • Equation • MA = Fr/Fe • So Fr = (MA)(Fe)‏ • Substitute • Fr= (0.1067)(155 N)‏ • Solve and check units • Fr = 16.5 N

  13. How far was the chain pulled to move the rim 14 cm? • What we know • dr = 14 cm • IMA = 0.112 • What equation • IMA = de/dr • So de = (IMA)(dr)‏ • Substitute • de = (0.112)(14 cm)‏ • Solve and check units • de = 1.568 cm
