design and implementation of an electronic service guide for mobile video systems

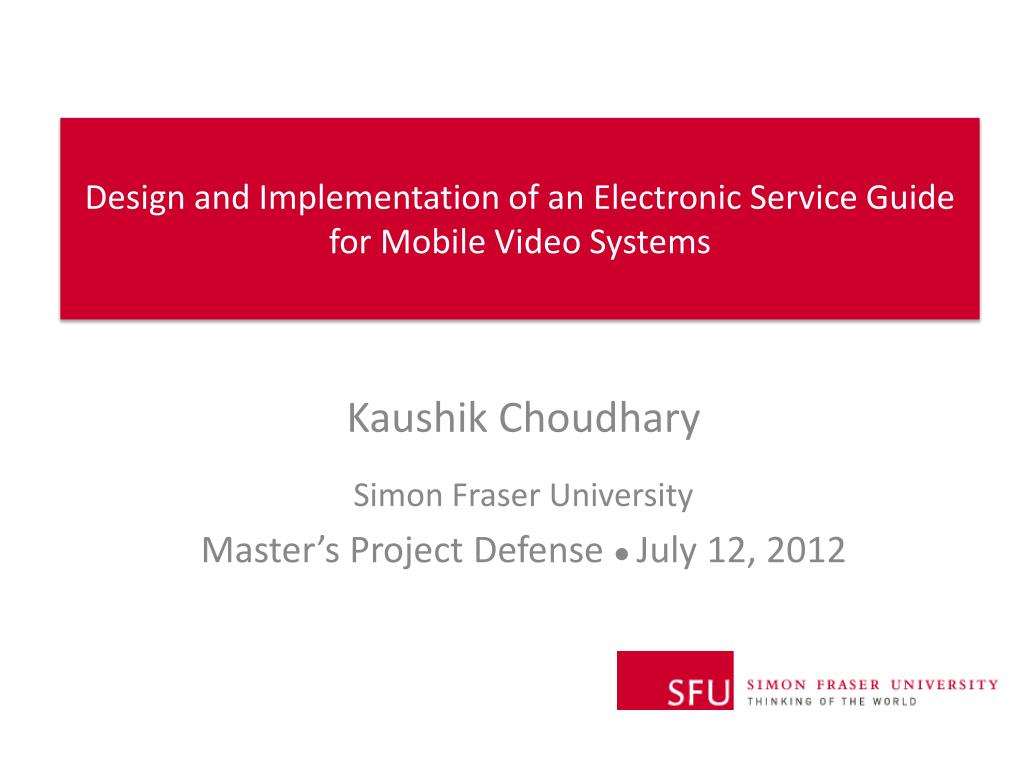

Design and Implementation of an Electronic Service Guidefor Mobile Video Systems

KaushikChoudhary

Simon Fraser University

Master’s Project Defense ● July 12, 2012

outline
Outline
  • Introduction
  • Background
  • Design and Implementation of ESG Server
  • Validation
  • Conclusion
  • Future Work

KaushikChoudhary | Electronic Service Guide for Mobile Video

introduction why mobile video
Introduction – Why Mobile Video?
  • In recent years, smartphones have been enhanced with powerful hardware and sophisticated operating systems.
  • Forecasts suggest that mobile devices will dominate internet data traffic contributing as much as 48% of all traffic. [Cisco 12]
  • Video data contributed about 52% of all mobile data traffic. This number is expected to grow to 69% by 2016. [Cisco 12]

KaushikChoudhary | Electronic Service Guide for Mobile Video

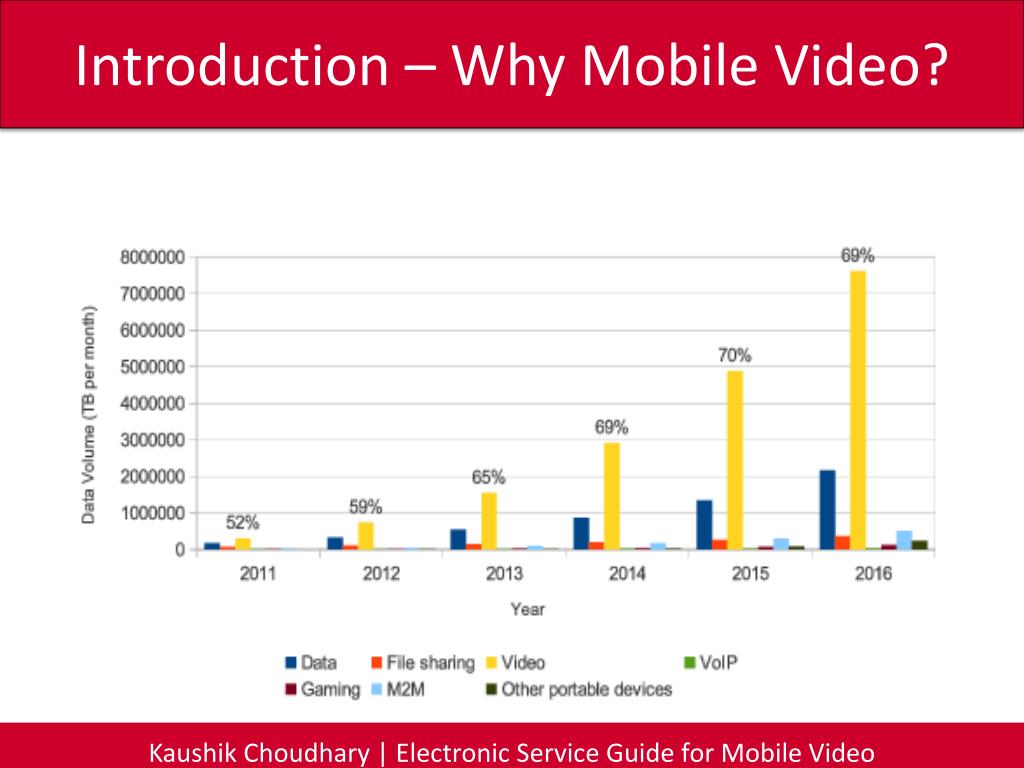

introduction why mobile video1
Introduction – Why Mobile Video?

KaushikChoudhary | Electronic Service Guide for Mobile Video

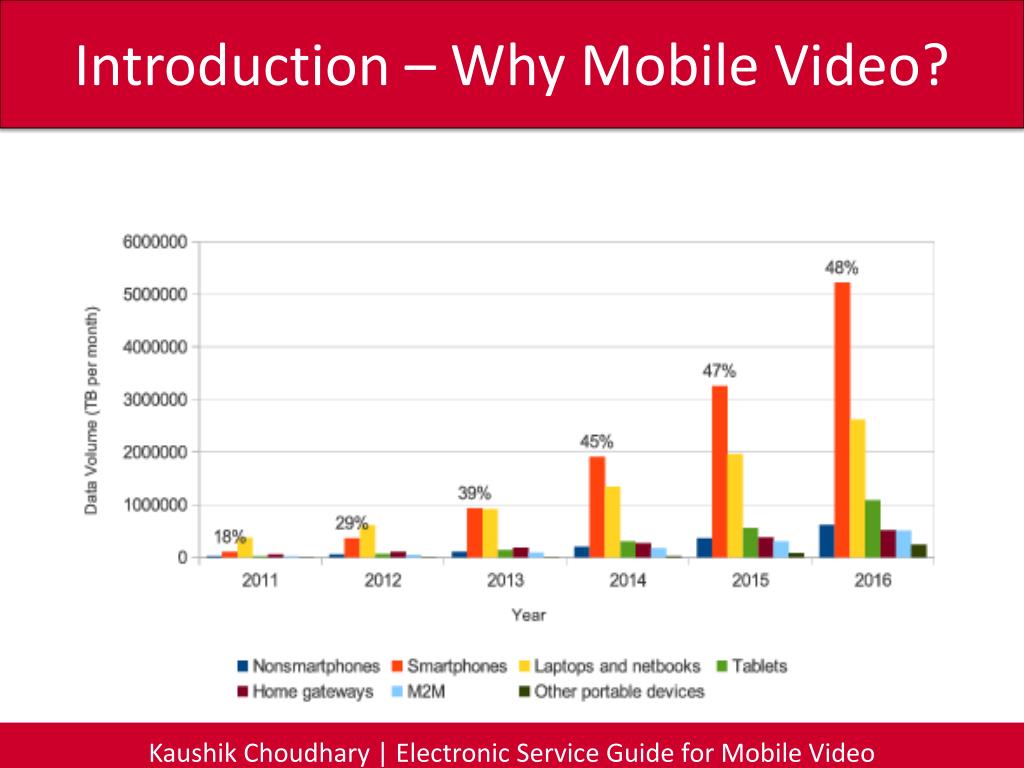

introduction why mobile video2
Introduction – Why Mobile Video?

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide6

Introduction – Why Mobile Video?

  • To support this explosive growth in video traffic, service providers need to make massive investments to increase network capacity.

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide7

Introduction – Why Mobile Video?

  • A possible solution would be to use mobile broadcast networks (e.g. DMB, DVB-H, CMMB, ISDB-T, ATSC-M/H).
  • Theoretically, broadcast networks support unlimited number of users in a given network area.
  • Using broadcast networks reduces video traffic load by 60% in a given area during high-demand video programs. [BMCO 09]

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide8

Introduction – Problem Statement

Problem: Design and implement a service layer, configurable, electronic service guide server. Validate the server in a real mobile TV testbed.

KaushikChoudhary | Electronic Service Guide for Mobile Video

outline1
Outline
  • Introduction
  • Background
  • Design and Implementation of ESG Server
  • Validation
  • Conclusion
  • Future Work

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide10

Background – DVB-H Standard

  • Widely used, open, international standard.
  • It provisions for reducing energy consumption on mobile devices by broadcasting multimedia data in bursts.
  • Defines Physical and Link Layer protocols and uses IP to interface with higher layer protocols such as RTP and UDP.

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide11

Background – Electronic Service Guide

  • To complete an end-to-end mobile TV system, a set of service layer specification standards, DVB-IPDC have been defined. [ETSI 06]
  • The DVB-IPDC standard
    • Defines higher layer protocols
    • Enables cooperation with cellular networks such as UMTS.
    • Enables bi-directional communication and supports services like Electronic Service Guide(ESG).
    • Defines XML based ESG

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide12

Background – Electronic Service Guide

  • ESG contains human readable information on the available multimedia services.
  • ESG also contains media initialization information used by the mobile terminal to tune into the service selected by the user.
  • From an implementation perspective, ESG operations require encoding of XML files containing program listings, descriptions and schedules and tuning information for transmission.
  • These encoded XML files are transported over the FLUTE/IP protocol.

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide13

Background – ESG Operations

  • We implemented ESG Server on top of the mobile TV testbed developed in Network Systems Lab.
  • To support transmission of ESG files we also developed the link layer signaling mechanism for DVB-H.
  • The signaling mechanism is implemented through PSI/SI tables – structures segmented into sections and inserted into MPEG-2 Transport Stream (TS) packets periodically.

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide14

Background – DVB-IPDC Stack

KaushikChoudhary | Electronic Service Guide for Mobile Video

outline2
Outline
  • Introduction
  • Background
  • Design and Implementation of ESG Server
  • Validation
  • Conclusion
  • Future Work

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide16

Design and Implementation – PSI/SI Tables

  • We implement six essential PSI/SI tables configured through an XML configuration file.
  • There are two types of tables
    • PSI tables - information about available services and programs
    • SI tables - network and tuning information for the available services.
  • Each of these tables are abstracted by the Table class which stores the tables in a TS packet format generated by the corresponding Pack function for each table.

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide17

Design and Implementation – PSI/SI Tables

  • Sample code for population of Network Information Table using configuration file
  • The Transmitter module of the testbed pops and transmits the next PSI/SI table from a priority queue on next broadcast time.

5 languageCode = ((lgI = lg.find(mtv.cfg_mgr->getLanguage()))

->second); // en

6 platformName= mtv.cfg_mgr->getPlatformName(); //SYTE-MTV-5

7 frequency = mtv.cfg_mgr-> getCarrierFrequency();//690 MHz

8 bandwidth = (Bandwidth)mtv.cfg_mgr->getBandwidth();//MHZ8

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide18

Design and Implementation – ESG Server

  • ESG Operations
    • ESG Bootstrap – ESG available, acquire them
    • ESG Acquisition – Acquire and process ESG
    • ESG Update – Update to latest versions

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide19

ESG Operations - Bootstrap

  • The IP/MAC notification table signals announces well known IP address for an ESG Bootstrap stream.
  • The stream contains the two descriptors required for tuning into an ESG session
    • ESGProviderDiscovery descriptor (XML file)
    • ESGAccessDescriptor (binary file)

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide20

ESG Operations - Bootstrap

1 <?xml version ="1.0" encoding =" UTF -8" standalone =" no"?>

2 < ESGProviderDiscoveryxmlns ="urn :dvb : ipdc : esgbs :2005 " xmlns :

mpeg7 ="urn : mpeg : mpeg7 : schema :2001 ">

3 < ServiceProvider format ="urn :oma :xml : bcast :sg: fragments :1.0 ">

4 < ProviderURI >NSL Broadcast Service </ ProviderURI >

5 < ProviderName >NSL Broadcast Service </ ProviderName >

6 <ProviderID >1</ ProviderID >

7 </ ServiceProvider >

8 </ ESGProviderDiscovery >

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide21

ESG Operations - Acquisition

  • To transport ESG acquisition information, the server implements two processing operations
    • ESG Representation
    • ESG Encapsulation
  • ESG Representation describes which ESG fragments are transported in the current session and in what format.

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide22

ESG Operations - Acquisition

  • ESG information is constitutes of independent XML fragments.
  • In the ESG Encapsulation process the XML fragments are encapsulated in aggregated containers for efficient transport.
  • Each container structure has a header indicating number and type of structures and a body.

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide23

ESG Operations - Update

  • ESG information transported in containers can be updated in two ways
    • Update the container with a modification of the Transport Object Identifier value of the File Delivery Table (FLUTE).
    • Update an ESG XML fragment version individually (more efficient).

KaushikChoudhary | Electronic Service Guide for Mobile Video

outline3
Outline
  • Introduction
  • Background
  • Design and Implementation of ESG Server
  • Validation
  • Conclusion
  • Future Work

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide25

Validation

  • We use two different type of tools to validate our implementation
    • Offline TS file analyzers
    • Online TS stream analyzers
  • We use dvbSAM and DVBInspector offline TS packet analyzers to verify our TS files.

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide26

Validation

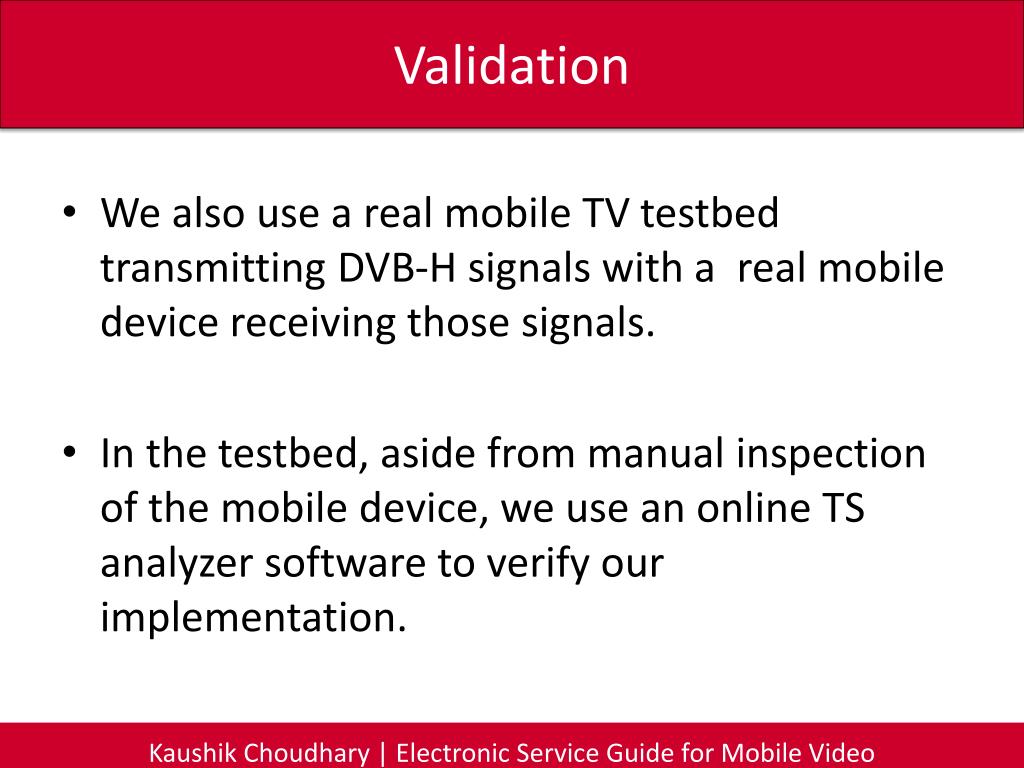

  • We also use a real mobile TV testbed transmitting DVB-H signals with a real mobile device receiving those signals.
  • In the testbed, aside from manual inspection of the mobile device, we use an online TS analyzer software to verify our implementation.

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide27

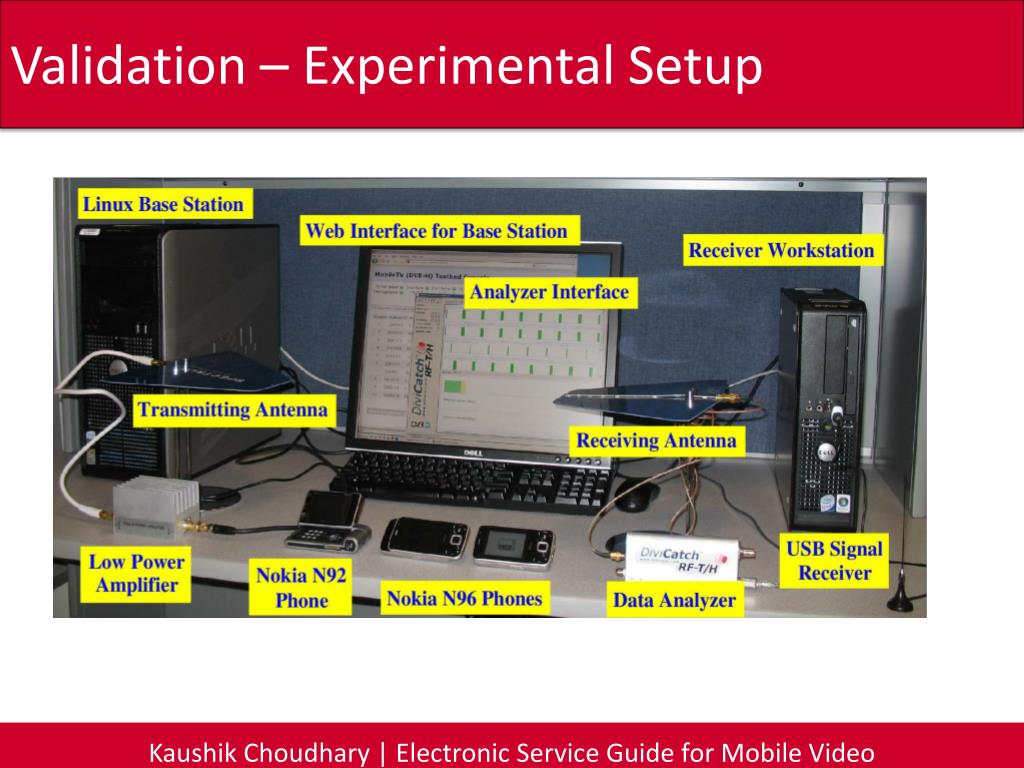

Validation – Experimental Setup

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide28

Validation – Offline analysis

Online TS stream analyzer DiviCatch

Offline TS packet analyzer DVBInspector

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide29

Validation – Online analysis

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide30

Validation – Online analysis

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide31

Validation – ESG

KaushikChoudhary | Electronic Service Guide for Mobile Video

outline4
Outline
  • Introduction
  • Background
  • Design and Implementation of ESG Server
  • Validation
  • Conclusion
  • Future Work

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide33

Conclusion

  • We implemented a C++ based, open source ESG server for mobile TV testbed based on DVB-H.
  • We chose DVB-IPDC standard for ESG as it has provisions to interoperate with cellular technologies like 3G/UMTS.
  • We validated our implementation on a real mobile TV testbed.

KaushikChoudhary | Electronic Service Guide for Mobile Video

outline5
Outline
  • Introduction
  • Background
  • Design and Implementation of ESG Server
  • Validation
  • Conclusion
  • Future Work

KaushikChoudhary | Electronic Service Guide for Mobile Video

slide35

Future Work

  • Ratification of DVB-IPDC 2.0 standard will allow us to extend this project to implement interactive services like video on demand.
  • We could implement a hybrid delivery mechanism for using DVB-H along with 3G/UMTS, LTE, WiMAX or other network technologies.
  • We could also implement a multiple technology multimedia testbed as an extension to this project.

KaushikChoudhary | Electronic Service Guide for Mobile Video
