Unstable vref for 1 sift on board 667 (1B7)

Unstable vref for 1 sift on board 667 (1B7). Board was removed and inspected by M. Matulik, nothing wrong was found on the board, board was re-inserted. Vref change: last_calibration-previous_calibration. Unstable vref for 1 sift on board 667 (1B7).

quon-barnes
Download Presentation

Unstable vref for 1 sift on board 667 (1B7)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

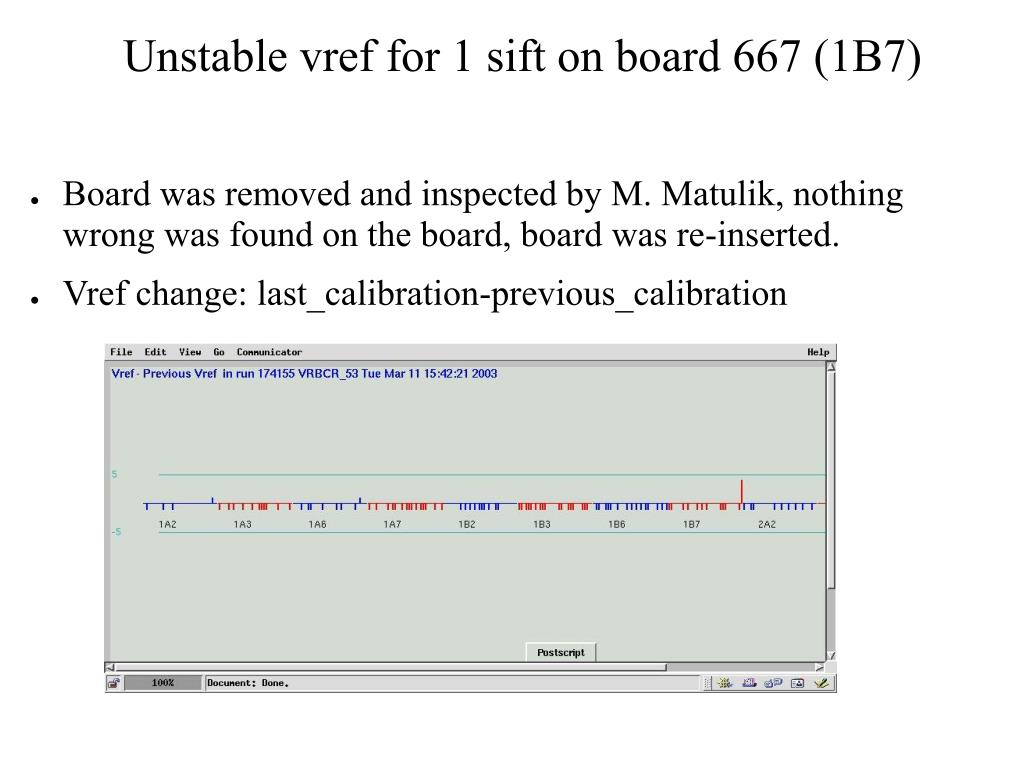

  1. Unstable vref for 1 sift on board 667 (1B7) • Board was removed and inspected by M. Matulik, nothing wrong was found on the board, board was re-inserted. • Vref change: last_calibration-previous_calibration

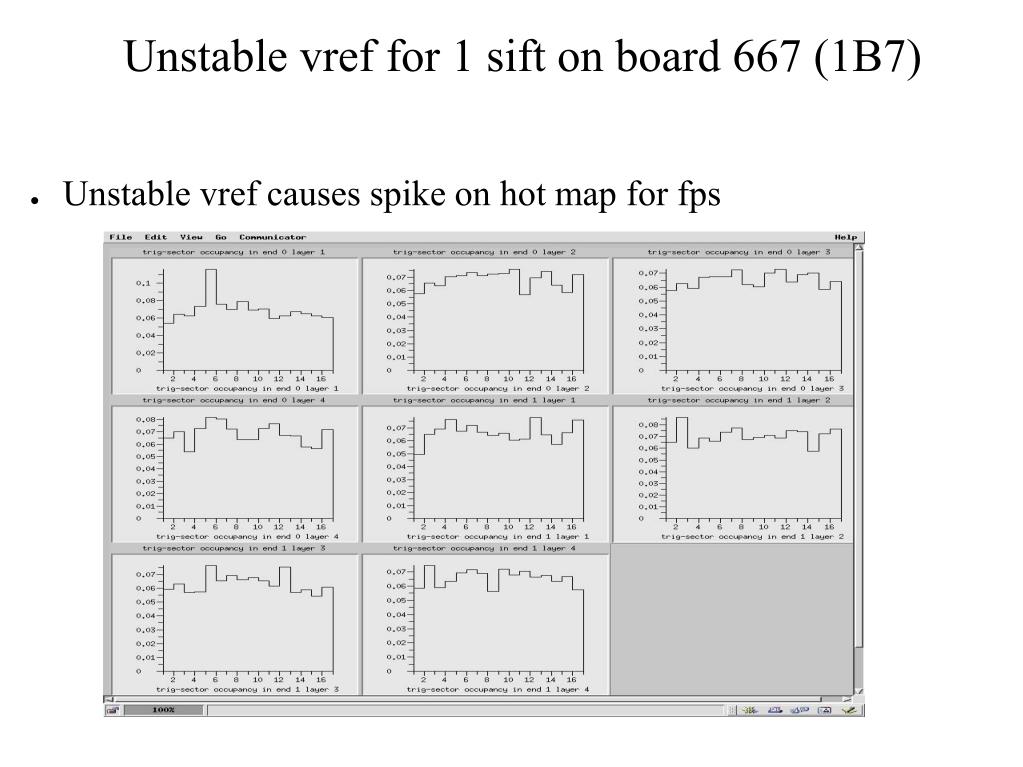

  2. Unstable vref for 1 sift on board 667 (1B7) • Unstable vref causes spike on hot map for fps

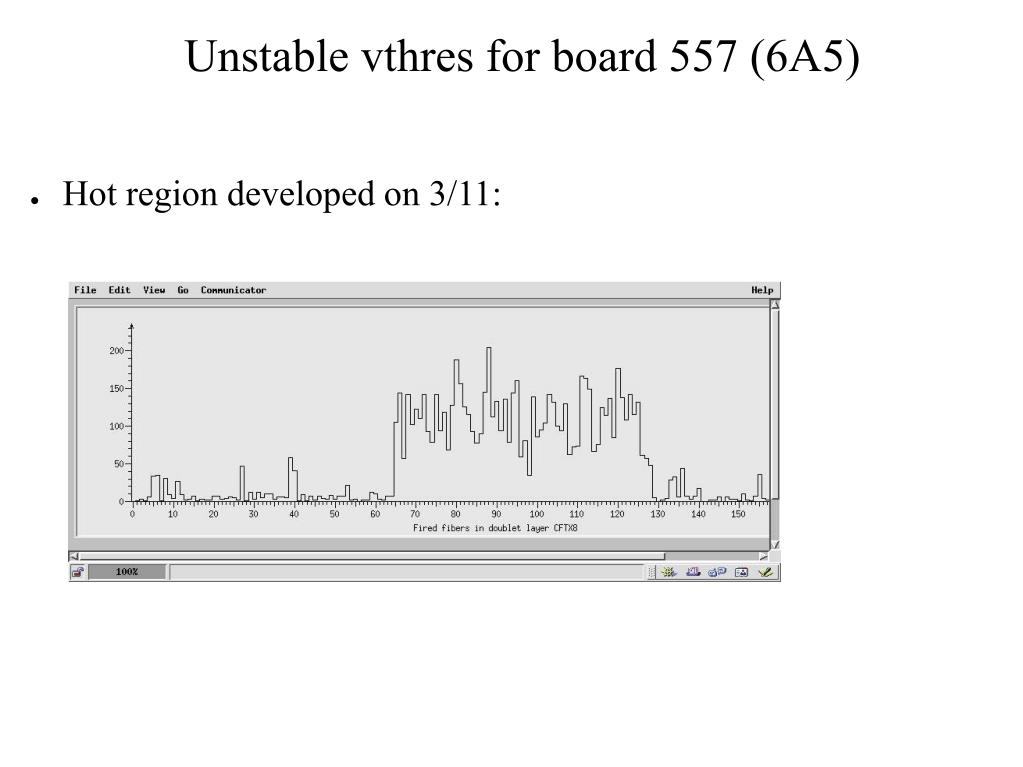

  3. Unstable vthres for board 557 (6A5) • Hot region developed on 3/11:

  4. Unstable vthres for board 557 (6A5) • Board was re-calibrated on 3/11, change of vthres with repect to the previous calibration: • Board stable since 3/11

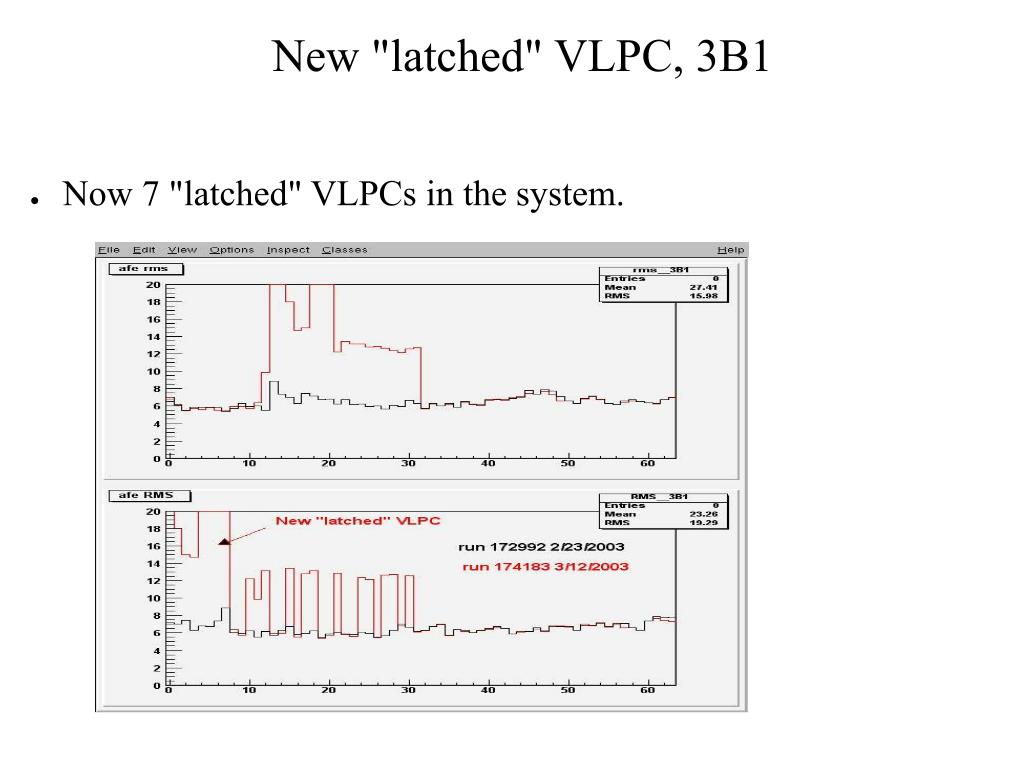

  5. New "latched" VLPC, 3B1 • Now 7 "latched" VLPCs in the system.

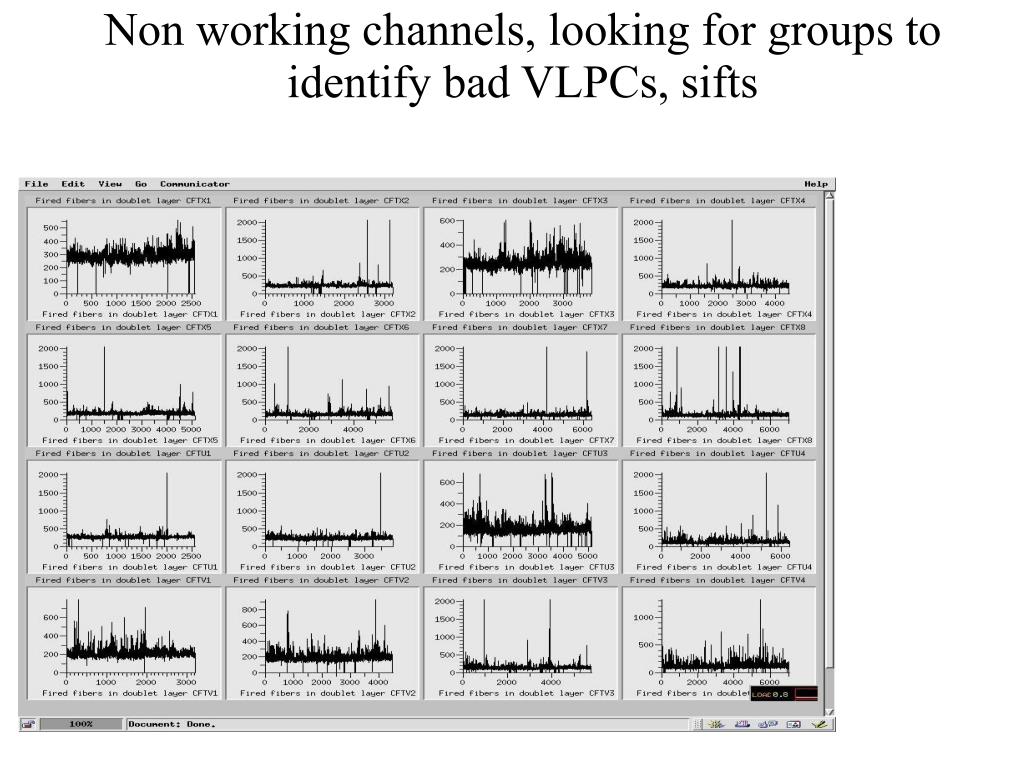

  6. Non working channels, looking for groups to identify bad VLPCs, sifts

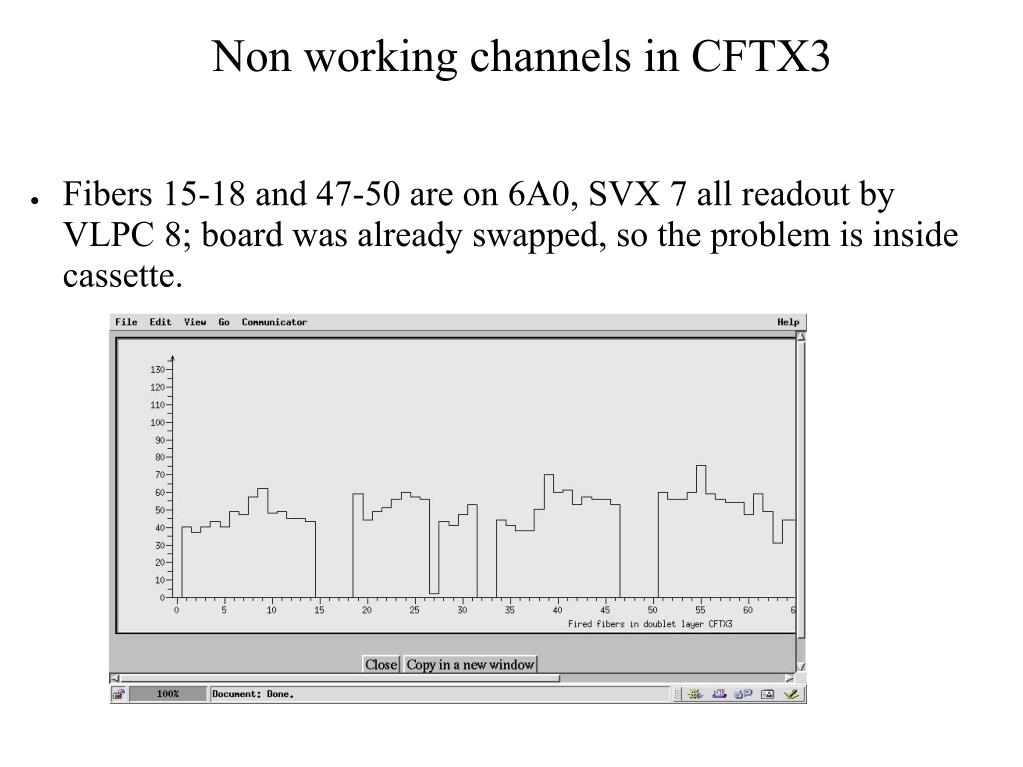

  7. Non working channels in CFTX3 • Fibers 15-18 and 47-50 are on 6A0, SVX 7 all readout by VLPC 8; board was already swapped, so the problem is inside cassette.

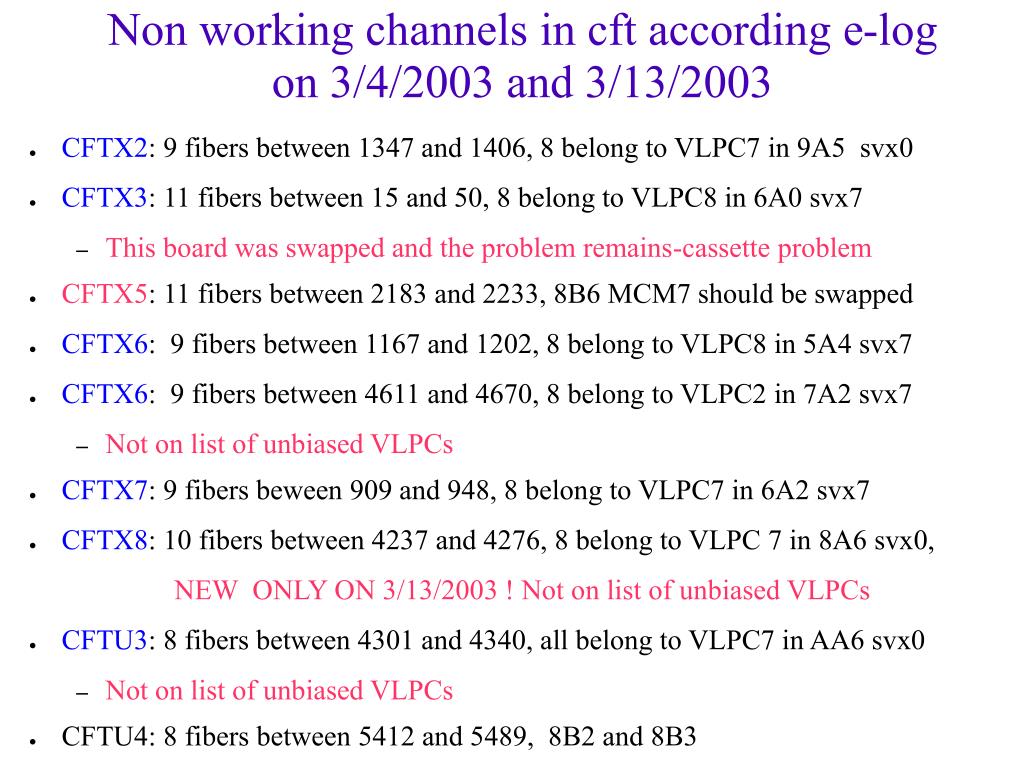

  8. Non working channels in cft according e-log on 3/4/2003 and 3/13/2003 • CFTX2: 9 fibers between 1347 and 1406, 8 belong to VLPC7 in 9A5 svx0 • CFTX3: 11 fibers between 15 and 50, 8 belong to VLPC8 in 6A0 svx7 • This board was swapped and the problem remains-cassette problem • CFTX5: 11 fibers between 2183 and 2233, 8B6 MCM7 should be swapped • CFTX6: 9 fibers between 1167 and 1202, 8 belong to VLPC8 in 5A4 svx7 • CFTX6: 9 fibers between 4611 and 4670, 8 belong to VLPC2 in 7A2 svx7 • Not on list of unbiased VLPCs • CFTX7: 9 fibers beween 909 and 948, 8 belong to VLPC7 in 6A2 svx7 • CFTX8: 10 fibers between 4237 and 4276, 8 belong to VLPC 7 in 8A6 svx0, NEWONLY ON 3/13/2003 ! Not on list of unbiased VLPCs • CFTU3: 8 fibers between 4301 and 4340, all belong to VLPC7 in AA6 svx0 • Not on list of unbiased VLPCs • CFTU4: 8 fibers between 5412 and 5489, 8B2 and 8B3

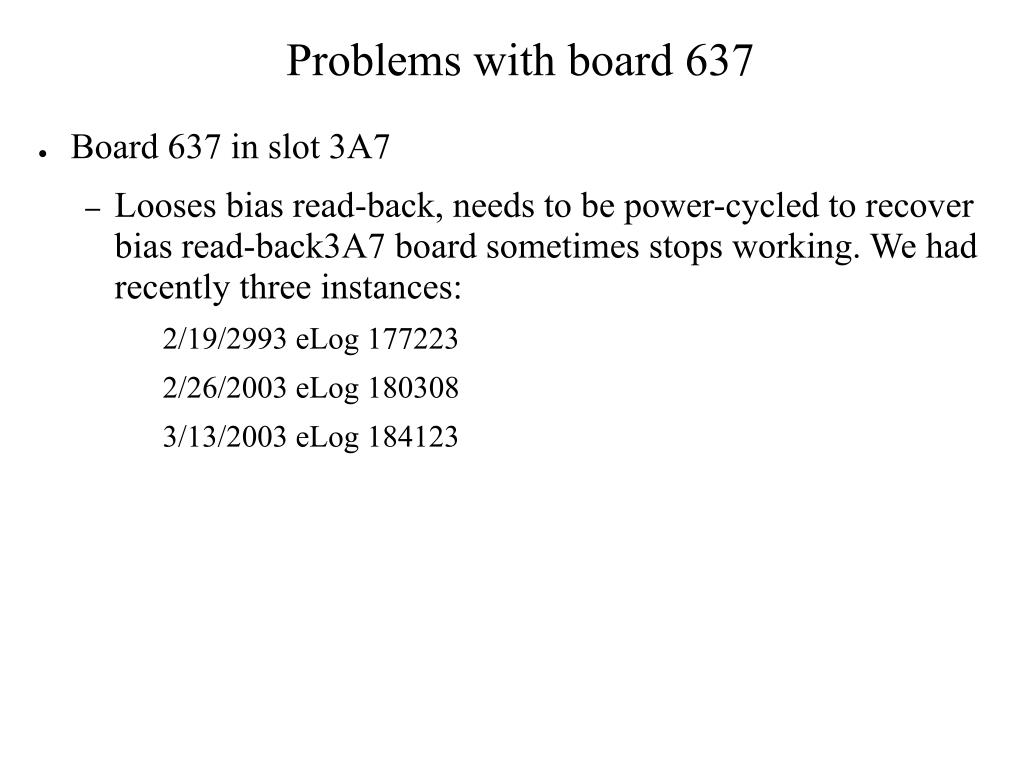

  9. Problems with board 637 • Board 637 in slot 3A7 • Looses bias read-back, needs to be power-cycled to recover bias read-back3A7 board sometimes stops working. We had recently three instances: 2/19/2993 eLog 177223 2/26/2003 eLog 180308 3/13/2003 eLog 184123

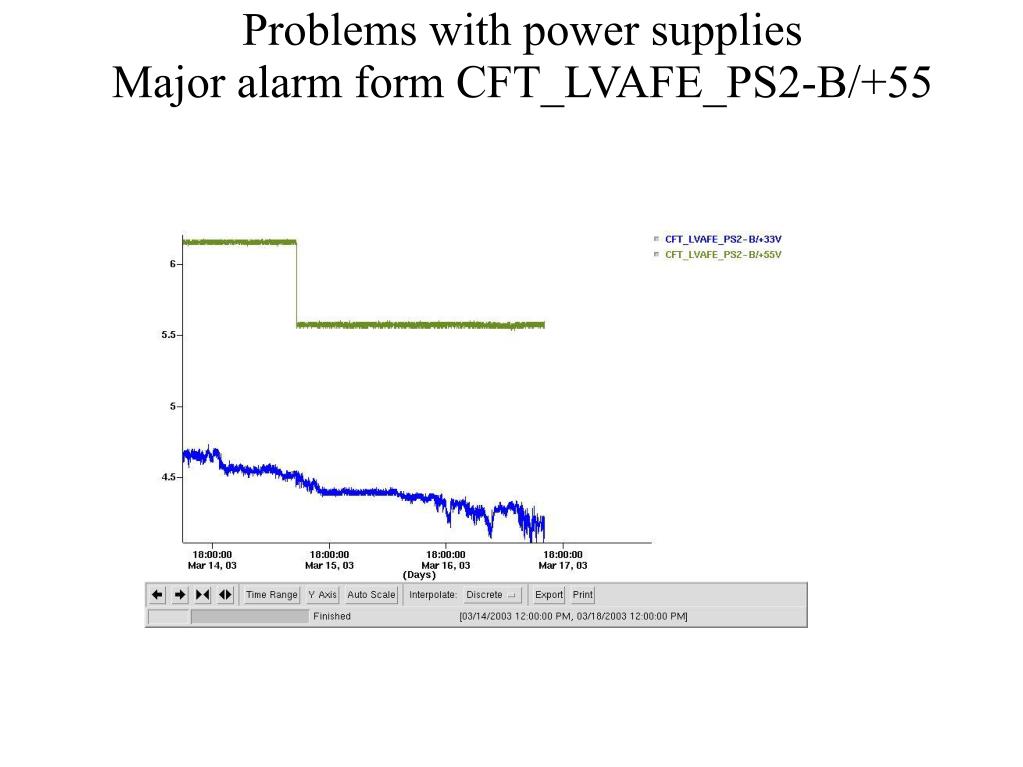

  10. Problems with power suppliesMajor alarm form CFT_LVAFE_PS2-B/+55

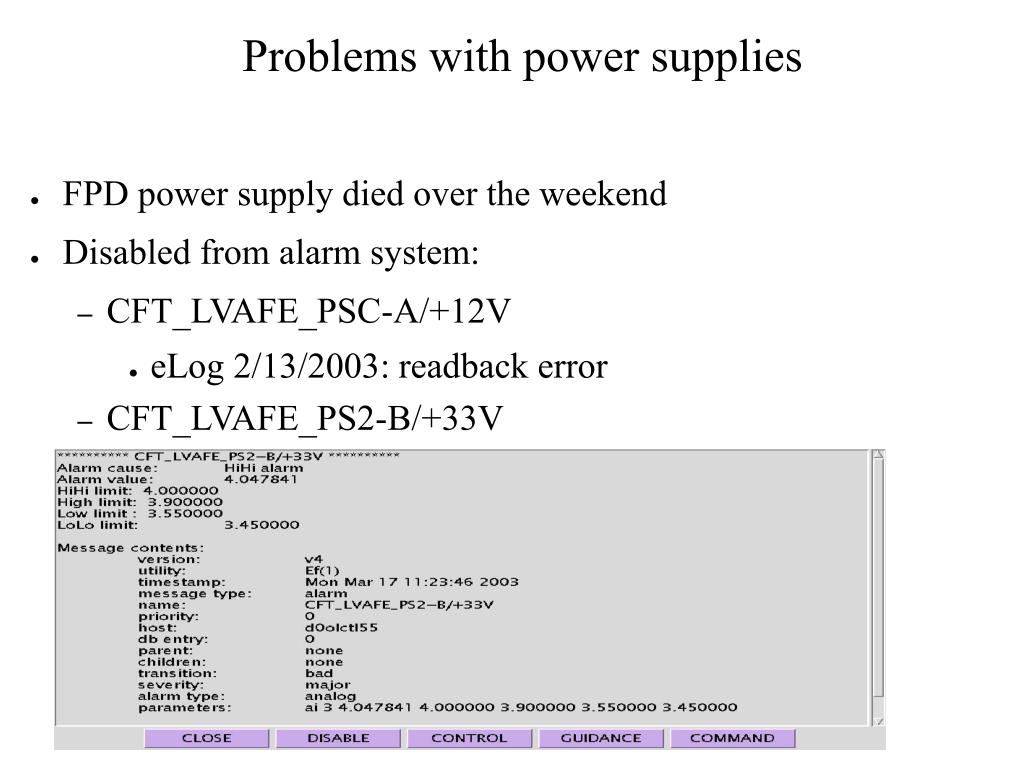

  11. Problems with power supplies • FPD power supply died over the weekend • Disabled from alarm system: • CFT_LVAFE_PSC-A/+12V • eLog 2/13/2003: readback error • CFT_LVAFE_PS2-B/+33V
