the grand experiment

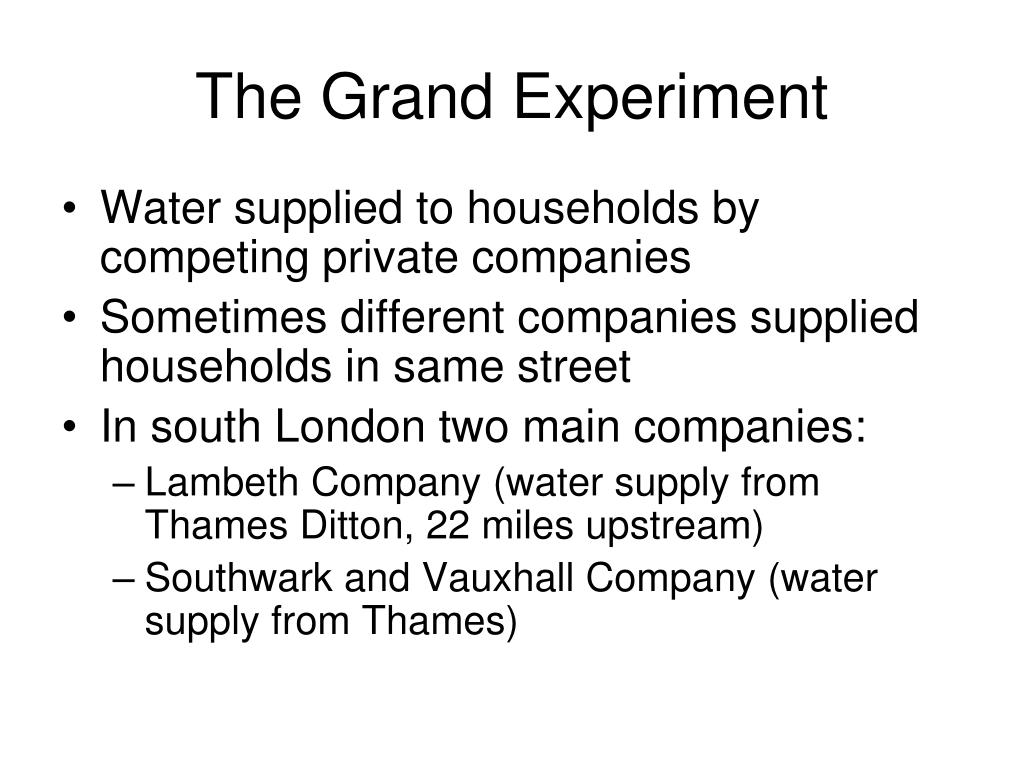

The Grand Experiment
  • Water supplied to households by competing private companies
  • Sometimes different companies supplied households in same street
  • In south London two main companies:
    • Lambeth Company (water supply from Thames Ditton, 22 miles upstream)
    • Southwark and Vauxhall Company (water supply from Thames)
in 1853 54 cholera outbreak
In 1853/54 cholera outbreak
  • Death Rates per 10000 people by water company
    • Lambeth 10
    • Southwark and Vauxhall 150
  • Might be water but perhaps other factors
  • Snow compared death rates in 1849 epidemic
    • Lambeth 150
    • Southwark and Vauxhall 125
  • In 1852 Lambeth Company had changed supply from Hungerford Bridge
this is basic idea of differences in differences
This is basic idea of Differences-in-Differences
  • Have already seen idea of using differences to estimate causal effects
    • Treatment/control groups in experimental data
  • Often would like to find ‘treatment’ and ‘control’ group who can be assumed to be similar in every way except receipt of treatment
  • This may be very difficult to do
a weaker assumption is

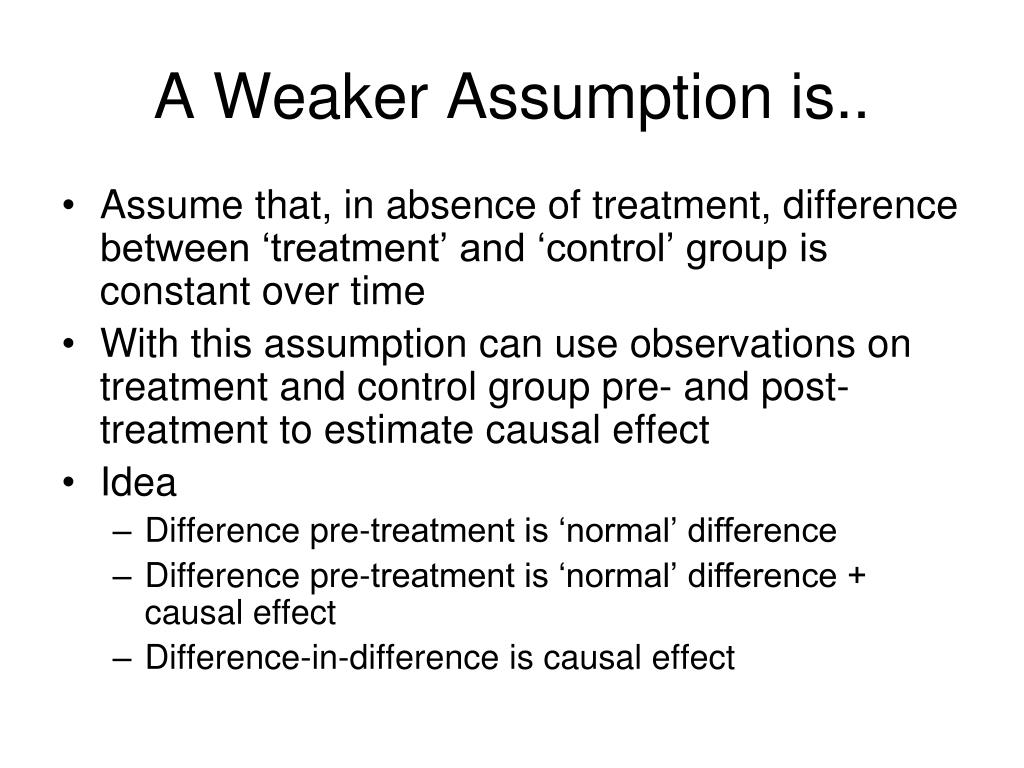

A Weaker Assumption is..
  • Assume that, in absence of treatment, difference between ‘treatment’ and ‘control’ group is constant over time
  • With this assumption can use observations on treatment and control group pre- and post-treatment to estimate causal effect
  • Idea
    • Difference pre-treatment is ‘normal’ difference
    • Difference pre-treatment is ‘normal’ difference + causal effect
    • Difference-in-difference is causal effect
a graphical representation










A Graphical Representation
what is d in d estimate

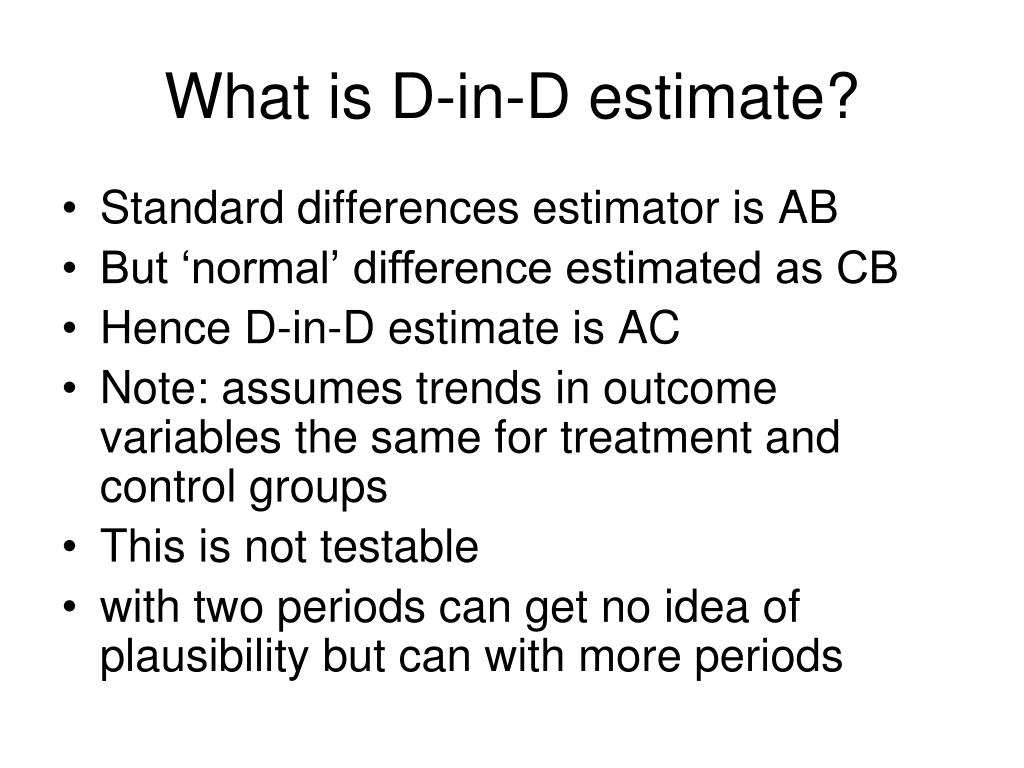

What is D-in-D estimate?
  • Standard differences estimator is AB
  • But ‘normal’ difference estimated as CB
  • Hence D-in-D estimate is AC
  • Note: assumes trends in outcome variables the same for treatment and control groups
  • This is not testable
  • with two periods can get no idea of plausibility but can with more periods
some notation
Some Notation
  • Define:


Where i=0 is control group, i=1 is treatment

Where t=0 is pre-period, t=1 is post-period

  • Standard ‘differences’ estimate of causal effect is estimate of:


  • ‘Differences-in-Differences’ estimate of causal effect is estimate of:


how to estimate

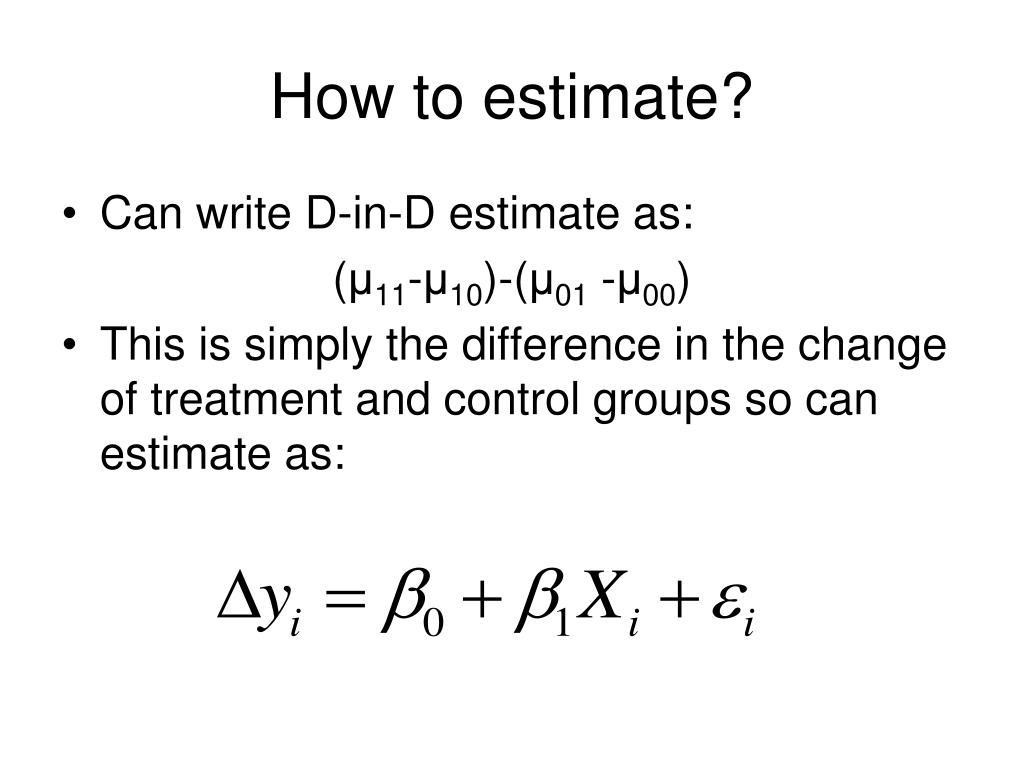

How to estimate?
  • Can write D-in-D estimate as:

(μ11-μ10)-(μ01 -μ00)

  • This is simply the difference in the change of treatment and control groups so can estimate as:

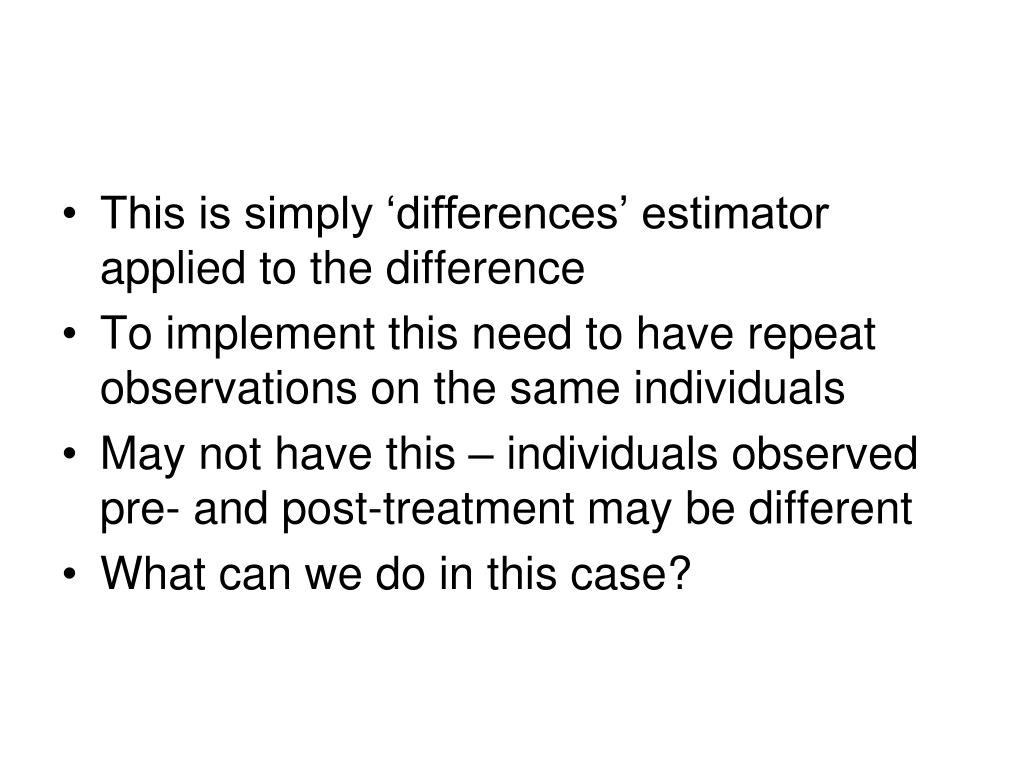

This is simply ‘differences’ estimator applied to the difference
  • To implement this need to have repeat observations on the same individuals
  • May not have this – individuals observed pre- and post-treatment may be different
  • What can we do in this case?
in this case can estimate

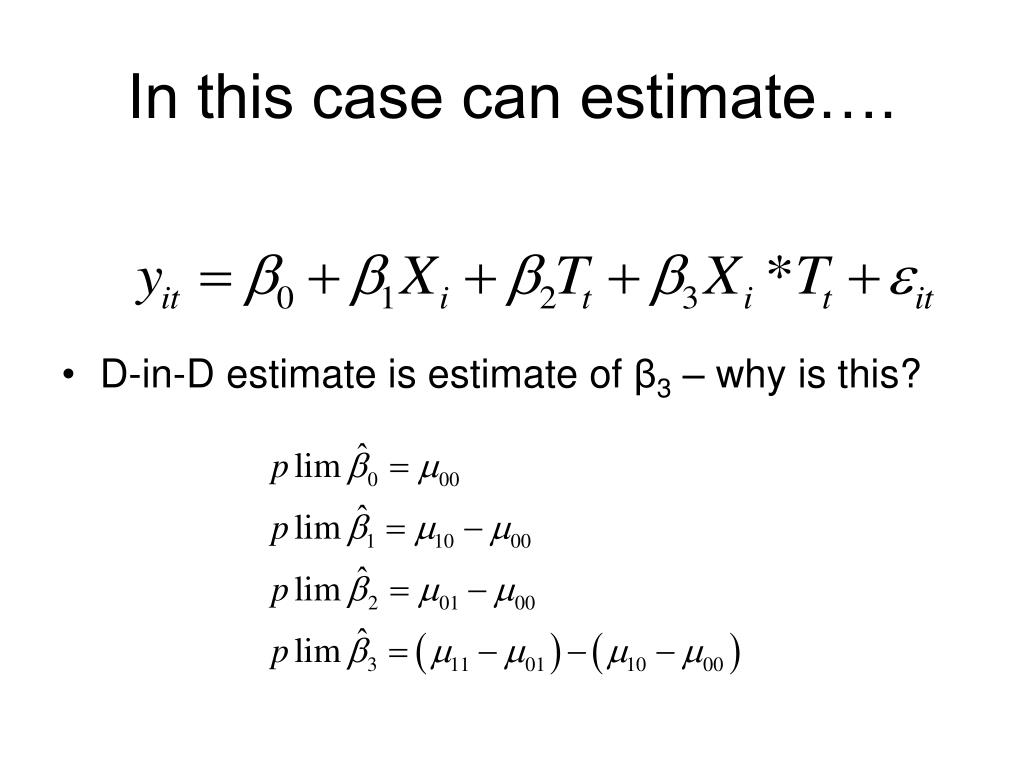

In this case can estimate….
  • D-in-D estimate is estimate of β3 – why is this?
a comparison of the two methods

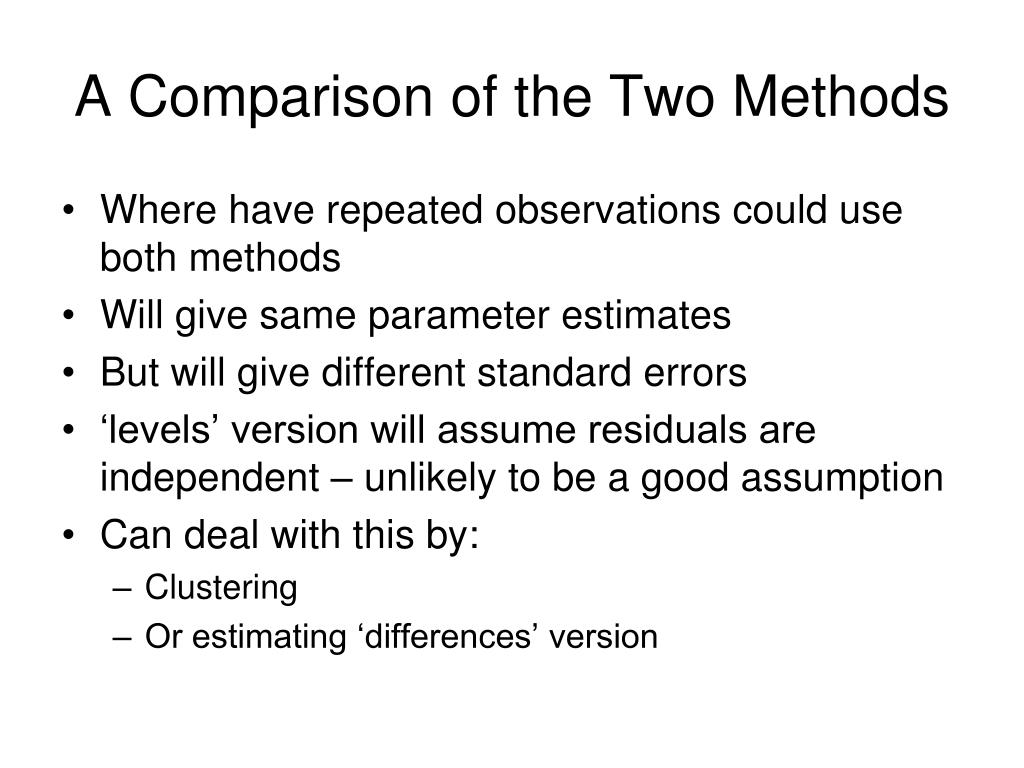

A Comparison of the Two Methods
  • Where have repeated observations could use both methods
  • Will give same parameter estimates
  • But will give different standard errors
  • ‘levels’ version will assume residuals are independent – unlikely to be a good assumption
  • Can deal with this by:
    • Clustering
    • Or estimating ‘differences’ version
other regressors
Other Regressors
  • Can put in other regressors as before
  • Perhaps should think about way in which they enter the estimating equation
  • E.g. if level of W affects level of y then should include ΔW in differences version
differential trends in treatment and control groups
Differential Trends in Treatment and Control Groups
  • Key assumption underlying validity of D-in-D estimate is that differences between treatment and control group would have remained constant in absence of treatment
  • Can never test this
  • With only two periods can get no idea of plausibility
  • But can with more than two periods
An Example:“Vertical Relationships and Competition in Retail Gasoline Markets”, by Justine Hastings, American Economic Review, 2004
  • Interested in effect of vertical integration on retail petrol prices
  • Investigates take-over in CA of independent ‘Thrifty’ chain of petrol stations by ARCO (more integrated)
  • Defines treatment group as petrol stations which had a ‘Thrifty’ within 1 mile
  • Control group those that did not
  • Lots of reasons why these groups might be different so D-in-D approach seems a good idea
this picture contains relevant information

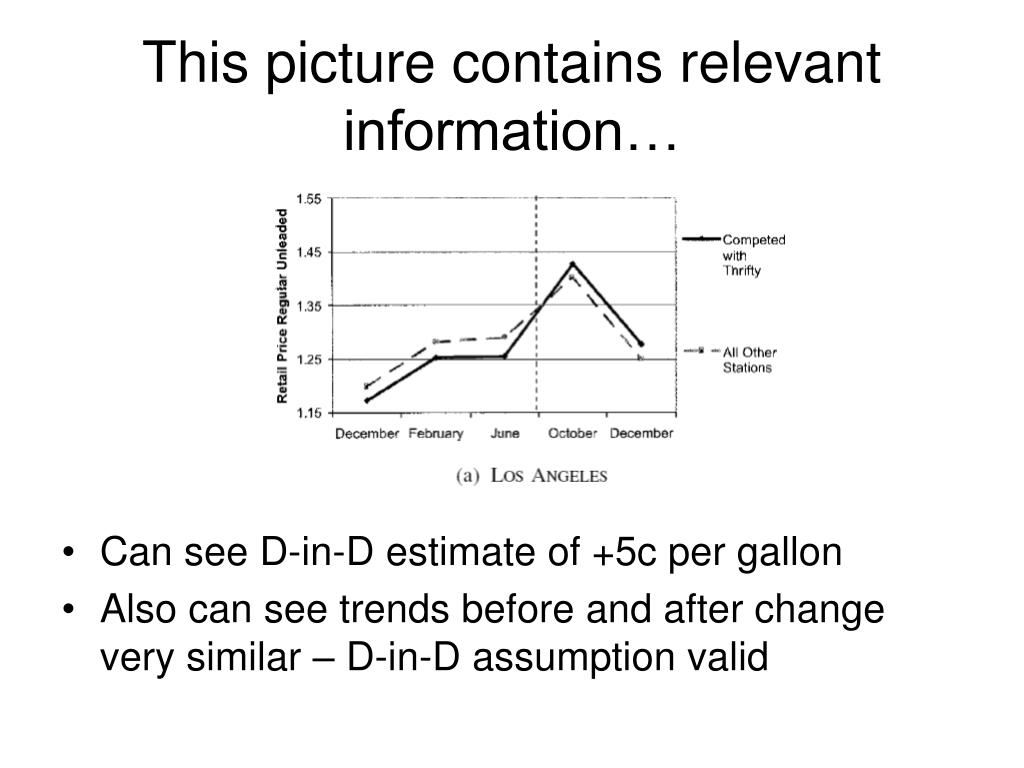

This picture contains relevant information…
  • Can see D-in-D estimate of +5c per gallon
  • Also can see trends before and after change very similar – D-in-D assumption valid
a case which does not look so good ashenfelter s dip

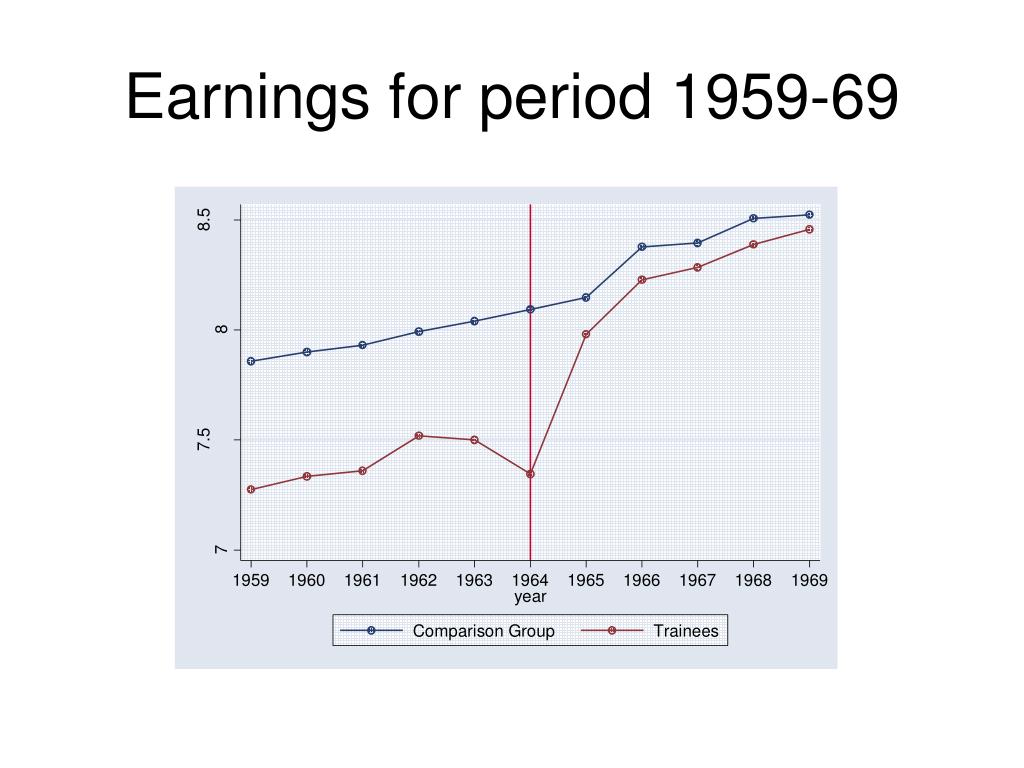

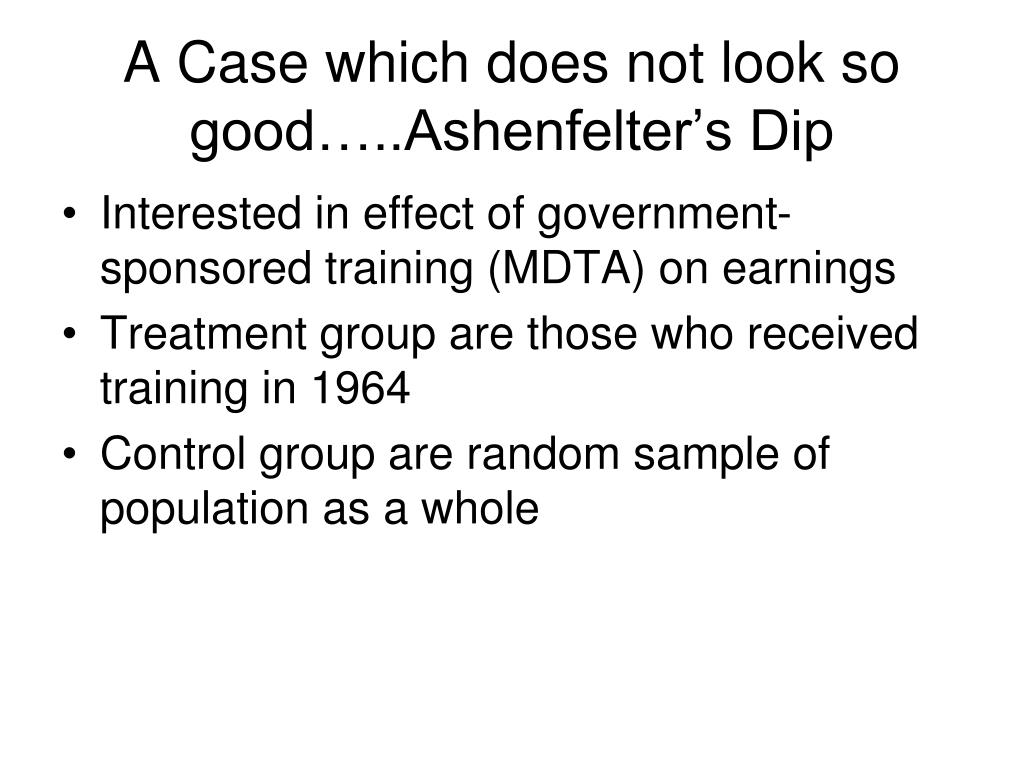

A Case which does not look so good…..Ashenfelter’s Dip
  • Interested in effect of government-sponsored training (MDTA) on earnings
  • Treatment group are those who received training in 1964
  • Control group are random sample of population as a whole
things to note

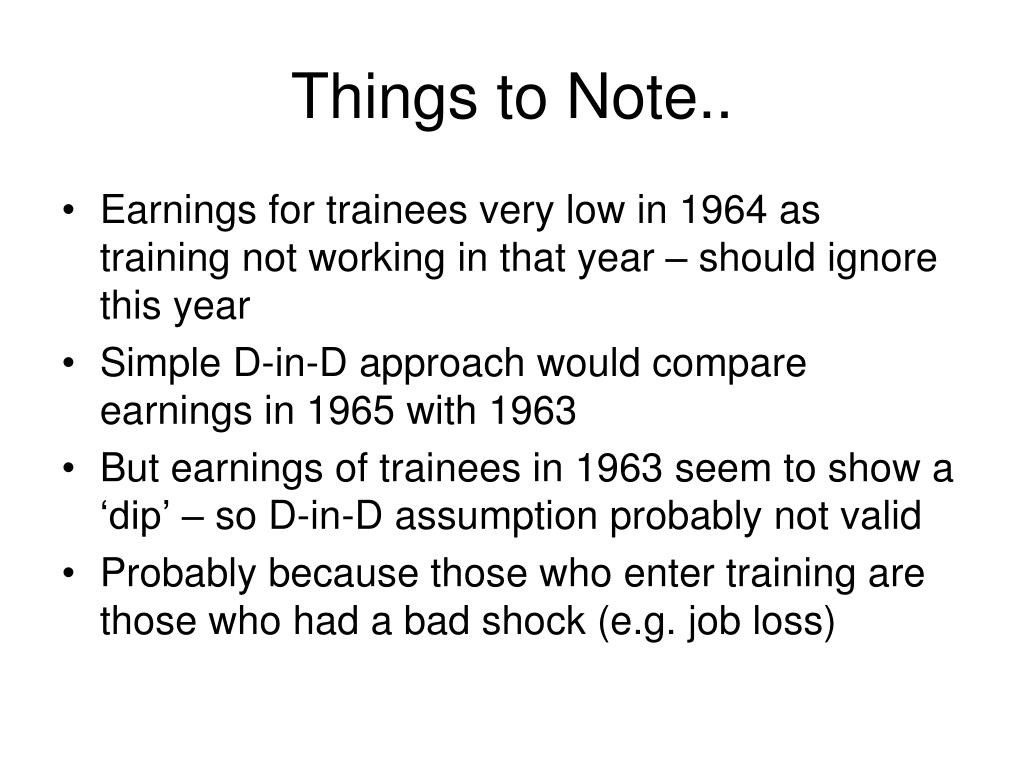

Things to Note..
  • Earnings for trainees very low in 1964 as training not working in that year – should ignore this year
  • Simple D-in-D approach would compare earnings in 1965 with 1963
  • But earnings of trainees in 1963 seem to show a ‘dip’ – so D-in-D assumption probably not valid
  • Probably because those who enter training are those who had a bad shock (e.g. job loss)

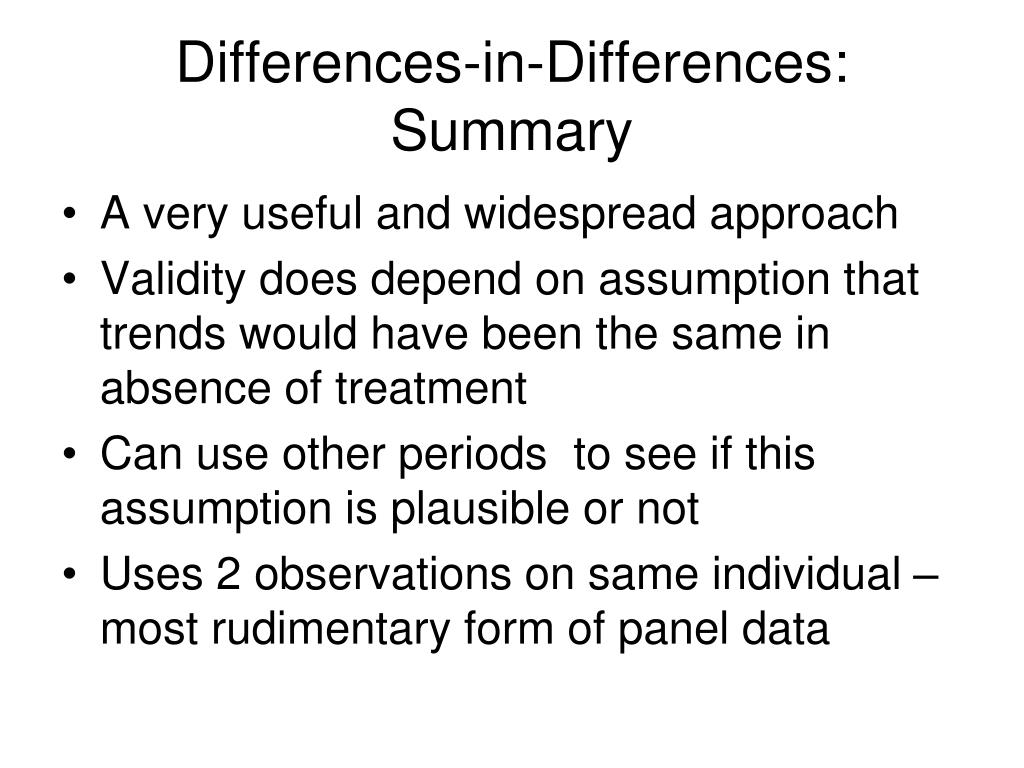

differences in differences summary
  • A very useful and widespread approach
  • Validity does depend on assumption that trends would have been the same in absence of treatment
  • Can use other periods to see if this assumption is plausible or not
  • Uses 2 observations on same individual – most rudimentary form of panel data
a brief introduction to panel data

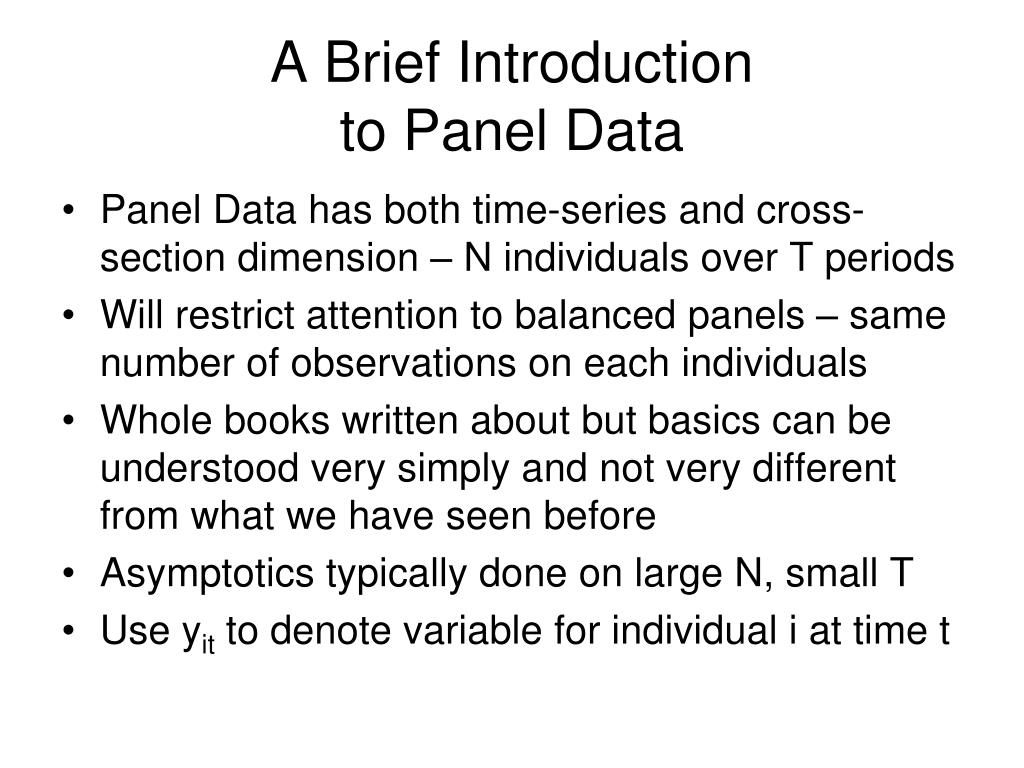

A Brief Introduction to Panel Data
  • Panel Data has both time-series and cross-section dimension – N individuals over T periods
  • Will restrict attention to balanced panels – same number of observations on each individuals
  • Whole books written about but basics can be understood very simply and not very different from what we have seen before
  • Asymptotics typically done on large N, small T
  • Use yit to denote variable for individual i at time t
the pooled model

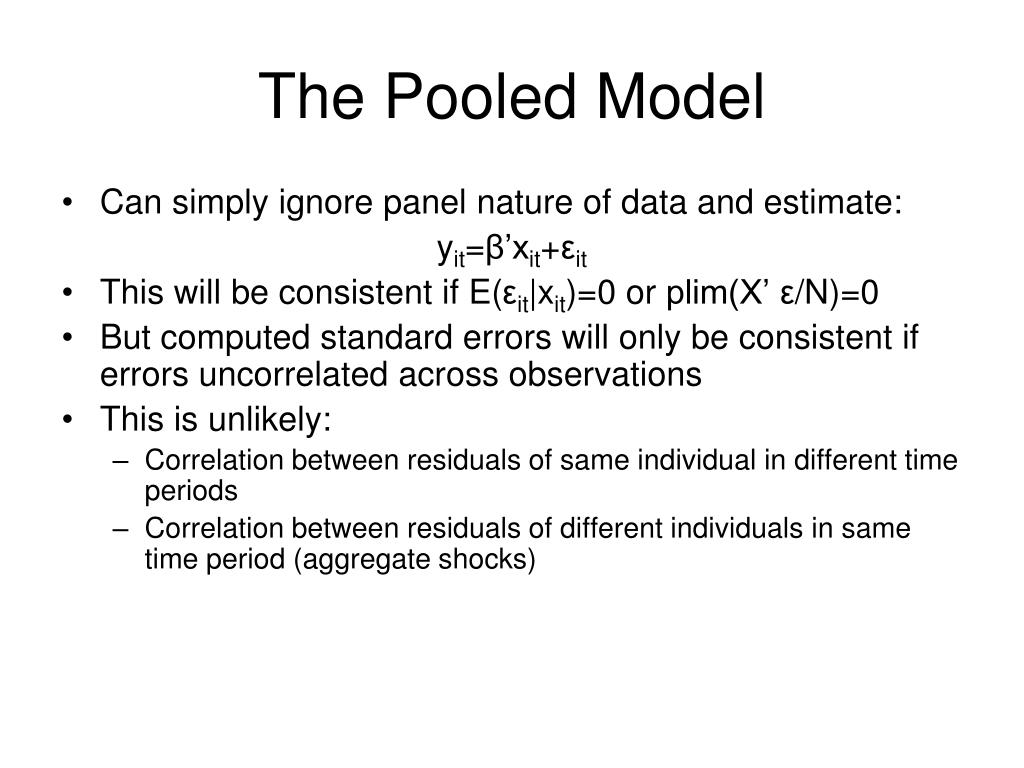

The Pooled Model
  • Can simply ignore panel nature of data and estimate:


  • This will be consistent if E(εit|xit)=0 or plim(X’ ε/N)=0
  • But computed standard errors will only be consistent if errors uncorrelated across observations
  • This is unlikely:
    • Correlation between residuals of same individual in different time periods
    • Correlation between residuals of different individuals in same time period (aggregate shocks)
a more plausible model
A More Plausible Model
  • Should recognise this as model with ‘group-level’ dummies or residuals
  • Here, individual is a ‘group’
three models
Three Models
  • Fixed Effects Model
    • Treats θi as parameter to be estimated (like β)
    • Consistency does not require anything about correlation with xit
  • Random Effects Model
    • Treats θi as part of residual (like θ)
    • Consistency does require no correlation between θi and xit
  • Between-Groups Model
    • Runs regression on averages for each individual
proposition 5 2 the fixed effect estimator of will be consistent if
Proposition 5.2The fixed effect estimator of β will be consistent if:
  • E(εit|xit)=0
  • Rank(X,D)=N+K
  • Proof: Simple application of what you should know about linear regression model

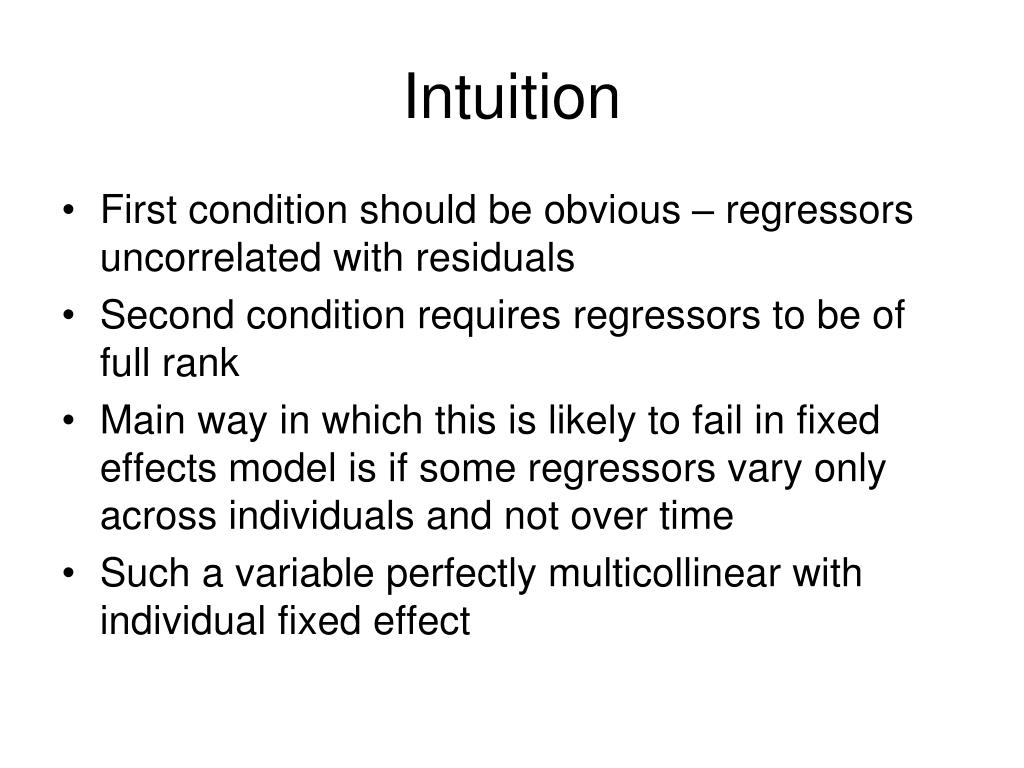

  • First condition should be obvious – regressors uncorrelated with residuals
  • Second condition requires regressors to be of full rank
  • Main way in which this is likely to fail in fixed effects model is if some regressors vary only across individuals and not over time
  • Such a variable perfectly multicollinear with individual fixed effect
estimating the fixed effects model

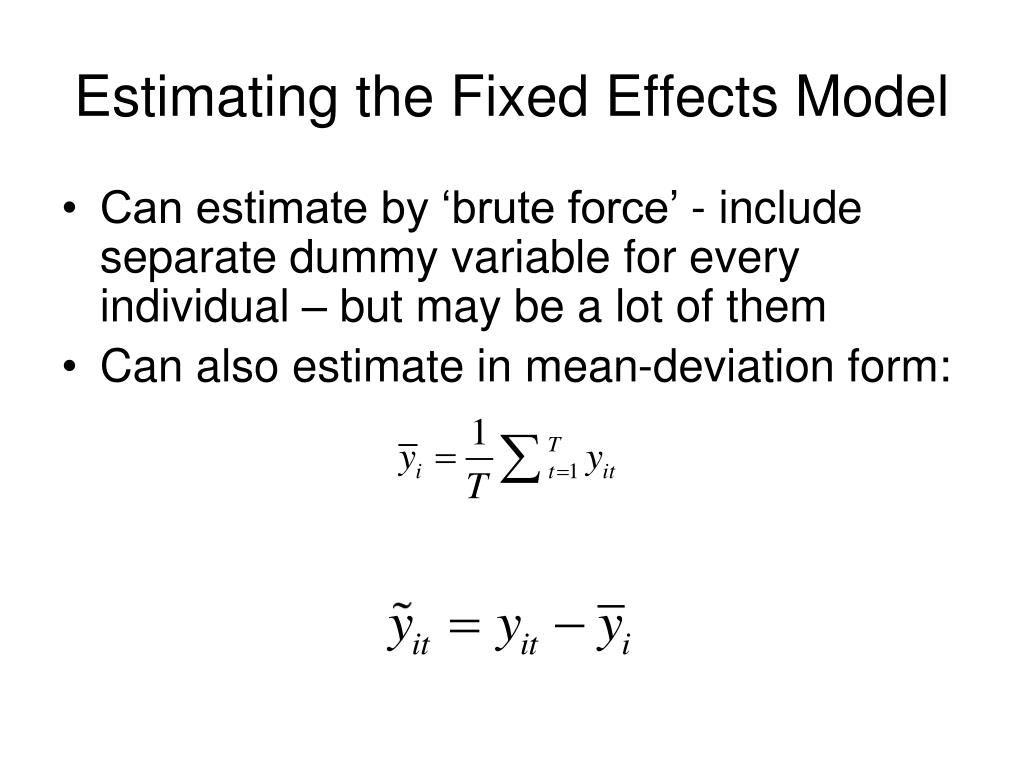

Estimating the Fixed Effects Model
  • Can estimate by ‘brute force’ - include separate dummy variable for every individual – but may be a lot of them
  • Can also estimate in mean-deviation form:
how does de meaning work
How does de-meaning work?
  • Can do simple OLS on de-meaned variables
  • STATA command is like:

. xtreg y x, fe i(id)

problems with fixed effect estimator

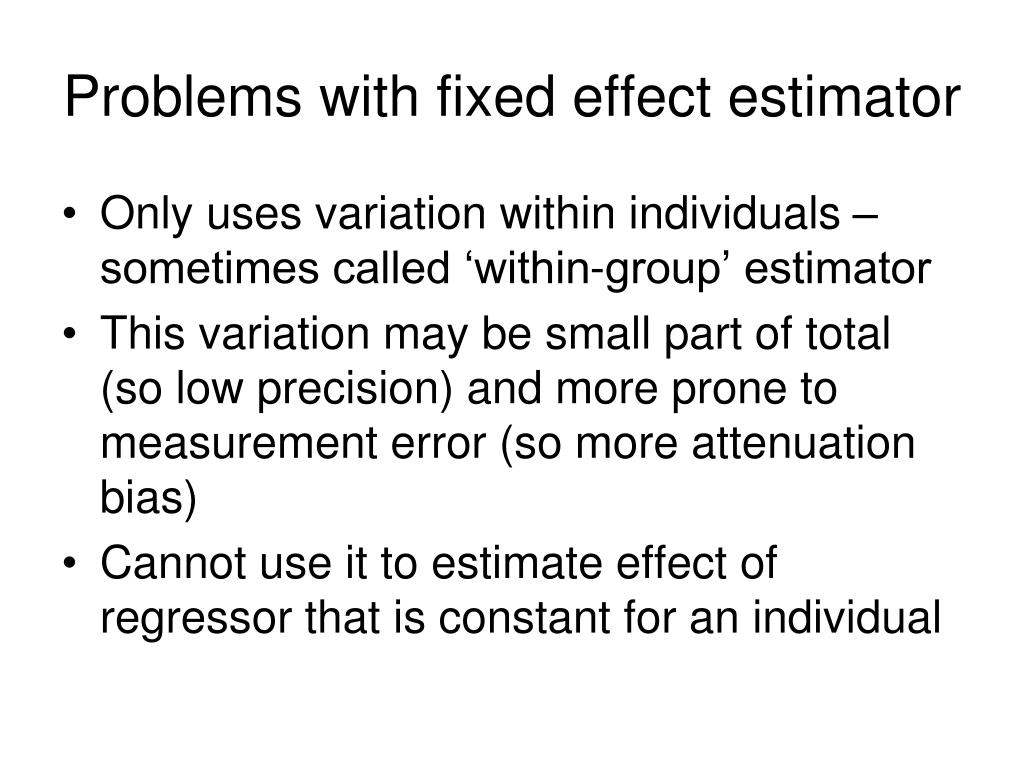

Problems with fixed effect estimator
  • Only uses variation within individuals – sometimes called ‘within-group’ estimator
  • This variation may be small part of total (so low precision) and more prone to measurement error (so more attenuation bias)
  • Cannot use it to estimate effect of regressor that is constant for an individual
random effects estimator
Random Effects Estimator
  • Treats θi as part of residual (like θ)
  • Consistency does require no correlation between θi and xit
  • Should recognise as like model with clustered standard errors
  • But random effects estimator is feasible GLS estimator
more on re estimator

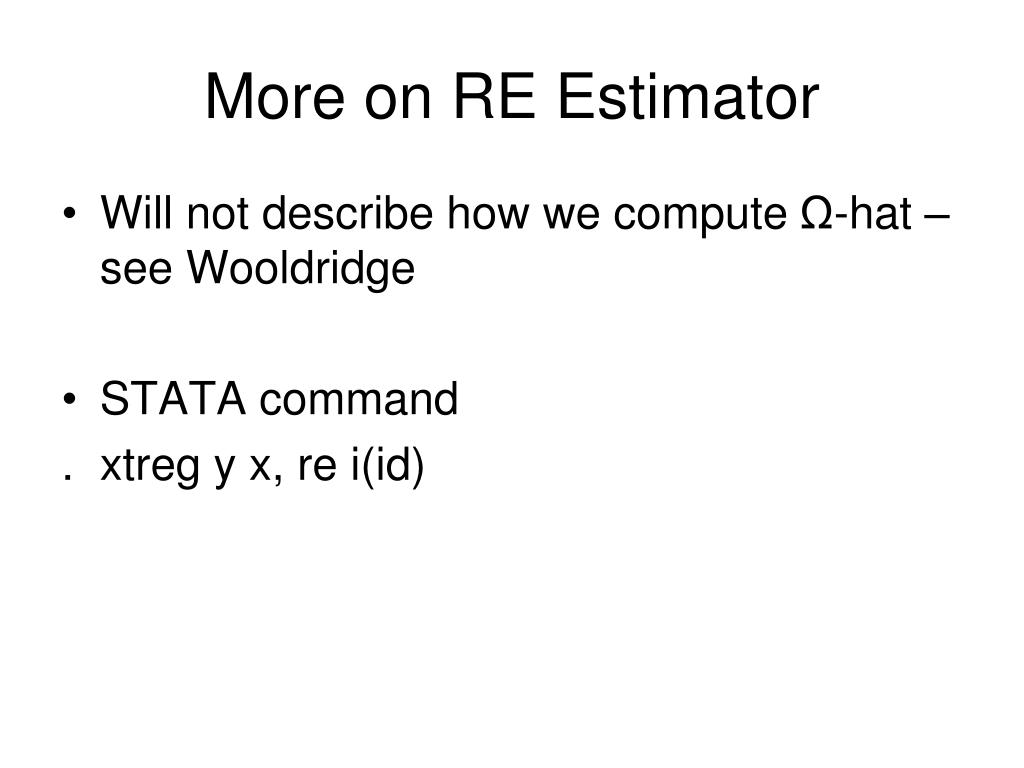

More on RE Estimator
  • Will not describe how we compute Ω-hat – see Wooldridge
  • STATA command

. xtreg y x, re i(id)

proposition 5 3 the random effects estimator of will be consistent if

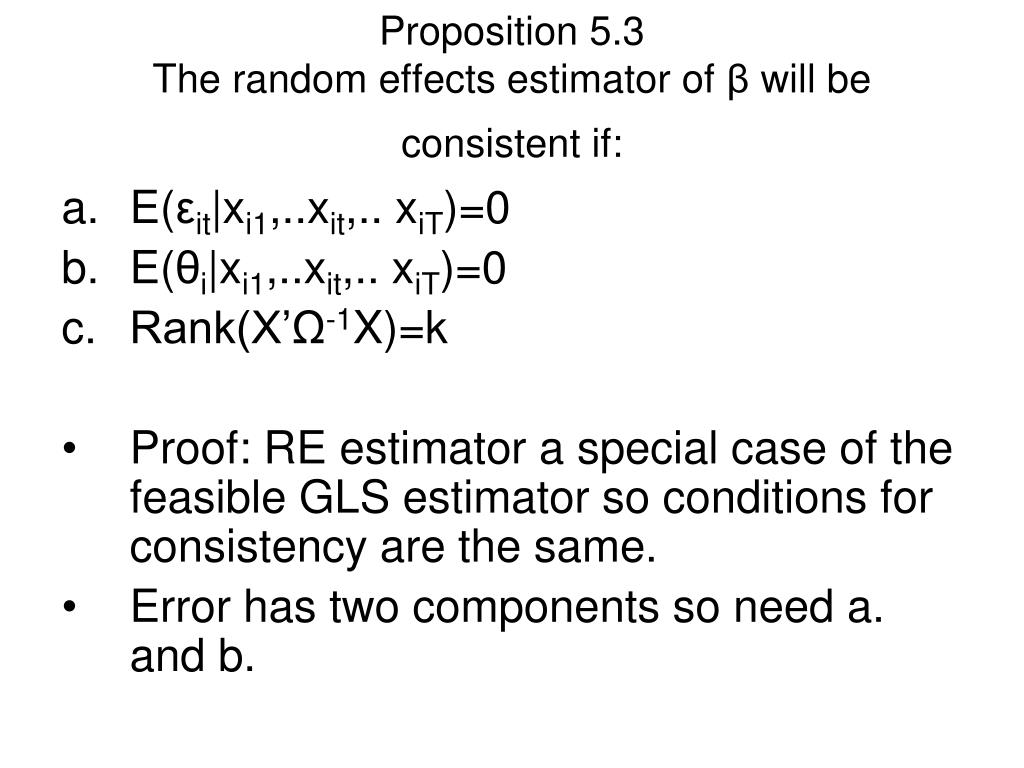

Proposition 5.3The random effects estimator of β will be consistent if:
  • E(εit|xi1,..xit,.. xiT)=0
  • E(θi|xi1,..xit,.. xiT)=0
  • Rank(X’Ω-1X)=k
  • Proof: RE estimator a special case of the feasible GLS estimator so conditions for consistency are the same.
  • Error has two components so need a. and b.

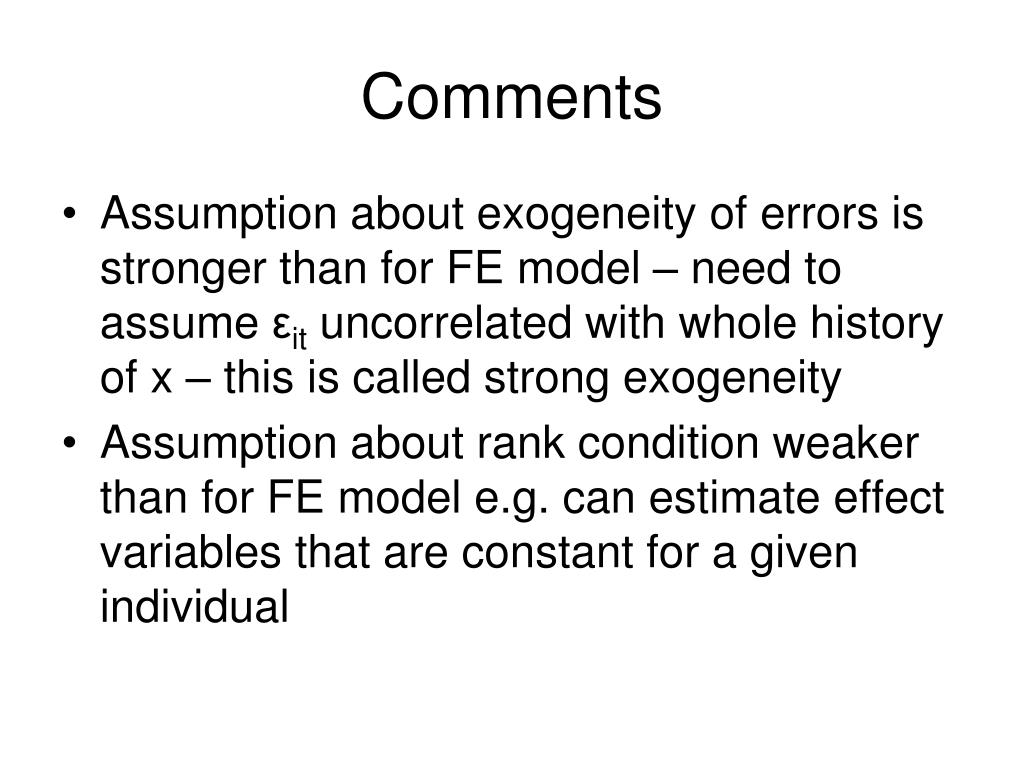

  • Assumption about exogeneity of errors is stronger than for FE model – need to assume εit uncorrelated with whole history of x – this is called strong exogeneity
  • Assumption about rank condition weaker than for FE model e.g. can estimate effect variables that are constant for a given individual
another reason why may prefer re to fe model
Another reason why may prefer RE to FE model
  • If exogeneity assumptions are satisfied RE estimate will be more efficient than FE estimator
  • Application of general principle that imposing true restriction on data leads to efficiency gain.
another useful result
Another Useful Result
  • Can show that RE estimator can be thought of as an OLS regression of:
  • On:
  • Where:
  • This is sometimes called quasi-time demeaning
  • See Wooldridge (ch10, pp286-7) if want to know more
between groups estimator
Between-Groups Estimator
  • This takes individual means and estimates the regression by OLS:
  • Stata command is xtreg y x, be i(id)
  • Condition for consistency the same as for RE estimator
  • But BE estimator less efficient as does not exploit variation in regressors for a given individual
  • And cannot estimate variables like time trends whose average values do not vary across individuals
  • So why would anyone ever use it – lets think about measurement error
measurement error in panel data models
Measurement Error in Panel Data Models
  • Assume true model is:
  • Where x is one-dimensional
  • Assume E(εit|xi1,..xit,.. xiT)=0 and E(θi|xi1,..xit,.. xiT)=0 so that RE and BE estimators are consistent
measurement error model

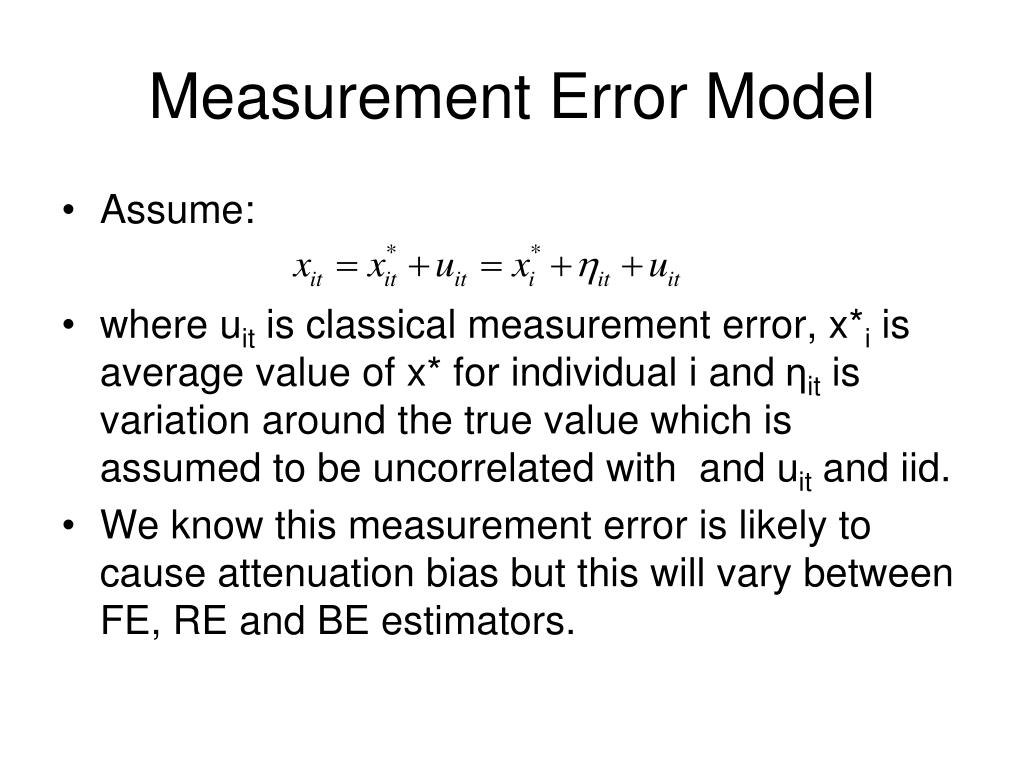

Measurement Error Model
  • Assume:
  • where uit is classical measurement error, x*iis average value of x* for individual i and ηit is variation around the true value which is assumed to be uncorrelated with and uit and iid.
  • We know this measurement error is likely to cause attenuation bias but this will vary between FE, RE and BE estimators.
proposition 5 4

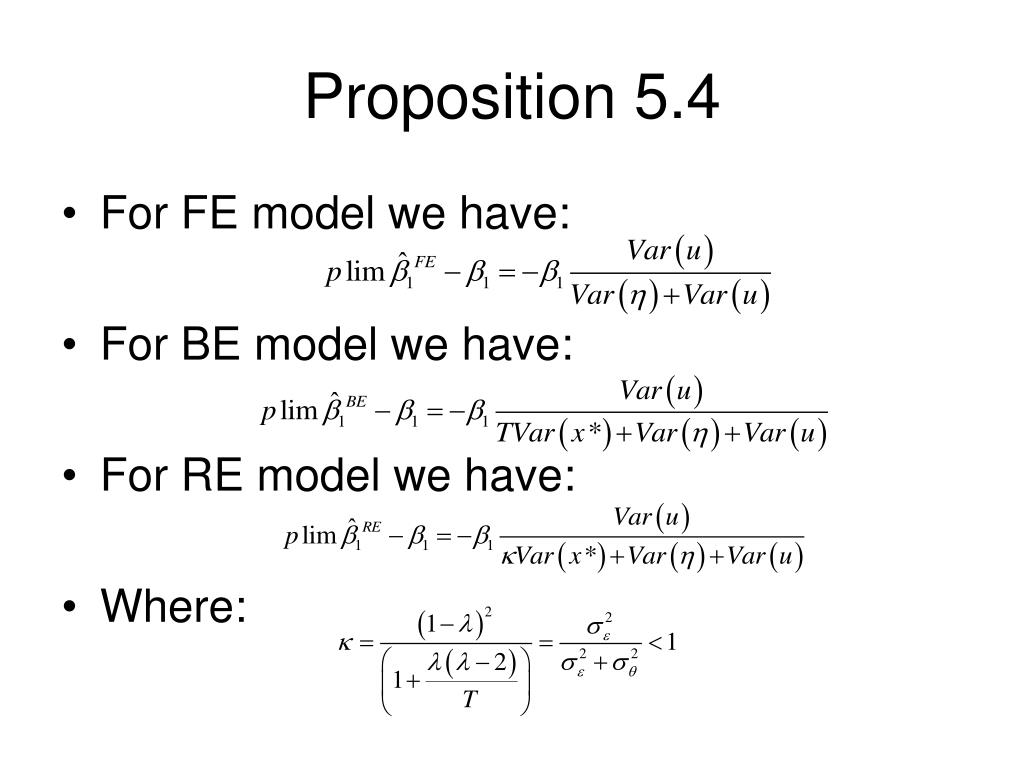

Proposition 5.4
  • For FE model we have:
  • For BE model we have:
  • For RE model we have:
  • Where:
what should we learn from this

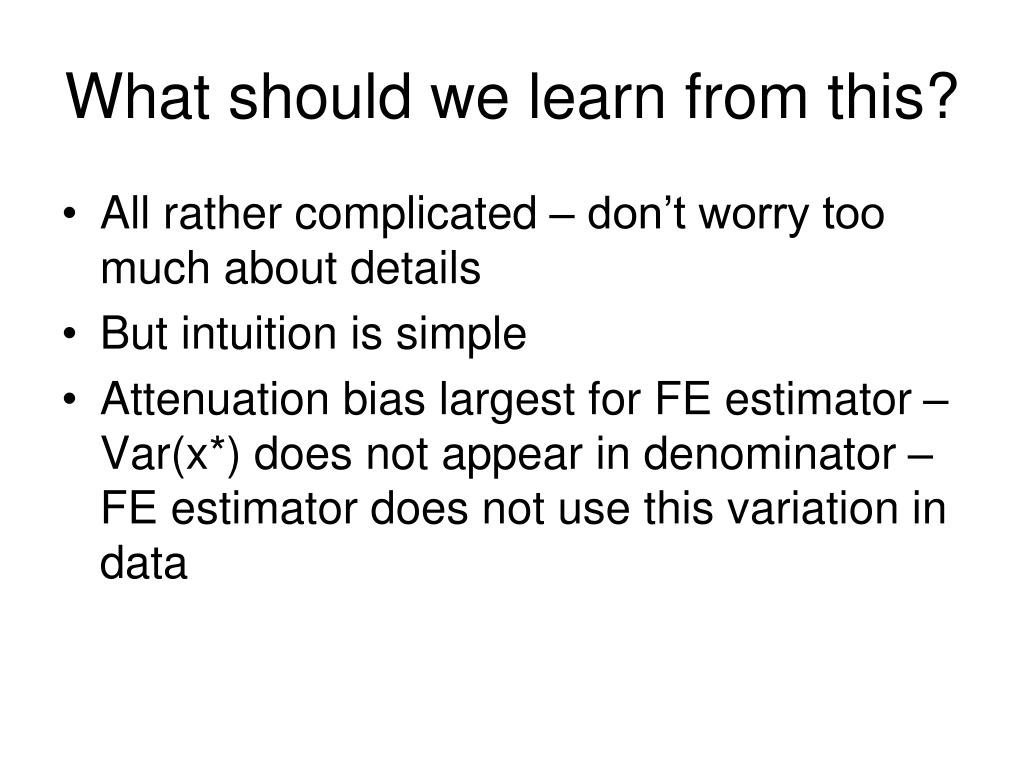

What should we learn from this?
  • All rather complicated – don’t worry too much about details
  • But intuition is simple
  • Attenuation bias largest for FE estimator – Var(x*) does not appear in denominator – FE estimator does not use this variation in data

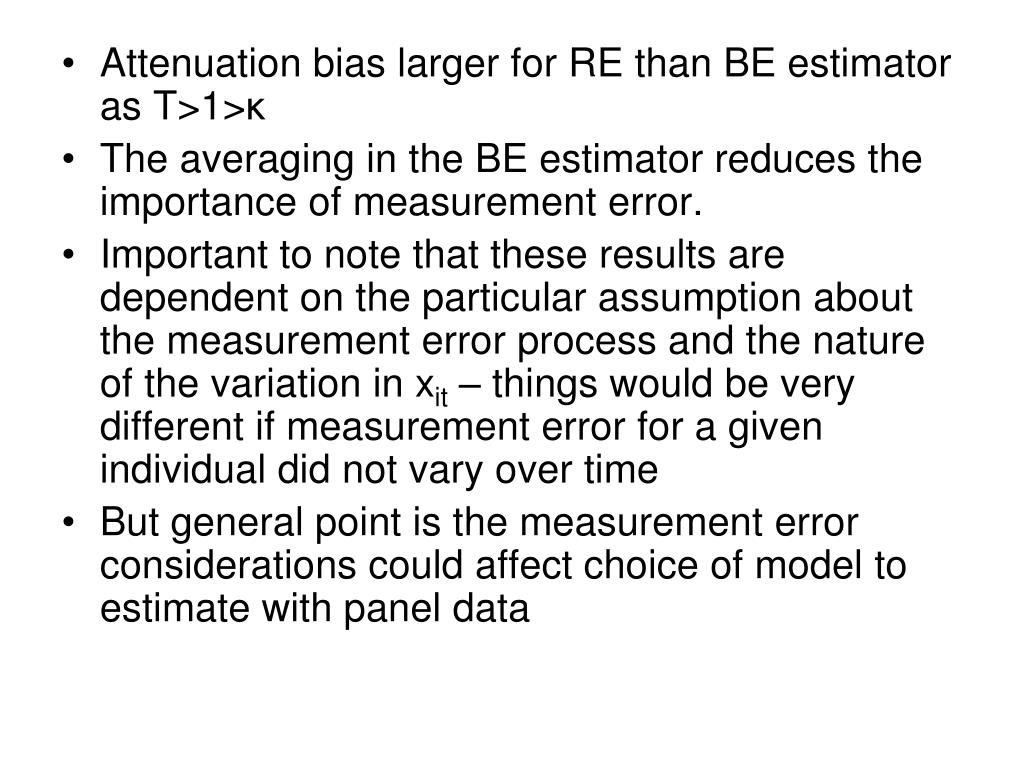

Attenuation bias larger for RE than BE estimator as T>1>κ
  • The averaging in the BE estimator reduces the importance of measurement error.
  • Important to note that these results are dependent on the particular assumption about the measurement error process and the nature of the variation in xit – things would be very different if measurement error for a given individual did not vary over time
  • But general point is the measurement error considerations could affect choice of model to estimate with panel data
time effects

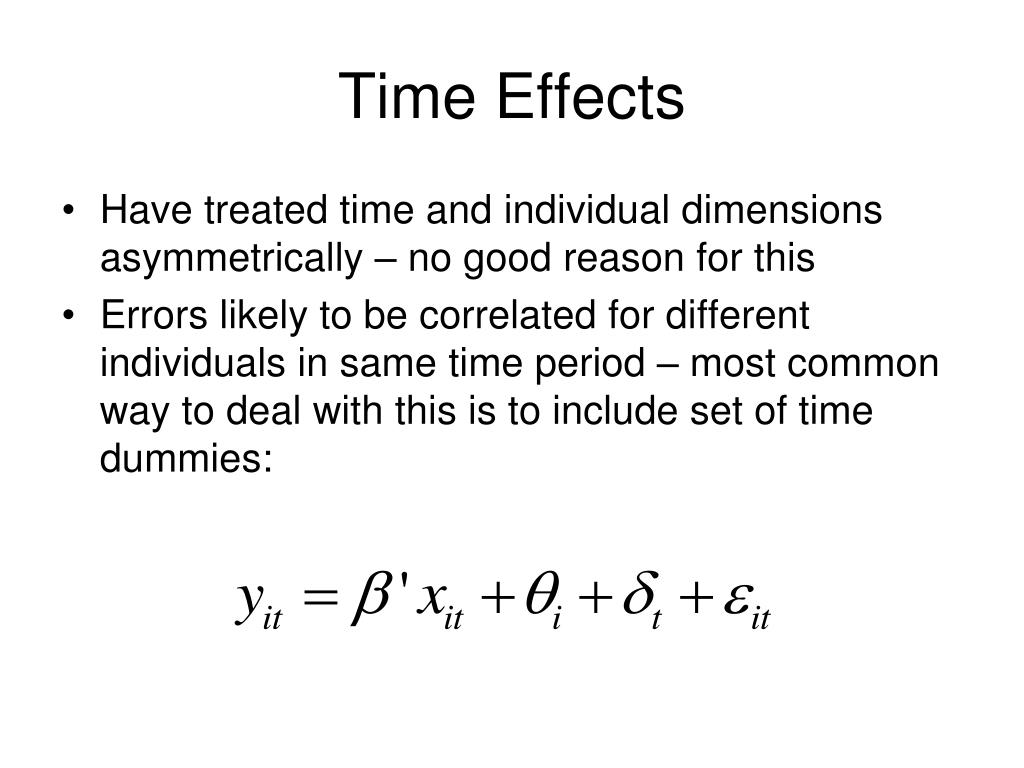

Time Effects
  • Have treated time and individual dimensions asymmetrically – no good reason for this
  • Errors likely to be correlated for different individuals in same time period – most common way to deal with this is to include set of time dummies:
estimating fixed effects model in differences

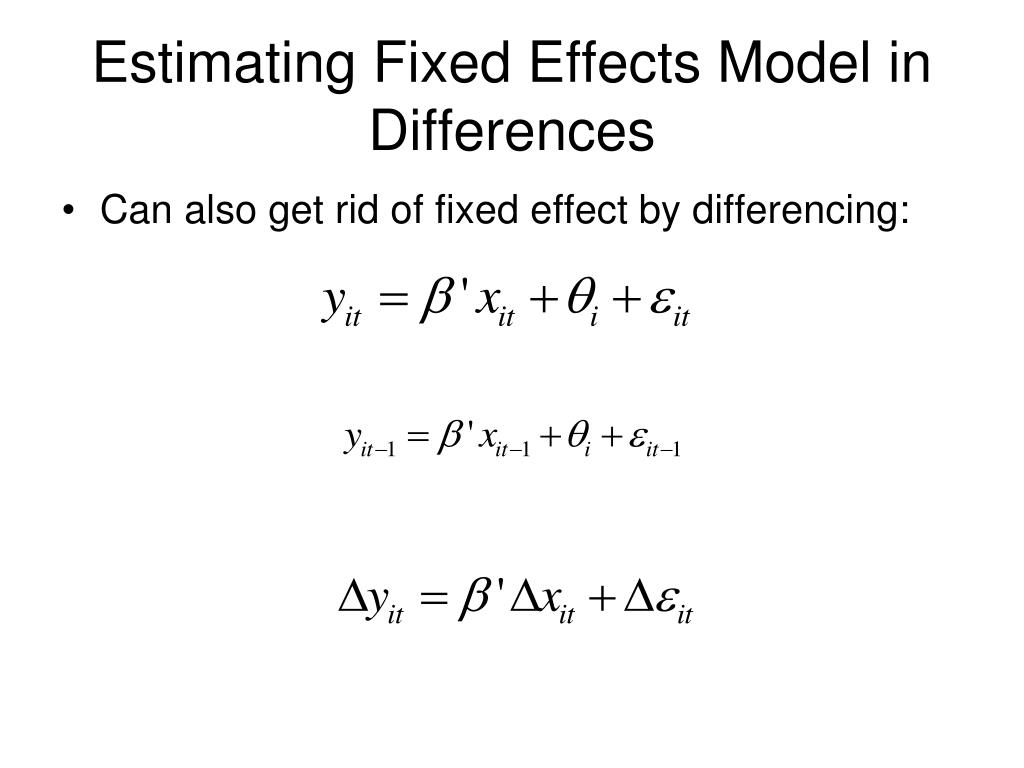

Estimating Fixed Effects Model in Differences
  • Can also get rid of fixed effect by differencing:
comparison of two methods

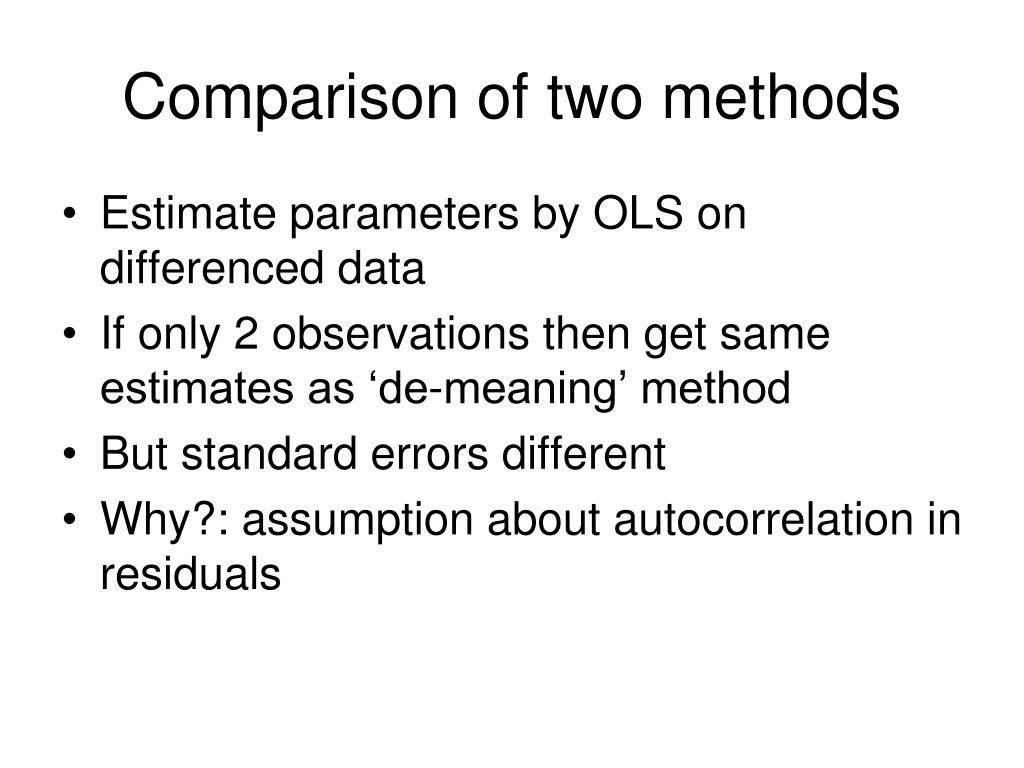

Comparison of two methods
  • Estimate parameters by OLS on differenced data
  • If only 2 observations then get same estimates as ‘de-meaning’ method
  • But standard errors different
  • Why?: assumption about autocorrelation in residuals
what are these assumptions

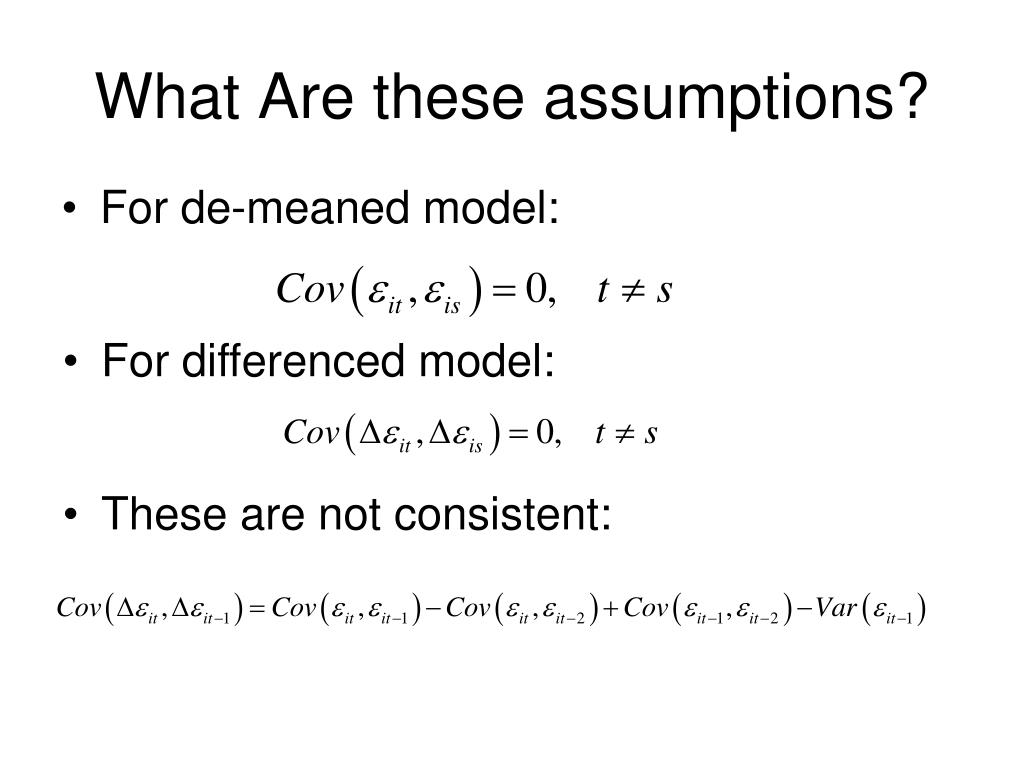

What Are these assumptions?
  • For de-meaned model:
  • For differenced model:
  • These are not consistent:
this leads to time series
This leads to time series…
  • Which is ‘better’ depends on which assumption is right – how can we decide this?
  • We are not going to cover this in this course.
