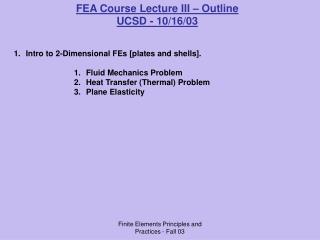

FEA Course Lecture III – Outline

  • UCSD - 10/16/03
  • Intro to 2-Dimensional FEs [plates and shells].
      • Fluid Mechanics Problem
      • Heat Transfer (Thermal) Problem
      • Plane Elasticity

Finite Elements Principles and Practices - Fall 03

slide2

2-Dimensional Finite Elements

    • Stiffness and Load Vector Formulations for mechanical, heat transfer and fluid flow problems.
  • The system equation to be solved can be written in matrix form as:
  • [K] {D} = {q}
  • Where
  • [K] is traditional known as the ‘stiffness’ or ‘coefficient’ matrix (conductance matrix for heat transfer, flow-resistance matrix for fluid flow),
  • {D}is the displacement (or temperature, or velocity) vector and
  • {q} is the force (or thermal load, or pressure gradient) vector.

Finite Elements Principles and Practices - Fall 03

slide3

C) For plane elasticity problem in 2-dimensional, we have:

    • Plane Problems – are also known as Plane Elasticity Problems
    • Plane – a flat element with constant thickness
    • There are two types of plane problems
      • Plane Stress – thickness of the third dimension of an
    • elastic body is very small.
      • Plane Strain - thickness of the third dimension of an
    • elastic body is infinitely large.

Sigma_XZ = Sigma_YZ = Sigma_ZZ = 0

t=infinity

Finite Elements Principles and Practices - Fall 03

slide4

Governing Differential Equation:

  • Stress-Strain Relationships
  • s = E e Plane Stress Plane Strain

C11 = C22 = (1-n)E/(1+n)/(1-2n)

C11 = C22 = E/(1-n2)

C12 = nE/(1-n2)

C12 = nE/(1+n)/(1-n)

C66 = (1-2n)E/2/(1+n)/(1-2n)

C66 = (1-n)E/2(1-n2)

Finite Elements Principles and Practices - Fall 03

slide5

Types of Finite Elements used in Plane Elasticity

  • a) CST – Constant Strain Triangle

b) LST – Linear Strain Triangle (Quadratic Triangle)

c) Q4 – Bilinear Quadrilateral

Finite Elements Principles and Practices - Fall 03

slide6

d) Q8 – Quadratic Quadrilateral

e) Q6 –Improved Bilinear Quadrilateral

f) Elements with Drilling DOF (Degree of Freedom)

When using beams and shell elements (say stiffeners)

Folded Plates and Shells

Finite Elements Principles and Practices - Fall 03

slide7

A) For heat transfer problem in 2-dimensional, we have:

Finite Elements Principles and Practices - Fall 03

slide8

B) For fluid flow problem in 2-dimensional, we have:

Finite Elements Principles and Practices - Fall 03

slide9

Review of Analysis Results. E.g., Plane Elasticity. Exact Vs FE solution. Error Estimation.

  • SOFTWARE-Specific Session:
      • Build 2D problem on ANSYS. Go through all steps.
      • Thermal problem on ANSYS
      • Plane-stress problem on ANSYS
      • 2DFlow problem on ANSYS/FEMLAB.
    • Homework 2 and Reading Assignments.

Finite Elements Principles and Practices - Fall 03
