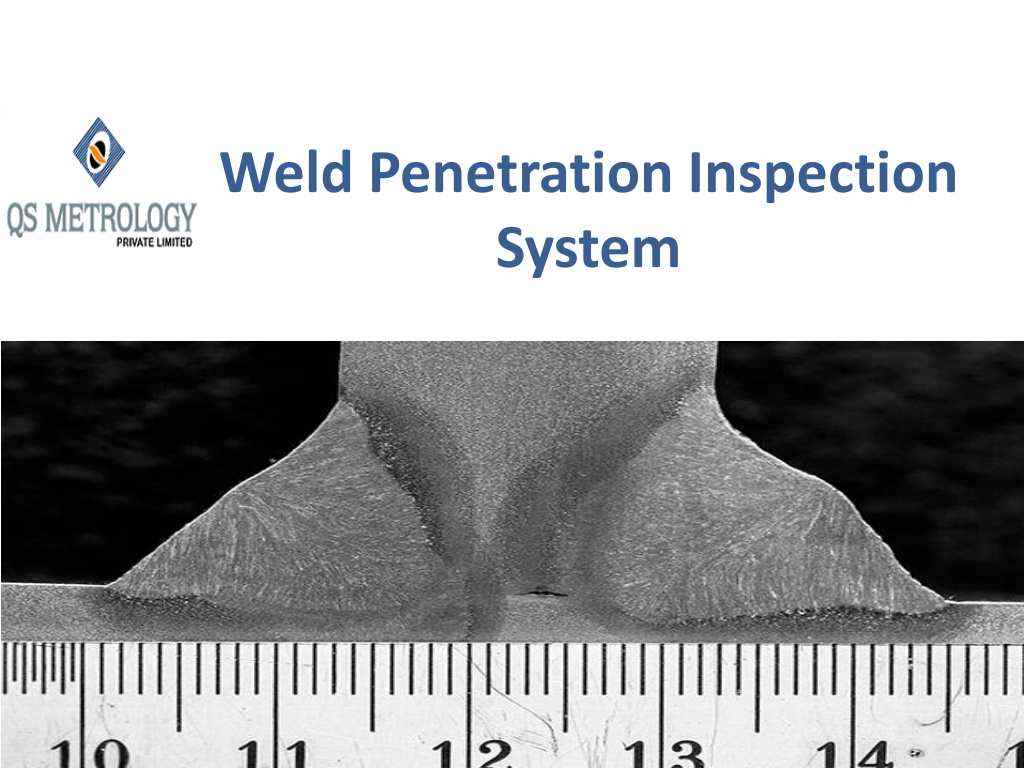

  1. Weld Penetration Inspection System

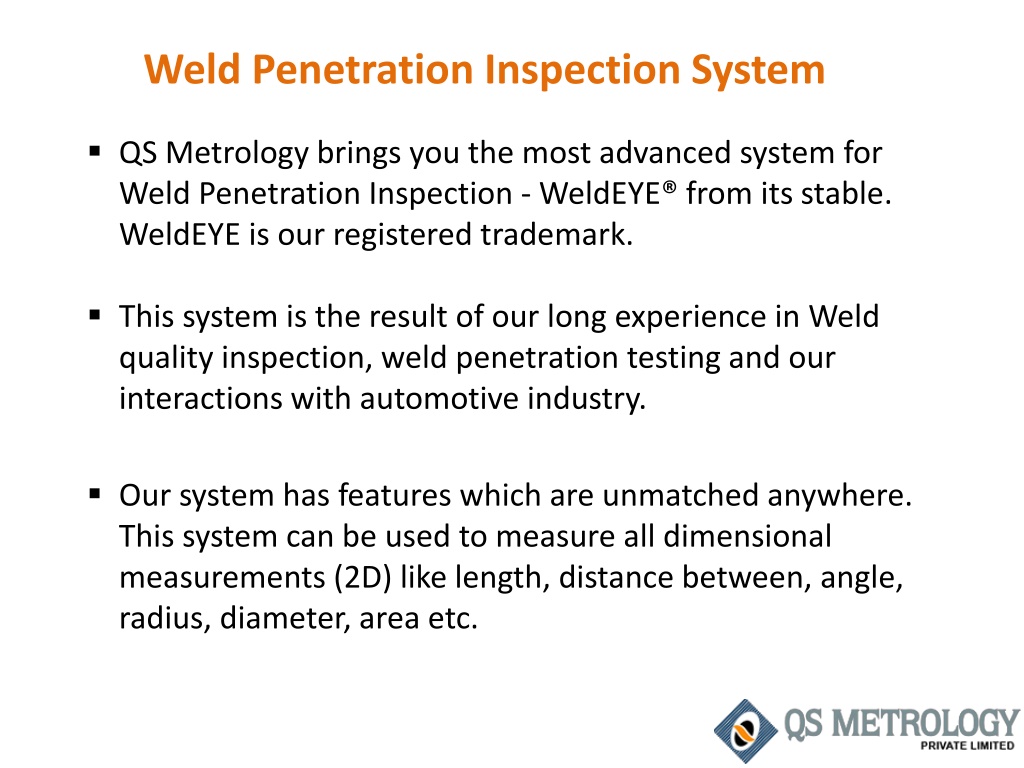

  2. Weld Penetration Inspection System • QS Metrology brings you the most advanced system for Weld Penetration Inspection - WeldEYE® from its stable. WeldEYE is our registered trademark. • This system is the result of our long experience in Weld quality inspection, weld penetration testing and our interactions with automotive industry. • Our system has features which are unmatched anywhere. This system can be used to measure all dimensional measurements (2D) like length, distance between, angle, radius, diameter, area etc.

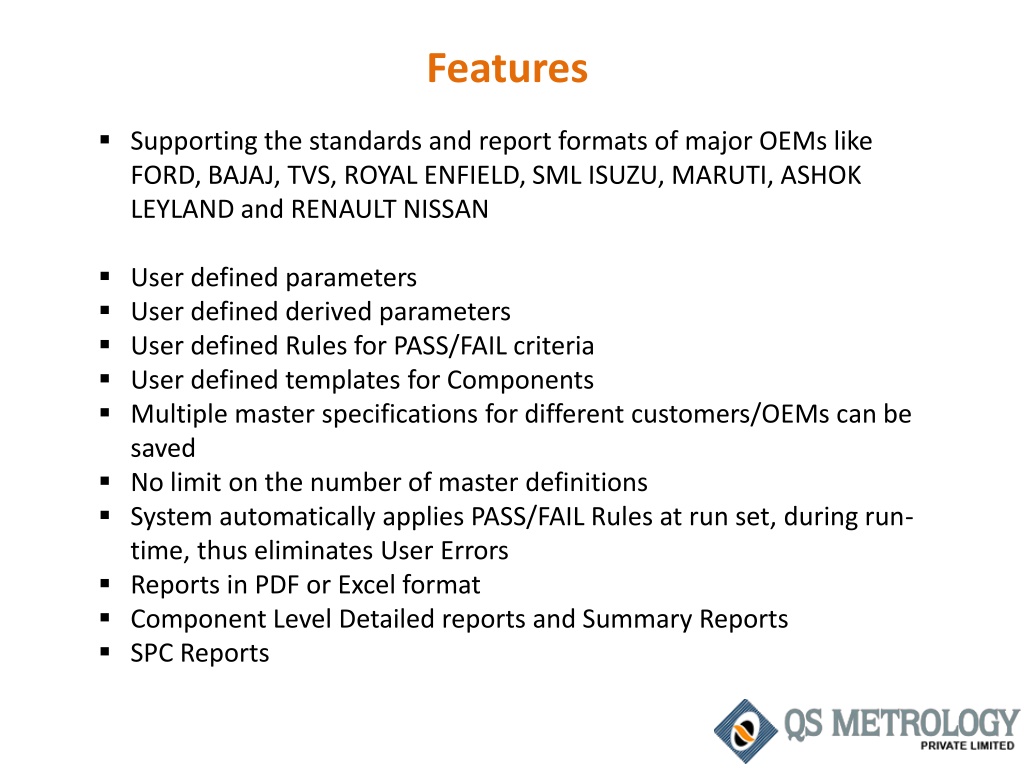

  3. Features • Supporting the standards and report formats of major OEMs like FORD, BAJAJ, TVS, ROYAL ENFIELD, SML ISUZU, MARUTI, ASHOK LEYLAND and RENAULT NISSAN • User defined parameters • User defined derived parameters • User defined Rules for PASS/FAIL criteria • User defined templates for Components • Multiple master specifications for different customers/OEMs can be saved • No limit on the number of master definitions • System automatically applies PASS/FAIL Rules at run set, during run-time, thus eliminates User Errors • Reports in PDF or Excel format • Component Level Detailed reports and Summary Reports • SPC Reports

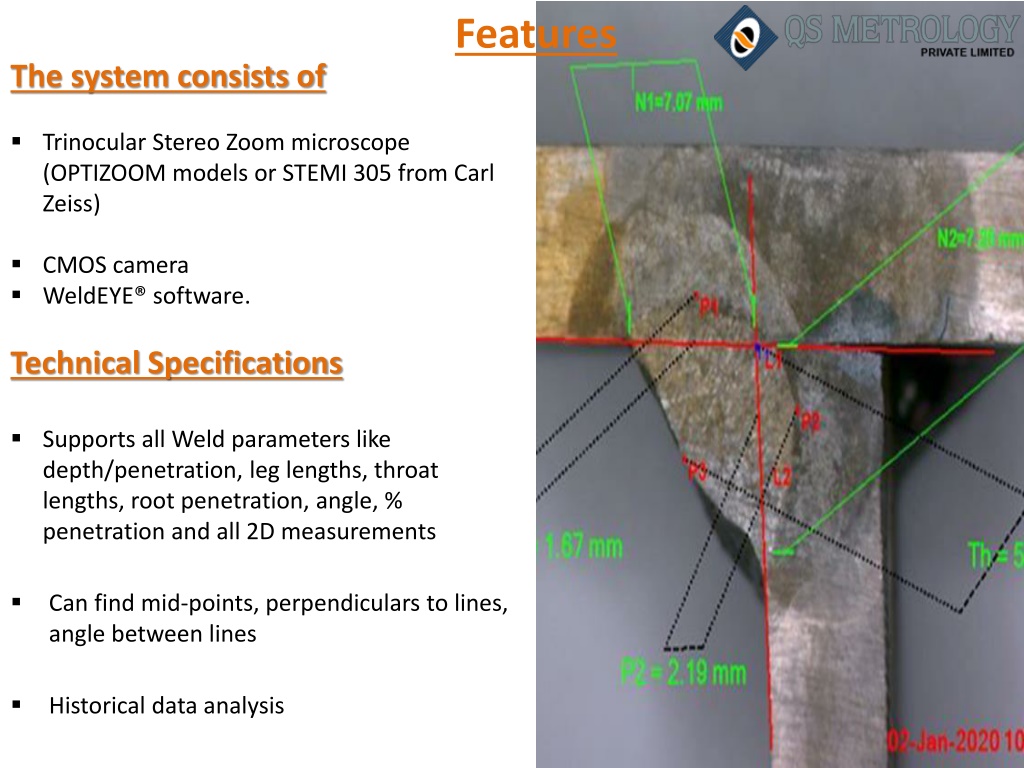

  4. Features • The system consists of • Trinocular Stereo Zoom microscope (OPTIZOOM models or STEMI 305 from Carl Zeiss) • CMOS camera • WeldEYE® software. • Technical Specifications • Supports all Weld parameters like depth/penetration, leg lengths, throat lengths, root penetration, angle, % penetration and all 2D measurements • Can find mid-points, perpendiculars to lines, angle between lines • Historical data analysis

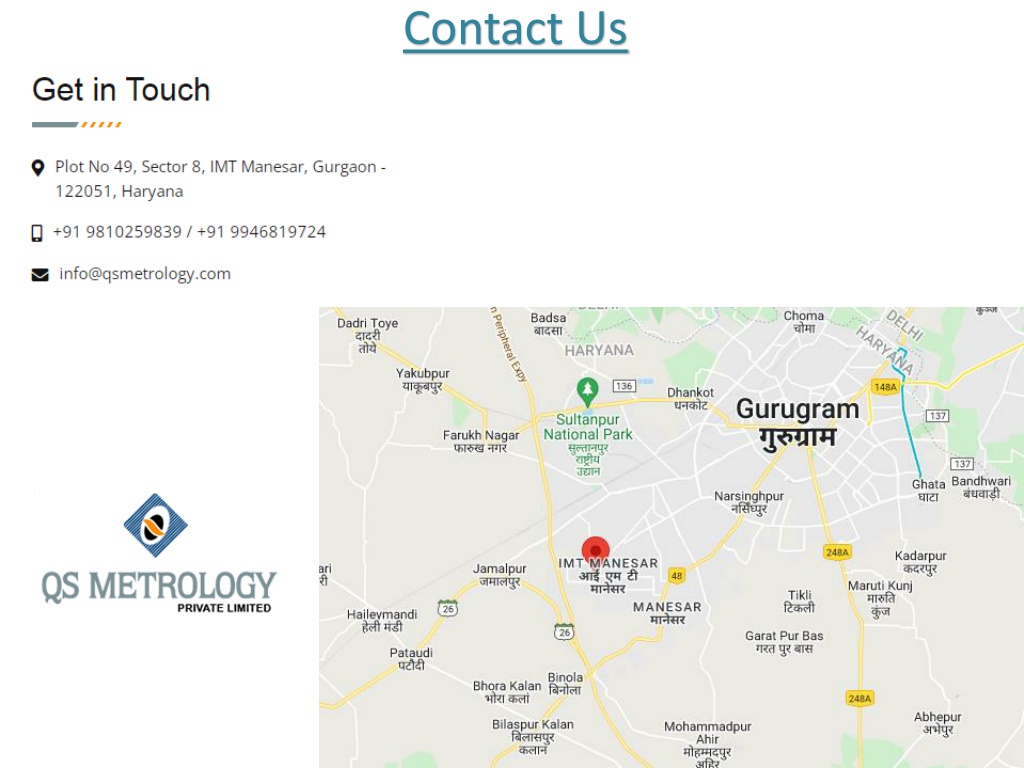

  5. Contact Us
