Step-by-Step Guide: How to Replace Suzuki Swift Clutch Cover Assembly

Learn how to replace the clutch cover assembly on your Suzuki Swift with this detailed step-by-step guide. Ensure smooth performance with proper installation

purchaserpk
Download Presentation

Step-by-Step Guide: How to Replace Suzuki Swift Clutch Cover Assembly

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

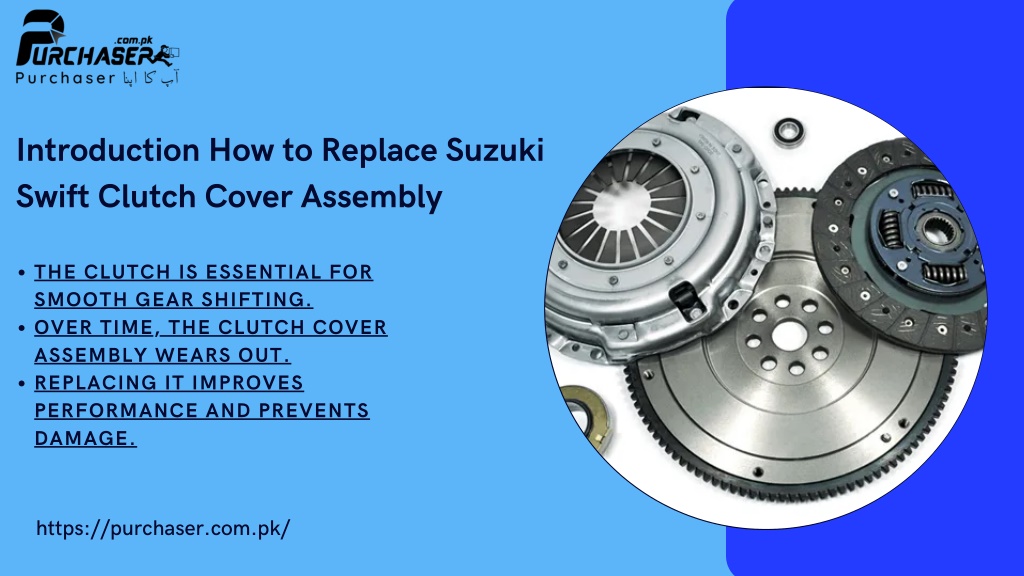

  1. Introduction How to Replace Suzuki Swift Clutch Cover Assembly THE CLUTCH IS ESSENTIAL FOR SMOOTH GEAR SHIFTING. OVER TIME, THE CLUTCH COVER ASSEMBLY WEARS OUT. REPLACING IT IMPROVES PERFORMANCE AND PREVENTS DAMAGE. https://purchaser.com.pk/

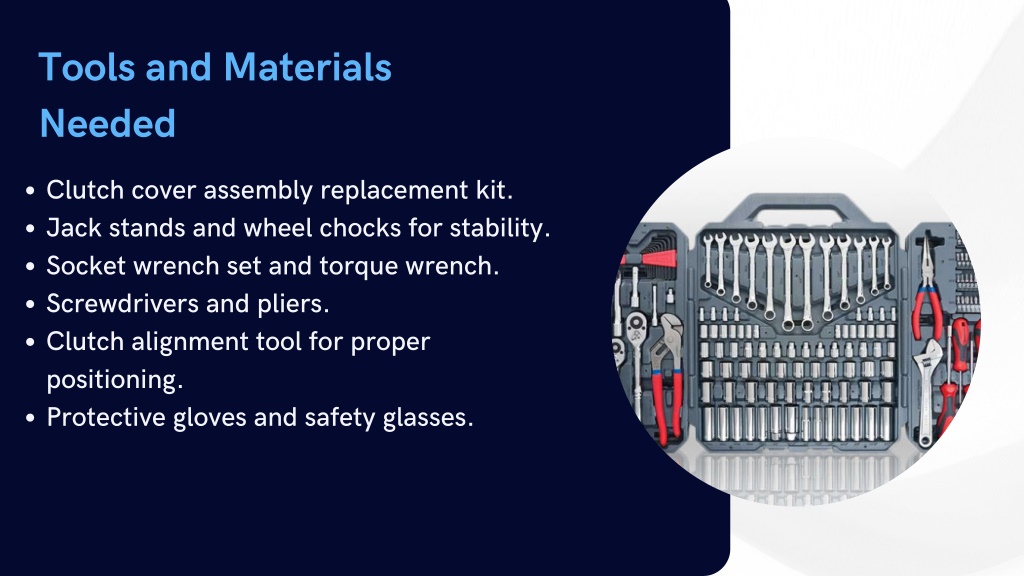

  2. Tools and Materials Needed Clutch cover assembly replacement kit. Jack stands and wheel chocks for stability. Socket wrench set and torque wrench. Screwdrivers and pliers. Clutch alignment tool for proper positioning. Protective gloves and safety glasses.

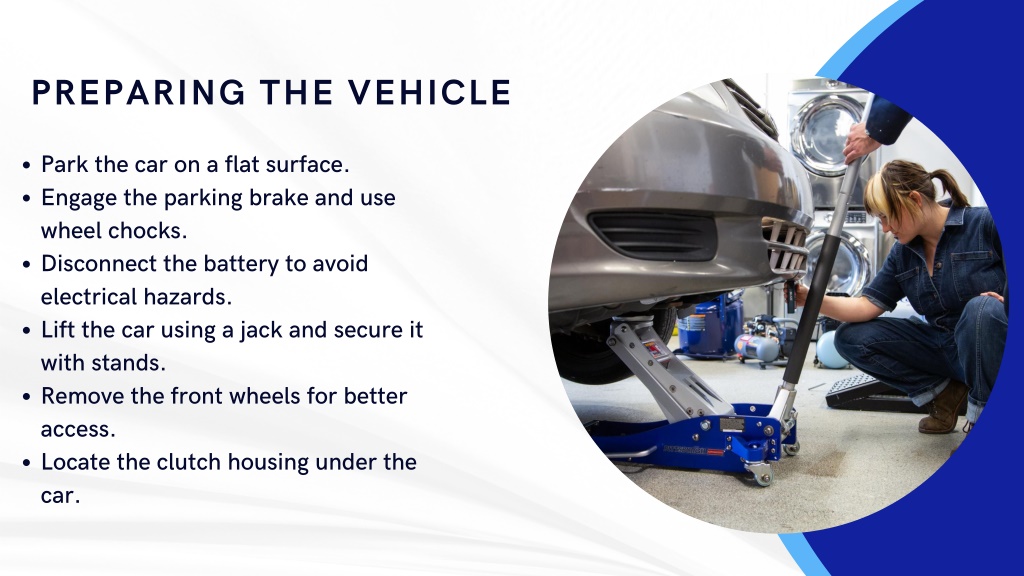

  3. PREPARING THE VEHICLE Park the car on a flat surface. Engage the parking brake and use wheel chocks. Disconnect the battery to avoid electrical hazards. Lift the car using a jack and secure it with stands. Remove the front wheels for better access. Locate the clutch housing under the car.

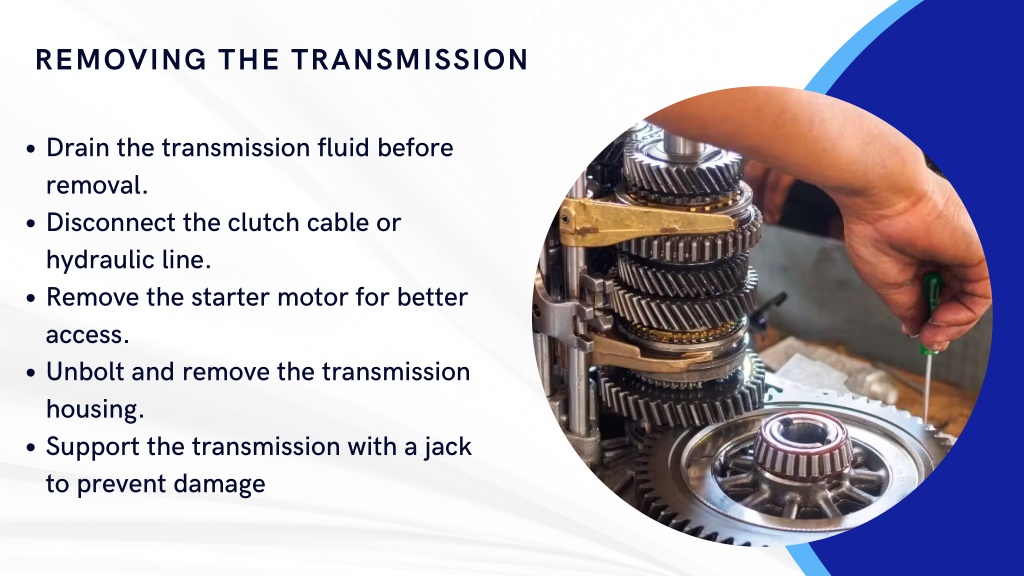

  4. REMOVING THE TRANSMISSION Drain the transmission fluid before removal. Disconnect the clutch cable or hydraulic line. Remove the starter motor for better access. Unbolt and remove the transmission housing. Support the transmission with a jack to prevent damage

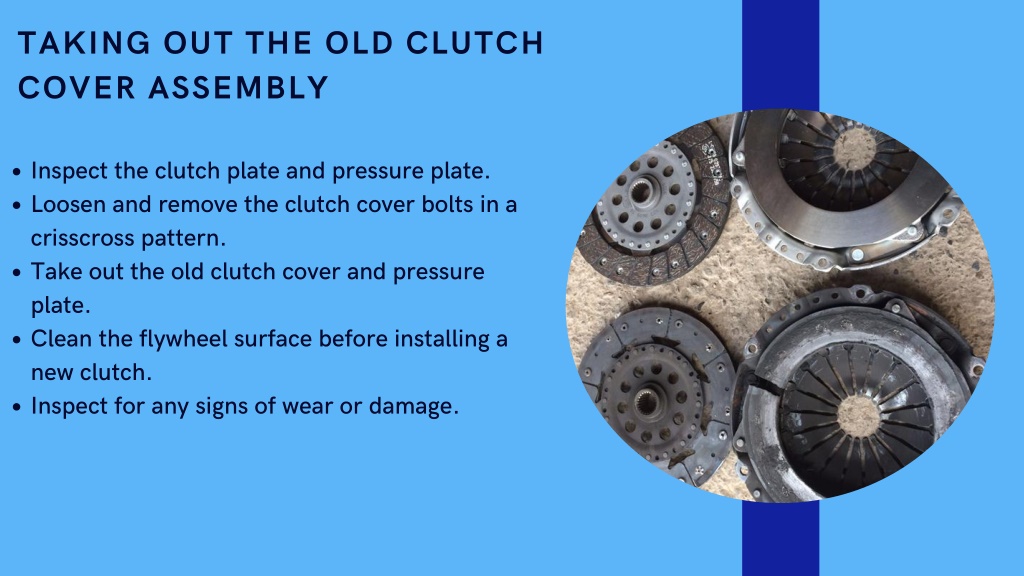

  5. TAKING OUT THE OLD CLUTCH COVER ASSEMBLY Inspect the clutch plate and pressure plate. Loosen and remove the clutch cover bolts in a crisscross pattern. Take out the old clutch cover and pressure plate. Clean the flywheel surface before installing a new clutch. Inspect for any signs of wear or damage.

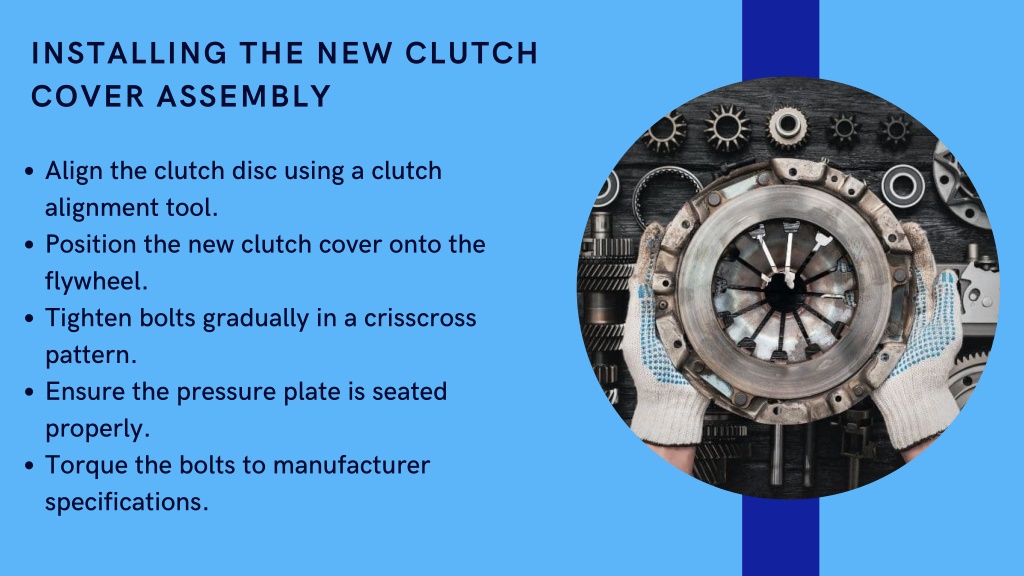

  6. INSTALLING THE NEW CLUTCH COVER ASSEMBLY Align the clutch disc using a clutch alignment tool. Position the new clutch cover onto the flywheel. Tighten bolts gradually in a crisscross pattern. Ensure the pressure plate is seated properly. Torque the bolts to manufacturer specifications.

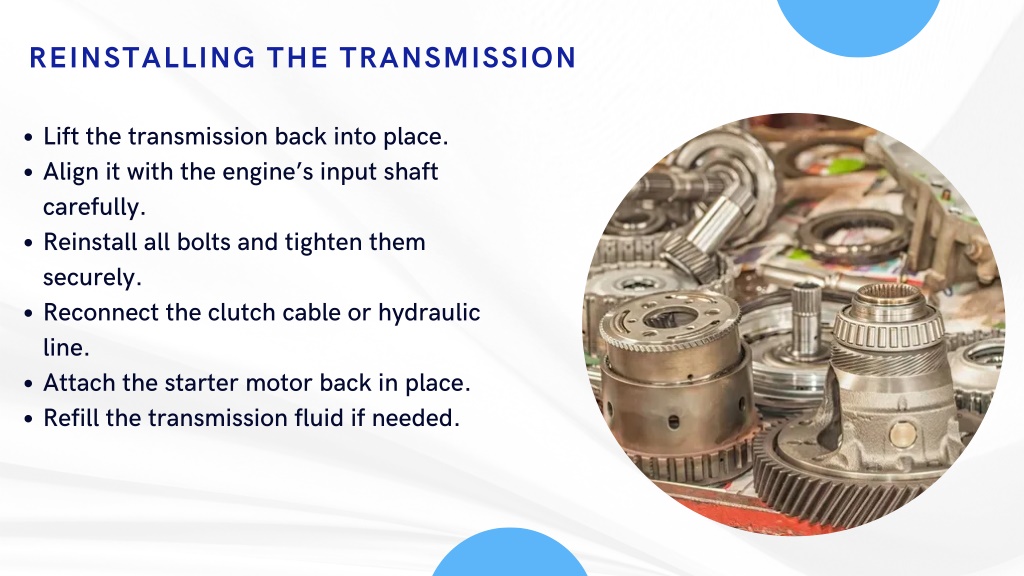

  7. REINSTALLING THE TRANSMISSION Lift the transmission back into place. Align it with the engine’s input shaft carefully. Reinstall all bolts and tighten them securely. Reconnect the clutch cable or hydraulic line. Attach the starter motor back in place. Refill the transmission fluid if needed.

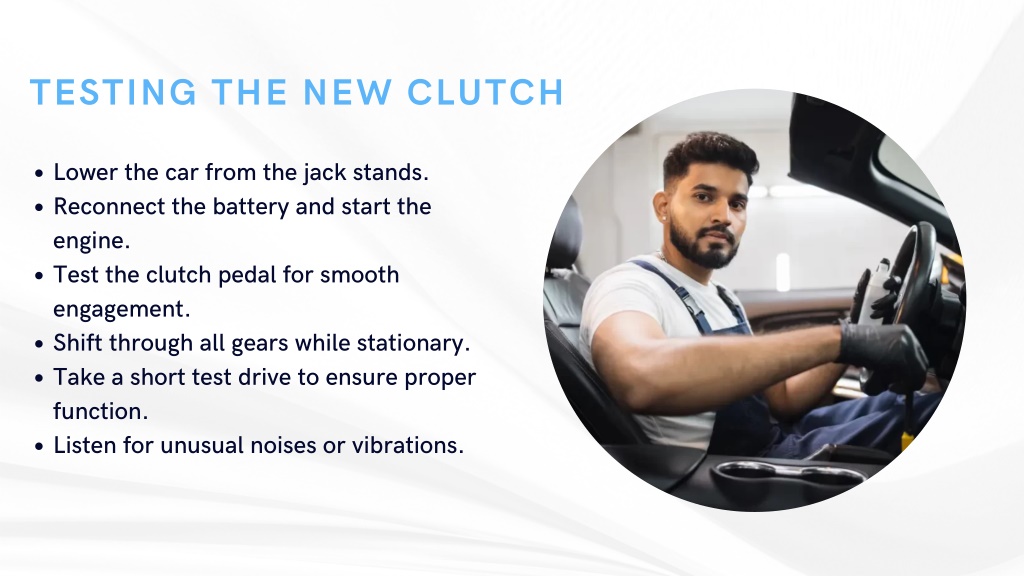

  8. TESTING THE NEW CLUTCH Lower the car from the jack stands. Reconnect the battery and start the engine. Test the clutch pedal for smooth engagement. Shift through all gears while stationary. Take a short test drive to ensure proper function. Listen for unusual noises or vibrations.

  9. thanks for watching HTTPS://PURCHASER.COM.PK/
