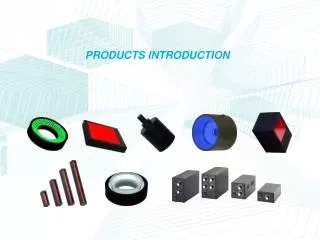

  1. PRODUCTS INTRODUCTION

  2. 1.LED光源 / 調光器 : 特點 ●壽命長 30000 小時 ● 點亮後光源穩定 ● 紅、白、藍、綠、黃、UV、IR等不同波長供應用. ● 任意的形狀均可製作，且可和鏡頭及菱鏡組成光學元件 ● 耐衝擊、耐振動、性能堅固 ● 開關on/off 之間能快速反應

  3. 2.LED光源 / 調光器 : 優勢 ● LED的壽命長能省去常換燈泡的困擾，不需維護。 比較:LED光源壽命30000 hours 鹵素燈 壽命 500 hours 螢光燈 壽命5000 hours ●因不穩定電壓造成影像不規則現象不再發生。 ●具有高速閃光能力，所以3800 pcs/min的高速檢測 可以實現。 ● CCD Camera的波長和LED光源波長可以互相搭配選擇。 ●不同波長LED可供選擇使用。 ● LED在啟動後能立刻得到穩定照明。

  4. 2.LED 光源 / 調光器 : 優勢 ●LED照明可以放在震動和搖晃Robot環境下使用。 ●LED可依應用不同 而 設計不同的形狀。 ●壽命長短和環境溫度及使用電流有關。如果環境溫度 高，散熱不良，使用電流大(較亮)，則壽命短；環境溫度 低，散熱良好，使用電流少(較不亮)，則壽命長。 ●平均壽命至少30,000小時以上。 ● LED光源設計上基於12V電壓供應，基本是6個LED(紅色) 串一組；或4個 LED(藍 /白/綠色)串一組，如果其中有一顆 壞了，即全組都不能點亮。

  5. 2.LED 光源 / 調光器 : 優勢 ● LED如有損壞或功能不良，更新LED，維修便宜。 ● LED光源調光控制器有其必要，因可調整亮暗範圍 ，且可控制電流或PWM波，使壽命增長。

  6. 3.LED 光源 / 調光器 : 應用領域 ● Semiconductor IC Laser Mark字型及表面裂痕缺口檢查。 ● 玻璃表面瑕疵檢查，陶瓷物品裂痕檢查。 ● 金屬物品表面瑕疵檢查。 ● 二極體、電組、電容、電晶體等電子零件外觀檢查。 ● Connector腳(pin)彎曲檢查。 ● 容器表面裂痕、刮傷、缺口、變形檢查。 ● 藥錠外觀包裏檢查。 ● OFP,SOP IC腳位檢查。

  7. 3.LED 光源 / 調光器 : 應用領域 ● Wafer Inspection。 ● 焊錫檢查。 ● 標籤檢查。 ● BGA錫球定位及大小檢查。 ● 刑事指紋鑑定及腳印搜尋 ● 二維條碼判讀及PANEL標靶對位 ●PCB 板 PAD, 缺件, 對位 ● 電子零件, 印刷字體瑕疵檢察 ● 其它………

  8. LED光源產品種類/介紹

  9. DRSERIES (環型光源---角度0° & 30°))

  10. LDRSERIES( 環型低角度—角度 60° & 90° ) Name: Low Angel Direct Ring Light ( 環型低角度光源 ) Features:1.360-degree illumination from a low angle without reflection. Specially for slightly uneven surfaces and scratches. 2.Zero degrees lighting angle for FDR series(R,G,B,W). AVAILABLE :MODELS: LDR-48/22,LDR-74/48, LDR-100/68, FDR-75/46, FDR-84/54,FDR-96/60, FDR-122/92,FDR-156/108, COLOR: RED, WHITE, BLUE, GREEN, UV, IR POWER CONSUMPTION: DC 12V

  11. LDRSERIES( 環型低角度—角度 60° & 90° )

  12. BAR, LINEAR & OBLIQUE TYPE LED ( 條型光源 & 方型斜角光源 )

  13. SHADOWLESS TYPE LED ( 環型低角度導光光源 ) Name: Shadowless Type (環型低角度導光光源) Features:1.Ability to evenly diffused lighting on shiny objects. 2.Best to preventing the halo effect. AVAILABLE :MODELS: PR-67/39, PR-90/58 PR-136/108 COLOR: RED, WHITE, BLUE, GREEN, UV, IR POWER CONSUMPTION: DC 12V

  14. SHADOWLESS TYPE LED( 環型低角度導光光源 )

  15. COAXIAL / SIMULATED COAXIAL LED (IFV)( 外同軸光源 ) Name: Coaxial / Simulated Coaxial LED ( 外同軸光源 ) Features:1.Coaxial light mainly designed for a objects with highly reflective surfaces. 2.Allowing produce simulated even coaxial lighting for telecentric Macro lens and other type of lenses. AVAILABLE :MODELS: IFV-20, IFV-34, IFV-40, IFV-50, IFV-70, IFV-100 IFV-130 COLOR: RED, WHITE, BLUE, GREEN, UV, IR POWER CONSUMPTION: DC 12V

  16. COAXIAL / SIMULATED COAXIAL LED (IFV)( 外同軸光源 )

  17. HIGH POWERED SPOT LIGHT LED (HLV & LV)( 內同軸光源) Name: High Powered Spot Light ( 內同軸光源) Features:1.High-luminosity coaxial spot lights compatible with macro lenses. 2.Collecting optics by used light guides to maximum spot illuminance. 3.Four colors available ,red,white,blue and green ,base on the subject and application. AVAILABLE :MODELS: LV-15, HLV-28, HLV-32 HLV2-28, HLV2-32 HLV3-24 COLOR: RED, WHITE, BLUE, GREEN, POWER CONSUMPTION: LV (DC 12V) HLV (DC 3.5V)

  18. SMALL DOME TYPE LED(環型低角度導光光源) Name: Dome Type ( 環型低角度導光光源 ) Features:1.Apply for unevenly surface illumination. 2.Provide shadowless illumine in applications with fast check. AVAILABLE :MODELS: DO-54/11 COLOR: RED, WHITE, BLUE, GREEN, UV,IR POWER CONSUMPTION: DC 12V

  19. SMALL DOME TYPE LED(環型低角度導光)

  20. LARGE DOME TYPE ( 半球型漫射/無影 光源 ) Name: LARGE DOME TYPE ( 半球型漫射無影 ) Features:1.Large Dome type allow perfect illumination for large evenly area. 2.Provide shadowless illumine in application with fast check. AVAILABLE :MODELS: DO-84/54, ADO-84/54 DO-122/92, ADO-122/92 DO-156/108, ADO-156/108 COLOR: RED, WHITE, BLUE, GREEN, UV, IR POWER CONSUMPTION: DC 12V

  21. LARGE DOME TYPE( 半球型漫射 / 無影 光源 )

  22. ARRAY-TYPE BACKLIGHT LED ( 背光光源 ) Name: Back Light ( 背光光源 ) Features:1.ADM series: Frivolous desingn mainly for spece reduction by chip-mounted. 2.LED series: Higher luminance than DM series (edge-type) by using lamp-type LEDs mounted immediately. AVAILABLE :MODELS: LDM-30/30, LDM-60/60 , ADM-30/30(60.90.120), ADM-60/60 (90.120), ADM-90/90 (120), ADM-120/120, COLOR: RED, WHITE, BLUE, GREEN, UV, IR POWER CONSUMPTION: DC 12V

  23. ARRAY-TYPE BACKLIGHT LED( 背光光源 )

  24. FLAT LIGTS ( 背光側照光源 ) Name: BIG DOME TYPE ( 背光側照光源 ) AVAILABLE :MODELS: FDM-50/50 FDM-175/130 COLOR: RED, WHITE, BLUE, GREEN, UV, IR POWER CONSUMPTION: DC 12V

  25. FLAT DOME LIGTS ( 薄型外同軸光源 ) Name: FLAT DOME TYPE ( 薄型外同軸光源 ) AVAILABLE :MODELS: FDO-100 COLOR: RED, WHITE, BLUE, GREEN, UV, IR POWER CONSUMPTION: DC 12V

  26. FLAT LIGTS (薄型外同軸光源 )

  27. LED調光器產品種類/介紹

  28. LED POWER DIMMER(調光器)

  29. LED POWER DIMMER(256段 數位 調光器)

  30. LED POWER DIMMER(PI 專用調光器)

  31. LED LIGHTS ACCESSORIES(配件) Direct Lighting Bar , Linear & Oblique Type LED Low Angle Direct Ring Type LED Dome Type LED

  32. EXTENSION CORD(光源延長線)
