Stephen Cobb, CISSP Senior VP, Research and Education, ePrivacy Group

Strategies for Overall Data Security, HIPAA, and 21 CFR Part 11 Compliance Practical Strategies for Risk Assessment, Authentication, Encryption, and Other Mandated Security Measures. Data Security in the Pharmaceutical Industry July 31 - August 1, 2003, Sheraton Society Hill, Philadelphia, PA.

Download Presentation

Stephen Cobb, CISSP Senior VP, Research and Education, ePrivacy Group

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

  1. Strategies for Overall Data Security, HIPAA, and 21 CFR Part 11 CompliancePractical Strategies for Risk Assessment, Authentication, Encryption, and Other Mandated Security Measures Data Security in the Pharmaceutical Industry July 31 - August 1, 2003, Sheraton Society Hill, Philadelphia, PA Stephen Cobb, CISSPSenior VP, Research and Education, ePrivacy Group Author: Privacy for Business—Web Sites and Email

  2. Agenda (9AM to 12 Noon) • Practical strategies for matching risk to authentication, encryption and other security measures • Perform an acceptable risk assessment as a precursor to a practical security program • Determine appropriate levels and technologies for authentication and access controls • Implement workable encryption strategies or avoid encryption requirements • Put in place other required security measures such as backup and disaster recovery plans

  3. General Observations • Security technology has focused on defending corporate secrets and government networks, but health care and research also have serious security requirements: • Care and research require data sharing • Privacy requires data protection and data sharing • Privacy and security standards require compliance • Security arsenal—includes authentication, encryption, VPNs, filtering, firewalls biometrics—can serve these ends • But without proper implementation, training, and support, security technology is wasteful and doubly insecure • And it all begins with understanding the risks

  4. Why Would Hackers Do This? • Hackers broke into the computer systems belonging to a clinic in the UK, altered medical records of 6 patients who had just been screened for cancer—switched test results from negative to positive—those patients spent several days thinking that they had cancer • The night before a patient was due to have a brain tumor removed, hackers broke into the computer where the tests were stored and corrupted the database. Surgery had to be postponed while the tests were redone Source: Richard Pethia, Software Engineering Institute (SEI) Pittsburgh Why? Because We Can Slogan from DEF CON III Las Vegas, 1995

  5. Make No Mistake, Your Data Are At Risk Virus Writers Hackers Script Kiddies Former Employees Unethical Employees SensitiveMedical Data Competitors Accidents Disgruntled Employees Unintended Consequences Unethical Partners

  6. How to Assess Risk • Threats • Enumerate threats and threat agents • Assign relative probability • Consensus or forum model • Impacts • Evaluate impact of threats materializing • Rank in terms of impact on mission • Not always $$$ issue

  7. Consult All Parties + Experts • Don’t discount threats not understood • Expert opinion can help • Try to anticipate threat trends • E.g. wireless, worms, spam • Consider macro factors • E.g. bad economics mean more crime • Be realistic with cost figures • See worksheet

  8. Do Not Under Estimate Costs - Forester Research, Feb 2001 Report (www.forrester.com) - Forester Research, Feb 2001 Report (www.forrester.com)

  9. Implications of HIPPA Final Security Rule • Federally mandated standard for security practices • For organizations involved in health or handling health-related information, including much research data • Defines practices necessary to conduct business electronically in the health care industry today • Requires organizations to document risk assessment with respect to all security decisions • Some processed are required, but many implementation specifics are merely “addressable” based on risk assessment • There is no “Thou shalt encrypt X data in Y circumstance”

  10. Implications of HIPPA Final Security Rule • Leaves organizations exposed to court rulings when cases are brought by persons claiming harm from exposure of their health data • Requires organizations to know what an expert would determine acceptable risk to be • Standards in other areas can be applied • E.g. FTC has created standards that apply to all companies, including pharmas, healthcare • Specify expert = CISSP or equivalent • Require risk assessment • Reasonableness test applies

  11. 164.306 Security Standards: General Rules Covered entities must do the following: (1) Ensure the confidentiality, integrity, and availability of all electronic protected health information the covered entity creates, receives, maintains, or transmits. (2) Protect against any reasonably anticipated threats or hazards to the security or integrity of such information. (3) Protect against any reasonably anticipated uses or disclosures of such information that are not permitted or required under subpart E of this part. (4) Ensure compliance with this subpart by its workforce.

  12. Security Rule Sets Standards in 5 Areas • Administrative safeguards • Physical safeguards • Technical safeguards • Organizational requirements • Policies and procedures & documentation requirements Technically, compliance with Security Rule is April, 2005 (with one more year for smaller orgs). But Privacy Rule requires appropriate protections by April, 2003 and the Security Rule defines appropriate protections. Regulators may not audit until 2005+ but litigators will probably not hesitate to bring suit this year.

  13. Security management process Assigned security responsibility Workforce security Information access management Security awareness and training Security incident procedures Contingency plan Evaluation These are “Standards” that specify steps which must be taken or addressed. E.g. a security management process is required to be in place and someone must be assigned responsibility for security, but management of passwords is addressable. Data backup plan and a disaster plan are required, but testing of contingency plan is addressable. 1. Administrative Safeguards

  14. Facility access controls Workstation use Workstation security. Device and media controls Access control. Integrity Person or entity authentication Transmission security 2. Physical Safeguards 3. Technical Safeguards 4. Organizational Requirements 5. Policies/Procedures/ Documentation • Business associate contracts or other arrangements. • Requirements for group health plans • Policies and procedures. • Documentation

  15. Final Rule’s “Flexible” Approach (1) Covered entities may use any security measures that allow the covered entity to reasonably and appropriately implement the standards and implementation specifications as specified in this subpart. (2) In deciding which security measures to use, a covered entity must take into account the following factors: (i) The size, complexity, and capabilities of the covered entity. (ii) The covered entity's technical infrastructure, hardware, and software security capabilities. (iii) The costs of security measures. (iv) The probability and criticality ofpotential risks to electronic protected health information. Are you qualified to determine probability and criticality of potential risks?

  16. “Addressable” Implementation Specifications Some implementation specifications are required and must be implemented as specified. Others are “addressable” which means you must: assess whether the implementation specification is a reasonable and appropriate safeguard in its environment, when analyzed with reference to the likely contribution to protecting the entity's electronic protected health information; and, as applicable to the entity-- (A) Implement the implementation specification if reasonable and appropriate; or (B) If implementing the implementation specification is not reasonable and appropriate-- (1) Document why it would not be reasonable and appropriate to implement the implementation specification; and (2) Implement an equivalent alternative measure if reasonable and appropriate.

  17. The Security Toolset • Basic tools are well-established: • Firewalls, AV, IDS, encryption, VPN, authentication • But standards are still evolving to meet newchallenges, like Web services and wireless • Firewalls now practical for wide range of systems • Easier,cheaper, allow DMZ architecture, VPN functions • Anti-virus expanding to include content filtering • Preventing system abuse as well as malicious code • Intrusion detection and systems surveillance • Used against internal and external activity • Encryption being more widely used

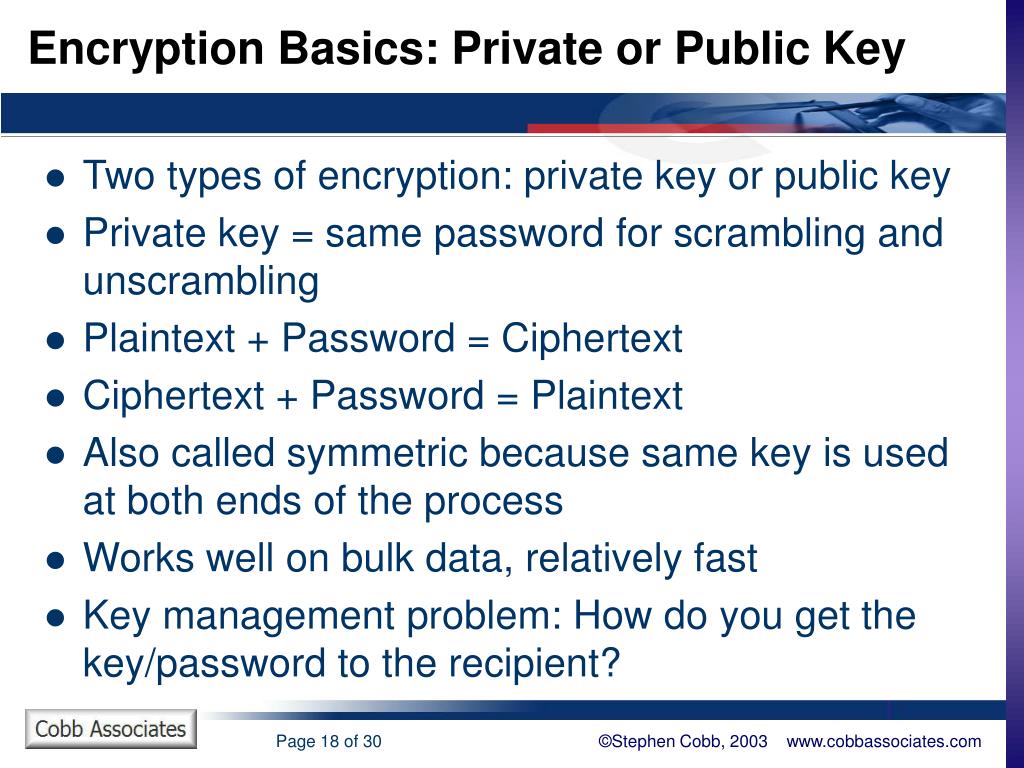

  18. Encryption Basics: Private or Public Key • Two types of encryption: private key or public key • Private key = same password for scrambling and unscrambling • Plaintext + Password = Ciphertext • Ciphertext + Password = Plaintext • Also called symmetric because same key is used at both ends of the process • Works well on bulk data, relatively fast • Key management problem: How do you get the key/password to the recipient?

  19. Encryption Basics: Public Key • Public key encryption uses a pair of keys • One you can share (public) and one you keep secret (private) • My Private Key + Your Public Key + Plaintext = Ciphertext • Ciphertext + Your Private Key + My Public Key = Plaintext • The keys are mathematically linked so that: • If I use my private key and your public key to encipher a message then only you can decipher, using your private key, my public key • Because public key can be public, key exchange is easier than with symmetric private key, but processing is slow • So only encrypt a key to symmetrically encrypted bulk data • Public key also used in digital signatures for message authenticity—proving from whom and as sent

  20. Digital Signature Defined • It is an actual transformation of the message itself that incorporates a "secret" known only to the signer, and is therefore tied to both the signer and the message being signed • A signer's digital signature will be different for each different document he or she signs • All digital signatures can be consider electronic signatures (21 CFR Part 11) • But not all electronic signatures are digital signatures

  21. Digital signatures use public key encryption So making public key encryption available serves several purposes: Message auth Bulk encryption Electronic signing

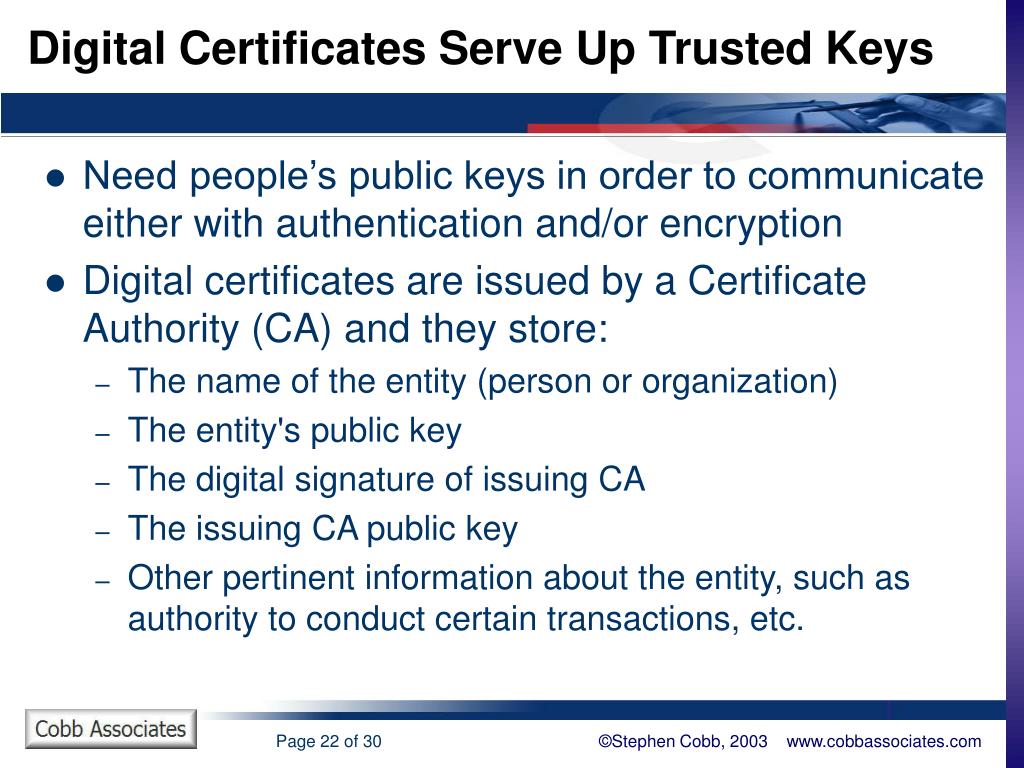

  22. Digital Certificates Serve Up Trusted Keys • Need people’s public keys in order to communicate either with authentication and/or encryption • Digital certificates are issued by a Certificate Authority (CA) and they store: • The name of the entity (person or organization) • The entity's public key • The digital signature of issuing CA • The issuing CA public key • Other pertinent information about the entity, such as authority to conduct certain transactions, etc.

  23. This the Public Key Infrastructure (PKI) Design Deploy Darn well train people how to use it • Required to enable use of public key encryption • Employs directories to serve up public keys of parties to transactions, stored in digital certificates • Being deployed for 21 CFR Part 11 • But PKI, digital certificates and electronic signatures are NOT secure without proper support

  24. In Some Cases Some Data Require Encryption • Encrypted storage • Where access controls are not enough, or to enforce granularity in access controls • Encrypted transfer • When communication channel is not secure • E.g. Internet, phone lines at home, on road • HIPAA does not say that data travelingon the Internet has to be encrypted, but • Judge will not be asking “Was it PHI?” • Will be asking “Why wasn’t it encrypted?” • You won’t find be able to a credible witness to say there was no need to encrypt it

  25. Encryption Needs Protection • PKI, digital certificates, electronic signatures, and VPNs are NOT secure without proper support • Access controls, training and awareness are required • The more heavily you rely on credentials • The more heavily they must be defended • They are at risk from: • weak passwords, lost laptops, loose PDAs • careless wireless, lazy dial-ins • thoughtless road users, worm and virus victims

  26. None of it Works Without Authentication

  27. Trouble Ahead? • Wireless is rapidly expanding • Local networks on 802.11 • Wide area via GPRS • Wireless today is relatively insecure, even when default settings are changed and encryption is on • Standards for better protection are emerging • Out-of-the-office access is a major headache • Notebooks, PDAs and cell phones all have potential to be stolen/hacked and used to access network/data • More and more people will sue over privacy • Compliance with laws like HIPAA will not be a slam dunk defense because HIPAA does not specify exactly what kinds of protection are acceptable

  28. Your Best Weapon? Training & Awareness • Security technology without security training is a waste of money (e.g. anti-virus software v. email attachments) • The single best defense is a security-savvy workforce • Documented training also creates strong defense for the organization in the event of privacy or security breach • “We trained this person not to do that, so we were not negligent” • Training required by regulations but more importantly by due diligence • Eli Lilly case was not HIPAA, was costly to the company, and better training could have prevented • Training can be accomplished at reasonable cost per person through technology (web, intranet, video, etc)

  29. Trained Employees are Safer Employees

  30. Thank You! — For More Information • Email Stephen Cobb, CISSP • sc @ cobbassociates.com • Notes: • CISSP = Certified Information System Security Professional • (ISC)2International Information System Certification Consortium • www.isc2.org
