PFMT755-500-3-SPEC

The PFMT755-500-3 3-Line + GND SCIF/TEMPEST Filter with a Low KVAR Design is a specialized piece of equipment typically used in military, defense, and secure communication environments. It is designed to ensure both electrical and electromagnetic security in high-security facilities, such as Sensitive Compartmented Information Facilities.

premierfilters
Download Presentation

PFMT755-500-3-SPEC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

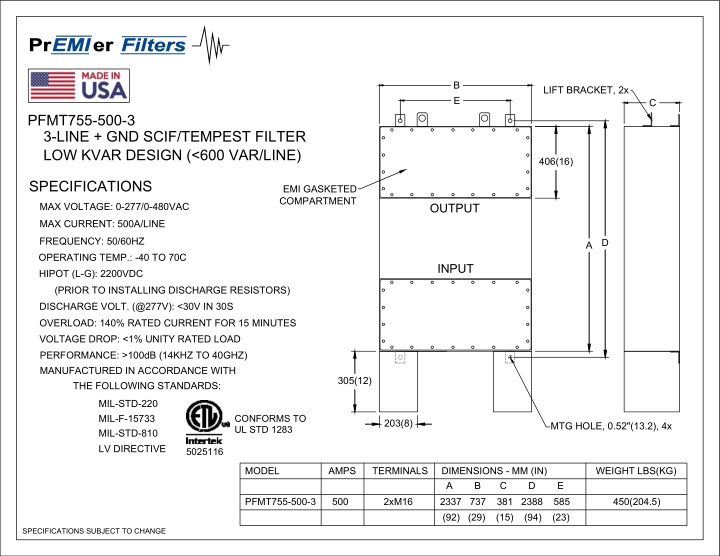

  1. B E LIFT BRACKET, 2x C PFMT755-500-3 3-LINE + GND SCIF/TEMPEST FILTER LOW KVAR DESIGN (<600 VAR/LINE) 406(16) SPECIFICATIONS EMI GASKETED COMPARTMENT MAX VOLTAGE: 0-277/0-480VAC OUTPUT MAX CURRENT: 500A/LINE FREQUENCY: 50/60HZ D A OPERATING TEMP.: -40 TO 70C INPUT HIPOT (L-G): 2200VDC (PRIOR TO INSTALLING DISCHARGE RESISTORS) DISCHARGE VOLT. (@277V): <30V IN 30S OVERLOAD: 140% RATED CURRENT FOR 15 MINUTES VOLTAGE DROP: <1% UNITY RATED LOAD PERFORMANCE: >100dB (14KHZ TO 40GHZ) MANUFACTURED IN ACCORDANCE WITH THE FOLLOWING STANDARDS: 305(12) MIL-STD-220 MIL-F-15733 MIL-STD-810 LV DIRECTIVE CONFORMS TO UL STD 1283 203(8) MTG HOLE, 0.52"(13.2), 4x 5025116 MODEL AMPS TERMINALS DIMENSIONS - MM (IN) WEIGHT LBS(KG) A B C D E PFMT755-500-3 500 2xM16 2337 737 381 2388 585 450(204.5) (92) (29) (15) (94) (23) SPECIFICATIONS SUBJECT TO CHANGE
