PFMT4400S-30: 30A 4-Line EMI Filter for High-Performance Applications

Looking for a high-capacity 4-line EMI filter? The PFMT4400S-30 by Premier Filters is designed to provide superior electromagnetic interference suppression with a 30A rating, ensuring optimal performance for industrial, telecom, and commercial applications.<br><br>Visit Premier Filters to explore the full specifications and benefits of the PFMT4400S-30. Check it out now!

premierfilters
Download Presentation

PFMT4400S-30: 30A 4-Line EMI Filter for High-Performance Applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

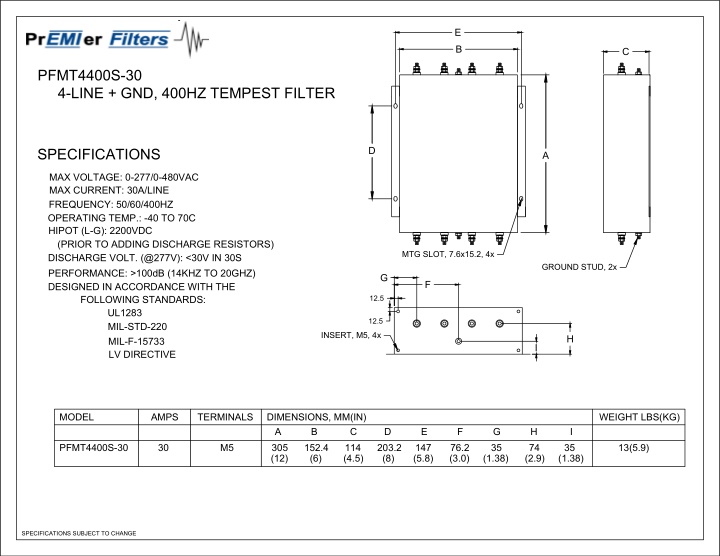

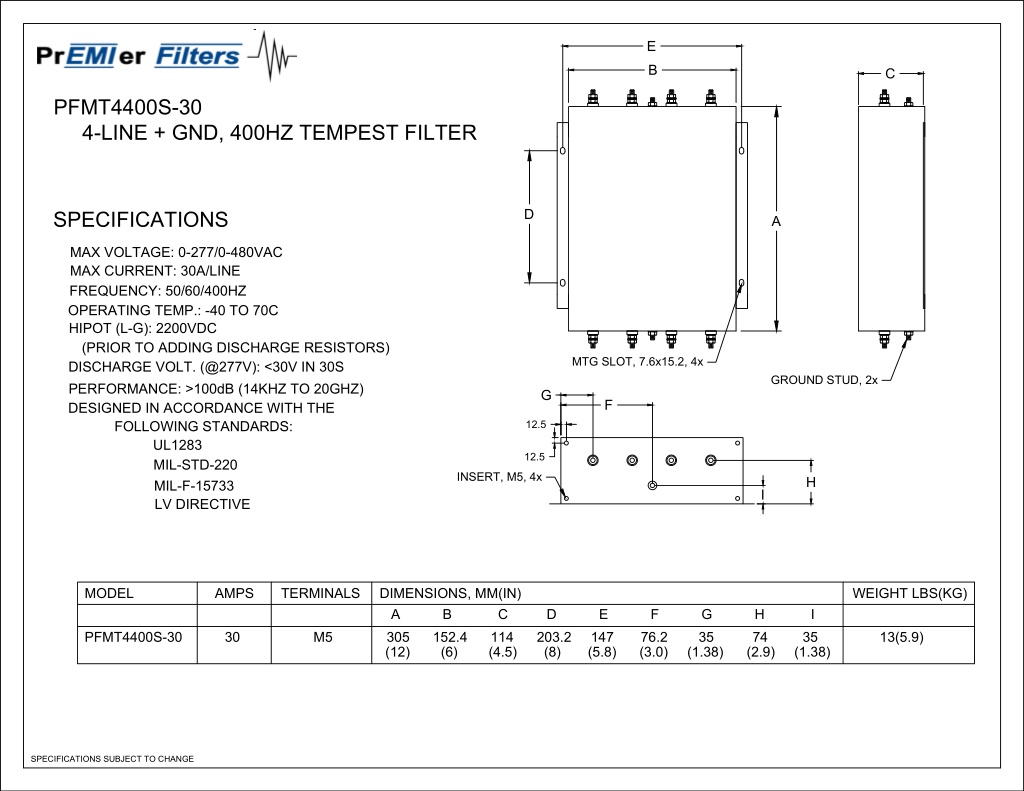

  1. Pr erFilters EMI E B C PFMT4400S-30 4-LINE + GND, 400HZ TEMPEST FILTER D SPECIFICATIONS A MAX VOLTAGE: 0-277/0-480VAC MAX CURRENT: 30A/LINE FREQUENCY: 50/60/400HZ OPERATING TEMP.: -40 TO 70C HIPOT (L-G): 2200VDC (PRIOR TO ADDING DISCHARGE RESISTORS) MTG SLOT, 7.6x15.2, 4x DISCHARGE VOLT. (@277V): <30V IN 30S PERFORMANCE: >100dB (14KHZ TO 20GHZ) DESIGNED IN ACCORDANCE WITH THE FOLLOWING STANDARDS: UL1283 GROUND STUD, 2x G F 12.5 12.5 MIL-STD-220 MIL-F-15733 LV DIRECTIVE INSERT, M5, 4x H I MODEL AMPS TERMINALS DIMENSIONS, MM(IN) WEIGHT LBS(KG) A B C D E F G H I PFMT4400S-30 30 M5 305 152.4 114 203.2 147 76.2 35 74 35 13(5.9) (12) (6) (4.5) (8) (5.8) (3.0) (1.38) (2.9) (1.38) SPECIFICATIONS SUBJECT TO CHANGE
