PFMT232S-60-SPEC

The PFMT232S-60-SPEC filter is likely a specific model of EMI (Electromagnetic Interference) filter, commonly used in avionics or industrial applications to reduce electromagnetic interference in electronic systems. However, there doesn't appear to be widely available public information about this exact model. It could be a proprietary or specialized product used in high-performance systems, potentially for military or aerospace applications.

premierfilters
Download Presentation

PFMT232S-60-SPEC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

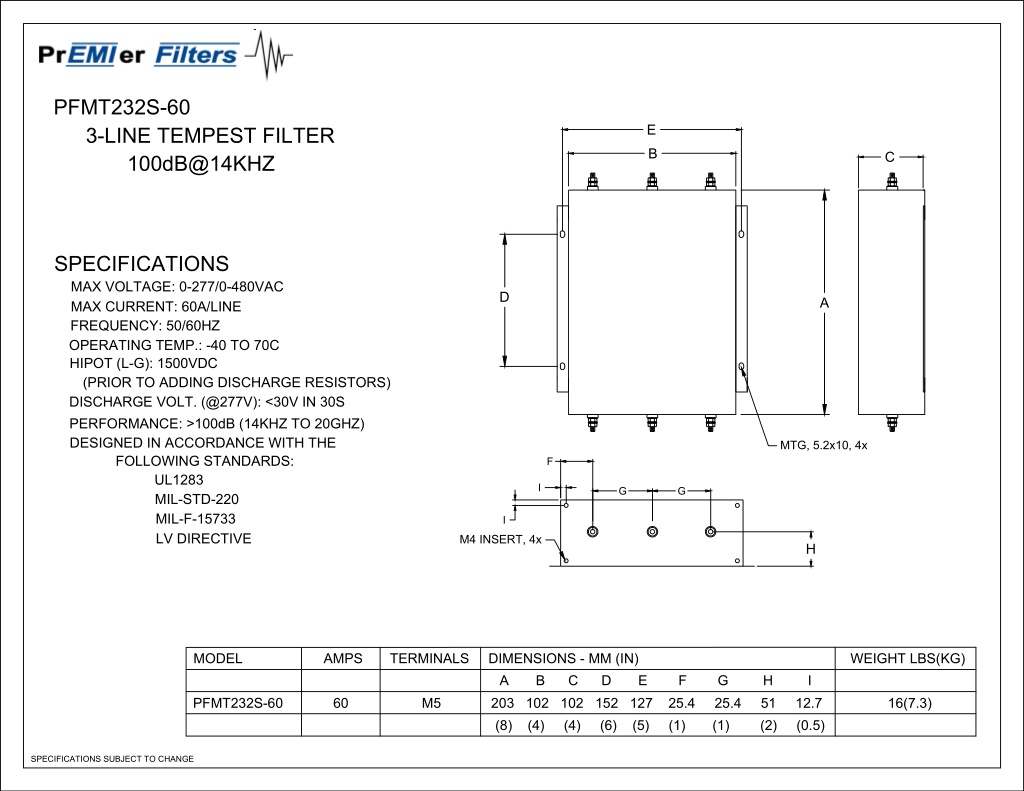

  1. Pr erFilters EMI PFMT232S-60 3-LINE TEMPEST FILTER 100dB@14KHZ E B C SPECIFICATIONS MAX VOLTAGE: 0-277/0-480VAC MAX CURRENT: 60A/LINE D A FREQUENCY: 50/60HZ OPERATING TEMP.: -40 TO 70C HIPOT (L-G): 1500VDC (PRIOR TO ADDING DISCHARGE RESISTORS) DISCHARGE VOLT. (@277V): <30V IN 30S PERFORMANCE: >100dB (14KHZ TO 20GHZ) DESIGNED IN ACCORDANCE WITH THE FOLLOWING STANDARDS: UL1283 MTG, 5.2x10, 4x F I G G MIL-STD-220 MIL-F-15733 LV DIRECTIVE I M4 INSERT, 4x H MODEL AMPS TERMINALS DIMENSIONS - MM (IN) WEIGHT LBS(KG) A B C D E F G H I PFMT232S-60 60 M5 203 102 102 152 127 25.4 25.4 51 12.7 16(7.3) (8) (4) (4) (6) (5) (1) (1) (2) (0.5) SPECIFICATIONS SUBJECT TO CHANGE
