PFMT232S-100-SPEC

TEMPEST is an acronym for u201cTelecommunications and Electrical Machinery Protected from Emanations Security Tempest EMI Power Line Filters are high performance filters which reduce general EMI noise and, more specifically, low level noise that may contain sensitive and/or classified information.

premierfilters
Download Presentation

PFMT232S-100-SPEC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

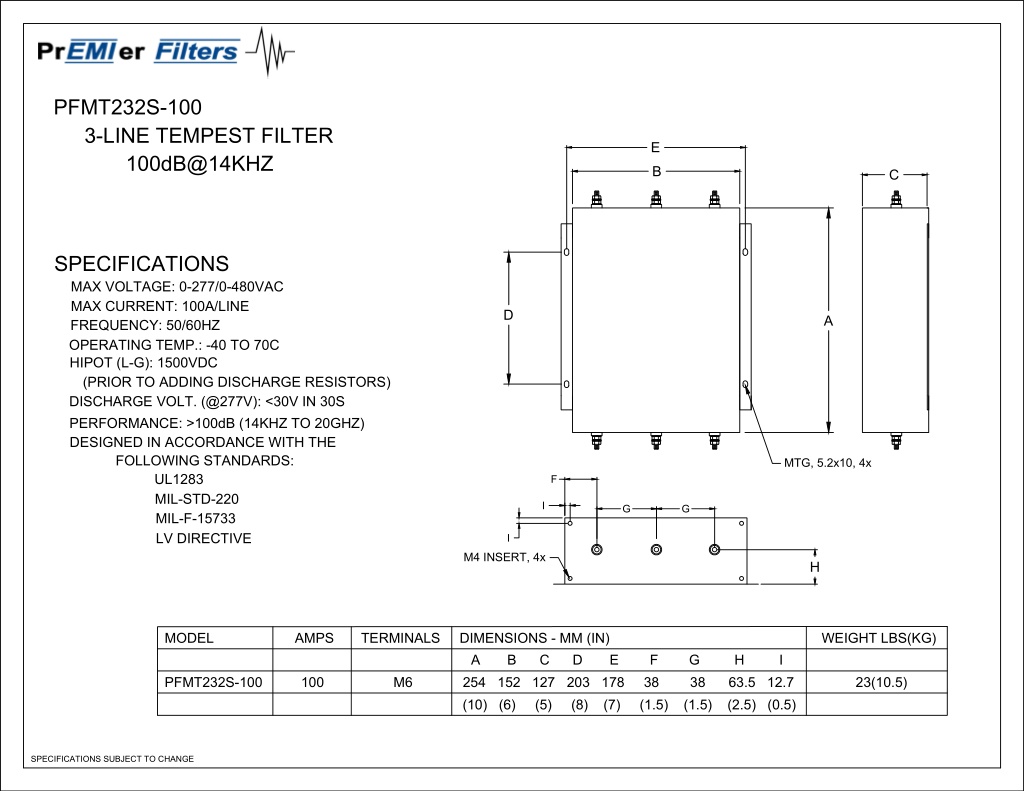

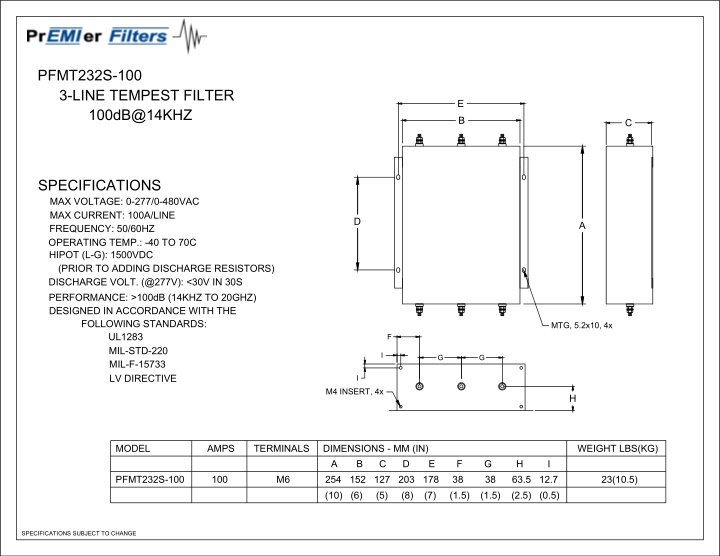

  1. Pr erFilters EMI PFMT232S-100 3-LINE TEMPEST FILTER 100dB@14KHZ E B C SPECIFICATIONS MAX VOLTAGE: 0-277/0-480VAC MAX CURRENT: 100A/LINE D A FREQUENCY: 50/60HZ OPERATING TEMP.: -40 TO 70C HIPOT (L-G): 1500VDC (PRIOR TO ADDING DISCHARGE RESISTORS) DISCHARGE VOLT. (@277V): <30V IN 30S PERFORMANCE: >100dB (14KHZ TO 20GHZ) DESIGNED IN ACCORDANCE WITH THE FOLLOWING STANDARDS: UL1283 MTG, 5.2x10, 4x F MIL-STD-220 MIL-F-15733 LV DIRECTIVE I G G I M4 INSERT, 4x H MODEL AMPS TERMINALS DIMENSIONS - MM (IN) WEIGHT LBS(KG) A B C D E F G H I PFMT232S-100 100 M6 254 152 127 203 178 38 38 63.5 12.7 23(10.5) (10) (6) (5) (8) (7) (1.5) (1.5) (2.5) (0.5) SPECIFICATIONS SUBJECT TO CHANGE
