PFMF920MR-50-1-SPEC

The PFMF920MR-50-1 is a specialized 1-Line Ground MRI Facility Filter, designed to provide effective electromagnetic interference (EMI) suppression in medical facilities, particularly in environments with MRI (Magnetic Resonance Imaging) equipment. This filter is engineered to ensure the stable operation of sensitive medical devices by protecting them from high-frequency noise, voltage spikes, and other power disturbances that could compromise performance or image quality.

premierfilters
Download Presentation

PFMF920MR-50-1-SPEC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

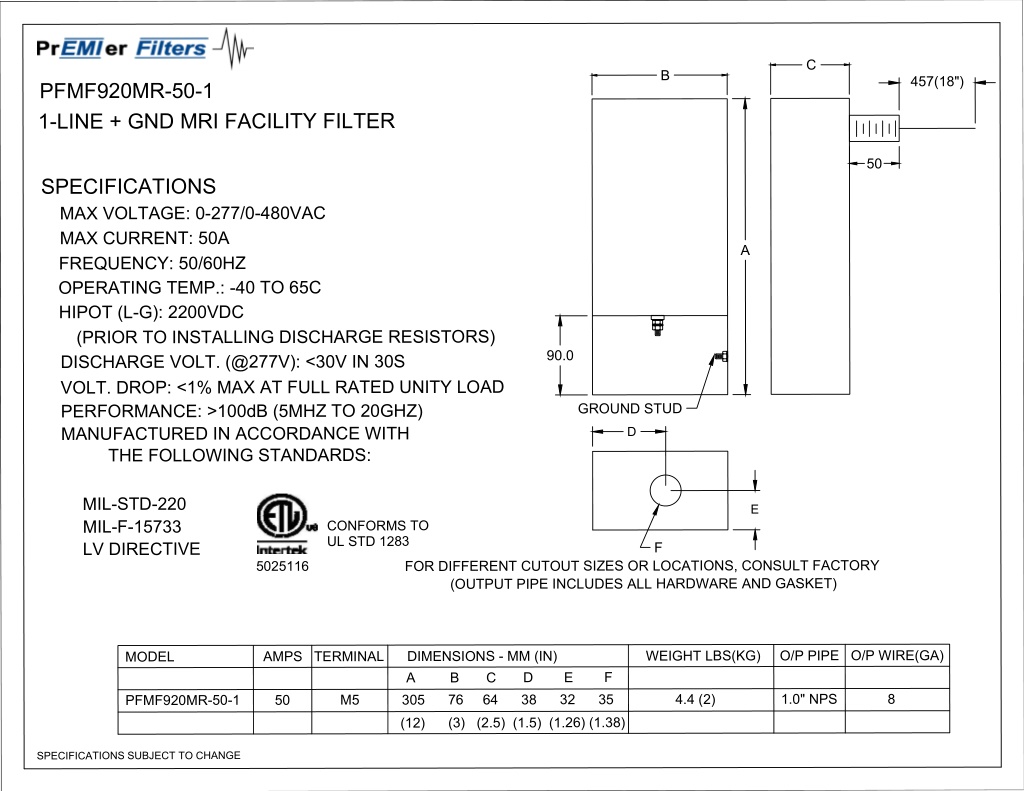

  1. Pr erFilters EMI C B 457(18") PFMF920MR-50-1 1-LINE + GND MRI FACILITY FILTER 50 SPECIFICATIONS MAX VOLTAGE: 0-277/0-480VAC MAX CURRENT: 50A A FREQUENCY: 50/60HZ OPERATING TEMP.: -40 TO 65C HIPOT (L-G): 2200VDC (PRIOR TO INSTALLING DISCHARGE RESISTORS) 90.0 DISCHARGE VOLT. (@277V): <30V IN 30S VOLT. DROP: <1% MAX AT FULL RATED UNITY LOAD PERFORMANCE: >100dB (5MHZ TO 20GHZ) MANUFACTURED IN ACCORDANCE WITH THE FOLLOWING STANDARDS: GROUND STUD D MIL-STD-220 MIL-F-15733 LV DIRECTIVE E CONFORMS TO UL STD 1283 F FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY (OUTPUT PIPE INCLUDES ALL HARDWARE AND GASKET) 5025116 MODEL AMPS TERMINAL DIMENSIONS - MM (IN) WEIGHT LBS(KG) O/P PIPE O/P WIRE(GA) A B C D E F PFMF920MR-50-1 50 M5 305 76 64 38 32 35 4.4 (2) 1.0" NPS 8 (12) (3) (2.5) (1.5) (1.26) (1.38) SPECIFICATIONS SUBJECT TO CHANGE
