The PFMF342S-200 is a high-performance 4-line ground EMI power filter designed to protect sensitive military and secure facility equipment from electromagnetic interference (EMI). This filter is specifically engineered for use in Secure Compartmented Information Facilities (SCIFs) and other high-security environments where signal integrity and operational reliability are paramount.

premierfilters
Download Presentation

PFMF342S-200-SPEC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

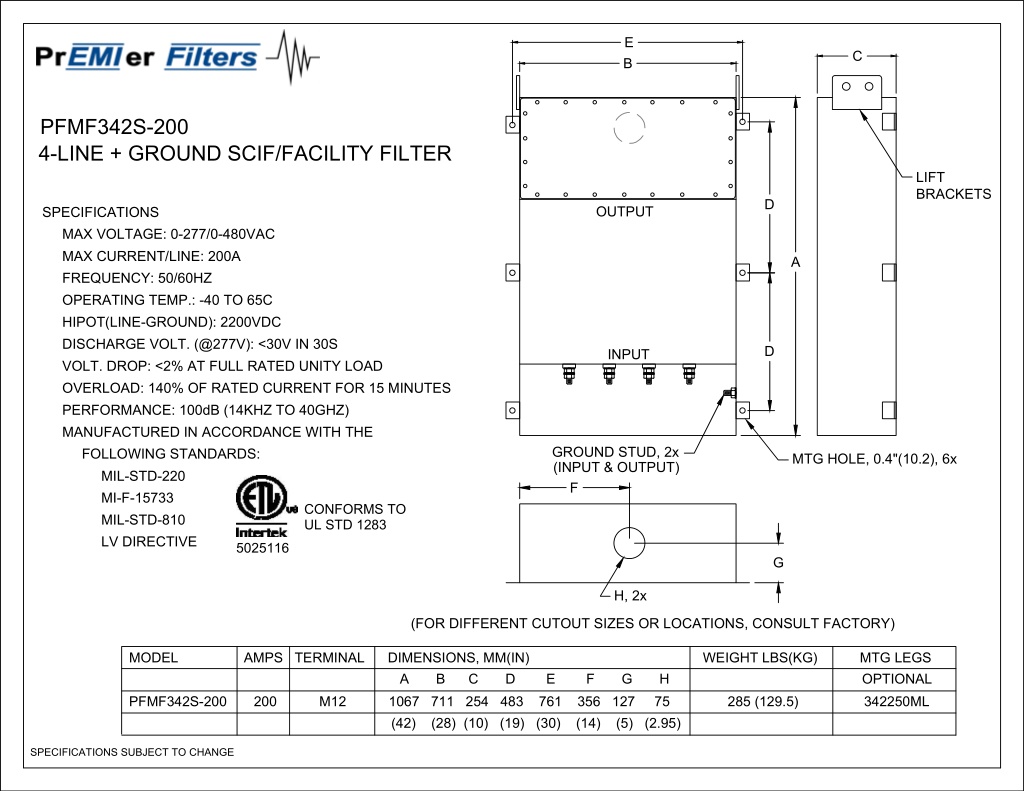

  1. E Pr erFilters EMI C B PFMF342S-200 4-LINE + GROUND SCIF/FACILITY FILTER LIFT BRACKETS D OUTPUT SPECIFICATIONS MAX VOLTAGE: 0-277/0-480VAC MAX CURRENT/LINE: 200A FREQUENCY: 50/60HZ OPERATING TEMP.: -40 TO 65C HIPOT(LINE-GROUND): 2200VDC DISCHARGE VOLT. (@277V): <30V IN 30S VOLT. DROP: <2% AT FULL RATED UNITY LOAD OVERLOAD: 140% OF RATED CURRENT FOR 15 MINUTES PERFORMANCE: 100dB (14KHZ TO 40GHZ) MANUFACTURED IN ACCORDANCE WITH THE FOLLOWING STANDARDS: MIL-STD-220 MI-F-15733 MIL-STD-810 LV DIRECTIVE A D INPUT GROUND STUD, 2x (INPUT & OUTPUT) MTG HOLE, 0.4"(10.2), 6x F CONFORMS TO UL STD 1283 5025116 G H, 2x (FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY) MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LBS(KG) MTG LEGS A B C D E F G H OPTIONAL PFMF342S-200 200 M12 1067 711 254 483 761 356 127 75 285 (129.5) 342250ML (42) (28) (10) (19) (30) (14) (5) (2.95) SPECIFICATIONS SUBJECT TO CHANGE
