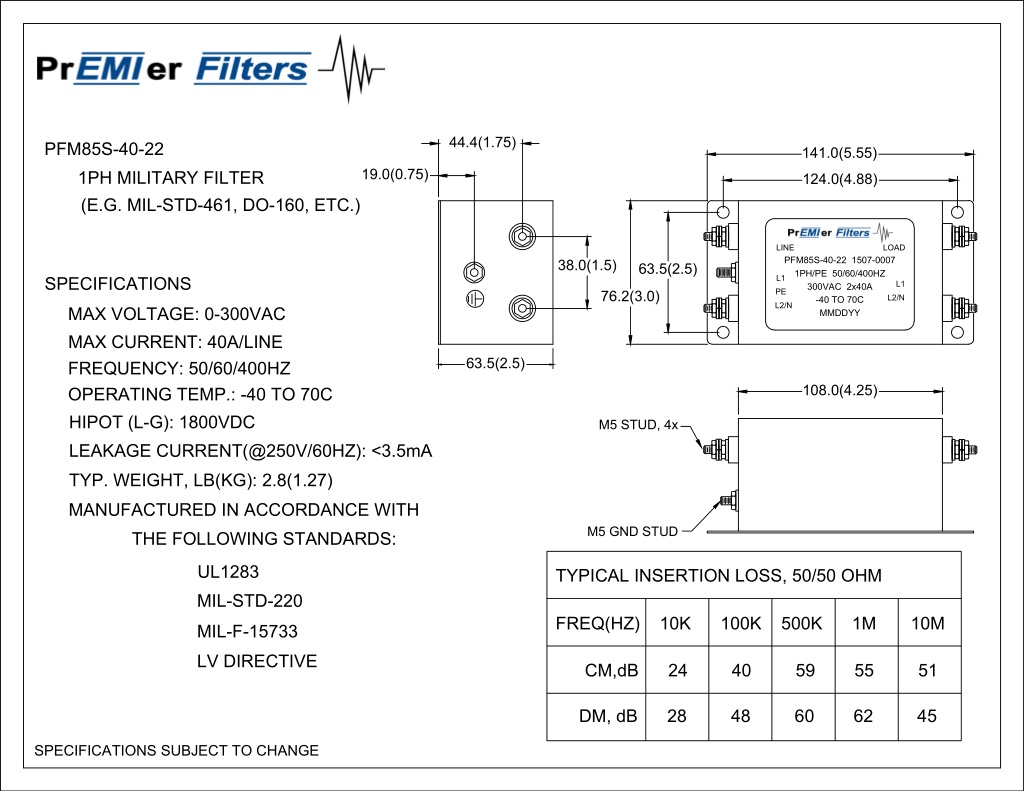

  1. Pr erFilters EMI 44.4(1.75) PFM85S-40-22 141.0(5.55) 19.0(0.75) 1PH MILITARY FILTER (E.G. MIL-STD-461, DO-160, ETC.) 124.0(4.88) Pr erFilters EMI LINE LOAD PFM85S-40-22 1507-0007 38.0(1.5) 63.5(2.5) 1PH/PE 50/60/400HZ L1 SPECIFICATIONS L1 300VAC 2x40A PE 76.2(3.0) L2/N -40 TO 70C MMDDYY L2/N MAX VOLTAGE: 0-300VAC MAX CURRENT: 40A/LINE 63.5(2.5) FREQUENCY: 50/60/400HZ 108.0(4.25) OPERATING TEMP.: -40 TO 70C HIPOT (L-G): 1800VDC M5 STUD, 4x LEAKAGE CURRENT(@250V/60HZ): <3.5mA TYP. WEIGHT, LB(KG): 2.8(1.27) MANUFACTURED IN ACCORDANCE WITH M5 GND STUD THE FOLLOWING STANDARDS: UL1283 TYPICAL INSERTION LOSS, 50/50 OHM MIL-STD-220 FREQ(HZ) 10K 100K 500K 1M 10M MIL-F-15733 LV DIRECTIVE CM,dB 24 40 59 55 51 DM, dB 28 48 60 62 45 SPECIFICATIONS SUBJECT TO CHANGE
