  1. Quasi Static Testing Advanced Quasi-Static Testing Technology and Applications Henry Patland 2192 Bering Drive San Jose, CA 95131 hpatland@us-isi.com www.us-isi.com

  2. Topics • Introduction to Quasi-Static Testing • Advanced Quasi-Static Testing Technology • Quasi-Static Testing Applications

  3. QST Testing as a Concept Quasi Static Testing can characterize the GMR/TMR performance, with the following advantages over DET Testing: • Independent of external influence (disk/flying height variation) • Significantly more flexible, with the ability to subject the GMR/TMR to any variety of ambient conditions. • Can analyze pure GMR/TMR performance with higher resolution than DET Testing. • Reduced Risk of Handling or Tester damaging heads • QST Testing is inexpensive, fast, relatively simple, and requires significantly lower maintenance and operating costs.

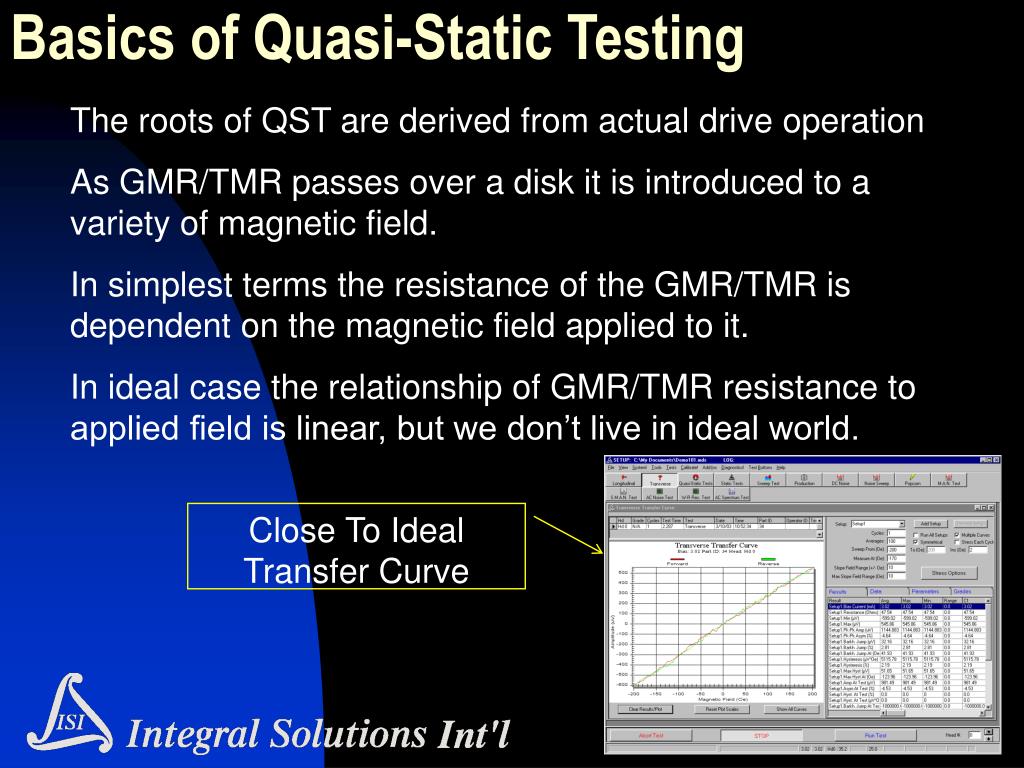

  4. Basics of Quasi-Static Testing The roots of QST are derived from actual drive operation As GMR/TMR passes over a disk it is introduced to a variety of magnetic field. In simplest terms the resistance of the GMR/TMR is dependent on the magnetic field applied to it. In ideal case the relationship of GMR/TMR resistance to applied field is linear, but we don’t live in ideal world. Close To Ideal Transfer Curve

  5. Transverse Transfer Curve Parametrics extracted from QST Transfer Curve

  6. DC Measurements Measures head resistance change versus an externally applied magnetic field through a low frequency channel. The following DC tests can be performed. Transfer curve Stability Bias angle Asymmetry sweep Resistance delta Quasi-Static test

  7. Static Tests (HSA / HDA) Verification of the Preamp Chip, Flex, and Voice Coil assembly can be performed. Voice coil measurements Fault detection Current consumption Pin-Pin and Pin-Ground shorts Temperature Sensor control Passive component measurements RDX / RDY offset voltage

  8. AC Measurements Measures high frequency noise as influenced by write excitation, field excitation, or combinations of both. The following AC tests can be performed Popcorn Noise W/R Recovery Field Induced Noise Characterization Frequency Response

  9. AC Channel Technology • Glitch After Write (Popcorn) • Field Induced Instabilities (Noise) • Spectral Analysis (FFT) • 200 Mhz Analog Bandwidth • 160 Mhz 10-bit digitizer • Low Noise • W/R Recovery < 500 ns • 400 Mhz Write Frequency

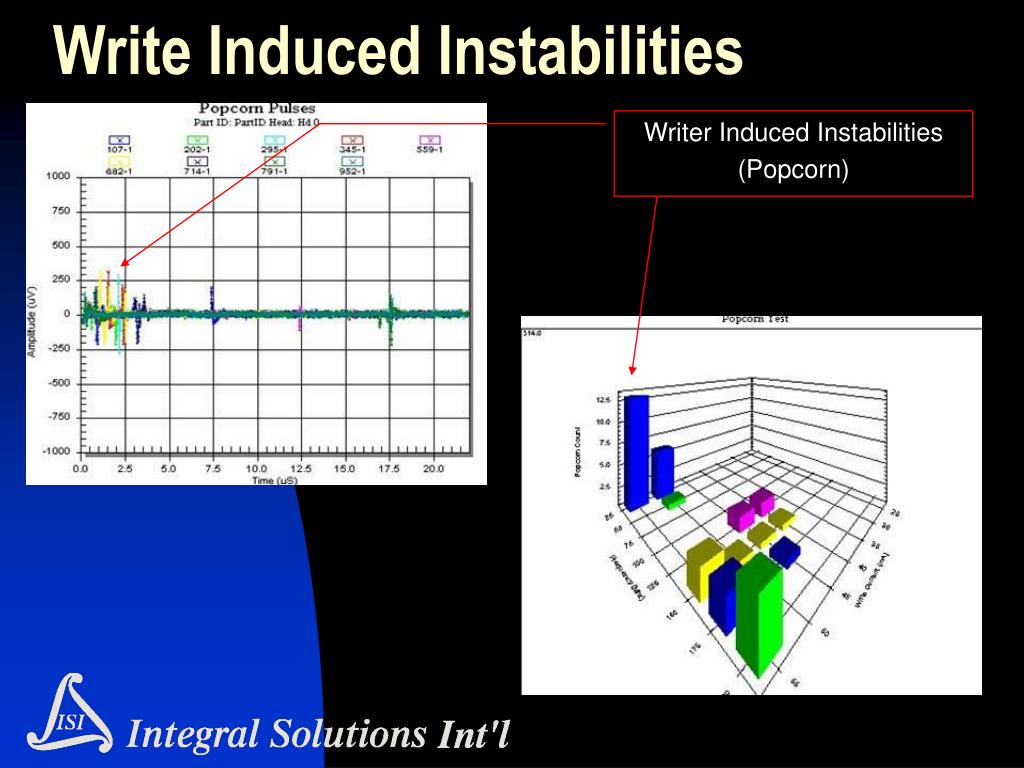

  10. Write Induced Instabilities Writer Induced Instabilities (Popcorn)

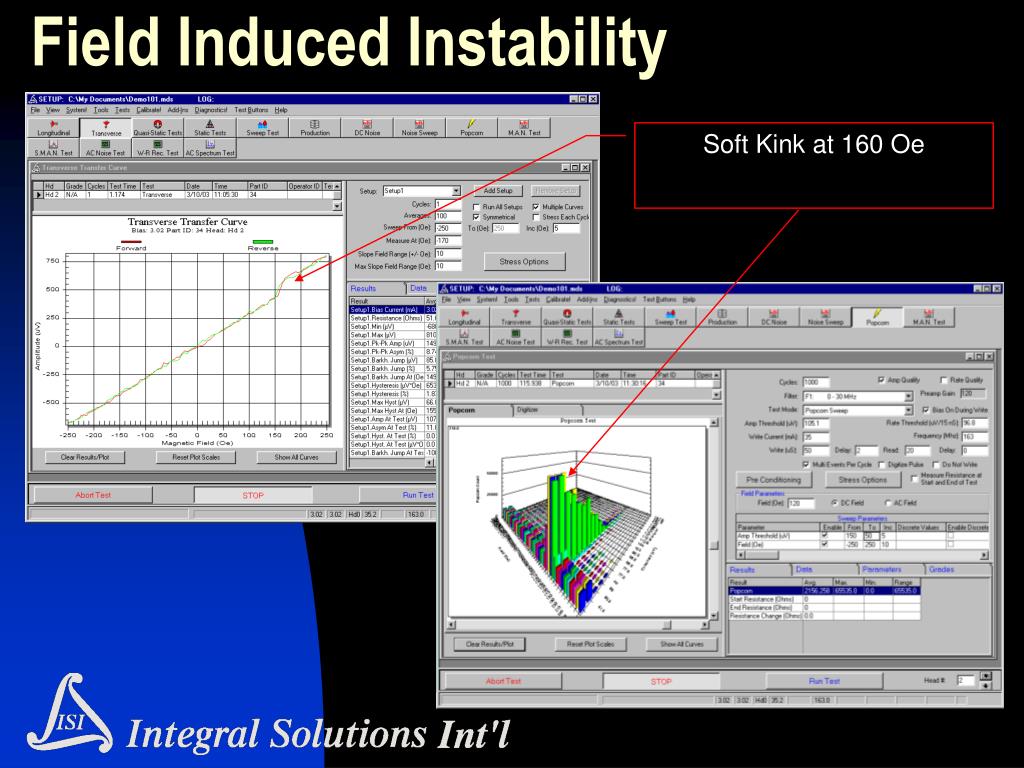

  11. Field Induced Instability Soft Kink at 160 Oe

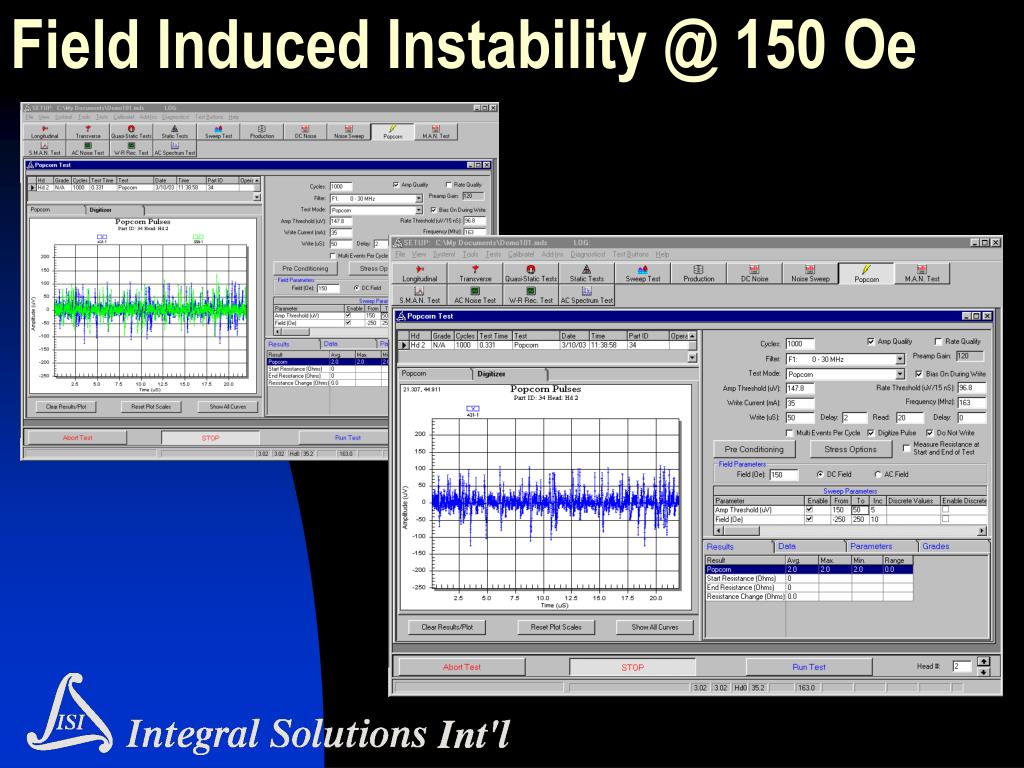

  12. Field Induced Instability @ 150 Oe

  13. Field Induced Instability @160 Oe

  14. Field Induced Instability @ 170 Oe

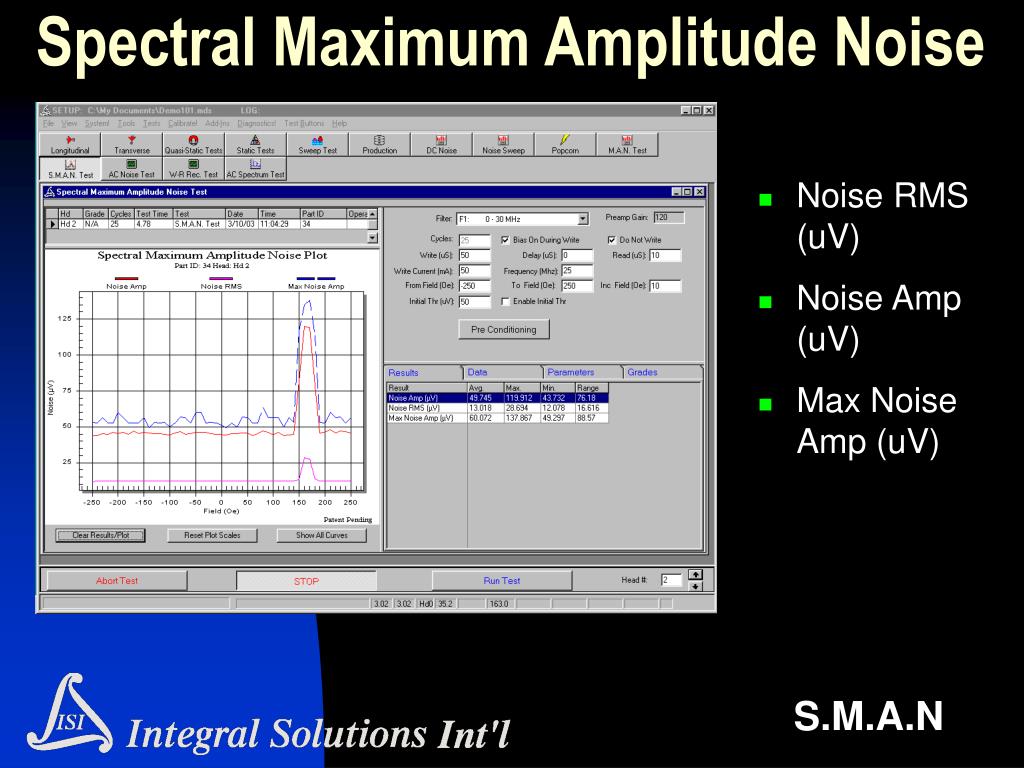

  15. Spectral Maximum Amplitude Noise Noise RMS (uV) Noise Amp (uV) Max Noise Amp (uV) S.M.A.N

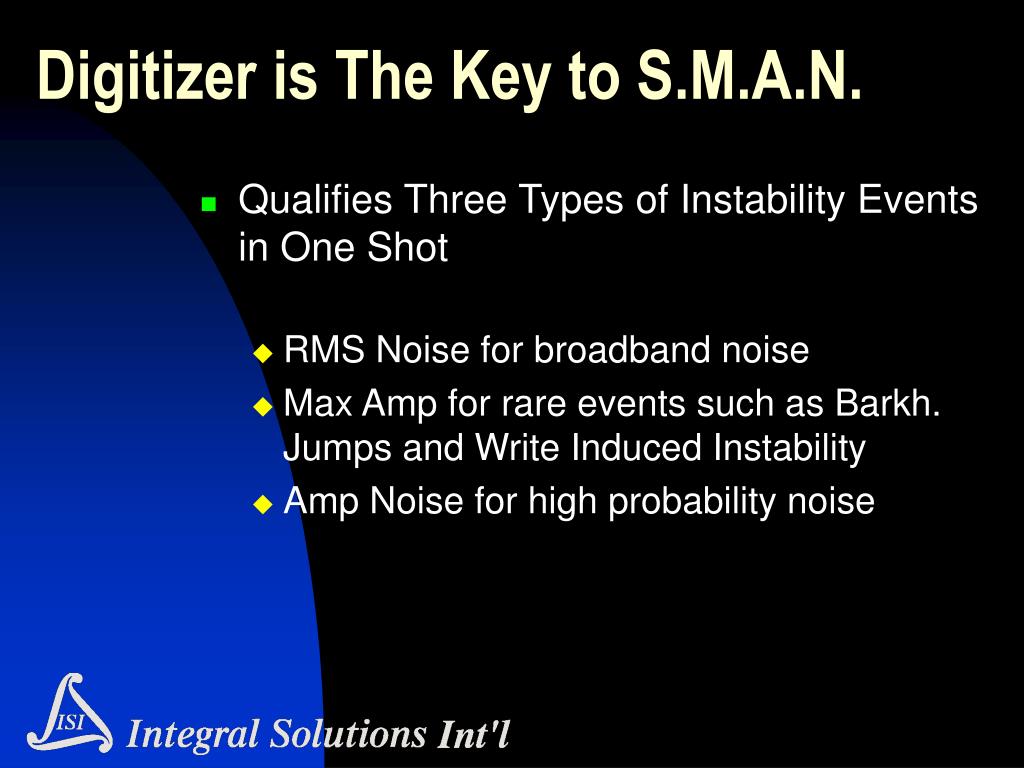

  16. Digitizer is The Key to S.M.A.N. • Qualifies Three Types of Instability Events in One Shot • RMS Noise for broadband noise • Max Amp for rare events such as Barkh. Jumps and Write Induced Instability • Amp Noise for high probability noise

  17. Transfer Curve & S.M.A.N. Soft Kink and Max Noise at 160 Oe

  18. Applications for QST Testing • Bar, Slider Testing • HGA, HSA, HDA Testing • ESD Tolerance Testing • Thermal Reliability Testing

  19. Row/Slider Level Testing

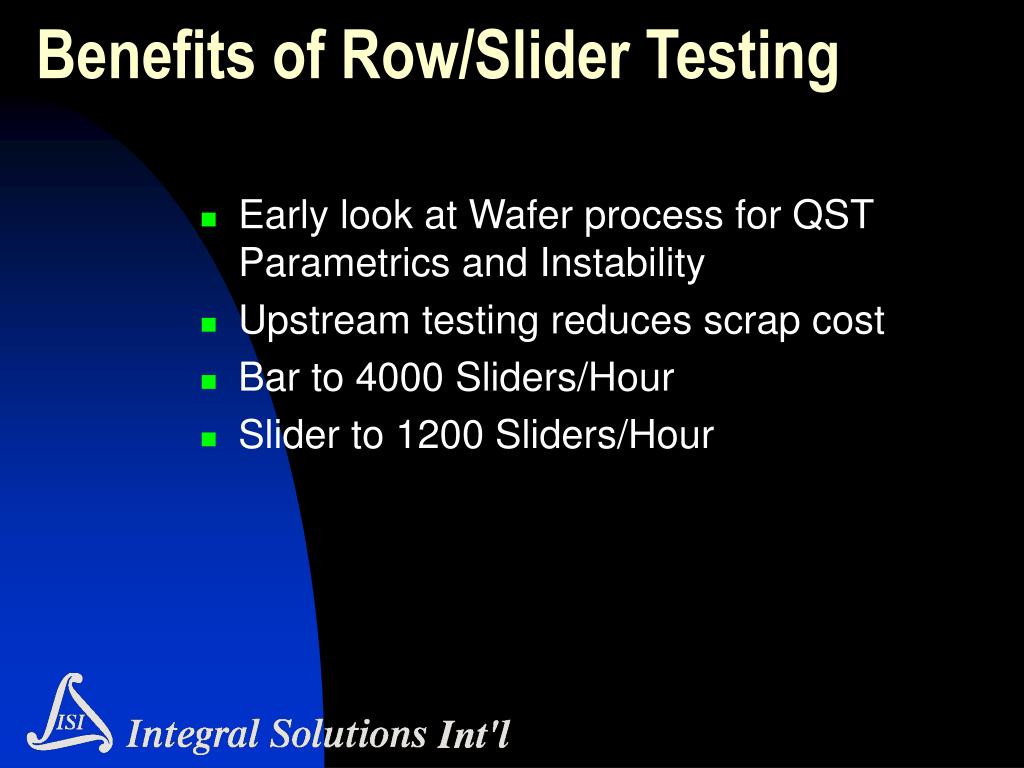

  20. Benefits of Row/Slider Testing • Early look at Wafer process for QST Parametrics and Instability • Upstream testing reduces scrap cost • Bar to 4000 Sliders/Hour • Slider to 1200 Sliders/Hour

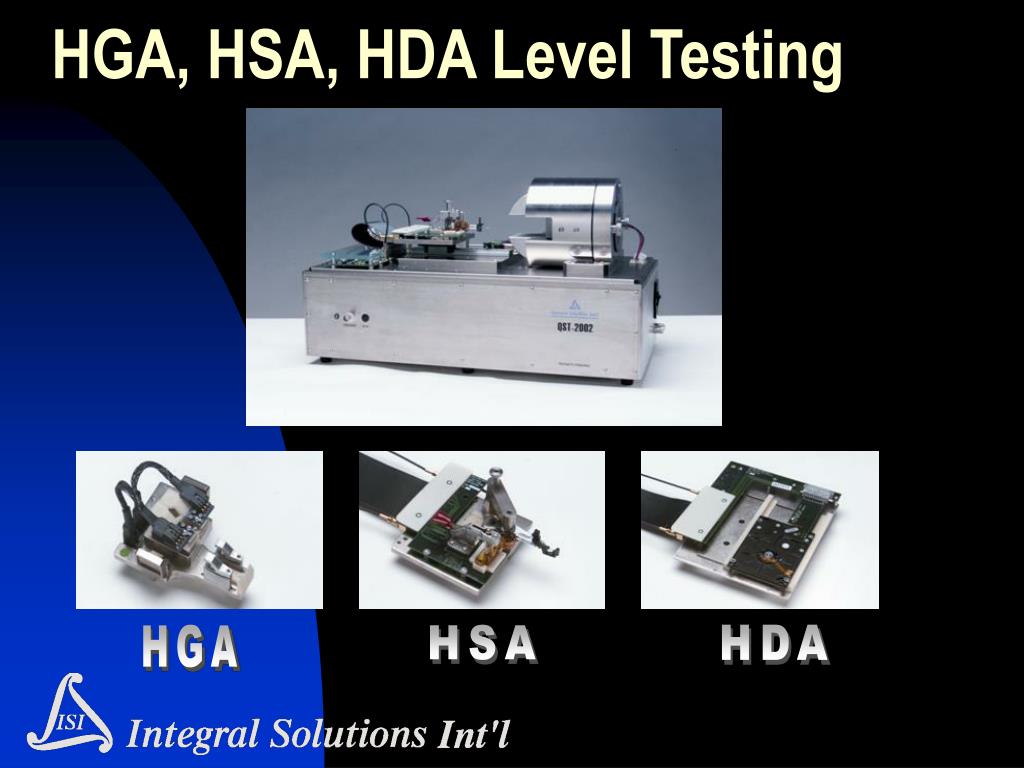

  21. HGA, HSA, HDA Level Testing HGA HSA HDA

  22. Benefits of HGA, HSA, HDA Testing • Process Control • Simple Test/Tooling • Failure Analysis at HDA level • HSA Screening Prior to Drive Build • HDA Screening After Servo Write

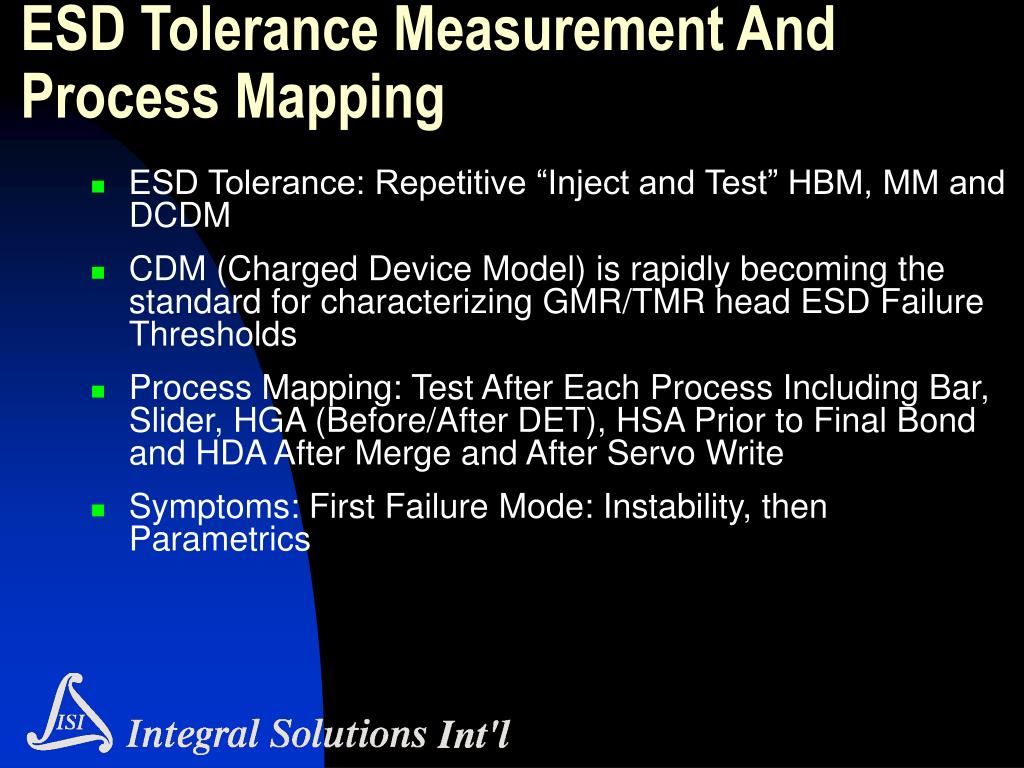

  23. ESD Tolerance Measurement And Process Mapping • ESD Tolerance: Repetitive “Inject and Test” HBM, MM and DCDM • CDM (Charged Device Model) is rapidly becoming the standard for characterizing GMR/TMR head ESD Failure Thresholds • Process Mapping: Test After Each Process Including Bar, Slider, HGA (Before/After DET), HSA Prior to Final Bond and HDA After Merge and After Servo Write • Symptoms: First Failure Mode: Instability, then Parametrics

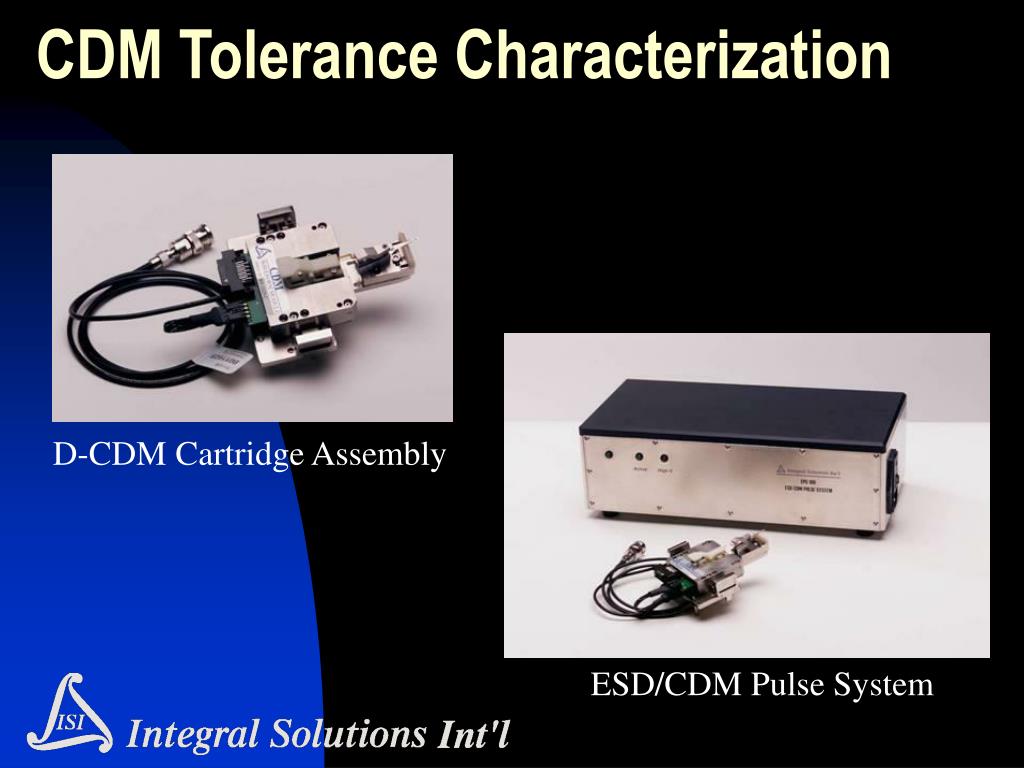

  24. CDM Tolerance Characterization D-CDM Cartridge Assembly ESD/CDM Pulse System

  25. Sensor Damage Multiple distributed melting points HBM: 10% Resistance Change CDM: 100% Resistance Change QST can characterize ESD damage by applying controlled ESD events to GMR head HBM CDM

  26. What can be done about GMR/TMR head ESD Sensitivity ? • Improved design of GMR/TMR head which is less sensitive to ESD • Eliminate ESD events from Manufacturing • Monitor GMR/TMR head performance after every significant process to isolate and eliminate ESD events in Manufacturing As Al Wallash – Maxtor would put it: “Don’t loose your head over ESD” Whatever you do, QST Testing can Help!

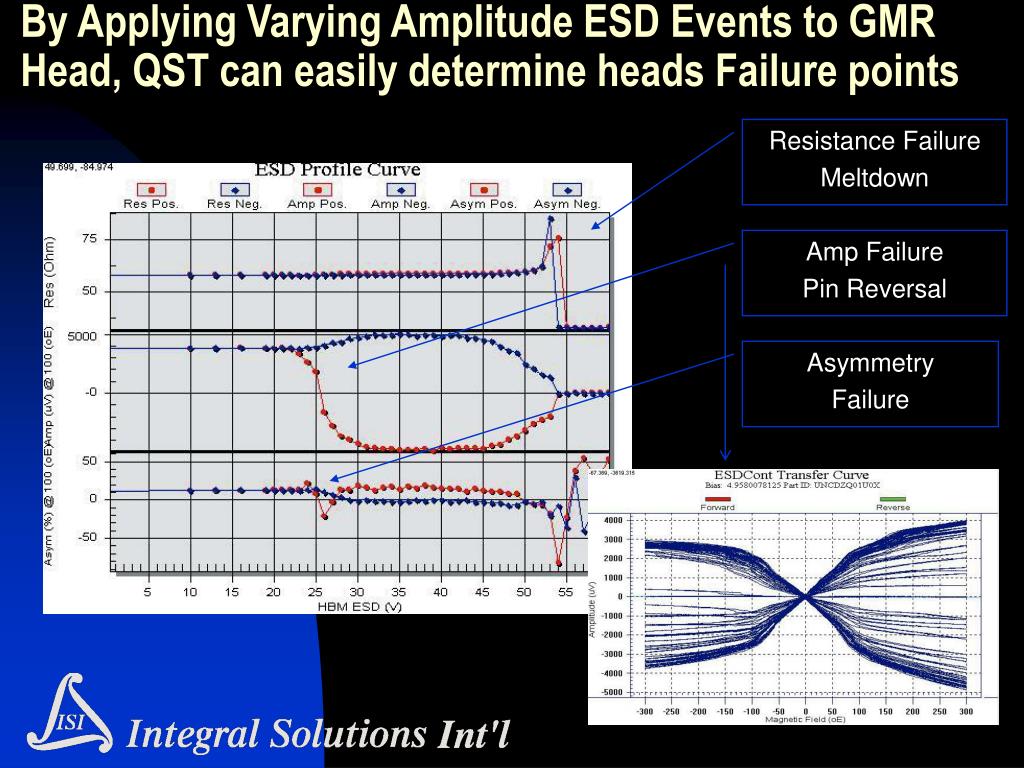

  27. By Applying Varying Amplitude ESD Events to GMR Head, QST can easily determine heads Failure points Resistance Failure Meltdown Amp Failure Pin Reversal Asymmetry Failure

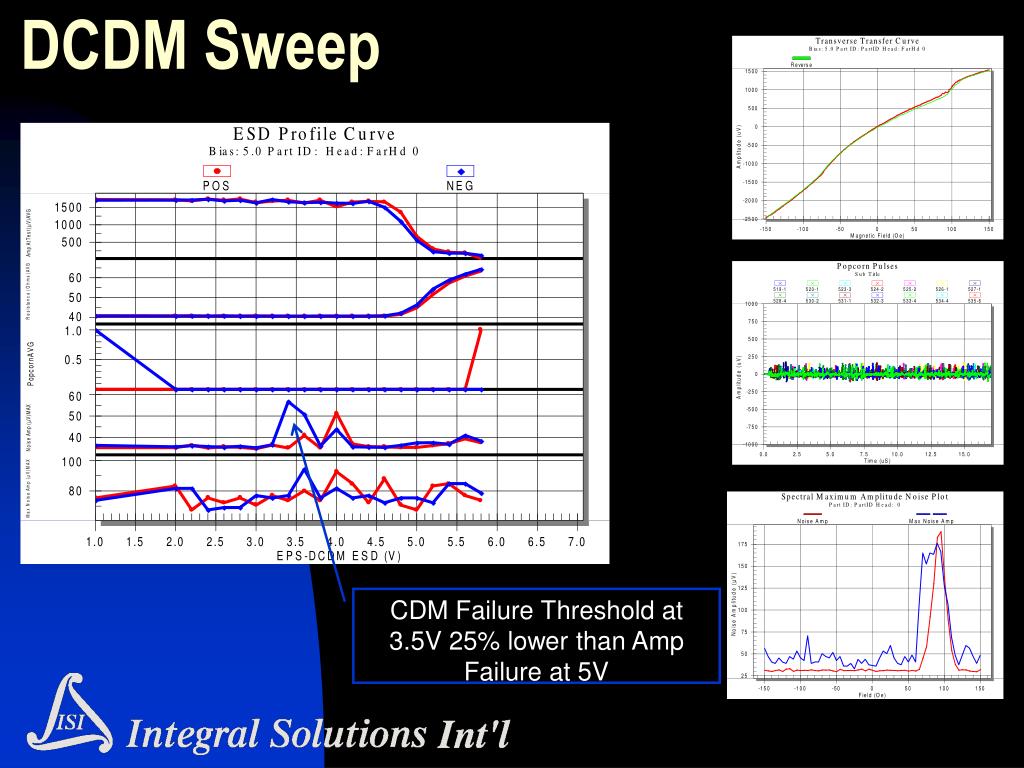

  28. DCDM Sweep CDM Failure Threshold at 3.5V 25% lower than Amp Failure at 5V

  29. Thermal Reliability Testing • Accelerated Life Testing at Row Level • Accelerated Life Testing at HGA Level

  30. Accelerated Life Testing at Row Level

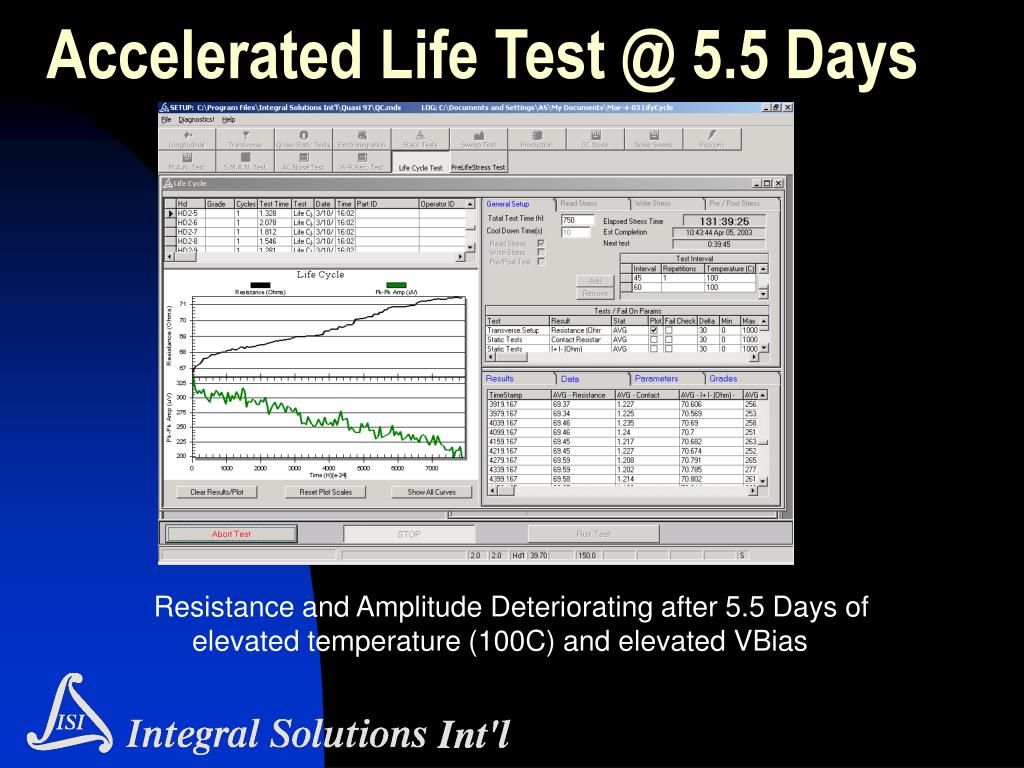

  31. Accelerated Life Test @ 5.5 Days Resistance and Amplitude Deteriorating after 5.5 Days of elevated temperature (100C) and elevated VBias

  32. HGA Level Accelerated Life Test Up to 8 simultaneous HGA testing

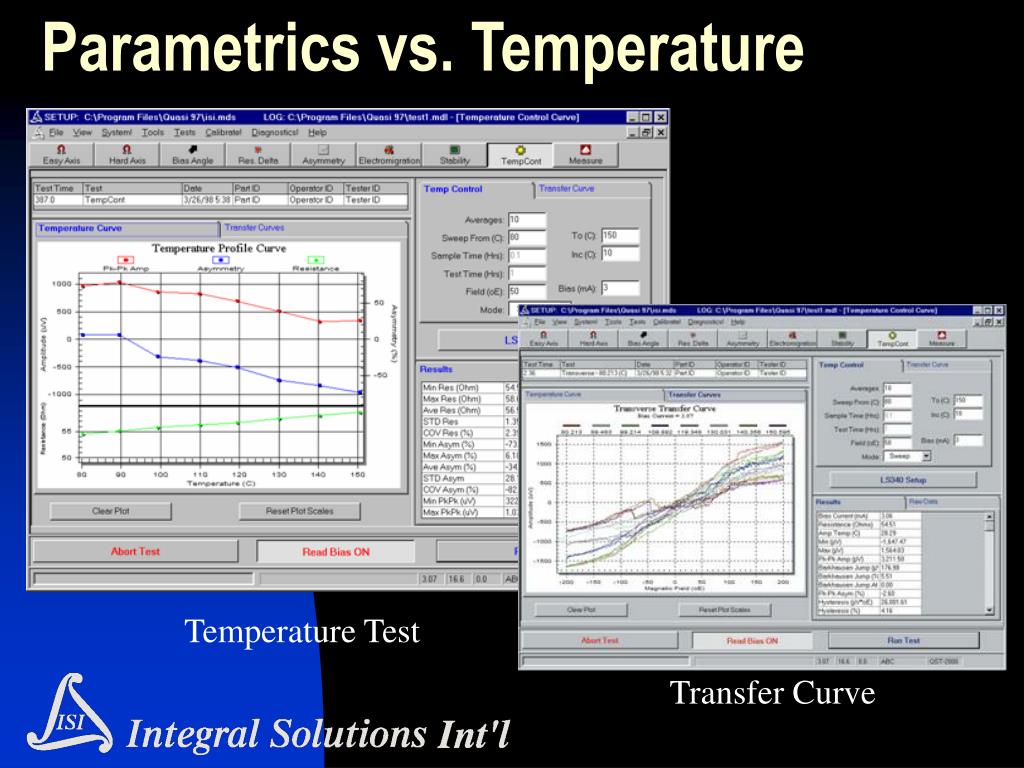

  33. Parametrics vs. Temperature Temperature Test Transfer Curve

  34. Benefits of Thermal Reliability Testing • Accelerated Life Testing Can Predict Failures Before They Occur • Row Level Testing Provides Early Look at Thermal Reliability

  35. Conclusion Don’t loose your head over ESD, Instability or Reliability Whatever you do, QST Testing can Help!

  36. References [1] J.Himle, R.Cross, M.Greenwell, “Drive-Level Instabilities Correlated to Quasi-Static Field Testing”, MMM-Intermag 2001 [2] C. Moore, “A Comparison of Quasi-Static Characteristics and Failure Signatures of GMR Heads subjected to CDM and HBM ESD Events” [3] H. Patland, W. Ogle, “High Frequency Instabilities in GMR Heads Due to Metal-To-Metal Contact ESD Transients”, EOS/ESD Symposium 2002 [4] Integral Solutions Int’l, “Quasi 97” and “QST-2002” Tester

  37. Acknowledgements • Al Wallash –Maxtor • Mark Nichols –Maxtor
