Aquatic Pesticide Monitoring Program

Non-Chemical Aquatic Plant Control

A New Research Program

Nicole David

Ben K. Greenfield

Geoff Siemering

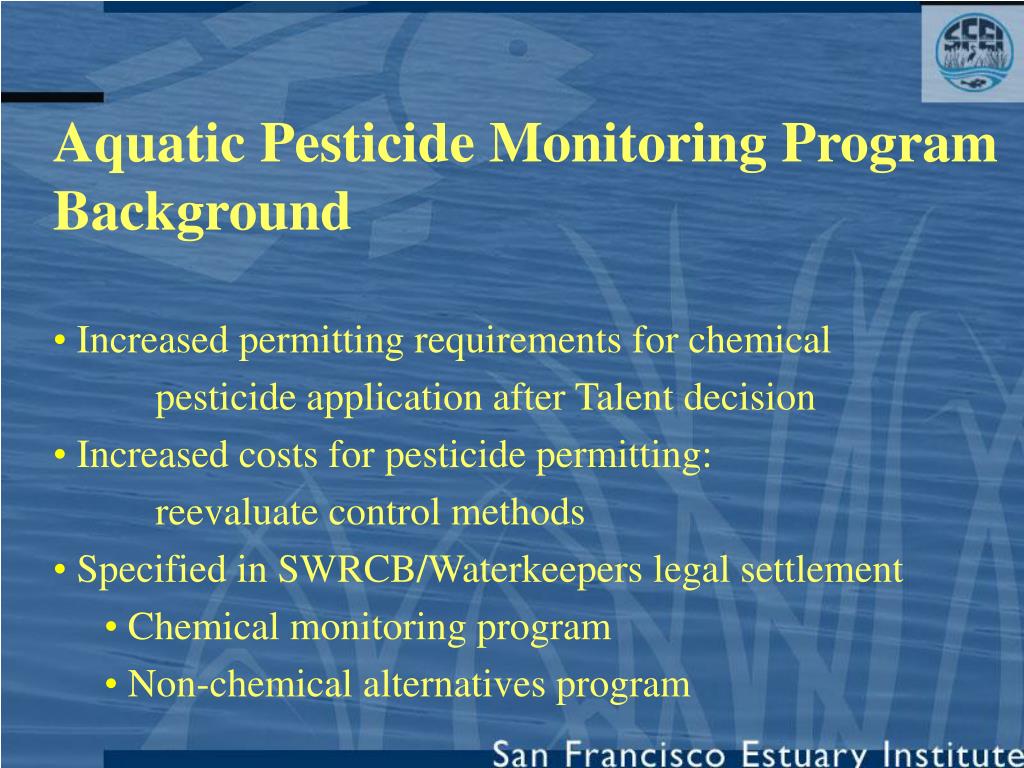

Aquatic Pesticide Monitoring Program

  • Background
  • Increased permitting requirements for chemical

pesticide application after Talent decision

  • Increased costs for pesticide permitting:

reevaluate control methods

  • Specified in SWRCB/Waterkeepers legal settlement
    • Chemical monitoring program
    • Non-chemical alternatives program

Chemical Program Objectives

  • Gather basic sampling data for SWRCB
  • Refine sampling, analytical, and toxicity
  • protocols
  • Identify and fill gaps in pesticide knowledge
  • base
  • Develop monitoring plan handbook

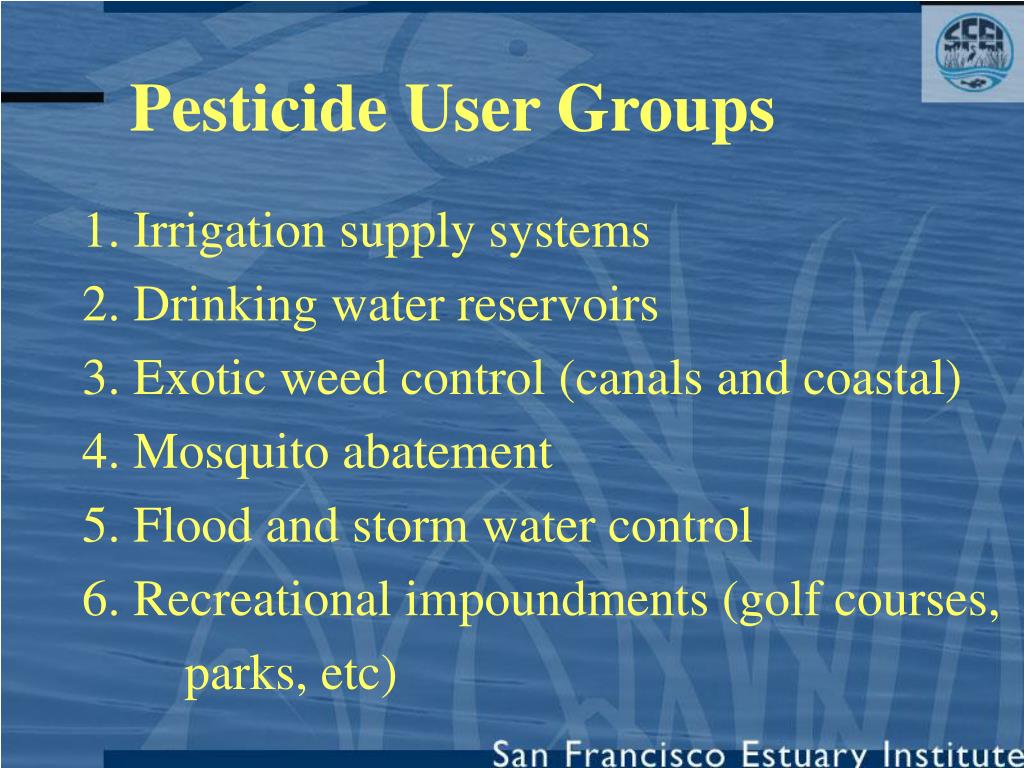

Pesticide User Groups

1. Irrigation supply systems

2. Drinking water reservoirs

3. Exotic weed control (canals and coastal)

4. Mosquito abatement

5. Flood and storm water control

6. Recreational impoundments (golf courses,

parks, etc)

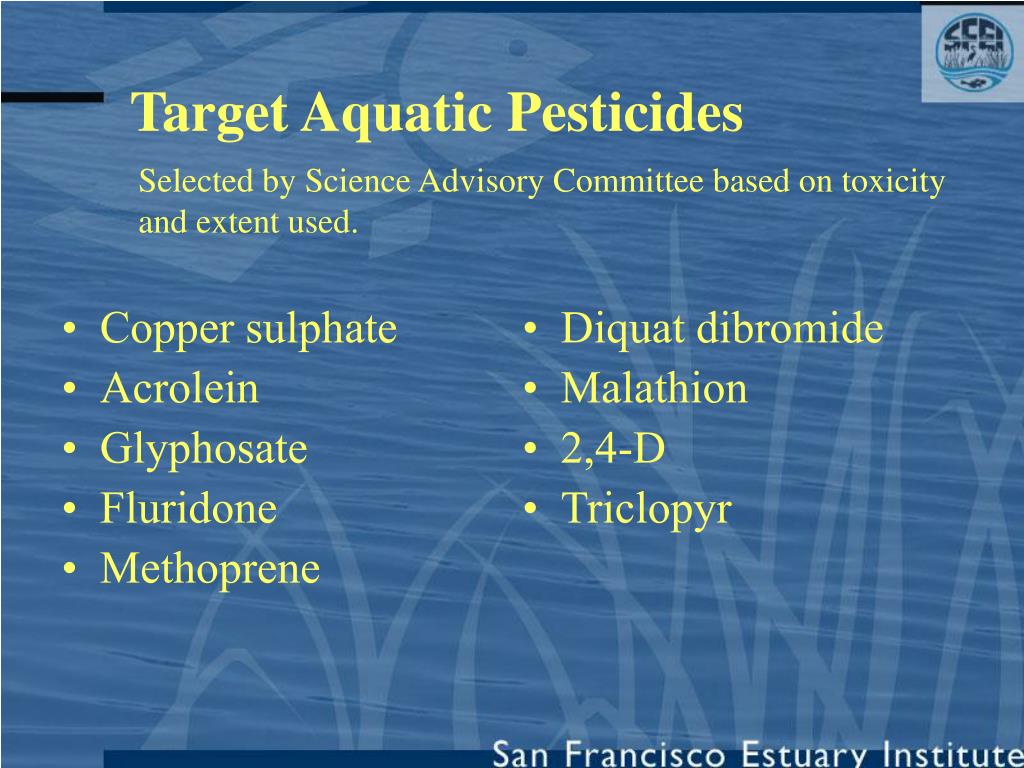

Target Aquatic Pesticides

Selected by Science Advisory Committee based on toxicity

and extent used.

  • Copper sulphate
  • Acrolein
  • Glyphosate
  • Fluridone
  • Methoprene
  • Diquat dibromide
  • Malathion
  • 2,4-D
  • Triclopyr

Monitoring Techniques

  • Chemical Monitoring
    • Water
    • Sediment
    • Porewater
    • Tissue
  • Toxicity Testing
    • Water: EPA 3 species
    • Sediment: H. azteca
    • Tox TIE (by tox labs)
  • Water Quality Parameters
    • Conductivity, pH, Temp., TSS, Alkalinity, [Ca], [Mg], [Na], DOC, DO, Hardness
  • Sediment Quality Parameters
    • Grain size, Nitrate, % solids, TN, TOC, SEM-AVS (for Cu sites)

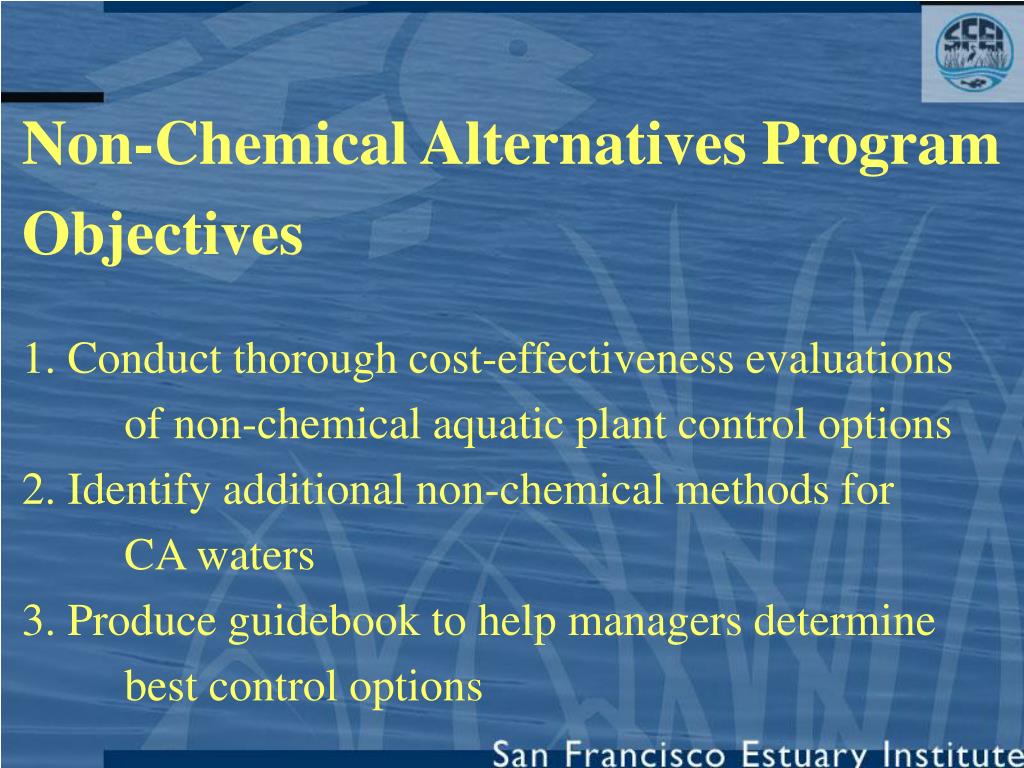

Non-Chemical Alternatives Program


1. Conduct thorough cost-effectiveness evaluations

of non-chemical aquatic plant control options

2. Identify additional non-chemical methods for

CA waters

3. Produce guidebook to help managers determine

best control options

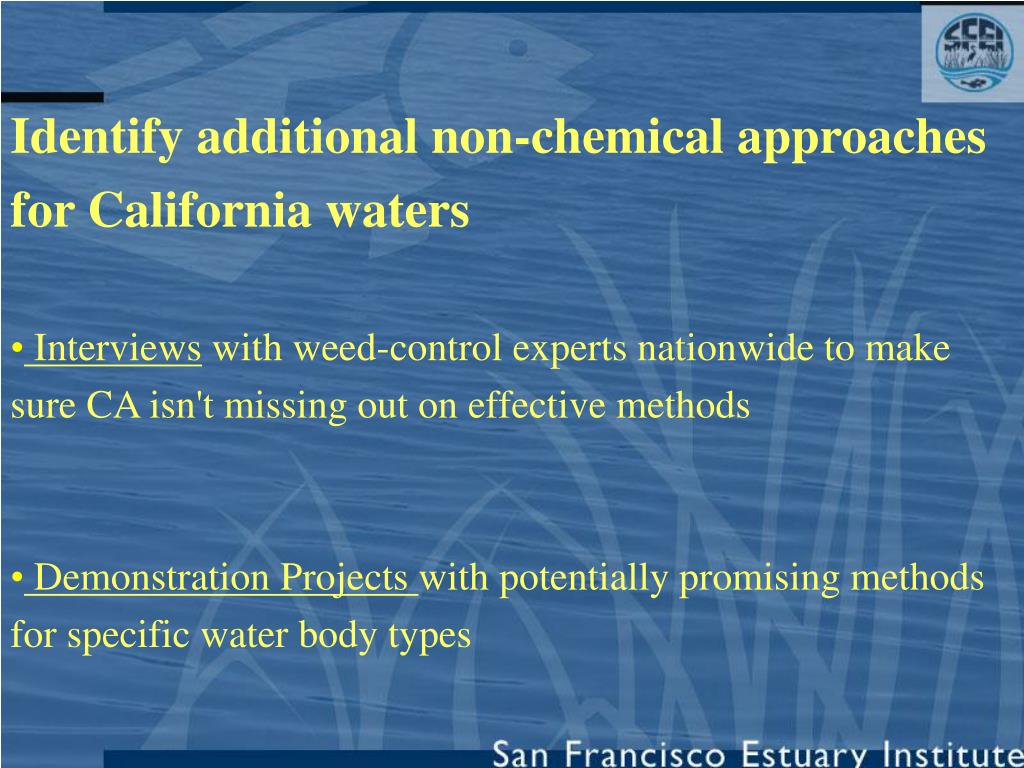

Identify additional non-chemical approaches

  • for California waters
  • Interviews with weed-control experts nationwide to make

sure CA isn't missing out on effective methods

  • Demonstration Projects with potentially promising methods

for specific water body types


Available Methods

  • Biological methods
    • Insects
    • Grass Carp
  • Physical methods
    • Mechanical Harvesting and Cutting
    • Rotovation
    • Weed Rollers
    • Suction Dredging
    • Bottom Barriers
    • Manual Removal
    • Water Drawdown
    • Sediment Excavation/Chaining

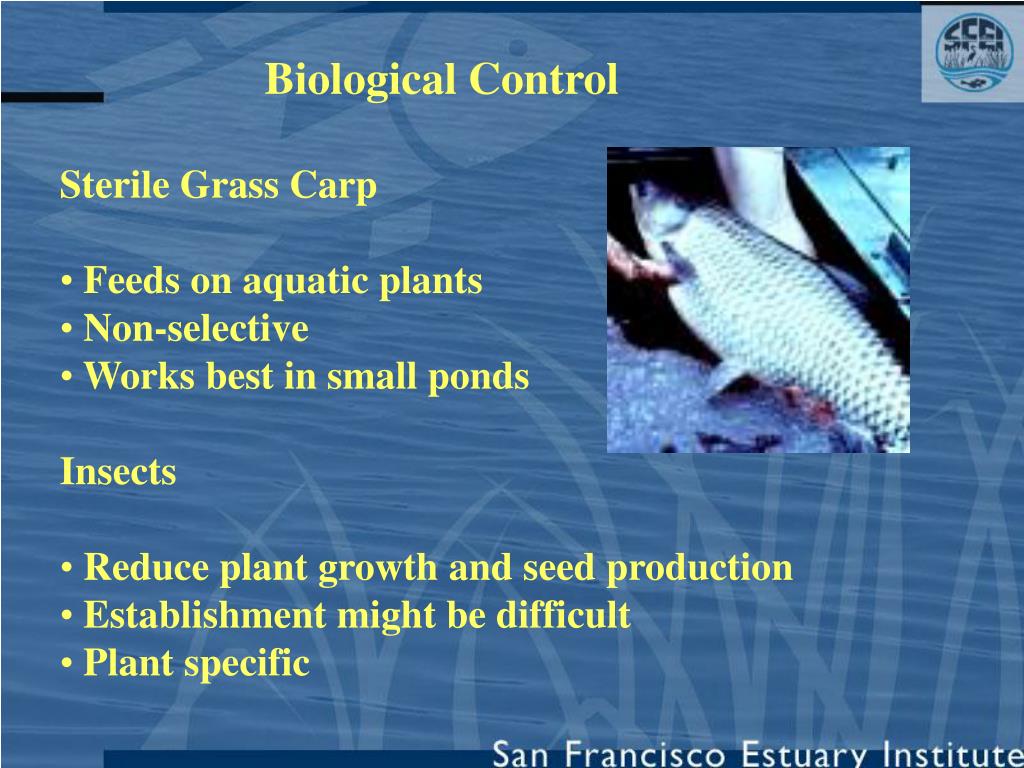

Biological Control

  • Sterile Grass Carp
  • Feeds on aquatic plants
  • Non-selective
  • Works best in small ponds
  • Insects
  • Reduce plant growth and seed production
  • Establishment might be difficult
  • Plant specific

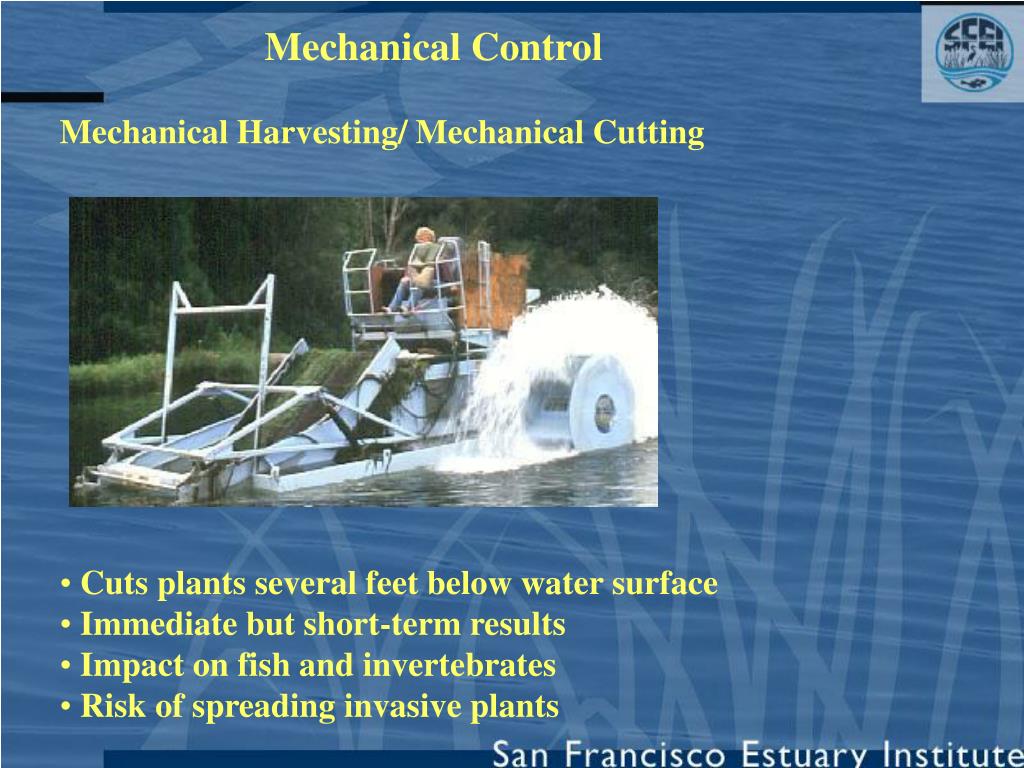

Mechanical Control

  • Mechanical Harvesting/ Mechanical Cutting
  • Cuts plants several feet below water surface
  • Immediate but short-term results
  • Impact on fish and invertebrates
  • Risk of spreading invasive plants

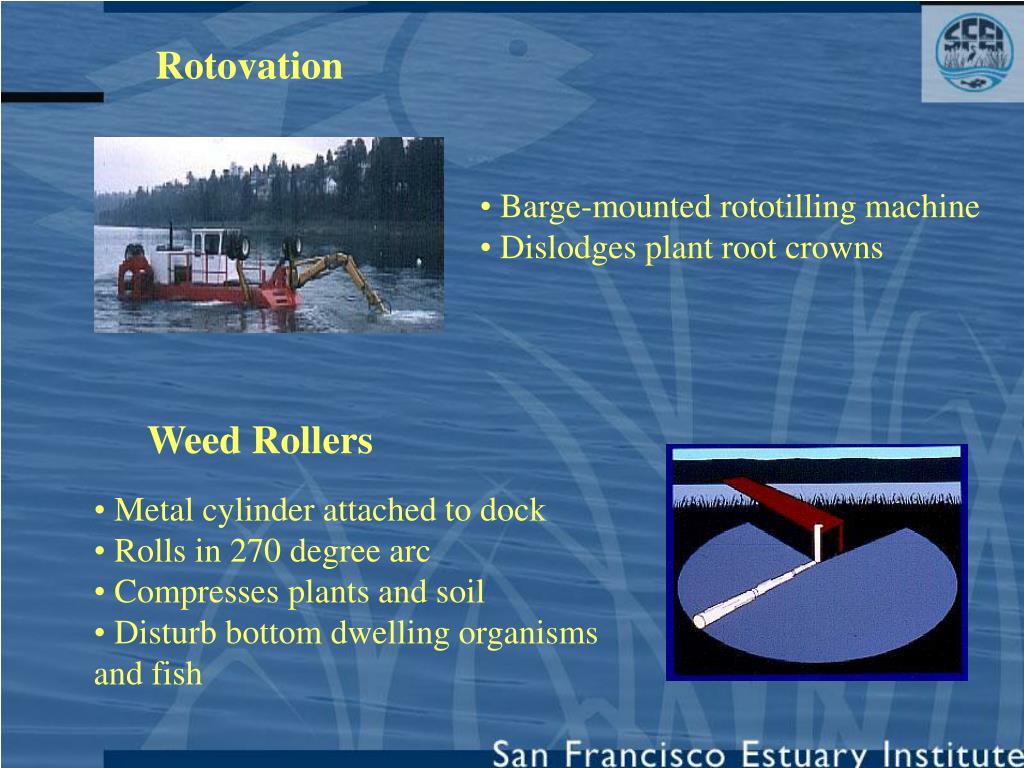

  • Barge-mounted rototilling machine
  • Dislodges plant root crowns

Weed Rollers

  • Metal cylinder attached to dock
  • Rolls in 270 degree arc
  • Compresses plants and soil
  • Disturb bottom dwelling organisms
  • and fish

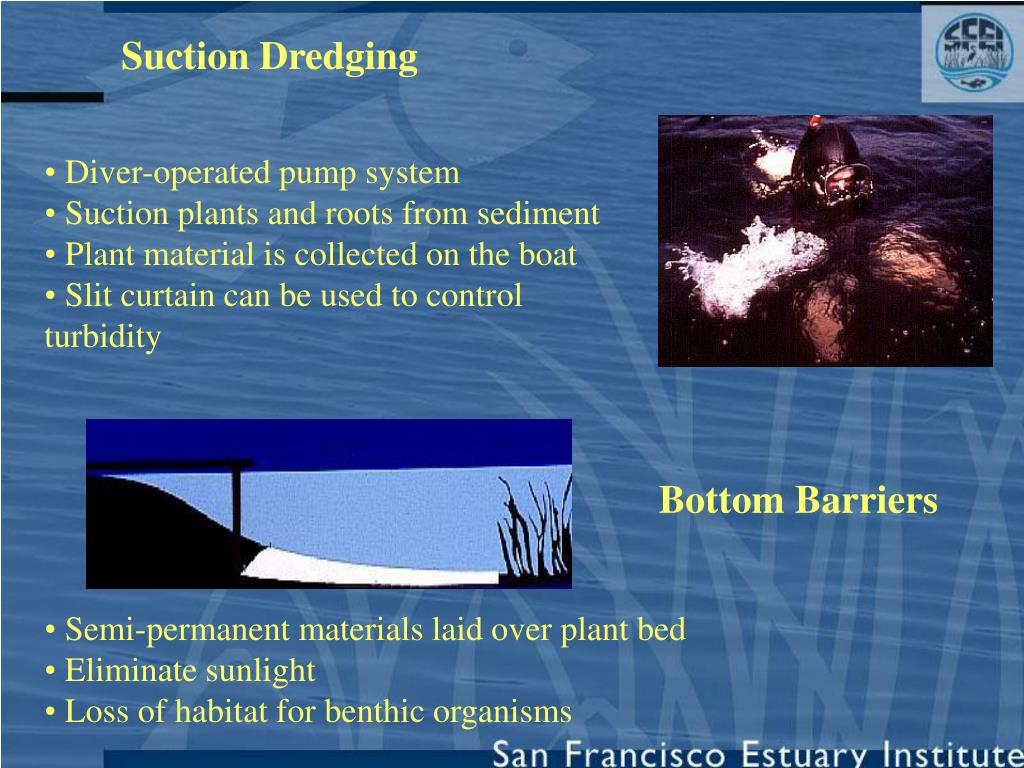

Suction Dredging

  • Diver-operated pump system
  • Suction plants and roots from sediment
  • Plant material is collected on the boat
  • Slit curtain can be used to control
  • turbidity

Bottom Barriers

  • Semi-permanent materials laid over plant bed
  • Eliminate sunlight
  • Loss of habitat for benthic organisms

Manual Removal

  • Removes entire root crown
  • Labor intensive
  • Water Level Drawdown
  • Dewatering water body by releasing water via
  • dam or weir or pump
  • Requires water level control structures
  • Excavation
  • Removes plants and surface sediment
  • Viable for storm water and irrigation canals
  • Increased turbidity downstream

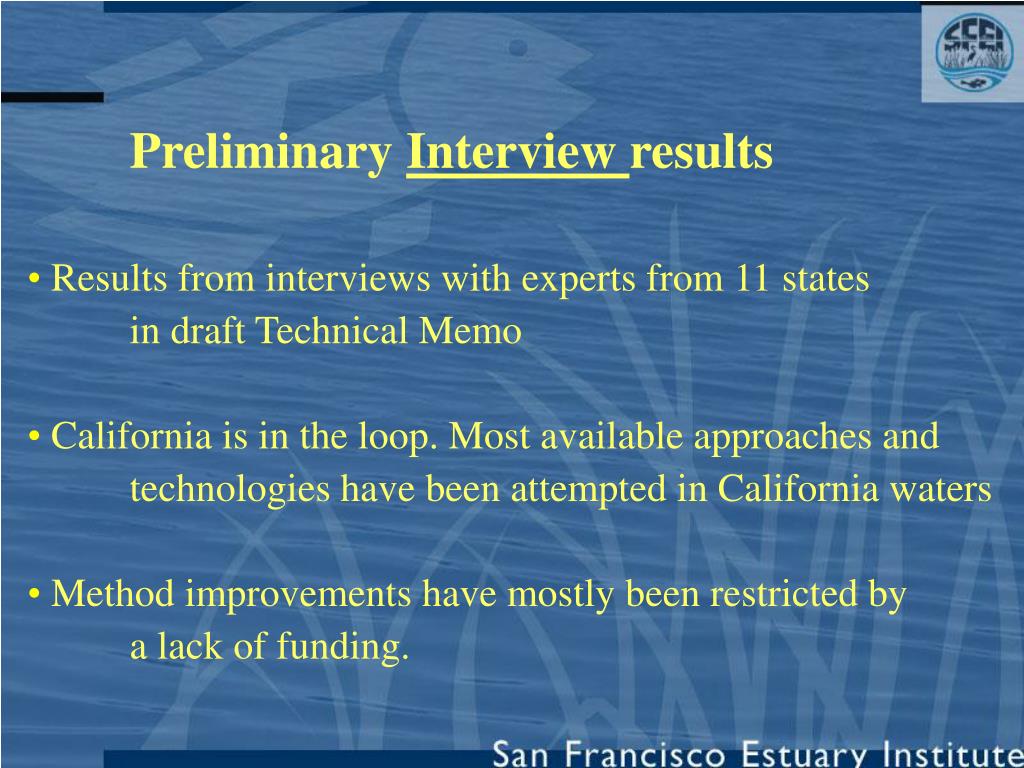

Preliminary Interview results

  • Results from interviews with experts from 11 states

in draft Technical Memo

  • California is in the loop. Most available approaches and

technologies have been attempted in California waters

  • Method improvements have mostly been restricted by

a lack of funding.


Mechanical Shredding Demonstration Projects

Mechanical shredding without removal

  • Comparing to chemical treatment at similar location and

control site

  • Cost effectiveness comparison
  • Invertebrate community


  • Impact on water chemistry
  • Possibility of trace metal

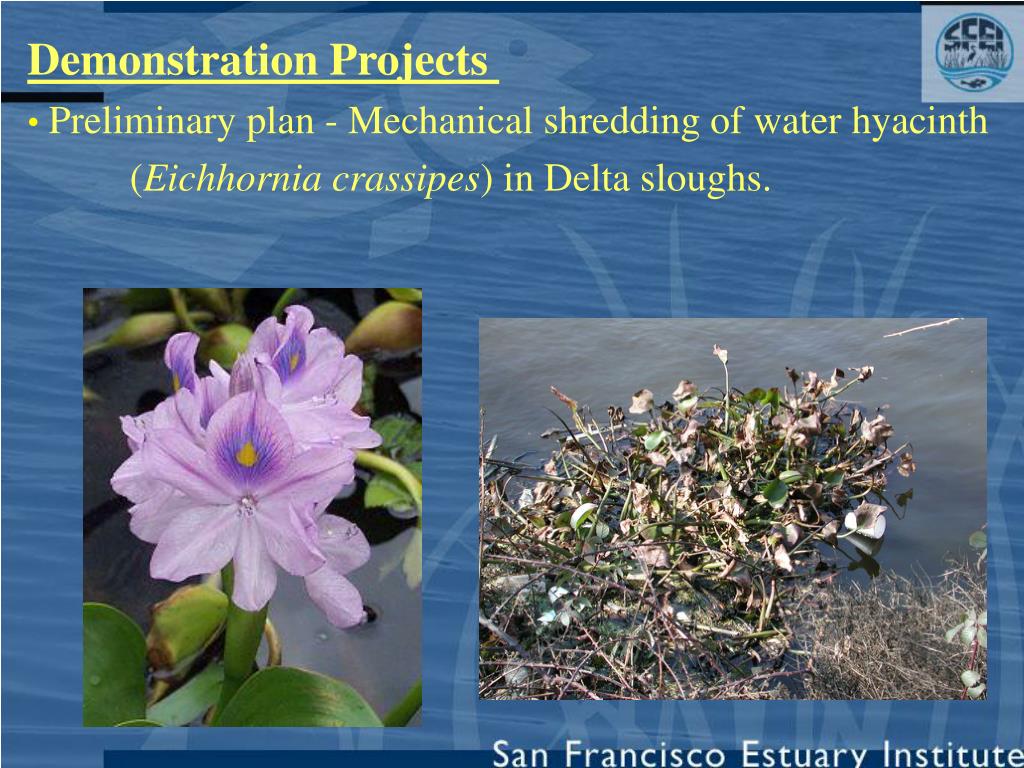

Demonstration Projects

  • Preliminary plan - Mechanical shredding of water hyacinth

(Eichhornia crassipes) in Delta sloughs.

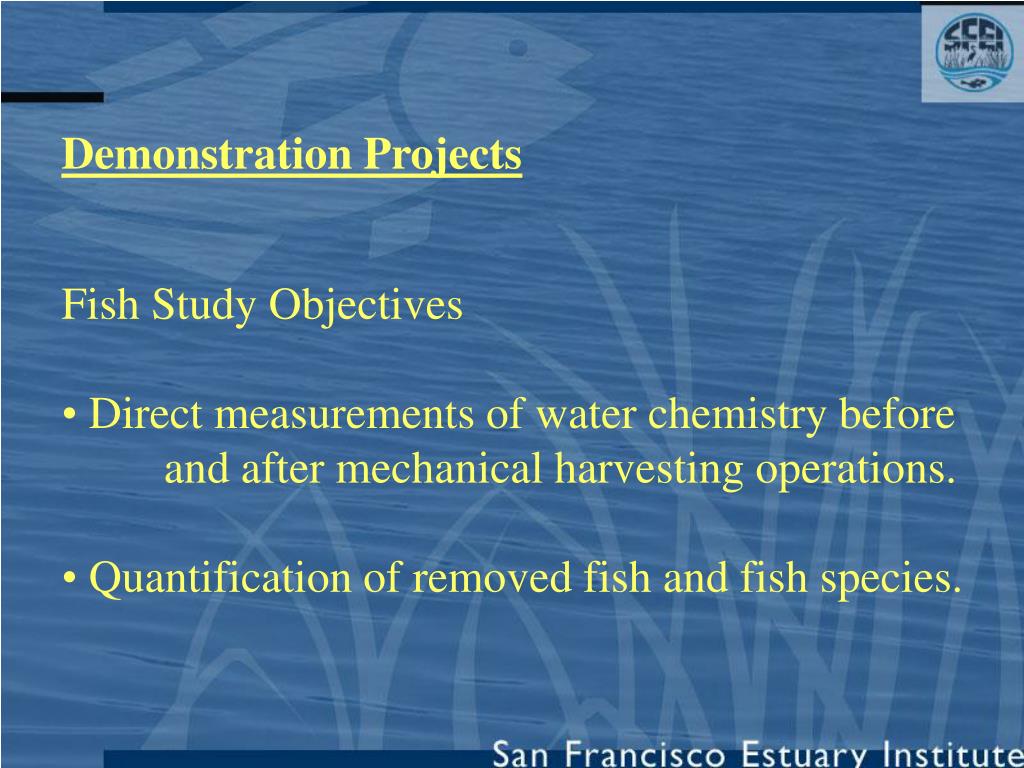

Demonstration Projects

  • Fish Study Objectives
  • Direct measurements of water chemistry before
  • and after mechanical harvesting operations.
  • Quantification of removed fish and fish species.

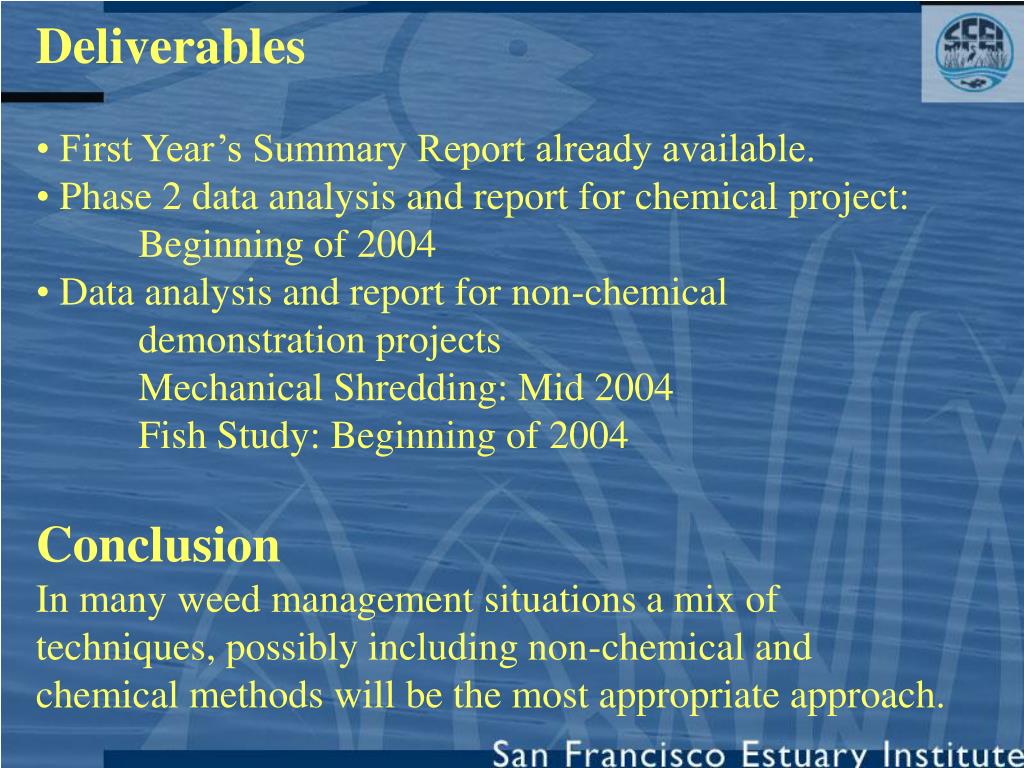

  • First Year’s Summary Report already available.
  • Phase 2data analysis and report for chemical project:
  • Beginning of 2004
  • Data analysis and report for non-chemical
  • demonstration projects
  • Mechanical Shredding: Mid 2004
  • Fish Study: Beginning of 2004
  • Conclusion
  • In many weed management situations a mix of
  • techniques, possibly including non-chemical and
  • chemical methods will be the most appropriate approach.
