  1. Monitor or screen Text Numbers Symbols Art Photographs Video Printer Black and white Color Output devices • Convert from electronic form to some other form • May display the processed results • Usable information

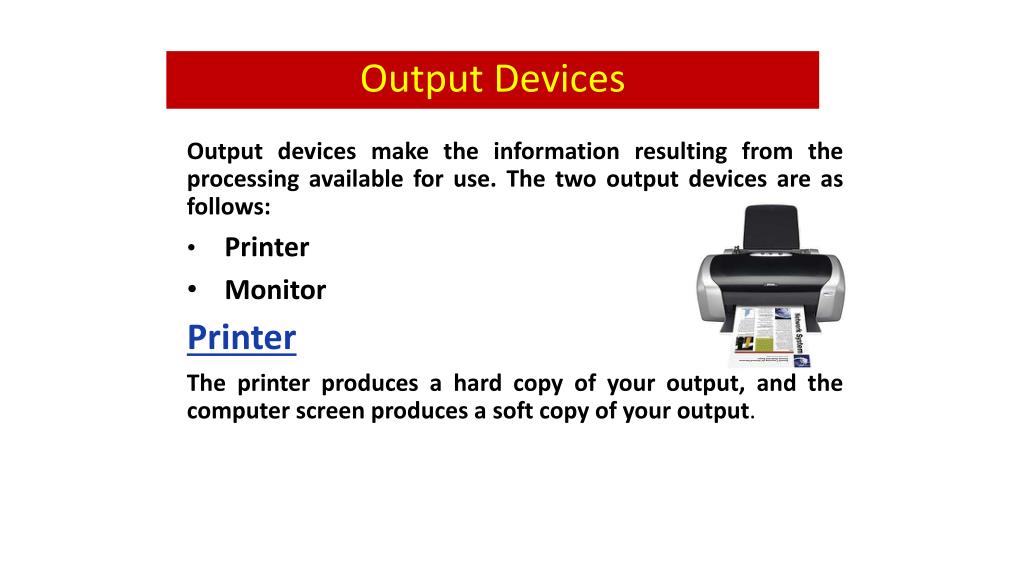

  2. Output Devices Output devices make the information resulting from the processing available for use. The two output devices are as follows: Printer Monitor Printer The printer produces a hard copy of your output, and the computer screen produces a soft copy of your output.

  3. Output Devices Monitor • There are two basic types of monitors: • CRT (cathode ray tube) monitors • LCD (liquid crystal display) monitors. • Both types produce sharp images, but LCD monitors have the advantage of being much thinner and lighter. CRT monitors, however, are generally more affordable

  4. The Processor Central Processing Unit (CPU) • Converts data to useful information • Interpret and execute instructions • Communicate with input, output and storage

  5. Motherboard • The motherboard is the computer's main circuit board. • It's a thin plate that holds the CPU, memory, connectors for the hard disk drive and optical drives, expansion cards to control the video and audio, as well as various external ports and peripherals. • The motherboard connects directly or indirectly to every part of the computer.

  6. Computer Memory • Computer Memory are internal storage areas in the computer . • used to either temporarily or permanently store data or instructions to be processed.

  7. Computer Memory

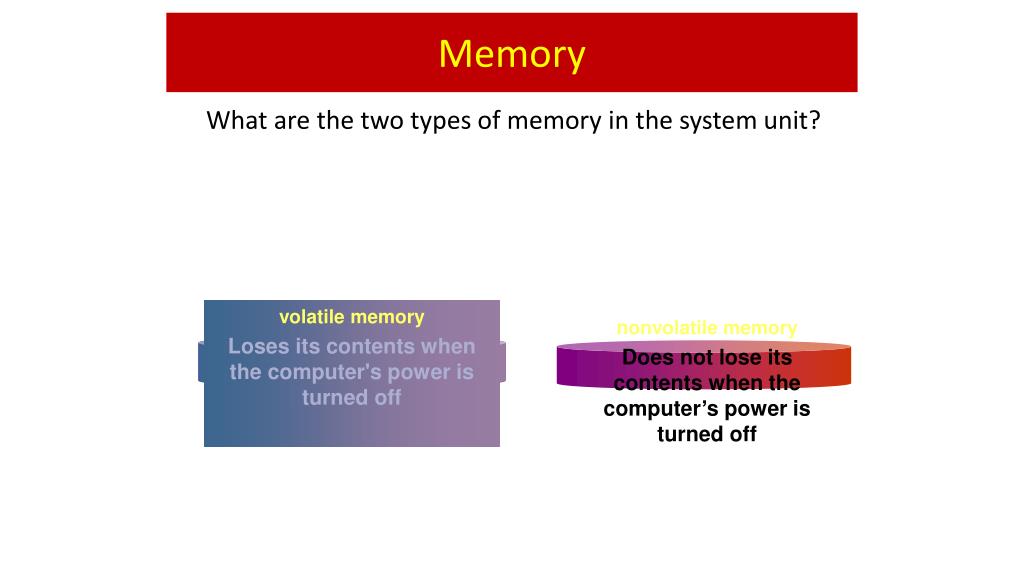

  8. Volatile Memory Loses its contents when the computer's power is turned off volatile memory Loses its contents when the computer's power is turned off nonvolatile memory Does not lose its contents when the computer’s power is turned off Memory What are the two types of memory in the system unit?

  9. Also called primary storage and main memory, chips that temporarily holds software instructions and data before and after it is processed by the CPU. RAM is the working memory of the computer. What is random access memory (RAM)?

  10. BIOS (basic input/output system) Stored on ROM Sequence of instructions the computer follows to load the operating system and other files when you first turn on the computer Nonvolatile — Contents not lost when the computer is turned off Data can only be read, cannot be modified • Memory chips that contain data, instructions, or information that is recorded permanently What is read-only memory (ROM)?

  11. Memory also called Random Access Memory or RAM (temporary memory) is the main memory of the computer. It consists of electronic components that store data including numbers, letters of the alphabet, graphics and sound. Any information stored in RAM is lost when the computer is turned off. Read Only Memory or ROM is memory that is engraved on a chip that has start-up directions for your computer. It is permanent memory. Memory

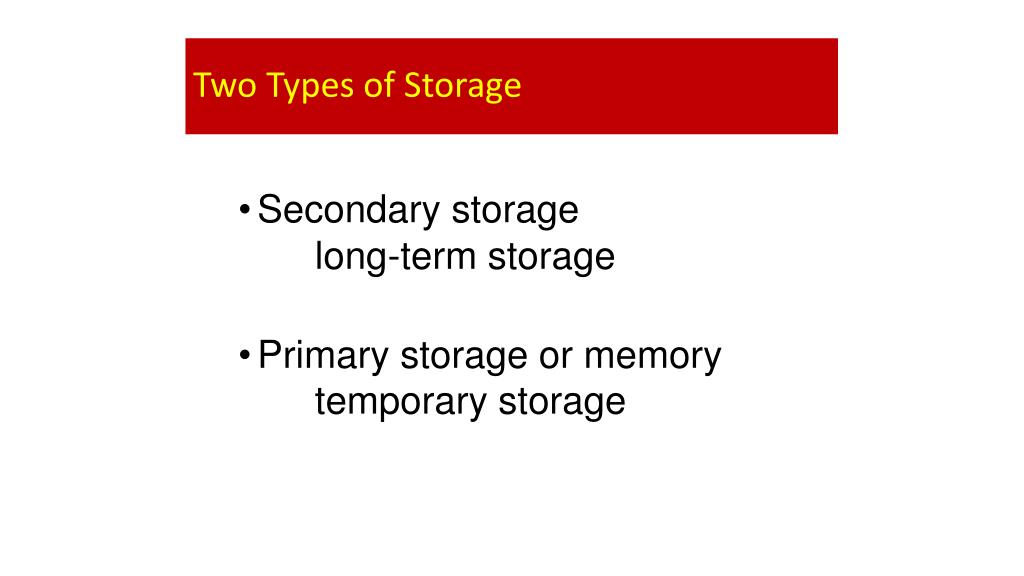

  12. Two Types of Storage • Secondary storage long-term storage • Primary storage or memory temporary storage

  13. Storage Devices Primary Storage Devices • Also known as internal memory and main memory. • The fastest type of memory in your computer and is used to store data while it's being used. • Computer RAM and cache are both examples of a primary storage device. • For example, when you open a program data is moved from the secondary storage into the primary storage. • Unless this information is saved to a Secondary Storage Device, it will be lost when the computer is powered down.

  14. Storage Devices RAM (Random Access Memory) • Computer’s short-term memory. • Data is temporarily stored here until you save your work to the hard disk. • RAM is used by the system to store data that is processed by a computer's CPU. • RAM is a volatile memory and requires power; if power is lost, all data is also lost.

  15. Secondary Storage Devices Secondary Storage Devices Also known as external memory and auxiliary storage, secondary storage • Used to store data when they are not being used in memory. • The most common types of auxiliary storage used on personal computers are: • floppy disks, hard disks, CD-ROM drives, USB

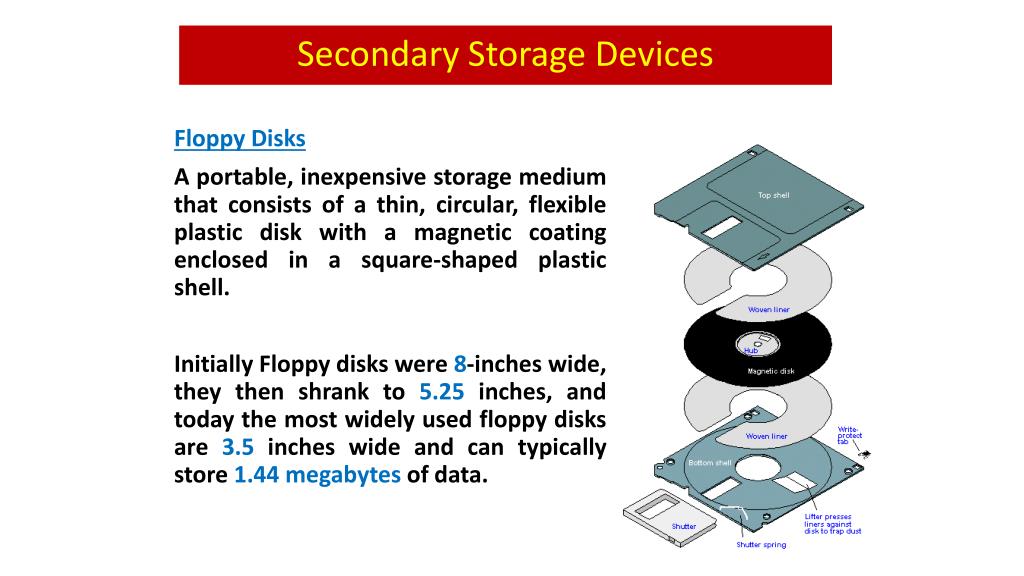

  16. Secondary Storage Devices Floppy Disks A portable, inexpensive storage medium that consists of a thin, circular, flexible plastic disk with a magnetic coating enclosed in a square-shaped plastic shell. Initially Floppy disks were 8-inches wide, they then shrank to 5.25 inches, and today the most widely used floppy disks are 3.5 inches wide and can typically store 1.44 megabytes of data.

  17. Structure Of Floppy Disks Initially Floppy disks were 8-inches wide, they then shrank to 5.25 inches, and today the most widely used folly disks are 3.5 inches wide and can typically store 1.44 megabytes of data. A folly disk is a magnetic disk, which means that it used magnetic patterns to store data. Data in floppy disks can be read from and written to. Formatting is the process of preparing a disk for reading and writing. A track is a narrow recording band that forms a full circle on the surface of the disk.

  18. Structure Of Floppy Disks • The disk’s storage locations are divided into pie-shaped sections called sectors. • A sectors is capable of holding 512 bytes of data. • A typical floppy stores data on both sides and has 80 tracks on each side with 18 sectors per track.

  19. Secondary Storage Devices Hard Disks • Consists of one or more rigid metal plates coated with a metal oxide material that allows data to be magnetically recorded on the surface of the platters. • The hard disk platters spin at a high rate of speed, typically 5400 to 7200 revolutions per minute (RPM). • Storage capacities of hard disks for personal computers range from 10 GB to 120 GB.

  20. Secondary Storage Devices Compact Discs (CD) • Also called an optical disc, is a flat round, portable storage medium that is usually 4.75 inch in diameter. • Standard CD can hold 700MB of data, around 80minutes of CD quality audio, or up to 60minutes of video. • The later standard called the DVD (Digital Versatile Disc) is still an optical media much like the CD but with much greater capacities, starting at 4.7GB at the low end to as high as 17GB.

  21. Secondary Storage Devices USB Drive (Universal Serial Bus) • Also known as a flash drive or keychain drive. • It is a plug-and-play,portablestorage device. • can be used in place of a floppy disk, Zip drive disk, or CD. • Available in capacities ranging up to about 65 GB.

  22. Put all the hardware together and…

  23. Types of Computers • Depending upon their speed and memory size, computers are classified into following four main groups. • Supercomputer. • Mainframe computer. • Mini computer. • Microcomputer

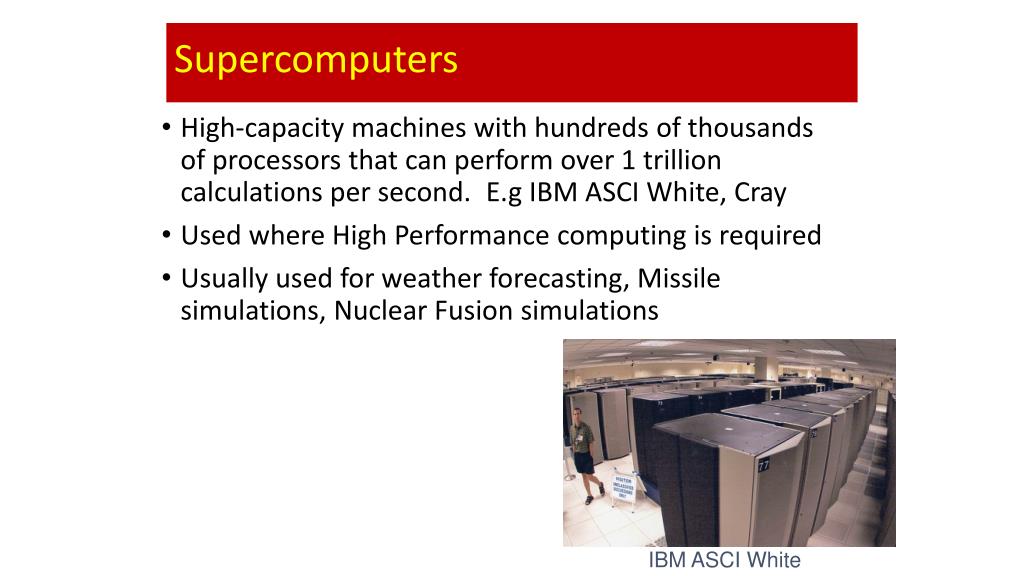

  24. High-capacity machines with hundreds of thousands of processors that can perform over 1 trillion calculations per second.E.g IBM ASCI White, Cray Used where High Performance computing is required Usually used for weather forecasting, Missile simulations, Nuclear Fusion simulations Supercomputers IBM ASCI White IBM ASCI White

  25. Water- or air-cooled computers that vary in size from small, to medium, to large, depending on their use. E.g IBM AS/400 Normally Dumb Terminals are connected to these main frames. Processing is done by Main Frames Dumb terminals only have keyboard, monitors Mainframes VP2400 mainframe

  26. Expensive, powerful computers usually used for complex scientific, mathematical, and engineering calculations and for computer-aided design and computer-aided manufacturing. e.g. Sun blade 2500 Workstations Sun Microsystems workstation

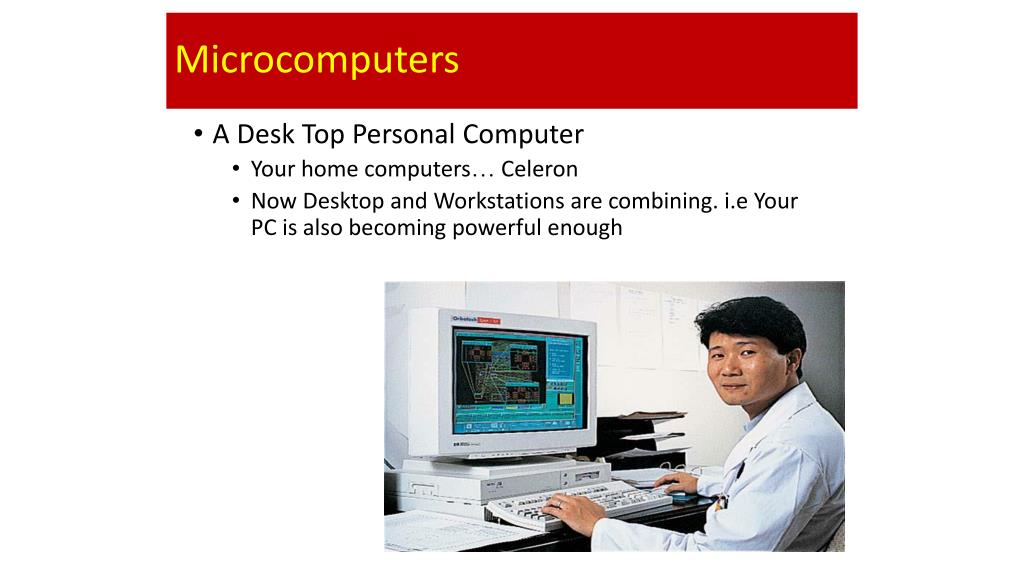

  27. Microcomputers • A Desk Top Personal Computer • Your home computers… Celeron • Now Desktop and Workstations are combining. i.e Your PC is also becoming powerful enough

  28. Microcomputers • A Tower Case Personal Computer Sony tower PC

  29. Microcomputers • A Lap Top Personal Computer • Lightweight portable computers with built-in monitor, keyboard, hard-disk drive, battery and AC adapter.

  30. Microcomputers • A Personal Digital Assistant • Getting Very popular • Personal organization tools-schedule planners, address books, to-do lists, send e-mail and faxes. • New generation that incorporates mobile phone and microcomputer. • HP 5555
