  1. A Comparative Study of the 0.05Al Process October 2, 2012

  2. Background • Al for broadband Si reactivity control • H. Guttman and P. Niessen, 1975 • M. Pierre, 1975 • Commercialization failure of Polygalva, 1979 • Al-compatible flux (G-flux) • US Patent US 7,811,389 B2, 2010 • Commercial production of 12Al coating

  3. Parts • Steel Parts (2982 kg in total) • 0.04% - 0.28% Effective Si

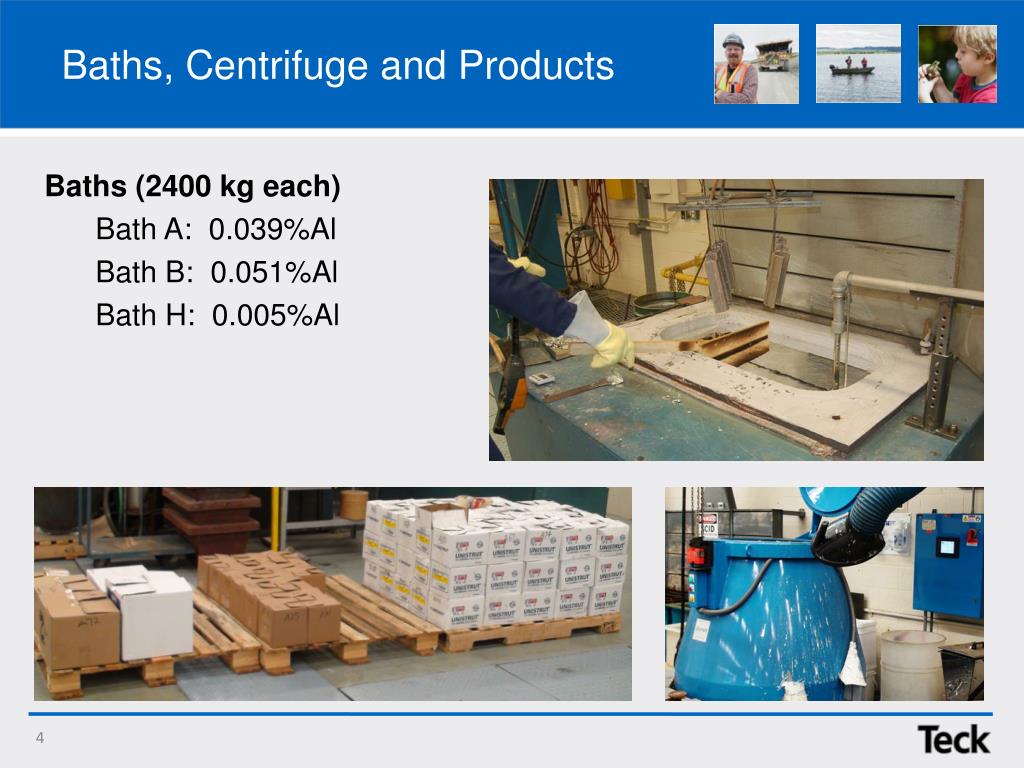

  4. Baths, Centrifuge and Products • Baths (2400 kg each) • Bath A: 0.039%Al • Bath B: 0.051%Al • Bath H: 0.005%Al

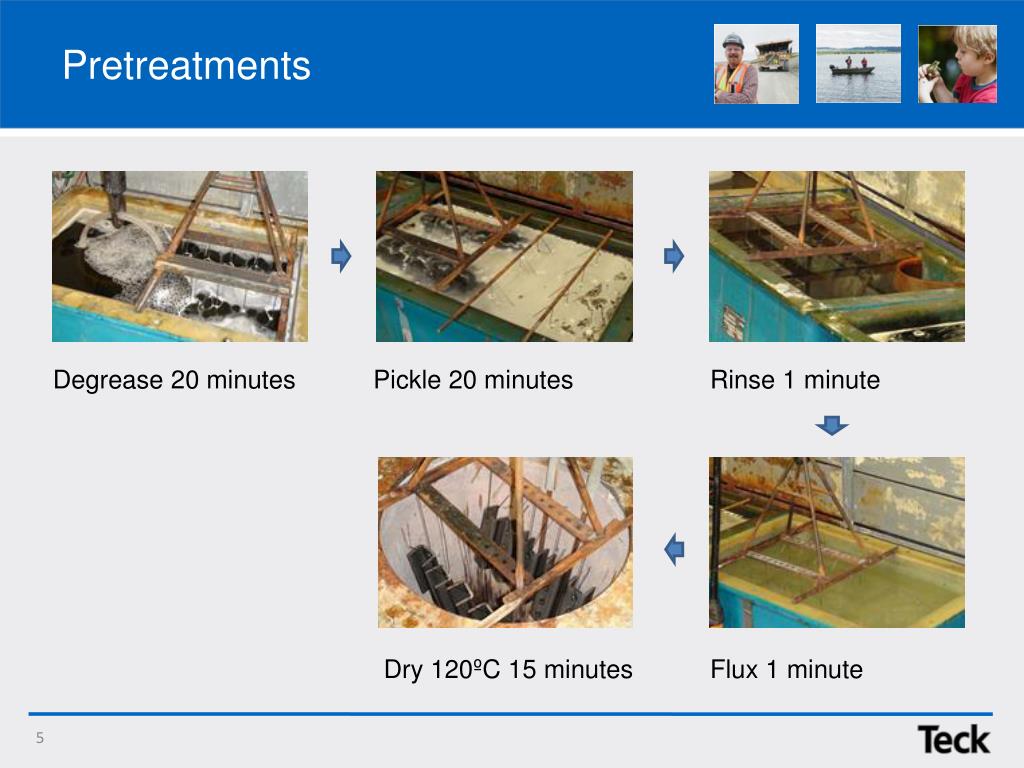

  5. Pretreatments Degrease 20 minutes Pickle 20 minutes Rinse 1 minute Dry 120ºC 15 minutes Flux 1 minute

  6. Coating Thickness (4 minutes) 450ºC (842ºF), 4 minutes

  7. Coating Thickness (Prior Study) 440ºC (824ºF), 8 minutes

  8. Coating Thickness (10 minutes) 450ºC (842ºF), 10 minutes

  9. Coating Adhesion (Part e3) Bath H, 4 min Bath B, 4 min Bath B, 10 min Bath A, 4 min

  10. Microstructure (Part e3, 0.21%Si) Bath H, 4 min Bath B, 4 min Bath A, 4 min Bath B, 10 min

  11. Flaked-off Coating Bath H, 4 min Bath H, 4 min ζ Bath A, 4 min Bath B, 10 min δ

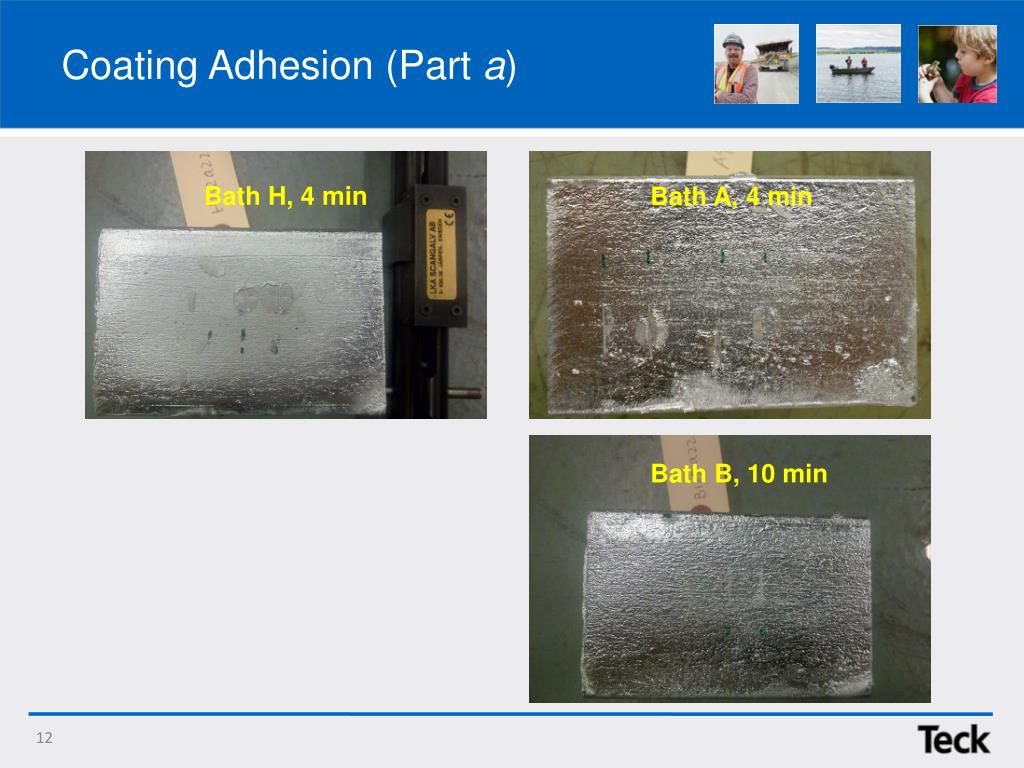

  12. Coating Adhesion (Part a) Bath H, 4 min Bath A, 4 min Bath B, 10 min

  13. Microstructure (Part a, 0.24%Si) Bath H, 4 min Bath A, 4 min Bath B, 10 min

  14. Zinc Consumption

  15. Drainage (Part k) The amount of accumulation at the bottom of Part k: Student’s test indicated that there were significant differences between Baths H and AB, whereas there was no significant difference between Baths A and B.

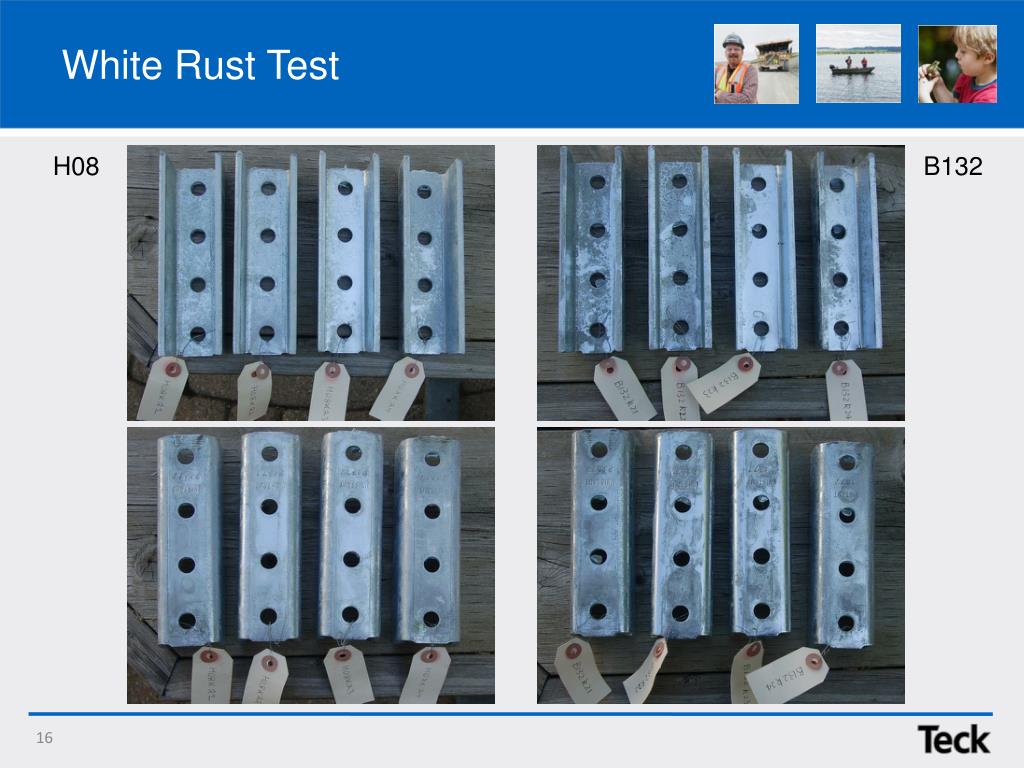

  16. White Rust Test H08 B132

  17. Summary • New Process (0.04-0.05%Al) vs. HDG • Al-compatible flux (G-Flux) • Brighter, shinier and thinner coating • Improved coating adhesion • Slightly better drainage • Slightly more dross but same amount of ash • Less visible oxide skin • More localized white rust • Slightly shorter kettle life

  18. Questions? • Thank you for your attention!
