Honors Transformers

Honors Transformers. Transformers. Used to increase or decrease the voltage of alternating currents. Transformers. Consist of 2 coils of wire. Primary Coil Alternating current enters Secondary Coil Alternating current leaves

porter
Download Presentation

Honors Transformers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Honors Transformers

  2. Transformers • Used to increase or decrease the voltage of alternating currents.

  3. Transformers • Consist of 2 coils of wire. • Primary Coil • Alternating current enters • Secondary Coil • Alternating current leaves • It’s the difference in the number of turns of wire on each coil that causes the voltage the change.

  4. 2 Types of Transformers • Step-up Transformer • Increase voltage • Secondary more turns than primary • Step-down Transformer • Decrease voltage • Primary more turns than secondary

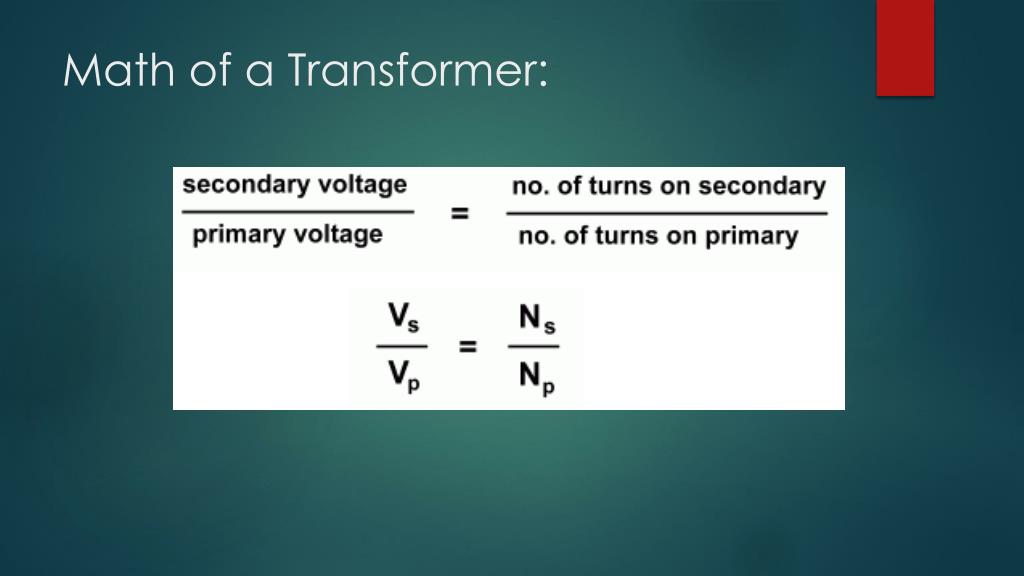

  5. Math of a Transformer:

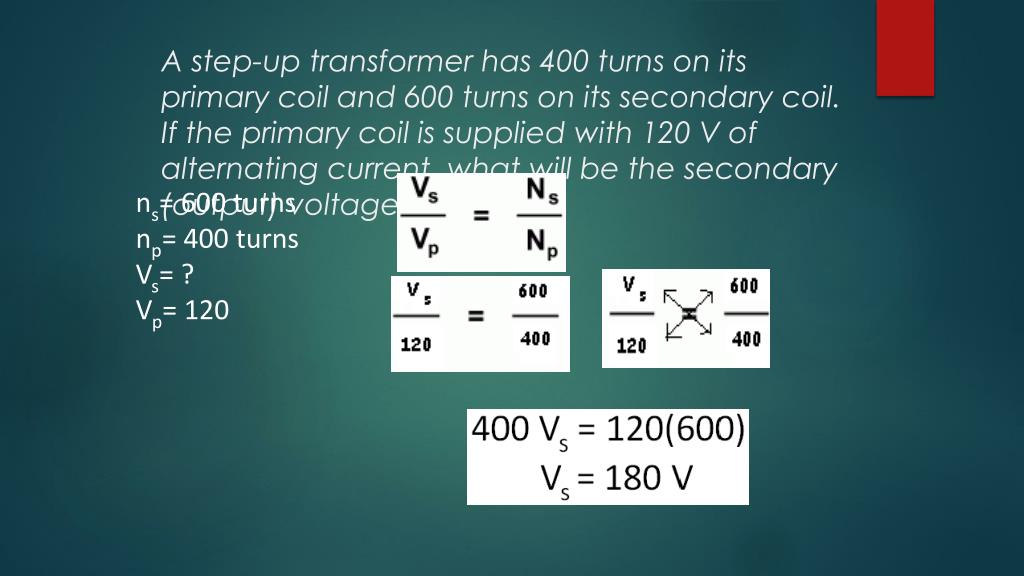

  6. A step-up transformer has 400 turns on its primary coil and 600 turns on its secondary coil. If the primary coil is supplied with 120 V of alternating current, what will be the secondary (output) voltage? ns= 600 turns np= 400 turns Vs= ? Vp= 120

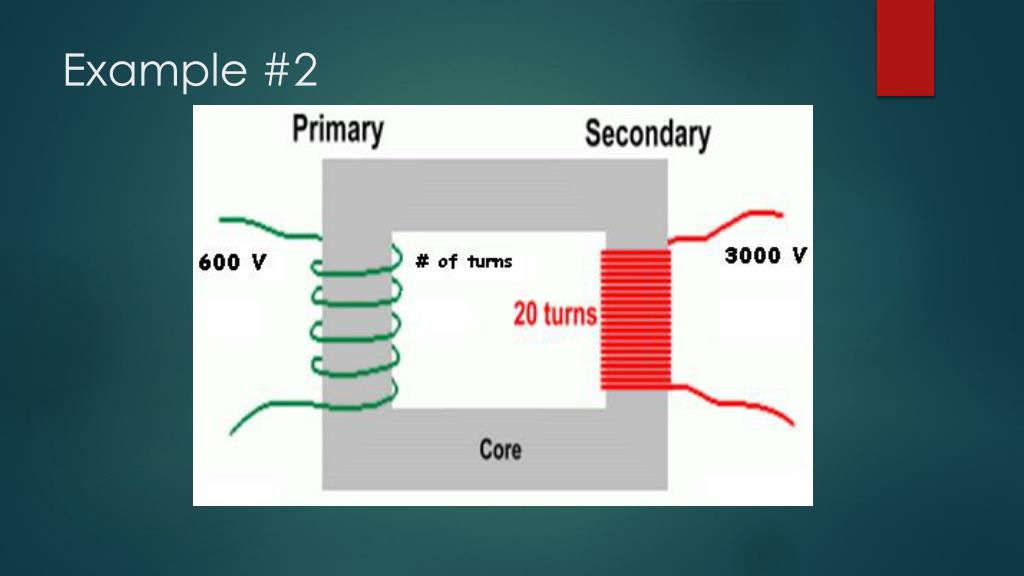

  7. Example #2

  8. Example #3
