  1. Patent Information:Open Patent Services3rd Annual Forum for SMEsInformation Workshop on European Bioinformatics Resources Nigel S. Clarke Manager Online Products and User Support Vienna, September 2009

  2. Open Patent Services:the evolution of a web service Written by: Davide Lingua Presented by: Nigel Clarke EPO Vienna September 2009

  3. EPO Mainframe Web Services Client (non-EPO) Web Services Client (non-EPO) Databases generate HTML generate XML generate XML esp@cenet and OPS: A different look at the same picture OPS v.1 OPS v.2

  4. The "Fair use" charter

  5. "Fair use" charter

  6. esp@cenet and OPS: • Free of charge • 24x7 Availability : 24 hours/day, 7 days/week • (Note: regular and extraordinary outages) • esp@cenet has been developed for human users only  no robots please • OPS: is dedicated to integrated systems/automated access  restrictions when bulk downloading • And: EPO resources are limited

  7. The "Fair use" charter • To give clarity on: • what the EPO can offer • how the users are expected to behave • Visible on: • http://ep.espacenet.com and • http://ops.epo.org/ • Main principle: Human users always come first!

  8. Specific to OPS • Integrated systems and robots must: • let us know who they are (IP address used)! • Sign a data user agreement • Observe restrictions as indicated • Enforcement of these principles is being implemented gradually

  9. Open Patent Services v.1http://ops.espacenet.com

  10. Open Patent Services (OPS) v.1 • To be discontinued in October/November 2009 • Retrieval of data for single input numbers • In operation since Summer 2003

  11. The latest statistics for OPS v.1 (week 20/2009)

  12. Open Patent Services v.2http://ops.epo.org

  13. OPS version 2 A complete overhaul of the version 1 XML and more: • Launched in December 2008 • Makes OPS a "document literal" web service • New elements are supported in the input XML • Returns bibliography and full-text in St. 36 XML • Adds operations to allow bibliographicsearch • Adds equivalents and full-textinquiry

  14. The latest statistics for OPS v.2 (week 20/2009)

  15. Information page http://ops.epo.org Check the input examples New documentation to be added soon!

  16. OPS v.2: Document literal

  17. Biblio and full-text in St. 36 XML • Bibliographic data is returned in XML derived from the WIPO St. 36 used in DOCDB exchange • Full-text data is returned in XML compatible with the extensions to the WIPO St. 36 planned for full-text exchange

  18. Bibliographic search • Completely new feature • Input is query in Contextual Query Language (CQL): <ops:query>ti=bicycle and gear and pr=IT</ops:query> • For more info check http://zing.z3950.org/cql/intro.html • Allows retrieval of multiple IDs for documents found • IDs can be used in improved bibliographic retrieval to obtain data for multiple publications

  19. Full-text inquiry • Completely new feature • Inquiry for full-text availability • Input is a publication number • Indicates whether claims or description texts are available

  20. Equivalents inquiry • Completely new feature • Input is a publication number • Provides list of equivalents ("simple family") • Only one number per publication cycle (full publication cycle available in "biblio request")

  21. Tips on using OPS v.2

  22. The DOCDB format Always contains • CC: ISO two letter country code • NNNNNNNNNNNN: up to 12 digit number • KK: DOCDB kind code, always 2 positions, can be wildcard (%, #) <document-id> <country>US</country> <doc-number>5000014</doc-number> <kind>A#</kind> </document-id> • Check the link: http://documents.epo.org/projects/babylon/eponet.nsf/0/46B8A2BFCD345BB8C12572990053478F/$File/publication_formats_numbers_0708_en.pdf

  23. The EPODOC publication format Is of the kind: CCNNNNNNNNNNNN(K) • CC: ISO two letter country code • N(N...): can be up to 12 digits (EP is 7), NO SPACES • (K): attached kind code (kc) letter <document-id> <country></country> <doc-number>EP1915004</doc-number> <kind></kind> </document-id> (K): if kc A(n), letter A never attached if kc D(n) to Z(n), first letter always attached if kc B(n) or C(n), first letter (up to 2 characters for JP) can be attached i(f this is necessary to differentiate documents belonging to overlapping number-series)

  24. Tips • Namespaces "exc:" and "ops:" • Wildcards: % (0 or 1 character), # (space) • Beware of PCT application number formats in DOCDB • Use the SOAP request examples • SOAP fault "Ambiguous seed" • Other error's handling

  25. Two namespaces - two sets of references • exc:publication-reference • exc:application-reference • exc:priority-claim • ops:publication-reference • ops:application-reference • ops:priority-claim • ops:query • ops:document-retrieval

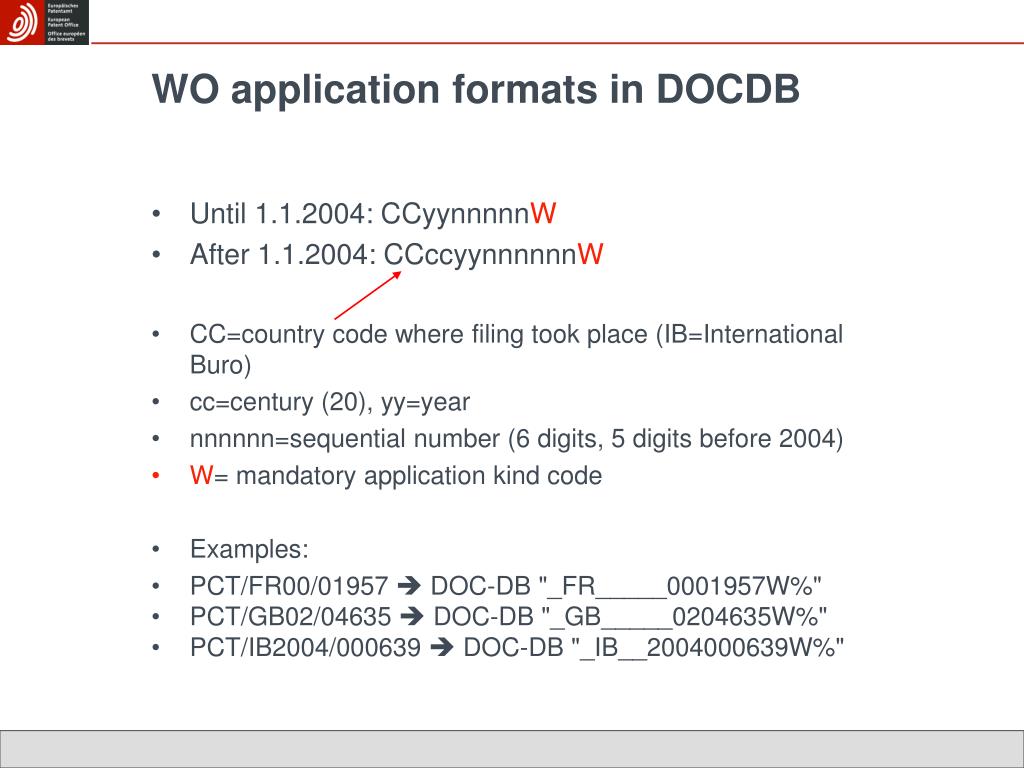

  26. WO application formats in DOCDB • Until 1.1.2004: CCyynnnnnW • After 1.1.2004: CCccyynnnnnnW • CC=country code where filing took place (IB=International Buro) • cc=century (20), yy=year • nnnnnn=sequential number (6 digits, 5 digits before 2004) • W= mandatory application kind code • Examples: • PCT/FR00/01957  DOC-DB "_FR_____0001957W%" • PCT/GB02/04635  DOC-DB "_GB_____0204635W%" • PCT/IB2004/000639  DOC-DB "_IB__2004000639W%"

  27. WO application formats in DOCDB: examples <exch:application-reference data-format="docdb"> <document-id> <country>IB</country> <doc-number>2004000639</doc-number> <kind>%%</kind> </document-id> </exch:application-reference> <exch:application-reference data-format="docdb"> <document-id> <country>FR</country> <doc-number>0001957</doc-number> <kind>%%</kind> </document-id> </exch:application-reference> Search for an application number Tip: use the wildcard

  28. Ambiguous seed Published application JP3119522A 19910521 Utility model JP3119522U U 19911210 Granted patent JP3119522B2 B2 20001225 OPS Request <ops:biblio-retrieval xmlns:ops="http://ops.epo.org" xmlns:exch="http://www.epo.org/exchange"> <exch:publication-reference data-format="docdb"> <document-id> <country>JP</country> <doc-number>3119522</doc-number> <kind>%%</kind> </document-id> </exch:publication-reference> </ops:biblio-retrieval> Three different inventions

  29. OPS response <SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"> ........................ <faultstring xml:lang="en-US">The requested reference was ambiguous.</faultstring> ..................... </ambiguous-input> <resolution> <exch:publication-reference xmlns:exch="http://www.epo.org/exchange" xmlns:ops="http://ops.epo.org" data-format="docdb"> <document-id> <country>JP</country> <doc-number>3119522</doc-number> <kind>B2</kind> </document-id> </exch:publication-reference> </resolution> <resolution> <exch:publication-reference xmlns:exch="http://www.epo.org/exchange" xmlns:ops="http://ops.epo.org" data-format="docdb"> <document-id> <country>JP</country> <doc-number>3119522</doc-number> <kind>U</kind> </document-id> </exch:publication-reference> </resolution> ........................ </SOAP-ENV:Envelope>

  30. Error handling OPS returns now SOAP faults instead of errors. For instance: <SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"> <SOAP-ENV:Header/> <SOAP-ENV:Body> <SOAP-ENV:Fault> <faultcode>SOAP-ENV:Client</faultcode> <faultstring xml:lang="en">The request was invalid.</faultstring> </SOAP-ENV:Fault> </SOAP-ENV:Body> </SOAP-ENV:Envelope>

  31. Additional features of OPS v.2 • More citations: EP/WO, US, GB, FR, DE, AU, NL, ES, CH, BE, ... • More full text documents (description and/or claims): EP, WO, AT, CA, CH

  32. Further planning • Implementation of fair use policy • Retrieval of ECLA classes in XML format • Number services • Extension of full text coverage • Full text search in En, De, Fr • New operations for the EP Register

  33. Thank you for yourattention D 5.5.2Davide Linguadlingua@epo.org
