september 2009
September 2009

QTP Automation Framework

slide2

Objective

  • Introduction to Automation
  • Benefits of Automated Testing
  • Automated Testing Process
  • Introduction to QTP Framework
  • Framework Structure
  • Environment Supported
slide3

Manual Testing

Introduction to Automation

Drawbacks of Manual testing

- Manual testing is time-consuming and tedious.

- Requiring a heavy investment in human resources.

- Time constraints often make it impossible to manually

test every feature thoroughly before the application is

released.

- Low reliability.

slide4

Automated Testing

Benefits of Automation Testing

  • Why Automation

- Fast

- Reliable

- Repeatable

- Programmable

- Comprehensive

- Reusable

slide5

Automation Testing Process

Automated testing involves three main steps

  • The QTP testing process consists of 7 main phases:
        • Preparing to record
        • Recording a session on your application
        • Enhancing your test
        • Debugging your test
        • Running your test
        • Analyzing the test results
        • Reporting defects

Creating Script(s)

Executing Script(s)

Analyzing Result(s)

slide6

Introduction to QTP Framework What and Why

  • What is an Automation Framework:
    • A test automation framework is a set of assumptions, concepts, and practices that provide support for automated software testing.
    • A comprehensive architecture to drive the complete test automation process.
  • What is the need of having a Test Automation Framework:
    • Pitfalls of available standard Test Automation tools.
    • Testers are testers not programmers.
    • Complexity and Maintenance.
    • Test tool Costs.
    • Test Automation is seldom a full time effort.
slide7

Automation Frameworks: Advantages

  • Framework Advantages:
  • Scalability
  • Maintainability
  • Removes most testers from automation complexities
  • Can make automation efforts more holistic: Application independent
  • Minimize Automation Risks
  • Ensure Automation ROI
slide8

Type of Automation Frameworks

  • Data Driven Framework
  • Modularity Framework
  • Keyword Driven Framework
  • Hybrid Framework
slide9

Type of Automation Frameworks Contd.

Data Driven Framework

  • Data-driven framework is one where test input and output values are read from data files (ODBC sources, Text files, Excel files, DAO objects, ADO objects, and such) and are loaded into variables that are coded in scripts
  • Data Driven testing is implemented for applications whose behavior is data dependent- Test Scenarios are to be run one or more set of data values which vary for each execution cycle
  • Data Driven Framework can be combined with Modular or Keyword Driven Framework to create a Hybrid Framework
slide10

Type of Automation Frameworks Contd.

Modular Framework

  • Requires creation of small, independent scripts that represents modules/sections/functions of the application under test.
  • The modules are then used in a hierarchical or logical fashion to construct larger test realizing an actual test case.
  • Features in QTP to support Modularity Framework:
    • Reusable Actions
    • Functional Libraries
slide11

Type of Automation Frameworks Contd.

Keyword Driven Framework

  • Keyword-driven testing framework refer to an application-independent automation framework.
  • This framework requires the development of data tables and keywords, independent of the test automation tool used to execute them.
  • The driver code "drives" the application-under-test, keyword driven test and the data.
  • Keyword-driven tests look very similar to manual test cases.
  • In a keyword-driven test, the functionality of the application-under-test is documented in a table like structure for e.g. Excel Sheet (similar to keyword view in QTP).
slide12

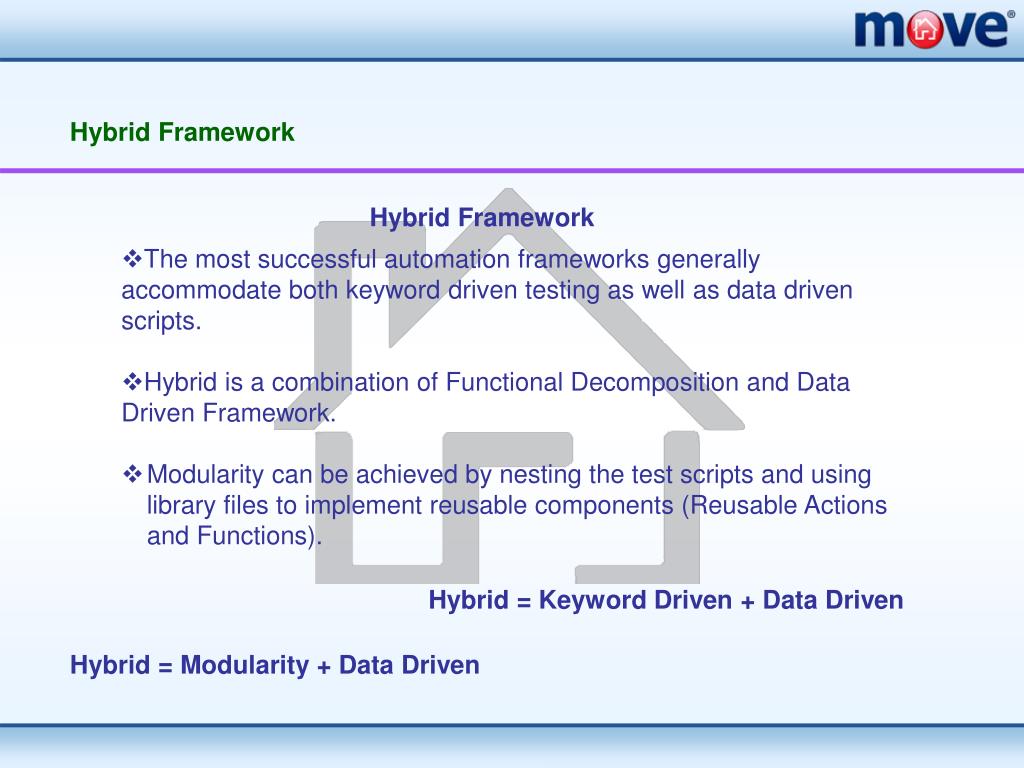

HybridFramework

HybridFramework

  • The most successful automation frameworks generally accommodate both keyword driven testing as well as data driven scripts.
  • Hybrid is a combination of Functional Decomposition and Data
  • Driven Framework.
  • Modularity can be achieved by nesting the test scripts and using library files to implement reusable components (Reusable Actions and Functions).

Hybrid = Keyword Driven + Data Driven

Hybrid = Modularity + Data Driven

slide13

Automation Framework- Typical Elements.

  • Startup Script
  • Driver Script
  • Test Scheduler
  • Object Repository
  • Functional Library/Action Library
  • Test Cases
  • Test Data Files
  • Environment Files
  • Reporting Mechanism
  • Exception Handling: Recover Scenarios
slide14

Startup Script

  • Instead we have Initialization Script where you have to write your own VB Script to make QTP to run this script before executing each test.
  • We can put start applications URL/Address/Exe file path in the default record or run settings for Windows/WEB applications.
  • QTP opens immediately that particular application or URL will open.
slide16

Driver Script

Driver script is the single main script of the Driver Engine.

It iteratively traverses through the data of business scenario flow and calls the respective reusable scripts sequentially.

It also enables us to execute a reusable script any number of times in a particular data row of the variable test data sheet.

It also updates the database for execution results of a particular script run

slide18

Test Schedulers

There can be situations when you need to schedule your QTP scripts so that they can run when you are not present in front of your PC.

slide19

Object Repository

  • Object Repository acts as a translator between QTP script and the Operating System.
  • QTP stores information it learns about a window or an object in object repository.
  • When QTP runs a test, it uses the object repository to locate objects.
  • QTP reads an object description in the repository and then looks for an object with the same properties in the application under test.
slide20

Add objects using object Identification settings

Generates Script

QTP

TEST SCRIPT

Object

Repository

Manager

How QTP Stores Test Objects

slide21

Object Repository Contd.

  • Types of Object Repositories:
    • Per Action Object Repository
    • Shared Object Repository
slide22

TEST 1

ACTION 1

ACTION 2

.

.

ACTION - N

TEST 1

ACTION 1

ACTION 2

.

.

ACTION - N

Object

Repository

Object

Repository

Object

Repository

Object

Repository

Object Repository Contd.

Per Action Object Repository

slide23

TEST 1

ACTION 1

ACTION 2

TEST 2

ACTION 1

ACTION 2

Shared Object

Repository

Object Repository Contd.

Shared Object Repository

slide26

Test Data

As per the scenarios which are in regression test suite, enter all the required test data into the excel file and save it in the test data folder which is specified in the framework.

slide27

Reporting Mechanism

When executing the scripts through QTP, we can get the HTML reports which is user friendly, where as running them through QC then auto generic reports.

slide28

AUT

Feasibility

Report on Test

Scenarios

Manual Test

Cases

Automation

Scripts

Data

Object

Repository

Library

Recovery

Scenario

Test Data

Environment

Test Report

Automation Framework Structure

slide29

Create Shared

Object Repository

Create Automation Scripts

Refactoring Manual Test Cases

Create Reusable Actions or User Defined Functions

Debug Automation Scripts

Test Report Analysis

Feasibility Analysis

Create Test Data

Upload Scripts & Mapped To QC

Identification of Reusable Components

Create Recovery Scenarios

Run The Automation Scripts from QC

Automation Work Flow

Level1

Level2

Level3

slide30

Feasibility Analysis

Formal selection of manual test cases for automation:

Decision will be been taken on what can be automated and what cannot be automated.

Selection of the test cases to be automated will be based on the business risk attached to each test

Tests that need to run once and those that need frequent human intervention are usually not worth the investment to automate and need not be considered for automation

Avoiding business scenarios where complex hardware is involved

Sample feasibility analysis report.

slide31

Feasibility Analysis

  • Sample_Feasibility_Report.xls

Feasibility Report for a Test Case

slide33

Object Identification Tool

Following is the list of mandatory properties that will be used for UI elements:

Note : The list of mandatory properties for GUI elements may change if required.

slide34

Test Data Maintainance

Sheet Name

Test Data

slide35

Accessing Test Data

  • Test Data is defined in separate excel files for each application in Move
  • Test Scripts written in QTP will access the Test Data using QTP’s Data Table feature.
  • Test data defined in separate excel files will be imported into QTP’s Data Table.
  • Importing Test Data from external excel files will be done using an import statement.
  • Following syntax used to import a sheet from test data.xls file to a sheet in data table
    • Syntax : Datatable.ImportSheet “Location of TestData.xls file”, “sheet ID in
    • Testdata.xls file” , “Sheet id/sheet name in data table"
    • Example: Datatable.ImportSheet “C:\Testdata.xls”,3, “Login"
slide36

Reusable Components

  • There are two types of Reusable Components
  • Reusable Action
  • User Defined Functions
    • Generic Functions
    • Business Functions
  • Reusable Actions and User Defined Functions are maintained in separate folders for entire application.
  • The advantage of using Reusable Actions is that it can be easily debugged and can use the intelligence feature of QTP IDE.
  • All common scenarios will be captured using Reusable actions.
  • Functions will be used for performing generic tasks e.g. like splitting a string, etc. These tasks are application independent.
slide37

Environment File

  • Environment files are also called as initialization files or configuration files.
  • Environment files are created in external files with .xml format
  • Create Environment variables to access information like Server Name, Application URL,
  • username, password, library files and Test Data.
  • This file can be used across all the called Actions and in all the Test Scripts.
  • Throughout the test the value of an Environment Variable remains the same.
slide39

Test Suite1 (Ex. FH)

Object Repository

Test Scripts

Test Data

Main Test Runner Structure

Main Test Runner

Environment File / Initialization file

Reusable Actions

User defined functions

Generic Functions

Generic Functions

Test Components of each Module

Test Results

slide40

New Change Request

Test Execution

Test Data for the CR

Update Test Cases as per CR

Quality Center

New / Modify Master Scripts

Object Repository

Reusable Actions

User defined Functions

New / Modify QTP Test Scripts

Test Results

Recovery Scenarios

slide41

Exception Handling: Recovery Scenario

  • Exceptions are conditions which stops test script execution
  • Exceptions might occur at any time during script execution
  • Exceptions in QTP can be handled by using any one of the following two methods
  • i) Recovery Scenarios
  • ii) On Error Resume Next statement
  • Recover Scenarios will be implemented on all the modules.
  • Recovery Scenarios can be defined using Recovery Scenario Manager in QTP.
  • Application specific Recovery Scenarios like recovery from security warning, unknown pop-ups etc will be defined using Recovery Scenario Manager.
slide42

Reporting Test Result

  • Results of the Automation Scripts will be reported using Reporter Utility object
  • Results are reported at test case level and at every important state of the application.
    • Syntax: Reporter.ReportEvent <status>,"Scenario/Case Name“ ,“Scenario/Case description”
    • Status can be either micpass or micfail or micdone or micwarning
    • Example: Reporter.ReportEvent micPass,"Login Scenario","Auditee Logged In
    • Successfully”
    • Sample results snapshot that is reported using Reporter.ReportEvent statement is shown
slide43

Sample Test Report

Test Case Step Level Reporting

Results Report

slide44

Traceability between Manual Test Cases and Automation Scripts

  • Traceability is maintained between Manual Test Case and Automation Test Script.
  • There will be one to one mapping between Test case and Test script.
slide45

Traceability between Manual Test Cases and Automation Scripts

  • Traceability matrix maps:
    • Manual Test Case to Test Script
    • Test Script to Reusable components used in that script
  • Test scripts affected by change in application functionality can be easily traced out since reusable components used for a Test script is maintained.
  • When test script fails, the traceability matrix can be used to locate manual test case that needs to be failed.
questions
Questions?

Suresh Kumar C

Designation and Address

E-Mail: Suresh.kumar@move.com
