Principles of Distillation: Understanding the Fundamentals

Understanding the principles of distillation is essential for optimizing its application in various industries. By leveraging differences in boiling points and enhancing vapor-liquid interactions, distillation remains a cornerstone of modern separation techniques.<br>

pooja277
Download Presentation

Principles of Distillation: Understanding the Fundamentals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

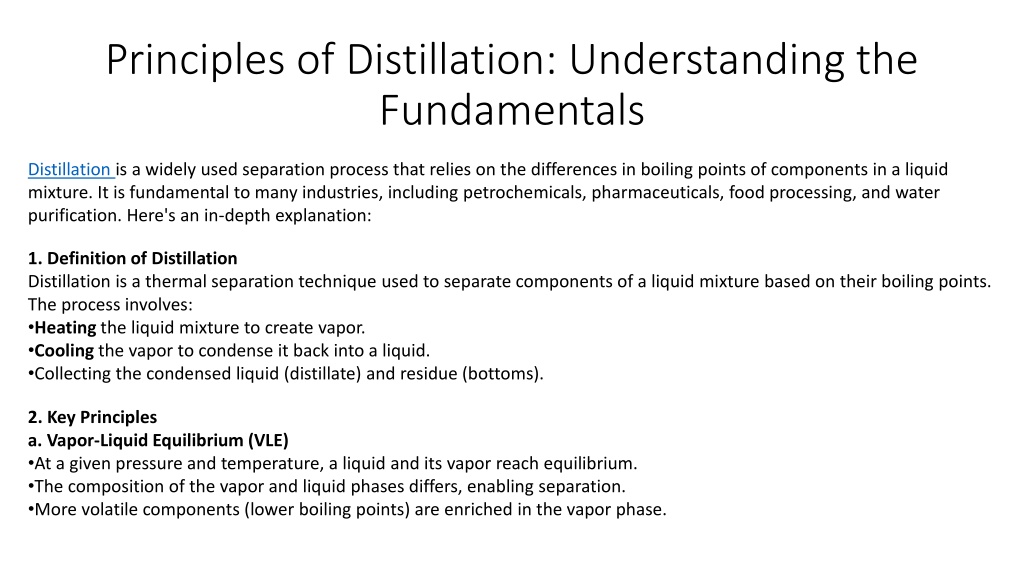

  1. Principles of Distillation: Understanding the Fundamentals Distillation is a widely used separation process that relies on the differences in boiling points of components in a liquid mixture. It is fundamental to many industries, including petrochemicals, pharmaceuticals, food processing, and water purification. Here's an in-depth explanation: • 1. Definition of Distillation • Distillation is a thermal separation technique used to separate components of a liquid mixture based on their boiling points. The process involves: • Heating the liquid mixture to create vapor. • Cooling the vapor to condense it back into a liquid. • Collecting the condensed liquid (distillate) and residue (bottoms). • 2. Key Principles • a. Vapor-Liquid Equilibrium (VLE) • At a given pressure and temperature, a liquid and its vapor reach equilibrium. • The composition of the vapor and liquid phases differs, enabling separation. • More volatile components (lower boiling points) are enriched in the vapor phase.

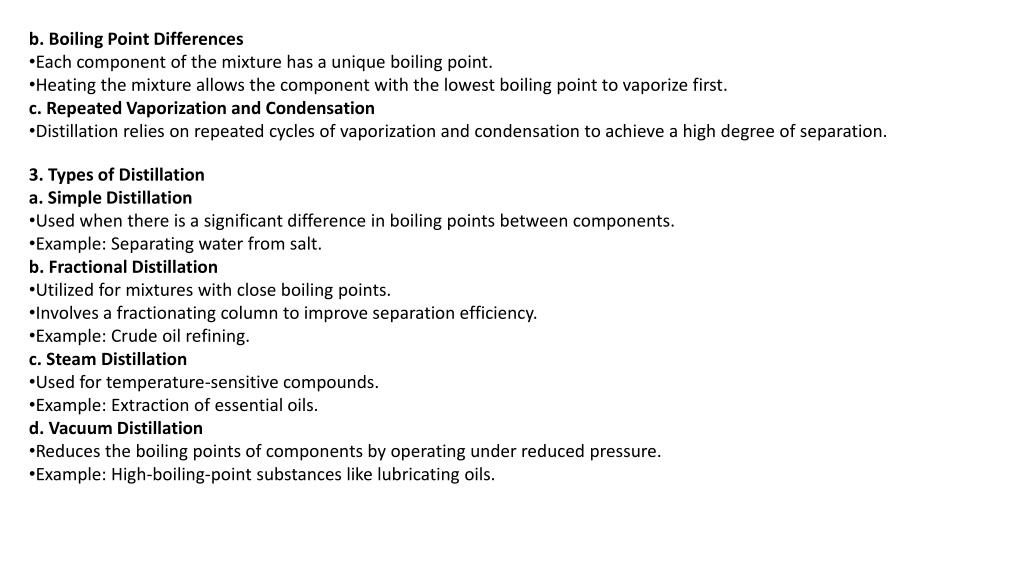

  2. b. Boiling Point Differences • Each component of the mixture has a unique boiling point. • Heating the mixture allows the component with the lowest boiling point to vaporize first. • c. Repeated Vaporization and Condensation • Distillation relies on repeated cycles of vaporization and condensation to achieve a high degree of separation. • 3. Types of Distillation • a. Simple Distillation • Used when there is a significant difference in boiling points between components. • Example: Separating water from salt. • b. Fractional Distillation • Utilized for mixtures with close boiling points. • Involves a fractionating column to improve separation efficiency. • Example: Crude oil refining. • c. Steam Distillation • Used for temperature-sensitive compounds. • Example: Extraction of essential oils. • d. Vacuum Distillation • Reduces the boiling points of components by operating under reduced pressure. • Example: High-boiling-point substances like lubricating oils.

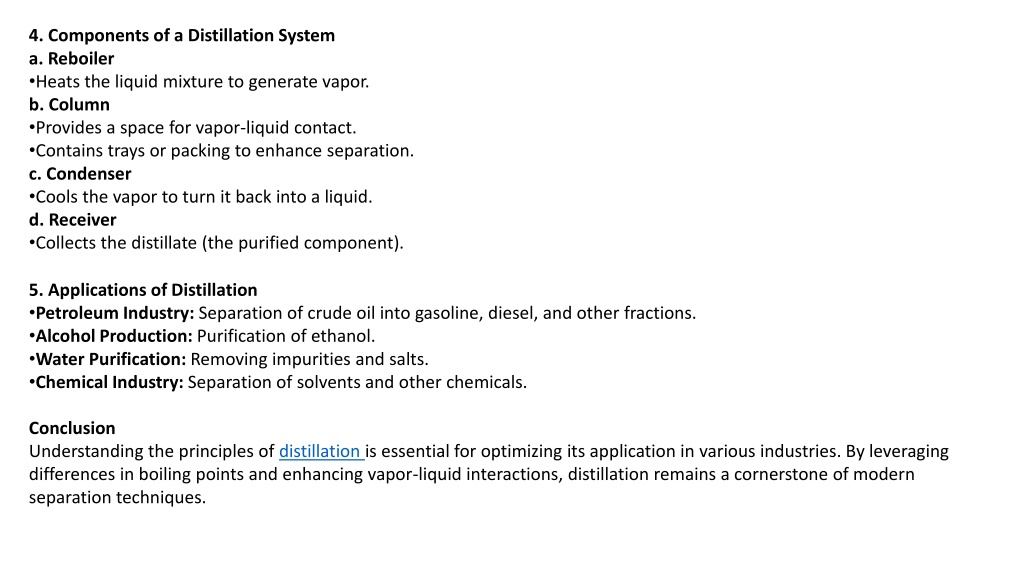

  3. 4. Components of a Distillation System • a. Reboiler • Heats the liquid mixture to generate vapor. • b. Column • Provides a space for vapor-liquid contact. • Contains trays or packing to enhance separation. • c. Condenser • Cools the vapor to turn it back into a liquid. • d. Receiver • Collects the distillate (the purified component). • 5. Applications of Distillation • Petroleum Industry: Separation of crude oil into gasoline, diesel, and other fractions. • Alcohol Production: Purification of ethanol. • Water Purification: Removing impurities and salts. • Chemical Industry: Separation of solvents and other chemicals. Conclusion Understanding the principles of distillation is essential for optimizing its application in various industries. By leveraging differences in boiling points and enhancing vapor-liquid interactions, distillation remains a cornerstone of modern separation techniques.

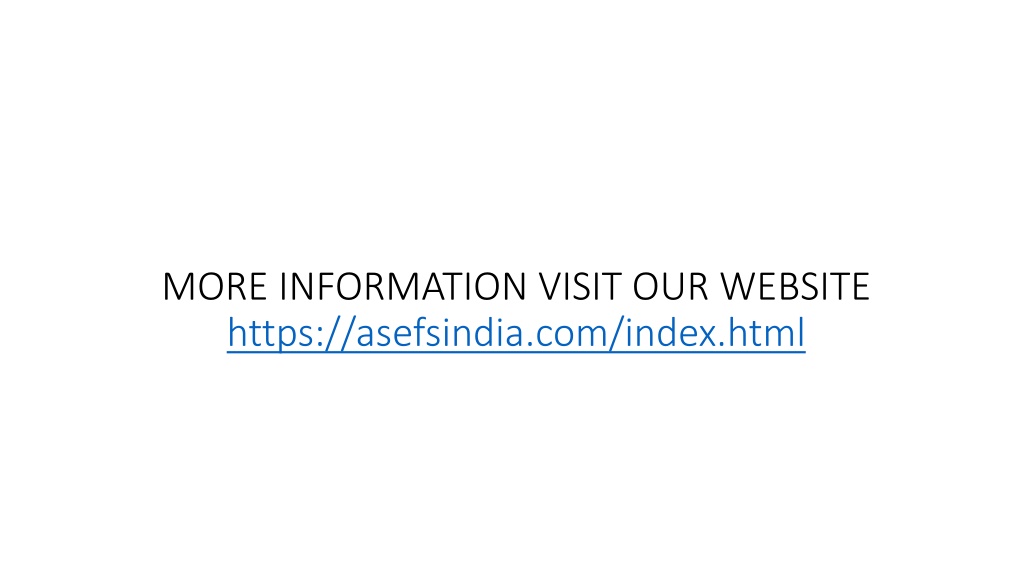

  4. MORE INFORMATION VISIT OUR WEBSITEhttps://asefsindia.com/index.html
