Materials Used in Limpet Coil Fabrication

The choice of materials for fabricating limpet coils is crucial as they directly affect the efficiency, durability, and safety of the system. The selection depends on factors such as the type of fluid being processed, operating temperatures, pressures, and resistance to corrosion.<br>

pooja277
Download Presentation

Materials Used in Limpet Coil Fabrication

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

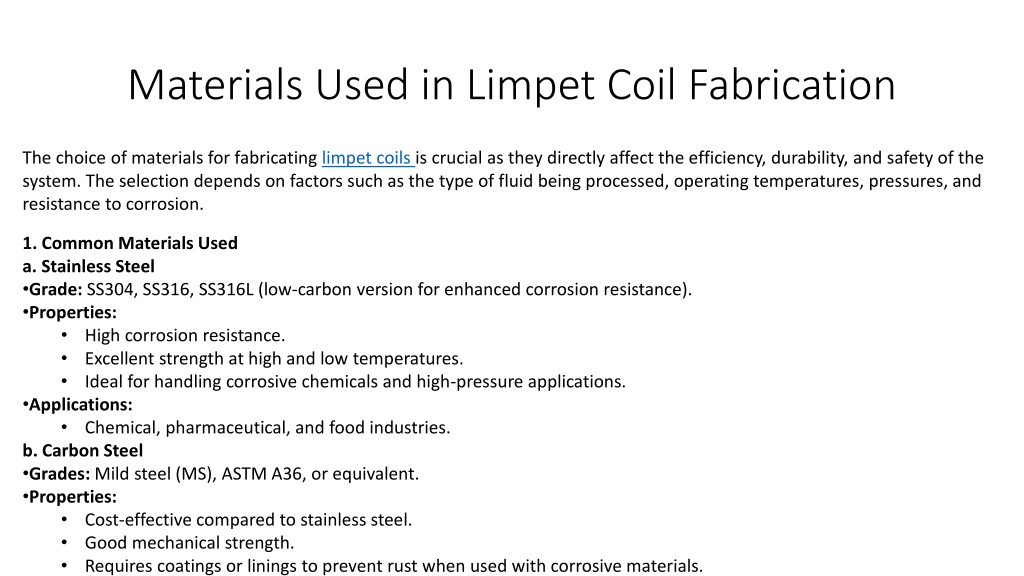

  1. Materials Used in Limpet Coil Fabrication The choice of materials for fabricating limpet coils is crucial as they directly affect the efficiency, durability, and safety of the system. The selection depends on factors such as the type of fluid being processed, operating temperatures, pressures, and resistance to corrosion. • 1. Common Materials Used • a. Stainless Steel • Grade: SS304, SS316, SS316L (low-carbon version for enhanced corrosion resistance). • Properties: • High corrosion resistance. • Excellent strength at high and low temperatures. • Ideal for handling corrosive chemicals and high-pressure applications. • Applications: • Chemical, pharmaceutical, and food industries. • b. Carbon Steel • Grades: Mild steel (MS), ASTM A36, or equivalent. • Properties: • Cost-effective compared to stainless steel. • Good mechanical strength. • Requires coatings or linings to prevent rust when used with corrosive materials.

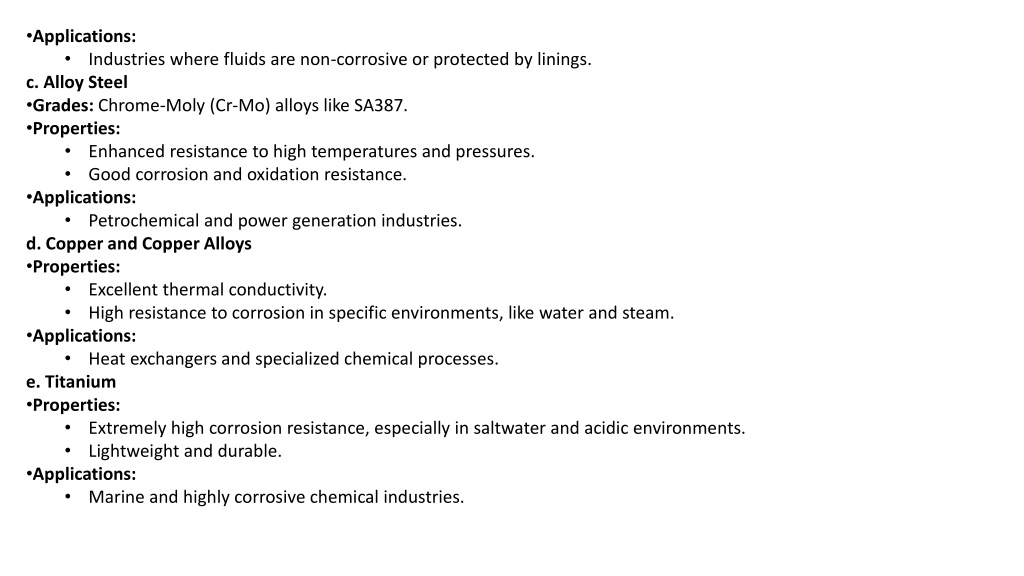

  2. Applications: • Industries where fluids are non-corrosive or protected by linings. • c. Alloy Steel • Grades: Chrome-Moly (Cr-Mo) alloys like SA387. • Properties: • Enhanced resistance to high temperatures and pressures. • Good corrosion and oxidation resistance. • Applications: • Petrochemical and power generation industries. • d. Copper and Copper Alloys • Properties: • Excellent thermal conductivity. • High resistance to corrosion in specific environments, like water and steam. • Applications: • Heat exchangers and specialized chemical processes. • e. Titanium • Properties: • Extremely high corrosion resistance, especially in saltwater and acidic environments. • Lightweight and durable. • Applications: • Marine and highly corrosive chemical industries.

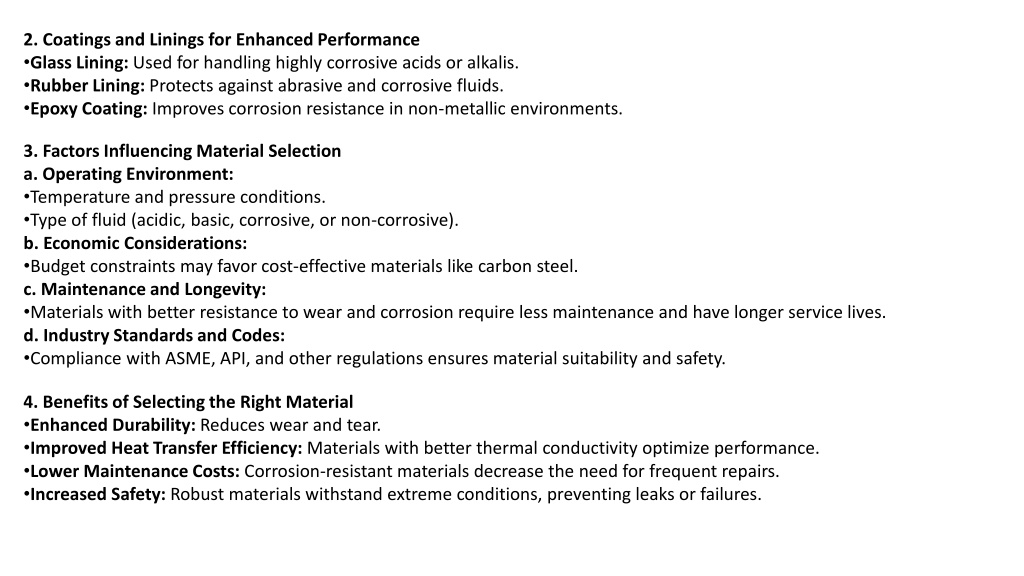

  3. 2. Coatings and Linings for Enhanced Performance • Glass Lining: Used for handling highly corrosive acids or alkalis. • Rubber Lining: Protects against abrasive and corrosive fluids. • Epoxy Coating: Improves corrosion resistance in non-metallic environments. • 3. Factors Influencing Material Selection • a. Operating Environment: • Temperature and pressure conditions. • Type of fluid (acidic, basic, corrosive, or non-corrosive). • b. Economic Considerations: • Budget constraints may favor cost-effective materials like carbon steel. • c. Maintenance and Longevity: • Materials with better resistance to wear and corrosion require less maintenance and have longer service lives. • d. Industry Standards and Codes: • Compliance with ASME, API, and other regulations ensures material suitability and safety. • 4. Benefits of Selecting the Right Material • Enhanced Durability: Reduces wear and tear. • Improved Heat Transfer Efficiency: Materials with better thermal conductivity optimize performance. • Lower Maintenance Costs: Corrosion-resistant materials decrease the need for frequent repairs. • Increased Safety: Robust materials withstand extreme conditions, preventing leaks or failures.

  4. MORE INFORMATION VISIT OUR WEBSITEhttps://asefsindia.com/index.html
