Innovative heat exchanger designs are transforming industries by improving efficiency, reducing costs, and meeting environmental challenges. From advanced materials like nanofluids to cutting-edge manufacturing methods like 3D printing, these technologies pave the way for more sustainable and effective thermal management solutions.<br>
E N D

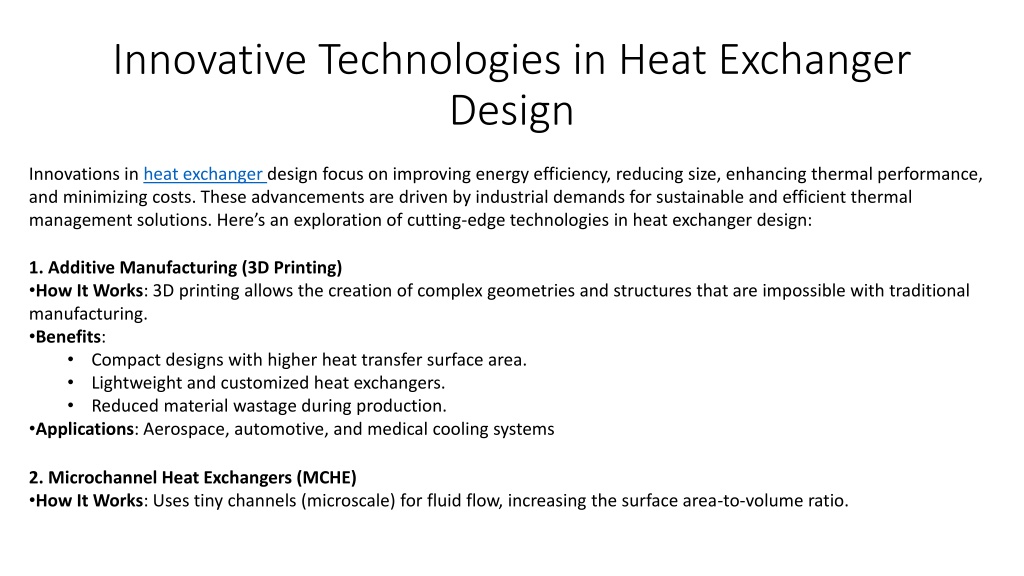

Innovative Technologies in Heat Exchanger Design Innovations in heat exchanger design focus on improving energy efficiency, reducing size, enhancing thermal performance, and minimizing costs. These advancements are driven by industrial demands for sustainable and efficient thermal management solutions. Here’s an exploration of cutting-edge technologies in heat exchanger design: • 1. Additive Manufacturing (3D Printing) • How It Works: 3D printing allows the creation of complex geometries and structures that are impossible with traditional manufacturing. • Benefits: • Compact designs with higher heat transfer surface area. • Lightweight and customized heat exchangers. • Reduced material wastage during production. • Applications: Aerospace, automotive, and medical cooling systems • 2. Microchannel Heat Exchangers (MCHE) • How It Works: Uses tiny channels (microscale) for fluid flow, increasing the surface area-to-volume ratio.

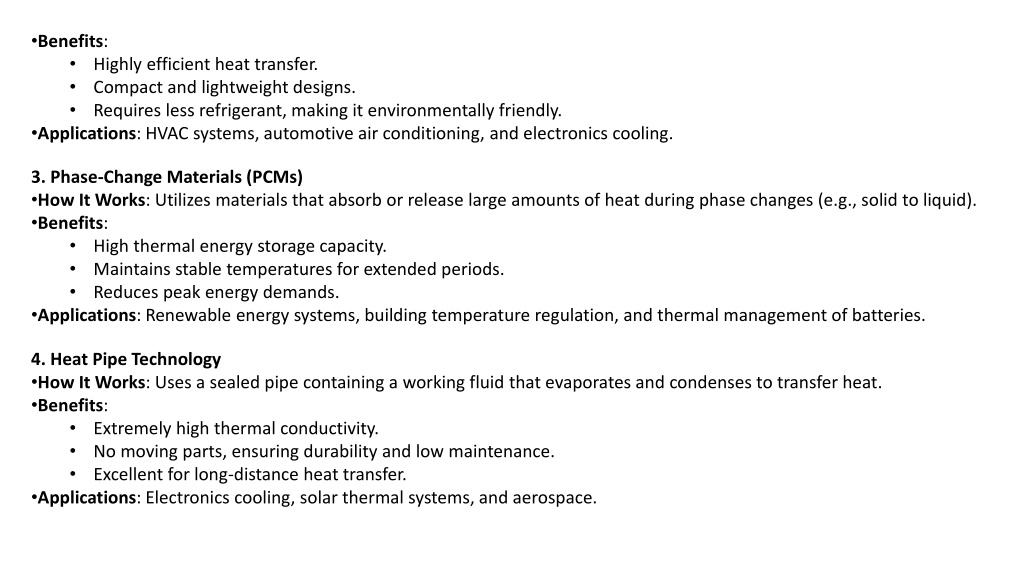

Benefits: • Highly efficient heat transfer. • Compact and lightweight designs. • Requires less refrigerant, making it environmentally friendly. • Applications: HVAC systems, automotive air conditioning, and electronics cooling. • 3. Phase-Change Materials (PCMs) • How It Works: Utilizes materials that absorb or release large amounts of heat during phase changes (e.g., solid to liquid). • Benefits: • High thermal energy storage capacity. • Maintains stable temperatures for extended periods. • Reduces peak energy demands. • Applications: Renewable energy systems, building temperature regulation, and thermal management of batteries. • 4. Heat Pipe Technology • How It Works: Uses a sealed pipe containing a working fluid that evaporates and condenses to transfer heat. • Benefits: • Extremely high thermal conductivity. • No moving parts, ensuring durability and low maintenance. • Excellent for long-distance heat transfer. • Applications: Electronics cooling, solar thermal systems, and aerospace.

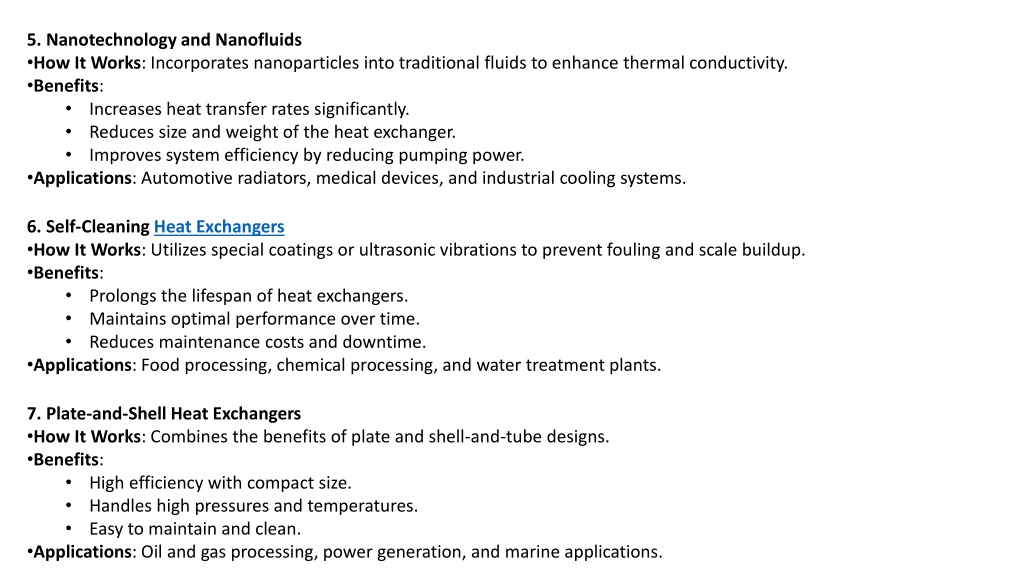

5. Nanotechnology and Nanofluids • How It Works: Incorporates nanoparticles into traditional fluids to enhance thermal conductivity. • Benefits: • Increases heat transfer rates significantly. • Reduces size and weight of the heat exchanger. • Improves system efficiency by reducing pumping power. • Applications: Automotive radiators, medical devices, and industrial cooling systems. • 6. Self-Cleaning Heat Exchangers • How It Works: Utilizes special coatings or ultrasonic vibrations to prevent fouling and scale buildup. • Benefits: • Prolongs the lifespan of heat exchangers. • Maintains optimal performance over time. • Reduces maintenance costs and downtime. • Applications: Food processing, chemical processing, and water treatment plants. • 7. Plate-and-Shell Heat Exchangers • How It Works: Combines the benefits of plate and shell-and-tube designs. • Benefits: • High efficiency with compact size. • Handles high pressures and temperatures. • Easy to maintain and clean. • Applications: Oil and gas processing, power generation, and marine applications.

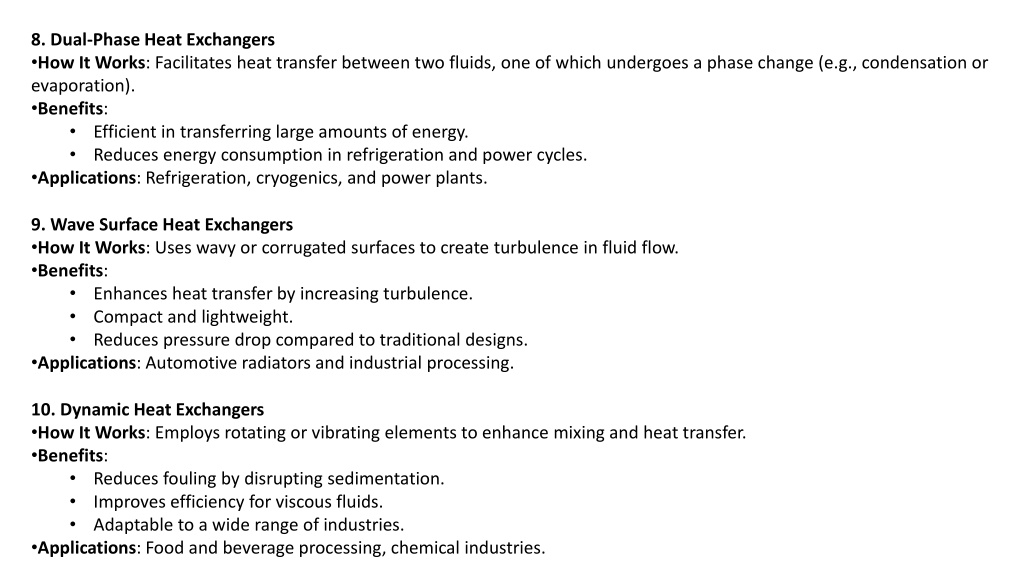

8. Dual-Phase Heat Exchangers • How It Works: Facilitates heat transfer between two fluids, one of which undergoes a phase change (e.g., condensation or evaporation). • Benefits: • Efficient in transferring large amounts of energy. • Reduces energy consumption in refrigeration and power cycles. • Applications: Refrigeration, cryogenics, and power plants. • 9. Wave Surface Heat Exchangers • How It Works: Uses wavy or corrugated surfaces to create turbulence in fluid flow. • Benefits: • Enhances heat transfer by increasing turbulence. • Compact and lightweight. • Reduces pressure drop compared to traditional designs. • Applications: Automotive radiators and industrial processing. • 10. Dynamic Heat Exchangers • How It Works: Employs rotating or vibrating elements to enhance mixing and heat transfer. • Benefits: • Reduces fouling by disrupting sedimentation. • Improves efficiency for viscous fluids. • Adaptable to a wide range of industries. • Applications: Food and beverage processing, chemical industries.

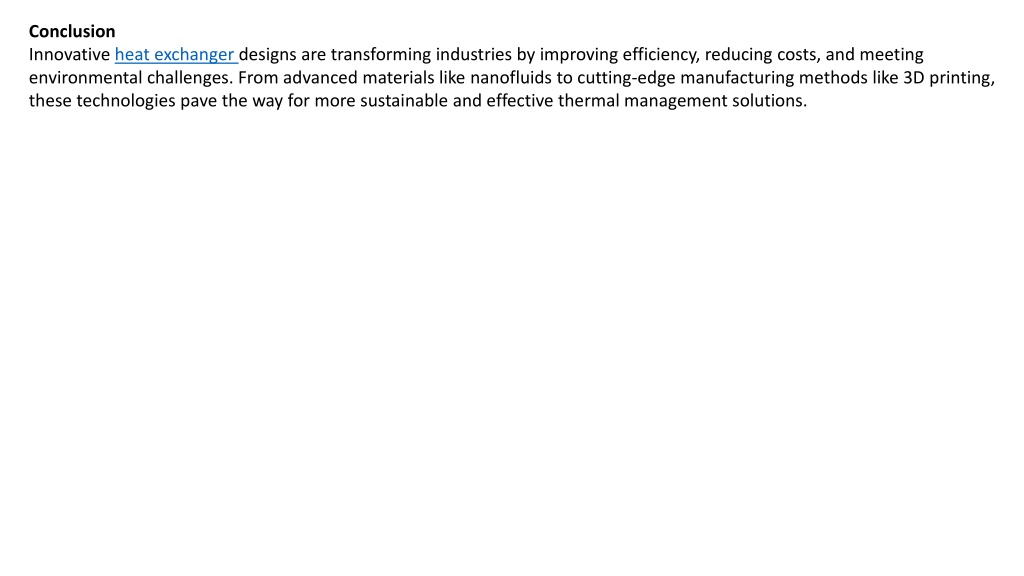

Conclusion Innovative heat exchanger designs are transforming industries by improving efficiency, reducing costs, and meeting environmental challenges. From advanced materials like nanofluids to cutting-edge manufacturing methods like 3D printing, these technologies pave the way for more sustainable and effective thermal management solutions.
