Optimizing the efficiency of a distillation column requires a holistic approach, considering design, operating conditions, and continuous monitoring. By systematically applying these strategies, one can significantly enhance the performance of distillation processes in chemical manufacturing.<br>
E N D

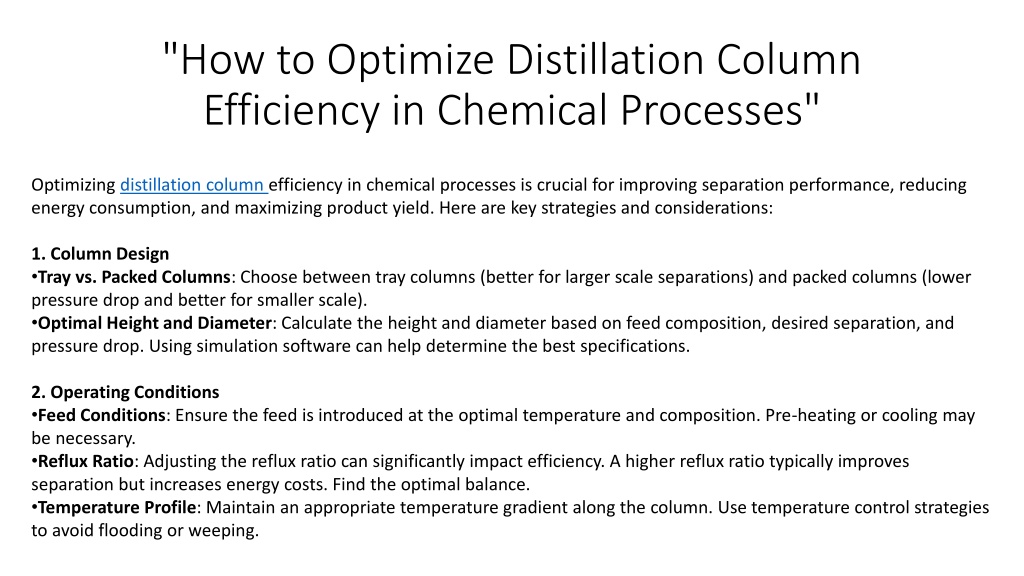

"How to Optimize Distillation Column Efficiency in Chemical Processes" • Optimizing distillation column efficiency in chemical processes is crucial for improving separation performance, reducing energy consumption, and maximizing product yield. Here are key strategies and considerations: • 1. Column Design • Tray vs. Packed Columns: Choose between tray columns (better for larger scale separations) and packed columns (lower pressure drop and better for smaller scale). • Optimal Height and Diameter: Calculate the height and diameter based on feed composition, desired separation, and pressure drop. Using simulation software can help determine the best specifications. • 2. Operating Conditions • Feed Conditions: Ensure the feed is introduced at the optimal temperature and composition. Pre-heating or cooling may be necessary. • Reflux Ratio: Adjusting the reflux ratio can significantly impact efficiency. A higher reflux ratio typically improves separation but increases energy costs. Find the optimal balance. • Temperature Profile: Maintain an appropriate temperature gradient along the column. Use temperature control strategies to avoid flooding or weeping.

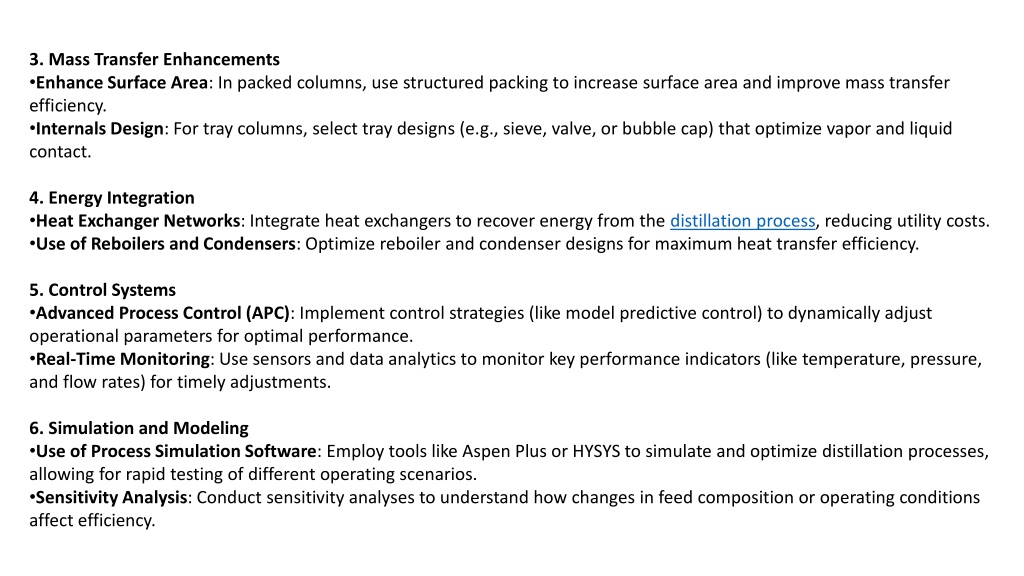

3. Mass Transfer Enhancements • Enhance Surface Area: In packed columns, use structured packing to increase surface area and improve mass transfer efficiency. • Internals Design: For tray columns, select tray designs (e.g., sieve, valve, or bubble cap) that optimize vapor and liquid contact. • 4. Energy Integration • Heat Exchanger Networks: Integrate heat exchangers to recover energy from the distillation process, reducing utility costs. • Use of Reboilers and Condensers: Optimize reboiler and condenser designs for maximum heat transfer efficiency. • 5. Control Systems • Advanced Process Control (APC): Implement control strategies (like model predictive control) to dynamically adjust operational parameters for optimal performance. • Real-Time Monitoring: Use sensors and data analytics to monitor key performance indicators (like temperature, pressure, and flow rates) for timely adjustments. • 6. Simulation and Modeling • Use of Process Simulation Software: Employ tools like Aspen Plus or HYSYS to simulate and optimize distillation processes, allowing for rapid testing of different operating scenarios. • Sensitivity Analysis: Conduct sensitivity analyses to understand how changes in feed composition or operating conditions affect efficiency.

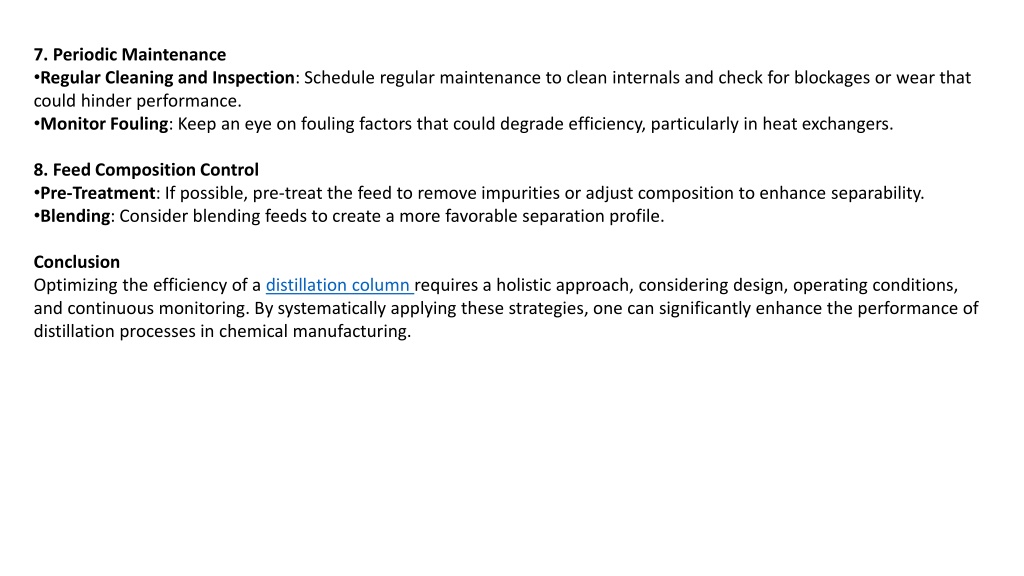

7. Periodic Maintenance • Regular Cleaning and Inspection: Schedule regular maintenance to clean internals and check for blockages or wear that could hinder performance. • Monitor Fouling: Keep an eye on fouling factors that could degrade efficiency, particularly in heat exchangers. • 8. Feed Composition Control • Pre-Treatment: If possible, pre-treat the feed to remove impurities or adjust composition to enhance separability. • Blending: Consider blending feeds to create a more favorable separation profile. • Conclusion • Optimizing the efficiency of a distillation column requires a holistic approach, considering design, operating conditions, and continuous monitoring. By systematically applying these strategies, one can significantly enhance the performance of distillation processes in chemical manufacturing.
