The design and construction of heat exchangers require a comprehensive understanding of thermal dynamics, fluid mechanics, material science, and engineering principles. Each type of heat exchanger offers unique advantages and is suitable for different applications, but all share the common goal of facilitating efficient heat transfer while minimizing energy consumption and ensuring long-term durability.<br>
E N D
Design and Construction of Heat Exchangers Heat exchangers are devices that facilitate the transfer of thermal energy between two or more fluids, which are typically at different temperatures. They are essential components in various industries, including HVAC systems, chemical processing, oil refineries, and power generation. The design and construction of heat exchangers involve considering several factors, such as heat transfer efficiency, pressure drop, material selection, and safety requirements. • 1. Types of Heat Exchangers • Before diving into the design and construction process, it is important to understand the types of heat exchangers commonly used. The design considerations will vary depending on the type. • Shell-and-Tube Heat Exchangers • Consist of a series of tubes, one set carrying the hot fluid and the other carrying the cold fluid. • Commonly used in high-pressure applications and industries like oil refining and power generation. • Plate Heat Exchangers • Made up of multiple plates arranged in a stack, with alternating fluid channels. • Suitable for applications where space is limited, such as food processing and HVAC systems. • Air-Cooled Heat Exchangers • Use air instead of water to cool fluids. • Used in environments where water is scarce, such as in remote locations or industries like natural gas processing.

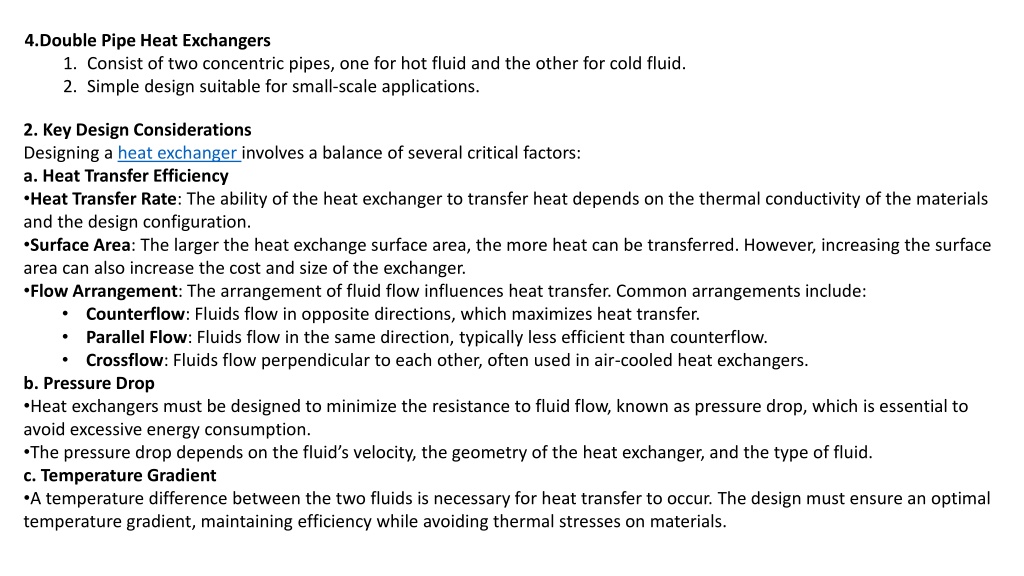

4.Double Pipe Heat Exchangers • Consist of two concentric pipes, one for hot fluid and the other for cold fluid. • Simple design suitable for small-scale applications. • 2. Key Design Considerations • Designing a heat exchanger involves a balance of several critical factors: • a. Heat Transfer Efficiency • Heat Transfer Rate: The ability of the heat exchanger to transfer heat depends on the thermal conductivity of the materials and the design configuration. • Surface Area: The larger the heat exchange surface area, the more heat can be transferred. However, increasing the surface area can also increase the cost and size of the exchanger. • Flow Arrangement: The arrangement of fluid flow influences heat transfer. Common arrangements include: • Counterflow: Fluids flow in opposite directions, which maximizes heat transfer. • Parallel Flow: Fluids flow in the same direction, typically less efficient than counterflow. • Crossflow: Fluids flow perpendicular to each other, often used in air-cooled heat exchangers. • b. Pressure Drop • Heat exchangers must be designed to minimize the resistance to fluid flow, known as pressure drop, which is essential to avoid excessive energy consumption. • The pressure drop depends on the fluid’s velocity, the geometry of the heat exchanger, and the type of fluid. • c. Temperature Gradient • A temperature difference between the two fluids is necessary for heat transfer to occur. The design must ensure an optimal temperature gradient, maintaining efficiency while avoiding thermal stresses on materials.

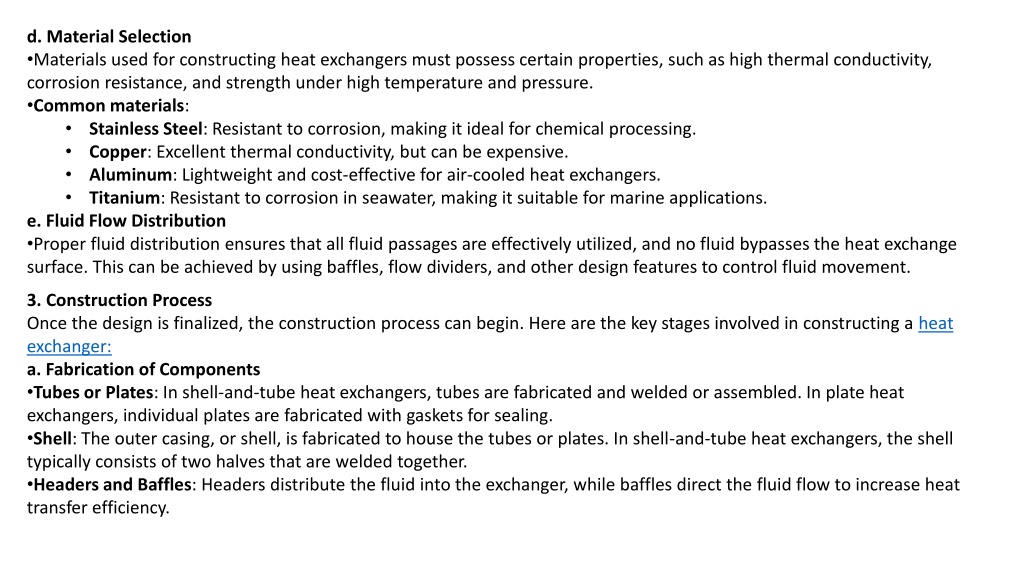

d. Material Selection • Materials used for constructing heat exchangers must possess certain properties, such as high thermal conductivity, corrosion resistance, and strength under high temperature and pressure. • Common materials: • Stainless Steel: Resistant to corrosion, making it ideal for chemical processing. • Copper: Excellent thermal conductivity, but can be expensive. • Aluminum: Lightweight and cost-effective for air-cooled heat exchangers. • Titanium: Resistant to corrosion in seawater, making it suitable for marine applications. • e. Fluid Flow Distribution • Proper fluid distribution ensures that all fluid passages are effectively utilized, and no fluid bypasses the heat exchange surface. This can be achieved by using baffles, flow dividers, and other design features to control fluid movement. • 3. Construction Process • Once the design is finalized, the construction process can begin. Here are the key stages involved in constructing a heat exchanger: • a. Fabrication of Components • Tubes or Plates: In shell-and-tube heat exchangers, tubes are fabricated and welded or assembled. In plate heat exchangers, individual plates are fabricated with gaskets for sealing. • Shell: The outer casing, or shell, is fabricated to house the tubes or plates. In shell-and-tube heat exchangers, the shell typically consists of two halves that are welded together. • Headers and Baffles: Headers distribute the fluid into the exchanger, while baffles direct the fluid flow to increase heat transfer efficiency.

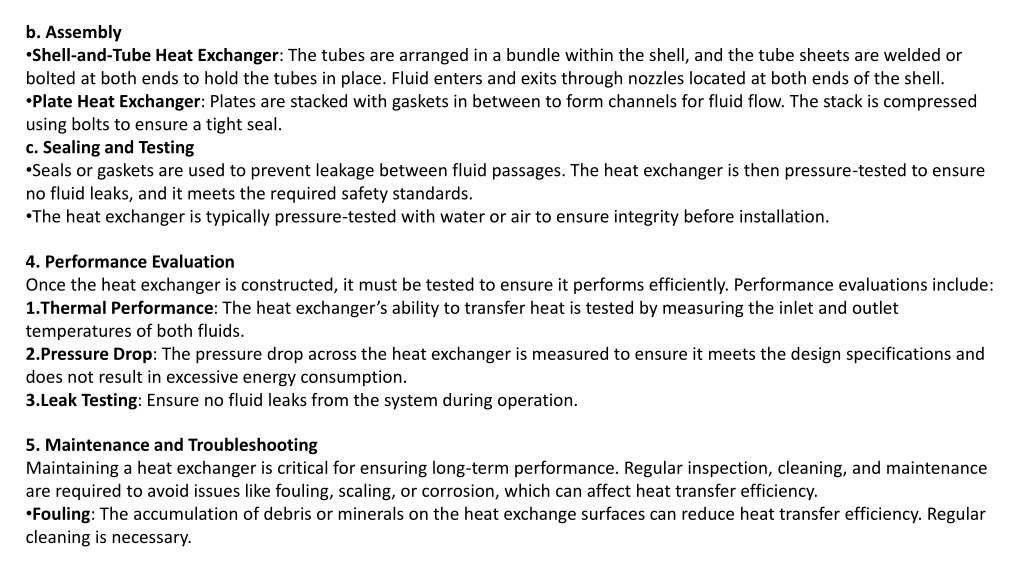

b. Assembly • Shell-and-Tube Heat Exchanger: The tubes are arranged in a bundle within the shell, and the tube sheets are welded or bolted at both ends to hold the tubes in place. Fluid enters and exits through nozzles located at both ends of the shell. • Plate Heat Exchanger: Plates are stacked with gaskets in between to form channels for fluid flow. The stack is compressed using bolts to ensure a tight seal. • c. Sealing and Testing • Seals or gaskets are used to prevent leakage between fluid passages. The heat exchanger is then pressure-tested to ensure no fluid leaks, and it meets the required safety standards. • The heat exchanger is typically pressure-tested with water or air to ensure integrity before installation. 4. Performance Evaluation Once the heat exchanger is constructed, it must be tested to ensure it performs efficiently. Performance evaluations include: Thermal Performance: The heat exchanger’s ability to transfer heat is tested by measuring the inlet and outlet temperatures of both fluids. Pressure Drop: The pressure drop across the heat exchanger is measured to ensure it meets the design specifications and does not result in excessive energy consumption. Leak Testing: Ensure no fluid leaks from the system during operation. • 5. Maintenance and Troubleshooting • Maintaining a heat exchanger is critical for ensuring long-term performance. Regular inspection, cleaning, and maintenance are required to avoid issues like fouling, scaling, or corrosion, which can affect heat transfer efficiency. • Fouling: The accumulation of debris or minerals on the heat exchange surfaces can reduce heat transfer efficiency. Regular cleaning is necessary.

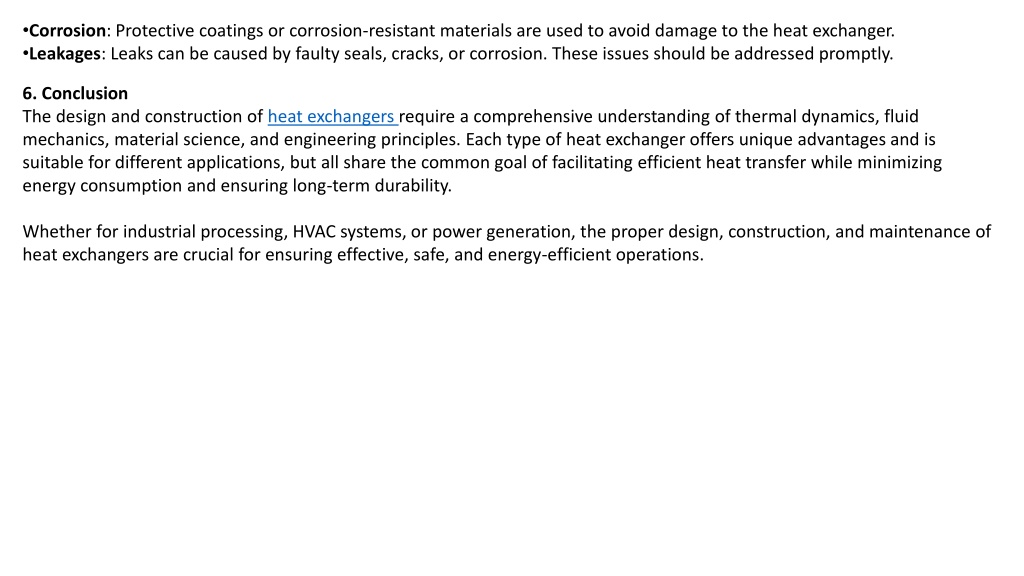

Corrosion: Protective coatings or corrosion-resistant materials are used to avoid damage to the heat exchanger. • Leakages: Leaks can be caused by faulty seals, cracks, or corrosion. These issues should be addressed promptly. 6. Conclusion The design and construction of heat exchangers require a comprehensive understanding of thermal dynamics, fluid mechanics, material science, and engineering principles. Each type of heat exchanger offers unique advantages and is suitable for different applications, but all share the common goal of facilitating efficient heat transfer while minimizing energy consumption and ensuring long-term durability. Whether for industrial processing, HVAC systems, or power generation, the proper design, construction, and maintenance of heat exchangers are crucial for ensuring effective, safe, and energy-efficient operations.
