TOR ( target of rapamycin) signaling

1. TOR ( target of rapamycin) signaling Apr 4, 2005

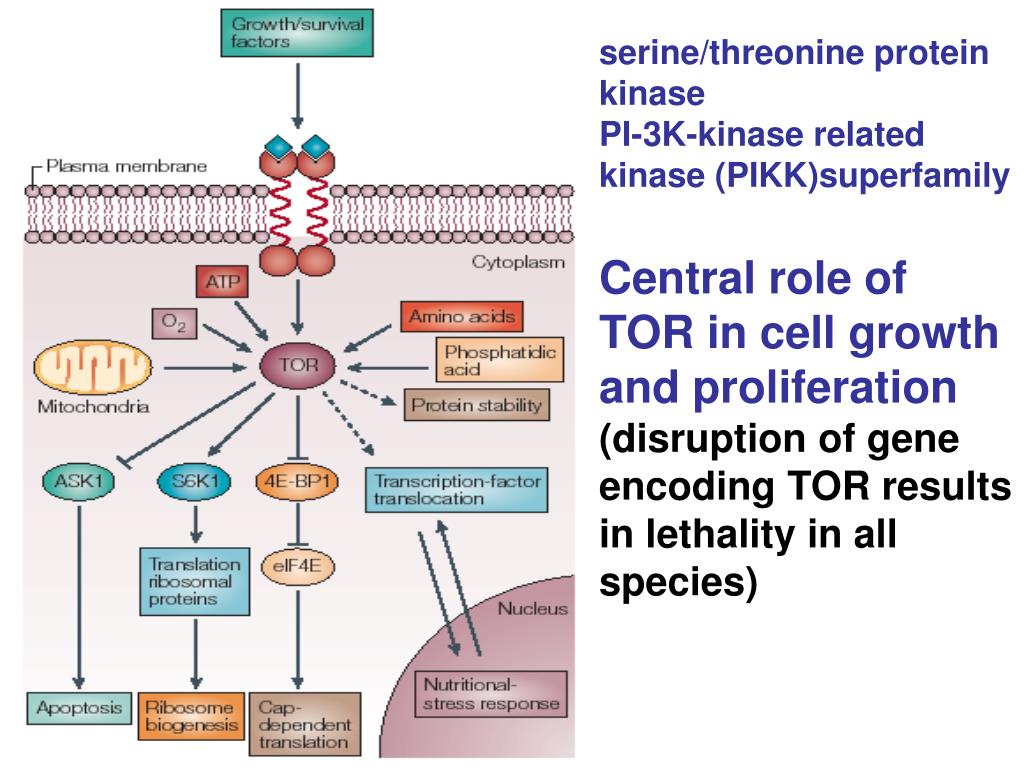

2. serine/threonine protein kinase PI-3K-kinase related kinase (PIKK)superfamily Central role of TOR in cell growth and proliferation(disruption of gene encoding TOR results in lethality in all species)

3. Nutrients and Growth factor TOR Transcription, translation and ribosome biogenesis Cell growth (in crease in proliferating or non-proliferating cell mass and size via macromolecular biosynthesis) Cell proliferation (increase in cell number) Coupled, allowing cells to proliferate continuously while maintaining their size maintain individual cells, organs and whole organisms a characteristic size(Dysregulation of TOR signaling result in pathological changes in organ size, and diseases such as cancer, heart hypertrophy, muscular atrophy) TOR: integrator of nutrient and growth factor Coordinator of cell growth and proliferation

4. caAkt: Constitutively active Akt kdAkt: Kinase deficient Akt

6. Myostatin 肌抑素

7.  Discovery of rapamycin and identification of TOR  Structure of TOR protein  TOR signaling Upstream Downstream  TOR-binding proteins  TOR function  TOR and diseases  Future directions

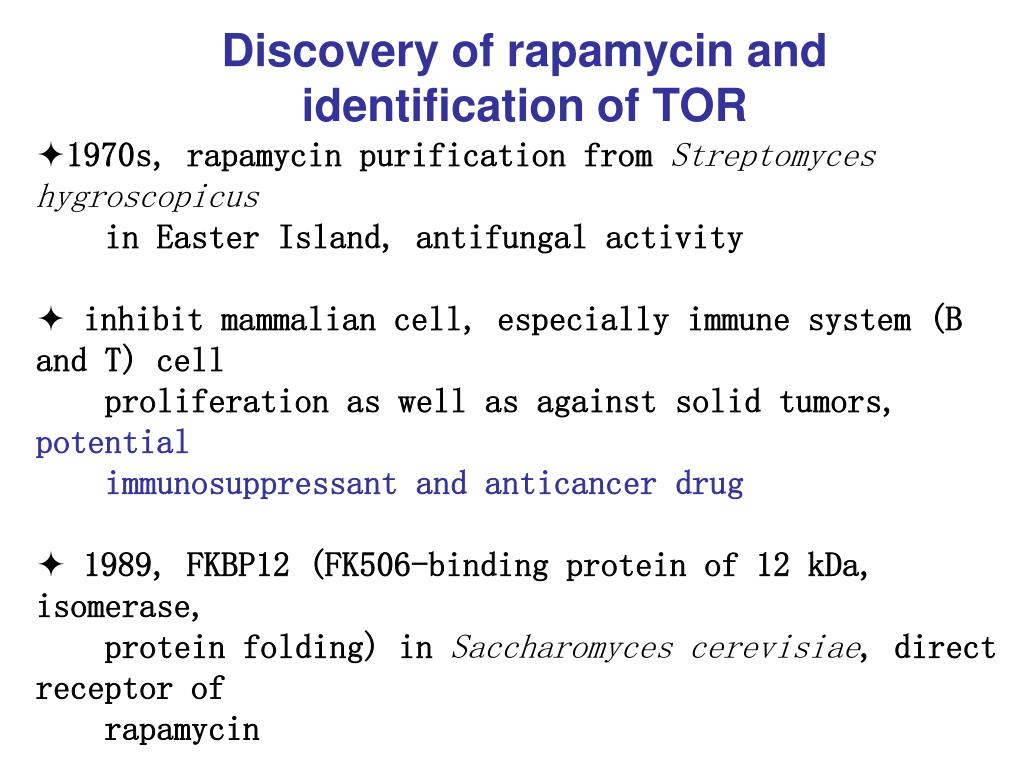

8. Discovery of rapamycin and identification of TOR • 1970s, rapamycin purification from Streptomyces hygroscopicus in Easter Island, antifungal activity • inhibit mammalian cell, especially immune system (B and T) cell proliferation as well as against solid tumors, potential immunosuppressant and anticancer drug • 1989, FKBP12 (FK506-binding protein of 12 kDa, isomerase, protein folding) in Saccharomyces cerevisiae, direct receptor of rapamycin • 1991, Genetic screens for mutations that rendered for S. cerevisiae resistant to the growth inhibitory effect of rapamycin identified two target of rapamycin proteins: TOR1 and TOR2

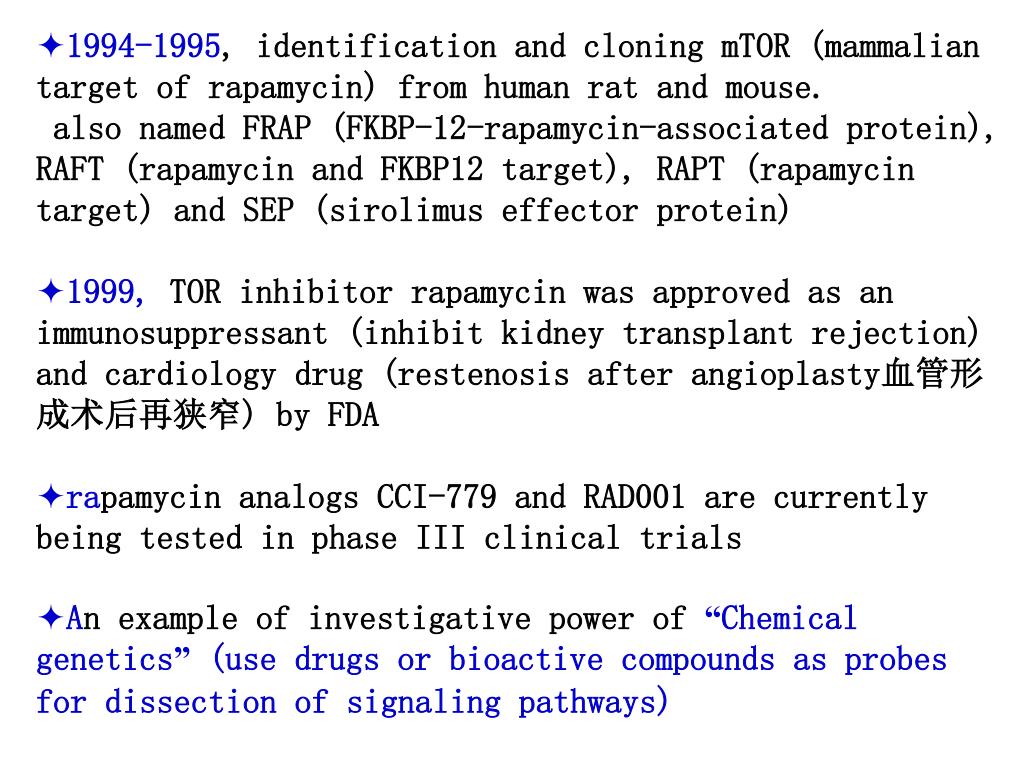

10. 1994-1995, identification and cloning mTOR (mammalian target of rapamycin) from human rat and mouse. also named FRAP (FKBP-12-rapamycin-associated protein), RAFT (rapamycin and FKBP12 target), RAPT (rapamycin target) and SEP (sirolimus effector protein) • 1999, TOR inhibitor rapamycin was approved as an immunosuppressant (inhibit kidney transplant rejection) and cardiology drug (restenosis after angioplasty血管形成术后再狭窄) by FDA • rapamycin analogs CCI-779 and RAD001 are currently being tested in phase III clinical trials • An example of investigative power of “Chemical genetics” (use drugs or bioactive compounds as probes for dissection of signaling pathways)

11. Structure of TOR protein • Large (290 kDa) • evolutionarily conserved (40-60% identical among mammals, flies, worms and yeast) • member of PIKK superfamily (MEC1, TEL1, RAD3, MEI41, DNA-PK, ATM, ATR and TRRAP) • HEAT repeats (Huntingtin, EF3, A subunit of PP2A and TOR motifs): 20 tandemly helical repeated, protein- protein interaction • FAT (FRAP-ATM-TRRAP) and FATC (FAT C-terminus): modulation of catalytic kinase activity • FRB (FKPP12-rapamycin binding domain) • Kinase domain • Repressor domain: auto-inhibitory domain

12.  Structure of mTOR protein

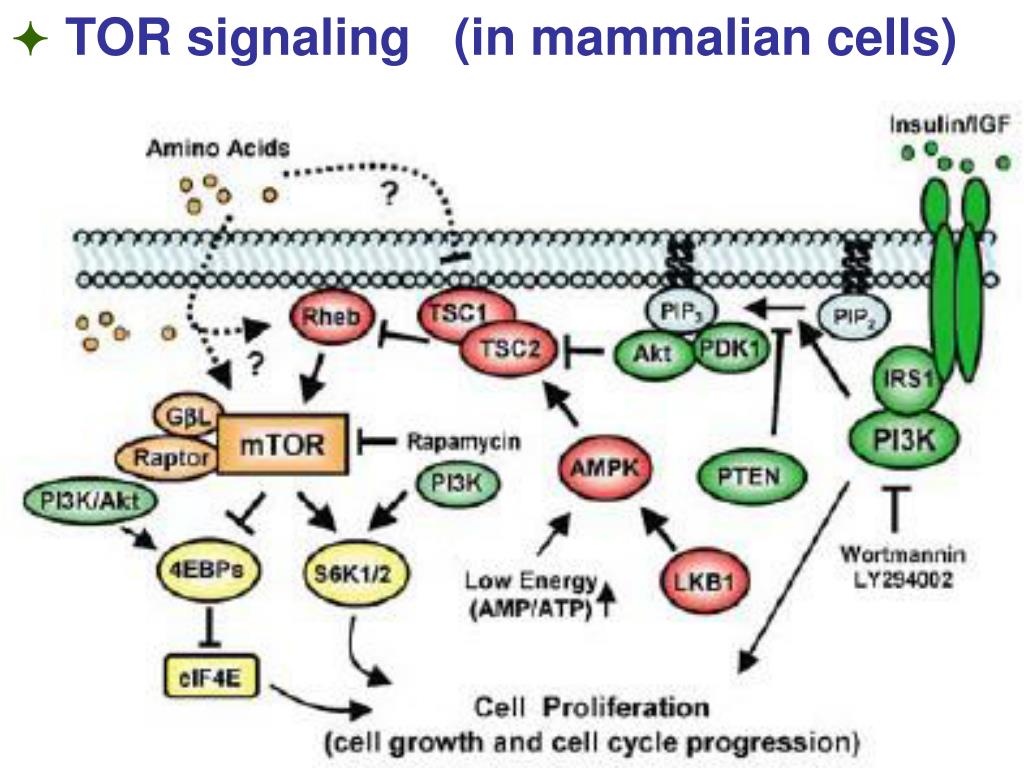

15.  TOR signaling (in mammalian cells)

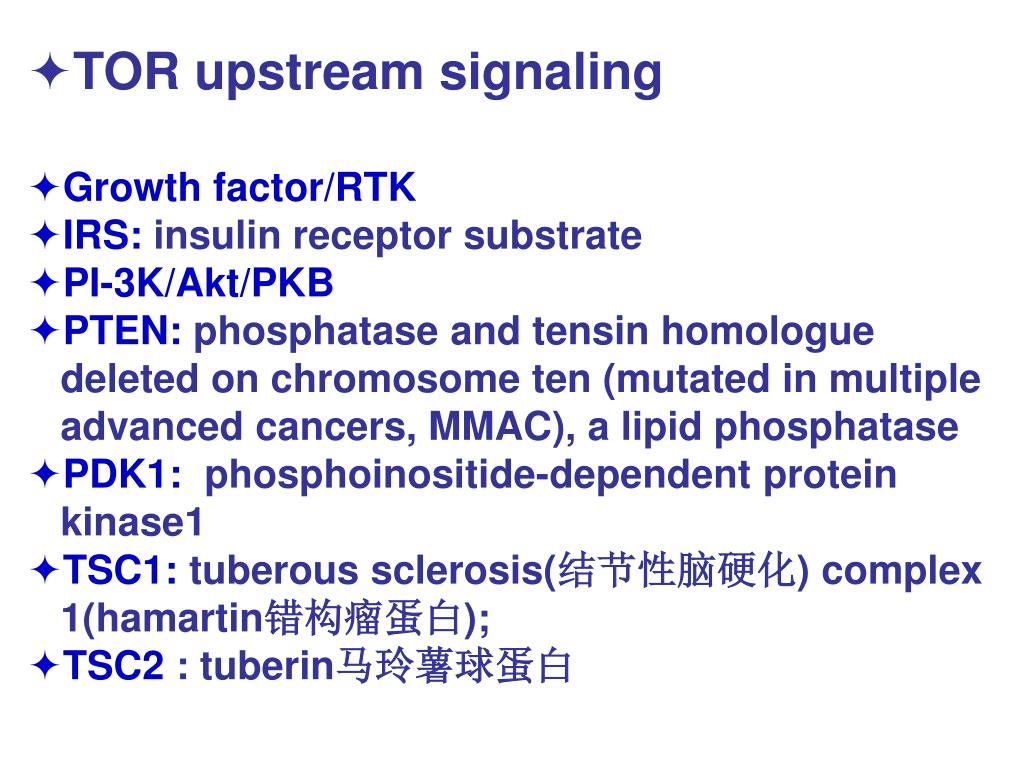

16. TOR upstream signaling • Growth factor/RTK • IRS: insulin receptor substrate • PI-3K/Akt/PKB • PTEN: phosphatase and tensin homologue deleted on chromosome ten (mutated in multiple advanced cancers, MMAC), a lipid phosphatase • PDK1: phosphoinositide-dependent protein kinase1 • TSC1: tuberous sclerosis(结节性脑硬化) complex 1(hamartin错构瘤蛋白); • TSC2 : tuberin马玲薯球蛋白

18. TOR upstream signaling • Rheb: small GTPase, TSC2 function as Rheb- GAP, shifting to Rheb-GDP;Rheb-GEF shifting to Rheb-GTP? • AMPK:AMP-dependent protein kinase • LKB1: key regulator of AMPK activity, mutated in Peutz-Jeghers Syndrome • Raptor: regulatory associated protein of mTOR • GbL(mammalian)or LST8 (yeast)

21. TOR downstream pathway • S6K: p70 S6 kinase • S6 protein: 40S ribosomal protein, drive 5’ TOP (terminal oligopyrimidine tract) mRNA translation • 4EBP1: eIF4E binding protein • eIF4E: eukaryotic translation initiation factor 4E recognizes the 5’ end cap of mRNA, increase key growth-promoting proteins, cyclin D1, c-Myc • cdks: cyclin-dependent kinase • pRb: proteinretinoblastoma (眼癌) • PP2A: protein phosphatase 2A

25.  TOR-binding proteins in yeast TORC1: AVO1, AVO2, AVO3, TOR2, LST8 controls actin organization, not a rapamycin target TORC2: TOR1, TOR2, KOG1, LST8

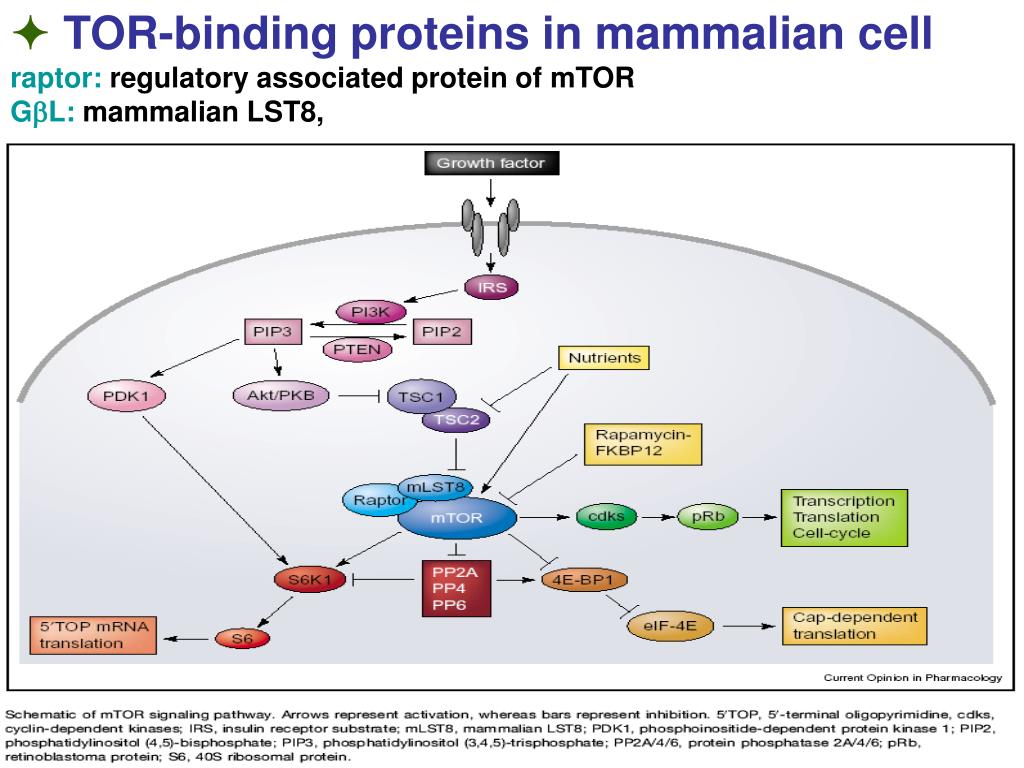

27.  TOR-binding proteins in mammalian cell raptor: regulatory associated protein of mTOR GbL: mammalian LST8,

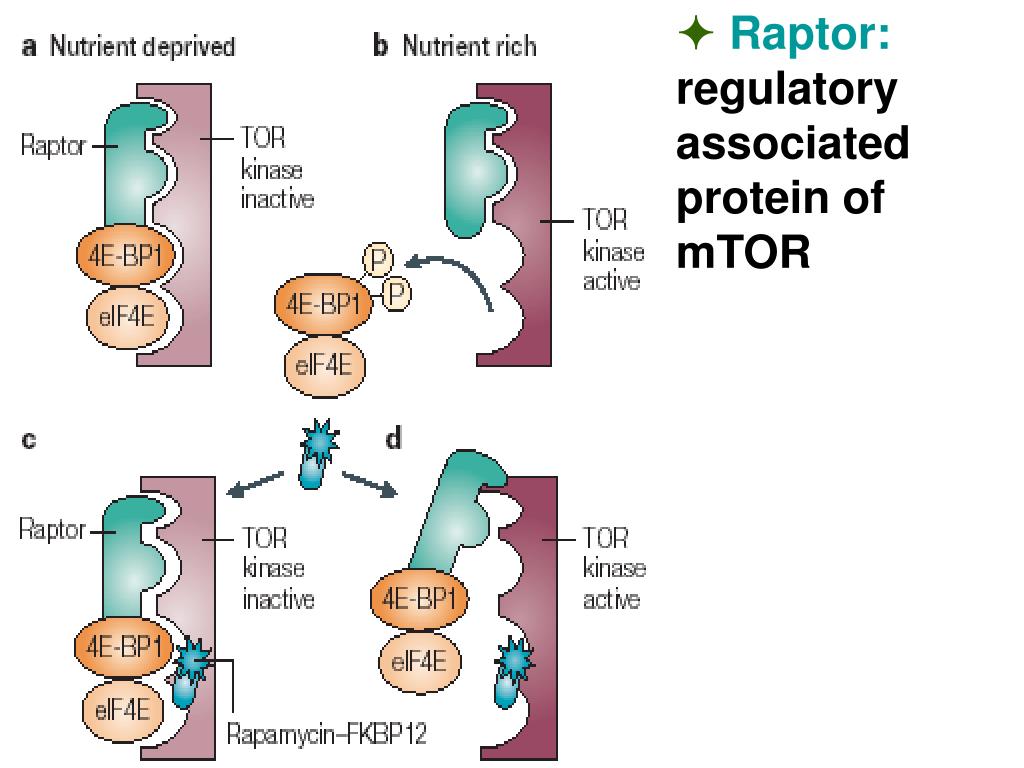

28. Raptor: regulatory associated protein of mTOR

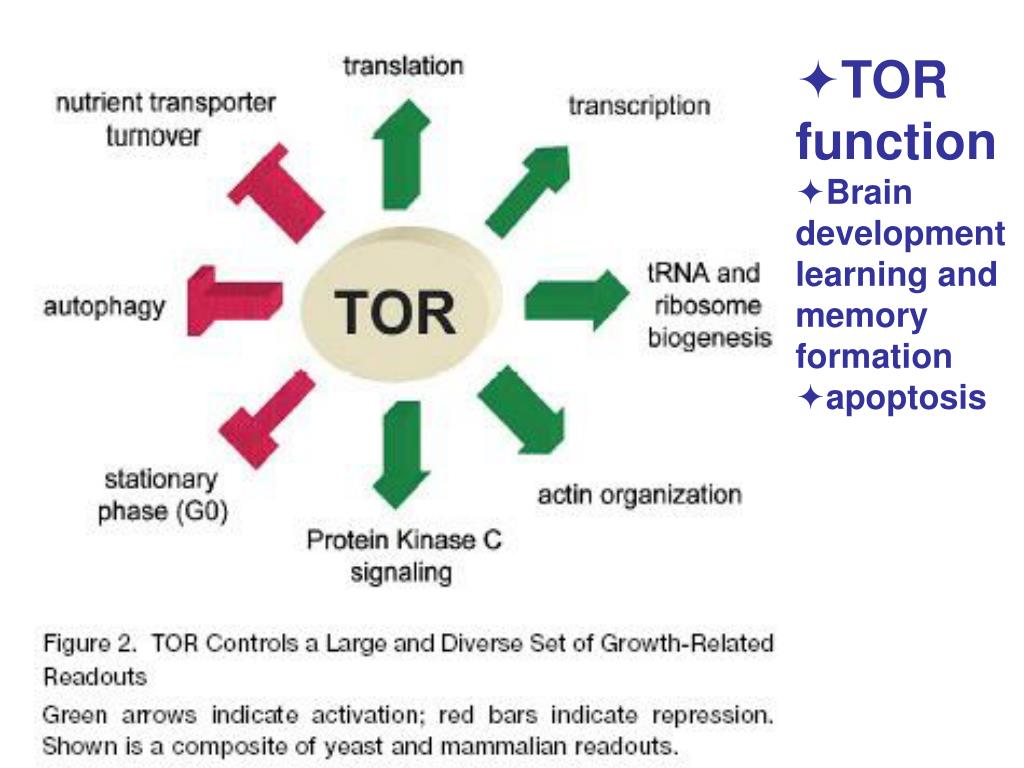

29. TOR function • Brain development learning and memory formation • apoptosis

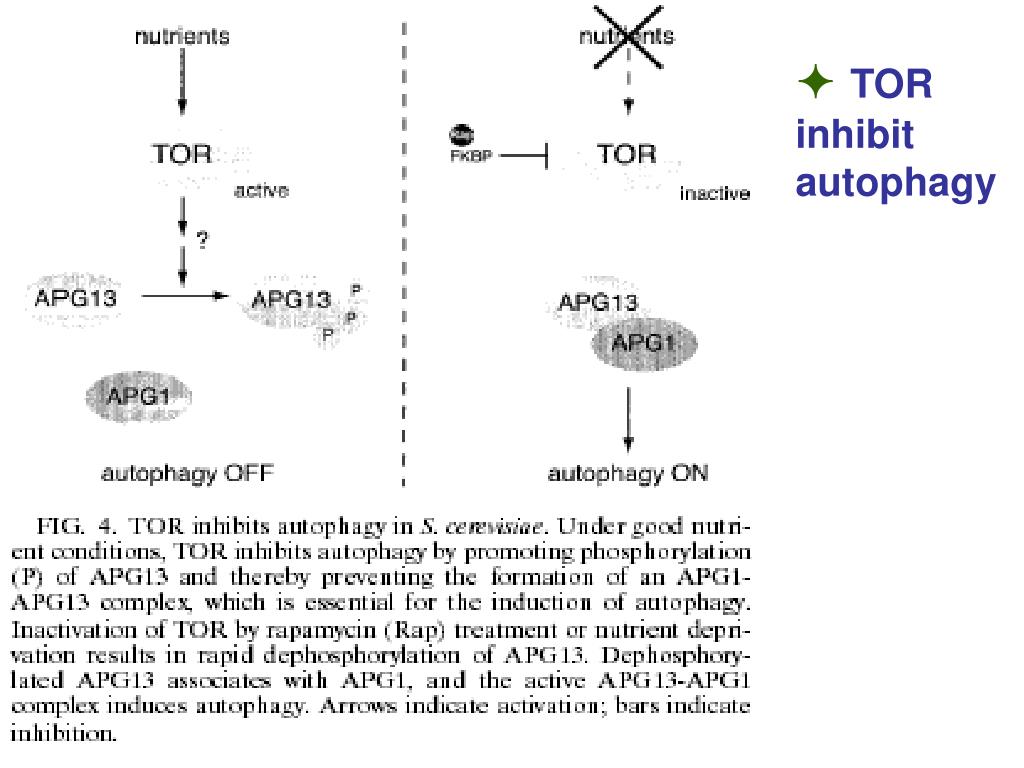

30. TOR inhibit autophagy

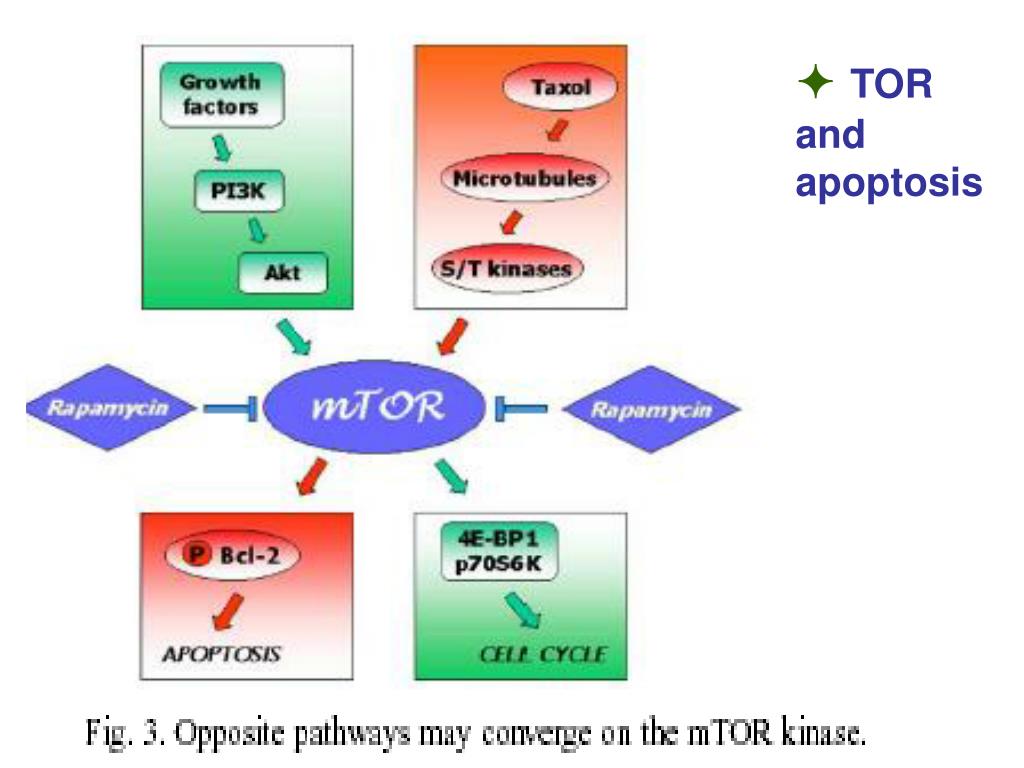

31. TOR and apoptosis

32. TOR and apoptosis

33. TOR and diseases  cancer  heart hypertrophy • muscular atrophy • Hamartoma syndromes • Inherited human dieases

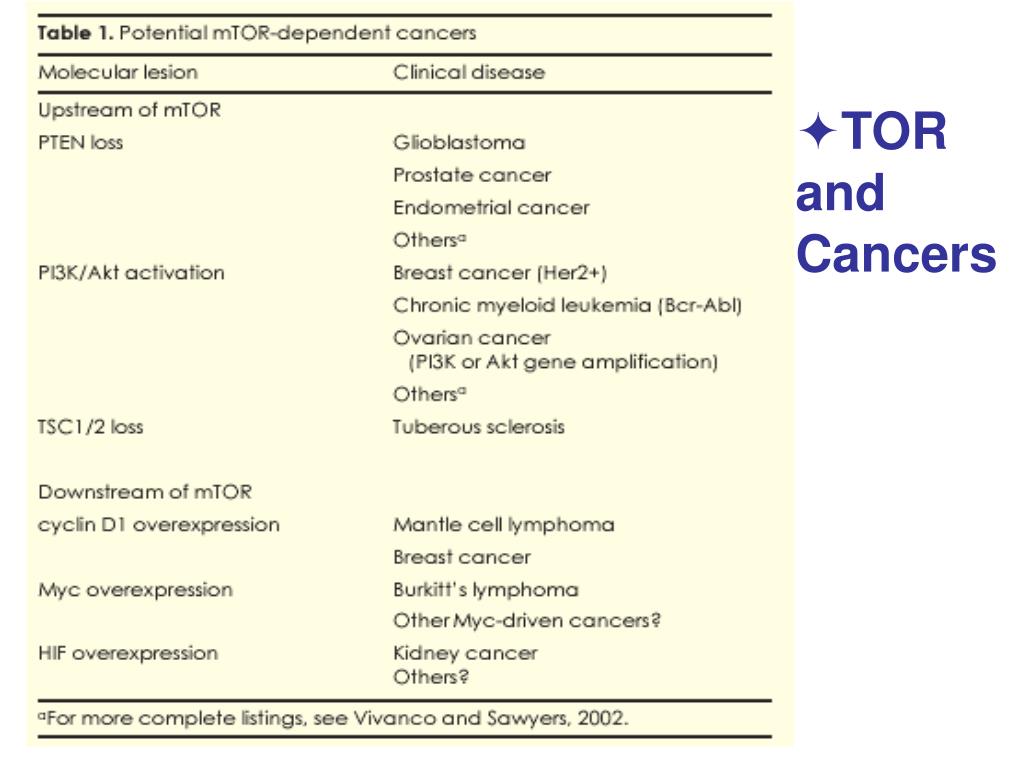

34. TOR and Cancers

35. mTOR and Hamartoma syndromes

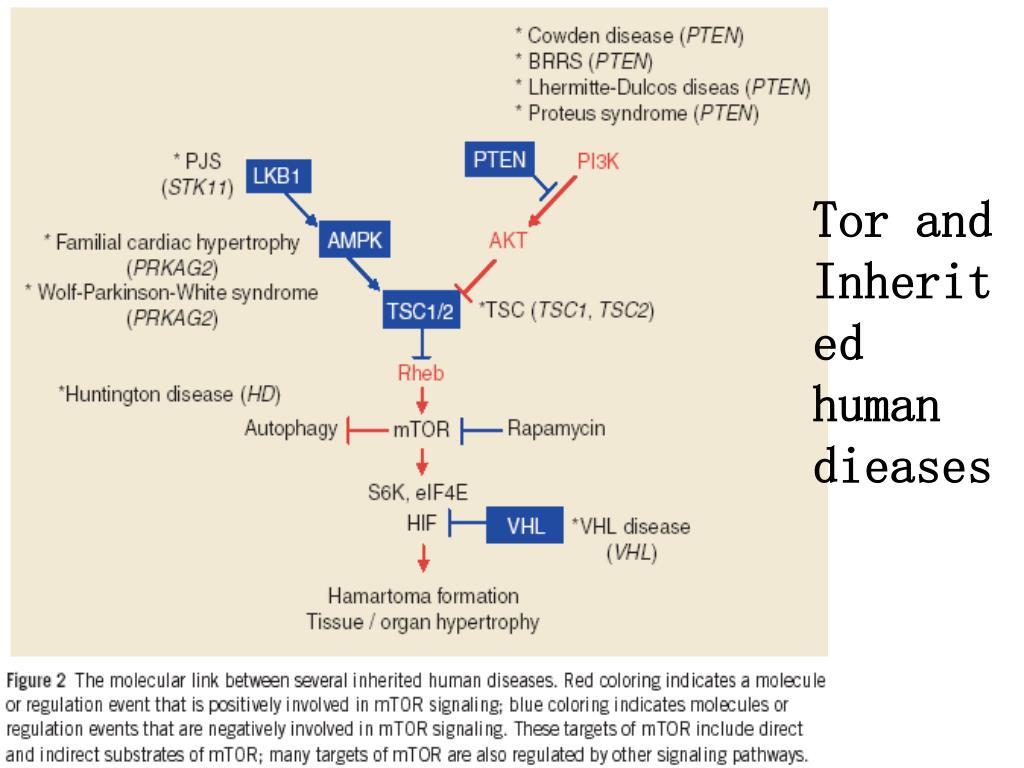

36. Tor and Inherited human dieases

37. Future directions • TOR deficiency in C. elegans doubles lifespan, whether TOR controls lifespan in mammals ? • How TOR senses and is activated by the presence of nutrients such as amino acid? • Downstream targets and cellular processes that are regulated by TOR • Role of TOR in apoptosis? • Understanding TOR signaling in neurons and muscle cells lead to new therapy for muscular wasting and memory impairment • TOR-binding proteins, gel filtration 2M
