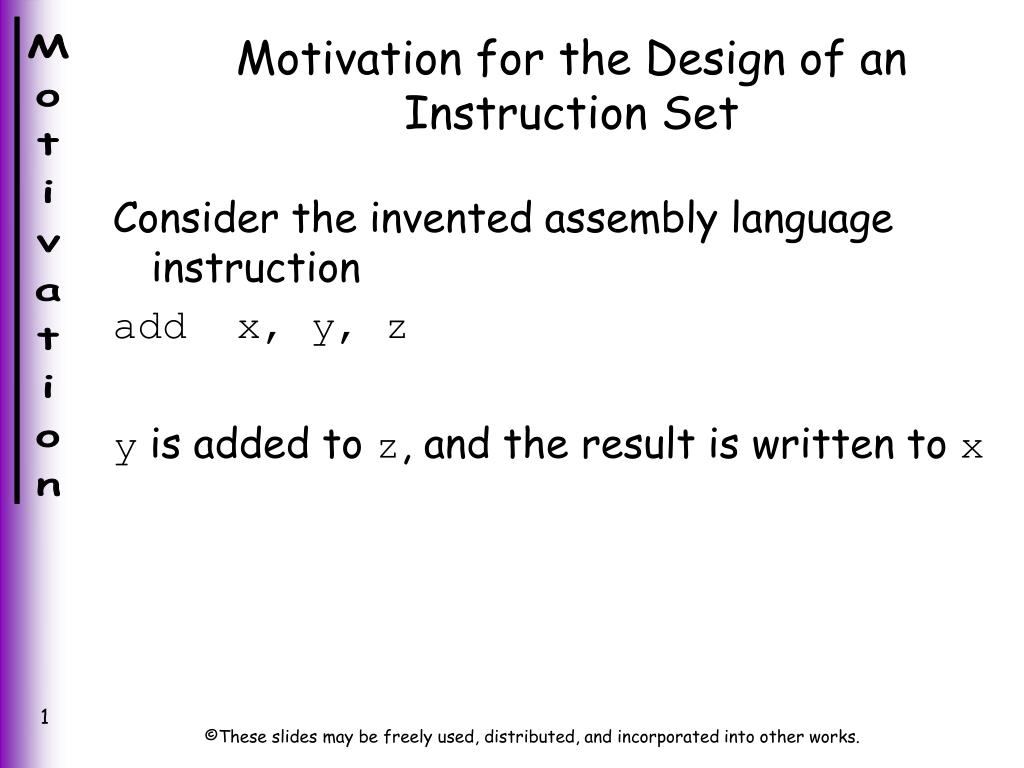

  1. Motivation for the Design of an Instruction Set Consider the invented assembly language instruction add x, y, z y is added to z, and the result is written to x

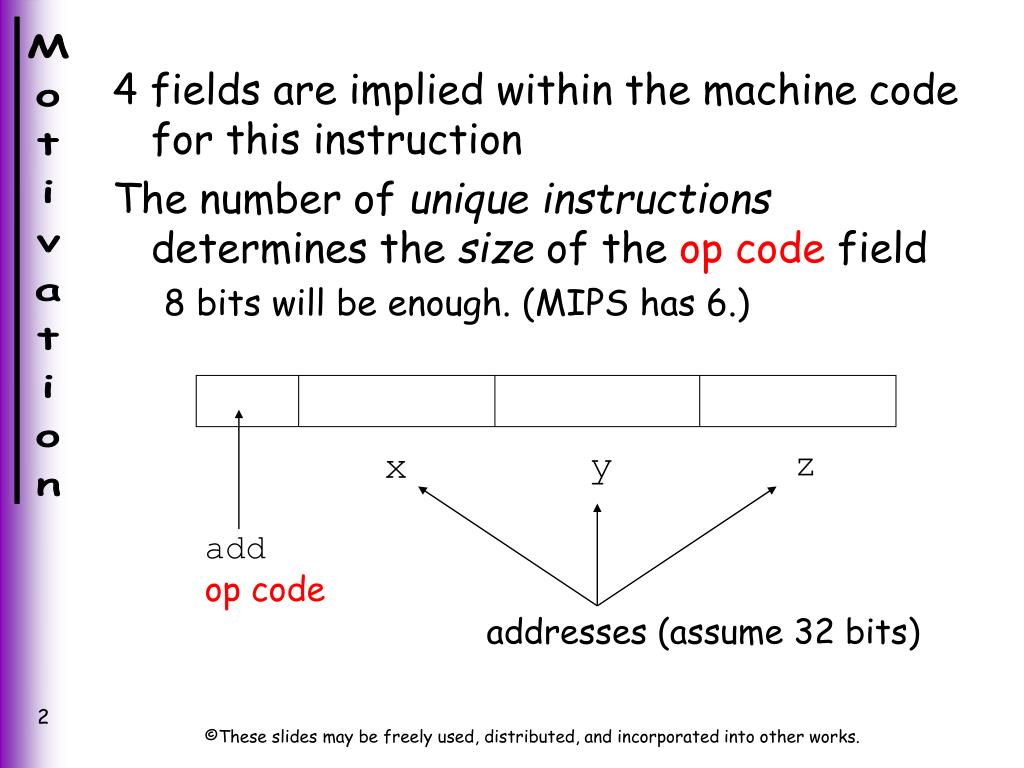

  2. 4 fields are implied within the machine code for this instruction The number of unique instructions determines the size of the op code field 8 bits will be enough. (MIPS has 6.) z y x addop code addresses (assume 32 bits)

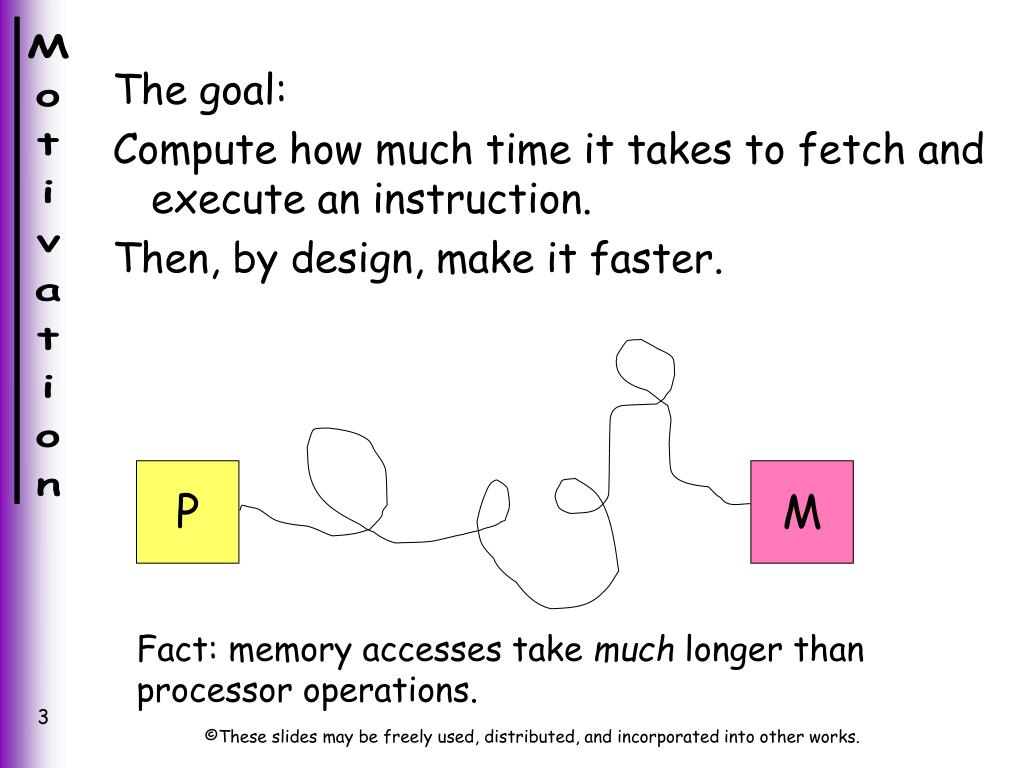

  3. The goal: Compute how much time it takes to fetch and execute an instruction. Then, by design, make it faster. P M Fact: memory accesses take much longer than processor operations.

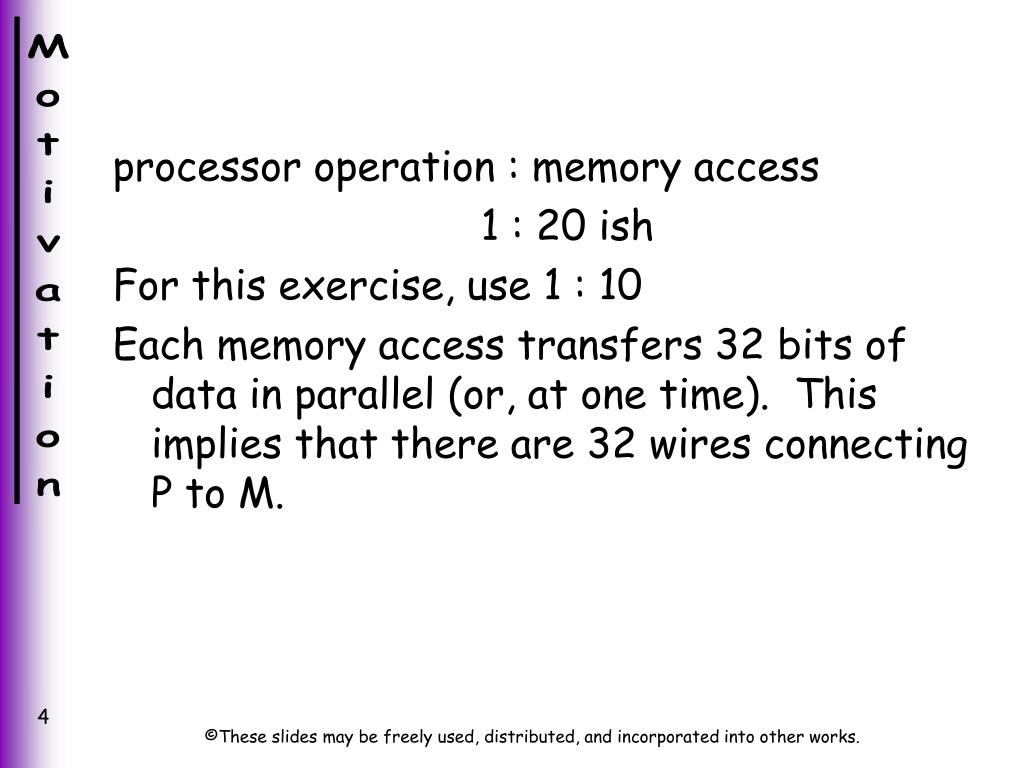

  4. processor operation : memory access 1 : 20 ish For this exercise, use 1 : 10 Each memory access transfers 32 bits of data in parallel (or, at one time). This implies that there are 32 wires connecting P to M.

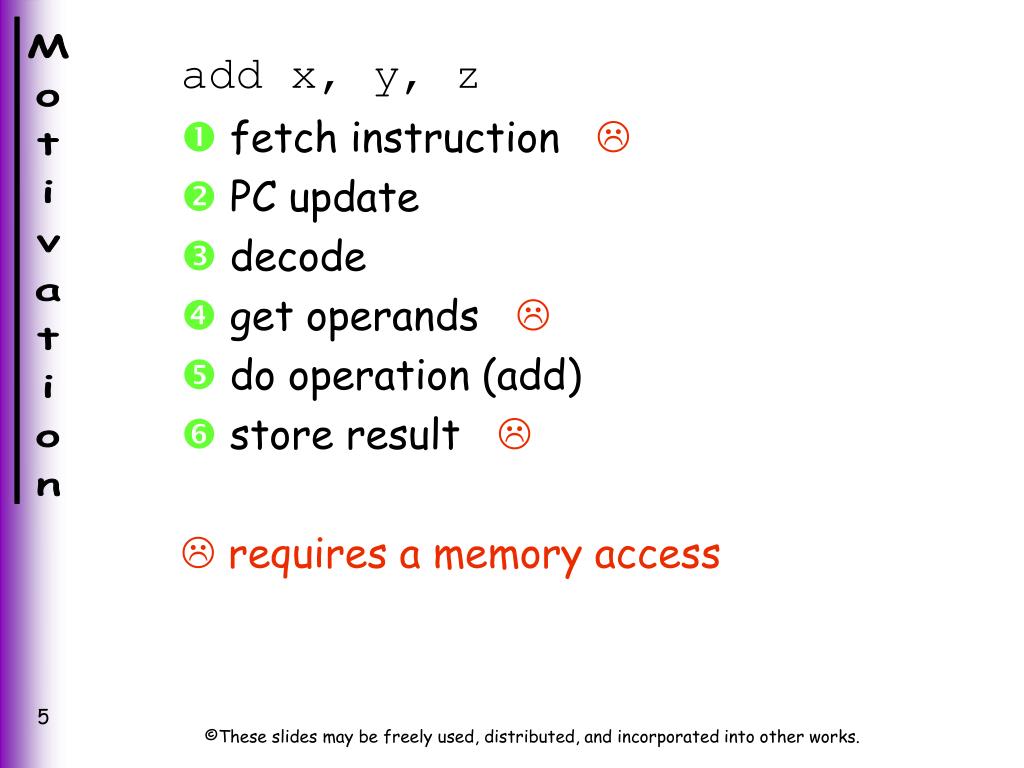

  5. add x, y, z  fetch instruction   PC update  decode  get operands   do operation (add)  store result   requires a memory access

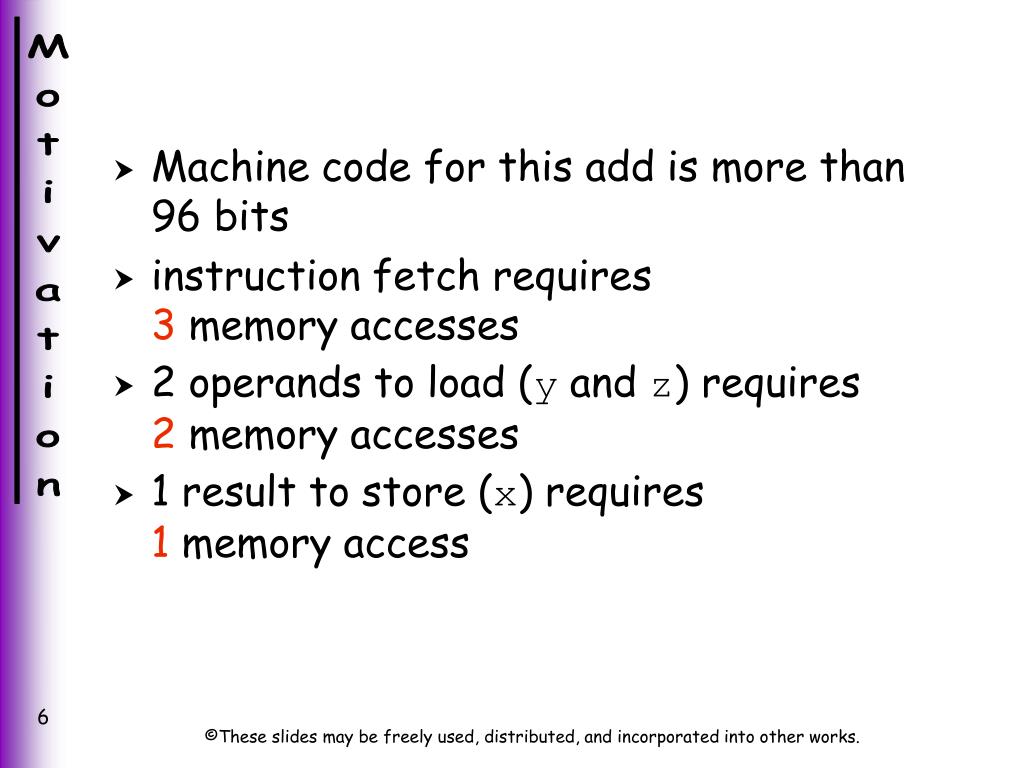

  6. Machine code for this add is more than 96 bits • instruction fetch requires3 memory accesses • 2 operands to load (y and z) requires2 memory accesses • 1 result to store (x) requires1 memory access

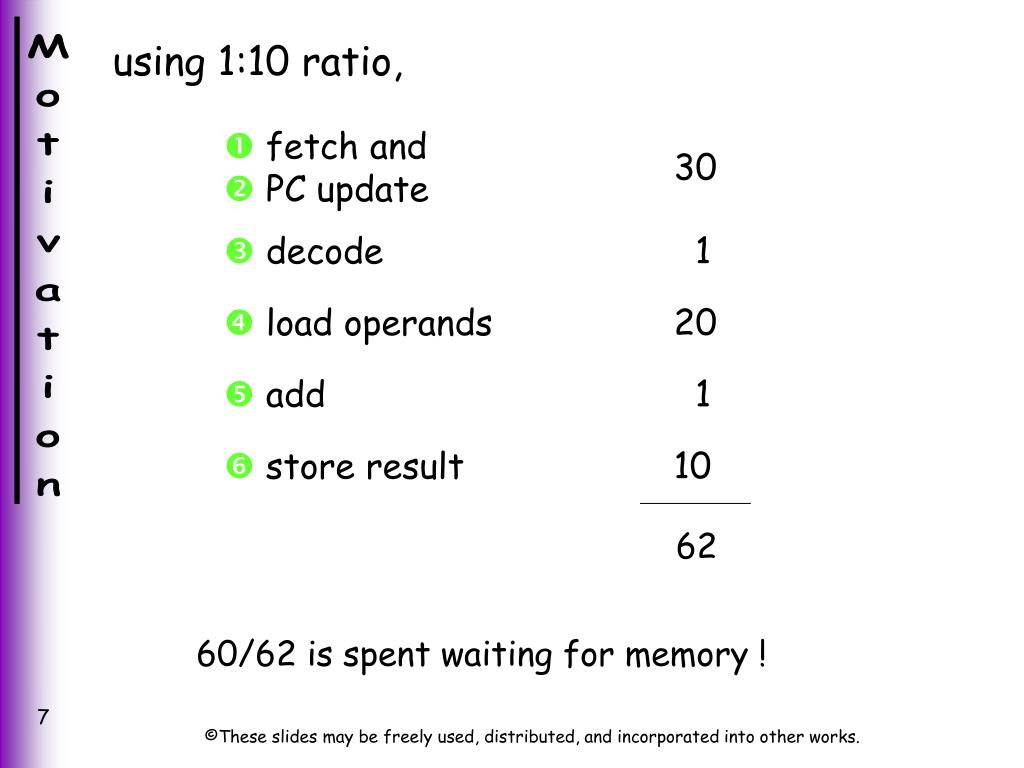

  7. using 1:10 ratio, 62 60/62 is spent waiting for memory !

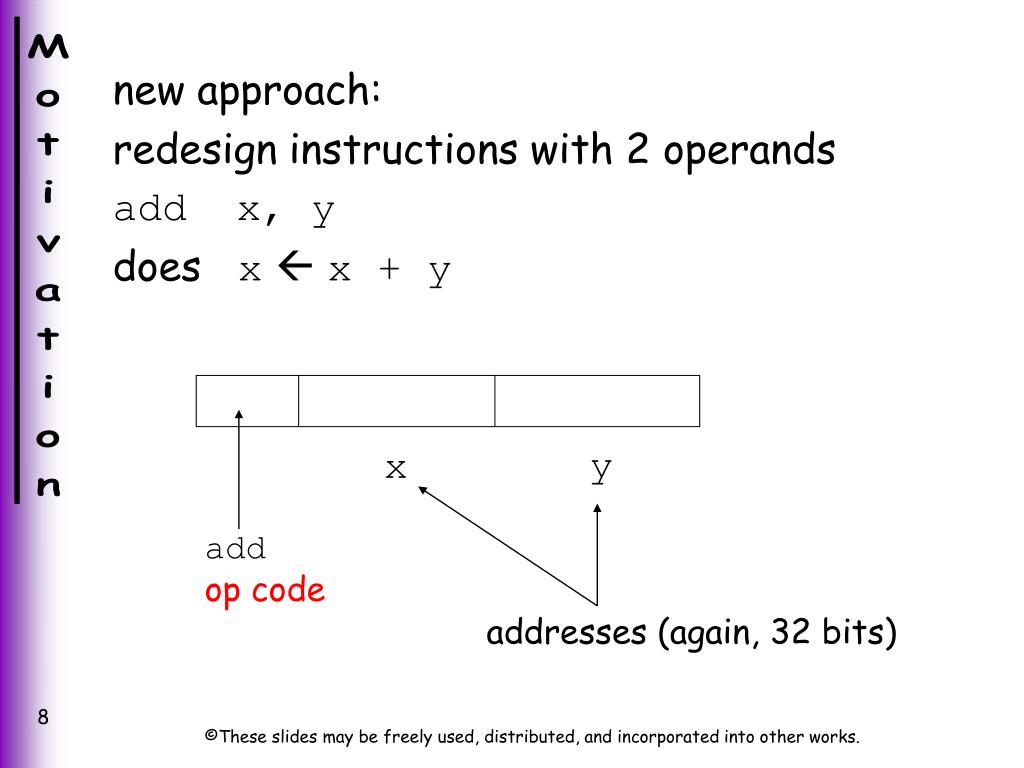

  8. new approach: redesign instructions with 2 operands add x, y does x x + y y x addop code addresses (again, 32 bits)

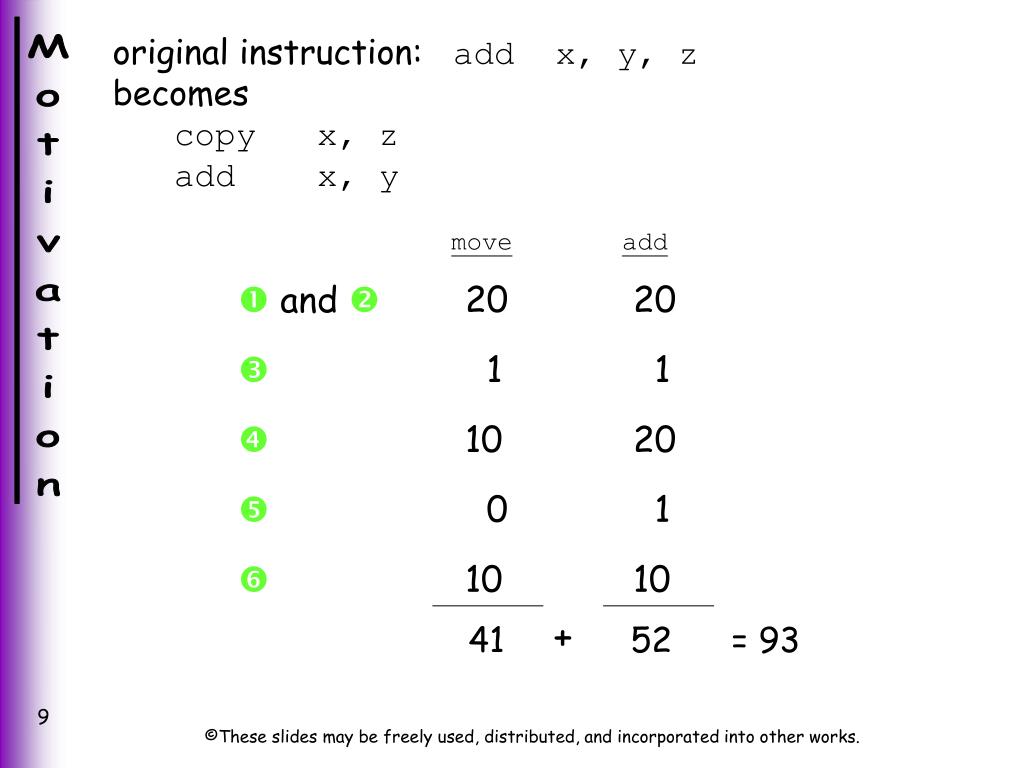

  9. original instruction: add x, y, z becomes copy x, z add x, y move add + 41 52 = 93

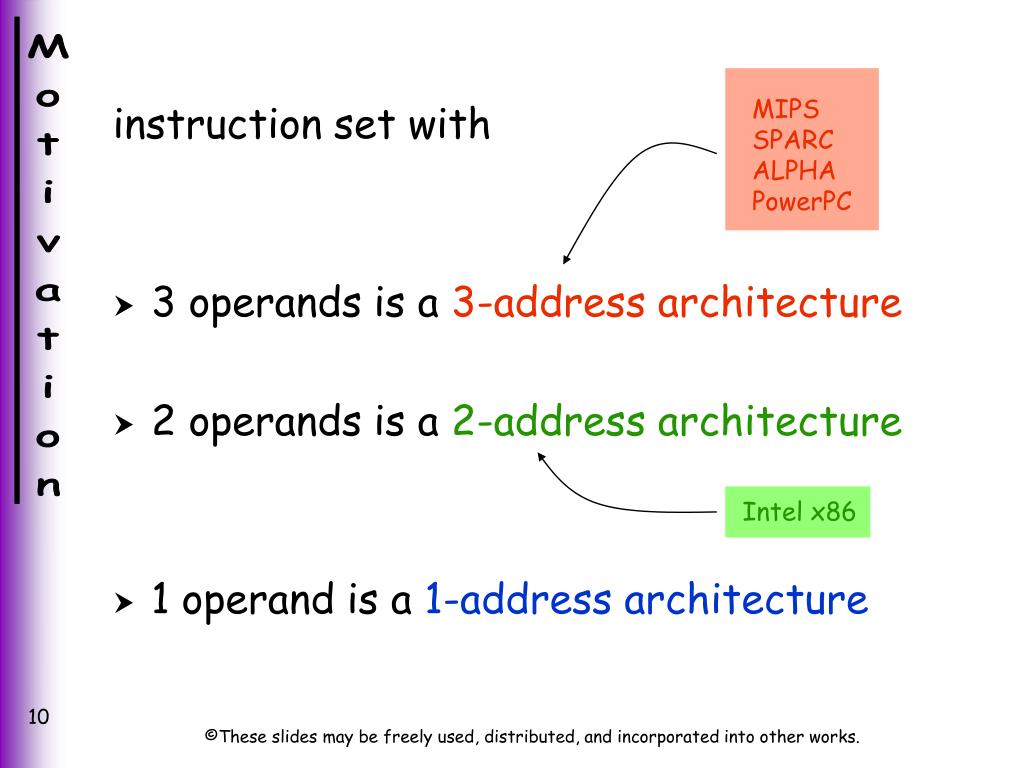

  10. MIPSSPARCALPHAPowerPC instruction set with • 3 operands is a 3-address architecture • 2 operands is a 2-address architecture • 1 operand is a 1-address architecture Intel x86

  11. 1 operand ? How to add ? from memory Acc to memory add x does Acc  Acc + x

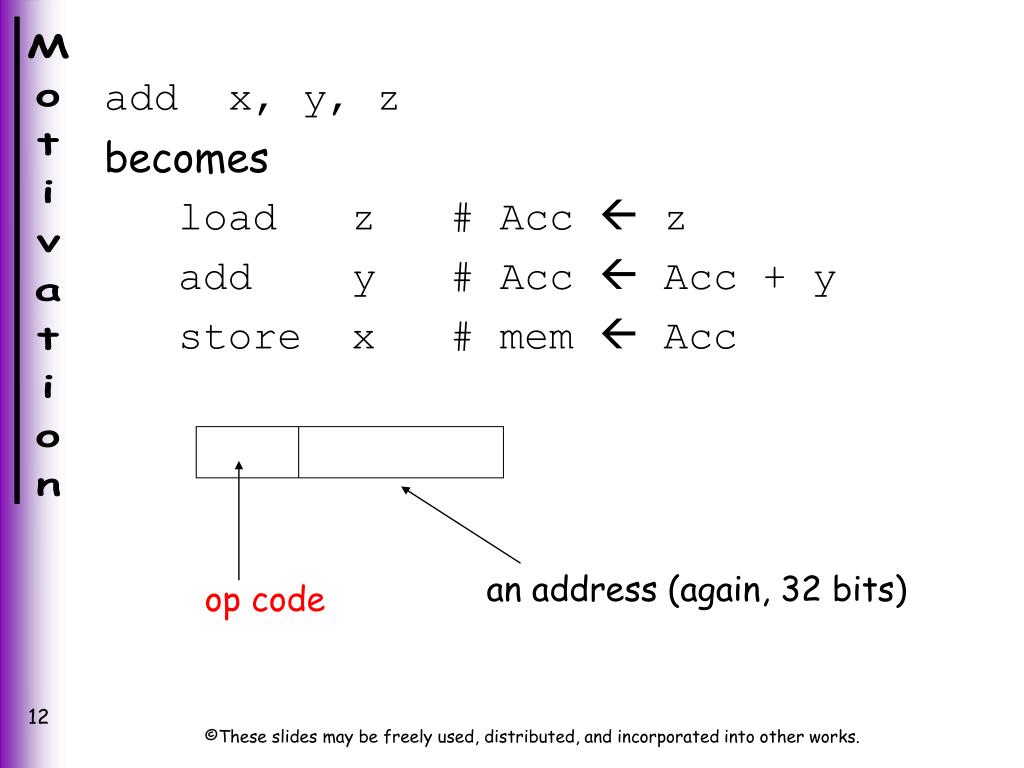

  12. add x, y, z becomes load z # Acc  z add y # Acc  Acc + y store x # mem  Acc an address (again, 32 bits) op code

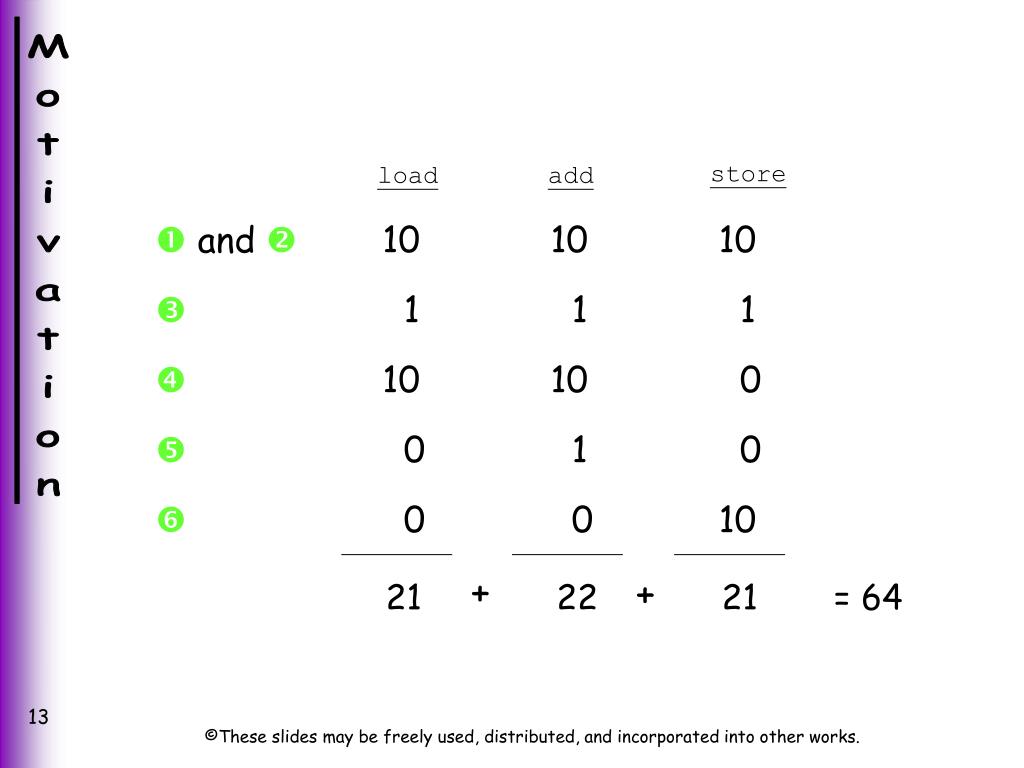

  13. store load add + + 21 22 21 = 64

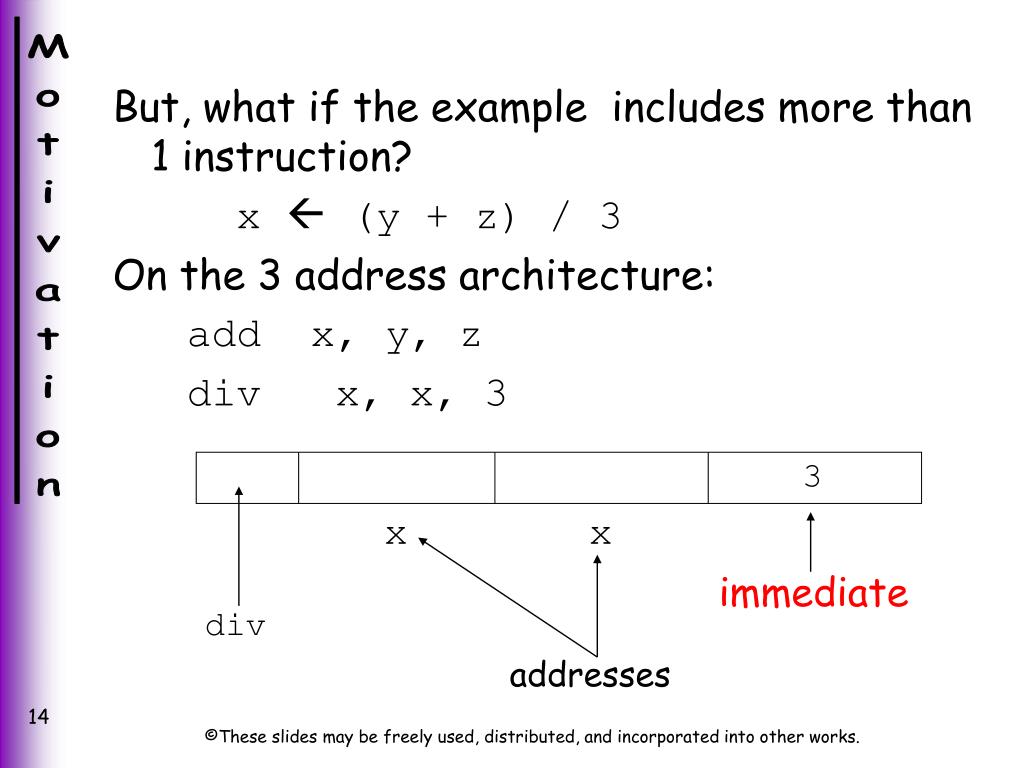

  14. But, what if the example includes more than 1 instruction? x  (y + z) / 3 On the 3 address architecture: add x, y, z div x, x, 3 3 x x immediate div addresses

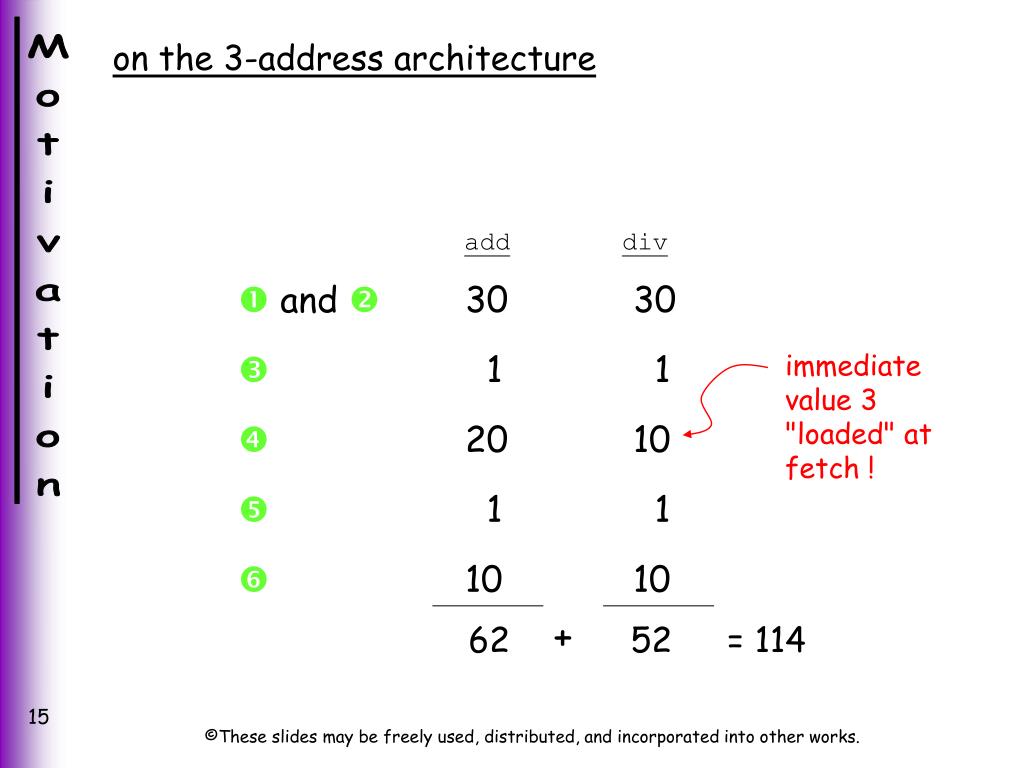

  15. on the 3-address architecture add div immediatevalue 3"loaded" atfetch ! + 62 52 = 114

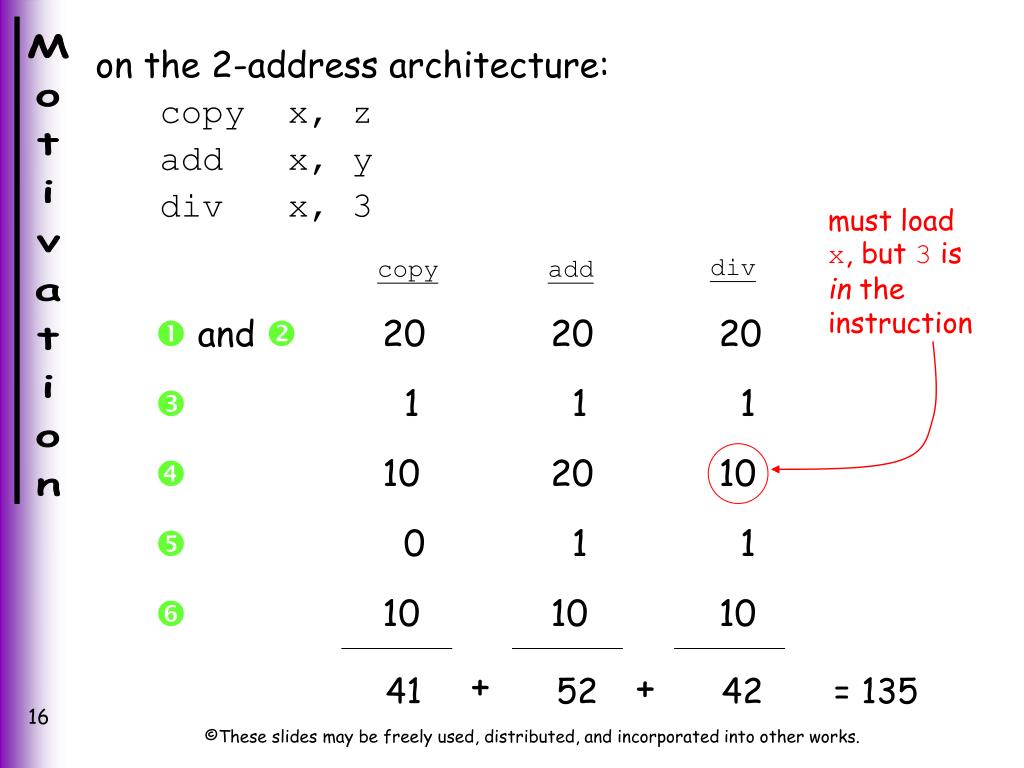

  16. on the 2-address architecture: copy x, z add x, y div x, 3 must load x, but 3 is in the instruction div copy add + + 41 52 42 = 135

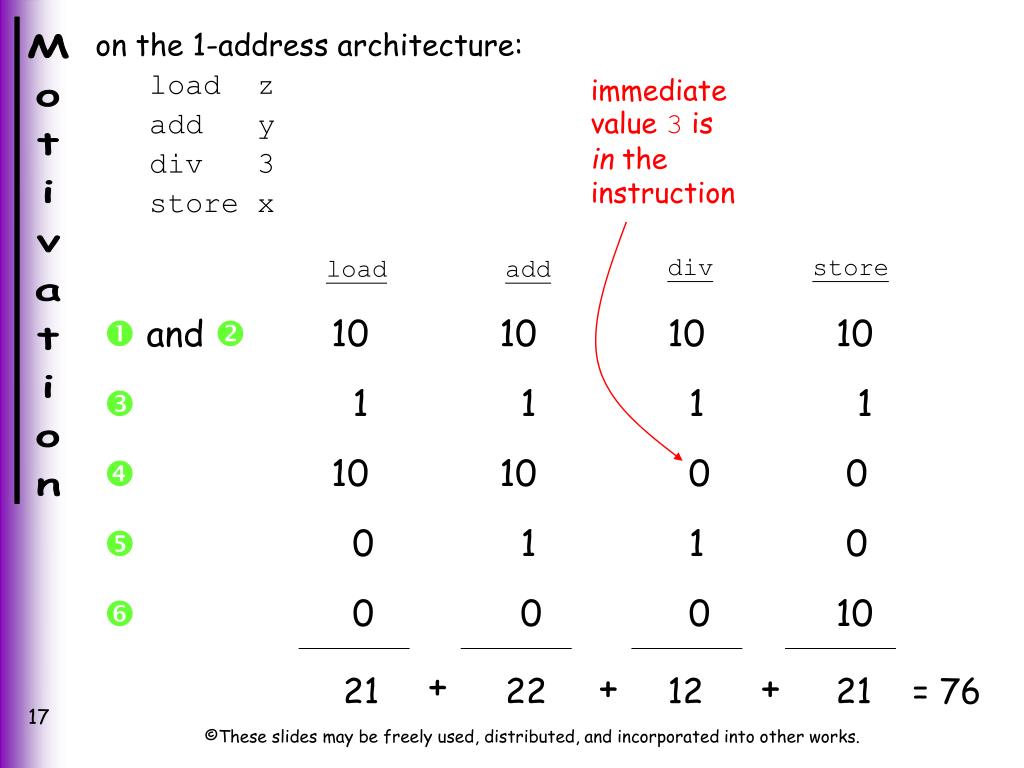

  17. immediatevalue 3 is in the instruction on the 1-address architecture: load z add y div 3 store x div store load add + + + 21 22 12 21 = 76

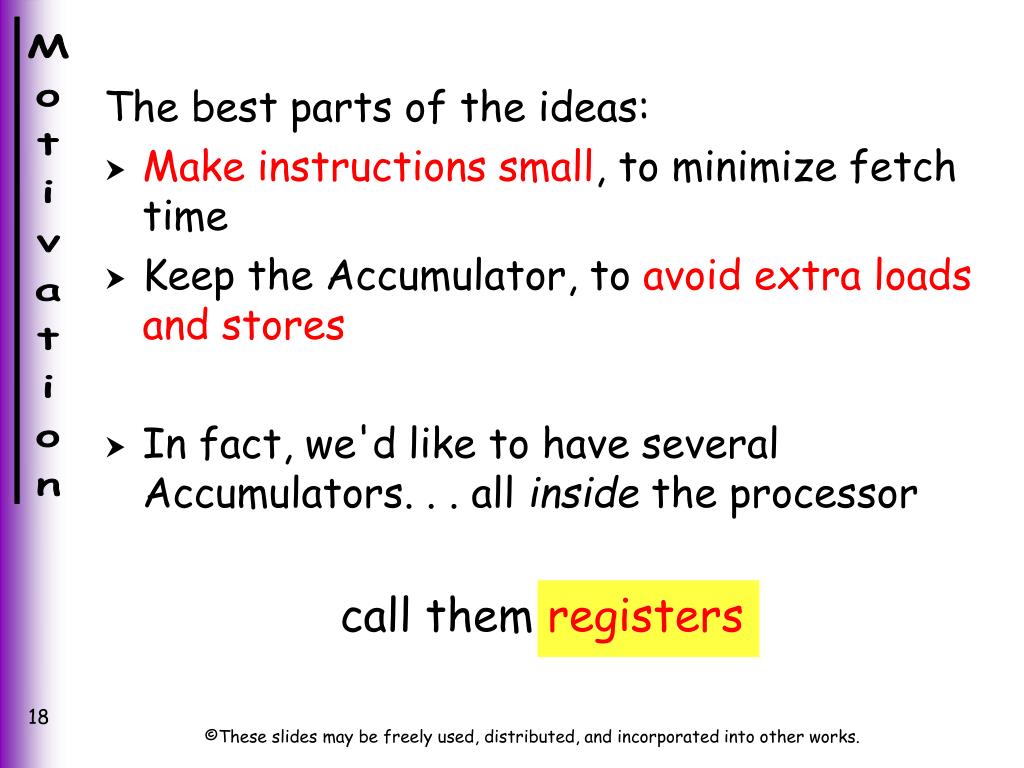

  18. The best parts of the ideas: • Make instructions small, to minimize fetch time • Keep the Accumulator, to avoid extra loads and stores • In fact, we'd like to have several Accumulators. . . all inside the processor call them registers

  19. All modern processors have sets of registers, kept in a register file. • The MIPS R2000 has a set of 3232-bit registers. . .

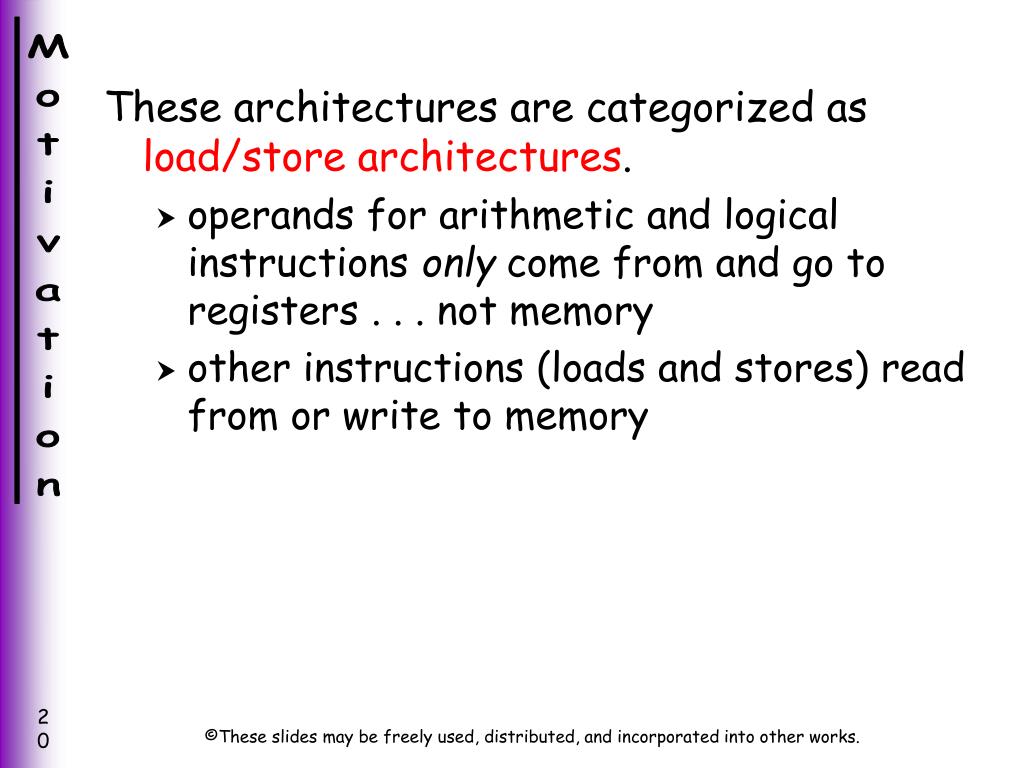

  20. These architectures are categorized asload/store architectures. • operands for arithmetic and logical instructions only come from and go to registers . . . not memory • other instructions (loads and stores) read from or write to memory

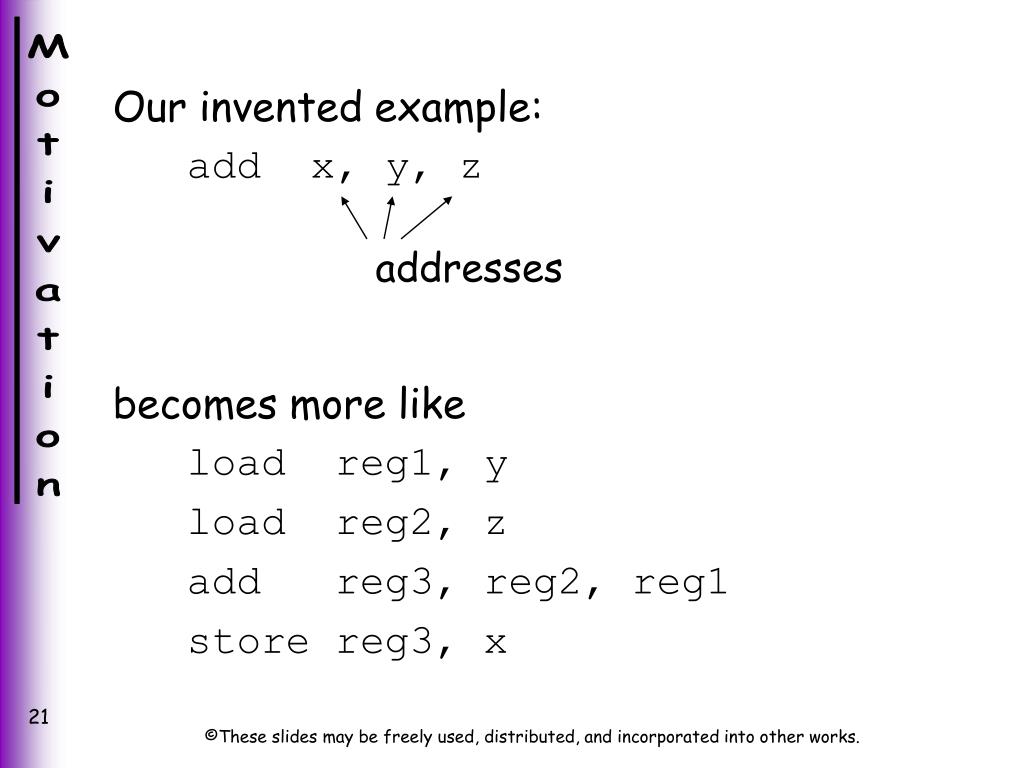

  21. Our invented example: add x, y, z becomes more like load reg1, y load reg2, z add reg3, reg2, reg1 store reg3, x addresses

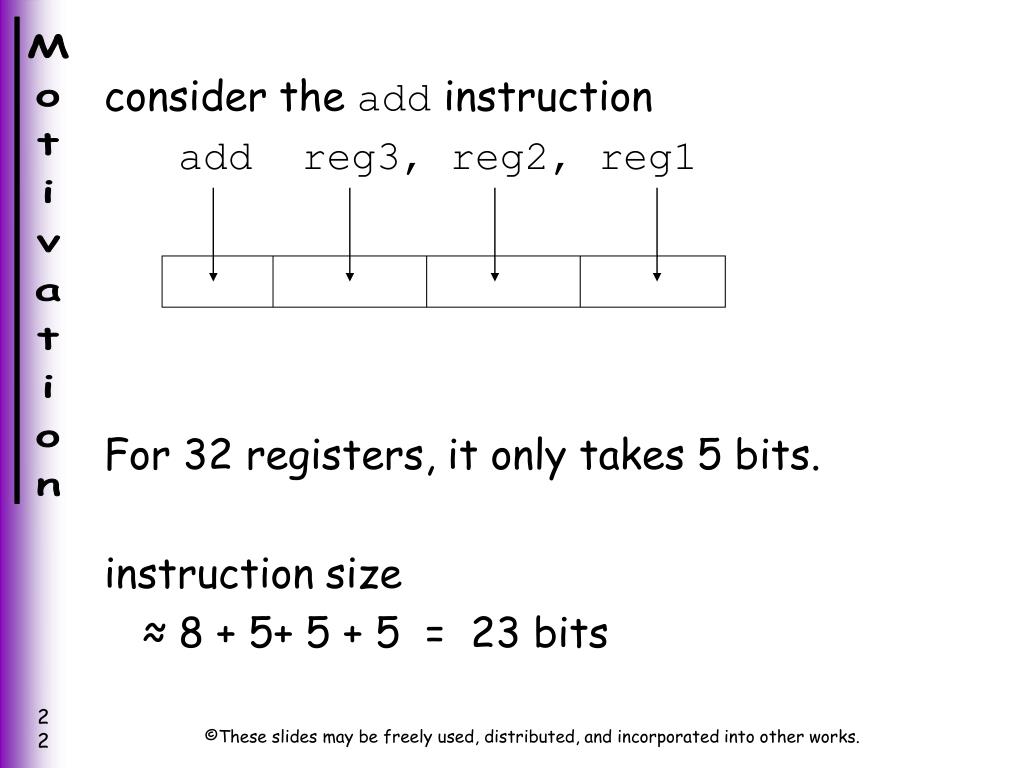

  22. consider the add instruction add reg3, reg2, reg1 For 32 registers, it only takes 5 bits. instruction size ≈ 8 + 5+ 5 + 5 = 23 bits

  23. add load 14 22
