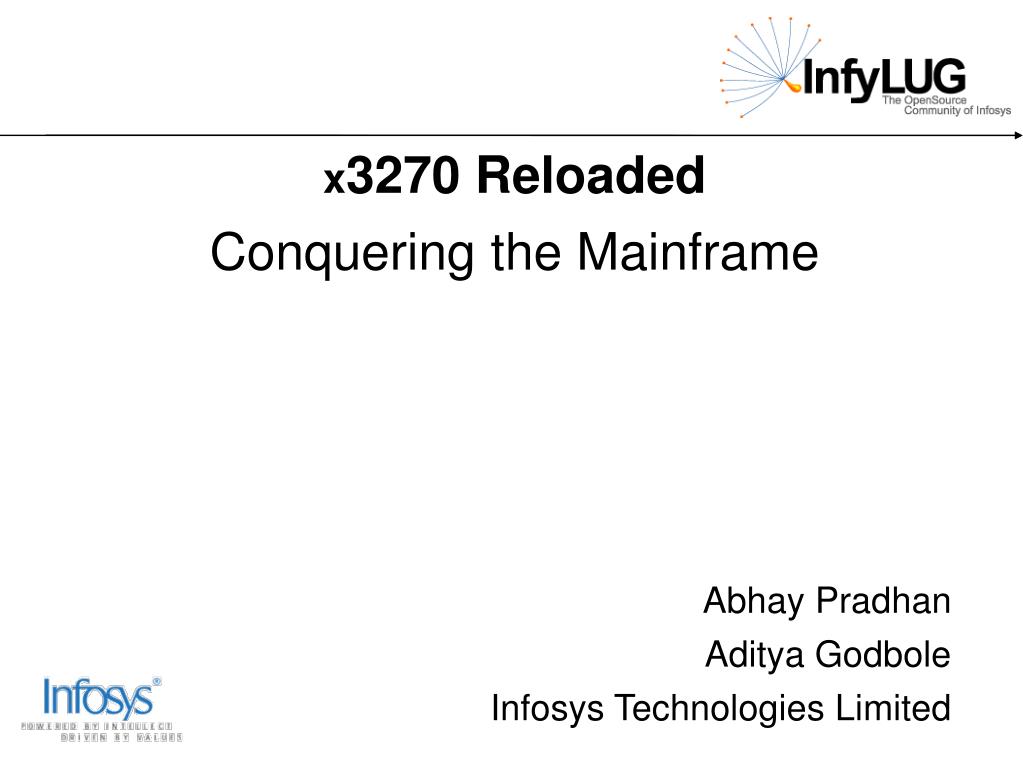

x 3270 reloaded conquering the mainframe abhay pradhan aditya godbole infosys technologies limited
x3270 Reloaded

Conquering the Mainframe

Abhay Pradhan

Aditya Godbole

Infosys Technologies Limited

agenda
Agenda

Mainframes – An evolving dinosaur?

Mainframe projects in Indian IT Companies

x3270 – Background

Pros / Cons of x3270

Deployment within Infosys

X-ite : x3270 on Cygwin

Statistics

Screenshots

The road ahead

an evolving dinosaur
An evolving Dinosaur?

Fact: More than 70 % of the world's data still resides on mainframes.

Fact: Business verticals such as airlines, railways, banks and financial institutions continue to use mainframes

Fact: IBM with its zSeries is actively pushing Linux on the mainframe.

Fact: With terabytes of data to deal with, corporations still prefer a centralized data processing center rather than a distributed client server model.

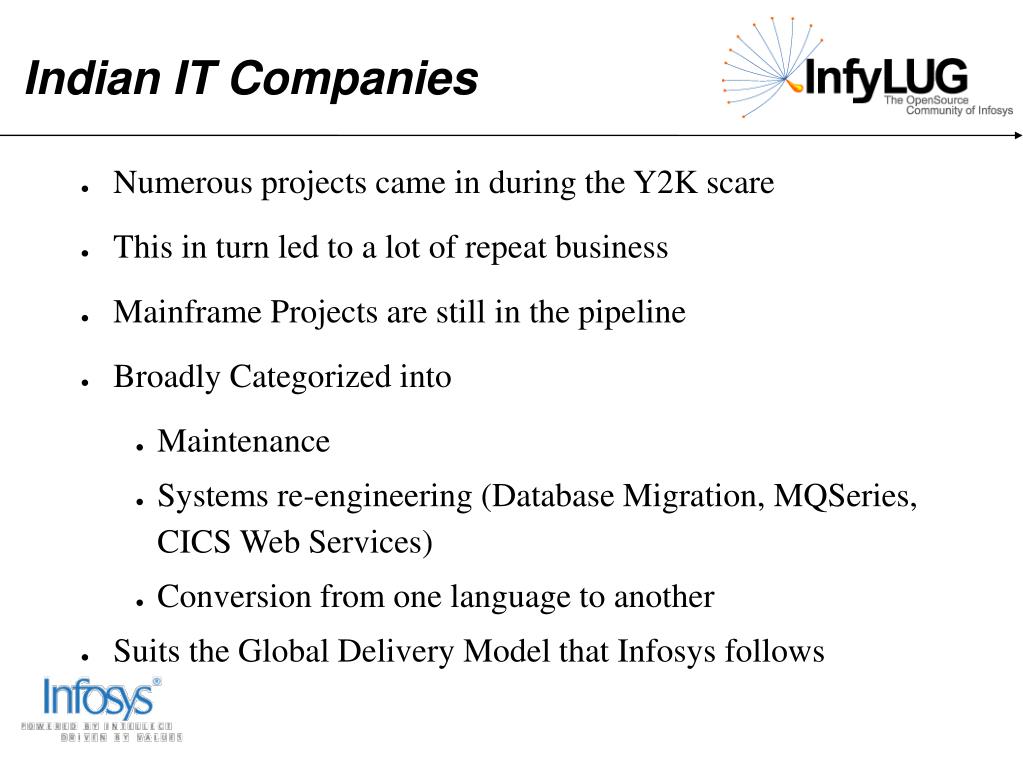

indian it companies
Indian IT Companies

Numerous projects came in during the Y2K scare

This in turn led to a lot of repeat business

Mainframe Projects are still in the pipeline

Broadly Categorized into

Maintenance

Systems re-engineering (Database Migration, MQSeries, CICS Web Services)

Conversion from one language to another

Suits the Global Delivery Model that Infosys follows

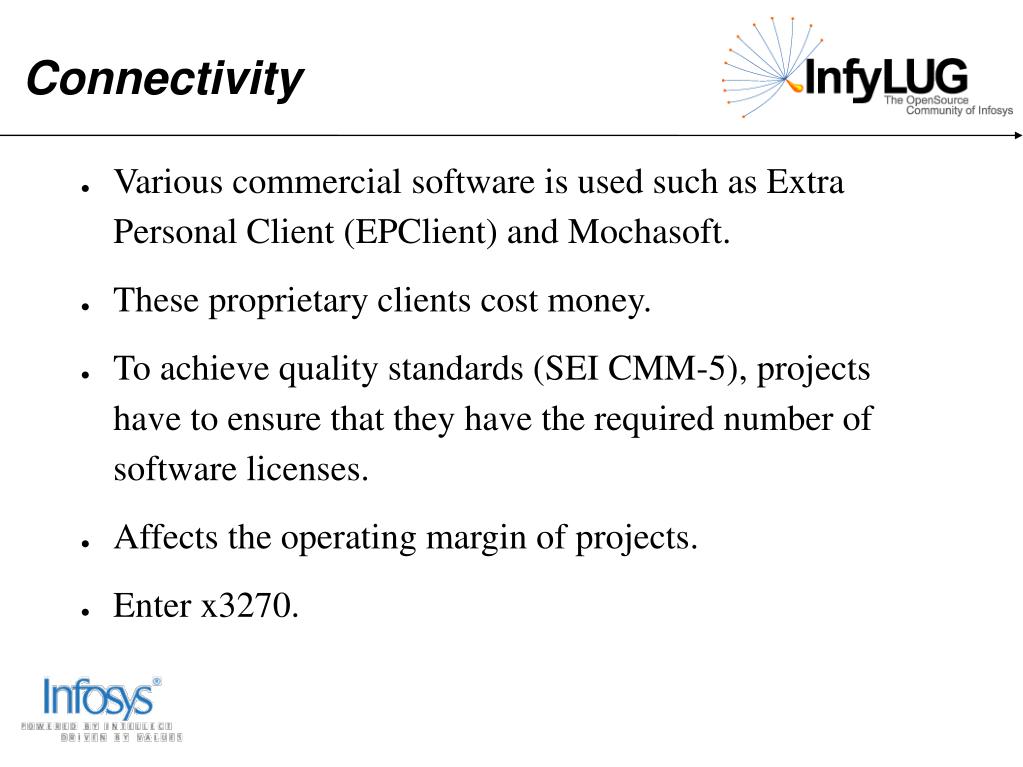

connectivity
Connectivity

Various commercial software is used such as Extra Personal Client (EPClient) and Mochasoft.

These proprietary clients cost money.

To achieve quality standards (SEI CMM-5), projects have to ensure that they have the required number of software licenses.

Affects the operating margin of projects.

Enter x3270.

x3270 background
x3270 Background

x3270 is an IBM 3270 terminal emulator for the X Window System

x3270 runs over a TELNET connection, emulating either an IBM 3279 (color) or 3278 (monochrome)

x3270 can also be used to access AS400 systems

x3270 is distributed as source code and can be used for free.

Current maintainer – Paul Mattes

Website - http://x3270.bgp.nu/

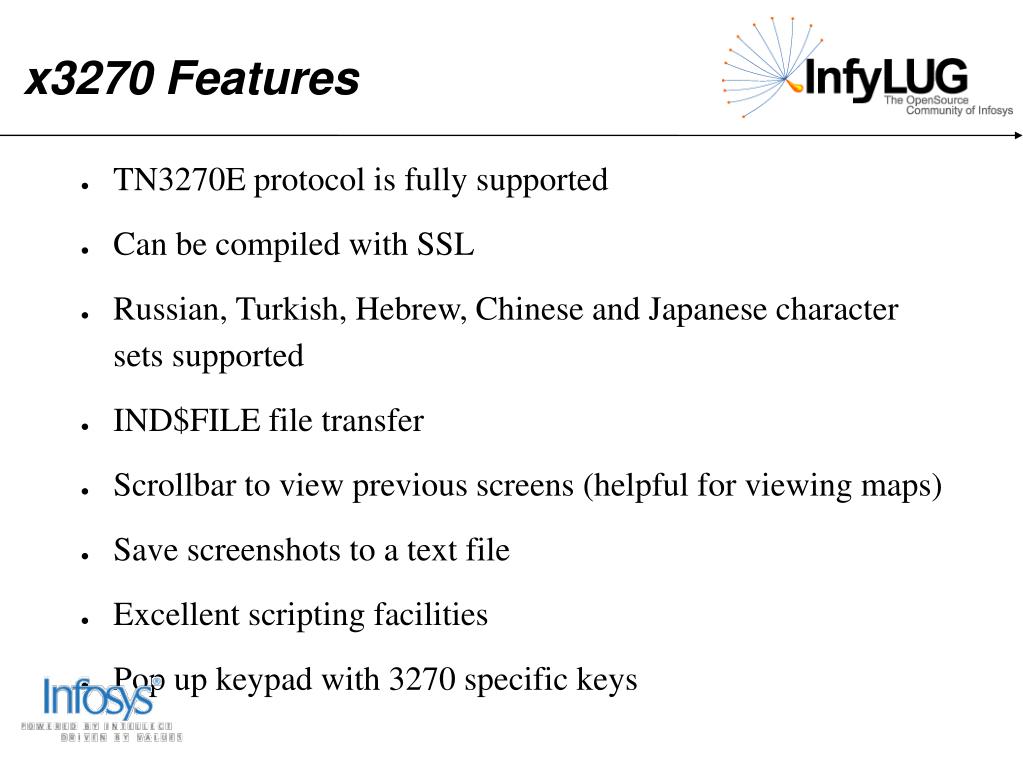

x3270 features
x3270 Features

TN3270E protocol is fully supported

Can be compiled with SSL

Russian, Turkish, Hebrew, Chinese and Japanese character sets supported

IND$FILE file transfer

Scrollbar to view previous screens (helpful for viewing maps)

Save screenshots to a text file

Excellent scripting facilities

Pop up keypad with 3270 specific keys

x3270 on cygwin
x3270 on Cygwin

x3270 compiles and runs under Cygwin

Cygwin was already being used within Infosys as an alternative to Exceed

A category (101-Infosys) was created for the installer to allow easy installation

Dependencies were taken care of. Clicking on x3270 automatically selected all packages which x3270 needed (changed Cygwin's setup.ini)

Started actively pushing x3270 as an alternative to commercial mainframe clients

slide9
Pros

Excellent scripting facilities. Scripts could be written in any language

Highly configurable. Users could map x3270 specific actions to keys they were comfortable with. e.g. We mapped Ctrl-F to do a find within ISPF

Lightweight

Can be tailored to suit Infosys's needs

Active community support, a lot faster than calling the Customer Care of commercial clients

and the cons
And the Cons

GUI uses a very old toolkit (Xt). Look and feel is different than windows

Dependency on Cygwin: users need to be comfortable with another application

Screen resizing is a problem

Fonts are an issue. Does not use scalable fonts

Windows users prefer a point and click approach to configure any application. In x3270, the config file has to be edited by hand

enhancements to x3270
Enhancements to x3270

One fine day,we decided to start improving x3270

Started adding features slowly

Persistent Inserts

Send Monocase

Spreadsheet compatibility mode

Scripting API in Perl written

Macro recording framework

Cygwin post install scripts for x3270 to give users a default working x3270 installation

enhancements contd
Enhancements contd...

More features...

Ported other packages to Cygwin

Xdialog package ported over to Cygwin

along with its Perl wrapper UIDialog

Wrote simple scripts to demonstrate scripting flexibility

Created a new package X-ite which would automatically install and configure x3270

Enhancements were made after discussions with Paul Mattes and the patches have been submitted to him

Even submitted an x3270 bug to him :)

design considerations
Design considerations

The macro recording framework had to be

Modular

Flexible

Consistent with the existing functionality

Should not have any external dependencies

Could be deployed with ease

slide14

Macro recording framework

x3270

Configuration

file

Macro rec

framework

Script

playback

Default paths and

conversion script name

Keystroke file

x3270

perl API

Conversion

script

Runnable

script (perl)

scripting in x3270
Scripting in x3270

x3270 pipes data using two environment variables

This allows us flexibility in selecting any language to push data to and fro x3270. We chose Perl

Two basic scripting modes

Peer scripting: runs x3270 as a child of another process

Child scripting: x3270 Script() command

One “talks” to x3270 with the help of “commands” i.e. emulator actions such as Connect(), String(“foo”) etc.

x3270 always sends back a status message

Thus using a combination of Perl + x3270 scripting commands one can automate a lot of tasks

x ite x3270 reloaded
X-ite (x3270 Reloaded)

Packaged x3270 with a new name, X-ite

X-ite is a community project within Infosys following the Bazaar model:

The developers have never met!

No hierarchy within the project :)

With InfyLUG's help, developed a webpage for X-ite

Dedicated IRC channel

CVS repository for X-ite development

Mailing list to push out X-ite news as well as to handle X-ite related queries

Call center for X-ite? :)

x ite statistics
X-ite statistics

Currently around 100 users are using X-ite

X-ite has actually spiked Cygwin usage (~= 400 users)

Estimated savings to Infosys is approximately:

100 users x $1000 (per license) = $100,000

X-ite following the Debian model, changes move from:

Unstable (personal machines) to

Testing (102-Infosys) and finally

Stable (101-Infosys).

The features we added are currently in testing.

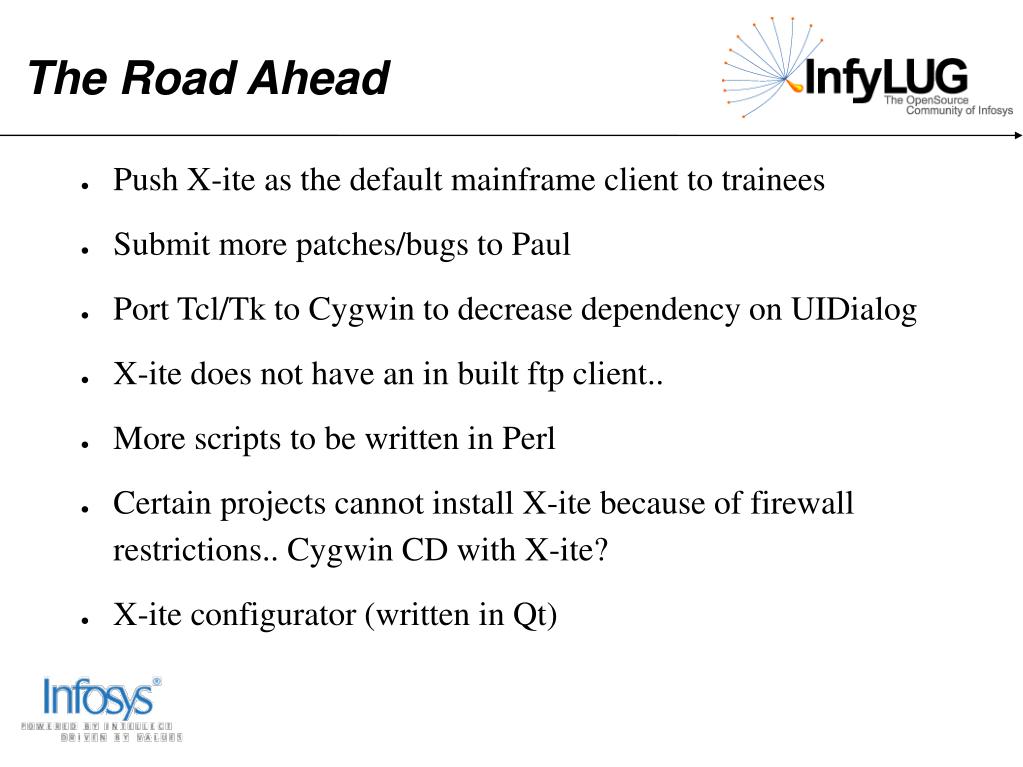

the road ahead
The Road Ahead

Push X-ite as the default mainframe client to trainees

Submit more patches/bugs to Paul

Port Tcl/Tk to Cygwin to decrease dependency on UIDialog

X-ite does not have an in built ftp client..

More scripts to be written in Perl

Certain projects cannot install X-ite because of firewall restrictions.. Cygwin CD with X-ite?

X-ite configurator (written in Qt)

thanks to
Thanks to..

Linux Bangalore 2004, for allowing us a chance to talk

Infosys, for sponsoring us

Mahendra and Natarajan, (InfyLUG) for website space, CVS access and a lot of hand holding.

Rajesh, for letting us fiddle around with his precious Cygwin mirrors and the Cygwin installer

Toufeeq, for being the uncomplaining dogsbody, trying to port various packages to cygwin

Project mates at Hyd who have been our beta testers, never complaining when X-ite crashed due to our changes

Our respective PM's for allowing us the freedom to do this project
