Chapter 2 instruction set principles and examples

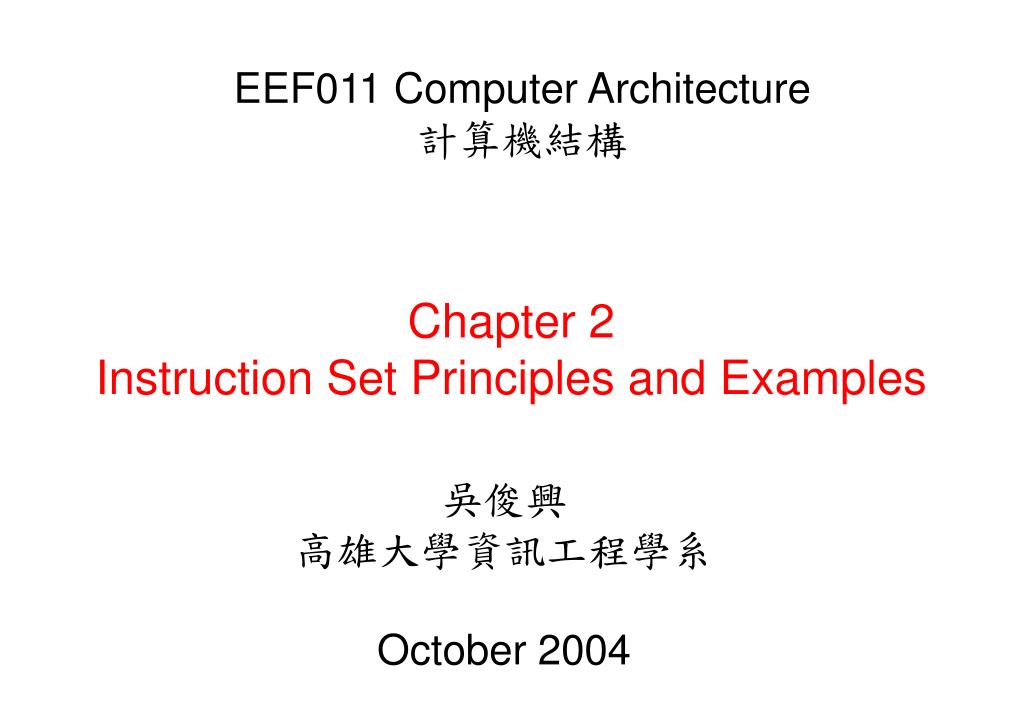

EEF011 Computer Architecture計算機結構

Chapter 2Instruction Set Principles and Examples



October 2004

Chapter 2 instruction set principles and examples1

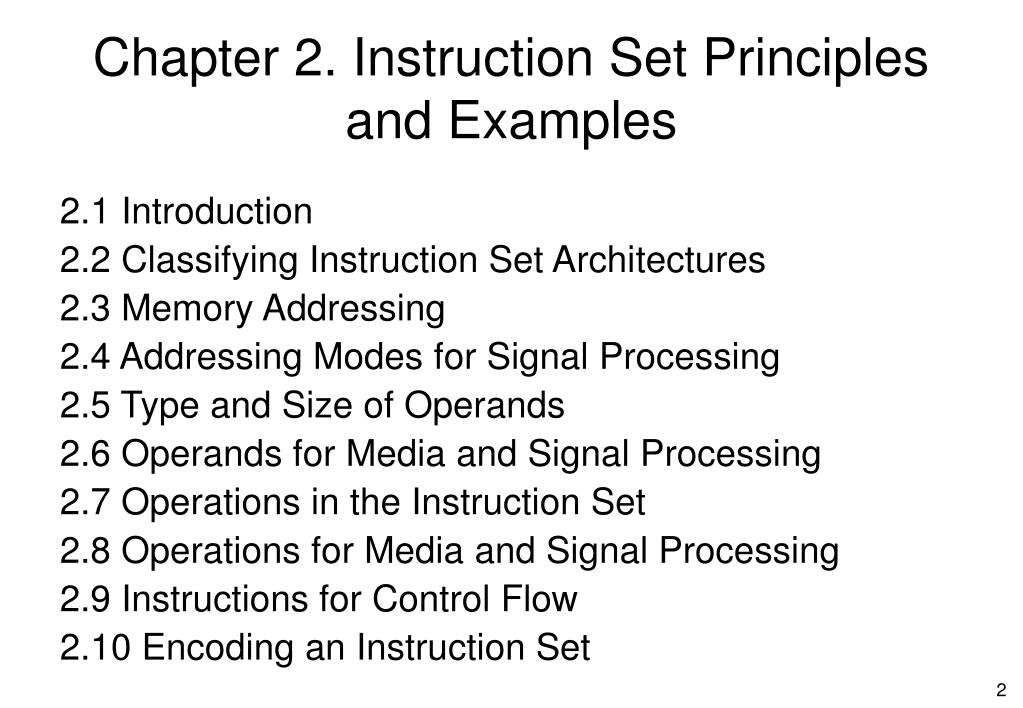

Chapter 2. Instruction Set Principles and Examples

2.1 Introduction

2.2 Classifying Instruction Set Architectures

2.3 Memory Addressing

2.4 Addressing Modes for Signal Processing

2.5 Type and Size of Operands

2.6 Operands for Media and Signal Processing

2.7 Operations in the Instruction Set

2.8 Operations for Media and Signal Processing

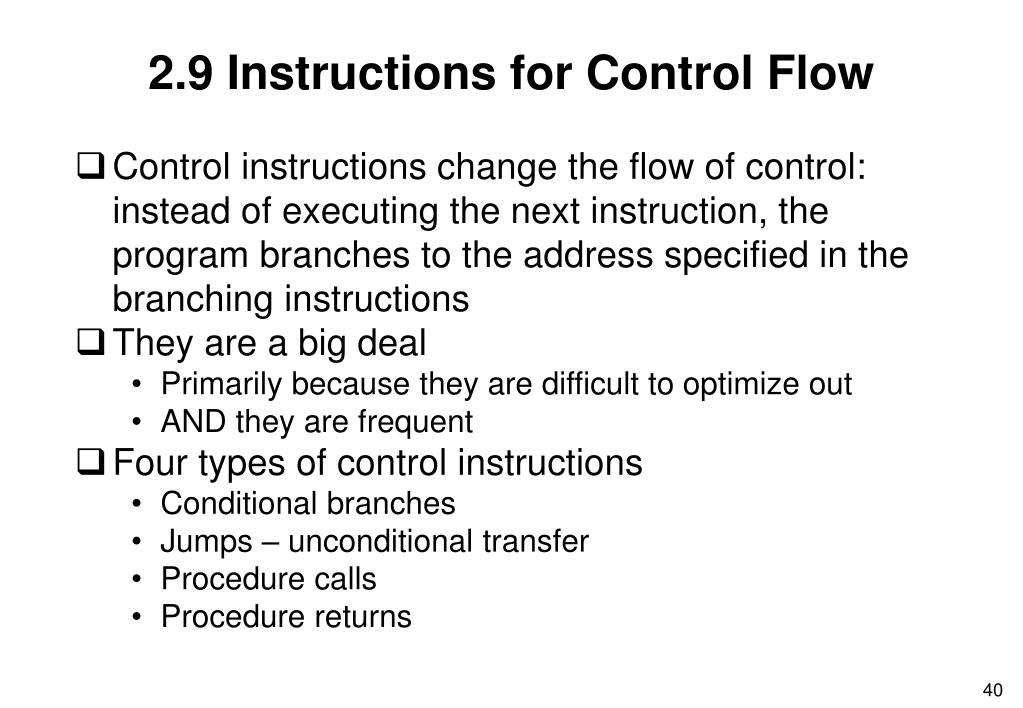

2.9 Instructions for Control Flow

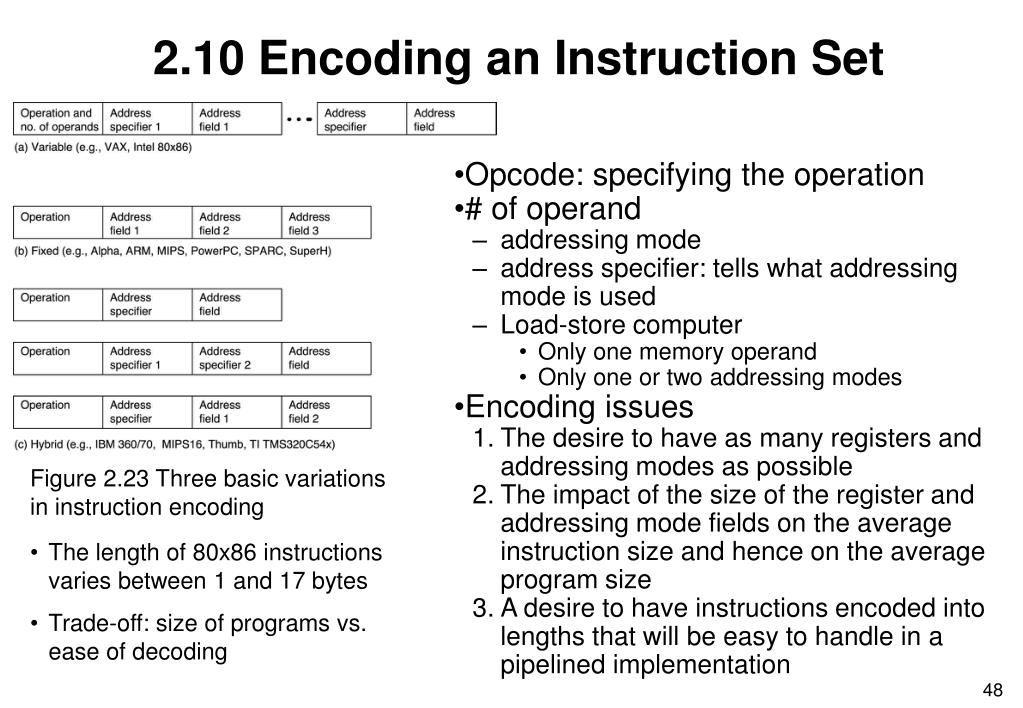

2.10 Encoding an Instruction Set

2 1 introduction


instruction set


2.1 Introduction

Instruction Set Architecture – the portion of the machine visible to the assembly level programmer or to the compiler writer

  • In order to use the hardware of a computer, we must speak its language

  • The words of a computer language are called instructions, and its vocabulary is called an instruction set

Instr. # Operation+Operands

i movl -4(%ebp), %eax

(i+1) addl %eax, (%edx)

(i+2) cmpl 8(%ebp), %eax

(i+3) jl L5

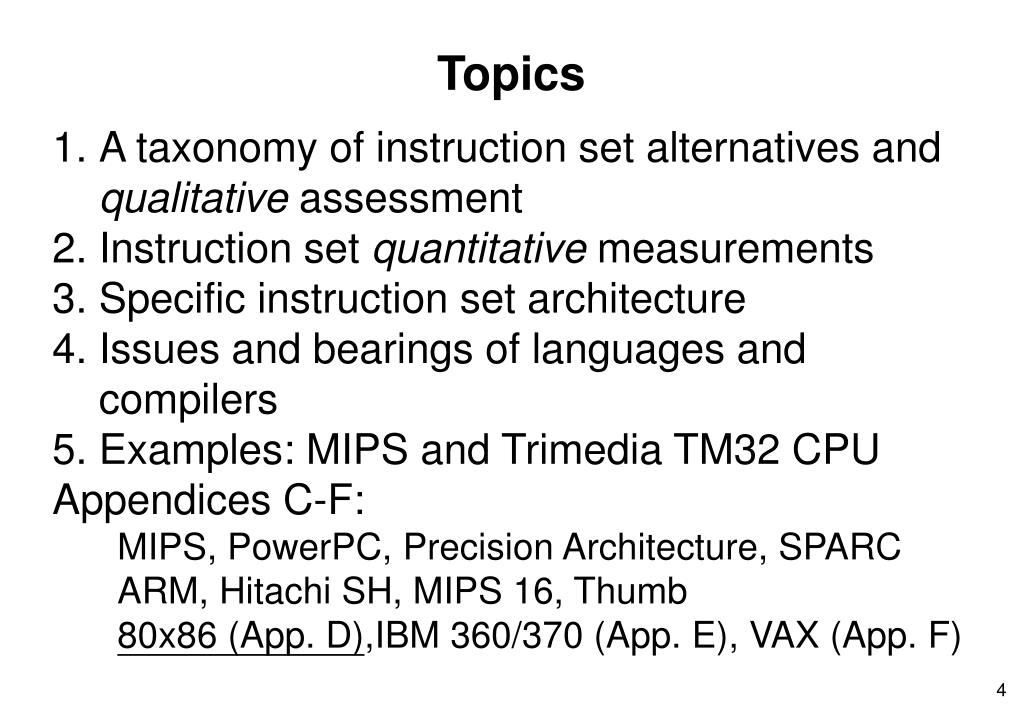

  • A taxonomy of instruction set alternatives and qualitative assessment

  • Instruction set quantitative measurements

  • Specific instruction set architecture

  • Issues and bearings of languages and compilers

  • Examples: MIPS and Trimedia TM32 CPU

    Appendices C-F:

    MIPS, PowerPC, Precision Architecture, SPARC

    ARM, Hitachi SH, MIPS 16, Thumb

    80x86 (App. D),IBM 360/370 (App. E), VAX (App. F)

2 2 classifying instruction set architectures
2.2 Classifying Instruction Set Architectures

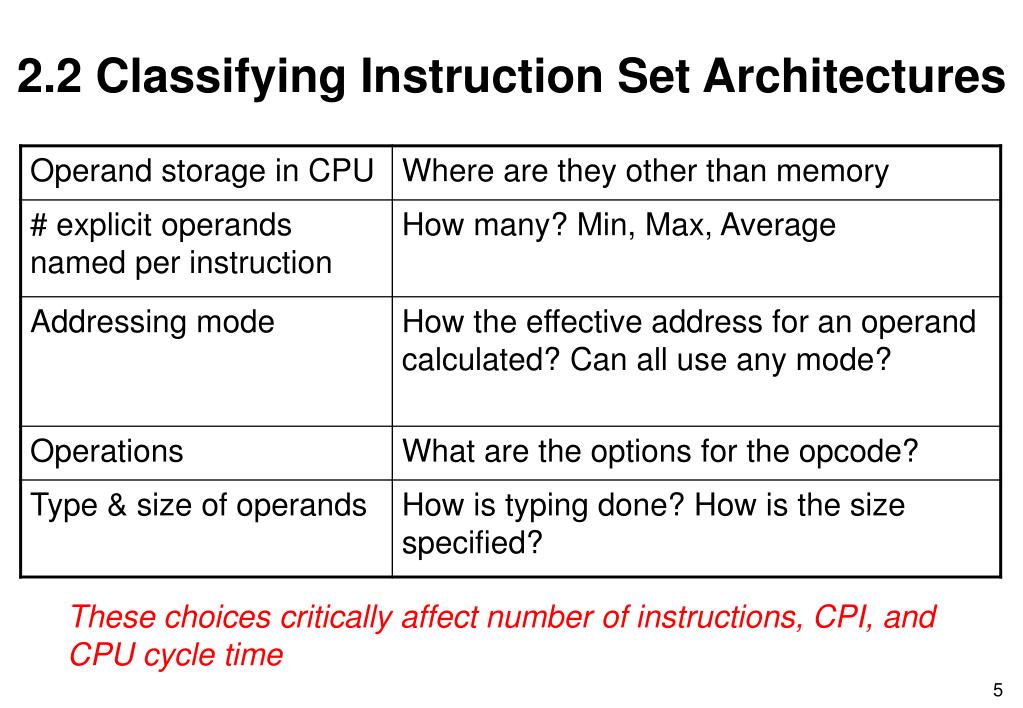

These choices critically affect number of instructions, CPI, and CPU cycle time

Isa classification
ISA Classification

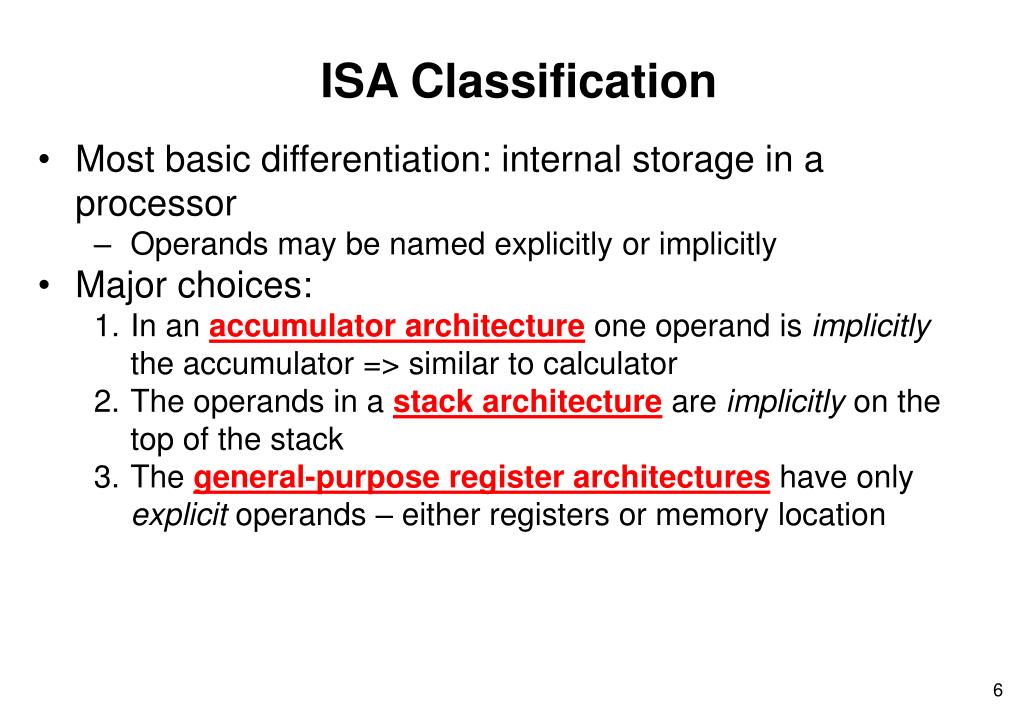

  • Most basic differentiation: internal storage in a processor

    • Operands may be named explicitly or implicitly

  • Major choices:

    • In an accumulator architecture one operand is implicitly the accumulator => similar to calculator

    • The operands in a stack architecture are implicitly on the top of the stack

    • The general-purpose register architectures have only explicit operands – either registers or memory location

Chapter 2 instruction set principles and examples

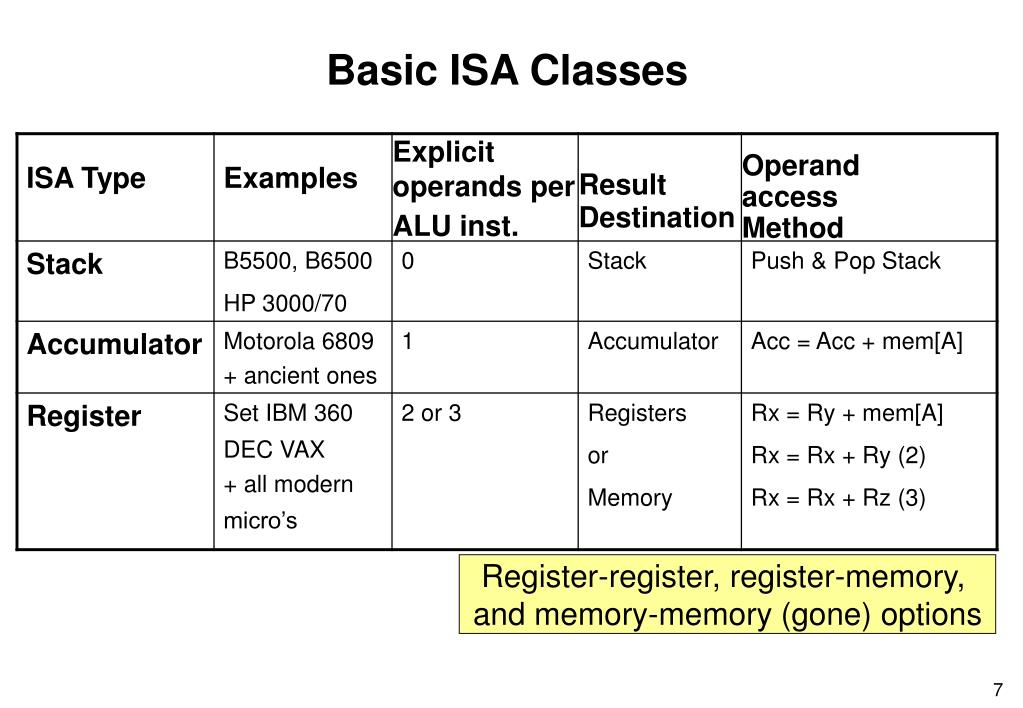

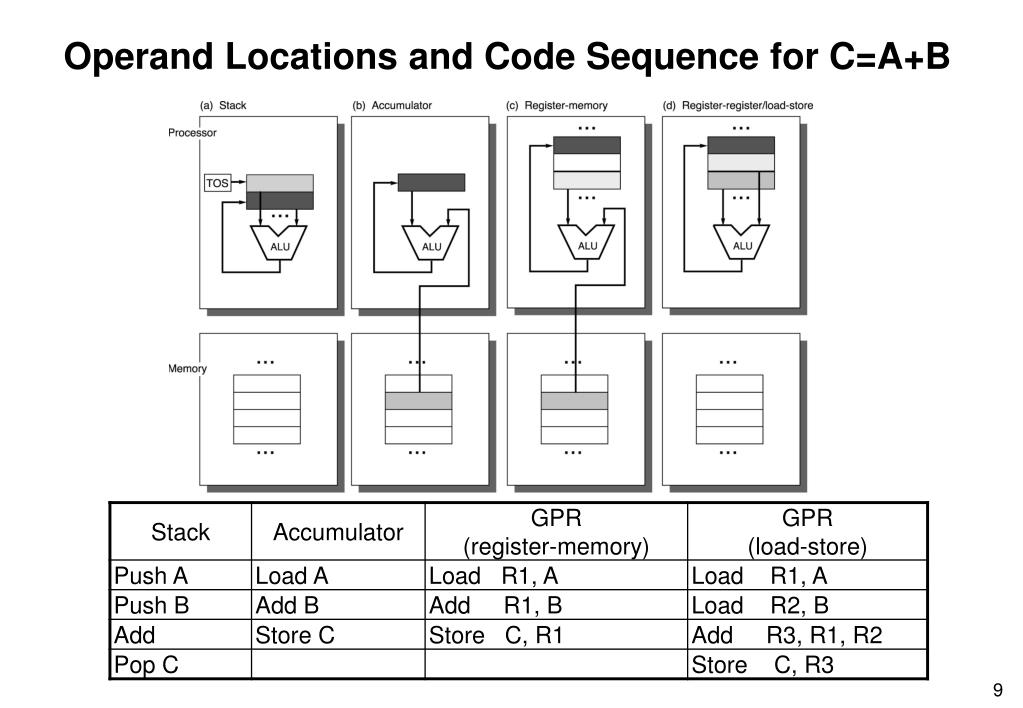

Basic ISA Classes

Register-register, register-memory,

and memory-memory (gone) options

Chapter 2 instruction set principles and examples



0 address add tos ¬ tos + next


1 address add A acc ¬ acc + mem[A]

General Purpose Register (register-memory):

1 address add R1 A R1 ¬ R1 + mem[A]

GPR (register-register or called load/store):

0 address load R1, A R1 ¬ mem[A]

load R2, B R2 ¬ mem[B]

add R3, R1, R2 R3 ¬ R1+R2

ALU Instructions can have two operands.

ALU Instructions can have three operands.

Chapter 2 instruction set principles and examples

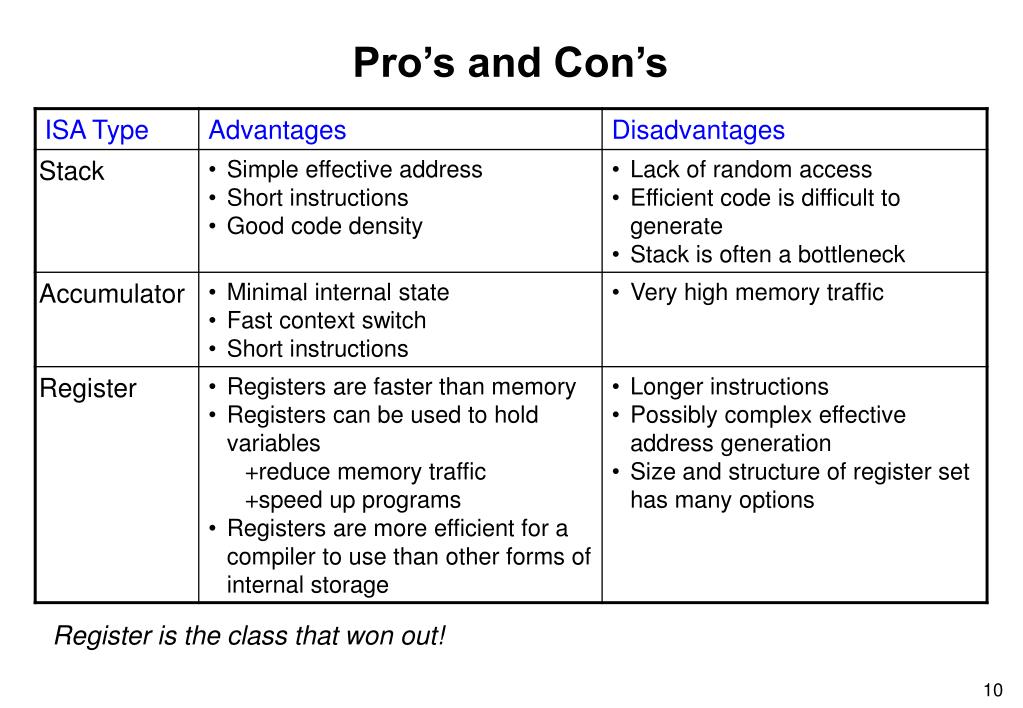

Pro’s and Con’s

Register is the class that won out!

Chapter 2 instruction set principles and examples

Register Machines

  • How many registers are sufficient?

  • General-purpose registers vs. special-purpose registers

    • compiler flexibility and hand-optimization

  • Two major concerns for arithmetic and logical instructions (ALU)

    • 1. Two or three operands

    • X + Y  X

    • X + Y Z

    • 2. How many of the operands may be memory addresses (0 – 3)

Hence, register classification (# mem, # operands)

Chapter 2 instruction set principles and examples

(0, 3): Register-Register

  • ALU is Register to Register – also known as

  • pureReduced Instruction Set Computer (RISC)

  • Advantages

    • simple fixed length instruction encoding

    • decode is simple since instruction types are small

    • simple code generation model

    • instruction CPI tends to be very uniform

      • • except for memory instructions of course

      • • but there are only 2 of them - load and store

  • Disadvantages

    • instruction count tends to be higher

    • some instructions are short - wasting instruction word bits

Chapter 2 instruction set principles and examples

(1, 2): Register-Memory

  • Evolved RISC and also old CISC

    • • new RISC machines capable of doing speculative loads

    • • predicated and/or deferred loads are also possible

  • Advantages

    • data access to ALU immediate without loading first

    • instruction format is relatively simple to encode

    • code density is improved over Register (0, 3) model

  • Disadvantages

    • operands are not equivalent - source operand may be destroyed

    • need for memory address field may limit # of registers

    • CPI will vary

      • • if memory target is in L0 cache then not so bad

      • • if not - life gets miserable

Chapter 2 instruction set principles and examples

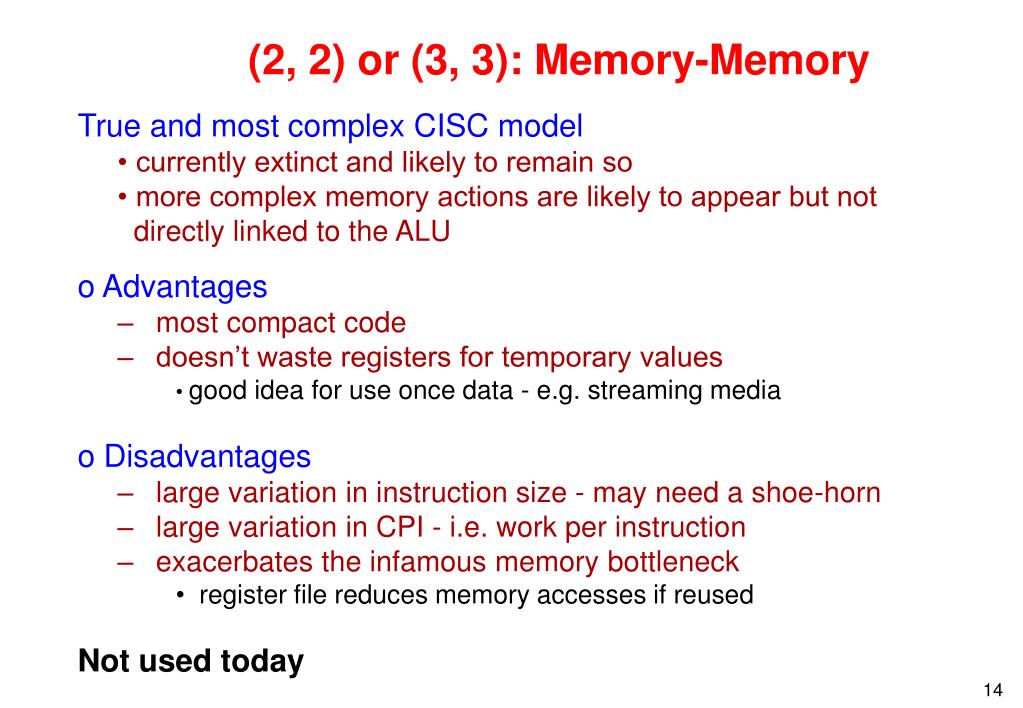

(2, 2) or (3, 3): Memory-Memory

  • True and most complex CISC model

    • • currently extinct and likely to remain so

    • • more complex memory actions are likely to appear but not

    • directly linked to the ALU

  • Advantages

    • most compact code

    • doesn’t waste registers for temporary values

      • good idea for use once data - e.g. streaming media

  • Disadvantages

    • large variation in instruction size - may need a shoe-horn

    • large variation in CPI - i.e. work per instruction

    • exacerbates the infamous memory bottleneck

      • register file reduces memory accesses if reused

  • Not used today

2 3 memory addressing
2.3 Memory Addressing

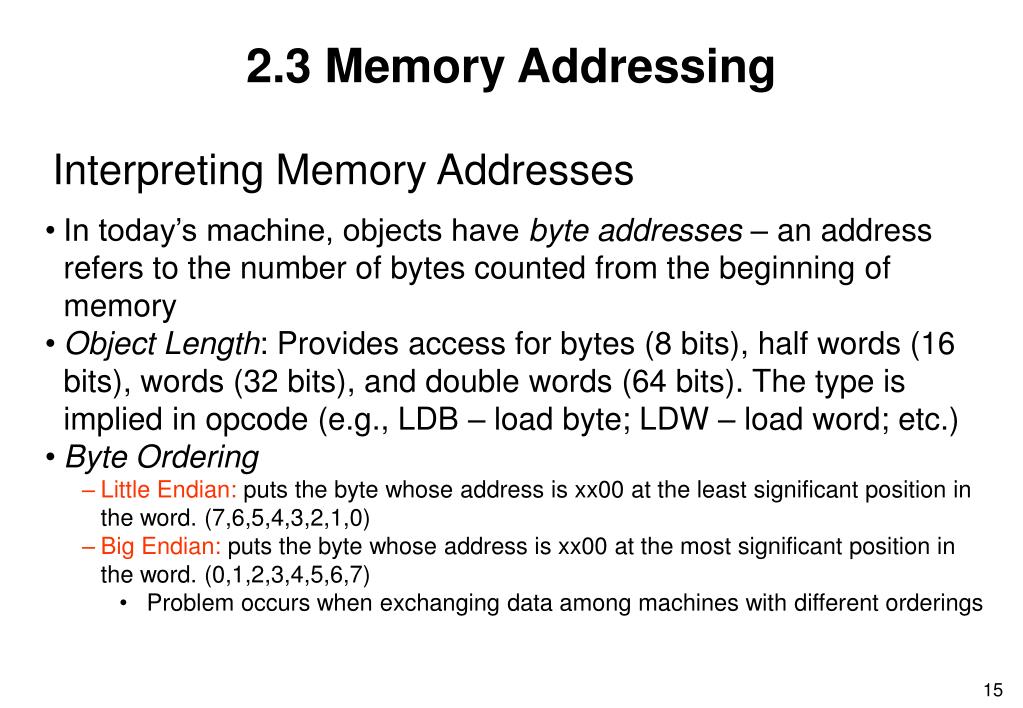

  • In today’s machine, objects have byte addresses – an address refers to the number of bytes counted from the beginning of memory

  • Object Length: Provides access for bytes (8 bits), half words (16 bits), words (32 bits), and double words (64 bits). The type is implied in opcode (e.g., LDB – load byte; LDW – load word; etc.)

  • Byte Ordering

    • Little Endian: puts the byte whose address is xx00 at the least significant position in the word. (7,6,5,4,3,2,1,0)

    • Big Endian: puts the byte whose address is xx00 at the most significant position in the word. (0,1,2,3,4,5,6,7)

      • Problem occurs when exchanging data among machines with different orderings

Interpreting Memory Addresses

Interpreting memory addresses
Interpreting Memory Addresses

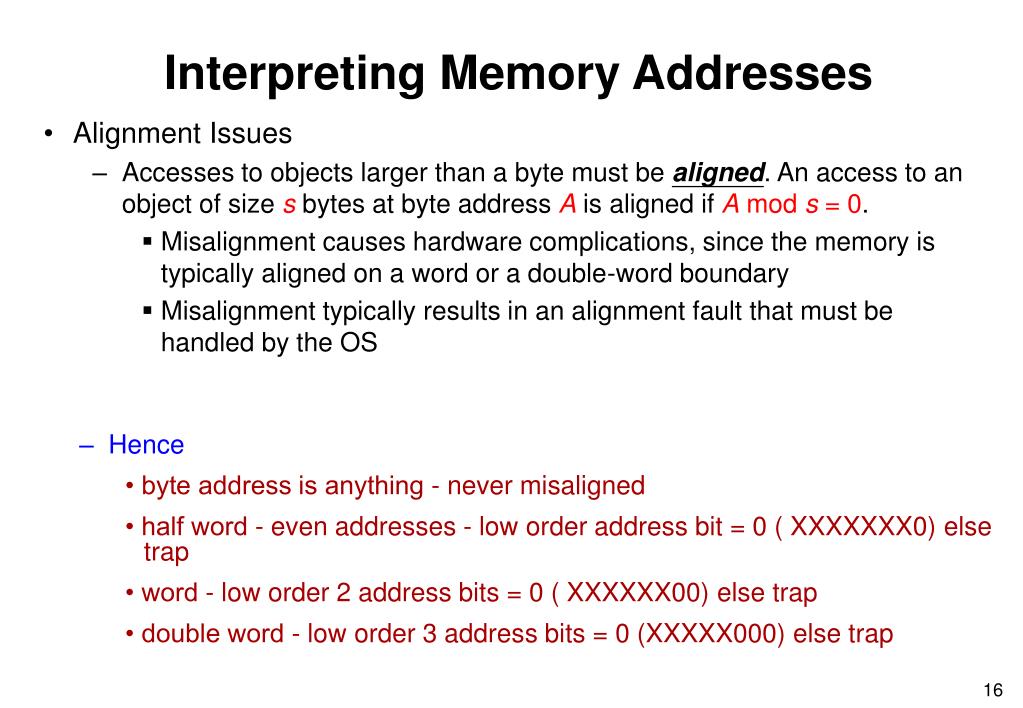

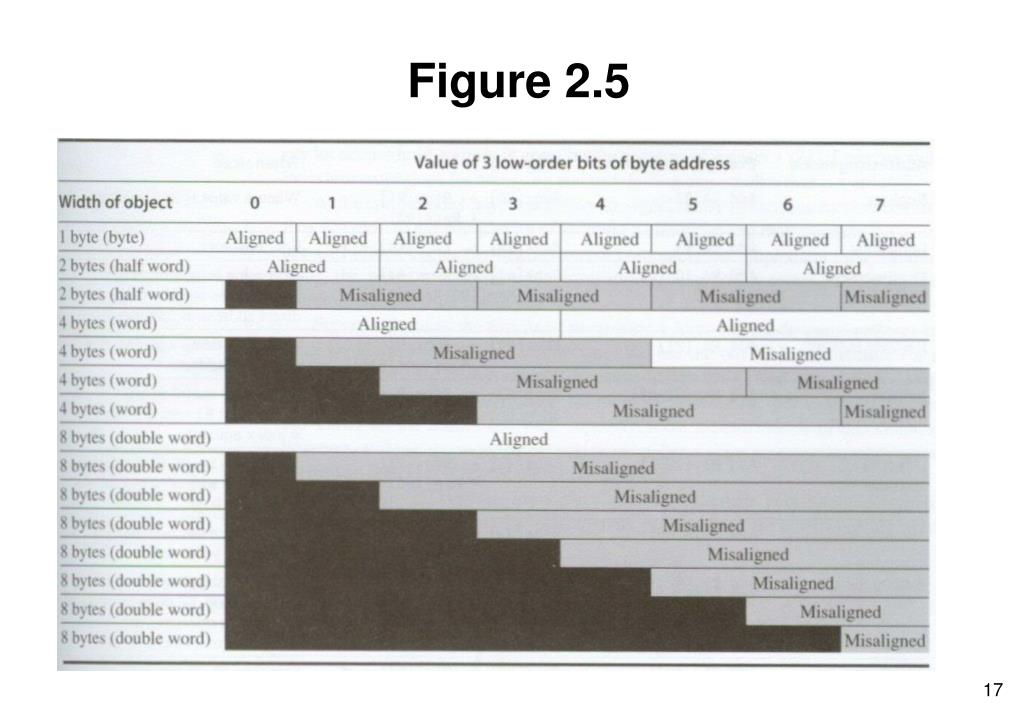

  • Alignment Issues

    • Accesses to objects larger than a byte must be aligned. An access to an object of size s bytes at byte address A is aligned if A mod s = 0.

      • Misalignment causes hardware complications, since the memory is typically aligned on a word or a double-word boundary

      • Misalignment typically results in an alignment fault that must be handled by the OS

  • Hence

    • • byte address is anything - never misaligned

    • • half word - even addresses - low order address bit = 0 ( XXXXXXX0) else trap

    • • word - low order 2 address bits = 0 ( XXXXXX00) else trap

    • • double word - low order 3 address bits = 0 (XXXXX000) else trap

Addressing modes
Addressing Modes

How do architectures specify the addr. of an object they will access?

  • Effective address: the actual memory address specified by the addressing mode.

  • “->” is for assignment. Mem[R[R1]] refers to the contents of the memory location whose location is given the contents of register 1 (R1).

Figure 2 7
Figure 2.7

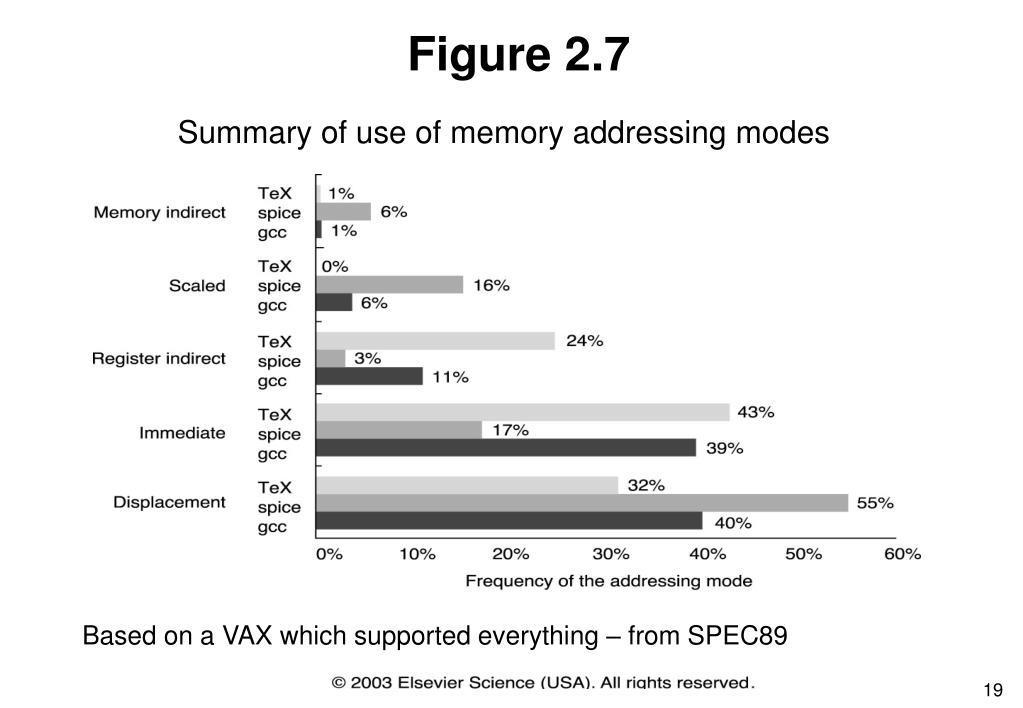

Summary of use of memory addressing modes

Based on a VAX which supported everything – from SPEC89

Displacement addressing mode
Displacement Addressing Mode

How big should the displacement be?

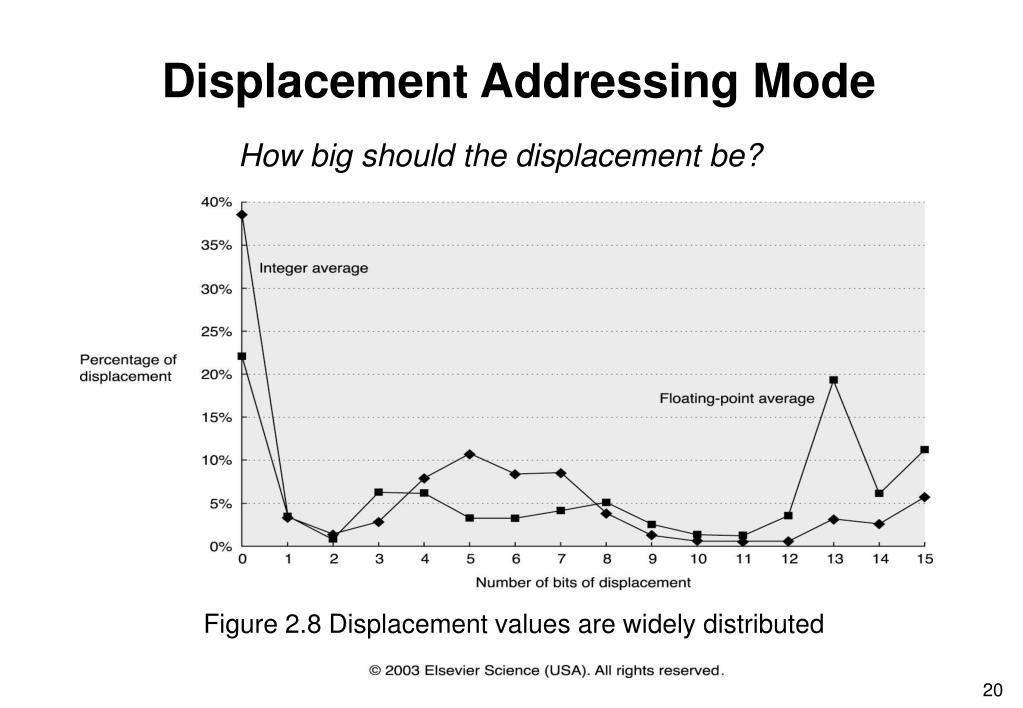

Figure 2.8 Displacement values are widely distributed

Displacement addressing mode cont
Displacement Addressing Mode (cont.)

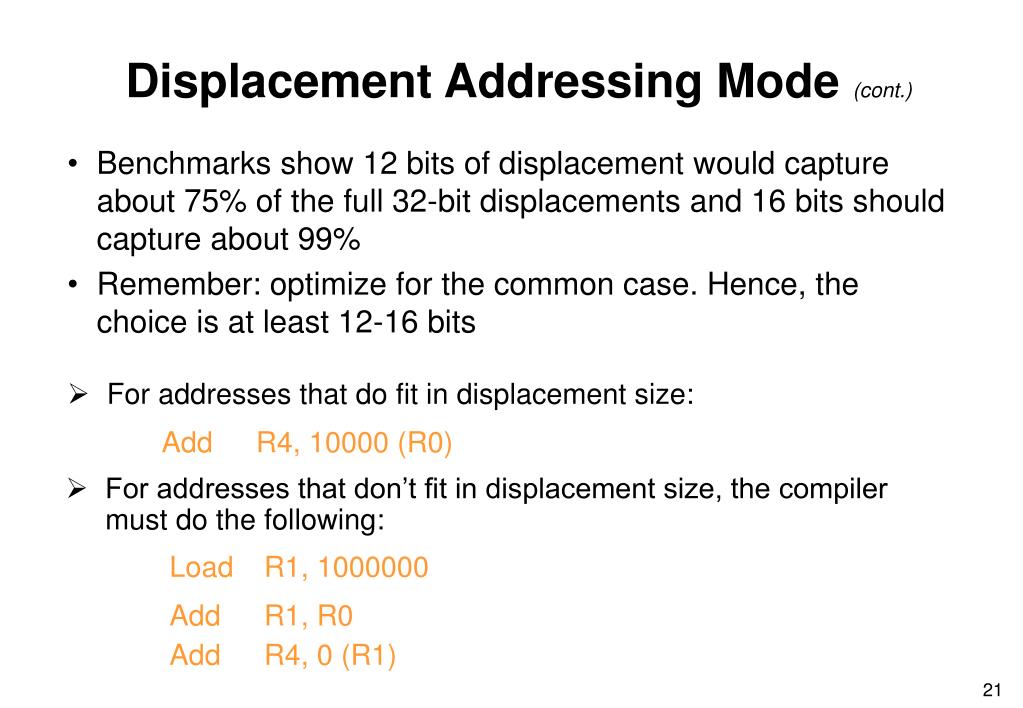

  • Benchmarks show 12 bits of displacement would capture about 75% of the full 32-bit displacements and 16 bits should capture about 99%

  • Remember: optimize for the common case. Hence, the choice is at least 12-16 bits

  • For addresses that do fit in displacement size:

  • Add R4, 10000 (R0)

  • For addresses that don’t fit in displacement size, the compiler must do the following:

Load R1, 1000000

Add R1, R0

Add R4, 0 (R1)

Immediate addressing mode
Immediate Addressing Mode

  • Used where we want to get to a numerical value in an instruction

  • Around 20% of the operations have an immediate operand

At high level:

a = b + 3;

if ( a > 17 )

goto Addr

At Assembler level:

Load R2, 3

Add R0, R1, R2

Load R2, 17


Load R1, Address

Jump (R1)

Immediate addressing mode1
Immediate Addressing Mode

How frequent for immediates?

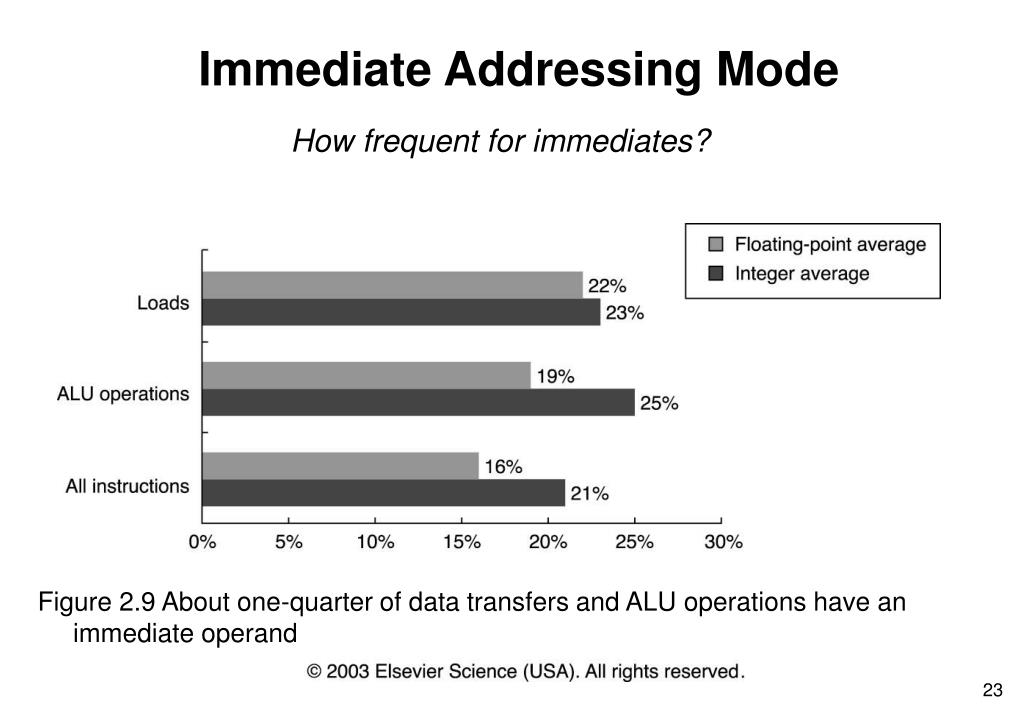

Figure 2.9 About one-quarter of data transfers and ALU operations have an immediate operand

Immediate addressing mode2
Immediate Addressing Mode

How big for immediates?

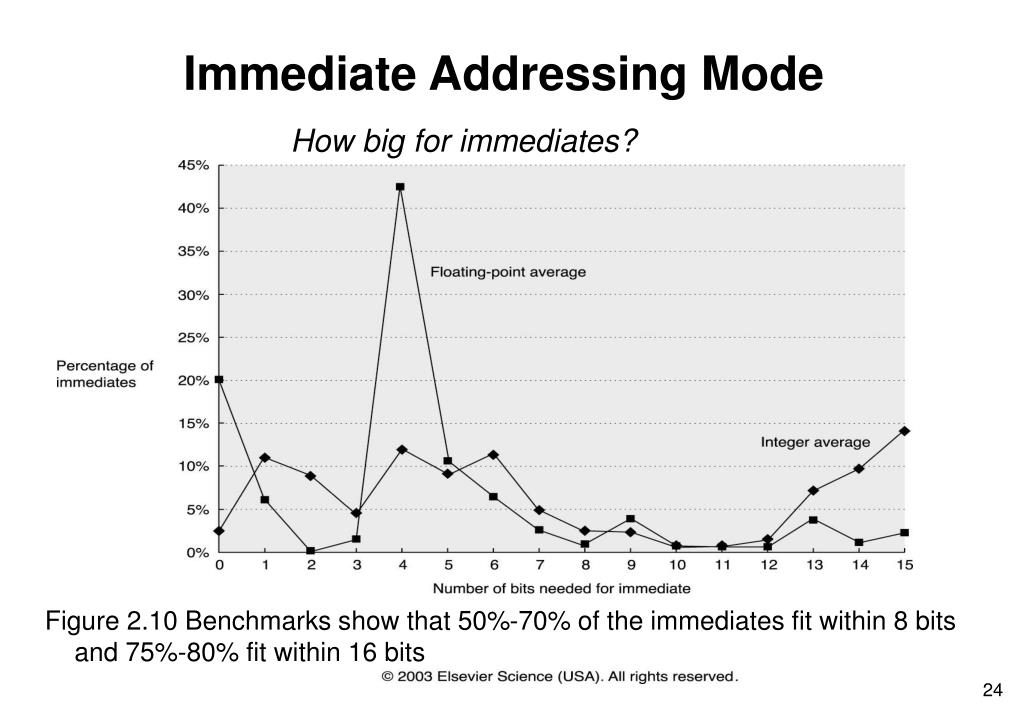

Figure 2.10 Benchmarks show that 50%-70% of the immediates fit within 8 bits and 75%-80% fit within 16 bits

2 4 addressing modes for signal processing
2.4 Addressing Modes for Signal Processing

Two addressing modes that distinguish DSPs

  • Modulo or circular addressing mode

    • autoincrement/autodecrement to support circular buffers

      • As data are added, a pointer is checked to see if it is pointing to the end of the buffer

        • If not, the pointer is incremented to the next address

        • If it is, the pointer is set instead to the start of the buffer

  • Bit reverse addressing mode

    • the hardware reverses the lower bits of the address, with the number of bits reversed depending on the step of the FFT algorithm

Addressing for fast fourier transform fft
Addressing for Fast Fourier Transform (FFT)

  • FFTs start or end their processing with data shuffled in a particular order

    Without special support, such address transformations would take an extra memory access to get the new address, or involve a fair amount of logical instructions to transform the address

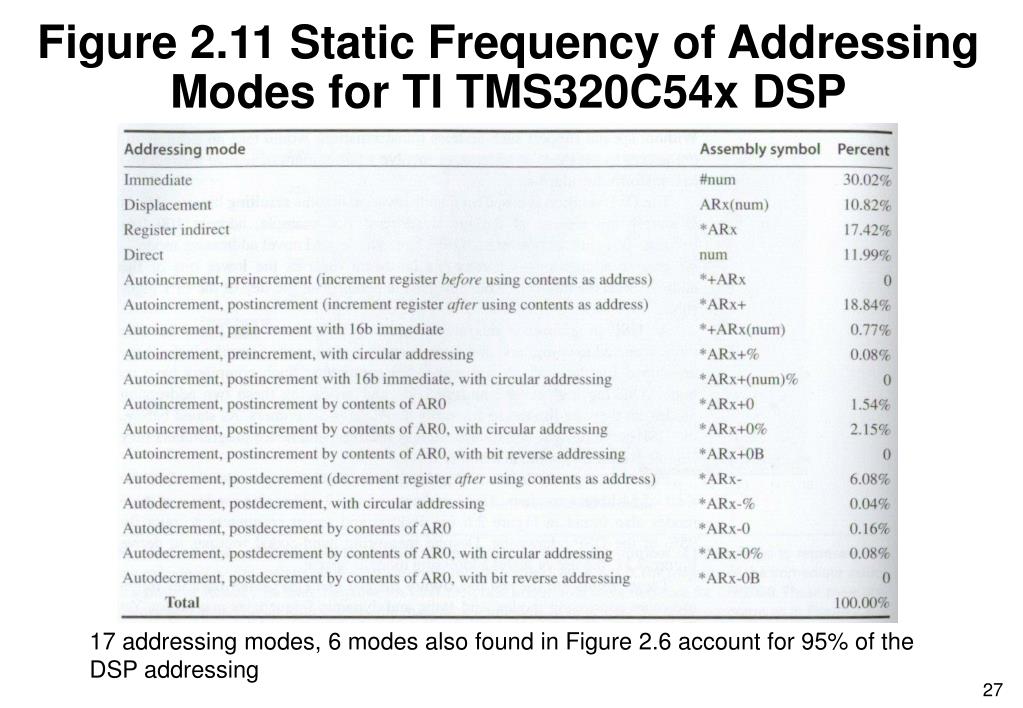

Figure 2 11 static frequency of addressing modes for ti tms320c54x dsp
Figure 2.11 Static Frequency of Addressing Modes for TI TMS320C54x DSP

17 addressing modes, 6 modes also found in Figure 2.6 account for 95% of the DSP addressing

Summary memory addressing
Summary: Memory Addressing TMS320C54x DSP

  • A new architecture expected to support at least: displacement, immediate, and register indirect

    • represent 75% to 99% of the addressing modes (Figure 2.7)

  • The size of the address for displacement mode to be at least 12-16 bits

    • capture 75% to 99% of the displacements (Figure 2.8)

  • The size of the immediate field to be at least 8-16 bits

    • capture 50% to 80% of the immediates (Figure 2.10)

      Desktop and server processors rely on compilers, but historically DSPs rely on hand-coded libraries

2 5 type and size of operands
2.5 Type And Size of Operands TMS320C54x DSP

How is the type of an operand designated?

  • The type of the operand is usually encoded in the opcode

    • e.g., LDB – load byte; LDW – load word

  • Common operand types: (imply their sizes)

    Character (8 bits or 1 byte)

    Half word (16 bits or 2 bytes)

    Word (32 bits or 4 bytes)

    Double word (64 bits or 8 bytes)

    Single precision floating point (4 bytes or 1 word)

    Double precision floating point (8 bytes or 2 words)

    • Characters are almost always in ASCII

    • 16-bit Unicode (used in Java) is gaining popularity

    • Integers are two’s complement binary

    • Floating points follow the IEEE standard 754

  • Some architectures support packed decimal: 4 bits are used to encode the values 0-9; 2 decimal digits are packed into each byte

Figure 2 12 distribution of data accesses by size for the benchmark programs

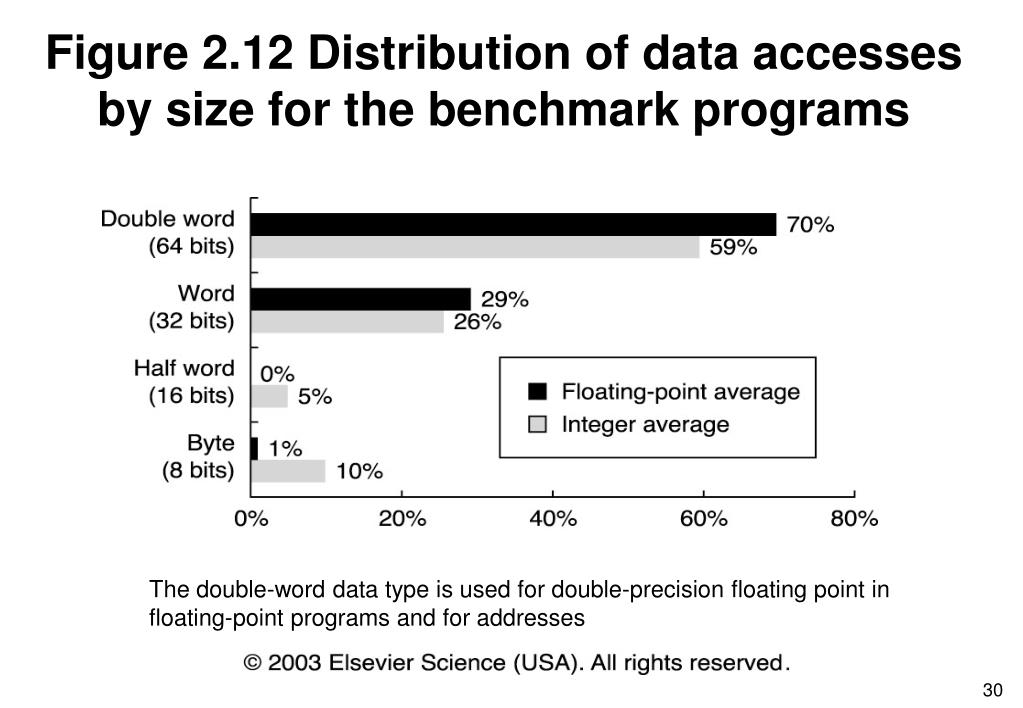

Figure 2.12 Distribution of data accesses by size for the benchmark programs

SPEC2000 Operand Sizes

The double-word data type is used for double-precision floating point in floating-point programs and for addresses

2 6 operands for media and signal processing
2.6 Operands for Media and Signal Processing benchmark programs

  • Vertex

    • A common 3D data type dealt in graphics applications

    • four components: (x, y, z) and w=color or hidden surfaces

    • vertex values are usually 32-bit floating-point values

    • Three vertices specify a graphics primitive such as a triangle

  • Pixel

    • Typically 32 bits, consisting of four 8-bit channels

      • R (red), G (green), B (blue), and A (attribute: eg. transparency)

  • DSPs add fixed point

    • fractions between -1 and +1 (divide by 2n-1)

  • Blocked floating point

    • a block of variables with common exponent

    • accumulators, registers that are wider to guard against round-off error to aid accuracy in fixed-point arithmetic

Size of data operands for dsp
Size of Data operands for DSP benchmark programs

Figure 2.13 Four generations of DSPs, their data width, and the width of the registers that reduces round-off error

Figure 2.14 Size of data operands for TMS320C540x DSP. This DSP has two 40-bit accumulators and no floating-point operations.

Brief summary

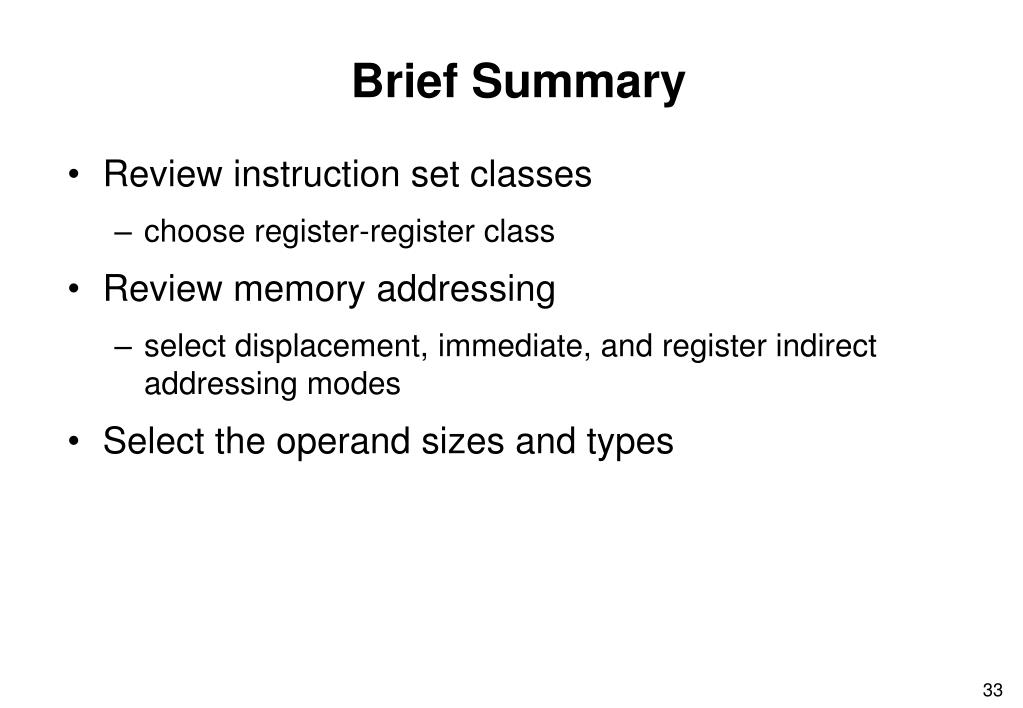

Brief Summary benchmark programs

  • Review instruction set classes

    • choose register-register class

  • Review memory addressing

    • select displacement, immediate, and register indirect addressing modes

  • Select the operand sizes and types

2 7 operations in the instruction set
2.7 Operations in the Instruction Set benchmark programs

Figure 2.15 Categories of instruction operators and examples of each.

  • All computers generally provide a full set of operations for the first three categories

  • All computers must have some instruction support for basic system functions

  • Graphics instructions typically operate on many smaller data items in parallel

Figure 2 16 top 10 instructions for the 80x86
Figure 2.16 Top 10 instructions for the 80x86 benchmark programs

  • Simple instructions dominate this list and responsible for 96% of the instructions executed

  • These percentages are the average of the five SPECint 92 programs

2 8 operations for media signal processing
2.8 Operations for Media & Signal Processing benchmark programs

  • Data for multimedia operations is often narrower than the 64-bit data word

    • normally in single precision, not double precision

  • Single-instruction multiple-data (SIMD) or vector instructions

    • A partitioned add operation on 16-bit data with a 64-bit ALU would perform four 16-bit adds in a single clock cycle

      • Hardware cost: prevent carries between the four 16-bit partitions of the ALU

    • Two 32-bit floating-point operations (paired single operations)

      • The two partitions must be insulated to prevent operations on one half from affecting the other

Figure 2 17 summary of multimedia support for desktop riscs
Figure 2.17 Summary of multimedia support for desktop RISCs benchmark programs

  • B: byte (8 bits), H: half word (16 bits), W: word (32 bits) 8B: operation on 8 bytes in a single instruction

  • All are fixed-width operations, performing multiple narrow operations on either a 64-bit or 128-bit ALU

Multimedia operations for dsps

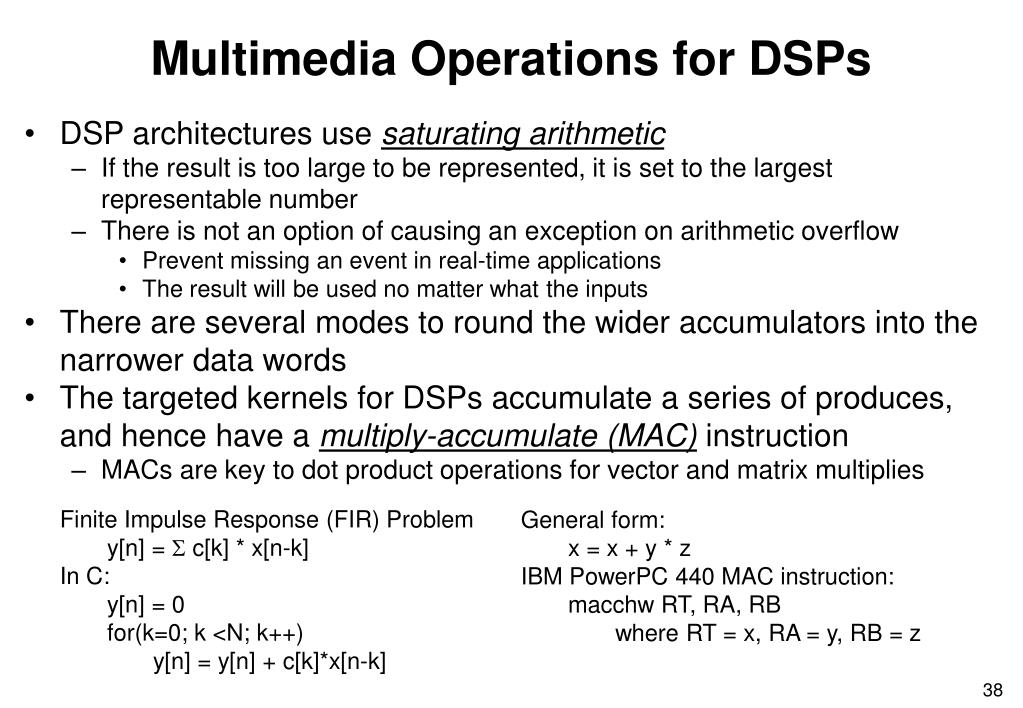

Multimedia Operations for DSPs benchmark programs

  • DSP architectures use saturating arithmetic

    • If the result is too large to be represented, it is set to the largest representable number

    • There is not an option of causing an exception on arithmetic overflow

      • Prevent missing an event in real-time applications

      • The result will be used no matter what the inputs

  • There are several modes to round the wider accumulators into the narrower data words

  • The targeted kernels for DSPs accumulate a series of produces, and hence have a multiply-accumulate (MAC) instruction

    • MACs are key to dot product operations for vector and matrix multiplies

  • Finite Impulse Response (FIR) Problem

    • y[n] = S c[k] * x[n-k]

  • In C:

    • y[n] = 0

    • for(k=0; k <N; k++)

    • y[n] = y[n] + c[k]*x[n-k]

  • General form:

    • x = x + y * z

  • IBM PowerPC 440 MAC instruction:

    • macchw RT, RA, RB

    • where RT = x, RA = y, RB = z

Figure 2 18 mix of instructions for tms320c540x dsp

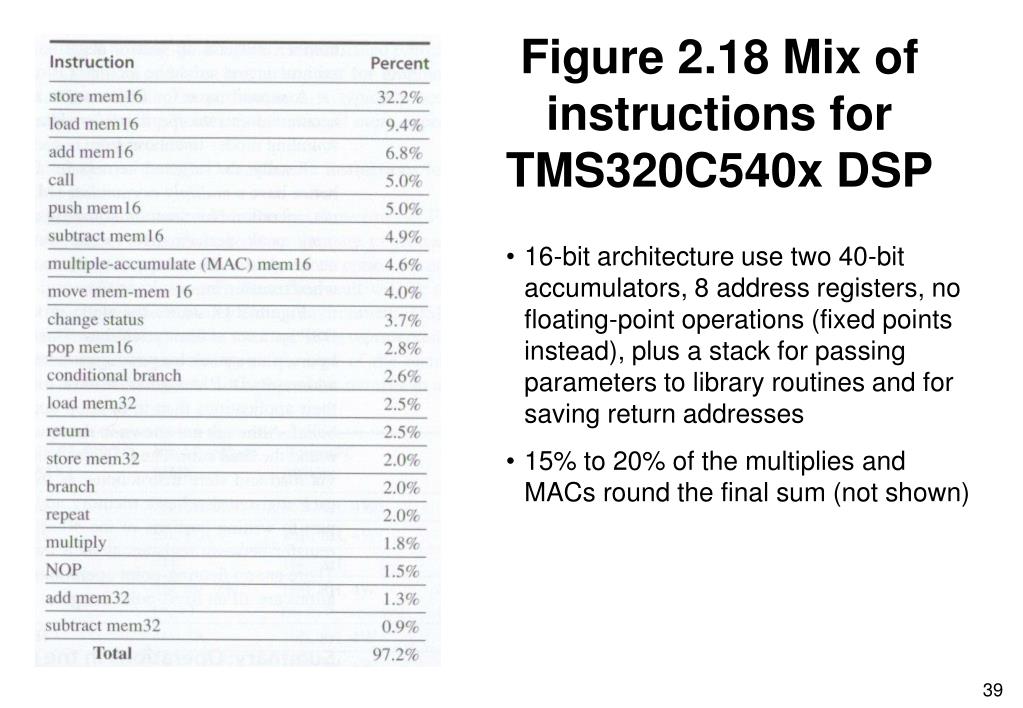

Figure 2.18 Mix of instructions for TMS320C540x DSP benchmark programs

  • 16-bit architecture use two 40-bit accumulators, 8 address registers, no floating-point operations (fixed points instead), plus a stack for passing parameters to library routines and for saving return addresses

  • 15% to 20% of the multiplies and MACs round the final sum (not shown)

2 9 instructions for control flow
2.9 Instructions for Control Flow benchmark programs

  • Control instructions change the flow of control: instead of executing the next instruction, the program branches to the address specified in the branching instructions

  • They are a big deal

    • Primarily because they are difficult to optimize out

    • AND they are frequent

  • Four types of control instructions

    • Conditional branches

    • Jumps – unconditional transfer

    • Procedure calls

    • Procedure returns

Control flow instructions
Control Flow Instructions benchmark programs

  • Issues:

    • Where is the target address? How to specify it?

    • Where is return address kept? How are the arguments passed? (calls)

    • Where is return address? How are the results passed? (returns)

  • Figure 2.19 Breakdown

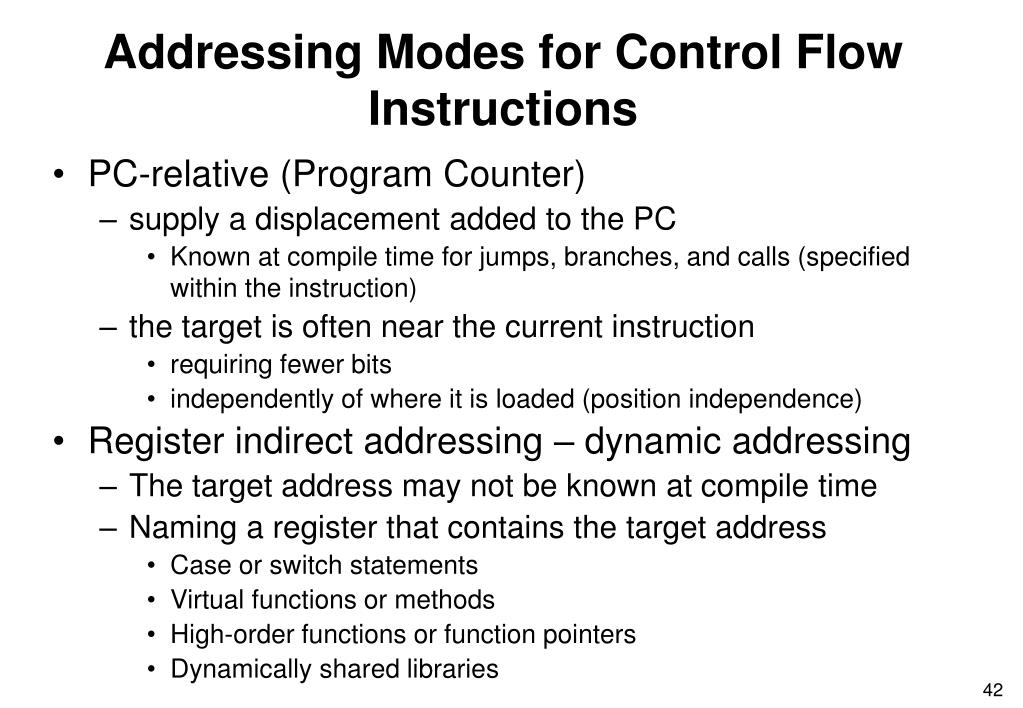

Addressing modes for control flow instructions
Addressing Modes for Control Flow Instructions benchmark programs

  • PC-relative (Program Counter)

    • supply a displacement added to the PC

      • Known at compile time for jumps, branches, and calls (specified within the instruction)

    • the target is often near the current instruction

      • requiring fewer bits

      • independently of where it is loaded (position independence)

  • Register indirect addressing – dynamic addressing

    • The target address may not be known at compile time

    • Naming a register that contains the target address

      • Case or switch statements

      • Virtual functions or methods

      • High-order functions or function pointers

      • Dynamically shared libraries

Figure 2 20 branch distances

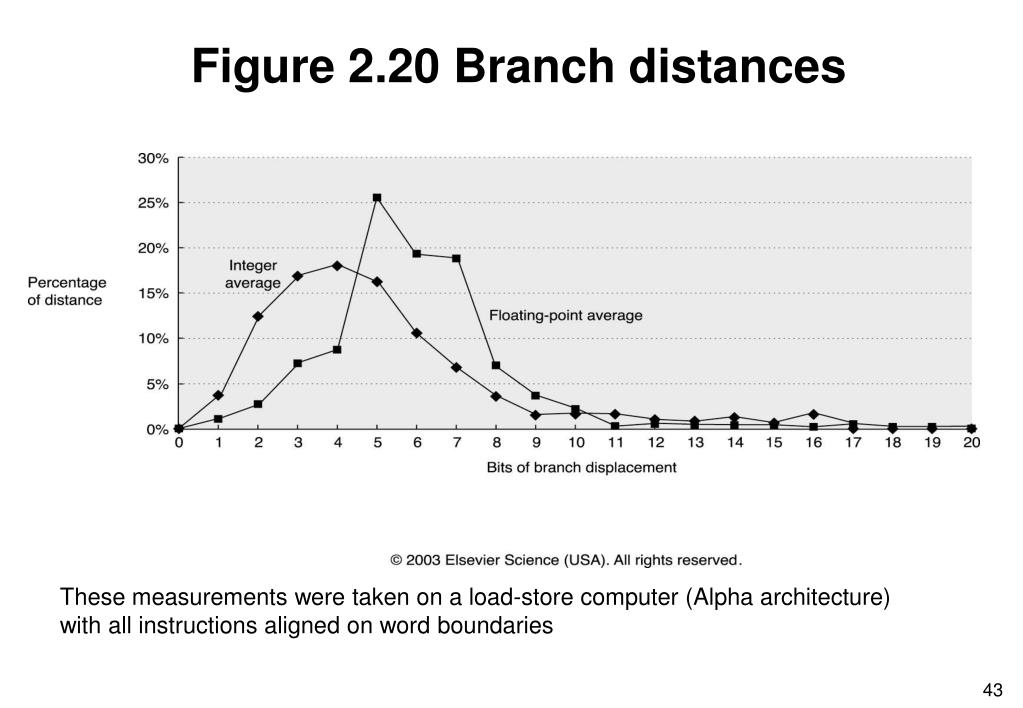

Figure 2.20 Branch distances benchmark programs

These measurements were taken on a load-store computer (Alpha architecture) with all instructions aligned on word boundaries

Conditional branch options
Conditional Branch Options benchmark programs

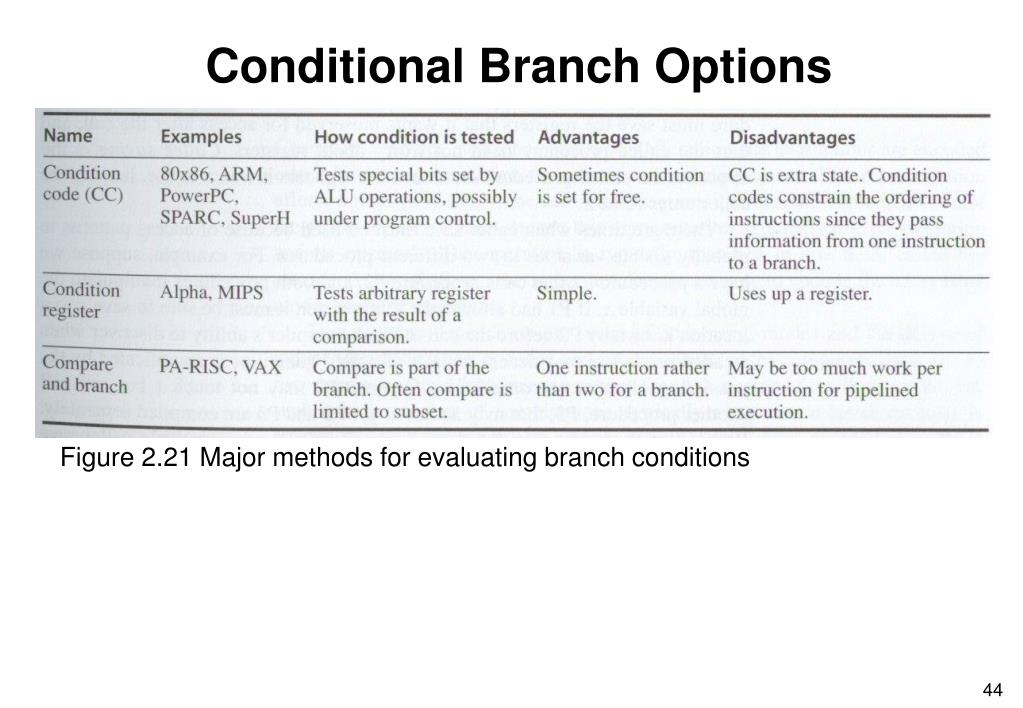

Figure 2.21 Major methods for evaluating branch conditions

Figure 2 22 comparison type vs frequency
Figure 2.22 Comparison Type vs. Frequency benchmark programs

  • Most loops go from 0 to n.

  • Most backward branches are loops – taken about 90%

Repeat instruction for dsp

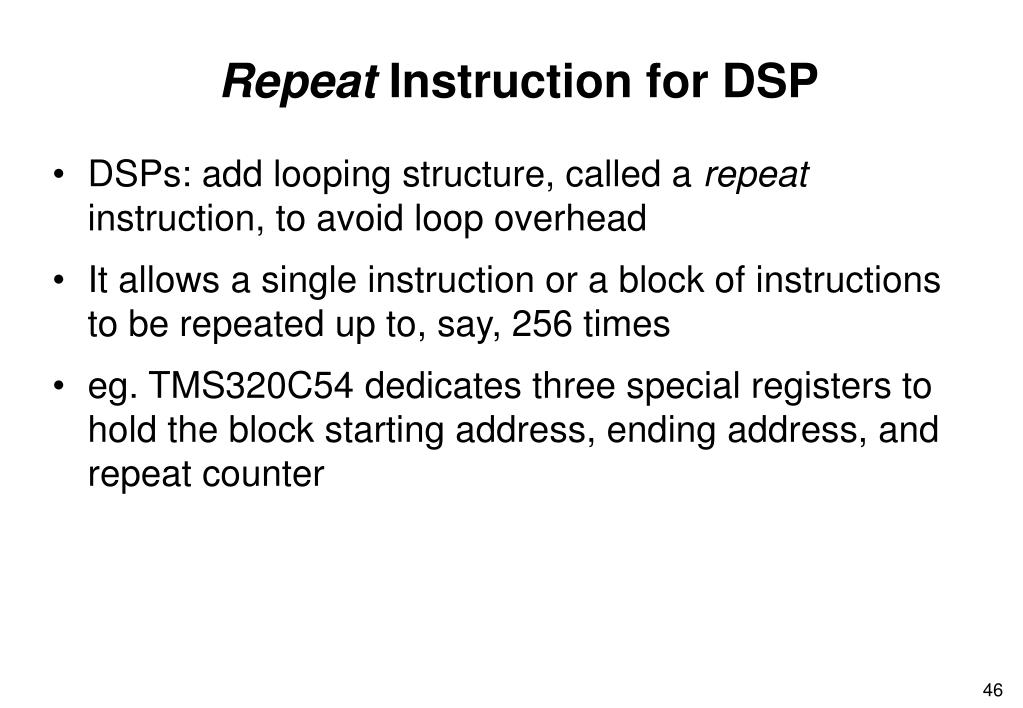

Repeat benchmark programs Instruction for DSP

  • DSPs: add looping structure, called a repeat instruction, to avoid loop overhead

  • It allows a single instruction or a block of instructions to be repeated up to, say, 256 times

  • eg. TMS320C54 dedicates three special registers to hold the block starting address, ending address, and repeat counter

Procedure invocation options
Procedure Invocation Options benchmark programs

  • Procedure calls and returns

    • control transfer

    • state saving; the return address must be saved

      Newer architectures require the compiler to generate stores and loads for each register saved and restored

  • Two basic conventions in use to save registers

    • caller saving: the calling procedure must save the registers that it wants preserved for access after the call

      • the called procedure need not worry about registers

    • callee saving: the called procedure must save the registers it wants to use

      • leaving the caller unrestrained

        most real systems today use a combination of the two mechanisms

      • specified in an application binary interface (ABI) that set down the basic rules as to which register be caller saved and which should be callee saved

2 10 encoding an instruction set
2.10 Encoding an Instruction Set benchmark programs

  • Opcode: specifying the operation

  • # of operand

    • addressing mode

    • address specifier: tells what addressing mode is used

    • Load-store computer

      • Only one memory operand

      • Only one or two addressing modes

  • Encoding issues

    • The desire to have as many registers and addressing modes as possible

    • The impact of the size of the register and addressing mode fields on the average instruction size and hence on the average program size

    • A desire to have instructions encoded into lengths that will be easy to handle in a pipelined implementation

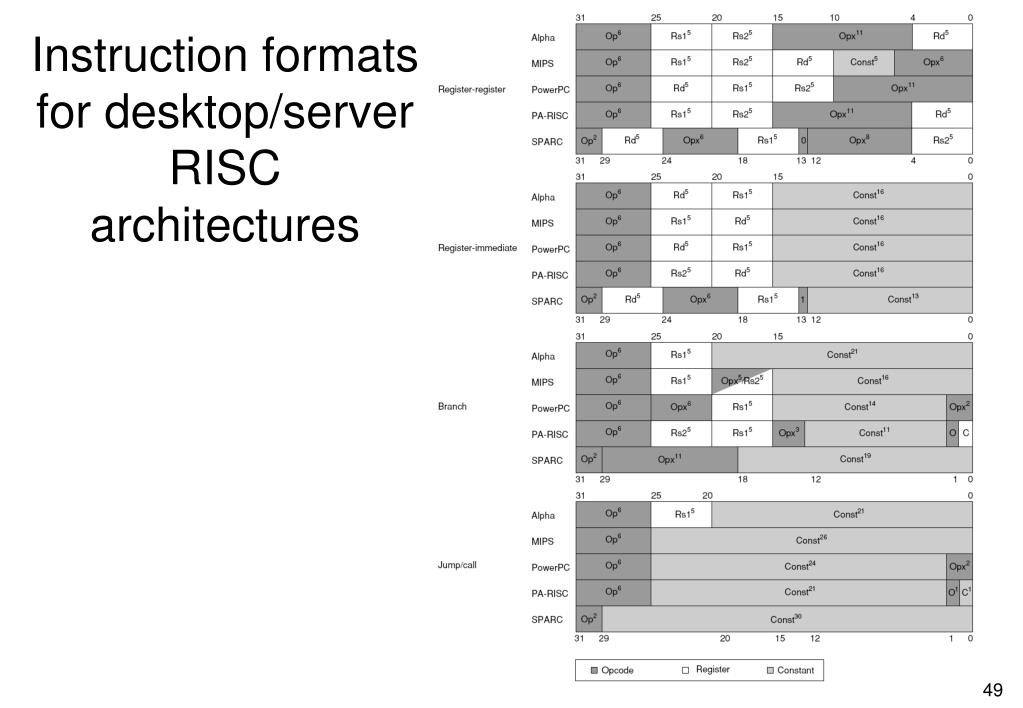

Figure 2.23 Three basic variations in instruction encoding

  • The length of 80x86 instructions varies between 1 and 17 bytes

  • Trade-off: size of programs vs. ease of decoding

Reduced code size in riscs

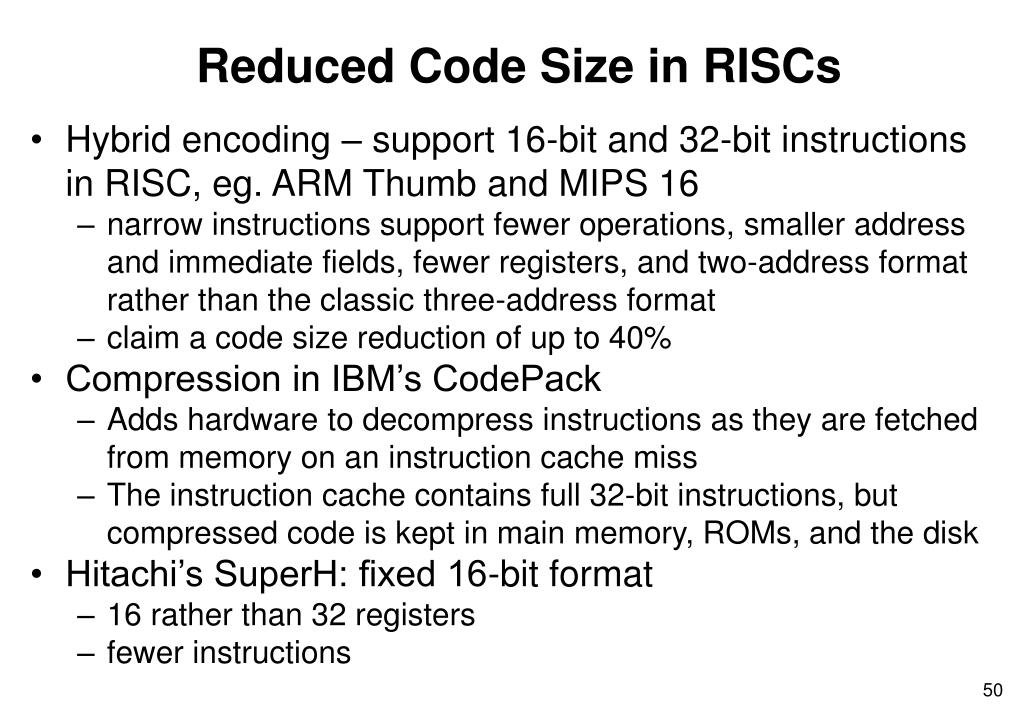

Reduced Code Size in RISCs benchmark programs

  • Hybrid encoding – support 16-bit and 32-bit instructions in RISC, eg. ARM Thumb and MIPS 16

    • narrow instructions support fewer operations, smaller address and immediate fields, fewer registers, and two-address format rather than the classic three-address format

    • claim a code size reduction of up to 40%

  • Compression in IBM’s CodePack

    • Adds hardware to decompress instructions as they are fetched from memory on an instruction cache miss

    • The instruction cache contains full 32-bit instructions, but compressed code is kept in main memory, ROMs, and the disk

  • Hitachi’s SuperH: fixed 16-bit format

    • 16 rather than 32 registers

    • fewer instructions

2 11 the role of compilers
2.11 The Role of Compilers benchmark programs

  • Today almost all programming is done in high-level languages. As such, an ISA is essentially a complier target.

  • Because performance of a computer will be significantly affected by the compiler, understanding compiler technology today is critical to designing and efficiently implementing an IS.

  • Compiler goals:

    • All correct programs execute correctly

    • Most compiled programs execute fast (optimizations)

    • Fast compilation

    • Debugging support

Chapter 2 instruction set principles and examples

Typical Modern Compiler Structure benchmark programs

C, Fortran, or Cobol, etc.

Object Code

Chapter 2 instruction set principles and examples

Optimization Types benchmark programs

  • High level – done at or near source code level

    • If procedure is called only once, put it in-line and save CALL

    • more general case: if call-count < some threshold, put them in-line

  • Local – done within straight-line code

    • common sub-expressions produce same value – either allocate a register or replace with single copy

    • constant propagation – replace constant valued variable with the constant

    • stack height reduction – re-arrange expression tree to minimize temporary storage needs

  • Global – across a branch

    • copy propagation – replace all instances of a variable A that has been assigned X (i.e., A=X) with X.

    • code motion – remove code from a loop that computes same value each iteration of the loop and put it before the loop

    • simplify or eliminate array addressing calculations in loops

Chapter 2 instruction set principles and examples

Optimization Types benchmark programs

  • Machine-dependent optimizations – based on machine knowledge

    • strength reduction – replace multiply by a constant with shifts and adds

      • would make sense if there was no hardware support for MUL

      • a trickier version: 17  = arithmetic left shift 4 and add

    • pipelining scheduling – reorder instructions to improve pipeline performance

      • dependency analysis

    • branch offset optimization - reorder code to minimize branch offsets

Chapter 2 instruction set principles and examples

Complier Optimizations – Change in IC benchmark programs

  • L0 – unoptimized

  • L1 – local opts, code scheduling, & local reg. allocation

  • L2 – global opts and loop transformations, & global reg. Allocation

  • L3 – procedure integration

Chapter 2 instruction set principles and examples

The Impact of Compiler Technology benchmark programs

How are variables allocated and addressed?

How many registers are needed to allocate variables appropriately?

  • Three separate areas for data allocation

    • Stack

      • Used to allocate local variables

      • Grown and shrunk on calls and returns

      • Addressing is relative to the stack pointer

    • Global data area

      • Used to allocate statically declared objects, such as global variables and constants

      • A large percentage of these objects are aggregate data structures such as arrays

    • Heap

      • Used to allocate dynamic objects

      • Access are usually by pointers

      • Data is typically not scalars (single variables)

Chapter 2 instruction set principles and examples

Register Allocation Problem benchmark programs

  • Reasonably simple for stack-allocated objects

    • Done with the graph coloring theory: variable – vertex; dependency between variables – edge; # register will be equal to # colors

  • Essentially impossible for heap-allocated objects because they are accessed with pointers

  • Hard for global variables and some static variables due to aliasing opportunity

    • There are multiple ways to refer to the address of a variable b

Chapter 2 instruction set principles and examples

How do you help the compiler writer? benchmark programs

  • Key: make the frequent cases fast and the rare case correct

  • Guidelines that will make it easy to write a complier

    • Regularity

      • Addressing modes, operations, and data types should be independent of each other

    • Provide primitives, not solution

      • What works in one language may be detrimental to others, so don’t optimize for one particular language

    • Simplify trade-offs among alternatives

      • Anything that makes code sequence performance obvious is a definite win!

    • Provide instructions that bind the quantities known at compile time as constants

2 12 the mips64 architecture
2.12 The MIPS64 Architecture benchmark programs

  • A Typical General-Purpose Load-Store Architecture

  • Registers

    • • 32 integer - 64-bit integer registers (R0:R31)

      • R0 is always equal to 0 and the rest are general purpose

    • • 32 FP registers (F0:F31)

      • Contains a single 32-bit or a single 64-bit float

  • Data Types

    • • byte, half word, word, double word

  • Instructions

    • • 32-bit long

    • • Fixed length: 4 bytes, 3 instruction types ==> easy decode

    • • Overall goal: simple ==> pipeline ease ==> performance

Chapter 2 instruction set principles and examples

MIPS64 Operations benchmark programs

  • Key features

    • • addressing modes for data

      • Displacement(size 12-16 bits)

      • Immediate(size 8-16 bits)

      • Register indirect: placing 0 in the 16-bit displacement field

      • Absolute addressing: using R0 as the base register

    • • conditional branches

      • Test the register source for zero or nonzero (compare equal); or

      • Compare 2 registers (compare less)

      • If satisfied, then jump PC+4+immeidate (size 8 bits long)

      • jump, call, and return

    • • floats - usual set of operations

      • .S for single precision (32-bit)

      • .D for double precision (64-bit)

Chapter 2 instruction set principles and examples

Instruction Format benchmark programs

  • Fixed length with 3 types

  • NOTE:

  • 16 bit immediate:

  • Immediate data and

  • PC-relative offset for

  • short jumps and

  • conditional branches.

  • 26 bit PC-relative offset

  • for calls and returns

  • (regular or traps) and

  • long jumps.

Chapter 2 instruction set principles and examples

MIPS64 Operations benchmark programs( load and store)

Chapter 2 instruction set principles and examples

MIPS64 Operations ( load and store) benchmark programs

  • Illustration legends:

  • A subscript is appended to the symbol ←whenever the length of the datum being transferred might not be clear. Thus, ←nmeans transfer an n-bit quantity.

  • A subscript is used to indicate selection of a bit from a filed. Bits are labeled from the most significant bit starting at 0.

    • (Mem[30+Regs[R2]]0)32 : replicating the sign bit for 32 times

  • The variable Mem, used as an array that stands for main memory, is indexed a byte address and may transfer any number of bytes.

  • A superscript is used to replicate a filed.

  • The symbol ## is used to concatenate two fields and may appear on either side of a data transfer.

Chapter 2 instruction set principles and examples

MIPS64 Operations benchmark programs( A/L w/o immediate )

<<: logical shift left

Chapter 2 instruction set principles and examples

MIPS64 Operations benchmark programs( flow control)

Summary benchmark programs

Chapter 2 Instruction Set Principles and Examples

2.1 Introduction

2.2 Classifying Instruction Set Architectures

2.3 Memory Addressing

2.4 Addressing Modes for Signal Processing

2.5 Type and Size of Operands

2.6 Operands for Media and Signal Processing

2.7 Operations in the Instruction Set

2.8 Operations for Media and Signal Processing

2.9 Instructions for Control Flow

2.10 Encoding an Instruction Set

2.11 The Role of Compilers

2.12 The MIPS Architecture
