  1. ZPAS Solutions for DATA CENTER

  2. ZPAS Solutions for DATA CENTER • Infrastructure of Data Center • - server cabinets • precise air-conditioning • guaranteed power supply systems • fire extinguishing systems • electronic security systems, • - enviromental condition monitoring systems– • ZPAS Control Oversee,

  3. 42U, 45U, 47U 1000mm,1200mm 600mm, 800mm Server cabinet 19” • Server cabinet DC 19”: • - cabinet meets the requirement of EIA-310D, • intended for use in Data Box and row system with side and row heat exchangers, • possibility to join cabinets in row, • static capacity 1360 kg, possibility of increasing to 1500kg • possibility of applying electronic access control system. clearance 80% clearance 69%

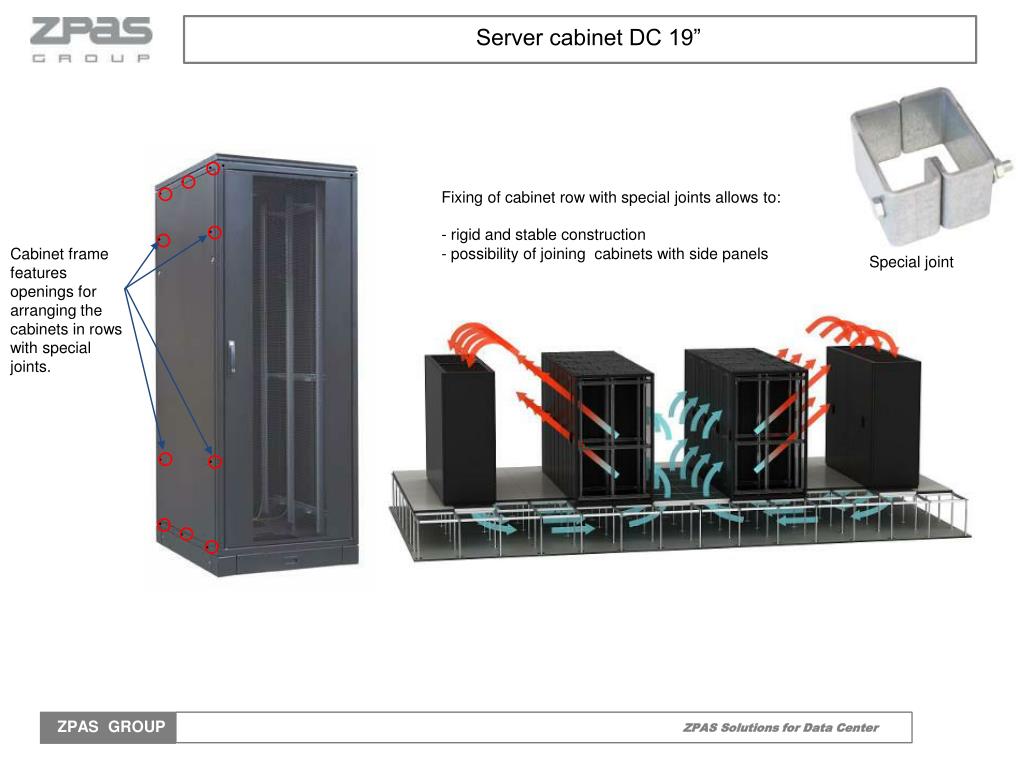

  4. Server cabinet DC 19” • Fixing of cabinet row with special joints allows to: • rigid and stable construction- possibility of joining cabinets with side panels Cabinet frame features openings for arranging the cabinets in rows with special joints. Special joint

  5. Air flow management in server cabinets 1 1) 2) 3) 3 2 Vertical hot air duct Air flow guide vane Cold air deflector

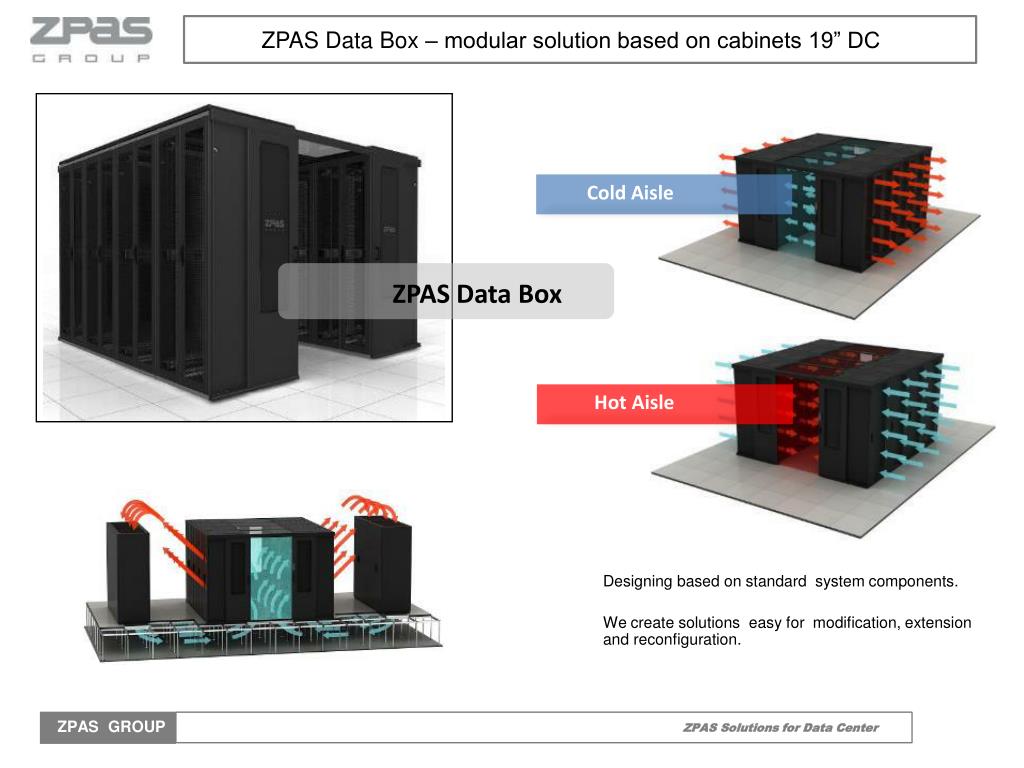

  6. ZPAS Data Box – modular solution based on cabinets 19” DC Cold Aisle ZPAS Data Box Hot Aisle Designing based on standard  system components. We create solutions easy for modification, extension and reconfiguration.

  7. ZPAS Data Box – cable management systems • Cable distribution on the top plate of server cabinets • single cable trace • duplex cable trace - transition between rows of cabinets Baks, Cablofil

  8. ZPAS Data Box – Interesting projects Interestingprojects

  9. ZPAS Data Box – Interesting projects

  10. ZPAS Data Box – Interesting projects

  11. ZPAS Data Box – Interesting projects

  12. Server cabinet with increased IP Protection Degree Server cabinet with IP54 • with sideway heat exchangers • with heat exchanger compartment in server cabinet Benefits - steady flow of cold air over the entire height of the cabinet, • fire extinguishing in a single cabinet - automatically opening of the door in case of emergency air conditioner / temperature rise • the ability to easily move the cabinet with all systems Server cabinet 800x1000 + 300x1000 with sideway heat exchanger Server cabinet 900x1000 with interior heat exchanger compartment

  13. Cable management systems Cable management components vertical and horizontal in server cabinet Cable management components outside cabinets

  14. Air flow management components 1) 2) Management of air flow - rules to be observed: • proper location of air conditioners, designing of cabinet rows with hot or cold aisles,- using of blanking plates 19 " • sealing of cabinets around usage space • all cable entries to be sealed - ensure adequate air flow tousedequipment - monitors, servers, of tower-type not to be put on shelfs c) 1 3) 4) 3 2

  15. Special cabinets Directing the flow of cooling air through the air guides Server cabinets 1000 x 1200mm intended for use in equipments with sideways air flow Nexus

  16. ZPAS Air-conditioning systems Air-conditioningsystems Heatexchangers ZPAS Air-conditioningsystems Medium: Waterchiller unit Cooling: 10 – 30kW Equipment: Carel c Sidewayheatexchanger Rowheatexchanger

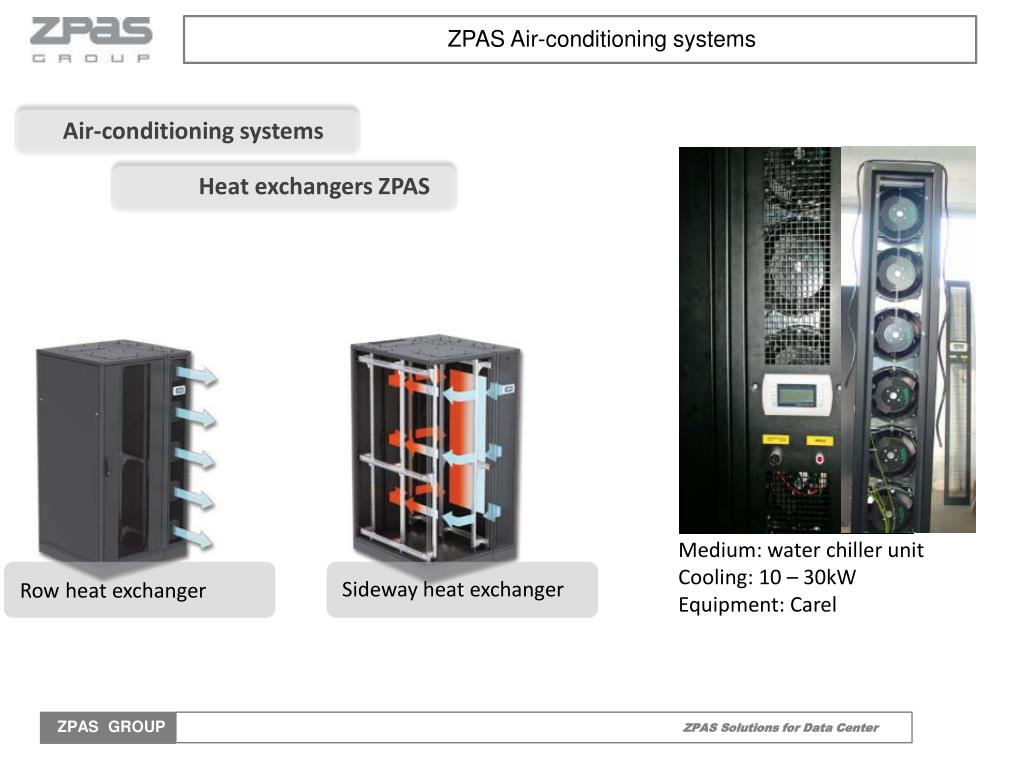

  17. ZPAS Air-conditioning systems Air-conditioningsystems Heatexchangers ZPAS Medium: waterchiller unit Cooling: 10 – 30kW Equipment: Carel c Sidewayheatexchanger Rowheatexchanger

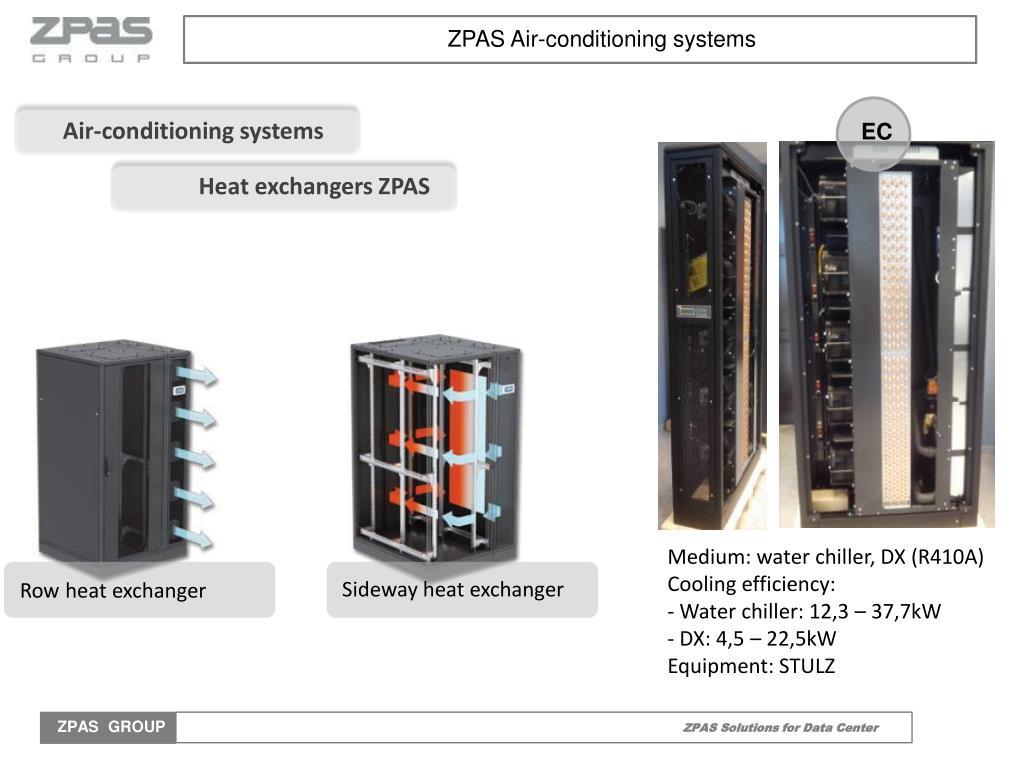

  18. ZPAS Air-conditioning systems Air-conditioningsystems EC Heatexchangers ZPAS Medium: waterchiller, DX (R410A) Coolingefficiency: - Waterchiller: 12,3 – 37,7kW - DX: 4,5 – 22,5kW Equipment: STULZ c Sidewayheatexchanger Rowheatexchanger

  19. ZPAS Air-conditioning systems ZPAS Air-conditioning: - evendistribution of coldairat the wholeheight of the air -conditioner - controller with keyboard and display (adjustment of air-conditioningparameters) • monitoring of the air -conditioning via Ethernet - heat capacity control by controlling the flow of refrigerant or with variable speed of fans, • temperature and humiditymeasurements Benefits: • air-conditionersare in rows and not on the perimeter of the room, shorteningair flow path causes a reduction of mixing of hot and coldstreams and lower powerconsumption - hot air is captured directly from the IT equipment before mixingwith colder ambient air giving higher air conditioner efficiency- modular design - easy to create a redundant N +1, - thissolutiondoes not require raised floor for distributing of cold air

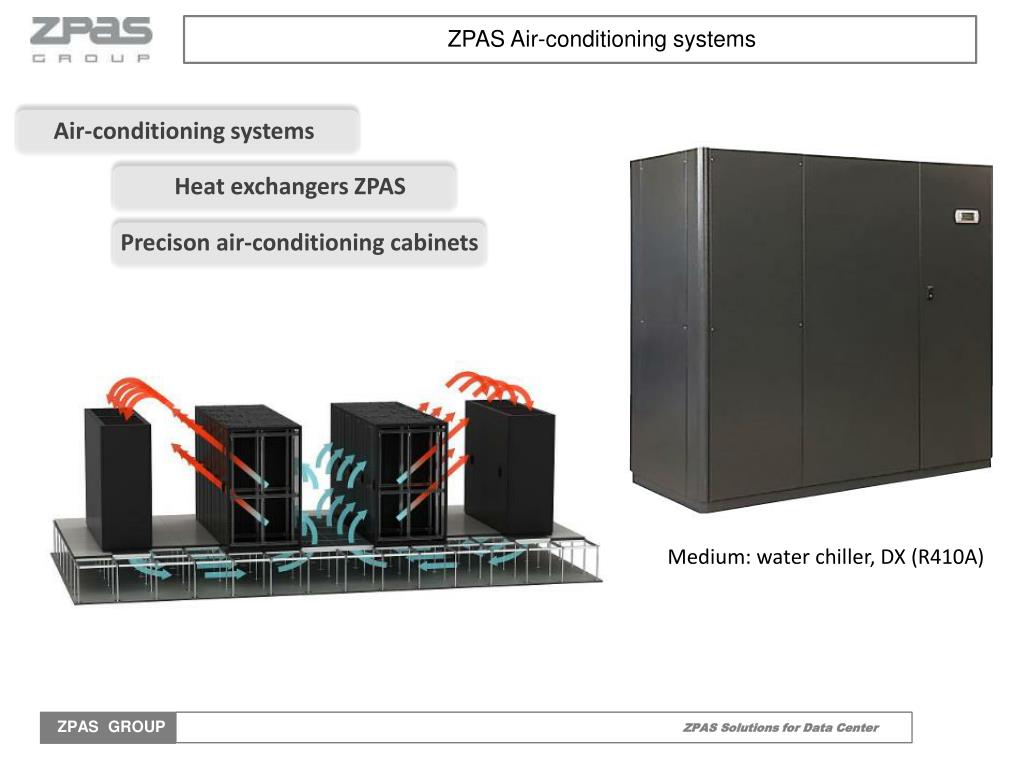

  20. ZPAS Air-conditioning systems Air-conditioningsystems Heatexchangers ZPAS Precisonair-conditioningcabinets Medium: waterchiller, DX (R410A)

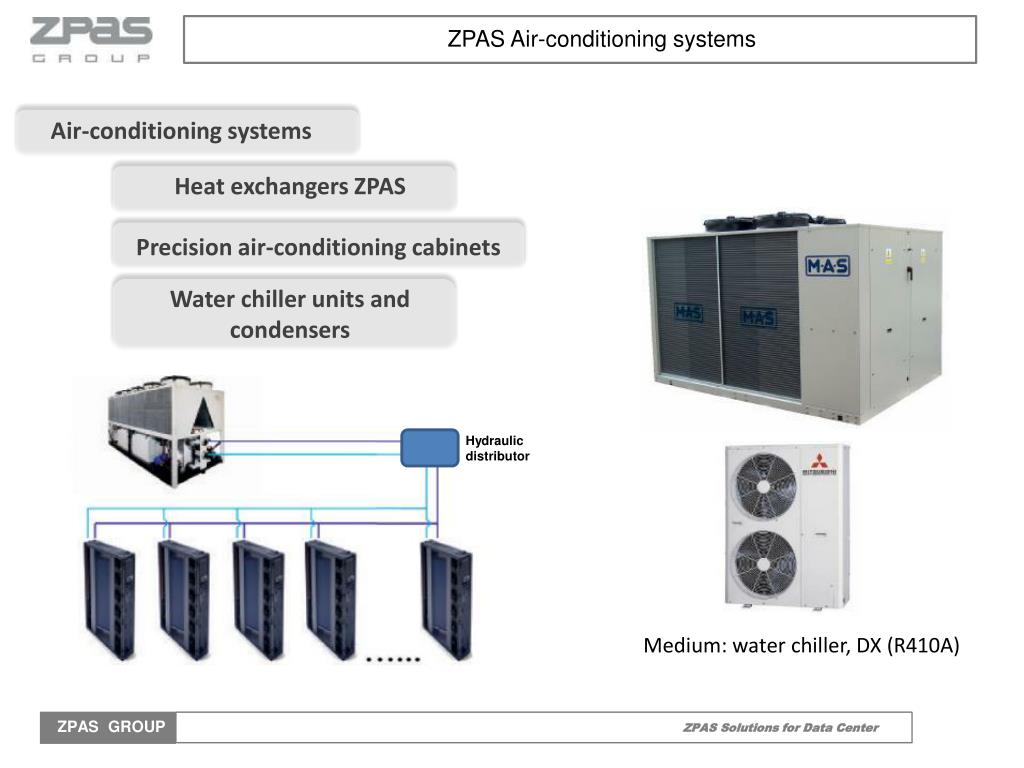

  21. ZPAS Air-conditioning systems Air-conditioningsystems Heatexchangers ZPAS Precision air-conditioningcabinets Waterchillerunits and condensers Hydraulic distributor Medium: waterchiller, DX (R410A)

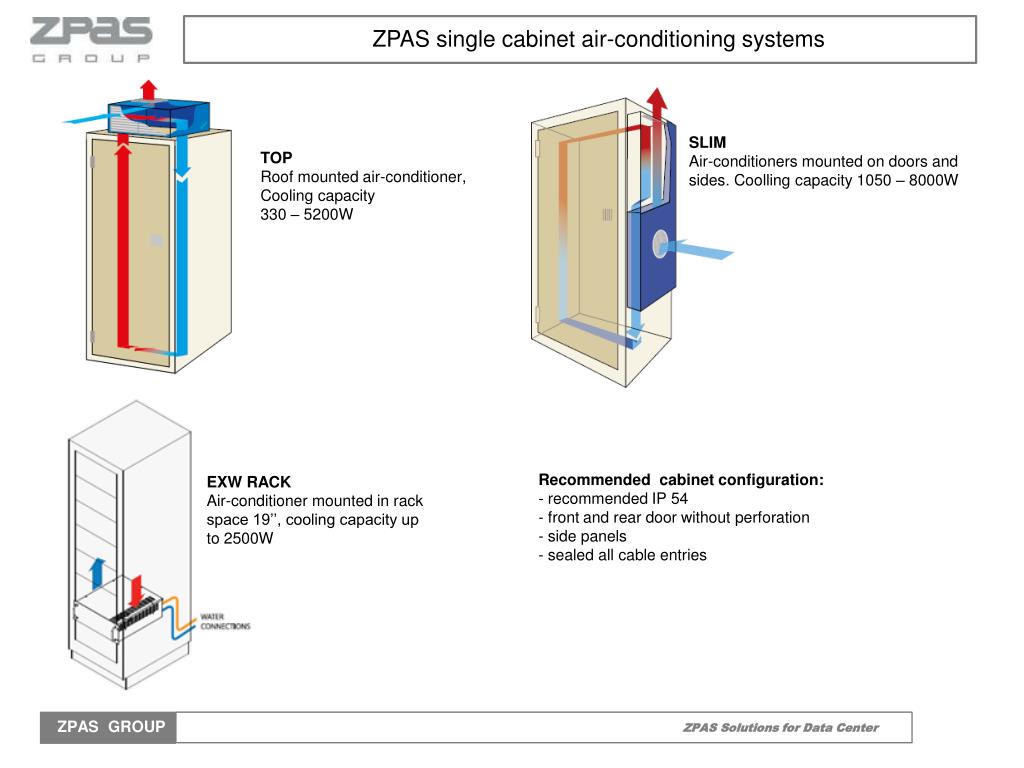

  22. ZPAS single cabinet air-conditioning systems SLIM Air-conditioners mounted on doors and sides. Coolling capacity 1050 – 8000W TOP Roof mounted air-conditioner, Cooling capacity 330 – 5200W • Recommended cabinet configuration: • recommended IP 54 • front and rear door without perforation • side panels • sealed all cable entries EXW RACK Air-conditioner mounted in rack space 19’’, cooling capacity up to 2500W

  23. 16, 32, 3x16, 3x32A 16A ZPAS PDU power strips Examples of power strips LZ-332 LZ-532 LZ-326 LZ-3321 LZ-3164 Types of power plugs Types of outlets

  24. 16, 32, 3x16, 3x32A 16A ZPAS monitoring power strips Types of power strips Types of outlets

  25. Microprocessorpowercontrol panel SOFT-START: automatic soft-starting of devices according to timedelay scenarioafterpowersupplyrecovery MASTER-SLAVE: automatic shut down of unnecessary devices; savingpower PDU-THERMOSTAT: - mulitstagecoolingcontrol - multi-heating control - ability to work a combined heating/cooling; Monitoring on-line: - current and power in the oultlets - currentpowersupply - temperature

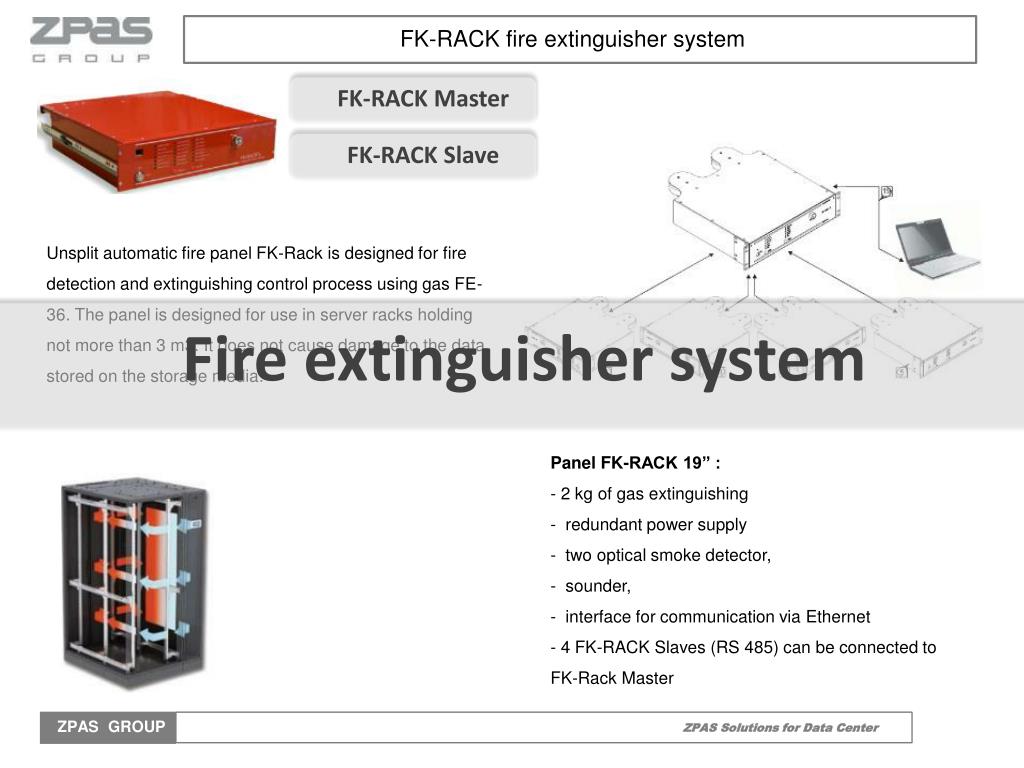

  26. FK-RACK fire extinguisher system FK-RACK Master FK-RACKSlave Unsplit automatic fire panel FK-Rack is designed for fire detection and extinguishing control process using gas FE-36. The panel is designed for use in server racks holding not more than 3 m3. It does not cause damage to the data stored on the storage media. Fireextinguisher system • Panel FK-RACK 19” : • 2 kg of gas extinguishing •   redundant power supply •   two optical smoke detector, •   sounder, •   interface for communication via Ethernet • 4 FK-RACKSlaves (RS 485) can be connected to FK-Rack Master

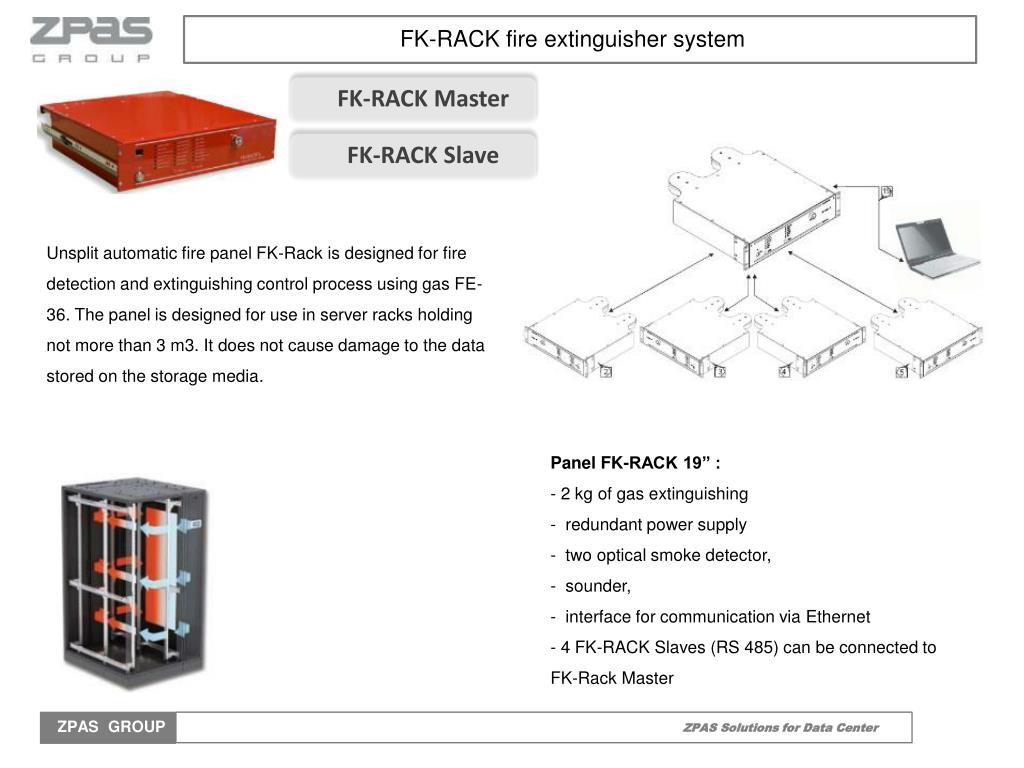

  27. FK-RACK fire extinguisher system FK-RACK Master FK-RACKSlave Unsplit automatic fire panel FK-Rack is designed for fire detection and extinguishing control process using gas FE-36. The panel is designed for use in server racks holding not more than 3 m3. It does not cause damage to the data stored on the storage media. • Panel FK-RACK 19” : • 2 kg of gas extinguishing •   redundant power supply •   two optical smoke detector, •   sounder, •   interface for communication via Ethernet • 4 FK-RACKSlaves (RS 485) can be connected to FK-Rack Master

  28. Fire extinguishing installation using gas FM-200, NOVEC1230 1.fire central unit 2.gas cylinders 3. discharge nozzle 4 smoke detectors 5 smoke damper 6 start and stop buttons 7 opto-acoustic signal unit 1 5 7 3 6 2 4

  29. Access control systems Access controlsystems and monitoring - monitoring of access control system - archivingof all events by remote configuration of terminals, - add and manage of users - receiving alerts and visualizationof the current state • the ability to remotely opening the cabinet, in the absence of an authorizationuser - map editor, which graphically shows the terminal layout

  30. Access control systems - monitoring of access control system - archivingof all events by remote configuration of terminals, - add and manage of users - receiving alerts and visualizationof the current state • the ability to remotely opening the cabinet, in the absence of an authorizationuser - map editor, which graphically shows the terminal layout

  31. Climate control monitoring Contactron or microswitch Ethernet RJ45 Connection to controlling center Motion detector Smoke detector 3% Probe

  32. Climate control monitoring ZPAS Control Oversee

  33. Climate control monitoring ZPAS Control Oversee

  34. ZPAS interesting projects Interestingprojects Server room in ZPAS

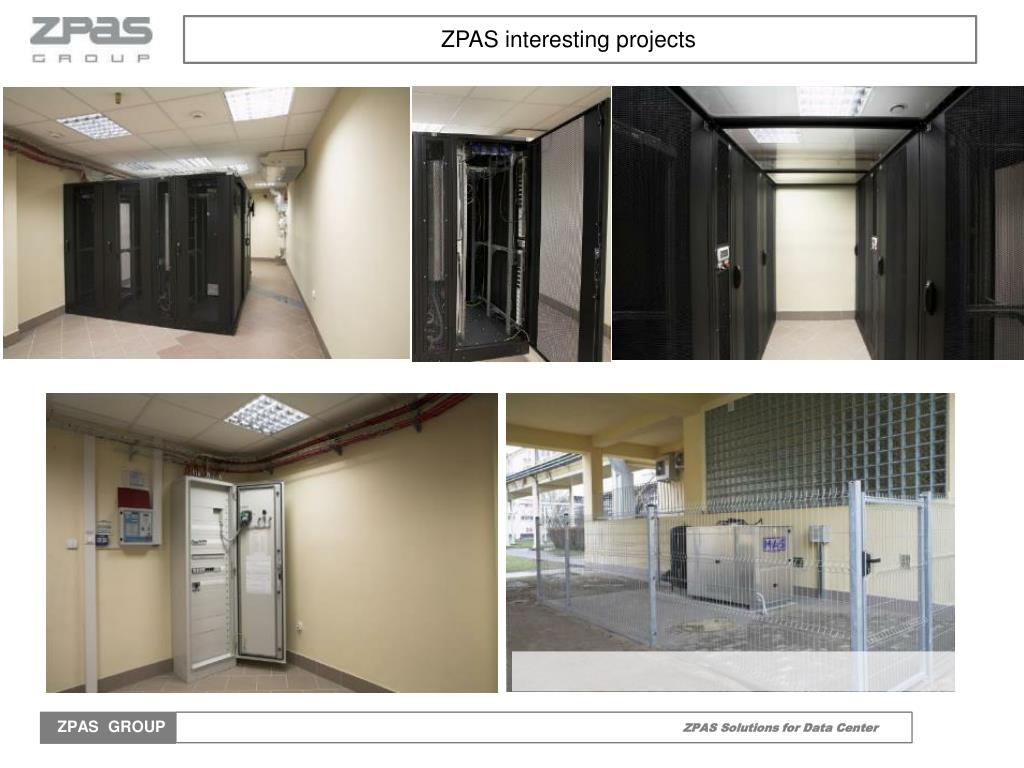

  35. ZPAS interesting projects Server room in ZPAS

  36. ZPAS interesting projects

  37. Kontakt Zakład Produkcji Automatyki Sieciowej S.A. Przygórze 209 57-431 Wolibórz Krystian Guzara Tel. +48 748 720 153 GSM +48 605 434 386 Fax +48 748 724 074E-mail: krystian.guzara@zpas.pl www.zpasgroup.eu
