FE2000: An Object-Oriented Framework For Parallel Nonlinear Dynamic Finite Element Analysis

FE2000 is a high-performance parallel finite element analysis (FEA) framework designed for nonlinear dynamic analysis. Developed at National Taiwan University, it employs an object-oriented approach that ensures extensibility and maintainability for complex simulations. The framework supports both static and implicit dynamic analyses, leveraging advanced features such as substructuring, adaptive mesh refinement, and iterative mesh partitioning. It integrates with various matrix libraries, including SPARSPAK and PETSc, providing robust solutions for large-scale problems. Future enhancements include expanded element types and material models. ### Relevant

piera
Download Presentation

FE2000: An Object-Oriented Framework For Parallel Nonlinear Dynamic Finite Element Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FE2000: An Object-OrientedFramework For Parallel Nonlinear Dynamic Finite Element Analysis Y. S. Yang and S. H.Hsieh National Taiwan University, Taipei, Taiwan December 8, 2000

  2. Introduction (1/2) • Develop a parallel FEA test bed • High performance • Parallel computing (substructure method) • Good extensibility & maintainability

  3. Introduction (2/2) • FE2000 • Object oriented • Linear / Geometric nonlinear analysis • Static / Implicit dynamic analysis • Sequential / Parallel computing

  4. Key classes (1/3) • feAssemblage • Uses dynamic arrays for FE objects • vector<feNode*> • vector<feElement*> • ANSI C++ Supported • Useful for adaptive mesh refinement

  5. Key classes (2/3) • Hierarchy offeElement

  6. Key classes (3/3) • 2D-frame structure example

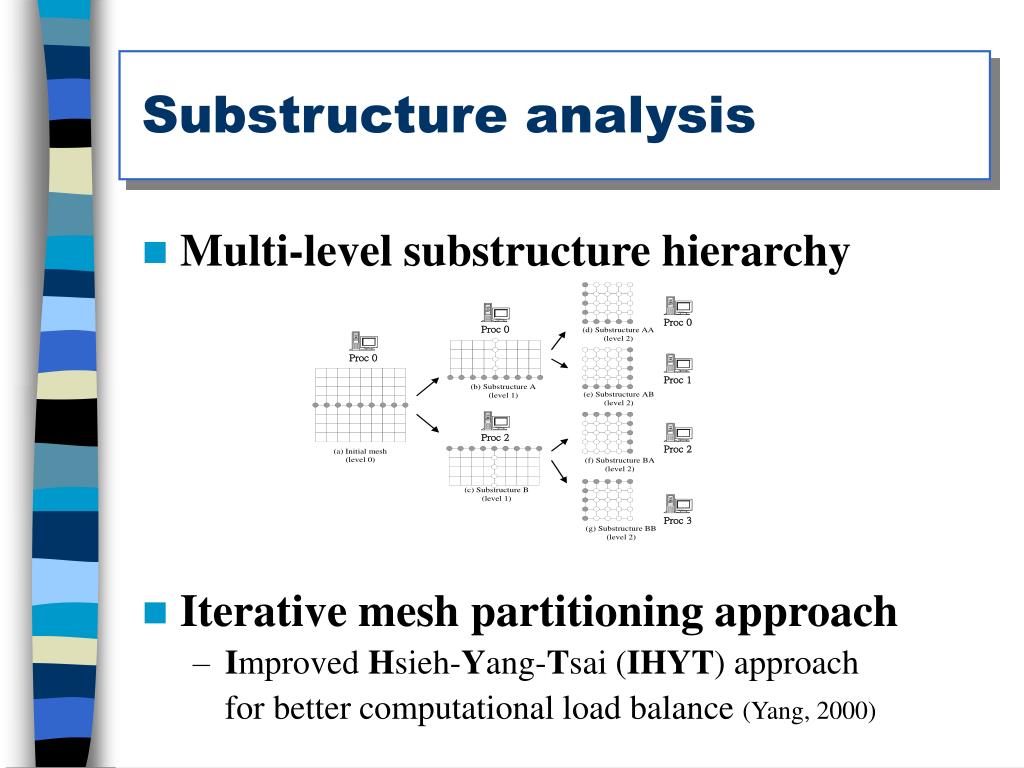

  7. Substructure analysis • Multi-level substructure hierarchy • Iterative mesh partitioning approach • Improved Hsieh-Yang-Tsai (IHYT) approach for better computational load balance (Yang, 2000)

  8. Matrix libraries (1/2) • For solving[K]{d}={f} • Extended SPARSPAK(George and Liu, 1981) • Direct, sequential • Linear system solution/matrix condensation • SPOOLES(Ashcraft et al., 1999) • Direct/Iterative, sequential/parallel • PETSc(Balay et al., 1997) • Iterative, sequential/parallel

  9. Matrix libraries (2/2) • Interface between FE2000 and matrix libraries

  10. Validation tests • Dynamic analysis • Static nonlinear analysis

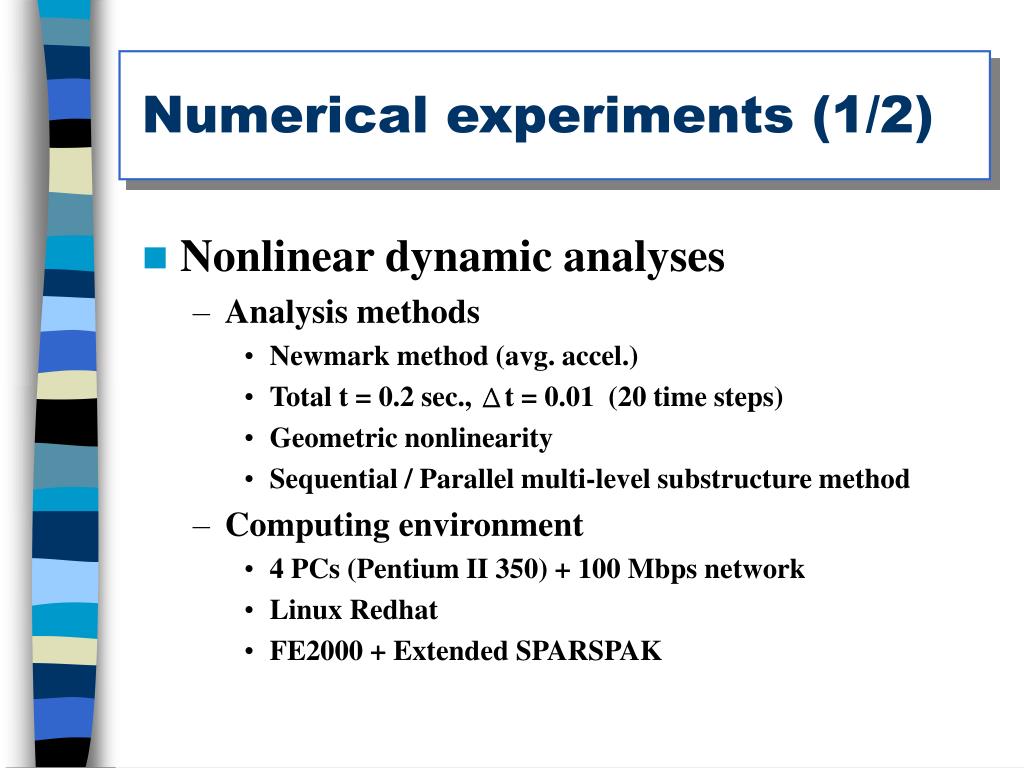

  11. Numerical experiments (1/2) • Nonlinear dynamic analyses • Analysis methods • Newmark method (avg. accel.) • Total t = 0.2 sec., Δt = 0.01 (20 time steps) • Geometric nonlinearity • Sequential / Parallel multi-level substructure method • Computing environment • 4 PCs (Pentium II 350) + 100 Mbps network • Linux Redhat • FE2000 + Extended SPARSPAK

  12. Numerical experiments (2/2) H5-12 11,568 BCs 25,344 DOFs O1-12 35,904 BCs 181,152 DOFs M12BD-2 4,032 B20s 64,809 DOFs B20P6416 2,048 BCs 34,767 DOFs S=2.89 S=2.48 S=3.60 S=3.15

  13. Conclusions & future works • FE2000 • An efficient object-oriented parallel nonlinear dynamic FE package. • Future works • More element types (plate, shell, etc.) • More material models • Adaptive mesh refinement • Pre/post processing
