  1. A Comprehensive Model for Arbitrary Result Extraction Neal Sample, Gio Wiederhold Stanford University Dorothea Beringer Hewlett-Packard

  2. Shift in Programming Tasks Integration/Composition Coding 1970 1990 2010

  3. Sample Composition Tasks • Logistics • Reservation and distribution systems, “find the best transportation route from A to B” • Genomics • Framework for composing various processing tools and repositories • Modeling • Weather prediction, complex chemical systems, basin modeling • Composition of processes (vs. components, data)

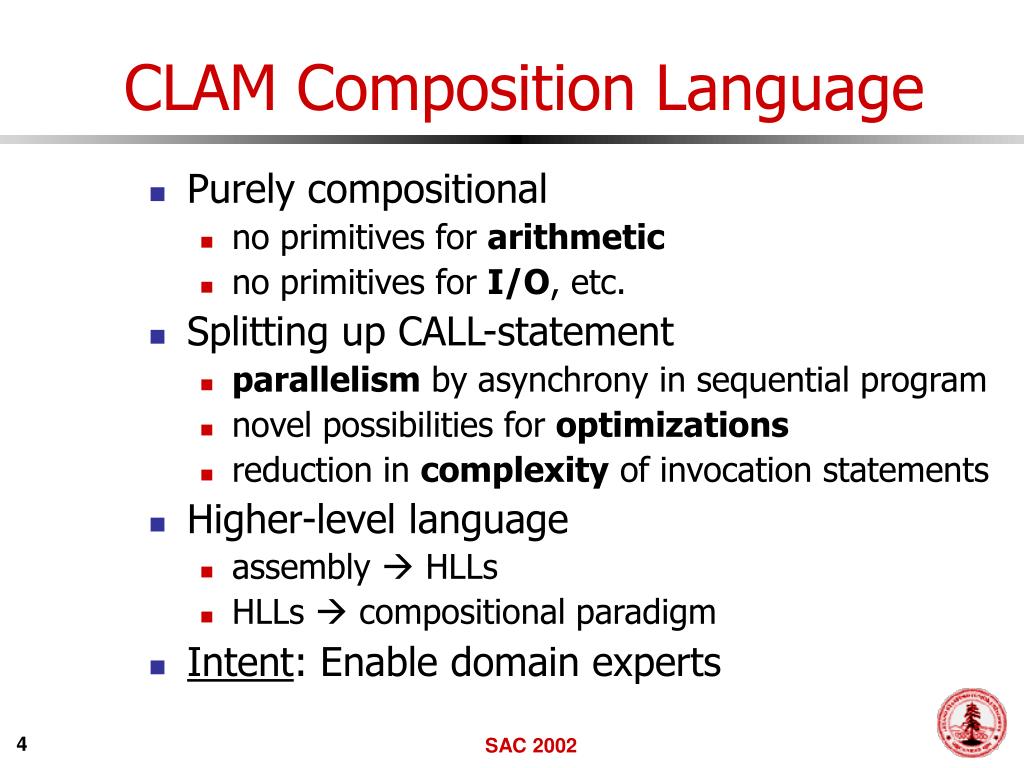

  4. CLAM Composition Language • Purely compositional • no primitives for arithmetic • no primitives for I/O, etc. • Splitting up CALL-statement • parallelism by asynchrony in sequential program • novel possibilities for optimizations • reduction in complexity of invocation statements • Higher-level language • assembly  HLLs • HLLs  compositional paradigm • Intent: Enable domain experts

  5. CLAM Primitives Pre-invocation: SETUP: set up the connection to a service SET-, GETPARAM: in a service ESTIMATE: for optimization Invocation and result gathering: INVOKE: begin execution EXAMINE: test progress of an invoked method EXTRACT: extract results from an invoked method Termination: TERMINATE: terminate a method invocation/connection to a service

  6. Data Dependencies & Scheduling START service1 service2 service3 service4 service5 END // begin program A = service1(); B = service2(); C = service3(A,B); D = service4(C); E = service5(C); // end of program

  7. Runtime: data extraction is hard • Data extraction with native modules worked • No language-level specifications in CLAM • E.g., Polling, threading, exception handling… • Multiple middleware for transport  difficult mapping • CORBA-RMI, RMI-COM, COM-CPAM, etc. • Crisis of legacy services • To generalize or restrict? • Refine the strategy…

  8. Strategy: hide it & depend on it • Have to respect service capabilities • Or suffer the LCD… (more in a bit) • Simple and flexible programming • Data extractions is a runtime issue, it is not central to composition task • Simplified Integration • Legacy ambivalence • Simple bridging for middleware • Increase audience for services • Better scheduling • Declarative language, data dependencies

  9. Where are we? • Declarative language for composition • Data is used synchronization • No primitives to support synchronization • Apparent “mismatch” in data extraction methods & capabilities among various actors • What does the data look like? • How can data be extracted?

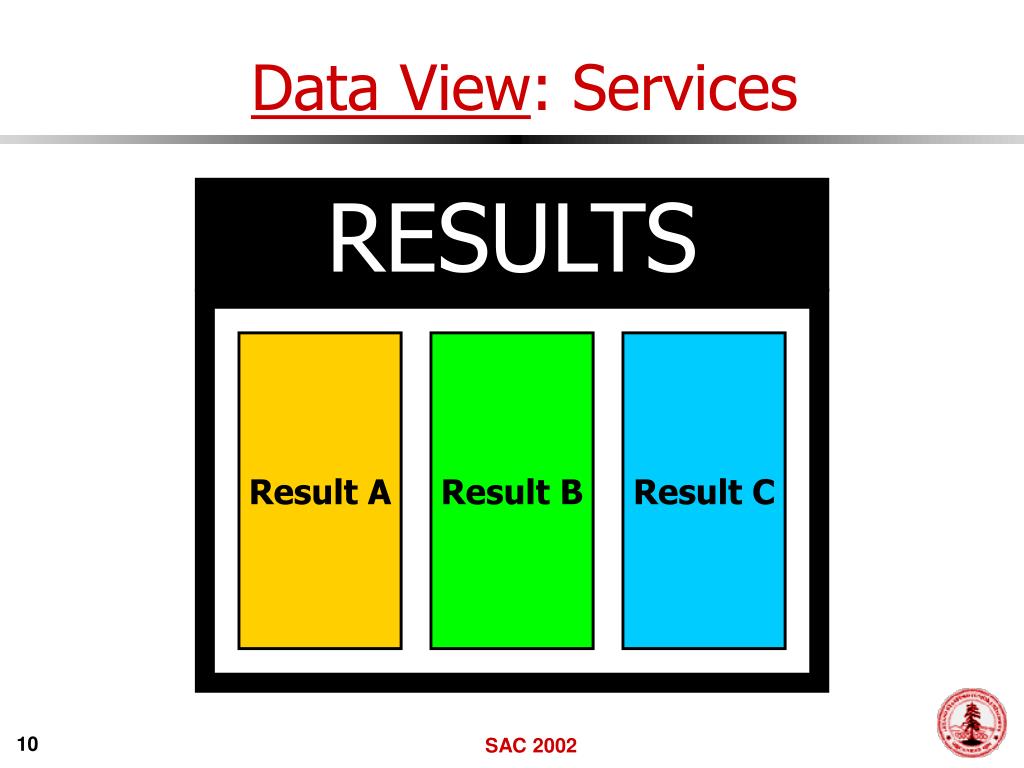

  10. Data View: Services RESULTS Result A Result B Result C

  11. Extraction Techniques • Asynchrony • Explicitly controlled: spin-locks, polling, interrupt handling, etc. • Can use with any DAG schedule • Partial extraction • web browsing - HTML text as a schema • SQL cursors (thanks to the reviewer) • Progressive extraction (exceptional) • Adaptive mesh refinements, JPEG interleaving

  12. Current Focus Pre-invocation: SETUP: set up the connection to a service SET-, GETPARAM: in a service ESTIMATE: for optimization Invocation and result gathering: INVOKE: begin execution EXAMINE: test progress of an invoked method EXTRACT: extract results from an invoked method Termination: TERMINATE: terminate a method invocation/connection to a service

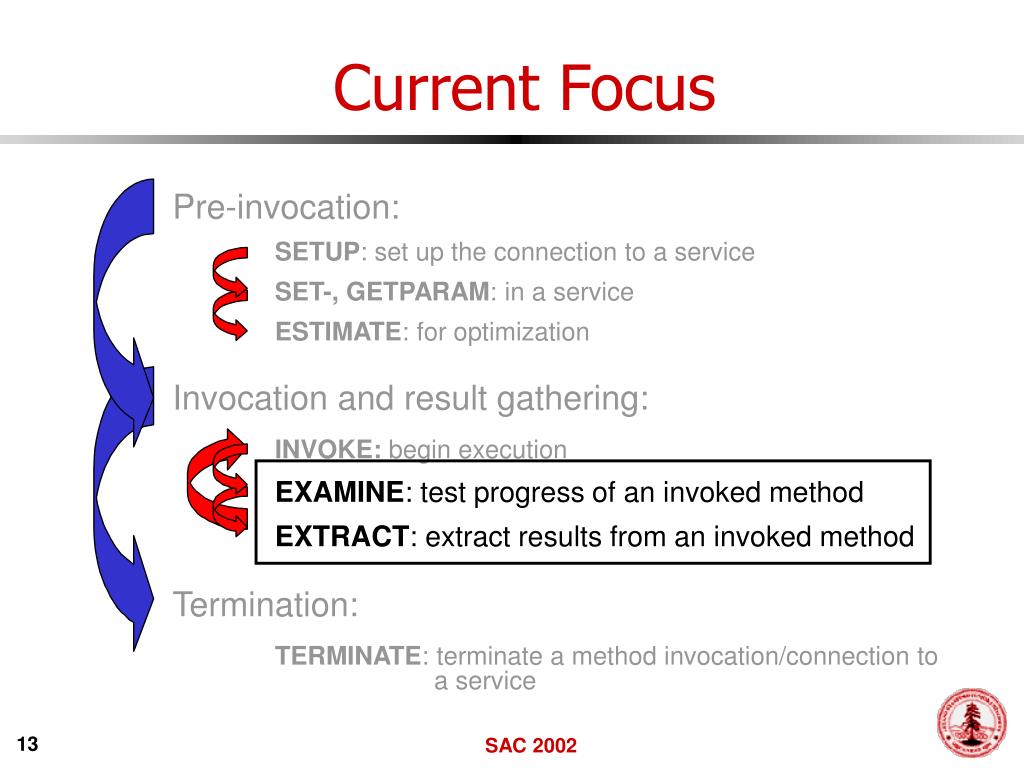

  13. Current Focus Pre-invocation: SETUP: set up the connection to a service SET-, GETPARAM: in a service ESTIMATE: for optimization Invocation and result gathering: INVOKE: begin execution EXAMINE: test progress of an invoked method EXTRACT: extract results from an invoked method Termination: TERMINATE: terminate a method invocation/connection to a service

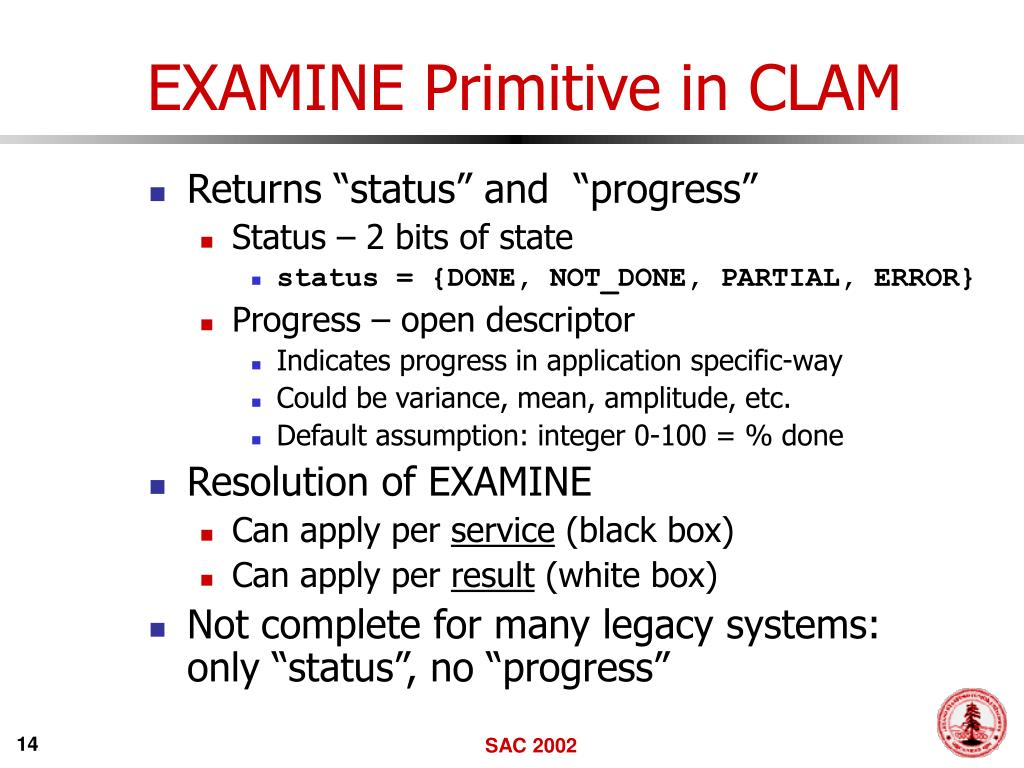

  14. EXAMINE Primitive in CLAM • Returns “status” and “progress” • Status – 2 bits of state • status = {DONE, NOT_DONE, PARTIAL, ERROR} • Progress – open descriptor • Indicates progress in application specific-way • Could be variance, mean, amplitude, etc. • Default assumption: integer 0-100 = % done • Resolution of EXAMINE • Can apply per service (black box) • Can apply per result (white box) • Not complete for many legacy systems:only “status”, no “progress”

  15. EXAMINE Service A B C Service.EXAMINE()  {PARTIAL, 40} Service.EXAMINE(A)  {DONE, 100} Service.EXAMINE(B)  {NOT_DONE, 0} Service.EXAMINE(C)  {PARTIAL, 20} Service A B C Service.EXAMINE()  {DONE, 100} Service.EXAMINE(A)  {DONE, 100} Service.EXAMINE(B)  {DONE, 100} Service.EXAMINE(C)  {DONE, 100} Service A B C Service.EXAMINE()  {NOT_DONE, 0} Service.EXAMINE(A)  {NOT_DONE, 0} Service.EXAMINE(B)  {NOT_DONE, 0} Service.EXAMINE(C)  {NOT_DONE, 0}

  16. EXTRACT Primitive • Extracts data from a service • Per service (black box) • (var) = Service.EXTRACT(); • Per result (white box) • (varA = A, varC = C) = Service.EXTRACT(); • Allows partial data extraction • saves volume: abandon uninteresting elements • saves time: termination of useless invocation • Allows progressive data extraction with 2-value EXAMINE (status+progress) • Steering, time saving

  17. Examine-Extract Relationship EXTRACT per service per result per servicestatus only asynchronousprocedure call, Java RMI limited Partial Extraction,(binary) thumbnails per servicestatus+progress partitionedprogressive extract(full result set) ? EXAMINE per resultstatus only semantic partialextraction(full result set) partial extraction browsing, SQL cursor(no progressive) per resultstatus+progress progressiveextraction(full result set) progressive andpartial extractionCLAM

  18. Examine-Extract Relationship EXTRACT per service per result per servicestatus only asynchronousprocedure call, Java RMI limited Partial Extraction,(binary) thumbnails per servicestatus+progress partitionedprogressive extract(full result set) ? EXAMINE per resultstatus only semantic partialextraction(full result set) partial extraction browsing, SQL cursor(no progressive) per resultstatus+progress progressiveextraction(full result set) progressive andpartial extractionCLAM

  19. Examine-Extract Relationship EXTRACT per service per result per servicestatus only asynchronousprocedure call, Java RMI limited Partial Extraction,(binary) thumbnails per servicestatus+progress partitionedprogressive extract(full result set) ? EXAMINE per resultstatus only semantic partialextraction(full result set) partial extraction browsing, SQL cursor(no progressive) per resultstatus+progress progressiveextraction(full result set) progressive andpartial extraction*CLAM

  20. Examine-Extract Relationship EXTRACT per service per result per servicestatus only asynchronousprocedure call, Java RMI limited Partial Extraction,(binary) thumbnails per servicestatus+progress partitionedprogressive extract(full result set) ? EXAMINE per resultstatus only semantic partialextraction(full result set) partial extraction browsing, SQL cursor(no progressive) per resultstatus+progress progressiveextraction(full result set) progressive andpartial extraction*CLAM

  21. Examine-Extract Relationship EXTRACT per service per result per servicestatus only asynchronousprocedure call, Java RMI limited Partial Extraction,(binary) thumbnails per servicestatus+progress partitionedprogressive extract(full result set) ? EXAMINE per resultstatus only semantic partialextraction(full result set) partial extraction browsing, SQL cursor(no progressive) per resultstatus+progress progressiveextraction(full result set) progressive andpartial extraction*CLAM

  22. Examine-Extract Relationship EXTRACT per service per result per servicestatus only asynchronousprocedure call, Java RMI limited Partial Extraction,(binary) thumbnails per servicestatus+progress partitionedprogressive extract(full result set) ? EXAMINE per resultstatus only semantic partialextraction(full result set) partial extraction browsing, SQL cursor(no progressive) per resultstatus+progress progressiveextraction(full result set) progressive andpartial extraction*CLAM

  23. Examine-Extract Relationship EXTRACT per service per result per servicestatus only asynchronousprocedure call, Java RMI limited Partial Extraction,(binary) thumbnails per servicestatus+progress partitionedprogressive extract(full result set) ? EXAMINE per resultstatus only semantic partialextraction(full result set) partial extraction browsing, SQL cursor(no progressive) per resultstatus+progress progressiveextraction(full result set) progressive andpartial extraction*CLAM

  24. Examine-Extract Relationship EXTRACT per service per result per servicestatus only asynchronousprocedure call, Java RMI limited Partial Extraction,(binary) thumbnails per servicestatus+progress partitionedprogressive extract(full result set) ? EXAMINE per resultstatus only semantic partialextraction(full result set) partial extraction browsing, SQL cursor(no progressive) per resultstatus+progress progressiveextraction(full result set) progressive andpartial extraction*CLAM

  25. Conclusions • Data extraction hiding is bueno! • User is not responsible for data management • Synchronizing extractions not in the language  simplicity • Enables effective service scheduling • Simplified integration • Blueprint for proactive design pattern for future services
