  1. The software infrastructureof SETI@home II David P. Anderson Space Sciences Laboratory U.C. Berkeley

  2. Public-resource computing Home PCs your computers academic business • Challenges: • low bandwidth at client • costly bandwidth at server • firewall/NAT issues • sporadic connection • untrustworthy, insecure clients • server security • heterogeneity • must recruit participants • Advantages: • scale • free • growth • public education • no institutional • policy issues

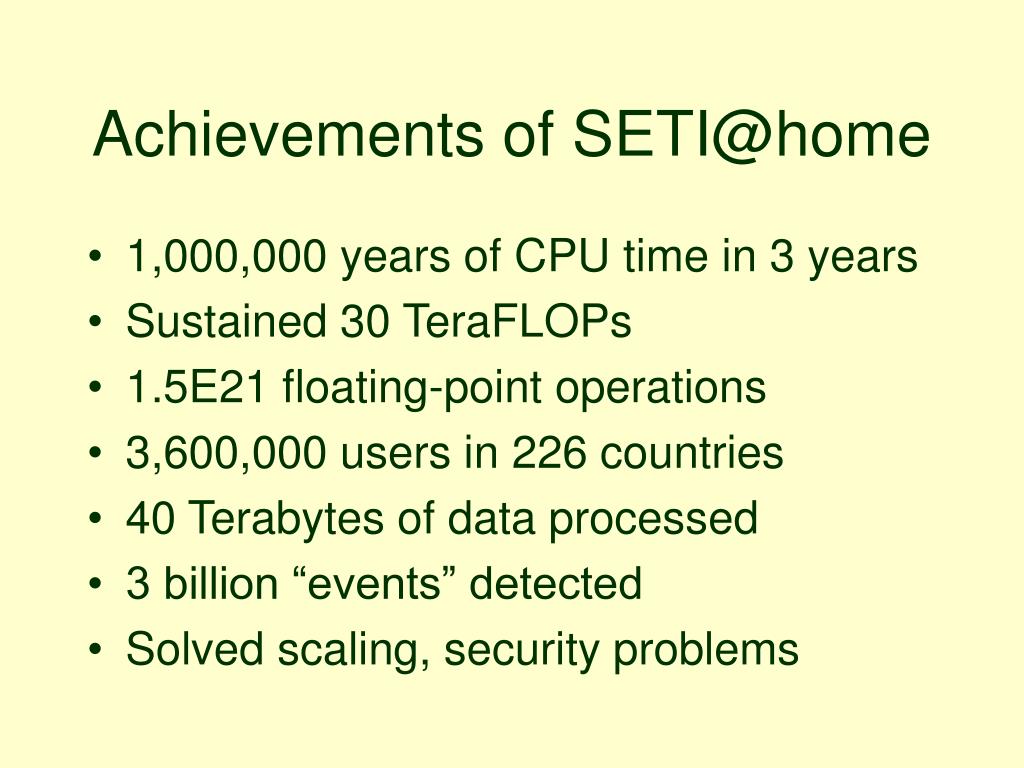

  3. Achievements of SETI@home • 1,000,000 years of CPU time in 3 years • Sustained 30 TeraFLOPs • 1.5E21 floating-point operations • 3,600,000 users in 226 countries • 40 Terabytes of data processed • 3 billion “events” detected • Solved scaling, security problems

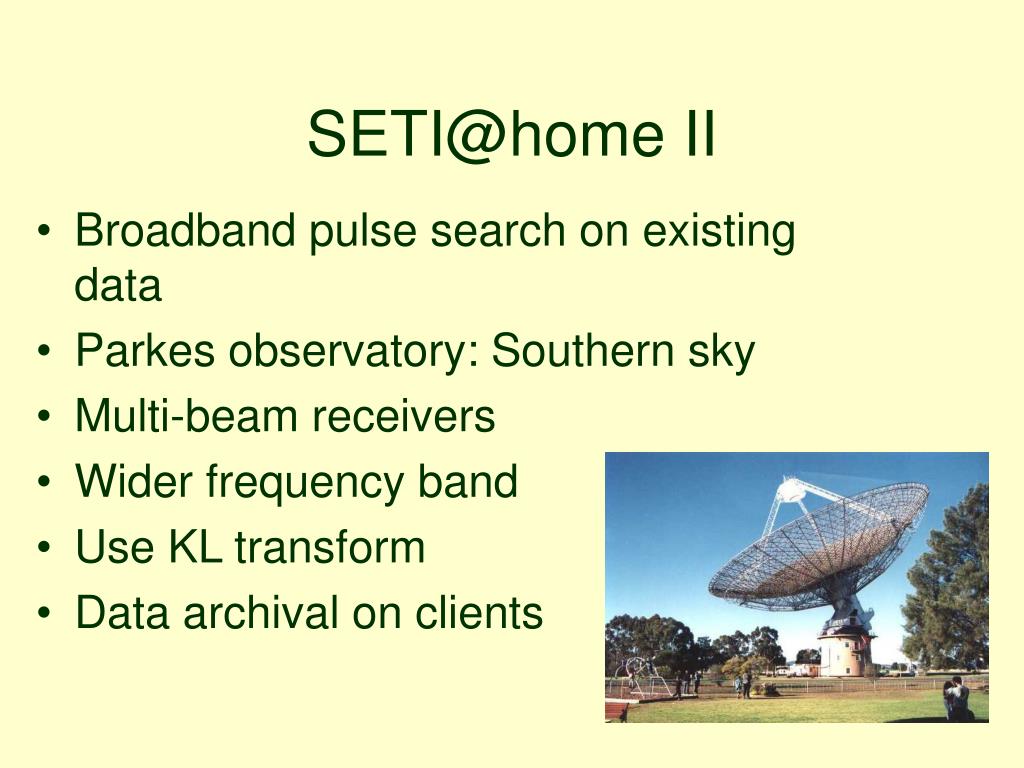

  4. SETI@home II • Broadband pulse search on existing data • Parkes observatory: Southern sky • Multi-beam receivers • Wider frequency band • Use KL transform • Data archival on clients

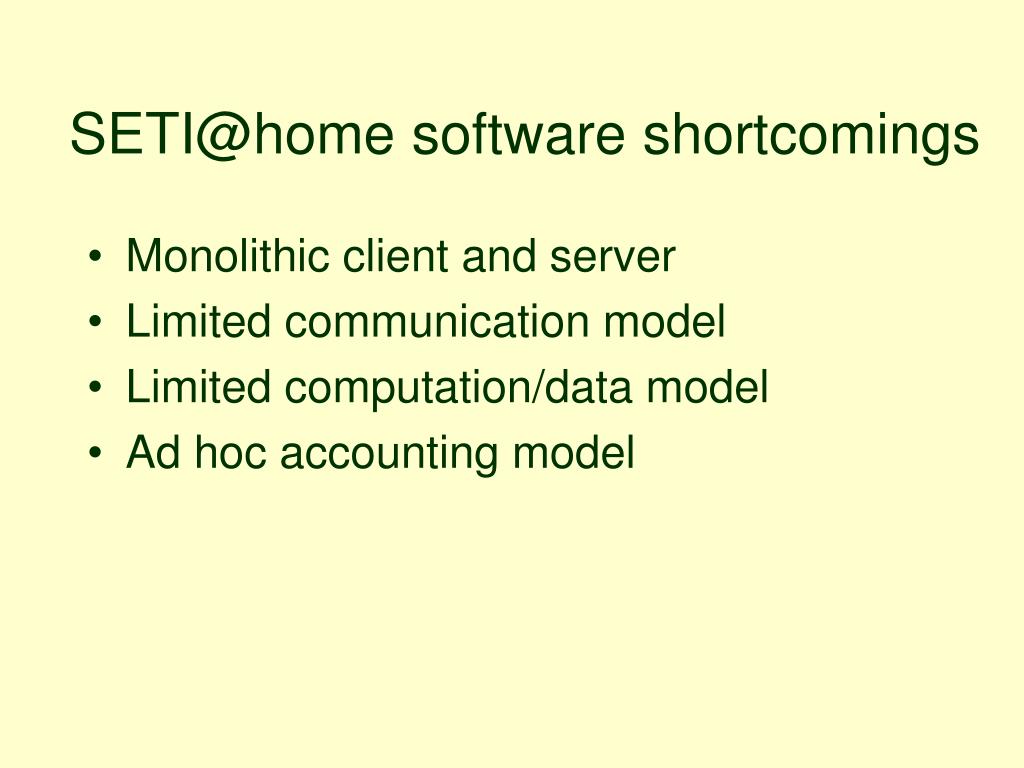

  5. SETI@home software shortcomings • Monolithic client and server • Limited communication model • Limited computation/data model • Ad hoc accounting model

  6. PRC platform goals applications projects Research lab X University Y Public project Z resource pool • Participants install one program, select projects, specify constraints • Projects are autonomous • Advantages of a shared platform: • Better instantaneous resource utilization • Better long-term resource utilization • Faster/cheaper for projects, software is better • Easier for projects to get participants • Participants learn more

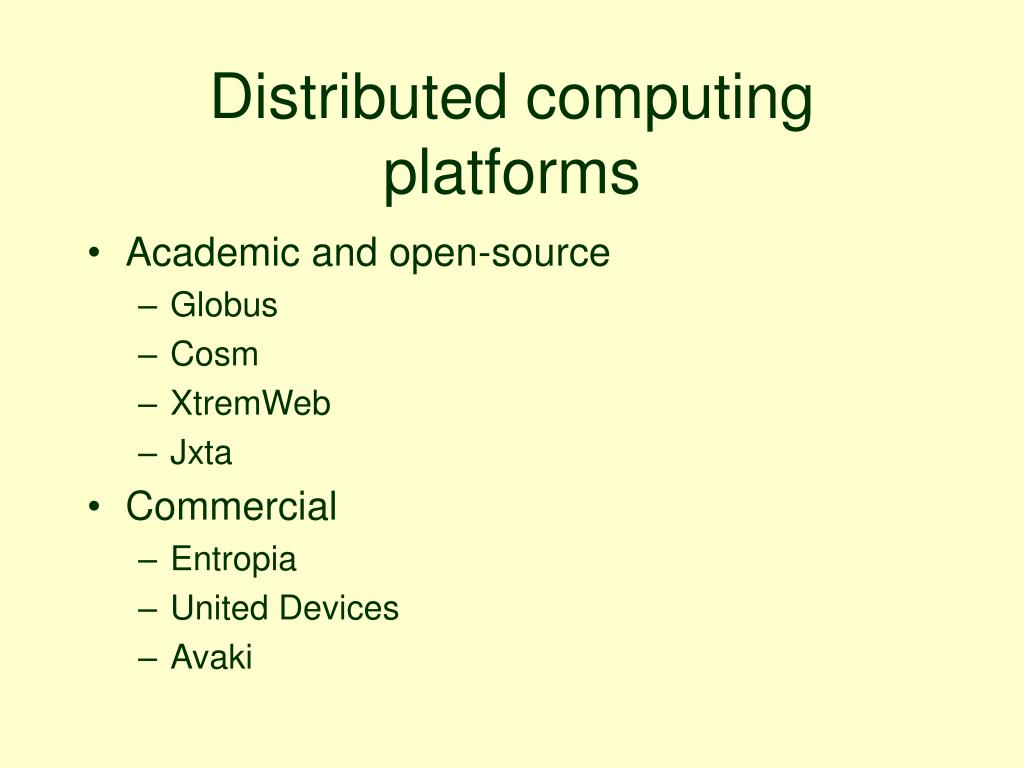

  7. Distributed computing platforms • Academic and open-source • Globus • Cosm • XtremWeb • Jxta • Commercial • Entropia • United Devices • Avaki

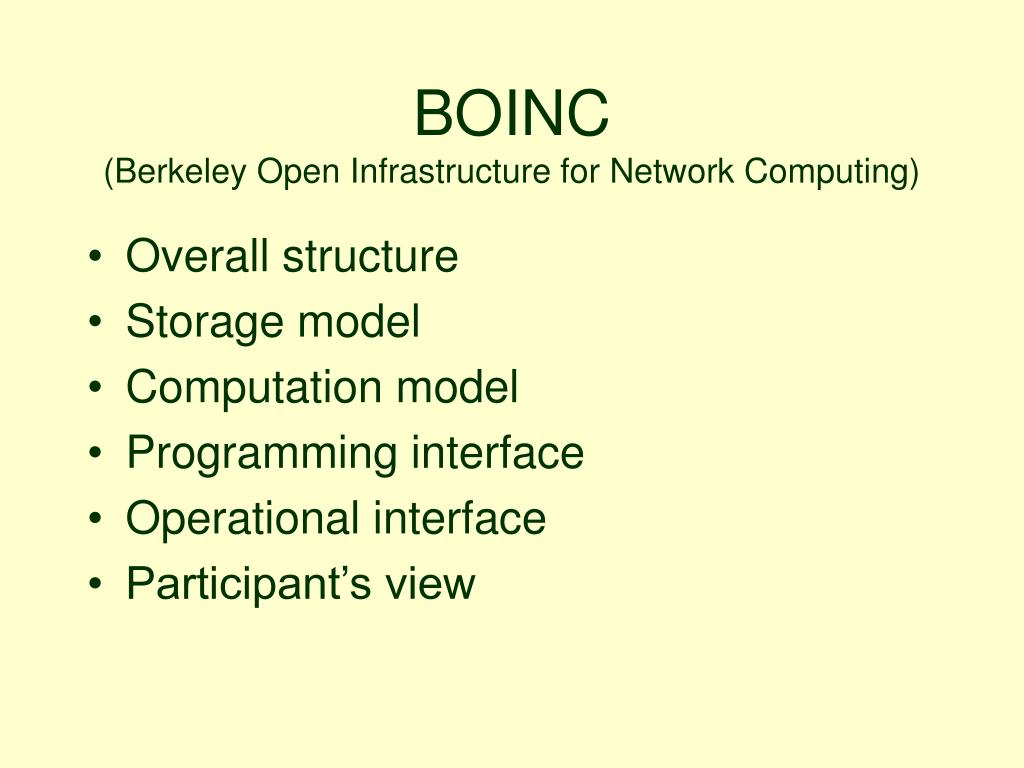

  8. BOINC(Berkeley Open Infrastructure for Network Computing) • Overall structure • Storage model • Computation model • Programming interface • Operational interface • Participant’s view

  9. Overall structure • Project: • Participant: BOINC DB (MySQL) Project work manager lib Scheduling server (C++) Web interfaces (PHP) data server (HTTP) data server (HTTP) data server (HTTP) App agent App agent App agent Core agent (C++)

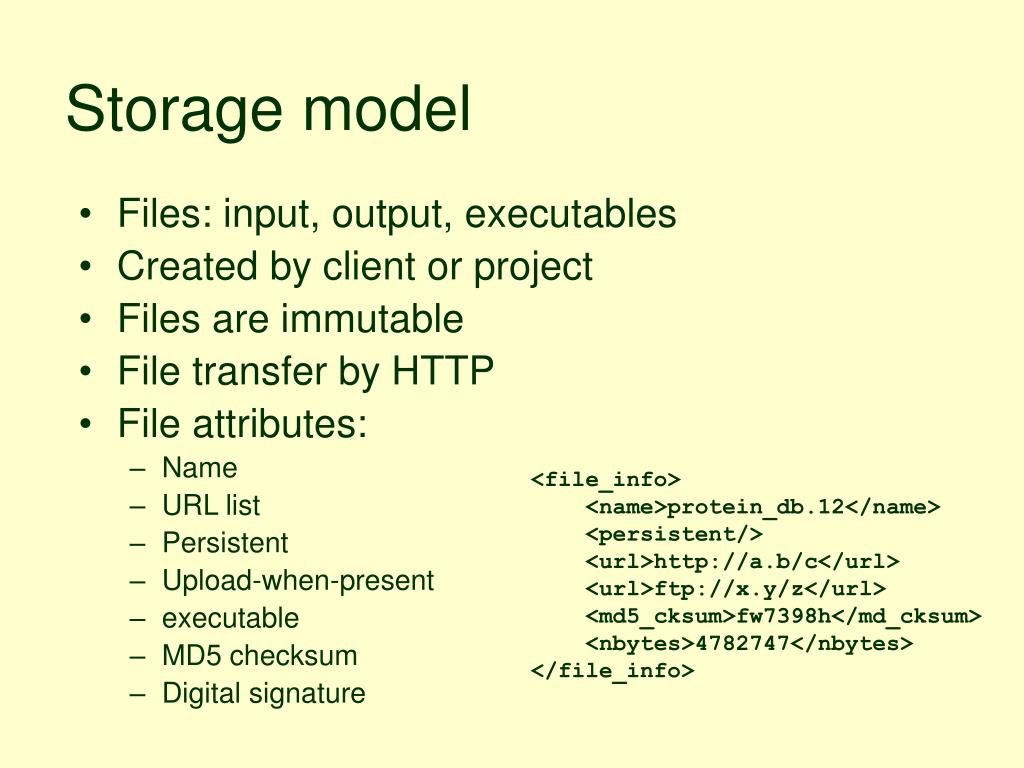

  10. Storage model • Files: input, output, executables • Created by client or project • Files are immutable • File transfer by HTTP • File attributes: • Name • URL list • Persistent • Upload-when-present • executable • MD5 checksum • Digital signature <file_info> <name>protein_db.12</name> <persistent/> <url>http://a.b/c</url> <url>ftp://x.y/z</url> <md5_cksum>fw7398h</md_cksum> <nbytes>4782747</nbytes> </file_info>

  11. File management • Implicit • Executables, input and output files are transferred pursuant to computation • Explicit • Clients report persistent files • Scheduling server maintains DB of files on active hosts • Project can request upload, download, delete

  12. Workunits • Represents inputs to a computation • Components: • Cmdline args, environment vars • Expected resource usage • Description of input files <file_info> <name>out123</name> <url>http://…</url> </file_info> <workunit> <file_assoc> <file_name>out123</file_name> <app_name>input</app_name> </file_assoc> </workunit>

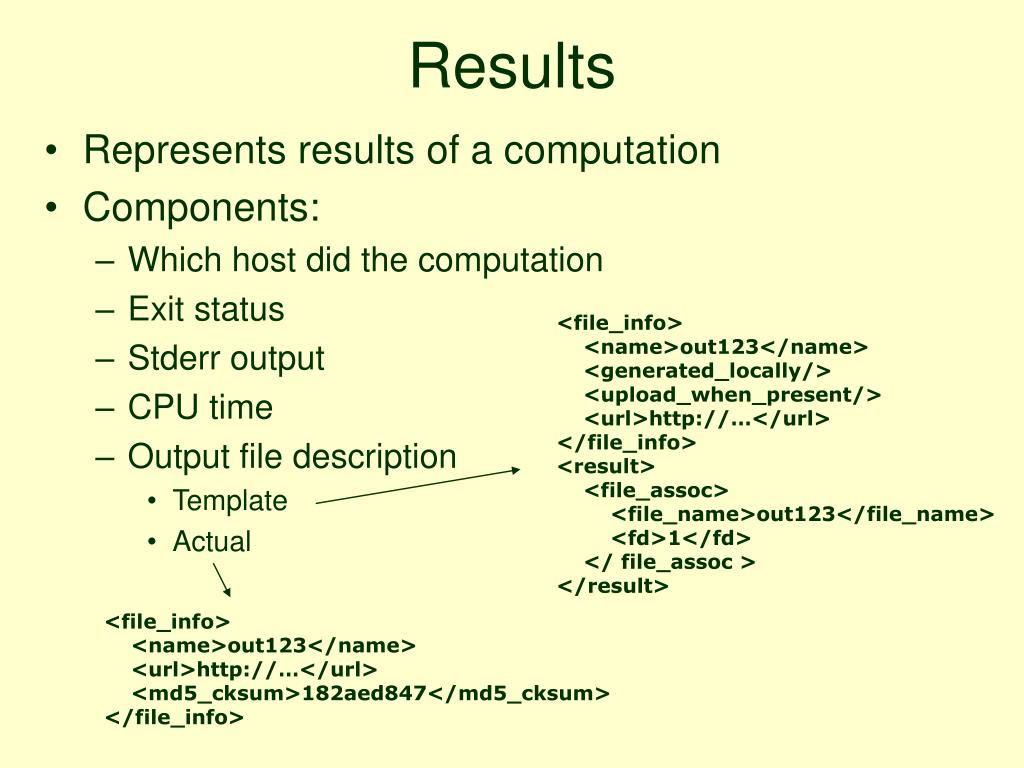

  13. Results • Represents results of a computation • Components: • Which host did the computation • Exit status • Stderr output • CPU time • Output file description • Template • Actual <file_info> <name>out123</name> <generated_locally/> <upload_when_present/> <url>http://…</url> </file_info> <result> <file_assoc> <file_name>out123</file_name> <fd>1</fd> </ file_assoc > </result> <file_info> <name>out123</name> <url>http://…</url> <md5_cksum>182aed847</md5_cksum> </file_info>

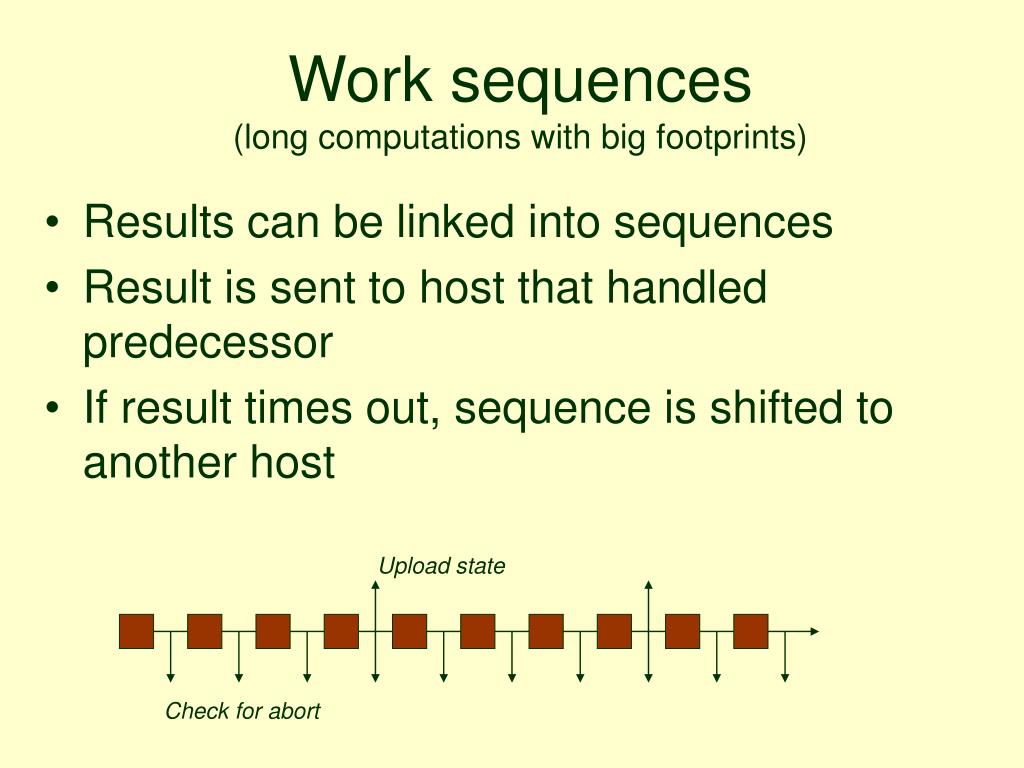

  14. Work sequences(long computations with big footprints) • Results can be linked into sequences • Result is sent to host that handled predecessor • If result times out, sequence is shifted to another host Upload state Check for abort

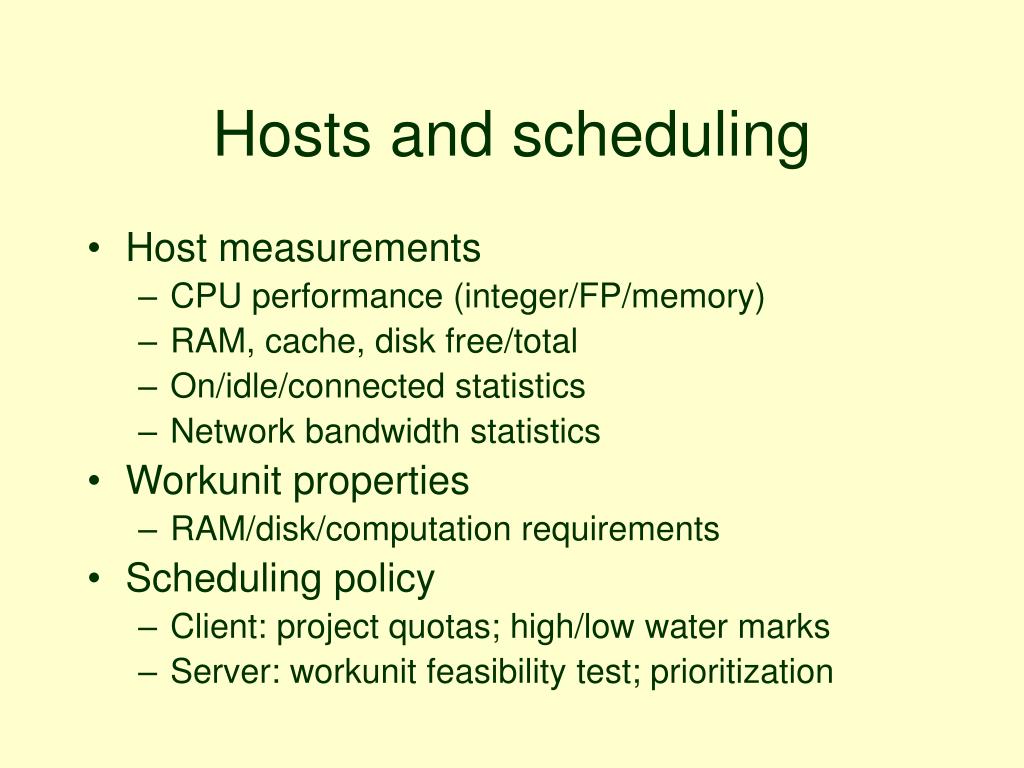

  15. Hosts and scheduling • Host measurements • CPU performance (integer/FP/memory) • RAM, cache, disk free/total • On/idle/connected statistics • Network bandwidth statistics • Workunit properties • RAM/disk/computation requirements • Scheduling policy • Client: project quotas; high/low water marks • Server: workunit feasibility test; prioritization

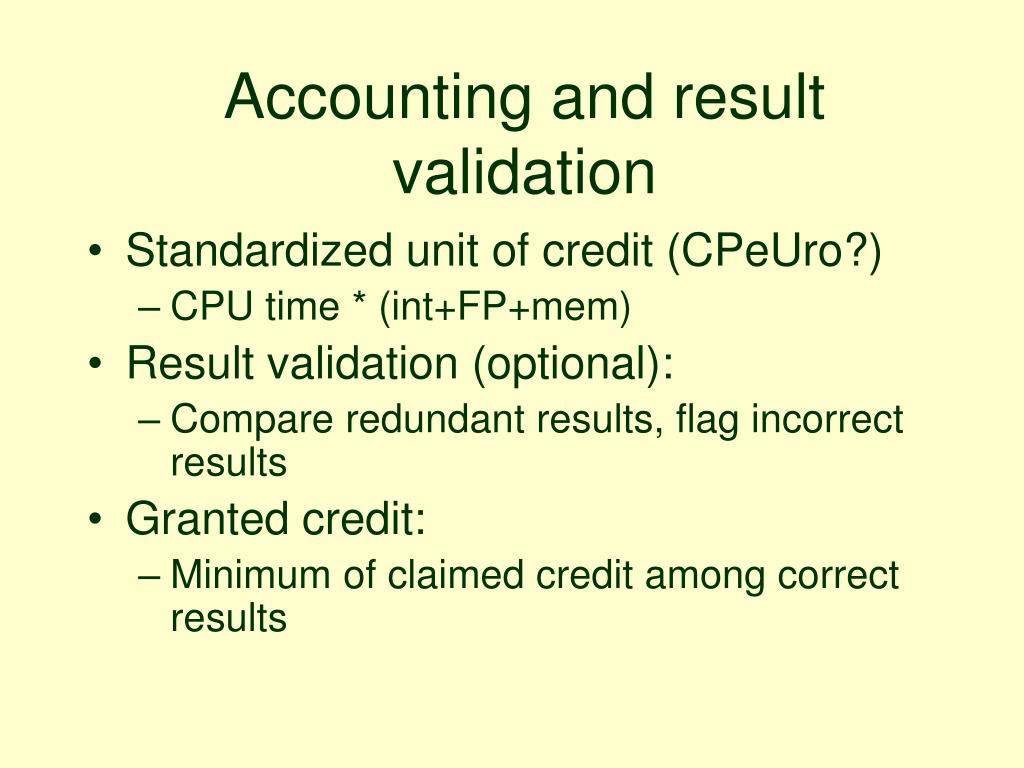

  16. Accounting and result validation • Standardized unit of credit (CPeUro?) • CPU time * (int+FP+mem) • Result validation (optional): • Compare redundant results, flag incorrect results • Granted credit: • Minimum of claimed credit among correct results

  17. Programming interfaces • Application • May be multi-file; any executable • API for interaction with core client (optional) • Checkpoint/restart: MFILE class • Graphics: render to shared memory • Software development tools • Version management • Web-based bug tracking

  18. Operational interfaces • Operations • Add/manage app versions • Create workunits/results • Query results • Query client problems • Interfaces • C++ libraries • Scriptable apps • Web-based

  19. Participant preferences • Examples: • Work only while computer idle • Confirm before connecting • Don’t work if running on batteries • High, low water marks • Limits on disk space, bandwidth • Application-specific preferences • List of projects + authenticators + % allocation • Edited via Web interface • Can define multiple “preference sets”

  20. Participation • Initial project registration: • Create account on project web site • Authenticator is emailed • Install core client, enter authenticator • Subsequent projects: • Create account on project web site • Authenticator is emailed • Add project to preferences on home site

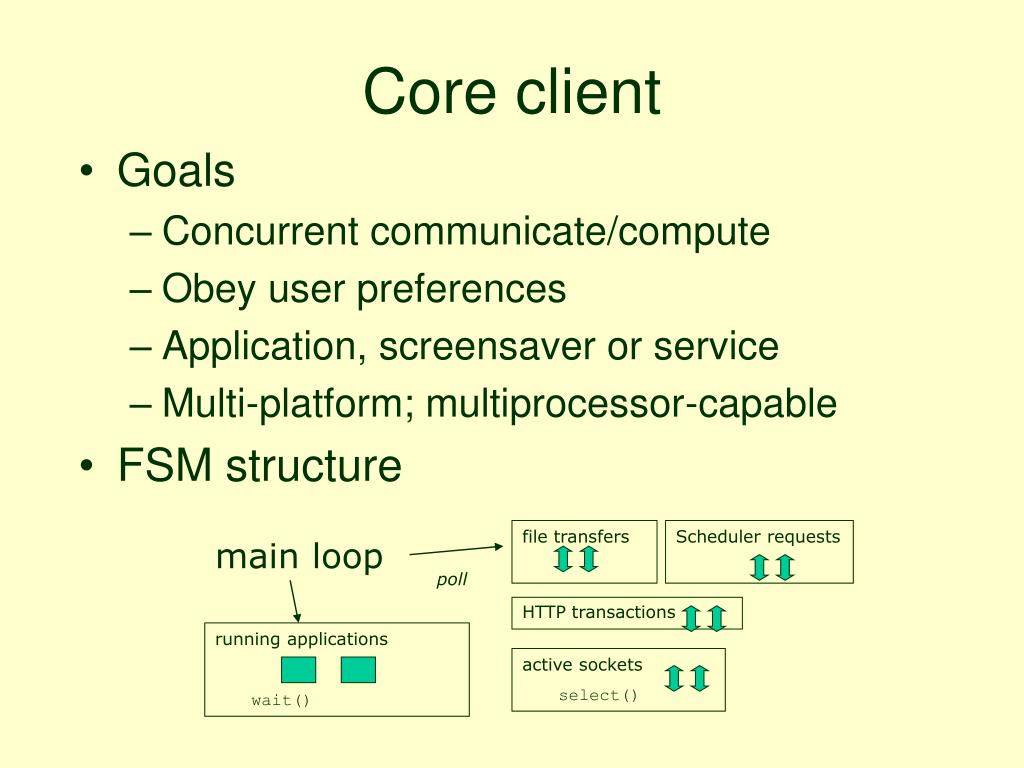

  21. Core client • Goals • Concurrent communicate/compute • Obey user preferences • Application, screensaver or service • Multi-platform; multiprocessor-capable • FSM structure file transfers Scheduler requests main loop poll HTTP transactions running applications wait() active sockets select()

  22. Conclusion • BOINC features • Multiproject, multi-app open PRC platform • Simple/small but general • BOINC status • Mostly feature-complete • Client runs on Linux, Solaris, Windows, MacOS X • http://boinc.sourceforge.net • Projects: • SETI@home Arecibo (later this year) • Other SETI@home (Parkes etc.) • Climate modeling, other science projects • Genetic art
