  1. MAJOR MILESTONE • Delhi Govt. ask RITES to study and preparation of DPR. - 1991 • Rites submit DPR to Delhi govt. -1994 • DMRC registered under the company act 1956 - 3rd May,1995 • DMRC is company with equal equity participation from the Govt. of India and the Govt. of Delhi. • Managing Director Mr. E.Sreedhan joined DMRC - Nov. 1997 • General Consultancy work awarded to General Consultants(PCI, RITES, PBI, Mitsubishi Electric, MELCO consortium) - 14 Sept.,1998

  2. MAJOR MILESTONE • Foundation stone laid by MD MR. E. Sreedharan - 1st Oct.,1999 • Inauguration of First Line (Shahdara to Tis Hazari) by former Prime Minister of India Late Mr. Atal Bihari Vajpayee - 24thDec., 2002 • Phase I of total 65 Km. completed on - 11th Nov., 2006 • Phase II of total 125 Km. completed on - 27th Aug.,2011 • In Phase III, total 154 Km. completed out of Total 160 Km. • 104 Km. is planned for Phase IV.

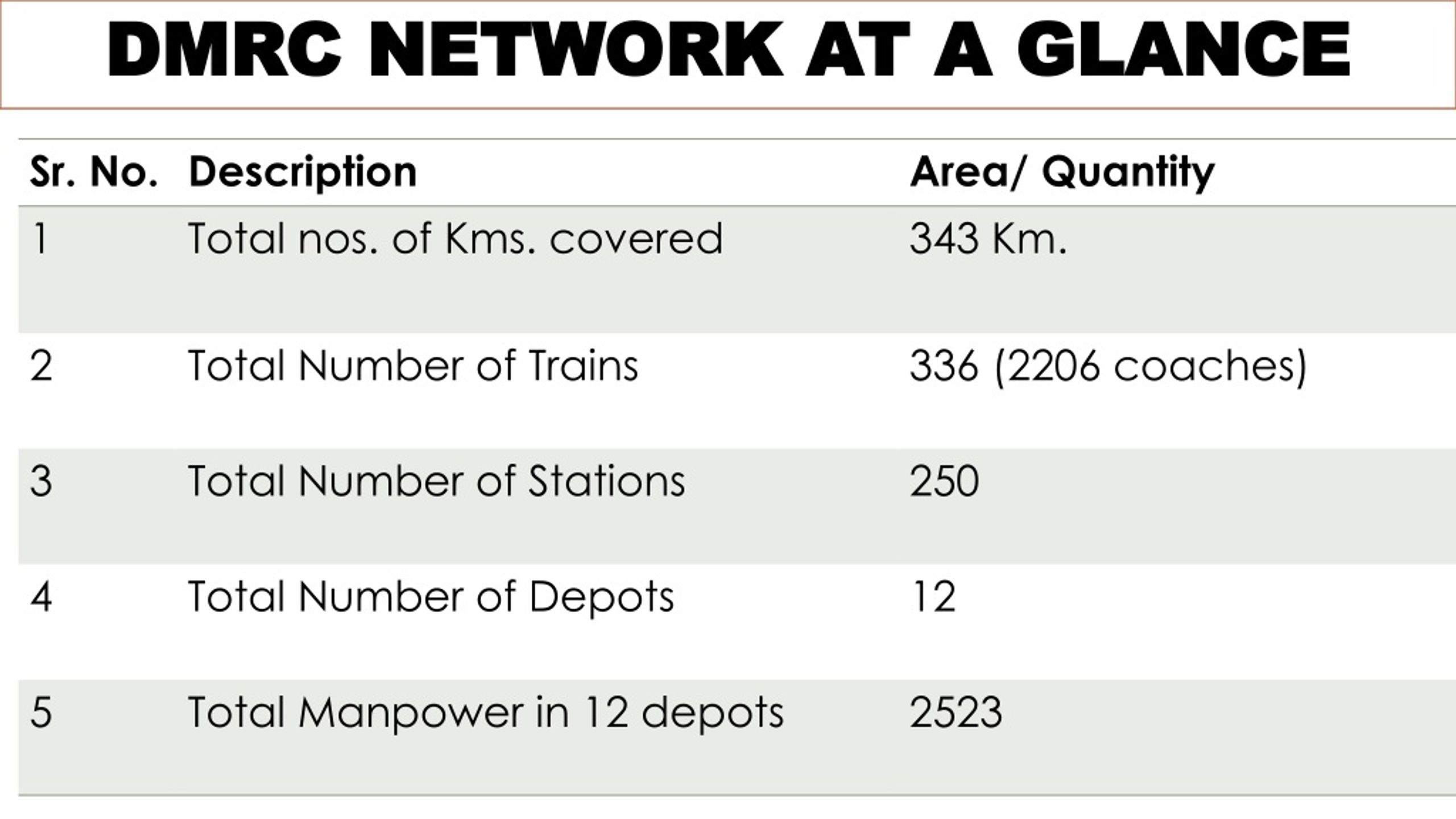

  3. DMRC NETWORK AT A GLANCE

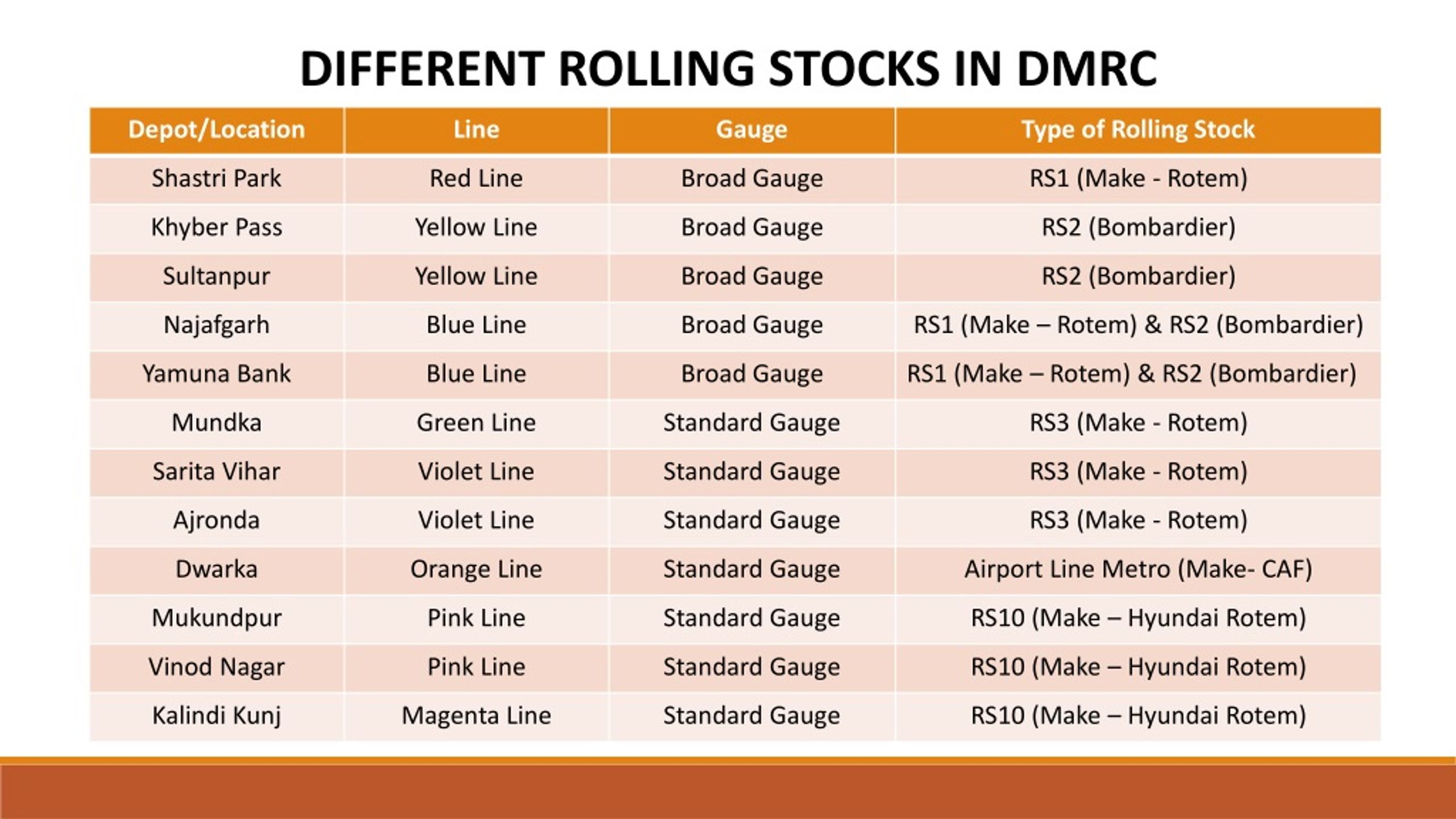

  4. DIFFERENT ROLLING STOCKS IN DMRC

  5. MAINTENANCE SCHEDULE OF TRAINS

  6. C1 SCHEDULECHECK ACTIVITIES • Bogie untucking & check for any abnormality and subsequently repairing work. • Cleaning activities of Bogie ,Traction Motor , Convertor/Invertor, main transformer , Compressor, coupler, Gangway along with the repairing activities. • Pneumatics valve cleaning and oil separator function check work. • HVAC , DOOR repairing work and function check work. • Fire detection system complete function check work.

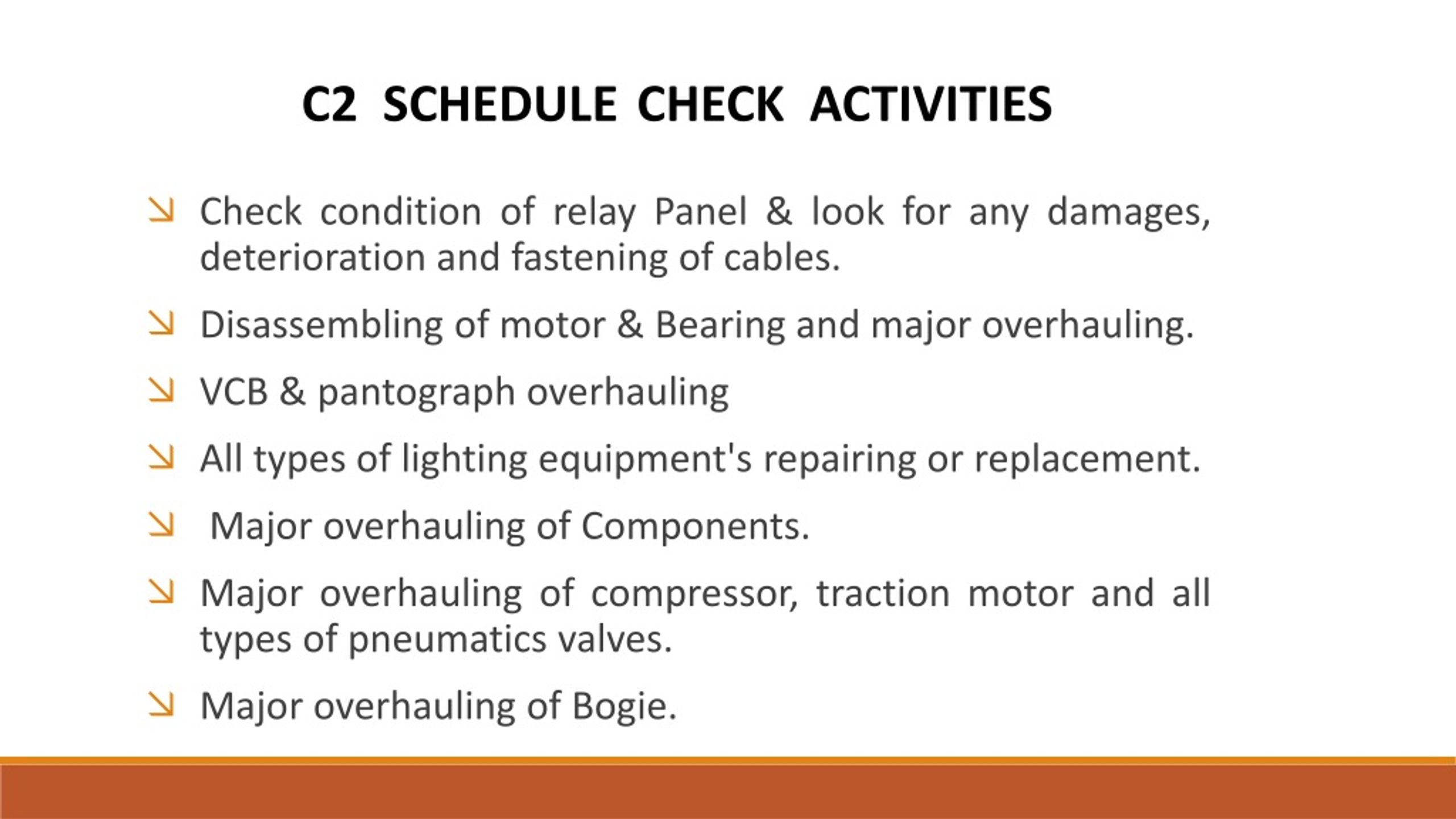

  7. C2 SCHEDULECHECK ACTIVITIES • Check condition of relay Panel & look for any damages, deterioration and fastening of cables. • Disassembling of motor & Bearing and major overhauling. • VCB & pantograph overhauling • All types of lighting equipment's repairing or replacement. • Major overhauling of Components. • Major overhauling of compressor, traction motor and all types of pneumatics valves. • Major overhauling of Bogie.

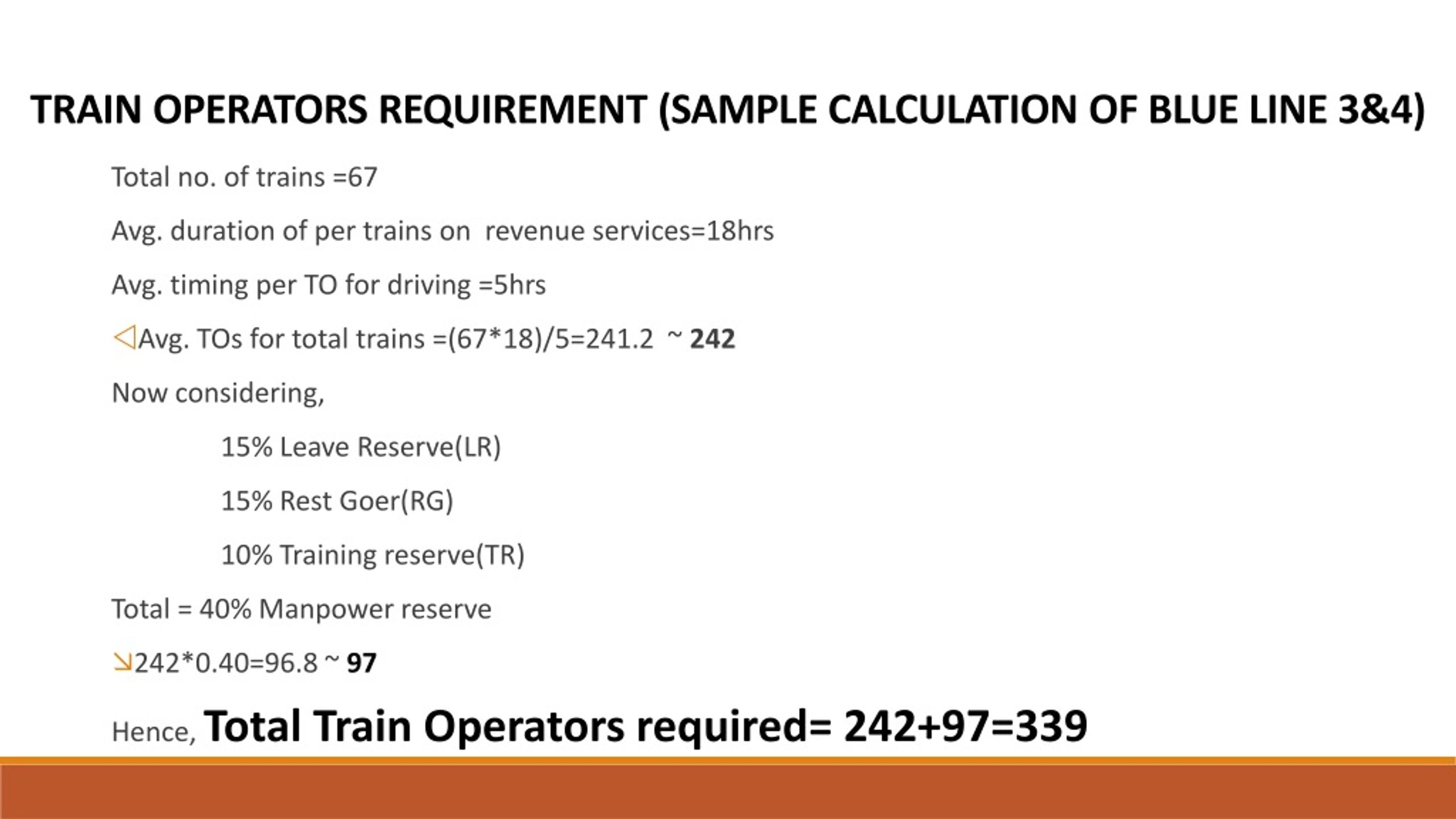

  8. TRAIN OPERATORS REQUIREMENT (SAMPLE CALCULATION OF BLUE LINE 3&4) Total no. of trains =67 Avg. duration of per trains on revenue services=18hrs Avg. timing per TO for driving =5hrs • Avg. TOs for total trains =(67*18)/5=241.2 ~ 242 Now considering, 15% Leave Reserve(LR) 15% Rest Goer(RG) 10% Training reserve(TR) Total = 40% Manpower reserve • 242*0.40=96.8 ~ 97 Hence, Total Train Operators required= 242+97=339

  9. DEPOT LAYOUT (Mukundpur depot as a Sample) PWL SBL Future expansion SBL IBL PWAY Workshop AWP ASS IHCS ETU DCOS

  10. ORGANISATIONAL STRUCTURE OF DEPOT MUKUNDPUR DEPOT (Sample) Operations Operations Rolling Stock Rolling Stock DCOS Signalling & Telecom Signalling & Telecom DCOS Traction E&M PWAY Civil & Structure

  11. DEPOT ENTRY PROCEDURE OF TRAIN DURING STABLING OF TRAINS IN DEPOT • Plan submission by PPIO to DCC for train stabling. • Train information (which is being sent to depot) given by TC/OCC to DCC. • Route setting by DCC. • Authorization to TO by giving all details from DC . • The train stabling by TO as procedure in vogue. • Submission of log book, Mascon key, Square key and tetra set from TO to DCC. • PPIO shall then collect the Log books from DCC.

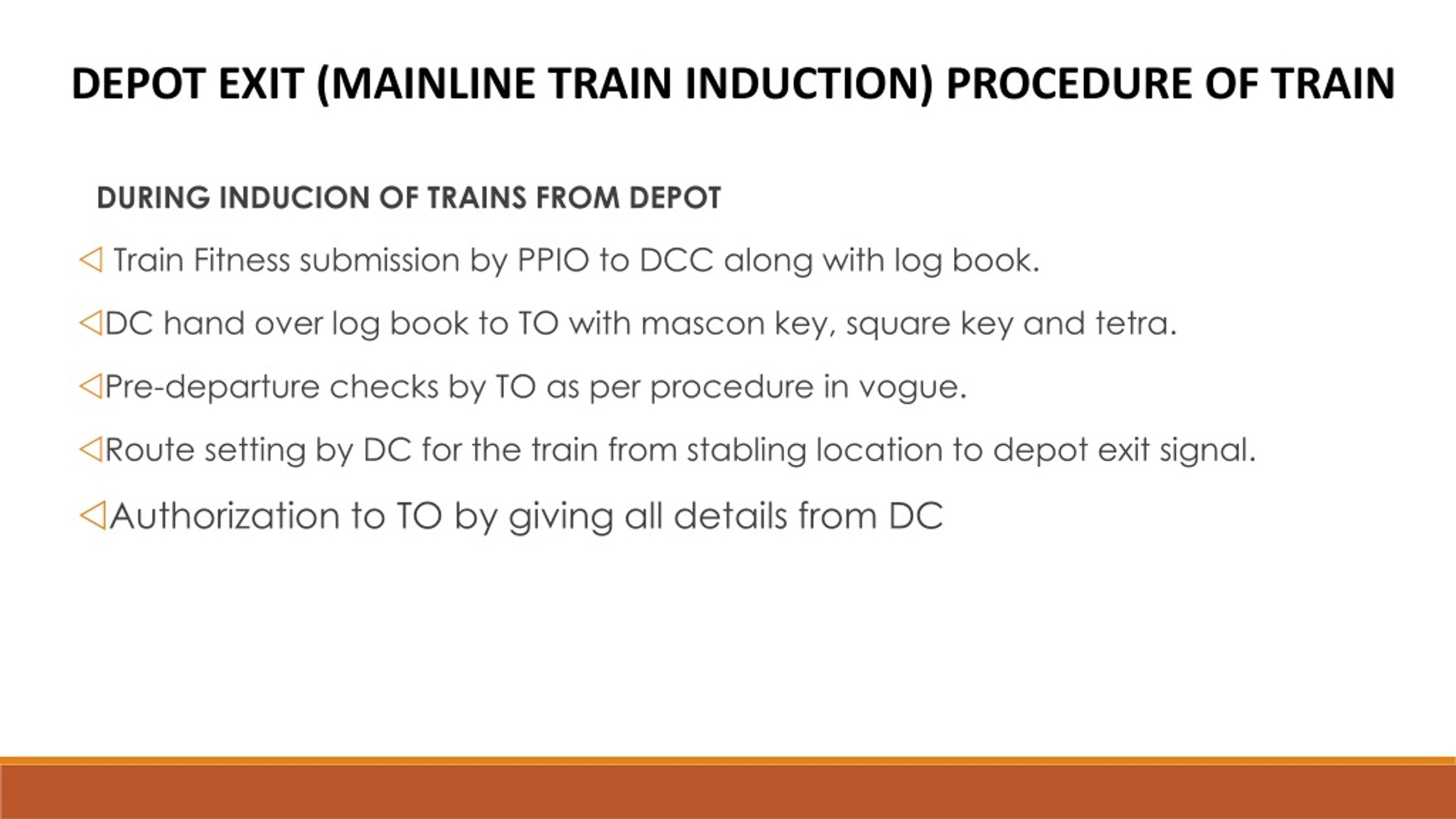

  12. DEPOT EXIT (MAINLINE TRAIN INDUCTION) PROCEDURE OF TRAIN • DURING INDUCION OF TRAINS FROM DEPOT • Train Fitness submission by PPIO to DCC along with log book. • DC hand over log book to TO with mascon key, square key and tetra. • Pre-departure checks by TO as per procedure in vogue. • Route setting by DC for the train from stabling location to depot exit signal. • Authorization to TO by giving all details from DC

  13. DEPOT MANPOWER (Mukundpur depot as a Sample) Yard stick Required : 1.10 per car (First line + Workshop) Total No of Cars : 228 cars Required Manpower: 251 staff Available Manpower: 210 (JE+TECH.) Officers : 1 Sr. DGM, 02 Managers, 02 Assistant Manager

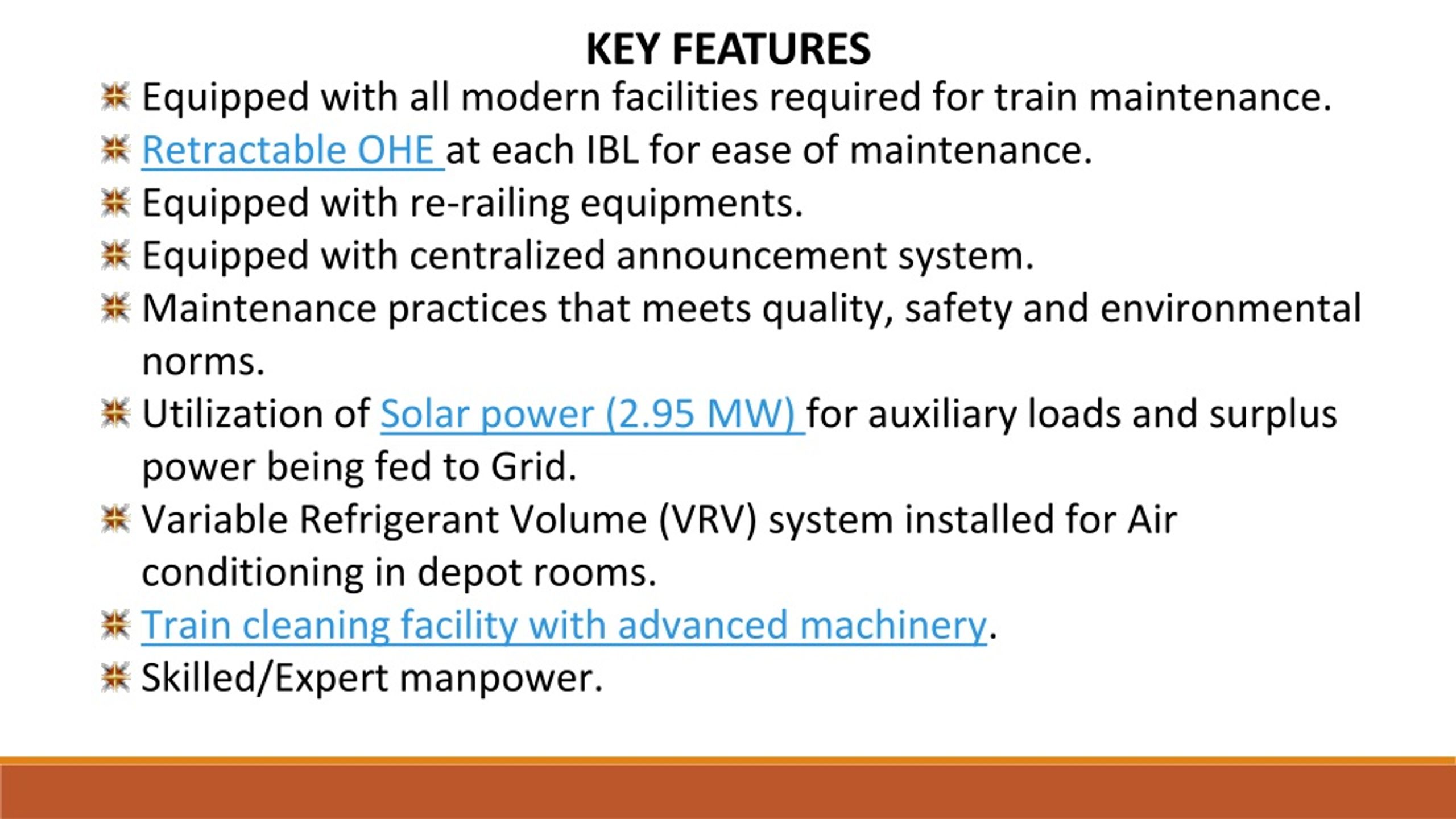

  14. KEY FEATURES Equipped with all modern facilities required for train maintenance. Retractable OHE at each IBL for ease of maintenance. Equipped with re-railing equipments. Equipped with centralized announcement system. Maintenance practices that meets quality, safety and environmental norms. Utilization of Solar power (2.95 MW) for auxiliary loads and surplus power being fed to Grid. Variable Refrigerant Volume (VRV) system installed for Air conditioning in depot rooms. Train cleaning facility with advanced machinery. Skilled/Expert manpower.

  15. DEPOT FACILITIES Inspection bay lines Stabling bay lines Workshop Internal heavy cleaning shed Test track for testing at designed speed Effluent & sewage treatment plant Custody Stores Different M&P’s Auxiliary sub stations Pway Building

  16. DEPOT FACILITIES Depot Control Centre Signaling & Telecom Operation Building (Crew Control Room) ETU Building. Future expansion SBL’s. R.O. Plant for depot water supply. Over head Tank of 1 lakh liter water storage

  17. Major M&P’s • PLC controlled Synchronized PIT jack • PLC controlled Synchronized Mobile jack • CNC Under floor wheel lathe • Automatic Train Wash Plant • Rail cum Road emergency rescue vehicle • Battery operated Rail cum Road Mover • Aerial Work Lift Platform • Automatic Filter Cleaning Machine

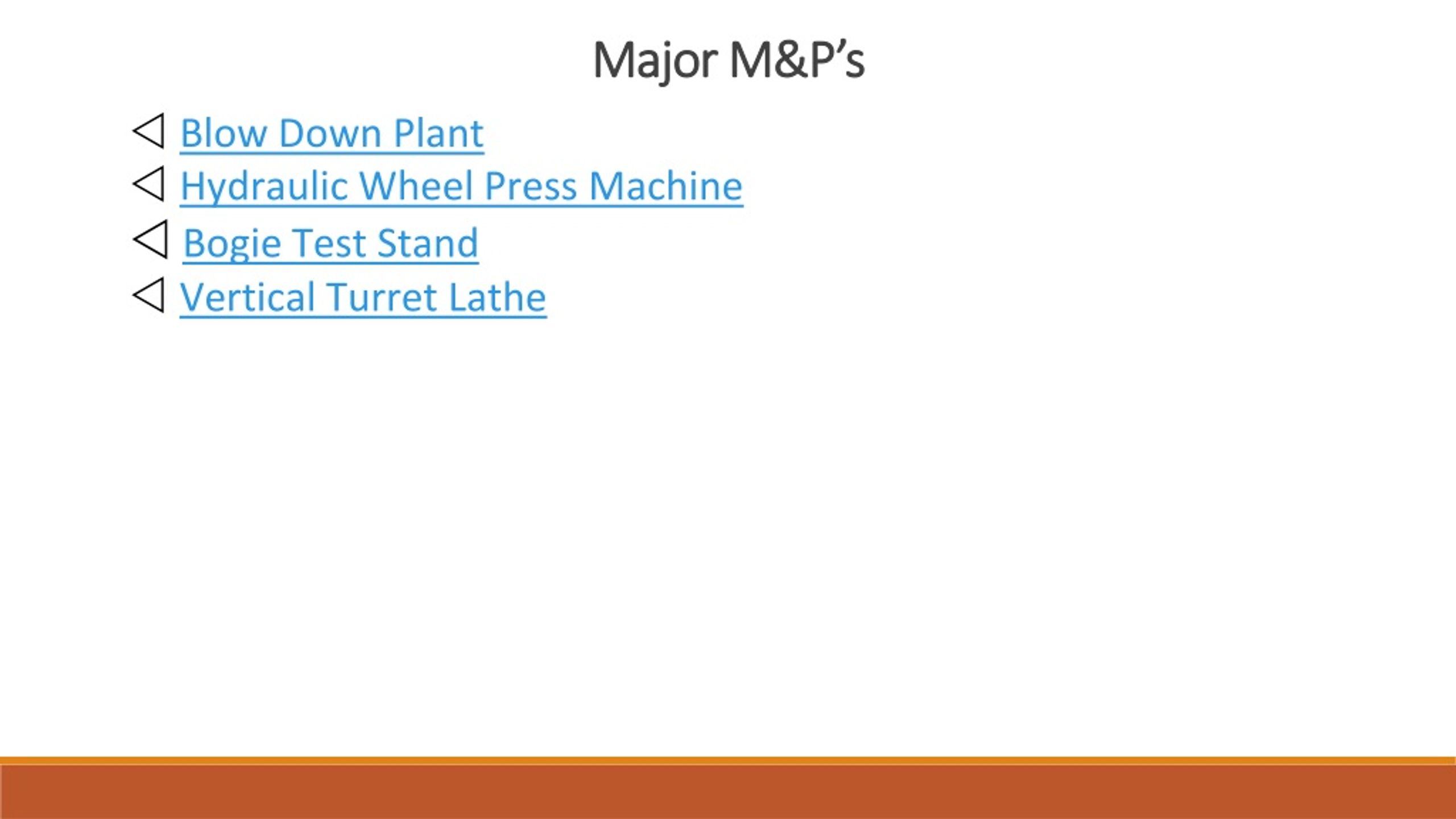

  18. Major M&P’s • Blow Down Plant • Hydraulic Wheel Press Machine • Bogie Test Stand • Vertical Turret Lathe

  19. Special Tools/ Machines used for maintenance 1. UST(Ultra Sonic testing): Used for detection of any hair line cracks in axle. 2. Calipari : Used for wheel profile measurement.

  20. Special Tools / Machines used for maintenance 4. SMD rework bench: To desoldering and re-soldering of surface-mounted electronic components of PCB’s and cards. 3. Train Battery charger: To charge the discharged battery of train were OHE in not available (in workshop)

  21. Special Tools / Machines used for maintenance 6. DCU (Door Control Unit) testing Jig: To test the DCU of the train. 5. Primary Suspension Tester: To test the Spring of Primary Suspension of the train

  22. Special Tools/ Machines used for maintenance 7. UTB (Universal Test Bench) : To test the Pneumatic valves, sensors and pressure switches of train.

  23. Special Tools / Machines used for maintenance 8. TBU (Tread Brake Unit) test bench : Used for checking of Service Brake and Parking Brake of TBU.

  24. Special Tools / Machines used for maintenance 9. Compressor Test Bench : To test the Main and auxiliary compressor of train.

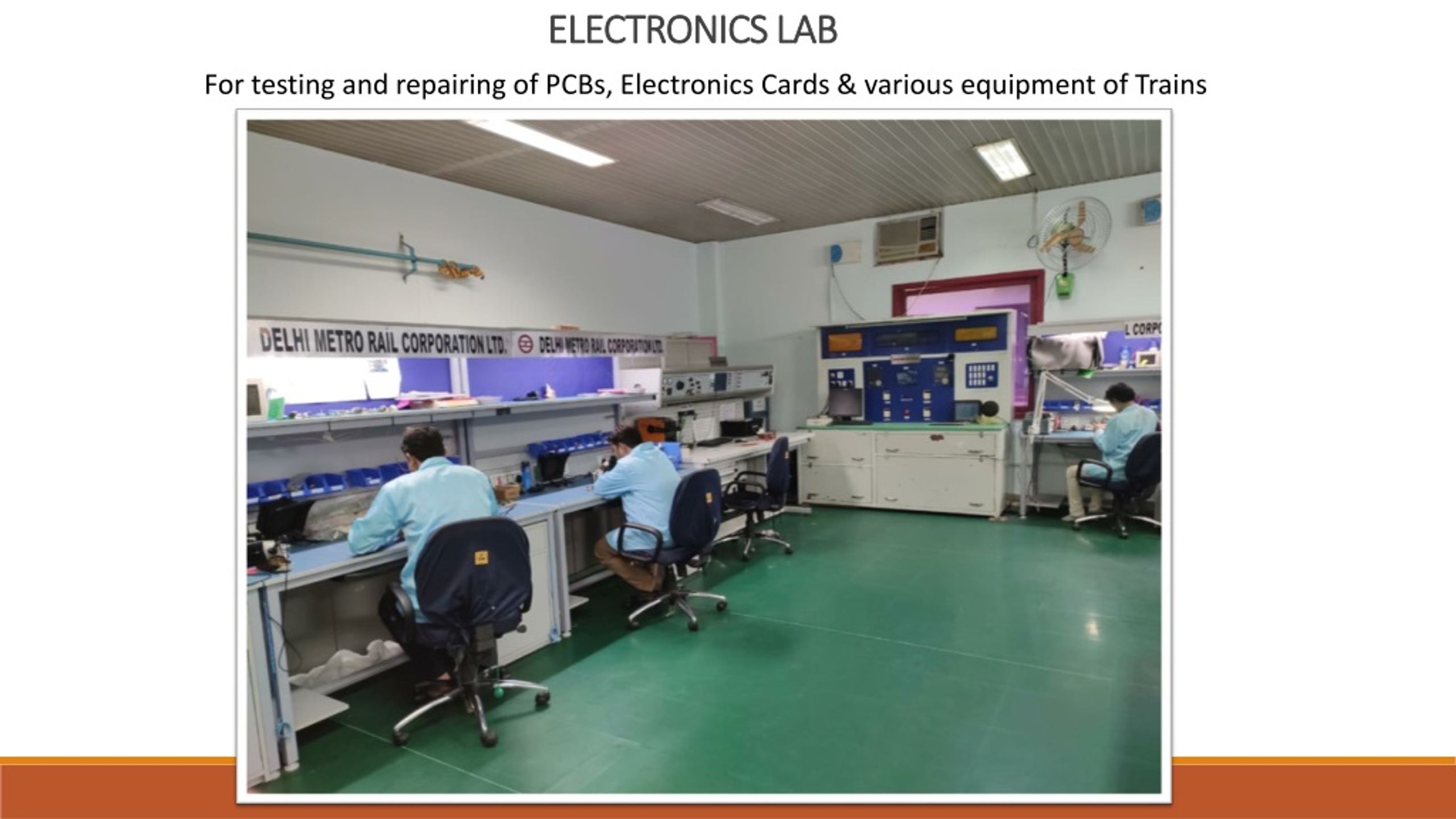

  25. ELECTRONICS LAB For testing and repairing of PCBs, Electronics Cards & various equipment of Trains

  26. THANK YOU
