milestone ii

Milestone II

Team Costa Rica

Modification of Escuela San Luis Outdoor Covered Sports Facility

team members
Team Members
  • Kevin Chen
    • Project Manager
  • Shelby Haverda
    • Communications
  • Guillaume Herve
    • Scope
team members1
Team Members
  • Katelyn Knippa
    • Scope
  • Kyle Morris
    • Fundraising
  • Allison Rich
    • Risk and Quality
project partners
Project Partners
  • Marcos M. Sanchez
    • In-country Client
  • Charlie Strong
    • In-country Partner
  • Joe Luke
    • Technical Adviser
milestone i concerns
Milestone I Concerns
  • Lack of community knowledge
  • Shallow work breakdown structure (WBS)
  • Unclear role of community involvement
  • No technology literature review listed
  • Unclear performance objectives
milestone i concerns1
Milestone I Concerns
  • Undetailed project assessment
  • Questions for recon. trip
  • No critical issues and questions listed
  • No team education and training needs
  • Slow technical start
presentation outline

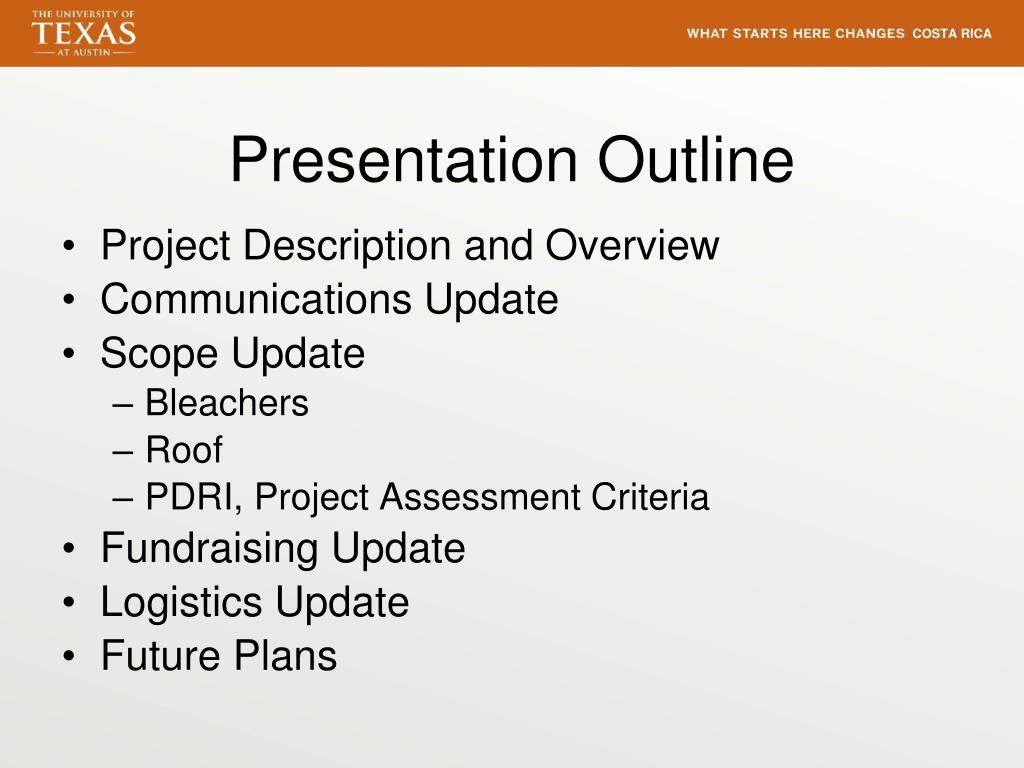

Presentation Outline
  • Project Description and Overview
  • Communications Update
  • Scope Update
    • Bleachers
    • Roof

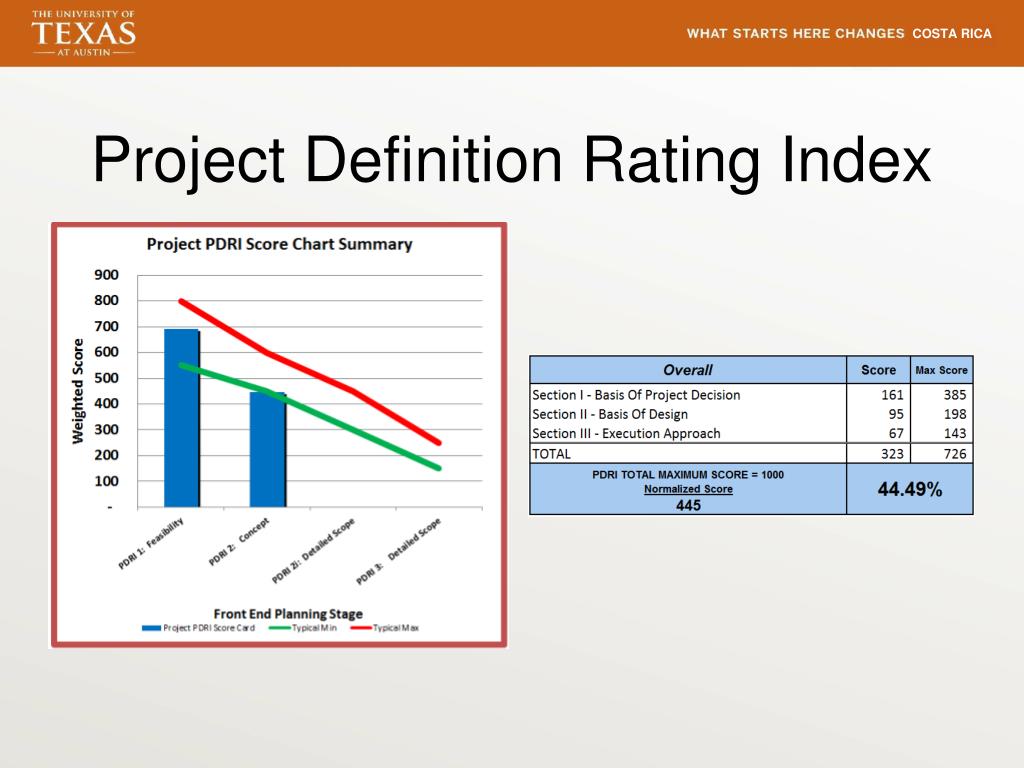

    • PDRI, Project Assessment Criteria
  • Fundraising Update
  • Logistics Update
  • Future Plans
escuela san luis sports facility
Escuela San Luis Sports Facility
  • Objectives:
    • Extend roof
    • Create safe seating for ~400 adults and kids
    • All construction must be seismic-resistant
escuela san luis sports facility1
Escuela San Luis Sports Facility
  • Impact:
    • Collaborative space
    • Improved recreation area
    • Part one of multi-year plan
client roles
Client Roles
  • Community involvement
  • Work area security
client communication
Client Communication
  • November 20: First direct contact
  • November 5: Notified about email errors
  • October 21: Follow-up email sent
  • September 12: Initial contact
partner roles
Partner Roles
  • Logistics
  • Manpower
  • Roof Construction
  • Procurement
  • Permitting
partner communication
Partner Communication
  • November 3: Begin weekly updates
  • October 31: Hospital/Embassy information
  • October 24: Skype conference #2
  • October 17: Email update
  • September 27: Skype conference #1
  • September 19: Initial contact
our role
Our Role
  • Design
  • Planning
  • Educational programming
  • Status updates
  • Construction
codes regulations standards
Codes, Regulations, Standards
  • Plans submitted 3 months prior to implementation
    • Getting more from Charlie
  • International Code search
    • International Code Council
    • American National Standards Institute
bleachers
Bleachers
  • Initial considerations:
    • Aluminum
    • Steel (one design)
    • Concrete (two designs)
steel bleacher literature review
Steel Bleacher Literature Review

Resources:

  • National Recreation Systems
    • Side View Drawings in English Units
    • Specs including loads and materials
  • Similar Bleachers at Anderson HS
  • Summer Recon Trip/Rebecca at Strong Missions
    • Photos
    • Dimensions
concrete design ii detail
ConcreteDesign II Detail

Reinforcement bars

Prefab material (think

cinder blocks)

Poured concrete

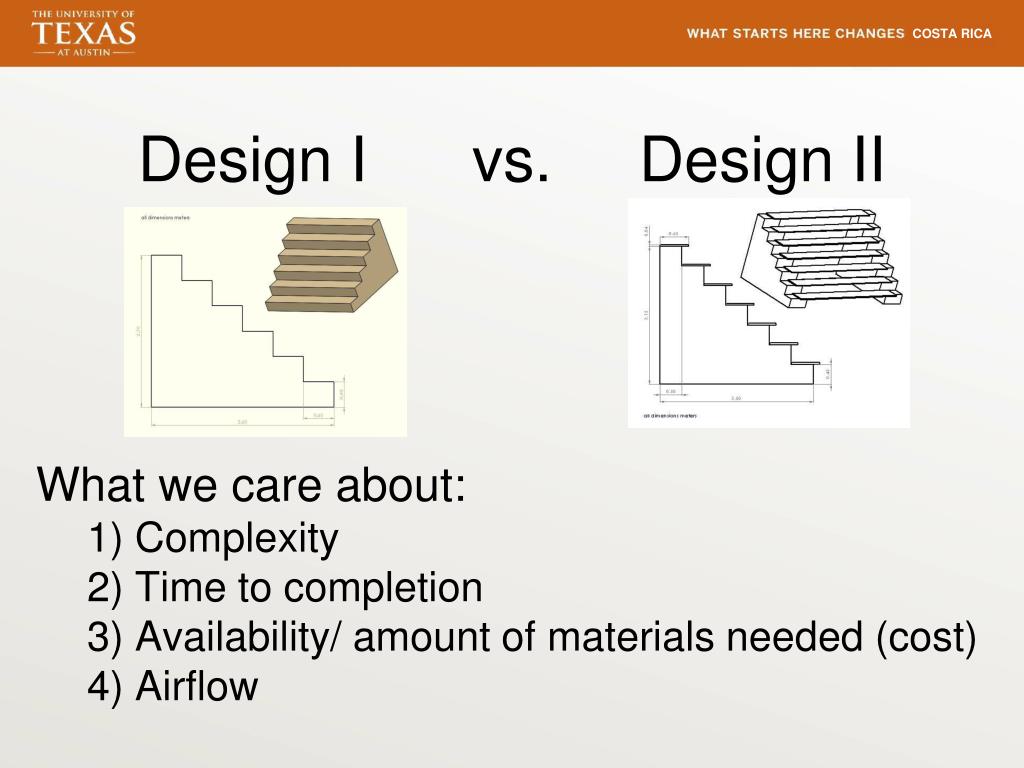

design i vs design ii
Design I vs. Design II

What we care about:

1) Complexity

2) Time to completion

3) Availability/ amount of materials needed (cost)

4) Airflow

concrete bleacher work breakdown
Concrete Bleacher - Work Breakdown

Pre-Student Construction

-Pre-fab benches

-Pre-fab blocks

-Concrete slab in place with rebar

Student Construction

Place pre-fab blocks w/mortar over rebar

Pour concrete

Place benches

Secure benches

concrete bleacher literature review
Concrete Bleacher Literature Review

Sources:

-Intuitive knowledge

-Joe Luke

-Photos provided by Mary Lou

-Dimensions provided by Rebecca of Strong Missions

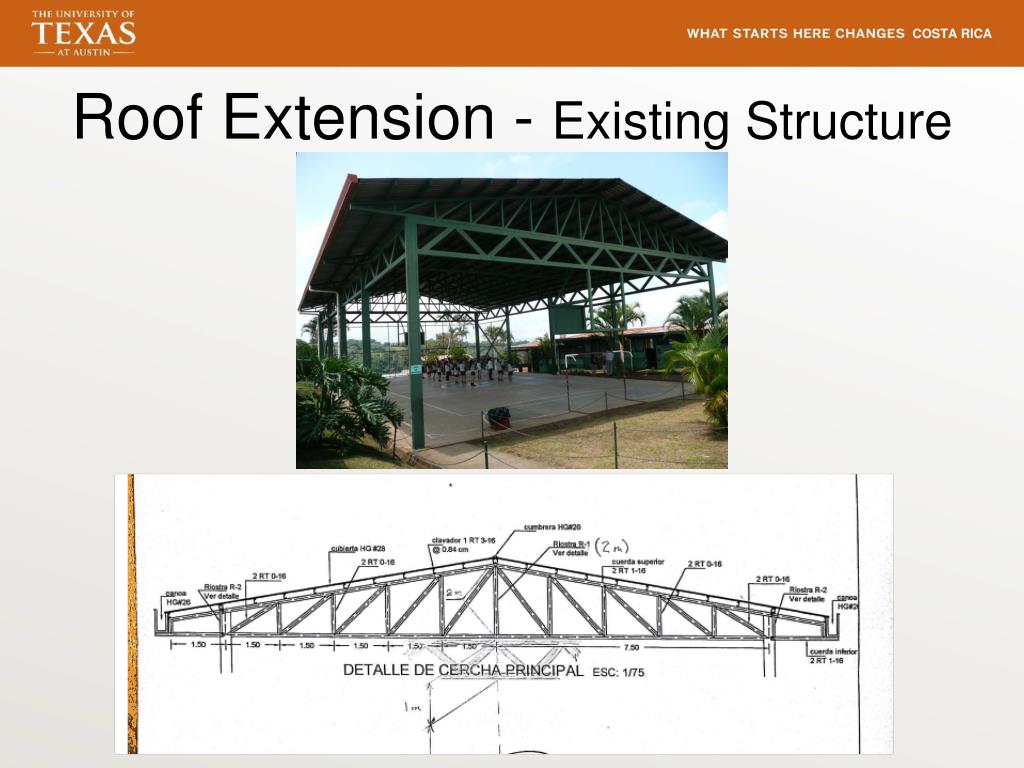

roof extension steel designs
Roof Extension – Steel Designs

Design I vs. Design II

Credit: Allison Rich

roof extension tensile design1
Roof Extension - Tensile Design
  • Pros:
    • lightweight
    • simple design
    • potentially less expensive
    • aesthetically pleasing
  • Cons:
    • most likely not available in country
    • very different design than existing structure

https://www.google.com/search?q=austin+tensile+structure&espv=210&es_sm=91&source=lnms&tbm=isch&sa=X&ei=z8mTUp78MeWU2gWy0oBw&ved=0CAkQ_AUoAQ&biw=1279&bih=679

roof extension literature review
Roof Extension Literature Review

Sources:

-Intuitive knowledge

-Design documents provided by Mary Lou

-Photos provided by Mary Lou

-Birdair, Inc

-Austin Custom Shade

project needs
Project Needs

Bleacher Design

-Confirmation of available prefab items

-Collaboration with a technical advisor (Joe Luke) to refine designs

Roof Extension

-Preliminary designs through collab with tech. advisor

-Fabric material availability

Both

-Cost of materials in-country

-Site survey

-Construction Schedule

grant proposals
Grant Proposals
  • GM Foundation:
    • Would not accept UT tax ID
  • Dell Foundation:
    • Would not accept UT tax ID
  • Mott Foundation:
    • Discouraged from applying
  • Ford Foundation:
    • Submitted, waiting for response
fundraising accomplishments
Fundraising Accomplishments
  • Currently reaching out to corporations
  • Personal Donations
    • $795
  • Gethsemane Lutheran Church
    • $10,000
  • Total of $10,795 raised
fundraising plans
Fundraising Plans
  • Corporation letters
  • Company visits
  • Company publicity
  • Follow up on grant proposals
  • Thank you presentations
transportation plan
Transportation Plan
  • May 25th:
    • Fly into Juan Santamaria Airport
    • Taxi to Carrillos
  • Walk to and from

worksite

  • Bus/Taxi to in-country

cultural immersion

  • June 22nd:
    • Fly home
multi year project plan

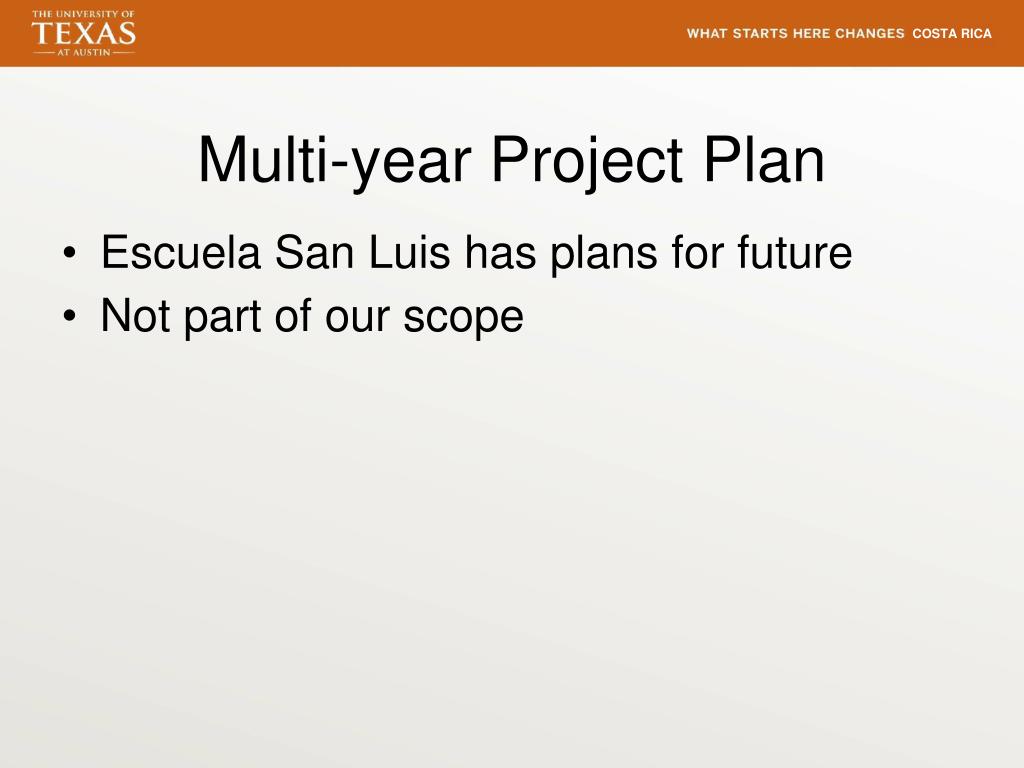

Multi-year Project Plan
  • Escuela San Luis has plans for future
  • Not part of our scope
implementation schedule

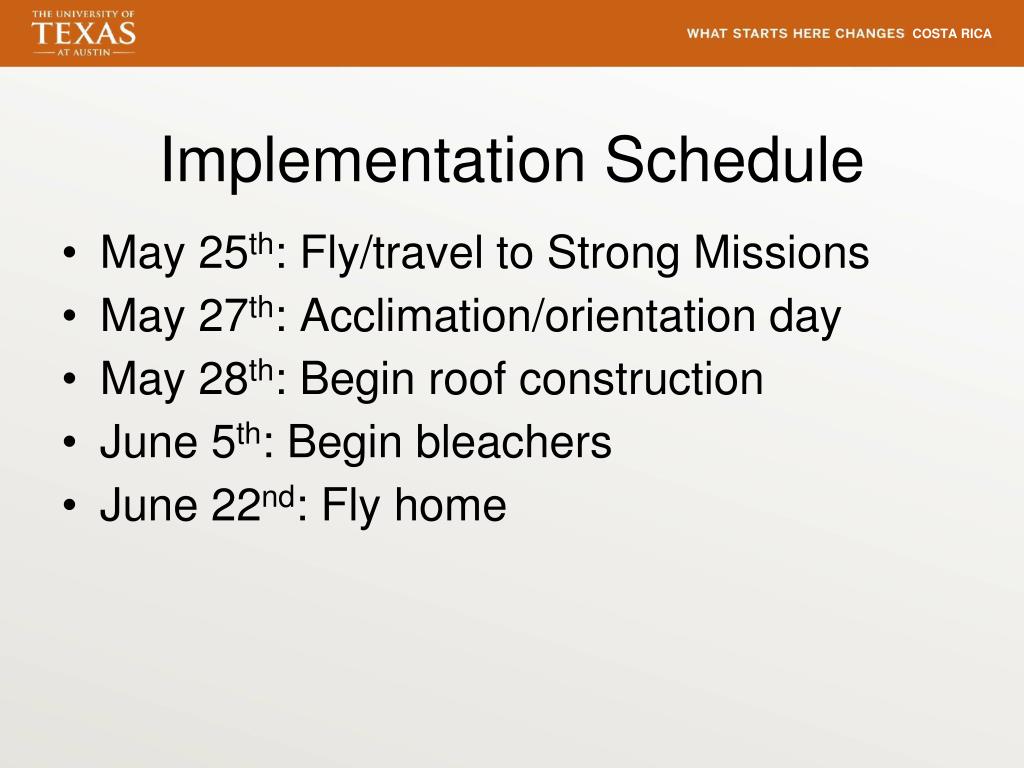

Implementation Schedule
  • May 25th: Fly/travel to Strong Missions
  • May 27th: Acclimation/orientation day
  • May 28th: Begin roof construction
  • June 5th: Begin bleachers
  • June 22nd: Fly home
phase milestone schedule
Phase Milestone Schedule
  • January 17: Have a design selected
  • February 7: Finalize design
  • February 28: Secure funding
  • March 7: Submit final design for permitting
  • March 21: Begin procuring materials
  • May 25: Travel to Costa Rica
reconnaissance trip
Reconnaissance Trip
  • Depends on fundraising
  • Most likely during Spring Break (2-3 days)
  • Primarily to meet community
reconnaissance questions
Reconnaissance Questions
  • How can we involve you, a community member, in the project?
  • What sort of after-school classes would you like for your kids?
lessons learned from prior teams
Lessons Learned from Prior Teams
  • PNG 2013:
    • Late arrival of materials (pump)
      • Solution: Charlie has connections
    • Differing break/mealtime expectations
      • Solution: Charlie will push for hour-long lunches
    • Social work component
      • Solution: Proactivity; Social

worker currently making plans

for activities

lesson learned continued
Lesson Learned continued...
  • Ghana 2013 & 2014:
    • Cultural Differences & Expectations
      • Solution: Cultural Research & Speak to anyone with experience in Costa Rica
    • Making Progress
      • Solution: Physical presence and meeting to collaborate
  • Our Team:
    • Strong Missions NOT always available
      • Solution: Plan accordingly and plan for delays
next phases of design
Next Phases of Design
  • Consult with stakeholders & T.A. on design selection.
  • Create Detailed Model
  • Detailed Cost-Analysis
  • Locate Materials
  • Research in-country construction methods & develop Construction Schedule
holiday work plan
Holiday Work Plan
  • Fundraising
    • Corporation follow-ups
  • Scope
    • Meet tech. adviser to ensure plans are on target
questions unanswered
Questions Unanswered
  • Budget breakdown of Strong Missions
  • Depth of underground power cable in work area
  • Availability and pricing of materials
  • Investment of community
issues and concerns
Issues and Concerns
  • Amount of manpower available
  • In accordance to UT Regulations, what can we contribute to roof construction?
  • Who will do roof construction?
  • Construct roof before bleacher?
  • The water drainage system
any questions

Any Questions?
