Constraint Satisfaction Problems. ECE457 Applied Artificial Intelligence Fall 2007 Lecture #4. Outline. Defining constraint satisfaction problems (CSP) CSP search algorithms Russell & Norvig, chapter 5. States. What do we know about states? A state might be a goal (goal test)

Download Presentation

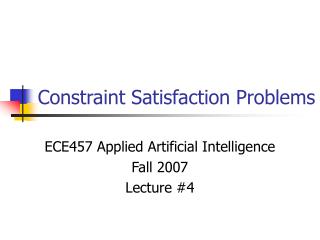

## Constraint Satisfaction Problems

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

**Constraint Satisfaction Problems**ECE457 Applied Artificial Intelligence Fall 2007 Lecture #4**Outline**• Defining constraint satisfaction problems (CSP) • CSP search algorithms • Russell & Norvig, chapter 5 ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 2**States**• What do we know about states? • A state might be a goal (goal test) • A state has a value (cost or payoff) • An agent moves from state to state using actions • The state space can be discreet or continuous • Ties in with the problem definition • Initial state, goal test, set of actions and their costs defined in problem ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 3**Definitions**• A constraint-satisfaction problem has • A set of variables • V = {X1, X2, …, Xn} • Each variable has a domain of values • Xi Di = {di1, di2, …, din} • A set of constraints on the values each variable can take • C = {C1, C2, …, Cm} • A state is a set of assignment of values • S1 = {X1 = d12, X4 = d45} ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 4**Definitions**• Consistent (legal) state • Does not violate any constraints • Complete state • All variables have a value • Goal state • Consistent and complete • Might not exist • Proof of inconsistency ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 5**Example: 8-queen**• Variables: 64 squares • V = {X1,1, X1,2, …, X8,8} • Values: Queen or no queen • Xi,j D = {queen, empty} • States: All board configurations • 1.8x1014 complete states • Constraints: Attacks • {Xi,j = queen Xi,j+n = empty, Xi,j = queen Xi+n,j = empty, Xi,j = queen Xi+n,j+n = empty} • 92 complete and consistent states ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 6**Example: 8-queen**ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 7**Example: The Einstein Puzzle**• There are 5 houses in 5 different colours. In each house lives a person with a different nationality. These 5 owners drink a certain beverage, smoke a certain brand of cigar and keep a certain pet. No owners have the same pet, smoke the same brand of cigar or drink the same drink. Who keeps the fish? • The English lives in a red house. • The Swede keeps dogs as pets. • The Dane drinks tea. • The green house is on the left of the white house. • The green house owner drinks coffee. • The person who smokes Pall Mall rears birds. • The owner of the yellow house smokes Dunhill. • The man living in the house right in the centre drinks milk. • The Norwegian lives in the first house. • The man who smokes Blend lives next to the one who keeps cats. • The man who keeps horses lives next to the man who smokes Dunhill. • The owner who smokes Blue Master drinks beer. • The German smokes Prince. • The Norwegian lives next to the blue house. • The man who smokes Blend has a neighbour who drinks water. ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 8**1 2 3 4 5**Example: The Einstein Puzzle • 25 variables • V = {N1, …, N5, C1, …, C5, D1, …, D5, S1, …, S5, P1, …, P5} • Domains • Ni {English, Swede, Dane, Norwegian, German} • Ci {green, yellow, blue, red, white} • Di {tea, coffee, milk, beer, water} • Si {Pall Mall, Dunhill, Blend, Blue Master, Prince} • Pi {dog, cat, horse, fish, birds} ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 9**Example: The Einstein Puzzle**• The Norwegian lives in the first house. • N1 = Norwegian • The English lives in a red house. • (Ni = English) (Ci = Red) • The green house is on the left of the white house. • (Ci = green) (Ci+1 = white) • (C5≠ green) • (C1≠ white) ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 10**Example: Map Colouring**• Colour map of the provinces of Australia • 3 colours (red, green, blue) • No adjacent provinces of the same colour • Define CSP ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 11**Example: Map Colouring CSP**• Variables • {WA, NT, SA, Q, NSW, V, T} • Domain • {R, G, B} • Constrains • {WA NT, WA SA, NT SA, NT Q, SA Q, SA NSW, SA V, Q NSW, NSW V} ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 12**Solving CSP**• Iterative improvement methods • Start with random complete state, improve until consistent • Tree searching • Start with empty state, make consistent variable assignments until complete ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 13**Iterative Improvement**• Algorithm: • Start with random complete state • While not consistent • Pick a variable (randomly or with a heuristic) • Change its assignment to minimize number of violated constraints • Not complete • Might not search all state space • Might not find a solution even if one exists • We won’t do that in this course ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 14**Tree Search**• Formulate CSP as tree • Root node: no variables are assigned a value • Action: assign a value if it does not violate any constraints • Solution node at depth n for n-variable problem ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 15**Backtracking Search**• Start with empty state • While not complete • Pick a variable (randomly or with heuristic) • If it has a value that does not violate any constraints • Assign that value • Else • Go back to previous variable • Assign it another value ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 16**Backtracking Search**• Depth-first search algorithm • Goes down one variable at a time • In a dead end, back up to last variable whose value can be changed without violating any constraints, and change it • If you backed up to the root and tried all values, then there are no solutions • Algorithm complete • Will find a solution if one exists • Will expand the entire (finite) search space if necessary • Depth-limited search with limit = n ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 17**Example: Backtracking Search**WA = G WA = R WA = B NT = G NT = B Q = B Q = R NSW = G NSW = G SWA = B NSW = R SA = ? SA = B SA = ? V = R T = G T = B T = R ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 18**Conflict-Directed Backjumping**• Suppose we colour Australia in this order: • WA – R • NSW – R • T – B • NT – B • Q – G • SA - ? • Dead-end at SA • No possible solution with WA = NSW • Backtracking will try to change T on the way, even though it has nothing to do with the problem, before going to NSW ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 19**Conflict-Directed Backjumping**• Backtracking goes back one level in the search tree at a time • Chronological backtrack • Not rational in cases where the previous step is not involved to the conflict • Conflict-directed backjumping (CBJ) • Should go back to a variable involved in the conflict • Skip several levels if needed to get there • Non-chronological backtrack ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 20**Conflict-Directed Backjumping**• Maintain a conflict set for each variable • List of previously-assigned variables that are related by constraints • When we hit a dead-end, backjump to the deepest variable in the conflict set ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 21**Conflict-Directed Backjumping**• Learn from the conflict by updating the conflict set of the variable we jumped to • Conflict at Xj, backjump to Xi • conf(Xi)={X1,X2,X3} conf(Xj)={X3,X4,X5,Xi} • conf(Xi) = conf(Xi) conf(Xj) – {Xi} • conf(Xi) = {X1,X2,X3,X4,X5} • Xiabsorbed the conflict set of Xj ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 22**Conflict-Directed Backjumping**• SA backjump to Q • conf(Q) = {WA,NSW,NT} • Meaning: “There is no consistent solution from Q onwards, given the preceding assignments of WA, NSW and NT together” • Q backjump to NT • conf(NT) = {WA,NSW} • NT backjump over T to NSW • conf(NSW) = {WA} ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 23**Heuristics**• Backtracking and CDJ searches are variations of depth-limited search • Uninformed search technique • Can we make it an informed search? • Add some heuristics • Which variable to assign next? • In which order should the values be tried? • How to detect dead-ends early? ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 24**Variable & Value Heuristics**• Most constrained variable • Choose the variable with the fewest legal values remaining in its domain • aka Minimum remaining values • Most constraining variable • Choose the variable that’s part of the most constraints • Useful to pick first variable to assign • aka Degree heuristic • Least constraining variable • Pick the variable that’s part of the fewest constrains • Keeps maximum flexibility for future assignments ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 25**Variable & Value Heuristics**Values: 2Constraints: 2 Most constrained variable Values: 2Constraints: 2 Values: 2Constraints: 1 Values: 2Constraints: 2 Most constrained & least constraining variable Most constrained variable Most constraining variable Most constraining variable Most constrained variable Values: 2Constraints: 1 Least constraining variable ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 26**Forward Checking**• How to detect dead-ends early? • Keep track of the domain of unassigned variables • Use constraints to prune domain of unassigned variables • Backtrack when a variable has an empty domain • Do not waste time exploring further ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 27**Example: Forward Checking**ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 28**Problem with Forward Checking**ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 29**Constraint Propagation**• Propagate the consequences of a variable’s constraints onto other variables • Represent CSP as constraint graph • Nodes are variables • Arcs are constraints • Check for consistency NT Q WA NSW SA V T ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 30**Checking for Consistency**• Node consistency • Unary constraint (e.g. NT G) • A node is consistent if and only if all values in its domain satisfy all unary constraints • Arc consistency • Binary constraint (e.g. NT Q) • An arc Xi Xj or (Xi, Xj) is consistent if and only if, for each value a in the domain of Xi, there is a value b in the domain of Xj that is permitted by the binary constraints between Xiand Xj. • Path consistency • Can be reduced to arc consistency ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 31**Checking for Consistency**• Node consistency • Simply scan domain of values of each variable and remove those that are not valid • Arc consistency • Examine edges and delete values from domains to make arcs consistent ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 32**Checking for Consistency**• Remove inconsistent values from a variable’s domain • Backtrack if empty domain • Maintaining node and arc consistency reduces the size of the tree • More computationally expensive than Forward Checking, but worth it ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 33**AC-3 Algorithm**• Keep queue of arcs (Xi, Xj) to be checked for consistency • If checking an arc removes a value from the domain of Xi, then all arcs (Xk, Xi) are reinserted in the queue ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 34**AC-3 Algorithm**• Add all arcs to queue • While queue not empty • Get next arc from queue • For each value di of Xi • If there is no consistent value dj in Xj • Delete di • If a value di was deleted • For each neighbour Xk of Xi • Add arc (Xk, Xi) to queue ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 35**AC-3 Algorithm**• Advantages • Prunes tree, reduces amount of searching • For n-node CSP that’s n-consistent, solution is guaranteed with no backtracking • Disadvantage • Computationally expensive • If pruning takes longer than searching, it’s not worth it ECE457 Applied Artificial Intelligence R. Khoury (2007) Page 36
