Constraint Satisfaction Problems. Chapter 6. Outline. Constraint Satisfaction Problems (CSP) Backtracking search for CSPs Local search for CSPs. Constraint satisfaction problems (CSPs). Standard search problem:

Download Presentation
## Constraint Satisfaction Problems

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

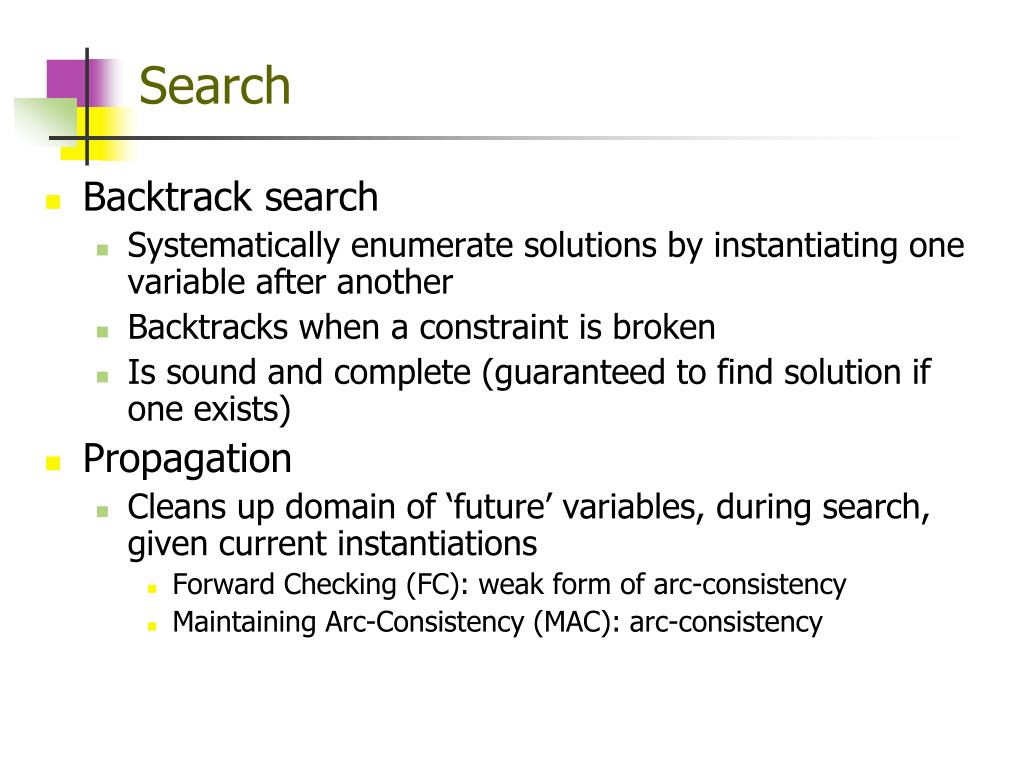

**Constraint Satisfaction Problems**Chapter 6**Outline**• Constraint Satisfaction Problems (CSP) • Backtracking search for CSPs • Local search for CSPs**Constraint satisfaction problems (CSPs)**• Standard search problem: • state is a "black box“ – any data structure that supports successor function, heuristic function, and goal test • CSP: • state is defined by variablesXi with values from domainDi • goal test is a set of constraints specifying allowable combinations of values for subsets of variable • Simple example of a formal representation language • Allows useful general-purpose algorithms with more power than standard search algorithms**Example: Map-Coloring**• VariablesWA, NT, Q, NSW, V, SA, T • DomainsDi = {red,green,blue} • Constraints: adjacent regions must have different colors • e.g., WA ≠ NT, or (WA,NT) in {(red,green),(red,blue),(green,red), (green,blue),(blue,red),(blue,green)}**Example: Map-Coloring**• Solutions are complete and consistent assignments, e.g., WA = red, NT = green,Q = red,NSW = green,V = red,SA = blue,T = green**Constraint graph**• Binary CSP: each constraint relates two variables • Constraint graph: nodes are variables, arcs are constraints**Components of CSP**• CSP = Constraint Satisfaction Problem • Given (V, D, C) (1) V: a finite set of variables (2) D: a domain of possible values (often finite) (3) C: a set of constraints that limit the values the variables can take on • A solution is an assignment of a value to each variable such that all the constraints are satisfied. • Tasks might be to decide if a solution exists, to find a solution, to find all solutions, or to find the “best solution” according to some metric f.**SEND + MORE = MONEY**Assign distinct digits to the letters S, E, N, D, M, O, R, Y such that S E N D + M O R E = M O N E Y holds.**SEND + MORE = MONEY**Assign distinct digits to the letters S, E, N, D, M, O, R, Y such that S E N D + M O R E = M O N E Y holds. Solution 9 5 6 7 + 1 0 8 5 = 1 0 6 5 2**Modeling**Formalize the problem as a CSP: • Variables: v1,…,vn • Domains: Z, integers • Constraints: c1,…,cm n • problem: Find a =(v1,…,vn) nsuch that a ci , for all 1 i m**A Model for MONEY**• variables: { S,E,N,D,M,O,R,Y} • constraints: c1={(S,E,N,D,M,O,R,Y) 8 | 0 S,…,Y 9 } c2={(S,E,N,D,M,O,R,Y) 8 | 1000*S + 100*E + 10*N + D + 1000*M + 100*O + 10*R + E = 10000*M + 1000*O + 100*N + 10*E + Y}**A Model for MONEY (cont.)**• more constraints c3= {(S,E,N,D,M,O,R,Y) 8 | S 0 } c4= {(S,E,N,D,M,O,R,Y) 8 | M 0 } c5= {(S,E,N,D,M,O,R,Y) 8 | S…Y all different}**Solution for MONEY**c1={(S,E,N,D,M,O,R,Y) 8 | 0S,…,Y9 } c2={(S,E,N,D,M,O,R,Y) 8 | 1000*S + 100*E + 10*N + D + 1000*M + 100*O + 10*R + E = 10000*M + 1000*O + 100*N + 10*E + Y} c3= {(S,E,N,D,M,O,R,Y) 8 | S 0 } c4= {(S,E,N,D,M,O,R,Y) 8 | M 0 } c5= {(S,E,N,D,M,O,R,Y) 8 | S…Y all different} Solution: (9,5,6,7,1,0,8,2)8**Varieties of CSPs**• Discrete variables • finite domains: • n variables, domain size d O(dn) complete assignments • e.g., Boolean CSPs, incl.~Boolean satisfiability (NP-complete) • infinite domains: • integers, strings, etc. • e.g., job scheduling, variables are start/end days for each job • need a constraint language, e.g., StartJob1 + 5 ≤ StartJob3 • Continuous variables • e.g., start/end times for Hubble Space Telescope observations • linear constraints solvable in polynomial time by linear programming**Varieties of constraints**• Unary constraints involve a single variable, • e.g., SA ≠ green • Binary constraints involve pairs of variables, • e.g., SA ≠ WA • Higher-order constraints involve 3 or more variables, • e.g., cryptarithmetic column constraints**Example: Cryptarithmetic**• Variables: F T U W R O X1 X2 X3 • Domains: {0,1,2,3,4,5,6,7,8,9} • Constraints: Alldiff (F,T,U,W,R,O) • O + O = R + 10 ·X1 • X1 + W + W = U + 10 · X2 • X2 + T + T = O + 10 · X3 • X3 = F, T ≠ 0, F≠ 0**Real-world CSPs**• Assignment problems • e.g., who teaches what class • Timetabling problems • e.g., which class is offered when and where? • Transportation scheduling • Factory scheduling • Notice that many real-world problems involve real-valued variables**Standard search formulation (incremental)**Let's start with the straightforward approach, then fix it States are defined by the values assigned so far • Initial state: the empty assignment { } • Successor function: assign a value to an unassigned variable that does not conflict with current assignment fail if no legal assignments • Goal test: the current assignment is complete • This is the same for all CSPs • Every solution appears at depth n with n variables use depth-first search • Path is irrelevant, so can also use complete-state formulation • b = (n - l )d at depth l, hence n! ·dn leaves**Backtracking search**• Variable assignments are commutative}, i.e., [ WA = red then NT = green ] same as [ NT = green then WA = red ] • Only need to consider assignments to a single variable at each node b = d and there are $d^n$ leaves • Depth-first search for CSPs with single-variable assignments is called backtracking search • Backtracking search is the basic uninformed algorithm for CSPs • Can solve n-queens for n≈ 25**Problems with backtracking**• Thrashing: keep repeating the same failed variable assignments • Consistency checking can help • Intelligent backtracking schemes can also help • Inefficiency: can explore areas of the search space that aren’t likely to succeed • Variable ordering can help**Improving backtracking efficiency**• General-purpose methods can give huge gains in speed: • Which variable should be assigned next? • In what order should its values be tried? • Can we detect inevitable failure early?**Most constrained variable**• Most constrained variable: choose the variable with the fewest legal values • a.k.a. minimum remaining values (MRV) heuristic**Most constraining variable**• Tie-breaker among most constrained variables • Most constraining variable: • choose the variable with the most constraints on remaining variables**Least constraining value**• Given a variable, choose the least constraining value: • the one that rules out the fewest values in the remaining variables • Combining these heuristics makes 1000 queens feasible**Forward checking**• Idea: • Keep track of remaining legal values for unassigned variables • Terminate search when any variable has no legal values**Forward checking**• Idea: • Keep track of remaining legal values for unassigned variables • Terminate search when any variable has no legal values**Forward checking**• Idea: • Keep track of remaining legal values for unassigned variables • Terminate search when any variable has no legal values**Forward checking**• Idea: • Keep track of remaining legal values for unassigned variables • Terminate search when any variable has no legal values**Constraint propagation**• Forward checking propagates information from assigned to unassigned variables, but doesn't provide early detection for all failures: • NT and SA cannot both be blue! • Constraint propagation repeatedly enforces constraints locally**Arc consistency**• Simplest form of propagation makes each arc consistent • X Y is consistent iff for every value x of X there is some allowed y**Arc consistency**• Simplest form of propagation makes each arc consistent • X Y is consistent iff for every value x of X there is some allowed y**Arc consistency**• Simplest form of propagation makes each arc consistent • X Y is consistent iff for every value x of X there is some allowed y • If X loses a value, neighbors of X need to be rechecked**Arc consistency**• Simplest form of propagation makes each arc consistent • X Y is consistent iff for every value x of X there is some allowed y • If X loses a value, neighbors of X need to be rechecked • Arc consistency detects failure earlier than forward checking • Can be run as a preprocessor or after each assignment**Arc consistency algorithm AC-3**• Time complexity: O(n2d3)**X1**1 2 3 X2 X3 4 5 X4 X5 Variables: X1 X2 X3 X4 X5 Domains: D1 = {hoses, laser, sheet, snail,steer} D2 = {hike, aron, keet, earn, same} D3 = {run, sun, let, yes, eat, ten} D4 = {hike, aron, keet, earn, same} D5 = {no, be, us, it} Constraints (explicit/extensional): C12 = {(hoses,same), (laser,same), (sheet,earn), (steer,earn)} C13 = ...**1**2 3 4 5 Constraint propagation: XWORD example X1 X2 X4 hoses hike hike laser aron aron sheet keet keet snail earn earn steer same same**K-consistency**• Arc consistency does not detect all inconsistencies: • Partial assignment {WA=red, NSW=red} is inconsistent. • Stronger forms of propagation can be defined using the notion of k-consistency. • A CSP is k-consistent if for any set of k-1 variables and for any consistent assignment to those variables, a consistent value can always be assigned to any kth variable. • E.g. 1-consistency or node-consistency • E.g. 2-consistency or arc-consistency • E.g. 3-consistency or path-consistency**Strong K-consistency**• A CSP (as a hyrpergraph) is strongly k-consistent if • It is k-consistent and • Is also (k-1) consistent, (k-2) consistent, … all the way down to 1-consistent. • This is ideal if we have an easy way to check strong k-consistency, since a solution can be found in time O(nd). • That is, for any CSP that is strongly K-consistent, if we find an appropriate variable ordering (one with “small enough” branching factor), we can solve the CSP without backtracking • YET no free lunch: any algorithm for establishing n-consistency must take time exponential in n, in the worst case.**Example: K-consistency**• C: w {1,2,3,4} x { 2,3,4} y { 2,3,4} z { 2,3,4} • P: all_different(w,x,y,z) • Arc Consistency: After w = 2 (or 3, 4), and x = 3 (or 4), AC3 will detect a conflict. • 3-Consistency: After w = 2 (or 3, 4), it will detect a conflict. • 4-Consistency: 2,3,4 will be removed from domain(w).**The Sudoku Puzzle**• Number place • Main properties • NP-complete [Yato 03] • Well-formed Sudoku: has 1 solution [Simonis 05] • Minimal Sudoku • In a 9x9 Sudoku: smallest known number of givens is 17 [Royle] • Symmetrical puzzles • Many axes of symmetry • Position of the givens, not their values • Often makes the puzzle non-minimal • Level of difficulties • Varied ranking systems exist • Mimimality and difficulty not related #15 on Royle’s web site**Sudoku as a CSP (9x9 puzzles)**• Variables are the cells • Domains are sets {1,…,9} • Two models • Binary constraints: 810 all-different binary constraint between variables • Non-binary constraints: 27 all-different 9-ary constraints**Solving Sudoku as a CSP**• Search • Builds solutions by enumerating consistent combinations • Constraint propagation • Removes values that do not appear in a solution • Example, arc-consistency:**Search**• Backtrack search • Systematically enumerate solutions by instantiating one variable after another • Backtracks when a constraint is broken • Is sound and complete (guaranteed to find solution if one exists) • Propagation • Cleans up domain of ‘future’ variables, during search, given current instantiations • Forward Checking (FC): weak form of arc-consistency • Maintaining Arc-Consistency (MAC): arc-consistency**Forward Checking (FC)**• Forward Checking on the binary constraints**Maintaining Arc-Consistency (MAC)**• Arc Consistency on the binary constraints
