kevin s goff 30 seconds of shameless promotion
Kevin S. Goff: 30 seconds of Shameless Promotion
  • Developer/architect since 1987 / Microsoft SQL Server MVP
  • Columnist for CoDe Magazine since 2004
  • Wrote a book, collaborated on a 2nd book
  • Writing a 3rd book on Business Intelligence with SQL Server
  • Frequent speaker for SQL Server/SharePoint community events
  • kgoff@kevinsgoff.net
  • www.KevinSGoff.Net
  • Launching a new SQL/BI weekly webcast/radio show in January 2013

Columnstore index in SQL 2012

my daughter katy 3 years old
My daughter Katy (3 years old)

Columnstore index in SQL 2012

new columnstore index main topics
New columnstore index – Main Topics
  • Overview–what is the columnstore index, who benefits?
  • Characteristics of the columnstore index
  • Applications that will benefit
  • How it differs from traditional row-based indexes
  • Demos
  • New Batch Processing Mode, optimized for performance
  • General usage and syntax
  • Restrictions and issues with the columnstore index
  • Performance charts
  • What’s coming in SQL v.next?

Columnstore index in SQL 2012

1 overview new columnstore index
1. Overview - new columnstoreindex
  • New relational, xVelocity memory-optimized database index in SQL Server 2012, “baked in” to the database engine
  • More and more functionality in DB engine (xVelocity, CDC)
  • Potentially Significant performance enhancements for data warehousing and data mart scenarios – a real game changer
    • (not really for OLTP databases, we’ll see why later)
  • Best for queries that scan/aggregate large sets of data
  • My opinion? One of the coolest things ever in SQL Server
  • In a regular index, all indexed data from each row kept together on single page - data in each column spread across all pages of index
  • In a columnstore index, data from each column is kept together so each data page contains data only from a single column (compressed, more fits in memory, more efficient IO)

Columnstore index in SQL 2012

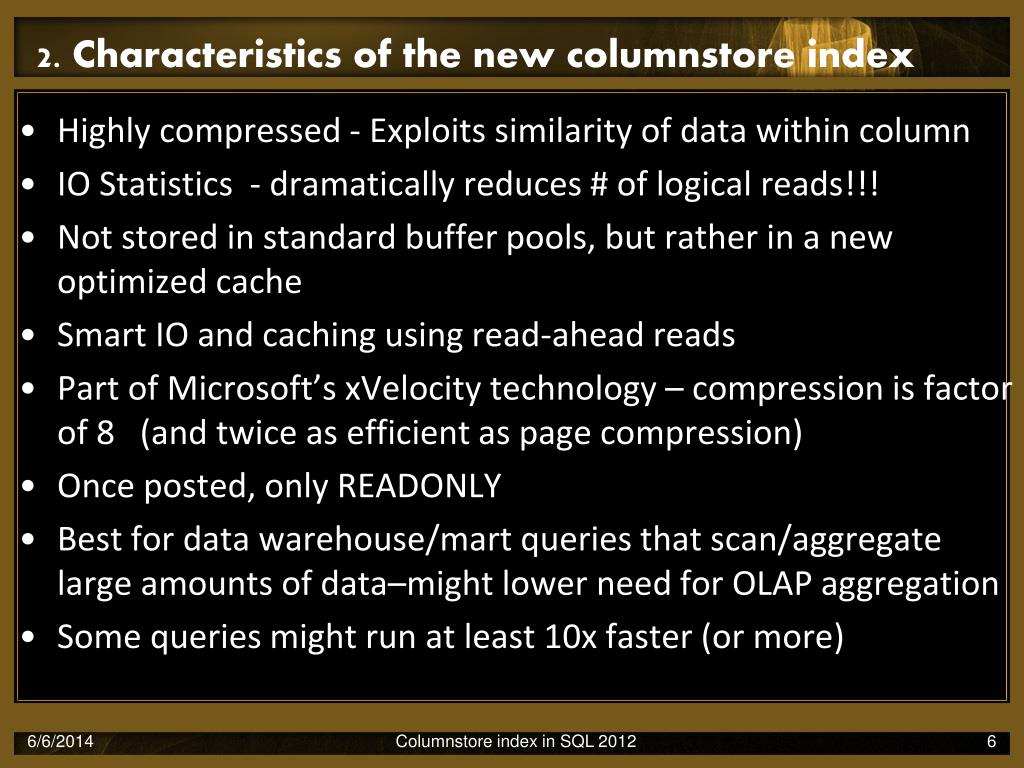

2 characteristics of the new columnstore index
2. Characteristics of the new columnstore index
  • Highly compressed - Exploits similarity of data within column
  • IO Statistics - dramatically reduces # of logical reads!!!
  • Not stored in standard buffer pools, but rather in a new optimized cache
  • Smart IO and caching using read-ahead reads
  • Part of Microsoft’s xVelocity technology – compression is factor of 8 (and twice as efficient as page compression)
  • Once posted, only READONLY
  • Best for data warehouse/mart queries that scan/aggregate large amounts of data–might lower need for OLAP aggregation
  • Some queries might run at least 10x faster (or more)

Columnstore index in SQL 2012

3 areas that might benefit from columnstore index
3. Areas that might benefit from columnstore index
  • Queries and reports against Data Warehouses/Data Marts (works best with Fact/Dimension tables modeled in a star schema)
  • Load from Data Warehouses/Marts into OLAP Cubes
  • SSAS OLAP Databases that use the ROLAP methodology or pass-through mode
  • New Analysis Services Tabular Model uses xVelocity engine
  • Some companies took the release candidate and put into production, simply for this feature (some case studies show queries that went from 17 minutes to 3 seconds!)

Columnstore index in SQL 2012

4 columnstore vs row store index
4. Columnstorevs row store index
  • Columnstore index stores each column in separate set of pages (vs. storing multiple data rows per page)
  • Only columns needed are fetched
  • Easier to compress redundant column data
  • Uses xVelocity found in PowerPivot
  • Improved IO scan/buffer hit rates
  • Segment elimination: each partition is broken into million row segments with metadata for min/max values – segment is not read if query scope does not include min/max values
  • Query will only fetch necessary columns
  • In reality, not “really” an index – more like a compressed “cube”

Columnstore index in SQL 2012

5 columnstore index samples
5. Columnstore index - Samples

Demo uses a table called BigPurchaseOrderHeader

10 million rows

3 indexes –

Clustered index

Columnstore index

Covering index

3 queries to aggregate Orders by Vendor, using the 3 different index definitions

Columnstore index in SQL 2012

5 columnstore index samples1
5. Columnstore index - Samples
  • Columnstore index was 5% of the batch
  • Clustered index was 65% of the batch
  • Covering index (which would have been the best approach prior to SQL Server 2012) was 35% of the batch
  • Time Statistics, 12x faster than covering index, 20x faster than clustered index

Columnstore index in SQL 2012

5 columnstore index samples2
5. Columnstore index - Samples
  • Certain execution plan operators (Hash Match in particular) use new Batch execution mode
  • Reads rows in blocks of 1,000
  • Big performance benefit over row-based execution (later slides will talk about this)

Uses batch mode, blocks of 1000 rows

Columnstore index in SQL 2012

5 columnstore index samples3
5. Columnstore index - Samples
  • Issue w/OUTER JOIN: can’t use directly against table
  • Will “work”, but will use slower row execution mode
  • Must pre-aggregate separately and then do OUTER JOIN (will use batch mode)

Columnstore index in SQL 2012

6 batch processing mode
6. Batch Processing Mode
  • New vector-based query execution method
  • Some of the more expensive operators (Hash Match for joins and aggregations) utilize a new execution mode called Batch Mode (if hash table can fit in memory)
  • Data moves as a batch through query plan operators
  • Batch mode leverages advanced hardware architectures, processor cache, RAM, parallelism
  • Packets of about 1,000 rows are passed between operators, with column data represented in a vector form.
  • Reduces CPU usage over row processing by factor of 10 (from TechNet, sometimes up to factor of 40!)
  • More optimized operators-bitmap filter, filter, compute scalar
  • Remember….a query against a columnstore index “might” use batch mode, but a query against a regular index will not use batch mode

Columnstore index in SQL 2012

7 columnstore index usage
7. Columnstore index: Usage
  • Syntax is simple: use new COLUMNSTORE keyword
  • 1 Columnstore index per table: cannot be clustered
  • Order of columns does not matter
  • Include all columns from table
  • No INCLUDE statement, No ASC/DESC
  • General MS recommendation: if queries will frequently use a certainly column on the predicate, create a clustered index on that column and then create the columnstore index.
    • Even though column store index isn’t “ordered” itself, you’ll get better segment elimination

CREATE NONCLUSTERED COLUMNSTOREINDEX [IX_BPO_ColumnStore]

ON [BigPurchaseOrderHeader]

(VendorID, OrderDate, TotalDue)

Columnstore index in SQL 2012

8 columnstore index restrictions
8. Columnstore index: Restrictions
  • Cannot be clustered, cannot be created against a view
  • Cannot act as a PK or FK, cannot include sparse columns
  • Can’t work on tables with Change Data Capture/Change Tracking or FileStream, can’t participate in replication, nor when page/row compression exists
  • Cannot be used with certain data types, such as binary, text/image, rowversion/timestamp, CLR data types (hierarchyID/spatial), nor with data types created with MAX keyword…e.g. varchar(max
  • Cannot be modified with ALTER – must be dropped and recreated
  • It’s a read-only index - cannot insert rows and expect columnstore index to be maintained.

Columnstore index in SQL 2012

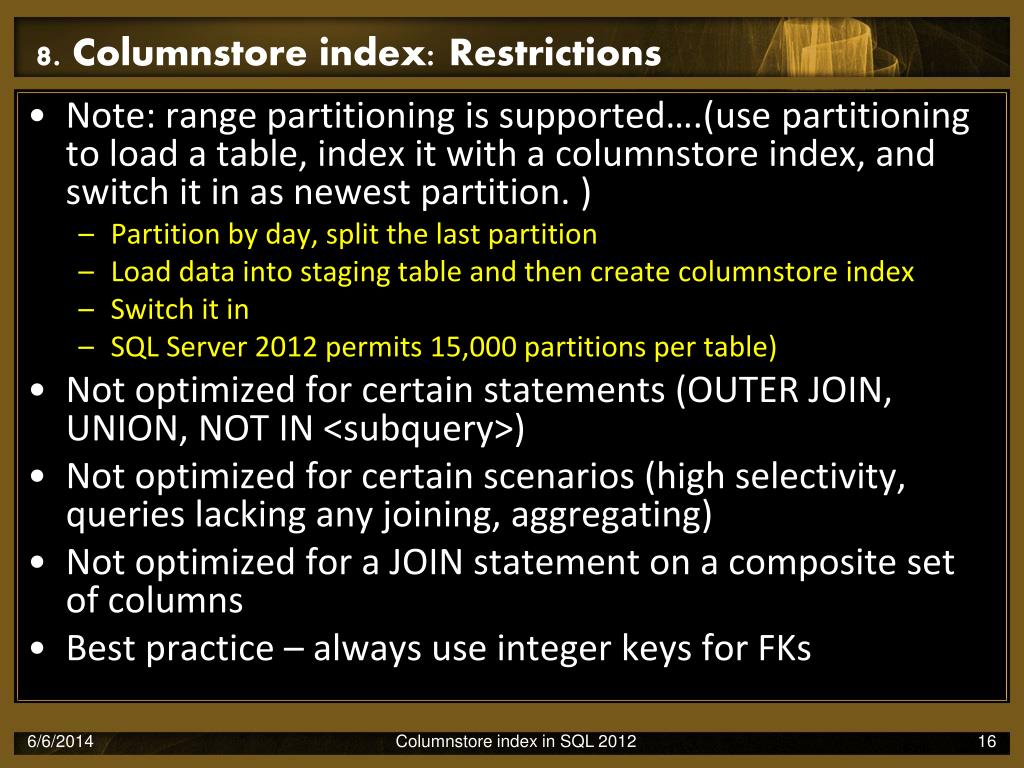

8 columnstore index restrictions1
8. Columnstore index: Restrictions
  • Note: range partitioning is supported….(use partitioning to load a table, index it with a columnstore index, and switch it in as newest partition. )
    • Partition by day, split the last partition
    • Load data into staging table and then create columnstore index
    • Switch it in
    • SQL Server 2012 permits 15,000 partitions per table)
  • Not optimized for certain statements (OUTER JOIN, UNION, NOT IN <subquery>)
  • Not optimized for certain scenarios (high selectivity, queries lacking any joining, aggregating)
  • Not optimized for a JOIN statement on a composite set of columns
  • Best practice – always use integer keys for FKs

Columnstore index in SQL 2012

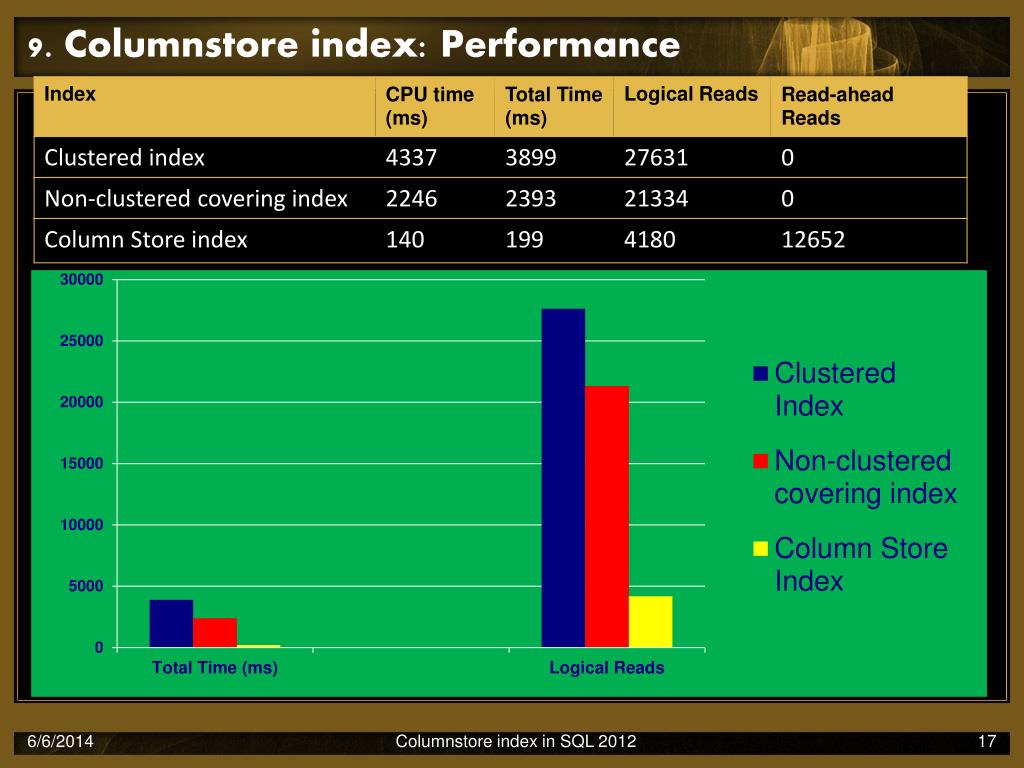

9 columnstore index performance
9. Columnstore index: Performance

Columnstore index in SQL 2012

10 next version of sql server
10. Next version of SQL Server
  • Columnstore indexes will be updatable!!!
    • No longer a readonly index
  • Will be able to create a columnstore index as a clustered index
  • Not related directly to columnstore index, but next major version of SQL Server will have a new in-memory row store for OLTP databases (codename “Hekaton”)

Columnstore index in SQL 2012

recommended reading
Recommended reading
  • I’ve written some articles in CoDe Magazine on SQL 2012
    • 2 part series on Columnstore index, T-SQL Features, and SSIS Features
      • http://code-magazine.com/articleprint.aspx?quickid=1203051&printmode=true
      • http://code-magazine.com/articleprint.aspx?quickid=1206021&printmode=true
    • Look for more articles on SQL 2012 later in the year
  • I ran a 13 part webinar series on new features in SQL 2012
    • Link to the recordings
  • Some outstanding new books on SQL 2012:
