  1. 13-2 General Angles and Radian Measure

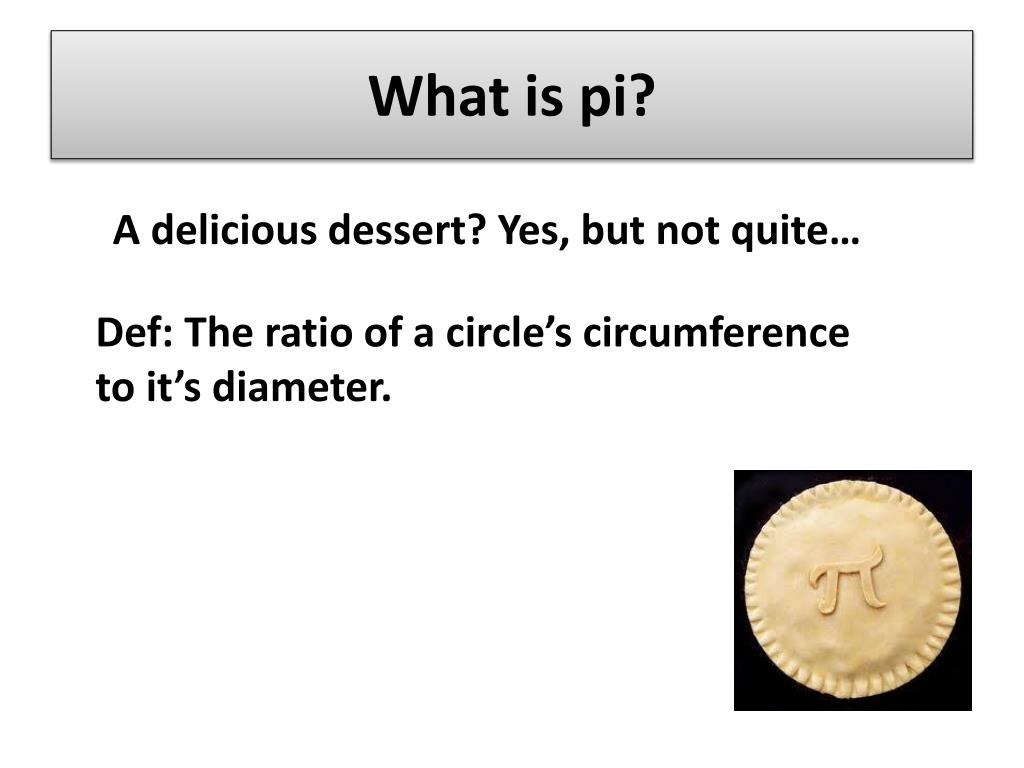

  2. What is pi? A delicious dessert? Yes, but not quite… Def: The ratio of a circle’s circumference to it’s diameter.

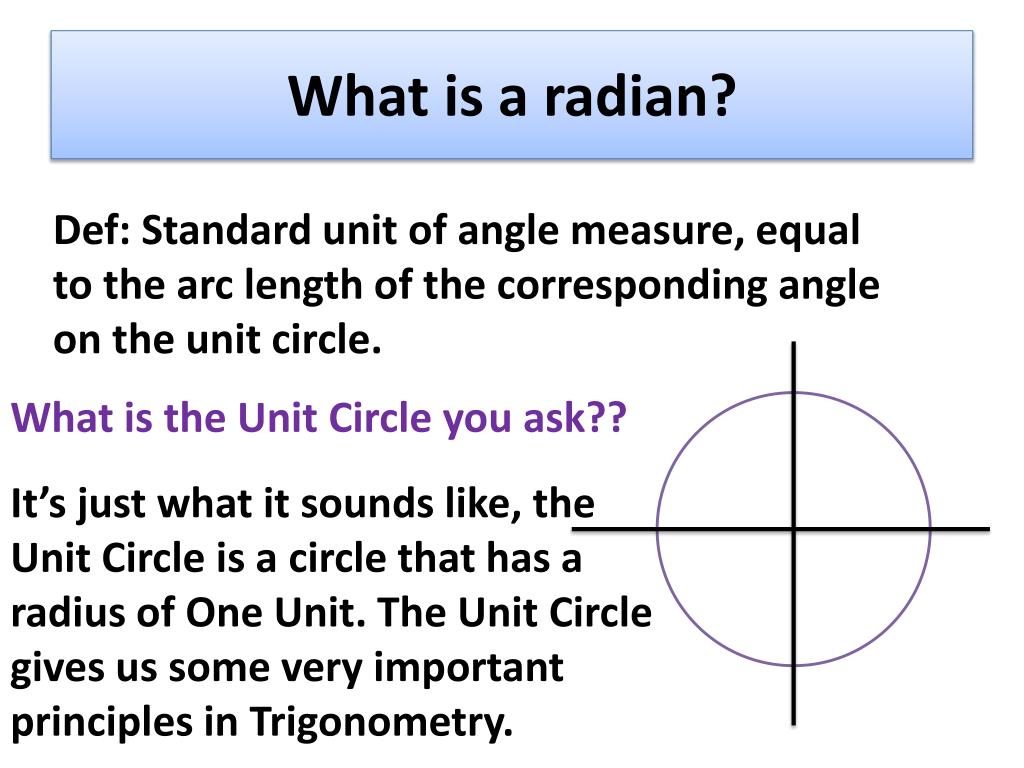

  3. What is a radian? Def: Standard unit of angle measure, equal to the arc length of the corresponding angle on the unit circle. What is the Unit Circle you ask?? It’s just what it sounds like, the Unit Circle is a circle that has a radius of One Unit. The Unit Circle gives us some very important principles in Trigonometry.

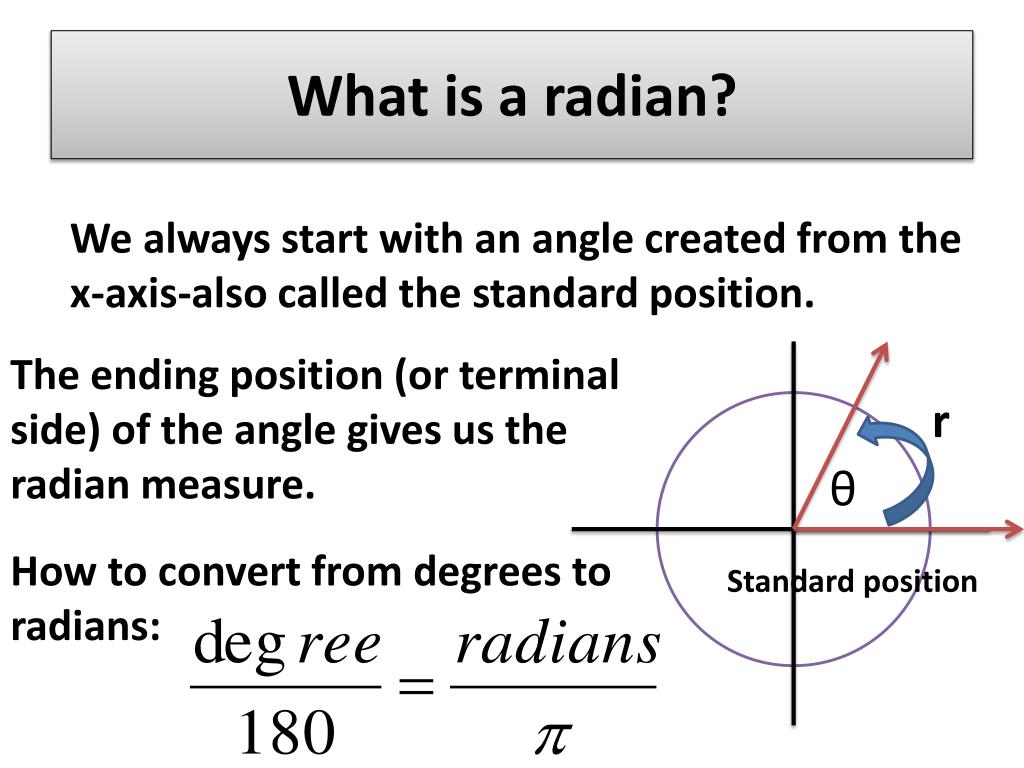

  4. What is a radian? We always start with an angle created from the x-axis-also called the standard position. The ending position (or terminal side) of the angle gives us the radian measure. r θ How to convert from degrees to radians: Standard position

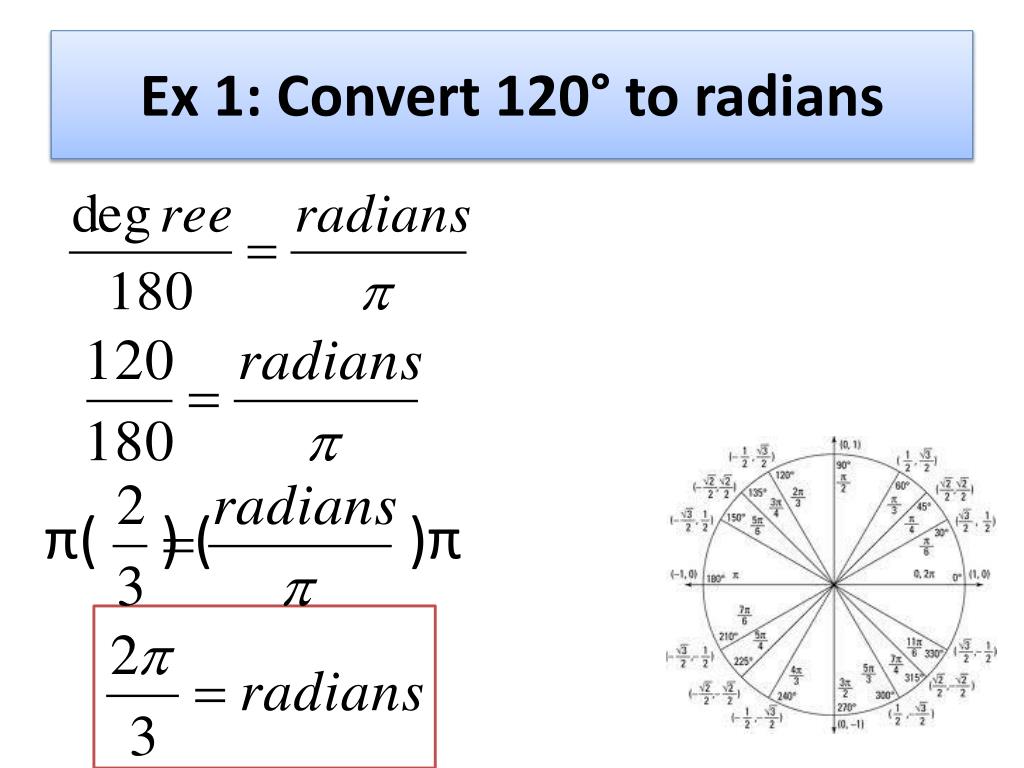

  5. Ex 1: Convert 120° to radians π( ) ( )π

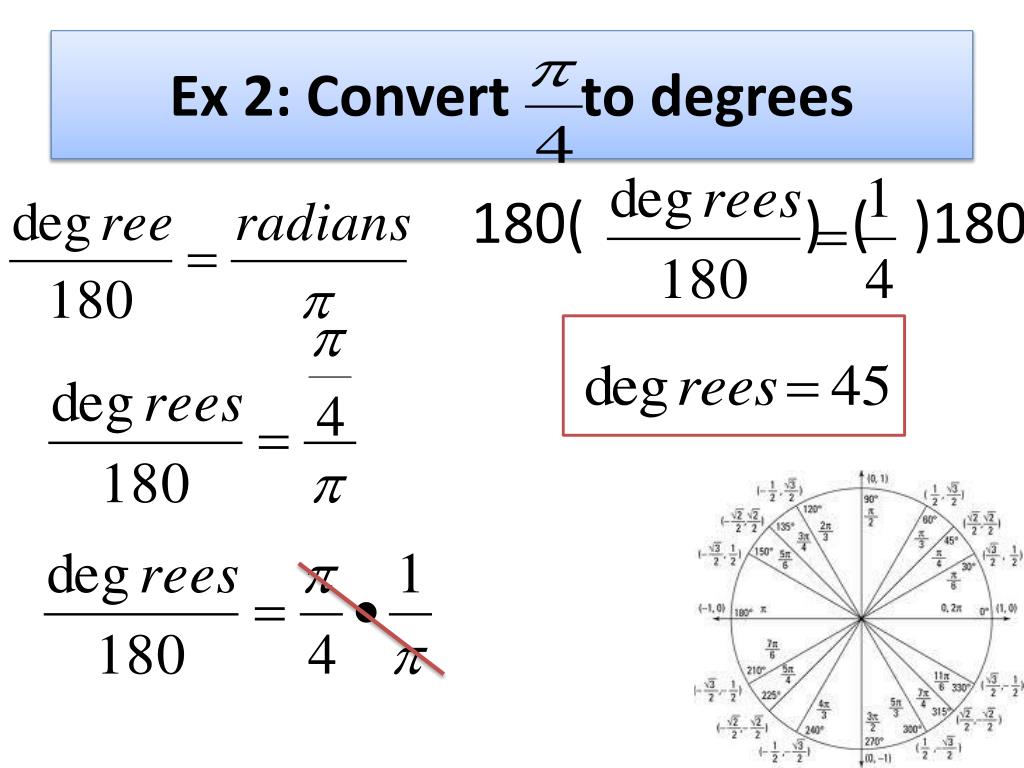

  6. Ex 2: Convert to degrees 180( ) ( )180

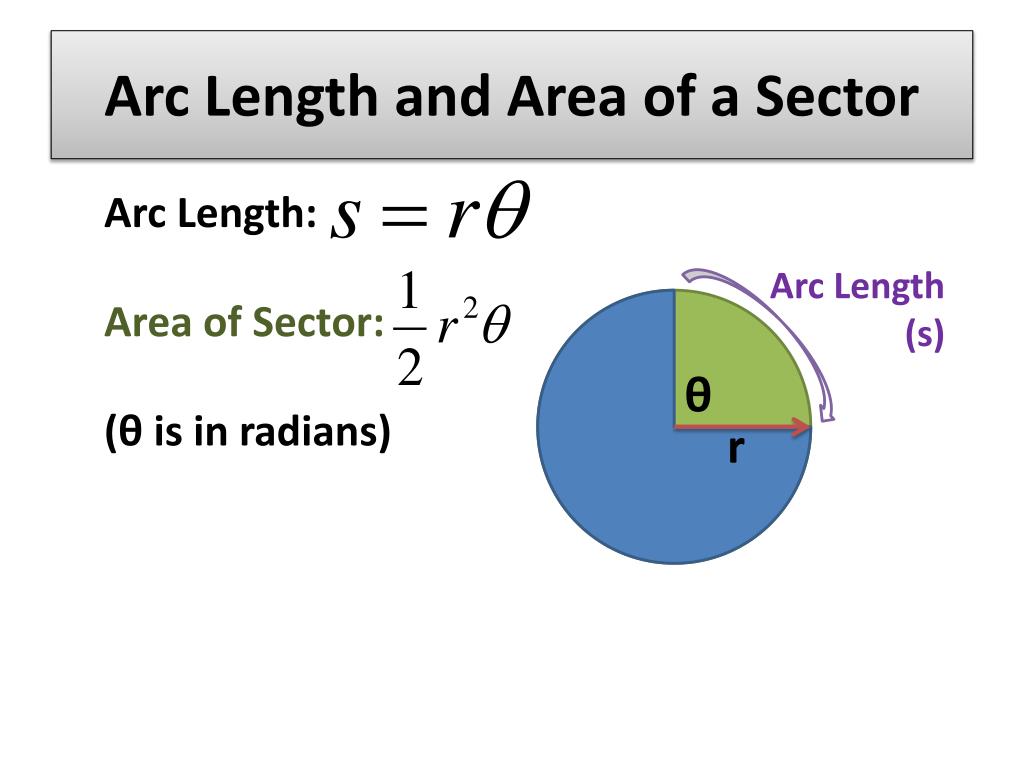

  7. Arc Length and Area of a Sector Arc Length: Area of Sector: (θ is in radians) Arc Length (s) θ r

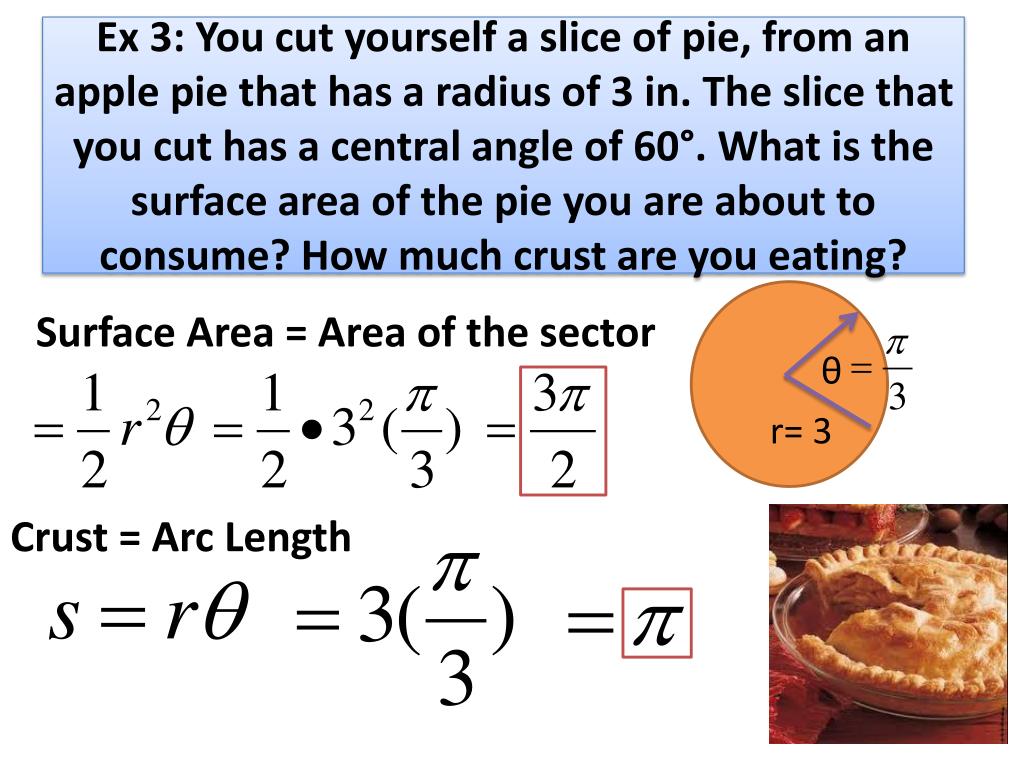

  8. Ex 3: You cut yourself a slice of pie, from an apple pie that has a radius of 3 in. The slice that you cut has a central angle of 60°. What is the surface area of the pie you are about to consume? How much crust are you eating? Surface Area = Area of the sector θ r= 3 Crust = Arc Length

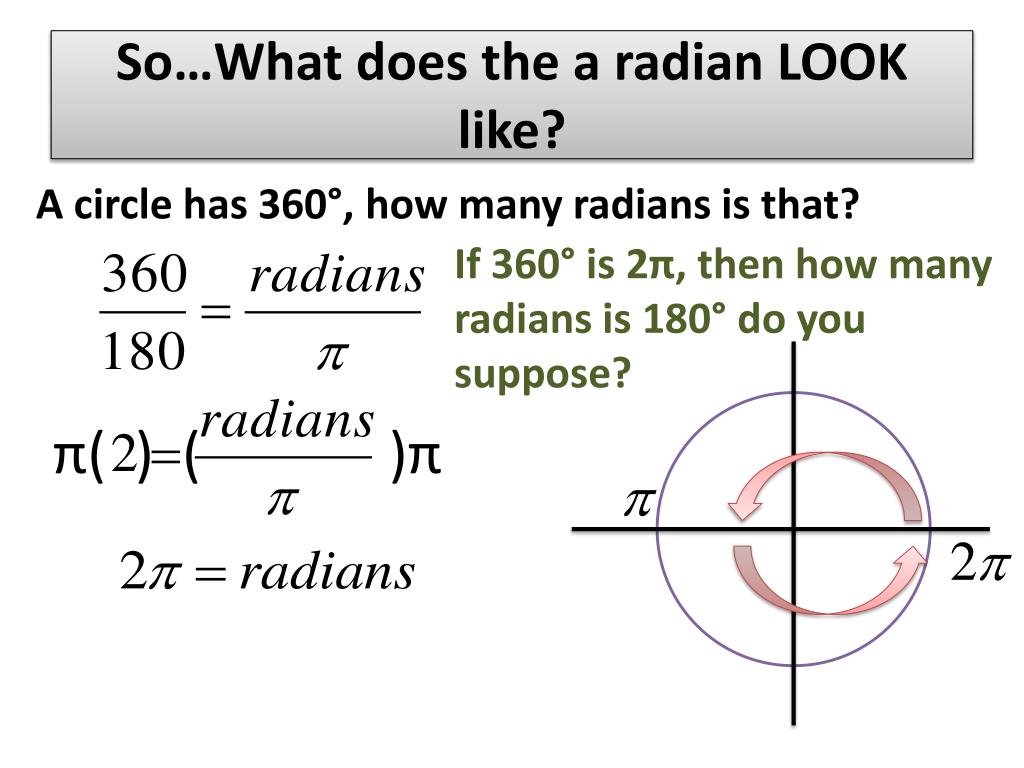

  9. So…What does the a radian LOOK like? A circle has 360°, how many radians is that? If 360° is 2π, then how many radians is 180° do you suppose? π( ) ( )π

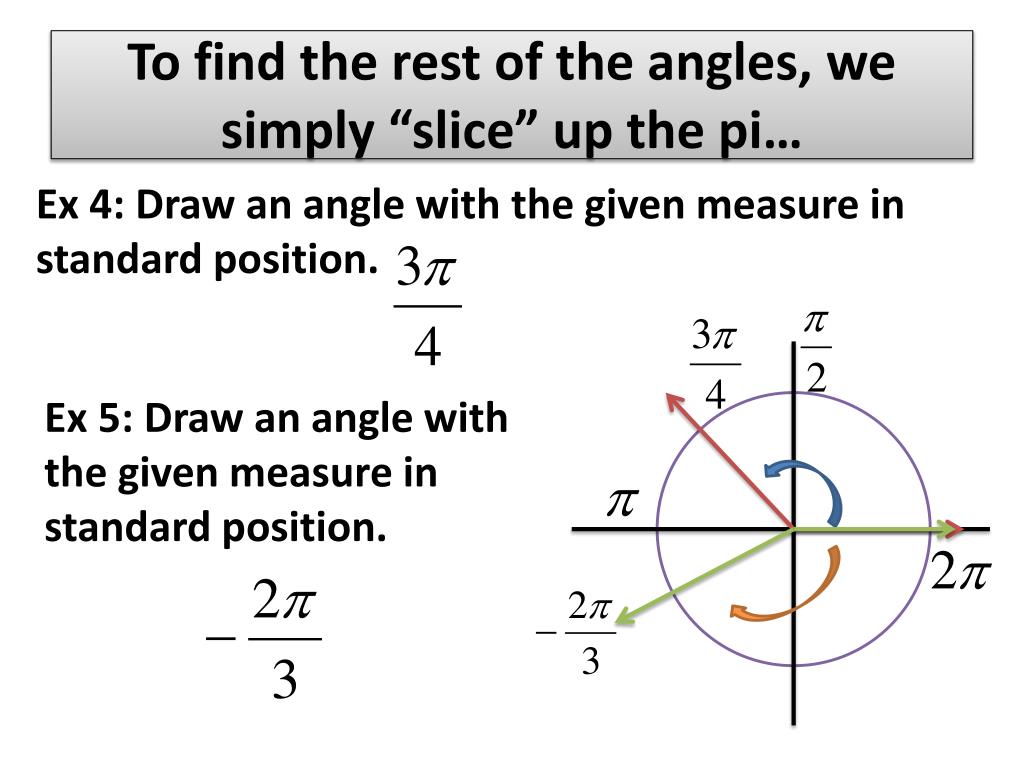

  10. To find the rest of the angles, we simply “slice” up the pi… Ex 4: Draw an angle with the given measure in standard position. Ex 5: Draw an angle with the given measure in standard position.

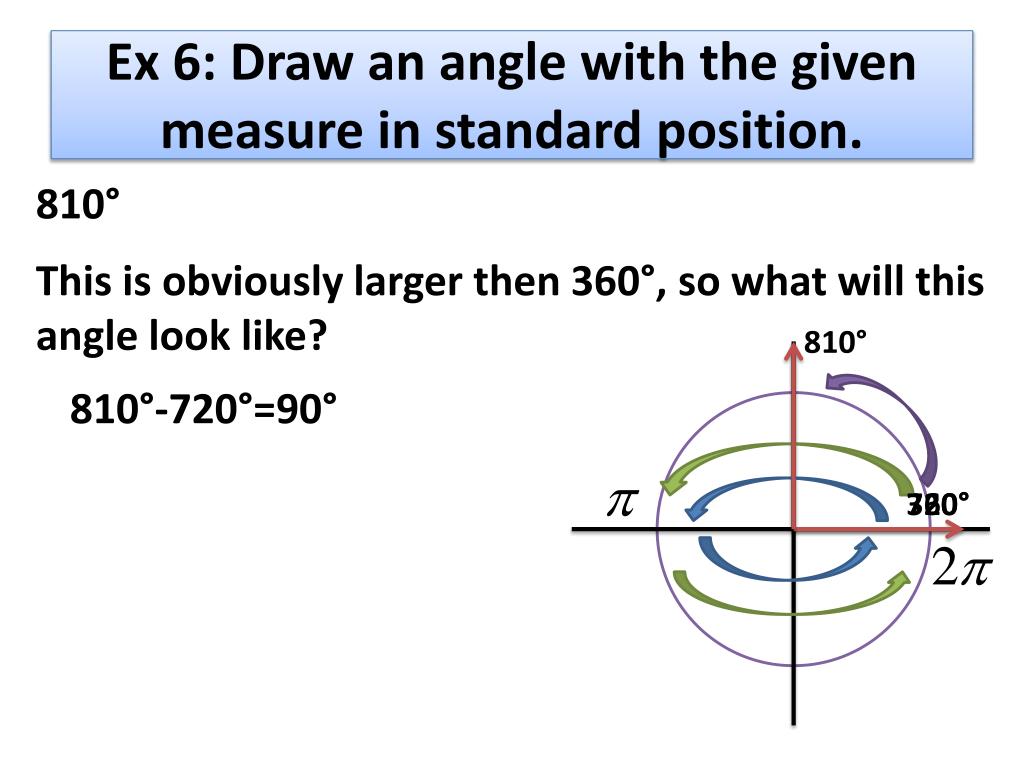

  11. Ex 6: Draw an angle with the given measure in standard position. 810° This is obviously larger then 360°, so what will this angle look like? 810° 810°-720°=90° 360° 720°

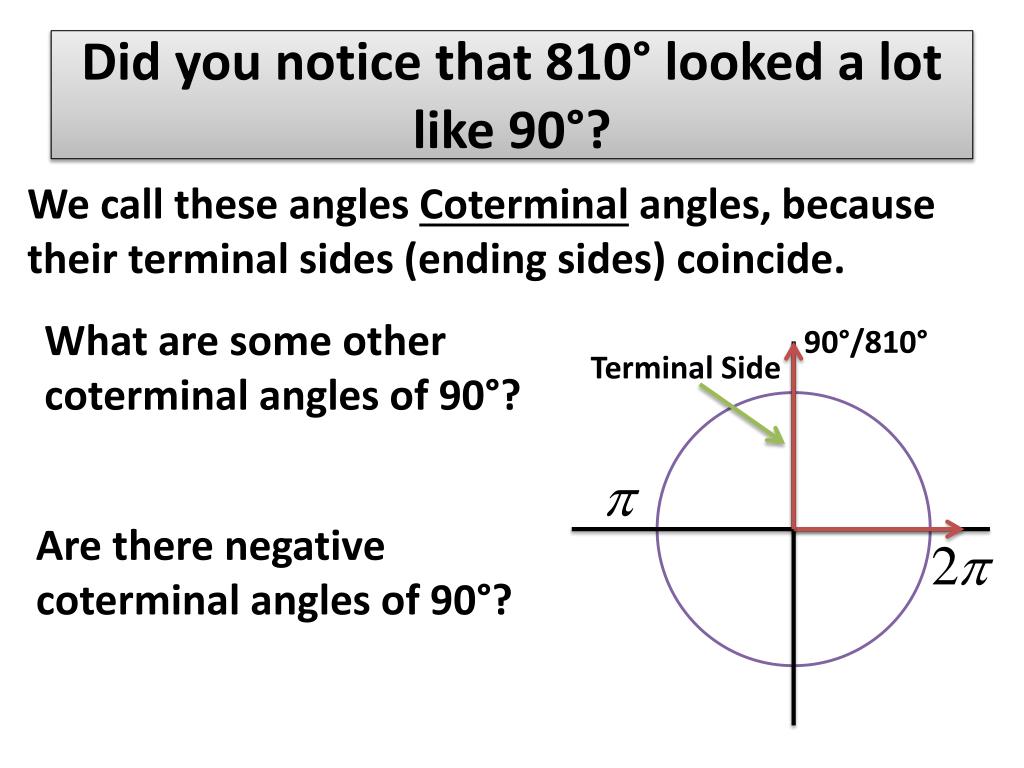

  12. Did you notice that 810° looked a lot like 90°? We call these angles Coterminal angles, because their terminal sides (ending sides) coincide. What are some other coterminal angles of 90°? 90°/810° Terminal Side Are there negative coterminal angles of 90°?
